Hyundai i40
Date of manufacture
2011 – 2015 (Sedan)
2011 – 2015 (Estate)
Platform
-
Manufacturing locations
Ulsan, South Korea
Designer
Thomas Bürkle
Tags
D-segment
Korean cars
The Hyundai i40 is a modern car that has been manufactured since 2011. This vehicle is available in two versions - sedan and estate. Its homeland is South Korea. The engine range includes both petrol and diesel engines. The most powerful version is the 2.0 GDI with a maximum power of 131 kW, which allows it to reach a top speed of 213 km/h and accelerate from 0-100 km/h in 9.5 seconds. The most economical version is the 1.7 CRDi VGT ISG with a combined consumption of 4.3 l/100 km and CO2 emissions of 113 g/km. The sedan's luggage compartment has a capacity of 525 liters, and the estate 553 liters. The safety of the car was tested by the EURONCAP methodology in 2011 and received a rating of 5 out of 5 points.
Car body style

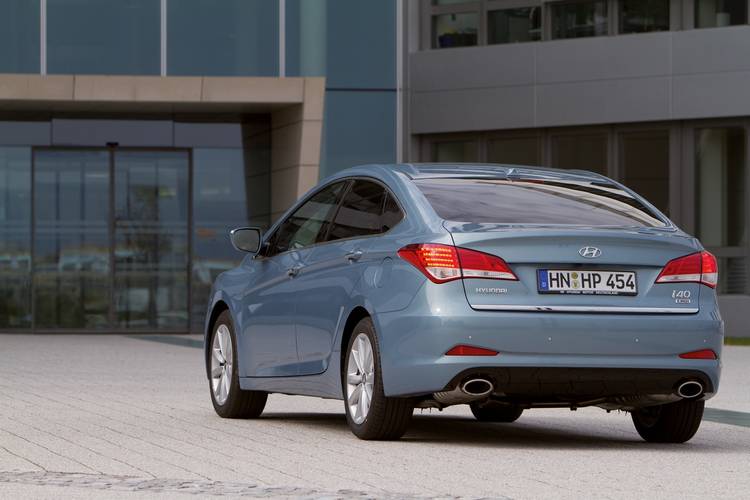

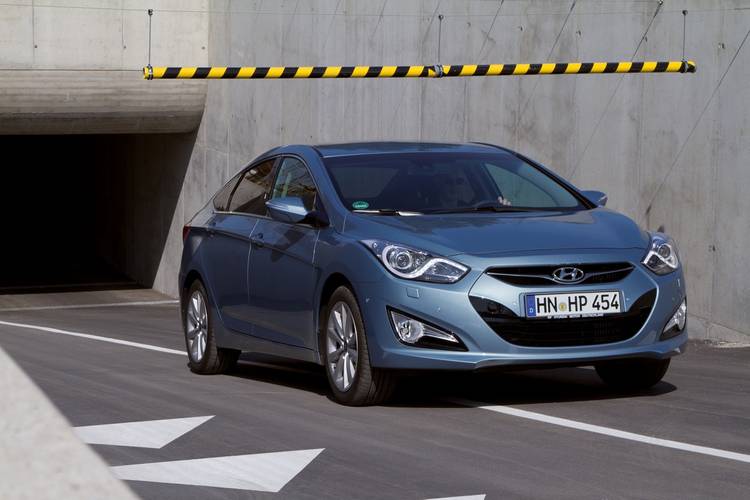

Sedan
Date of manufacture
2011 – 2015Internal designation
VFEstate
Date of manufacture
2011 – 2015Internal designation
VF
Technical data
Sedan
| 1.6 GDI | 1.6 GDI ISG | 2.0 GDI | 2.0 GDI | 1.7 CRDi VGT | 1.7 CRDi VGT ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1591 | 1591 | 1999 | 1999 | 1685 | 1685 |
| Maximum output / speed [kW/min-1] | 99/6300 | 99/6300 | 131/6500 | 131/6500 | 85/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 165/4850 | 165/4850 | 214/4700 | 214/4700 | 260/1250-2750 | 260/1250-2750 |
| Bore and stroke [mm x mm] | 77,0 x 85,44 | 77,0 x 85,44 | 81,0 x 97,0 | 81,0 x 97,0 | 77,2 x 90,0 | 77,2 x 90,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,5:1 | 11,5:1 | 17,0:1 | 17,0:1 |
| Oil volume [l] | 3.3 | 3.3 | 4.0 | 4.0 | 5.3 | 5.3 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 197 | 197 | 213 | 211 | 192 | 192 |
| Acceleration 0–100 km/h [s] | 11.1 | 11.1 | 9.5 | 10.0 | 12.3 | 12.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0 | 7.6 | 9.0 | 10.4 | 5.5 | 5.3 |
| Out of town [l] | 5.4 | 5.1 | 5.6 | 5.9 | 4.2 | 3.7 |
| Combined [l] | 6.4 | 6.0 | 6.8 | 7.5 | 4.6 | 4.3 |
| CO2 emissions [g/km] | 149 | 140 | 159 | 176 | 122 | 113 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | 72 | 72 |
| Driving noise [dB] | - | - | - | - | 71 | 71 |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | - | - |
| Range with fully charged battery [km] | 73 | 73 | 73 | 72 | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | 79 | 79 | 81 | 76 | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1447-1530 | 1447-1530 | 1493-1612 | 1513-1632 | 1548-1676 | 1548-1676 |
| Overall weight [kg] | 1980 | 1980 | 2000 | 2030 | 2080 | 2080 |
| Maximum trailer weight unbraked/braked [kg] | 600/1300 | 600/1300 | 700/1500 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | 1200/1150 | 1200/1150 | 1200/1150 | 1200/1150 | 1200/1150 | 1200/1150 |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 70 | 70 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 525 | 525 | 525 | 525 | 525 | 525 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | 300 | 300 | 320 | 320 | 320 | 320 |
| Brake dimensions rear | 284 | 284 | 300 | 300 | 300 | 300 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.94/- | 10.94/- | 10.94/- | 10.94/- | 10.94/- | 10.94/- |
| Overall length [mm] | 4740 | 4740 | 4740 | 4740 | 4740 | 4740 |
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- |
| Overall height [mm] | 1470 | 1470 | 1470 | 1470 | 1470 | 1470 |
| Wheelbase [mm] | 2770 | 2770 | 2770 | 2770 | 2770 | 2770 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1591 | 1591 |
| Rear wheel track [mm] | 1597 | 1597 | 1597 | 1597 | 1597 | 1597 |
| Forward overhang [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Rear overhang [mm] | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Front elbow/shoulder width [mm] | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 |
| Rear elbow/shoulder width [mm] | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.7 CRDi VGT | 1.7 CRDi VGT ISG | 1.7 CRDi VGT | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1685 | 1685 | 1685 | |||
| Maximum output / speed [kW/min-1] | 100/4000 | 100/4000 | 100/4000 | |||
| Maximum torque [Nm/min-1] | 330/2000-2500 | 330/2000-2500 | 320/2000-2500 | |||
| Bore and stroke [mm x mm] | 77,2 x 90,0 | 77,2 x 90,0 | 77,2 x 90,0 | |||
| Compression ratio | 17,0:1 | 17,0:1 | 17,0:1 | |||
| Oil volume [l] | 5.3 | 5.3 | 5.3 | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | |||
| Drive specifications | - | - |
| |||
| Top speed [km/h] | 201 | 201 | 197 | |||
| Acceleration 0–100 km/h [s] | 10.3 | 10.3 | 11.6 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.5 | 5.3 | 7.2 | |||
| Out of town [l] | 4.3 | 4.1 | 4.8 | |||
| Combined [l] | 4.7 | 4.5 | 5.6 | |||
| CO2 emissions [g/km] | 124 | 119 | 149 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | 72 | 72 | 72 | |||
| Driving noise [dB] | 70 | 70 | 70 | |||
| Standby weight [kg] | 1557-1685 | 1557-1685 | 1576-1695 | |||
| Overall weight [kg] | 2080 | 2080 | 2100 | |||
| Maximum trailer weight unbraked/braked [kg] | 700/1800 | 700/1800 | 700/1500 | |||
| Maximum front/rear axle load [kg] | 1200/1150 | 1200/1150 | 1200/1150 | |||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 70 | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 525 | 525 | 525 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 4 | 4 | 4 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 70 | 70 | 70 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | |||
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | |||
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | |||
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | |||
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | |||
| Brake dimensions front | 320 | 320 | 320 | |||
| Brake dimensions rear | 300 | 300 | 300 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.94/- | 10.94/- | 10.94/- | |||
| Overall length [mm] | 4740 | 4740 | 4740 | |||
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | |||
| Overall height [mm] | 1470 | 1470 | 1470 | |||
| Wheelbase [mm] | 2770 | 2770 | 2770 | |||
| Front wheel track [mm] | 1591 | 1591 | 1591 | |||
| Rear wheel track [mm] | 1597 | 1597 | 1597 | |||
| Forward overhang [mm] | 920 | 920 | 920 | |||
| Rear overhang [mm] | 1050 | 1050 | 1050 | |||
| Clearance [mm] | 140 | 140 | 140 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1025 | 1025 | 1025 | |||
| Headroom rear [mm] | 965 | 965 | 965 | |||
| Front elbow/shoulder width [mm] | -/1455 | -/1455 | -/1455 | |||
| Rear elbow/shoulder width [mm] | -/1420 | -/1420 | -/1420 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

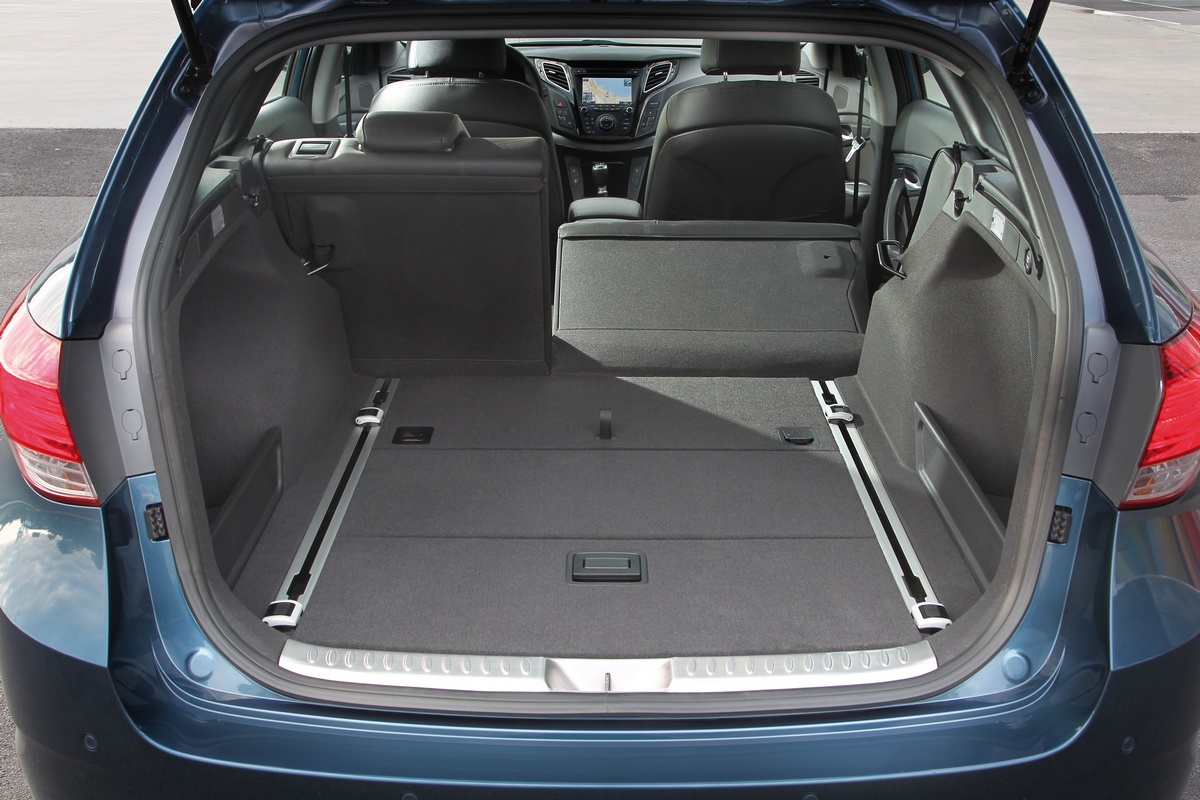

Estate
| 1.6 GDI | 1.6 GDI ISG | 2.0 GDI | 2.0 GDI | 1.7 CRDi VGT | 1.7 CRDi VGT ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1591 | 1591 | 1999 | 1999 | 1685 | 1685 |
| Maximum output / speed [kW/min-1] | 99/6300 | 99/6300 | 131/6500 | 131/6500 | 85/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 165/4850 | 165/4850 | 214/4700 | 214/4700 | 260/1250-2750 | 260/1250-2750 |
| Bore and stroke [mm x mm] | 77,0 x 85,44 | 77,0 x 85,44 | 81,0 x 97,0 | 81,0 x 97,0 | 77,2 x 90,0 | 77,2 x 90,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,5:1 | 11,5:1 | 17,0:1 | 17,0:1 |
| Oil volume [l] | 3.3 | 3.3 | 4.0 | 4.0 | 5.3 | 5.3 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 195 | 195 | 210 | 200 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 11.6 | 11.6 | 9.7 | 10.8 | 12.9 | 12.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0 | 7.6 | 9.0 | 10.4 | 5.5 | 5.3 |
| Out of town [l] | 5.4 | 5.1 | 5.6 | 5.9 | 4.2 | 3.7 |
| Combined [l] | 6.4 | 6.0 | 6.8 | 7.5 | 4.6 | 4.3 |
| CO2 emissions [g/km] | 149 | 140 | 159 | 176 | 122 | 113 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 79 | 79 | 81 | 76 | 76 | 76 |
| Driving noise [dB] | 73 | 73 | 73 | 72 | 72 | 72 |
| Standby weight [kg] | 1470-1609 | 1470-1609 | 1495-1649 | 1516-1670 | 1560-1713 | 1560-1713 |
| Overall weight [kg] | 2030 | 2030 | 2050 | 2080 | 2120 | 2120 |
| Maximum trailer weight unbraked/braked [kg] | 600/1300 | 600/1300 | 700/1500 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | 1200/1150 | 1200/1150 | 1200/1150 | 1200/1150 | 1200/1150 | 1200/1150 |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 70 | 70 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 553 | 553 | 553 | 553 | 553 | 553 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1719 | -/1719 | -/1719 | -/1719 | -/1719 | -/1719 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | 300 | 300 | 320 | 320 | 320 | 320 |
| Brake dimensions rear | 284 | 284 | 300 | 300 | 300 | 300 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.94/- | 10.94/- | 10.94/- | 10.94/- | 10.94/- | 10.94/- |
| Overall length [mm] | 4770 | 4770 | 4770 | 4770 | 4770 | 4770 |
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- |
| Overall height [mm] | 1470 | 1470 | 1470 | 1470 | 1470 | 1470 |
| Wheelbase [mm] | 2770 | 2770 | 2770 | 2770 | 2770 | 2770 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1591 | 1591 |
| Rear wheel track [mm] | 1597 | 1597 | 1597 | 1597 | 1597 | 1597 |
| Forward overhang [mm] | 920 | 920 | 920 | 920 | 920 | 920 |
| Rear overhang [mm] | 1080 | 1080 | 1080 | 1080 | 1080 | 1080 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.7 CRDi VGT | 1.7 CRDi VGT ISG | 1.7 CRDi VGT | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1685 | 1685 | 1685 | |||
| Maximum output / speed [kW/min-1] | 100/4000 | 100/4000 | 100/4000 | |||
| Maximum torque [Nm/min-1] | 330/2000-2500 | 330/2000-2500 | 320/2000-2500 | |||
| Bore and stroke [mm x mm] | 77,2 x 90,0 | 77,2 x 90,0 | 77,2 x 90,0 | |||
| Compression ratio | 17,0:1 | 17,0:1 | 17,0:1 | |||
| Oil volume [l] | 5.3 | 5.3 | 5.3 | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | |||
| Drive specifications | - | - |
| |||
| Top speed [km/h] | 198 | 198 | 190 | |||
| Acceleration 0–100 km/h [s] | 10.6 | 10.6 | 12.0 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.5 | 5.3 | 7.2 | |||
| Out of town [l] | 4.3 | 4.1 | 4.8 | |||
| Combined [l] | 4.7 | 4.5 | 5.6 | |||
| CO2 emissions [g/km] | 124 | 119 | 149 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | 76 | 76 | 76 | |||
| Driving noise [dB] | 72 | 72 | 73 | |||
| Standby weight [kg] | 1570-1723 | 1570-1723 | 1589-1734 | |||
| Overall weight [kg] | 2120 | 2120 | 2150 | |||
| Maximum trailer weight unbraked/braked [kg] | 700/1800 | 700/1800 | 700/1500 | |||
| Maximum front/rear axle load [kg] | 1200/1150 | 1200/1150 | 1200/1150 | |||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 70 | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 553 | 553 | 553 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1719 | -/1719 | -/1719 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 70 | 70 | 70 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | |||
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | |||
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | |||
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | |||
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | |||
| Brake dimensions front | 320 | 320 | 320 | |||
| Brake dimensions rear | 300 | 300 | 300 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.94/- | 10.94/- | 10.94/- | |||
| Overall length [mm] | 4770 | 4770 | 4770 | |||
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | |||
| Overall height [mm] | 1470 | 1470 | 1470 | |||
| Wheelbase [mm] | 2770 | 2770 | 2770 | |||
| Front wheel track [mm] | 1591 | 1591 | 1591 | |||
| Rear wheel track [mm] | 1597 | 1597 | 1597 | |||
| Forward overhang [mm] | 920 | 920 | 920 | |||
| Rear overhang [mm] | 1080 | 1080 | 1080 | |||
| Clearance [mm] | 140 | 140 | 140 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
