Hyundai i30
Date of manufacture
2020 – to this day (Five-door hatchback)
2020 – to this day (Estate)
2020 – to this day (Fastback)
Platform
Hyundai-Kia J6
Manufacturing locations
Nošovice, Czechia
Ulsan, South Korea
Designer
-
Tags
C-segment
Korean cars
The Hyundai i30 is a modern car that has been manufactured since 2020 in a five-door hatchback, estate and fastback version. The vehicle built on the Hyundai-Kia J6 platform offers a wide range of petrol and diesel engines with the highest power output of 117.5 kW from the 1.5 T-GDI 159 Mild Hybrid. This is also the fastest version, reaching a top speed of 210 km/h and the best 0-100 km/h acceleration in 8.4 seconds. The most fuel-efficient model is the 1.0 T-GDI 120 Mild Hybrid with a consumption of 4.5 l/100 km and emissions of 103 g/km. The fastback version has a boot capacity of 450 l, the five-door hatchback has a size of 395 l and the estate offers a capacity of 602 l. The safety of the model has been confirmed by the EURONCAP 2017 tests, where the car scored 5 out of 5.
Car body style

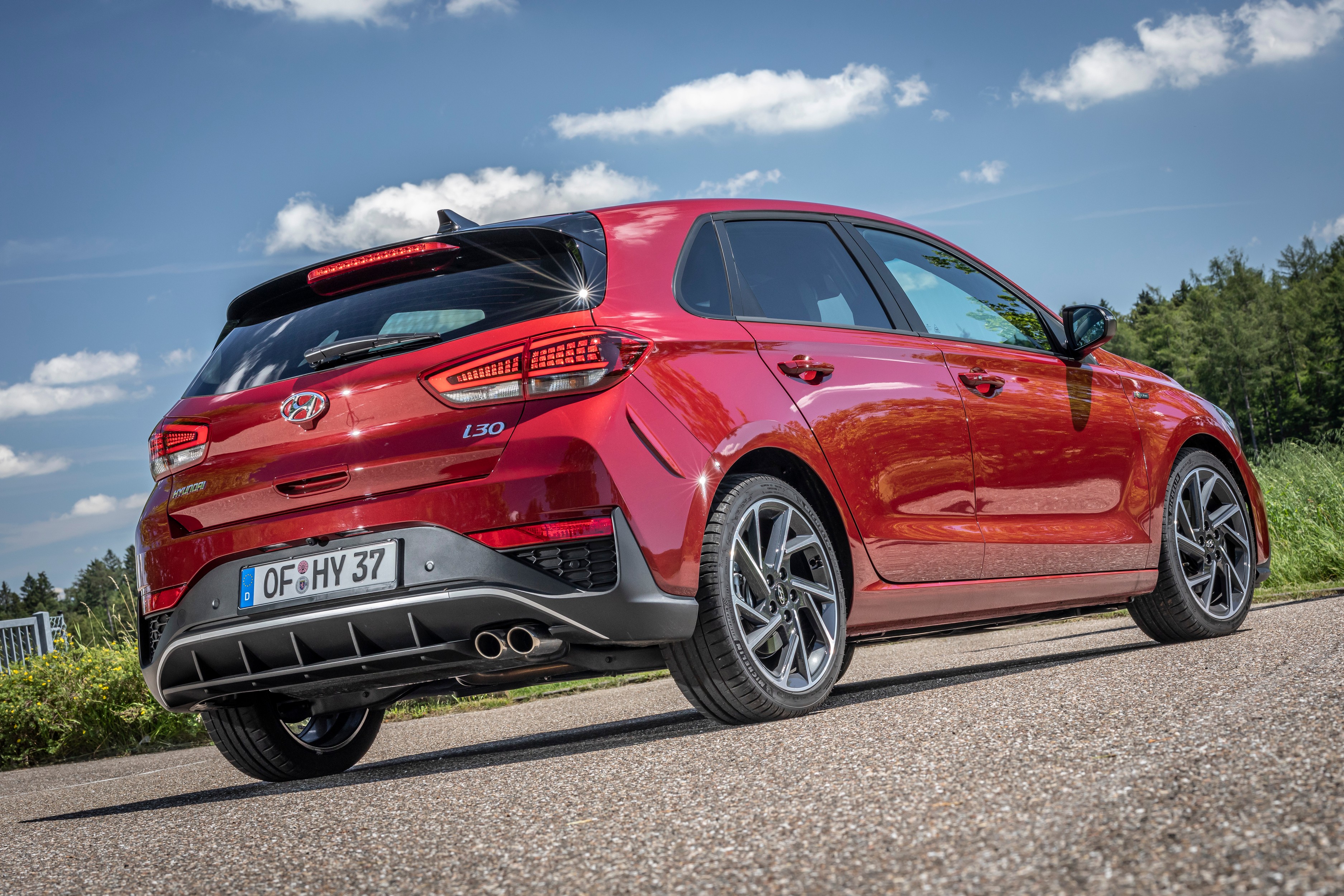

Five-door hatchback
after upgrade (facelift) (II)
Date of manufacture
2020 – to this dayInternal designation

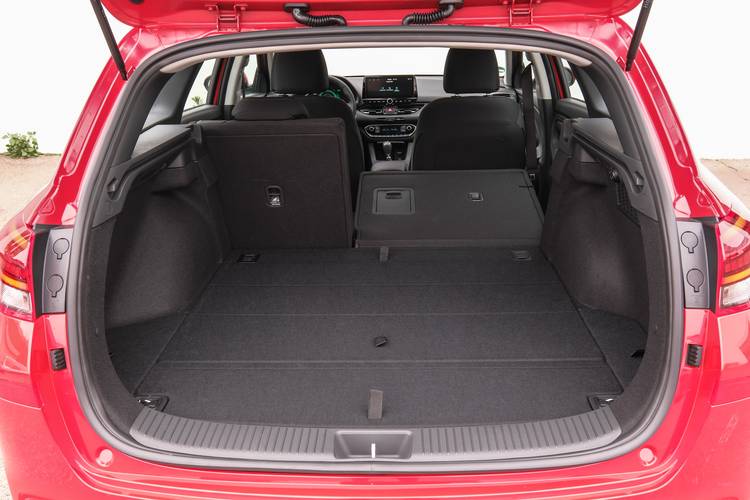

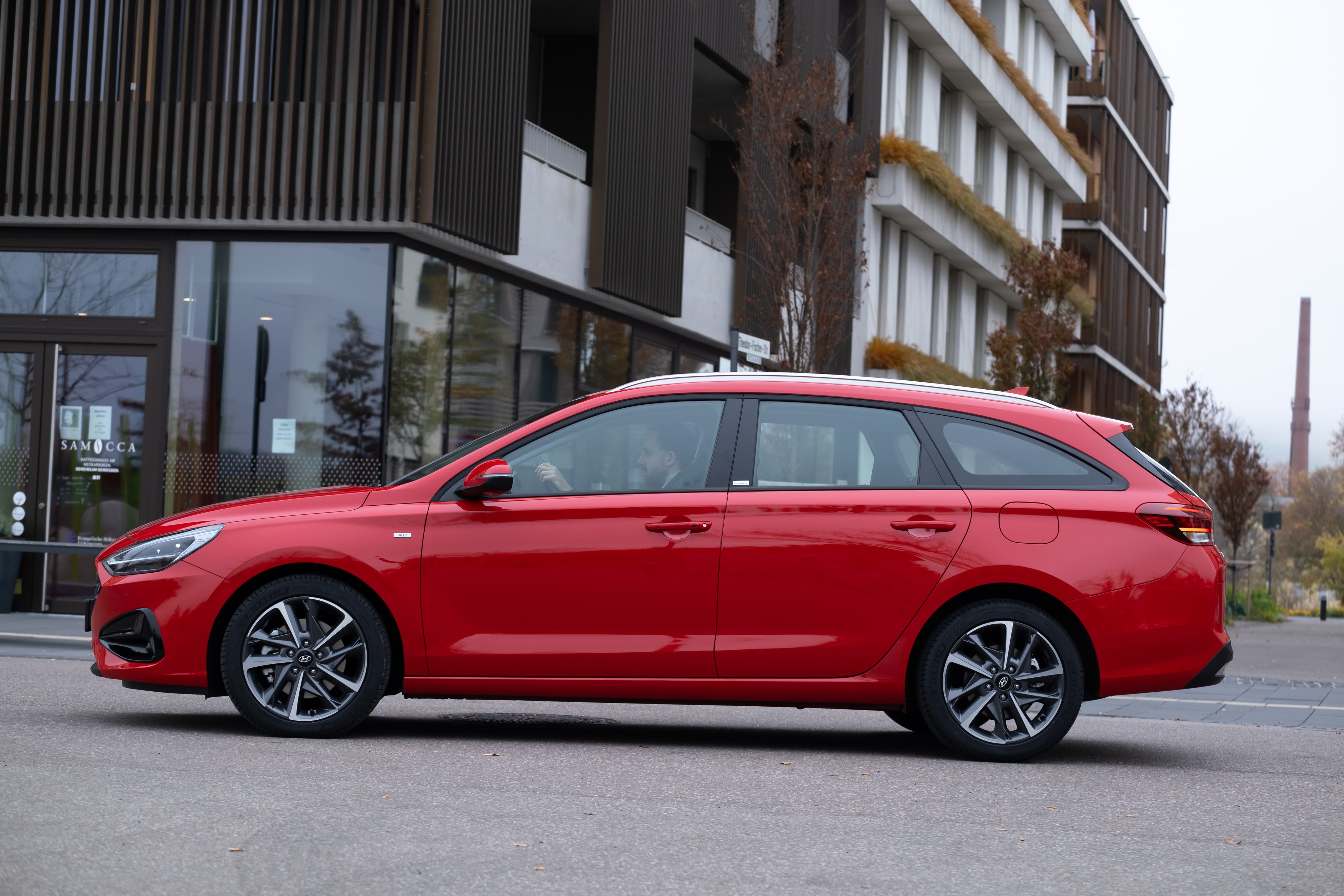

PDEstate
after upgrade (facelift) (II)
Date of manufacture
2020 – to this dayInternal designation
PDFastback
after upgrade (facelift) (II)
Date of manufacture
2020 – to this dayInternal designation
PD
Technical data
Five-door hatchback
| 1.5i 110 | 1.0 T-GDI 120 | 1.0 T-GDI 120 | 1.0 T-GDI 120 Mild Hybrid | 1.0 T-GDI 120 Mild Hybrid | 1.5 T-GDI 159 Mild Hybrid | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1498 | 998 | 998 | 998 | 998 | 1482 |
| Maximum output / speed [kW/min-1] | 80.9/6000 | 88,3/6000 | 88,3/6000 | 88,3/6000 | 88,3/6000 | 117.5/5500 |
| Maximum torque [Nm/min-1] | 144/3500 | 172/1500-4000 | 172/1500-4000 | 172/1500-4000 | 172/1500-4000 | 253/1500-3500 |
| Bore and stroke [mm x mm] | 72.0 x 92.0 | 71.0 x 84.0 | 71.0 x 84.0 | 71.0 x 84.0 | 71.0 x 84.0 | 71.6 x 92.0 |
| Compression ratio | 11.0:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 187 | 196 | 196 | 196 | 196 | 210 |
| Acceleration 0–100 km/h [s] | 12,3 | 11,2 | 11,2 | 11,2 | 11,2 | 8,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,9-7,3 | 5,9-6,3 | 6,2-6,3 | 5,3-5,6 | 5,5-5,9 | 5,7-6,2 |
| Out of town [l] | 4,8-5,2 | 4,2-4,9 | 4,4-4,9 | 4,0-4,7 | 4,3-4,7 | 4,2-5,0 |
| Combined [l] | 5,6-5,9 | 4,9-5,4 | 5,1-5,4 | 4,5-5,0 | 4,7-5,2 | 4,7-5,4 |
| CO2 emissions [g/km] | 127-136 | 111-123 | 116-123 | 103-115 | 108-118 | 108-124 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6.7 | - | - | 6.0 | 6.2 | 6.5 |
| CO2 emissions [g/km] | 153 | - | - | 137 | 140 | 148 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | 48 | 48 | 48 |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1251-1400 | 1291-1440 | 1321-1470 | 1321-1460 | 1351-1490 | 1355-1482 |
| Overall weight [kg] | 1750 | 1800 | 1830 | 1810 | 1840 | 1840 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 500/1000 | 300/700 | 500/1000 | 300/700 | 600/1410 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 395 | 395 | 395 | 395 | 395 | 395 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- |
| Overall length [mm] | 4340 | 4340 | 4340 | 4340 | 4340 | 4340 |
| Overall width without/including mirrors [mm] | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1581 | 1581 | 1581 | 1581 | 1581 | 1581 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 785 | 785 | 785 | 785 | 785 | 785 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 |
| Rear elbow/shoulder width [mm] | -/1406 | -/1406 | -/1406 | -/1406 | -/1406 | -/1406 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| 1.5 T-GDI 159 Mild Hybrid | 1.6 CRDi 115 | 1.6 CRDi 115 | 1.6 CRDi 136 Mild Hybrid | 1.6 CRDi 136 Mild Hybrid | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1482 | 1598 | 1598 | 1598 | 1598 | |
| Maximum output / speed [kW/min-1] | 117.5/5500 | 85/4000 | 85/4000 | 100/4000 | 100/4000 | |
| Maximum torque [Nm/min-1] | 253/1500-3500 | 280/1500-2750 | 280/1500-2750 | 280/1500-3000 | 320/2000-2250 | |
| Bore and stroke [mm x mm] | 71.6 x 92.0 | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 | |
| Compression ratio | 10,5:1 | 15.9:1 | 15.9:1 | 15.9:1 | 15.9:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | |
| Drive specifications |
| - |
| - |
| |
| Top speed [km/h] | 210 | 192 | 192 | 200 | 200 | |
| Acceleration 0–100 km/h [s] | 8,6 | 10,9 | 10,9 | 10,2 | 9,9 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6,0-6,5 | 4,5-4,7 | 4,4 | 4,2-4,3 | 4,3-4,5 | |
| Out of town [l] | 4,4-4,8 | 3,8-4,0 | 3,8-3,9 | 3,7-4,0 | 3,8-4,1 | |
| Combined [l] | 5,0-5,4 | 4,1-4,3 | 4,0-4,1 | 3,9-4,1 | 4,0-4,2 | |
| CO2 emissions [g/km] | 114-124 | 107-112 | 105-107 | 98-103 | 99-104 | |
| Low speed [l] | - | - | - | - | - | |
| Medium speed [l] | - | - | - | - | - | |
| High speed [l] | - | - | - | - | - | |
| Extra high speed [l] | - | - | - | - | - | |
| Combined speed [l] | 6.3 | 5.1 | 4.9 | 5.3 | 5.1 | |
| CO2 emissions [g/km] | 142 | 135 | 137 | 138 | 134 | |
| Emission standard | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | 48 | - | - | 48 | 48 | |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 0.44 kWh | - | - | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | |
| Range with fully charged battery [km] | - | - | - | - | - | |
| Charging time | - | - | - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1387-1514 | 1388-1537 | 1418-1567 | 1418-1538 | 1448-1568 | |
| Overall weight [kg] | 1870 | 1890 | 1920 | 1900 | 1930 | |
| Maximum trailer weight unbraked/braked [kg] | 600/1410 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | |
| Boot volume [l] | 395 | 395 | 395 | 395 | 395 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1301 | -/1301 | -/1301 | -/1301 | -/1301 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | |
| AdBlue tank volume [l] | - | 12 | 12 | 12 | 12 | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- | |
| Overall length [mm] | 4340 | 4340 | 4340 | 4340 | 4340 | |
| Overall width without/including mirrors [mm] | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | |
| Rear wheel track [mm] | 1581 | 1581 | 1581 | 1581 | 1581 | |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | |
| Rear overhang [mm] | 785 | 785 | 785 | 785 | 785 | |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 994 | 994 | 994 | 994 | 994 | |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | |
| Front elbow/shoulder width [mm] | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 | |
| Rear elbow/shoulder width [mm] | -/1406 | -/1406 | -/1406 | -/1406 | -/1406 | |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 |
Estate
| 1.5i 110 | 1.0 T-GDI 120 | 1.0 T-GDI 120 | 1.0 T-GDI 120 Mild Hybrid | 1.0 T-GDI 120 Mild Hybrid | 1.5 T-GDI 159 Mild Hybrid | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1498 | 998 | 998 | 998 | 998 | 1482 |
| Maximum output / speed [kW/min-1] | 80.9/6000 | 88,3/6000 | 88,3/6000 | 88,3/6000 | 88,3/6000 | 117.5/5500 |
| Maximum torque [Nm/min-1] | 144/3500 | 172/1500-4000 | 172/1500-4000 | 172/1500-4000 | 172/1500-4000 | 253/1500-3500 |
| Bore and stroke [mm x mm] | 72.0 x 92.0 | 71.0 x 84.0 | 71.0 x 84.0 | 71.0 x 84.0 | 71.0 x 84.0 | 71.6 x 92.0 |
| Compression ratio | 11.0:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 187 | 196 | 196 | 196 | 196 | 210 |
| Acceleration 0–100 km/h [s] | 12,6 | 11,4 | 11,4 | 11,4 | 11,4 | 8,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,9-7,3 | 5,9-6,3 | 6,2-6,3 | 5,3-5,6 | 5,5-5,9 | 5,7-6,2 |
| Out of town [l] | 4,8-5,2 | 4,2 -4,9 | 4,4-4,9 | 4,0-4,7 | 4,3-4,7 | 4,2-5,0 |
| Combined [l] | 5,6-5,9 | 4,9-5,4 | 5,1-5,4 | 4,5-5,0 | 4,7-5,2 | 4,7-5,4 |
| CO2 emissions [g/km] | 127-136 | 111-123 | 116-123 | 103-115 | 108-118 | 108-124 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6.7 | - | - | 6.0 | 6.2 | 6.5 |
| CO2 emissions [g/km] | 153 | - | - | 137 | 140 | 148 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | 48 | 48 | 48 |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1281-1438 | 1316-1474 | 1346-1504 | 1346-1483 | 1376-1513 | 1382-1519 |
| Overall weight [kg] | 1800 | 1840 | 1870 | 1850 | 1880 | 1870 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 500/1000 | 300/700 | 500/1000 | 300/700 | 600/1410 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 602 | 602 | 602 | 602 | 602 | 602 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1650 | -/1650 | -/1650 | -/1650 | -/1650 | -/1650 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- |
| Overall length [mm] | 4585 | 4585 | 4585 | 4585 | 4585 | 4585 |
| Overall width without/including mirrors [mm] | 1795/2050 | 1795/2050 | 1795/2050 | 1795/2050 | 1795/2050 | 1795/2050 |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1581 | 1581 | 1581 | 1581 | 1581 | 1581 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | -/1426 | -/1426 | -/1426 | -/1426 | -/1426 | -/1426 |
| Rear elbow/shoulder width [mm] | -/1405 | -/1405 | -/1405 | -/1405 | -/1405 | -/1405 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| 1.5 T-GDI 159 Mild Hybrid | 1.6 CRDi 115 | 1.6 CRDi 115 | 1.6 CRDi 136 Mild Hybrid | 1.6 CRDi 136 Mild Hybrid | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1482 | 1598 | 1598 | 1598 | 1598 | |
| Maximum output / speed [kW/min-1] | 117.5/5500 | 85/4000 | 85/4000 | 100/4000 | 100/4000 | |
| Maximum torque [Nm/min-1] | 253/1500-3500 | 280/1500-2750 | 280/1500-2750 | 280/1500-3000 | 320/2000-2250 | |
| Bore and stroke [mm x mm] | 71.6 x 92.0 | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 | 77.0 x 85.8 | |
| Compression ratio | 10,5:1 | 15.9:1 | 15.9:1 | 15.9:1 | 15.9:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | |
| Drive specifications |
| - |
| - |
| |
| Top speed [km/h] | 210 | 192 | 192 | 200 | 200 | |
| Acceleration 0–100 km/h [s] | 8,8 | 11,1 | 11,1 | 10,4 | 10,1 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6,0-6,5 | 4,5-4,7 | 4,4 | 4,2-4,3 | 4,3-4,5 | |
| Out of town [l] | 4,4-4,8 | 3,8-4,0 | 3,8-3,9 | 3,7-4,0 | 3,8-4,1 | |
| Combined [l] | 5,0-5,4 | 4,1-4,3 | 4,0-4,1 | 3,9-4,1 | 4,0-4,2 | |
| CO2 emissions [g/km] | 114-124 | 107-112 | 105-107 | 98-103 | 99-104 | |
| Low speed [l] | - | - | - | - | - | |
| Medium speed [l] | - | - | - | - | - | |
| High speed [l] | - | - | - | - | - | |
| Extra high speed [l] | - | - | - | - | - | |
| Combined speed [l] | 6.3 | 5.1 | 4.9 | 5.3 | 5.1 | |
| CO2 emissions [g/km] | 142 | 135 | 127 | 138 | 134 | |
| Emission standard | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | 48 | - | - | 48 | 48 | |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 0.44 kWh | - | - | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | |
| Range with fully charged battery [km] | - | - | - | - | - | |
| Charging time | - | - | - | - | - | |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1412-1549 | 1415-1573 | 1445-1603 | 1445-1575 | 1475-1606 | |
| Overall weight [kg] | 1900 | 1920 | 1950 | 1930 | 1960 | |
| Maximum trailer weight unbraked/braked [kg] | 600/1410 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | |
| Boot volume [l] | 602 | 602 | 602 | 602 | 602 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1650 | -/1650 | -/1650 | -/1650 | -/1650 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | |
| AdBlue tank volume [l] | - | 12 | 12 | 12 | 12 | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- | |
| Overall length [mm] | 4585 | 4585 | 4585 | 4585 | 4585 | |
| Overall width without/including mirrors [mm] | 1795/2050 | 1795/2050 | 1795/2050 | 1795/2050 | 1795/2050 | |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | |
| Rear wheel track [mm] | 1581 | 1581 | 1581 | 1581 | 1581 | |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | |
| Rear overhang [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | -/1426 | -/1426 | -/1426 | -/1426 | -/1426 | |
| Rear elbow/shoulder width [mm] | -/1405 | -/1405 | -/1405 | -/1405 | -/1405 | |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | |
| Legroom rear knees/total [mm] | -/883 | -/883 | -/883 | -/883 | -/883 |
Fastback
| 1.0 T-GDI 120 | 1.0 T-GDI 120 | 1.0 T-GDI 120 Mild Hybrid | 1.0 T-GDI 120 Mild Hybrid | 1.5 T-GDI 159 Mild Hybrid | 1.5 T-GDI 159 Mild Hybrid | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 998 | 998 | 998 | 998 | 1482 | 1482 |
| Maximum output / speed [kW/min-1] | 88,3/6000 | 88,3/6000 | 88,3/6000 | 88,3/6000 | 117.5/5500 | 117.5/5500 |
| Maximum torque [Nm/min-1] | 172/1500-4000 | 172/1500-4000 | 172/1500-4000 | 172/1500-4000 | 253/1500-3500 | 253/1500-3500 |
| Bore and stroke [mm x mm] | 71.0 x 84.0 | 71.0 x 84.0 | 71.0 x 84.0 | 71.0 x 84.0 | 71.6 x 92.0 | 71.6 x 92.0 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 196 | 196 | 196 | 196 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 11,4 | 11,4 | 11,4 | 11,4 | 8,6 | 8,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,9-6,3 | 6,2-6,3 | 5,3-5,6 | 5,5-5,9 | 5,7-6,2 | 6,0-6,5 |
| Out of town [l] | 4,2 -4,9 | 4,4-4,9 | 4,0-4,7 | 4,3-4,7 | 4,2-5,0 | 4,4-4,8 |
| Combined [l] | 4,9-5,4 | 5,1-5,4 | 4,5-5,0 | 4,7-5,2 | 4,7-5,4 | 5,0-5,4 |
| CO2 emissions [g/km] | 111-123 | 116-123 | 103-115 | 108-118 | 108-124 | 114-124 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | 6.5 | 6.3 |
| CO2 emissions [g/km] | - | - | - | - | 148 | 142 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 48 | 48 | 48 | 48 |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1357-1498 | 1357-1498 | 1357-1476 | 1387-1506 | 1376-1503 | 1407-1534 |
| Overall weight [kg] | 1820 | 1850 | 1830 | 1860 | 1850 | 1880 |
| Maximum trailer weight unbraked/braked [kg] | 500/1000 | 300/700 | 500/1000 | 300/700 | 600/1410 | 600/1410 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1351 | -/1351 | -/1351 | -/1351 | -/1351 | -/1351 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- | 10,6/- |
| Overall length [mm] | 4455 | 4455 | 4455 | 4455 | 4455 | 4455 |
| Overall width without/including mirrors [mm] | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 | 1795/2039 |
| Overall height [mm] | 1425 | 1425 | 1425 | 1425 | 1425 | 1425 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1565 | 1565 | 1565 | 1565 | 1565 | 1565 |
| Rear wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 979 | 979 | 979 | 979 | 979 | 979 |
| Headroom rear [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Front elbow/shoulder width [mm] | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 | -/1427 |
| Rear elbow/shoulder width [mm] | -/1367 | -/1367 | -/1367 | -/1367 | -/1367 | -/1367 |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/875 | -/875 | -/875 | -/875 | -/875 | -/875 |
| 1.6 CRDi 136 Mild Hybrid | 1.6 CRDi 136 Mild Hybrid | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1598 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 100/4000 | 100/4000 | ||||
| Maximum torque [Nm/min-1] | 280/1500-3000 | 320/2000-2250 | ||||
| Bore and stroke [mm x mm] | 77.0 x 85.8 | 77.0 x 85.8 | ||||
| Compression ratio | 15.9:1 | 15.9:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 7 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 200 | 200 | ||||
| Acceleration 0–100 km/h [s] | 10,4 | 10,1 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4,2-4,3 | 4,3-4,5 | ||||
| Out of town [l] | 3,7-4,0 | 3,8-4,1 | ||||
| Combined [l] | 3,9-4,1 | 4,0-4,2 | ||||
| CO2 emissions [g/km] | 98-103 | 99-104 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 5.3 | 5.1 | ||||
| CO2 emissions [g/km] | 138 | 134 | ||||
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| System voltage [V] | 48 | 48 | ||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 0.44 kWh | Lithium-Ionen-Akkumulator, 0.44 kWh | ||||
| Range with fully charged battery [km] | - | - | ||||
| Charging time | - | - | ||||
| Number of modules/cells | - | - | ||||
| Battery weight [kg] | - | - | ||||
| Charger | - | - | ||||
| Standby weight [kg] | 1440-1564 | 1470-1594 | ||||
| Overall weight [kg] | 1920 | 1950 | ||||
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | ||||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | ||||
| Boot volume [l] | 450 | 450 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1351 | -/1351 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 50 | 50 | ||||
| AdBlue tank volume [l] | 12 | 12 | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | ||||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | ||||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | ||||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10,6/- | 10,6/- | ||||
| Overall length [mm] | 4455 | 4455 | ||||
| Overall width without/including mirrors [mm] | 1795/2039 | 1795/2039 | ||||
| Overall height [mm] | 1425 | 1425 | ||||
| Wheelbase [mm] | 2650 | 2650 | ||||
| Front wheel track [mm] | 1565 | 1565 | ||||
| Rear wheel track [mm] | 1573 | 1573 | ||||
| Forward overhang [mm] | 905 | 905 | ||||
| Rear overhang [mm] | 900 | 900 | ||||
| Clearance [mm] | 135 | 135 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 979 | 979 | ||||
| Headroom rear [mm] | 950 | 950 | ||||
| Front elbow/shoulder width [mm] | -/1427 | -/1427 | ||||
| Rear elbow/shoulder width [mm] | -/1367 | -/1367 | ||||
| Legroom front knees/total [mm] | -/1073 | -/1073 | ||||
| Legroom rear knees/total [mm] | -/875 | -/875 |

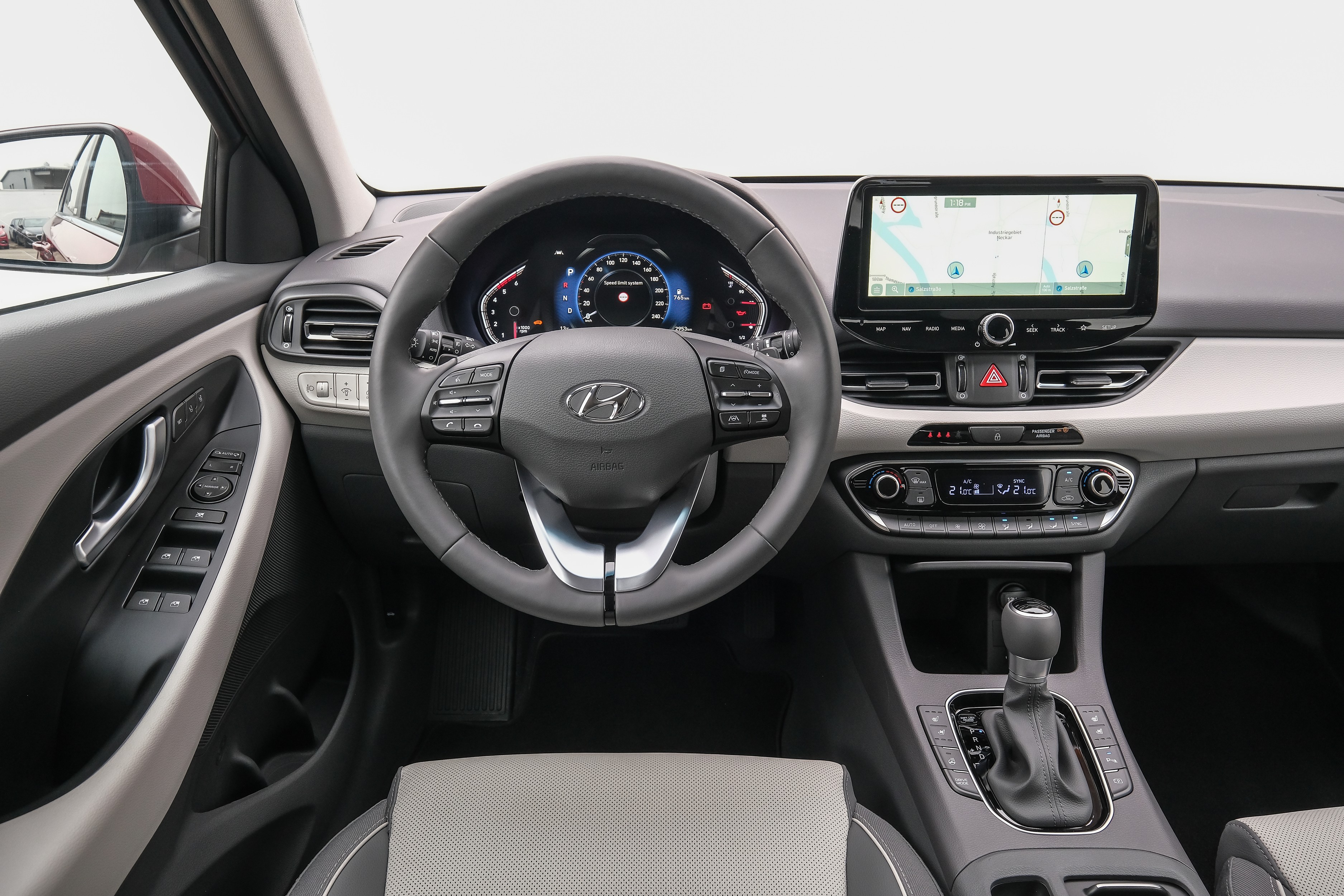

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
