Hyundai i30
Date of manufacture
2007 – 2010 (Five-door hatchback)
2008 – 2010 (Estate)
Platform
-
Manufacturing locations
Ulsan, South Korea
Nošovice, Czechia
Designer
Thomas Bürkle
Tags
C-segment
Korean cars

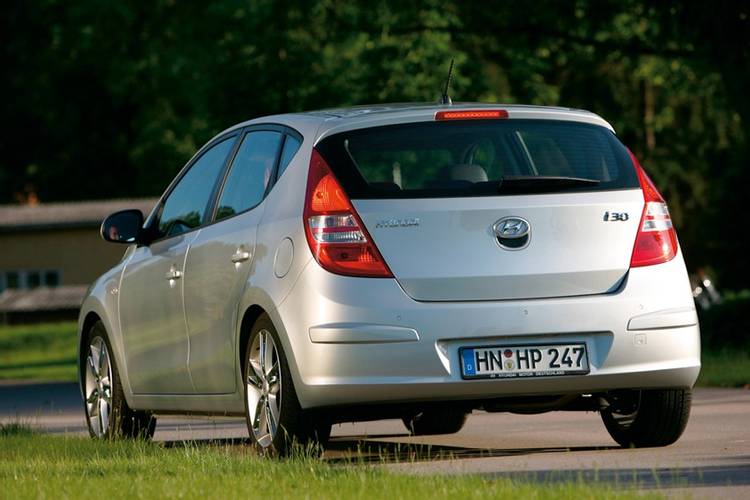

The Hyundai i30 is a popular car model, produced in five-door hatchback and estate versions. The car was launched in 2007 and is produced both in South Korea and the Czech Republic. It offers a wide range of petrol and diesel engines, with the highest power of 105 kW achieved by the 2.0i CVVT engine. The highest speed of 205 km/h can be reached with the 2.0i CVVT model and the best acceleration from 0-100 km/h in 10.3 seconds is offered by the 2.0i CRDi VGT model. The most fuel-efficient variant, the 1.6 CRDi VGT ISG, has a consumption of 4.3 l/100 km and emissions of 113 g/km CO2. The luggage capacity is 340 l for the hatchback and 412 l for the estate. The Hyundai i30 has undergone rigorous EURONCAP safety tests, where it achieved a rating of 5 out of 5 points.
Car body style
Five-door hatchback
Date of manufacture
2007 – 2010Internal designation
FDEstate
Date of manufacture
2008 – 2010Internal designation
FD
Technical data
Five-door hatchback
| 1.4i CVVT | 1.4i CVVT ISG | 1.6i CVVT | 1.6i CVVT | 1.6i CVVT | 1.6i CVVT ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1591 | 1591 | 1591 | 1591 |
| Maximum output / speed [kW/min-1] | 80/6200 | 80/6200 | 90/6200 | 90/6200 | 93/6200 | 93/6200 |
| Maximum torque [Nm/min-1] | 137/5000 | 137/5000 | 154/4200 | 154/4200 | 157/4200 | 157/4200 |
| Bore and stroke [mm x mm] | 77,0 x 75,0 | 77,0 x 75,0 | 77,0 x 85,4 | 77,0 x 85,4 | 77,0 x 85,4 | 77,0 x 85,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 187 | 187 | 192 | 183 | 192 | 192 |
| Acceleration 0–100 km/h [s] | 11.6 | 11.6 | 11.0 | 12.1 | 10.8 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 6.9 | 8.0 | 9.0 | 8.0 | 7.3 |
| Out of town [l] | 5.2 | 5.0 | 5.2 | 5.7 | 5.2 | 5.1 |
| Combined [l] | 6.1 | 5.7 | 6.2 | 6.9 | 6.2 | 5.9 |
| CO2 emissions [g/km] | 145 | 135 | 152 | 165 | 152 | 142 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 83 | 83 | 83 | 83 | 83 | 83 |
| Driving noise [dB] | 71 | 71 | 71 | 71 | 71 | 71 |
| Standby weight [kg] | 1268-1368 | 1268-1368 | 1268-1368 | 1289-1389 | 1268-1368 | 1268-1368 |
| Overall weight [kg] | 1720 | 1720 | 1740 | 1740 | 1740 | 1740 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 |
| Maximum front/rear axle load [kg] | 960/920 | 960/920 | 960/920 | 960/920 | 960/920 | 960/920 |
| Maximum vertical load on the tow bar [kg] | 55 | 55 | 55 | 55 | 55 | 55 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |

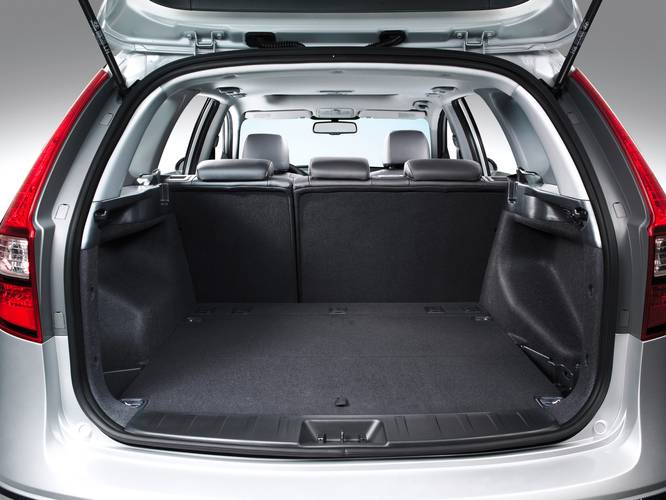

| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.329 | 0.329 | 0.329 | 0.329 | 0.329 | 0.329 |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | 262 | 262 | 262 | 262 | 262 | 262 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/- | 10.2/- | 10.2/- | 10.2/- | 10.2/- | 10.2/- |
| Overall length [mm] | 4245 | 4245 | 4245 | 4245 | 4245 | 4245 |
| Overall width without/including mirrors [mm] | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 720 | 720 | 720 | 720 | 720 | 720 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6i CVVT | 2.0i CVVT | 2.0i CVVT | 1.6 CRDi VGT | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1591 | 1975 | 1975 | 1582 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 93/6200 | 105/6000 | 105/6000 | 66/4000 | 66/4000 | 66/4000 |
| Maximum torque [Nm/min-1] | 157/4200 | 186/4600 | 186/4600 | 235/1750-2500 | 235/1750-2500 | 235/1750-2500 |
| Bore and stroke [mm x mm] | 77,0 x 85,4 | 82,0 x 93,5 | 82,0 x 93,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 |
| Compression ratio | 10,5:1 | 10,1:1 | 10,1:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | 3.3 | 4.0 | 4.0 | 5.3 | 5.3 | 5.3 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 4 gear automatic | 5 gear manual | 4 gear automatic | 5 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
| - |
| - | - | - |
| Top speed [km/h] | 187 | 205 | 195 | 172 | 172 | 172 |
| Acceleration 0–100 km/h [s] | 11.9 | 10.6 | 10.6 | 14.9 | 14.0 | 14.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.0 | 9.3 | 10.3 | 5.7 | 5.3 | 4.8 |
| Out of town [l] | 5.7 | 5.9 | 6.1 | 4.1 | 4.1 | 4.1 |
| Combined [l] | 6.9 | 7.1 | 7.6 | 4.7 | 4.5 | 4.3 |
| CO2 emissions [g/km] | 165 | 170 | 182 | 125 | 119 | 113 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 83 | 82 | 85 | 75 | 75 | 75 |
| Driving noise [dB] | 71 | 73 | 71 | 71 | 71 | 71 |
| Standby weight [kg] | 1289-1389 | 1327-1431 | 1342-1446 | 1366-1470 | 1366-1470 | 1366-1470 |
| Overall weight [kg] | 1740 | 1780 | 1800 | 1820 | 1820 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1500 | 550/1400 | 550/1400 | 550/1400 | 550/1400 |
| Maximum front/rear axle load [kg] | 960/920 | 1000/920 | 1000/920 | 1040/940 | 1040/940 | 1040/940 |
| Maximum vertical load on the tow bar [kg] | 55 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.329 | 0.329 | 0.329 | 0.329 | 0.329 | 0.329 |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 185/65 R15 | 205/55 R16 | 205/55 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 205/55 R16 | 205/55 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 5.5J x 15 | 6.0J x 16 | 6.0J x 16 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Wheel size rear | 5.5J x 15 | 6.0J x 16 | 6.0J x 16 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Brake dimensions front | 280 | 300 | 300 | 280 | 280 | 280 |
| Brake dimensions rear | 262 | 262 | 262 | 262 | 262 | 262 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/- | 10.2/- | 10.2/- | 10.2/- | 10.2/- | 10.2/- |
| Overall length [mm] | 4245 | 4245 | 4245 | 4245 | 4245 | 4245 |
| Overall width without/including mirrors [mm] | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 720 | 720 | 720 | 720 | 720 | 720 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CRDi VGT | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | 1.6 CRDi VGT | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1582 | 1582 | 1582 | 1582 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 85/4000 | 85/4000 | 94/4000 | 94/4000 |
| Maximum torque [Nm/min-1] | 255/1900-2750 | 255/1900-2750 | 255/1900-2750 | 255/1900-2750 | 260/1900-2750 | 260/1900-2750 |
| Bore and stroke [mm x mm] | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 |
| Compression ratio | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 188 | 188 | 188 | 181 | 197 | 197 |
| Acceleration 0–100 km/h [s] | 11.6 | 11.5 | 11.5 | 12.8 | 11.0 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.7 | 5.3 | 4.9 | 7.1-7.6 | 5.3 | 4.9 |
| Out of town [l] | 4.1 | 4.1 | 4.2 | 4.8-4.9 | 4.1 | 4.2 |
| Combined [l] | 4.7 | 4.5 | 4.5 | 5.7-5.9 | 4.5 | 4.5 |
| CO2 emissions [g/km] | 125 | 119 | 117 | 150-155 | 119 | 117 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 86 | 86 | 86 | 80 | - | - |
| Driving noise [dB] | 71 | 71 | 71 | 71 | - | - |
| Standby weight [kg] | 1366-1470 | 1366-1470 | 1366-1470 | 1373-1478 | 1366-1470 | 1366-1470 |
| Overall weight [kg] | 1820 | 1820 | 1820 | 1840 | 1820 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 550/1400 | 550/1400 | 550/1400 | 550/1300 | 550/1400 | 550/1400 |
| Maximum front/rear axle load [kg] | 1040/940 | 1040/940 | 1040/940 | 1040/940 | 1040/940 | 1040/940 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 340 | 340 | 340 | 340 | 340 | 340 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.329 | 0.329 | 0.329 | 0.329 | 0.329 | 0.329 |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | 262 | 262 | 262 | 262 | 262 | 262 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/- | 10.2/- | 10.2/- | 10.2/- | 10.2/- | 11.2/- |
| Overall length [mm] | 4245 | 4245 | 4245 | 4245 | 4245 | 4245 |
| Overall width without/including mirrors [mm] | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 720 | 720 | 720 | 720 | 720 | 720 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CRDi VGT | 2.0i CRDi VGT | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1582 | 1991 | ||||
| Maximum output / speed [kW/min-1] | 94/4000 | 103/3800 | ||||
| Maximum torque [Nm/min-1] | 260/1900-2750 | 304/1900-2500 | ||||
| Bore and stroke [mm x mm] | 77,2 x 84,5 | 83,0 x 92,0 | ||||
| Compression ratio | 17,3:1 | 17,3:1 | ||||
| Oil volume [l] | 5.3 | 5.9 | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 4 gear automatic | 6 gear manual | ||||
| Drive specifications |
| - | ||||
| Top speed [km/h] | 186 | 205 | ||||
| Acceleration 0–100 km/h [s] | 12.3 | 10.3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.1 | 7.1 | ||||
| Out of town [l] | 4.8 | 4.5 | ||||
| Combined [l] | 5.7 | 5.5 | ||||
| CO2 emissions [g/km] | 150 | 145 | ||||
| Emission standard | EU4 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | 81 | ||||
| Driving noise [dB] | - | 72 | ||||
| Standby weight [kg] | 1373-1478 | 1429-1534 | ||||
| Overall weight [kg] | 1840 | 1900 | ||||
| Maximum trailer weight unbraked/braked [kg] | 550/1300 | 550/1500 | ||||
| Maximum front/rear axle load [kg] | 1040/940 | 1090/940 | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | ||||
| Boot volume [l] | 340 | 340 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1250 | -/1250 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 53 | 53 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.329 | 0.329 | ||||
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 185/65 R15 | 205/55 R16 | ||||
| Tyre dimensions rear | 185/65 R15 | 205/55 R16 | ||||
| Wheel size front | 5.5J x 15 | 6.0J x 16 | ||||
| Wheel size rear | 5.5J x 15 | 6.0J x 16 | ||||
| Brake dimensions front | 280 | 280 | ||||
| Brake dimensions rear | 262 | 262 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.2/- | 10.2/- | ||||
| Overall length [mm] | 4245 | 4245 | ||||
| Overall width without/including mirrors [mm] | 1775/- | 1775/- | ||||
| Overall height [mm] | 1480 | 1480 | ||||
| Wheelbase [mm] | 2650 | 2650 | ||||
| Front wheel track [mm] | 1546 | 1538 | ||||
| Rear wheel track [mm] | 1544 | 1536 | ||||
| Forward overhang [mm] | 875 | 875 | ||||
| Rear overhang [mm] | 720 | 720 | ||||
| Clearance [mm] | 150 | 150 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Estate
| 1.4i CVVT | 1.4i CVVT ISG | 1.6i CVVT | 1.6i CVVT ISG | 1.6i CVVT | 2.0i CVVT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1396 | 1396 | 1591 | 1591 | 1591 | 1975 |
| Maximum output / speed [kW/min-1] | 80/6200 | 80/6200 | 93/6200 | 93/6200 | 93/6200 | 105/6000 |
| Maximum torque [Nm/min-1] | 137/5000 | 137/5000 | 157/4200 | 157/4200 | 157/4200 | 186/4600 |
| Bore and stroke [mm x mm] | 77,0 x 75,0 | 77,0 x 75,0 | 77,0 x 85,4 | 77,0 x 85,4 | 77,0 x 85,4 | 82,0 x 93,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,1:1 |
| Oil volume [l] | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 4.0 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 187 | 187 | 192 | 192 | 187 | 205 |
| Acceleration 0–100 km/h [s] | 11.7 | 11.7 | 11.0 | 11.0 | 12.2 | 11.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.1 | 7.1 | 8.0 | 7.3 | 9.0 | 9.3 |
| Out of town [l] | 5.3 | 5.0 | 5.2 | 5.1 | 5.7 | 5.9 |
| Combined [l] | 6.3 | 5.8 | 6.2 | 5.9 | 6.9 | 7.1 |
| CO2 emissions [g/km] | 150 | 138 | 152 | 142 | 165 | 170 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 83 | 83 | 83 | 83 | 83 | 82 |
| Driving noise [dB] | 71 | 71 | 71 | 71 | 71 | 71 |
| Standby weight [kg] | 1311-1415 | 1311-1415 | 1311-1415 | 1311-1415 | 1331-1435 | 1371-1481 |
| Overall weight [kg] | 1820 | 1820 | 1820 | 1820 | 1840 | 1890 |
| Maximum trailer weight unbraked/braked [kg] | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1200 | 550/1500 |
| Maximum front/rear axle load [kg] | 1000/980 | 1000/980 | 1000/980 | 1000/980 | 1000/980 | 1000/980 |
| Maximum vertical load on the tow bar [kg] | 55 | 55 | 55 | 55 | 55 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 412 | 412 | 412 | 412 | 412 | 412 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 205/55 R16 |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.0J x 16 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.0J x 16 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 300 |
| Brake dimensions rear | 262 | 262 | 262 | 262 | 262 | 262 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.42/- | 10.42/- | 10.42/- | 10.42/- | 10.42/- | 10.42/- |
| Overall length [mm] | 4475 | 4475 | 4475 | 4475 | 4475 | 4475 |
| Overall width without/including mirrors [mm] | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- |
| Overall height [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0i CVVT | 1.6 CRDi VGT | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | 1.6 CRDi VGT | 1.6 CRDi VGT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1975 | 1582 | 1582 | 1582 | 1582 | 1582 |
| Maximum output / speed [kW/min-1] | 105/6000 | 66/4000 | 66/4000 | 66/4000 | 85/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 186/4600 | 235/1750-2500 | 235/1750-2500 | 235/1750-2500 | 255/1900-2750 | 255/1900-2750 |
| Bore and stroke [mm x mm] | 82,0 x 93,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 |
| Compression ratio | 10,1:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | 4.0 | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 4 gear automatic | 5 gear manual | 6 gear manual | 6 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications |
| - | - | - | - | - |
| Top speed [km/h] | 195 | 172 | 172 | 172 | 188 | 188 |
| Acceleration 0–100 km/h [s] | 11.1 | 14.4 | 13.9 | 13.9 | 11.9 | 11.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.3 | 5.9 | 5.9 | 5.2 | 5.9 | 5.5 |
| Out of town [l] | 6.1 | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 |
| Combined [l] | 7.6 | 4.9 | 4.9 | 4.7 | 4.9 | 4.7 |
| CO2 emissions [g/km] | 182 | 128 | 128 | 113 | 128 | 124 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 85 | 75 | 75 | 75 | 76 | 76 |
| Driving noise [dB] | 71 | 71 | 71 | 71 | 72 | 72 |
| Standby weight [kg] | 1385-1495 | 1409-1517 | 1409-1517 | 1409-1517 | 1409-1517 | 1409-1517 |
| Overall weight [kg] | 1900 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 550/1400 | 550/1400 | 550/1400 | 550/1400 | 550/1400 | 550/1400 |
| Maximum front/rear axle load [kg] | 1000/980 | 1040/1020 | 1040/1020 | 1040/1020 | 1040/1020 | 1040/1020 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 412 | 412 | 412 | 412 | 412 | 412 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 205/55 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 6.0J x 16 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Wheel size rear | 6.0J x 16 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Brake dimensions front | 300 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | 262 | 262 | 262 | 262 | 262 | 262 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.42/- | 10.42/- | 10.42/- | 10.42/- | 10.42/- | 10.42/- |
| Overall length [mm] | 4475 | 4475 | 4475 | 4475 | 4475 | 4475 |
| Overall width without/including mirrors [mm] | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- |
| Overall height [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CRDi VGT ISG | 1.6 CRDi VGT | 1.6 CRDi VGT | 1.6 CRDi VGT ISG | 1.6 CRDi VGT | 2.0i CRDi VGT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1582 | 1582 | 1582 | 1582 | 1582 | 1991 |
| Maximum output / speed [kW/min-1] | 85/4000 | 85/4000 | 94/4000 | 94/4000 | 94/4000 | 103/3800 |
| Maximum torque [Nm/min-1] | 255/1900-2750 | 255/1900-2750 | 260/1900-2750 | 260/1900-2750 | 260/1900-2750 | 304/1900-2500 |
| Bore and stroke [mm x mm] | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 77,2 x 84,5 | 83,0 x 92,0 |
| Compression ratio | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 | 17,3:1 |
| Oil volume [l] | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | 5.9 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual | 4 gear automatic | 6 gear manual |
| Drive specifications | - |
| - | - |
| - |
| Top speed [km/h] | 188 | 180 | 197 | 197 | 186 | 205 |
| Acceleration 0–100 km/h [s] | 11.7 | 13.0 | 11.2 | 11.2 | 12.6 | 10.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.1 | 7.4-7.9 | 5.5 | 5.1 | 7.4 | 7.1 |
| Out of town [l] | 4.3 | 4.9-4.9 | 4.3 | 4.3 | 4.9 | 4.5 |
| Combined [l] | 4.6 | 5.8-6.0 | 4.7 | 4.6 | 5.8 | 5.5 |
| CO2 emissions [g/km] | 122 | 154-159 | 124 | 122 | 154 | 145 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | 76 | 80 | - | - | - | 81 |
| Driving noise [dB] | 72 | 71 | - | - | - | 72 |
| Standby weight [kg] | 1409-1517 | 1416-1523 | 1409-1517 | 1409-1517 | 1416-1523 | 1456-1578 |
| Overall weight [kg] | 1920 | 1840 | 1920 | 1920 | 1940 | 1970 |
| Maximum trailer weight unbraked/braked [kg] | 550/1400 | 550/1300 | 550/1400 | 550/1400 | 550/1300 | 550/1500 |
| Maximum front/rear axle load [kg] | 1040/1020 | 1040/1020 | 1040/1020 | 1040/1020 | 1040/1020 | 1090/1000 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 412 | 412 | 412 | 412 | 412 | 412 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 205/55 R16 |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.0J x 16 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.0J x 16 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | 262 | 262 | 262 | 262 | 262 | 262 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.42/- | 10.42/- | 10.42/- | 10.42/- | 10.42/- | 10.9/- |
| Overall length [mm] | 4475 | 4475 | 4475 | 4475 | 4475 | 4475 |
| Overall width without/including mirrors [mm] | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- | 1775/- |
| Overall height [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1538 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1536 |
| Forward overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
