Hyundai i20

Date of manufacture

2012 – 10/2014 (Three-door hatchback)

2012 – 10/2014 (Five-door hatchback)

Platform

Manufacturing locations

İzmit, Turkey

Designer

Thomas Bürkle

Car body style

Three-door hatchback

after upgrade (facelift)

Date of manufacture

2012 – 10/2014

Internal designation

Engine size

1.2 DOHC 16V

Five-door hatchback

after upgrade (facelift)

Date of manufacture

2012 – 10/2014

Internal designation

Engine size

Petrol

1.2 DOHC 16V

1.4 DOHC CVVT 16V

Diesel

1.1 CRDi DOHC 12V

Euro NCAP

Test year 2009

pre-facelift version (2009)

Technical data

Three-door hatchback

	1.2 DOHC 16V	1.2 DOHC 16V
Date of sale	-	-
Engine type	Petrol	Petrol
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1248	1248
Maximum output / speed [kW/min-1]	62,5/6000	62,5/6000
Maximum torque [Nm/min-1]	120,7/4000	120,7/4000
Bore and stroke [mm x mm]	71,0 x 78,8	71,0 x 78,8
Compression ratio	10,5:1	10,5:1
Oil volume [l]	3.3	3.3
Coolant volume [l]	-	-
Technical specifications	variable timing of intake and exhaust valves D‐CVVT	variable timing of intake and exhaust valves D‐CVVT start&stop system ISG

Drive axle	Front	Front
Gearbox	5 gear manual	5 gear manual
Drive specifications	-	-

Top speed [km/h]	168	168
Acceleration 0–100 km/h [s]	12.7	12.7
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	6.1	5.6
Out of town [l]	4.2	4.1
Combined [l]	4.9	4.7
CO2 emissions [g/km]	114	109

Emission standard	EU5	EU5
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	79	79
Driving noise [dB]	73	73

Standby weight [kg]	1035-1148	1035-1148
Overall weight [kg]	1515	1515
Maximum trailer weight unbraked/braked [kg]	450/850	450/850
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	70/-	70/-

Boot volume [l]	295	295
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1060	-/1060
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	3	3
Number of seats	5	5
Fuel tank volume [l]	45	45
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.33	0.33
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	rigid with torsion bar	rigid with torsion bar
Tyre dimensions front	175/70 R14	175/70 R14
Tyre dimensions rear	175/70 R14	175/70 R14
Wheel size front	5.5J x 14	5.5J x 14
Wheel size rear	5.5J x 14	5.5J x 14
Brake dimensions front	256	256
Brake dimensions rear	262	262
Steering	-	-
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	10.4/-	10.4/-

Overall length [mm]	3995	3995
Overall width without/including mirrors [mm]	1710/-	1710/-
Overall height [mm]	1490	1490
Wheelbase [mm]	2525	2525
Front wheel track [mm]	1503	1503
Rear wheel track [mm]	1501	1501
Forward overhang [mm]	-	-
Rear overhang [mm]	-	-
Clearance [mm]	150	150
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	-	-
Headroom rear [mm]	-	-
Front elbow/shoulder width [mm]	-	-
Rear elbow/shoulder width [mm]	-	-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

Five-door hatchback

	1.2 DOHC 16V	1.2 DOHC 16V	1.4 DOHC CVVT 16V	1.4 DOHC CVVT 16V	1.4 DOHC CVVT 16V	1.1 CRDi DOHC 12V
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	3/12
Engine displacement [cm³]	1248	1248	1396	1396	1396	1120
Maximum output / speed [kW/min-1]	62,5/6000	62,5/6000	73,6/5500	73,6/5500	73,6/5500	55/4000
Maximum torque [Nm/min-1]	120,7/4000	120,7/4000	137,3/4200	137,3/4200	137,3/4200	180/1750-2500
Bore and stroke [mm x mm]	71,0 x 78,8	71,0 x 78,8	77,0 x 75,0	77,0 x 75,0	77,0 x 75,0	75,0 x 84,5
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1	16,0:1
Oil volume [l]	3.3	3.3	3.3	3.3	3.3	4.8
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves D‐CVVT	variable timing of intake and exhaust valves D‐CVVT start&stop system ISG	variable timing of intake valves CVVT	variable timing of intake valves CVVT start&stop system ISG	variable timing of intake valves CVVT	direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	6 gear manual	6 gear manual	4 gear automatic	6 gear manual
Drive specifications	-	-	-	-	automatic gearbox	-

Top speed [km/h]	168	168	181	181	170	160
Acceleration 0–100 km/h [s]	12.7	12.7	11.6	11.6	12.9	15.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.1	5.6	7.0	6.1	8.1	4.6
Out of town [l]	4.2	4.1	4.2	4.3	4.8	3.4
Combined [l]	4.9	4.7	5.2	4.9	6.0	3.8
CO2 emissions [g/km]	114	109	122	115	140	99

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	79	79	80	80	80	76
Driving noise [dB]	73	73	73	73	72	73

Standby weight [kg]	1045-1158	1045-1158	1103-1216	1103-1216	1131-1241	1155-1272
Overall weight [kg]	1515	1515	1565	1565	1565	1635
Maximum trailer weight unbraked/braked [kg]	450/850	450/850	450/1000	450/1000	450/800	450/800
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	70/-	70/-	70/-	70/-	70/-	70/-

Boot volume [l]	295	295	295	295	295	295
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1060	-/1060	-/1060	-/1060	-/1060	-/1060
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	45	45	45	45	45	45
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.33	0.33	0.33	0.33	0.33	0.33
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar	rigid with torsion bar
Tyre dimensions front	175/70 R14	175/70 R14	175/70 R14	175/70 R14	175/70 R14	175/70 R14
Tyre dimensions rear	175/70 R14	175/70 R14	175/70 R14	175/70 R14	175/70 R14	175/70 R14
Wheel size front	5.5J x 14	5.5J x 14	5.5J x 14	5.5J x 14	5.5J x 14	5.5J x 14
Wheel size rear	5.5J x 14	5.5J x 14	5.5J x 14	5.5J x 14	5.5J x 14	5.5J x 14
Brake dimensions front	256	256	256	256	256	256
Brake dimensions rear	262	262	262	262	262	262
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.4/-	10.4/-	10.4/-	10.4/-	10.4/-	10.4/-

Overall length [mm]	3995	3995	3995	3995	3995	3995
Overall width without/including mirrors [mm]	1710/-	1710/-	1710/-	1710/-	1710/-	1710/-
Overall height [mm]	1490	1490	1490	1490	1490	1490
Wheelbase [mm]	2525	2525	2525	2525	2525	2525
Front wheel track [mm]	1503	1503	1503	1503	1503	1503
Rear wheel track [mm]	1501	1501	1501	1501	1501	1501
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	150	150	150	150	150	150
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.1 CRDi DOHC 12V
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	3/12
Engine displacement [cm³]	1120
Maximum output / speed [kW/min-1]	55/4000
Maximum torque [Nm/min-1]	180/1750-2500
Bore and stroke [mm x mm]	75,0 x 84,5
Compression ratio	16,0:1
Oil volume [l]	4.8
Coolant volume [l]	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter start&stop system ISG

Drive axle	Front
Gearbox	6 gear manual
Drive specifications	-

Top speed [km/h]	160
Acceleration 0–100 km/h [s]	15.7
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	4.2
Out of town [l]	3.3
Combined [l]	3.6
CO2 emissions [g/km]	93

Emission standard	EU5
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	76
Driving noise [dB]	73

Standby weight [kg]	1155-1272
Overall weight [kg]	1635
Maximum trailer weight unbraked/braked [kg]	450/800
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	70/-

Boot volume [l]	295
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1060
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	45
AdBlue tank volume [l]	-
Air resistance [Cd]	0.33
Front suspension	MacPherson, torsion stabiliser
Rear suspension	rigid with torsion bar
Tyre dimensions front	175/70 R14
Tyre dimensions rear	175/70 R14
Wheel size front	5.5J x 14
Wheel size rear	5.5J x 14
Brake dimensions front	256
Brake dimensions rear	262
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.4/-

Overall length [mm]	3995
Overall width without/including mirrors [mm]	1710/-
Overall height [mm]	1490
Wheelbase [mm]	2525
Front wheel track [mm]	1503
Rear wheel track [mm]	1501
Forward overhang [mm]	-
Rear overhang [mm]	-
Clearance [mm]	150
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

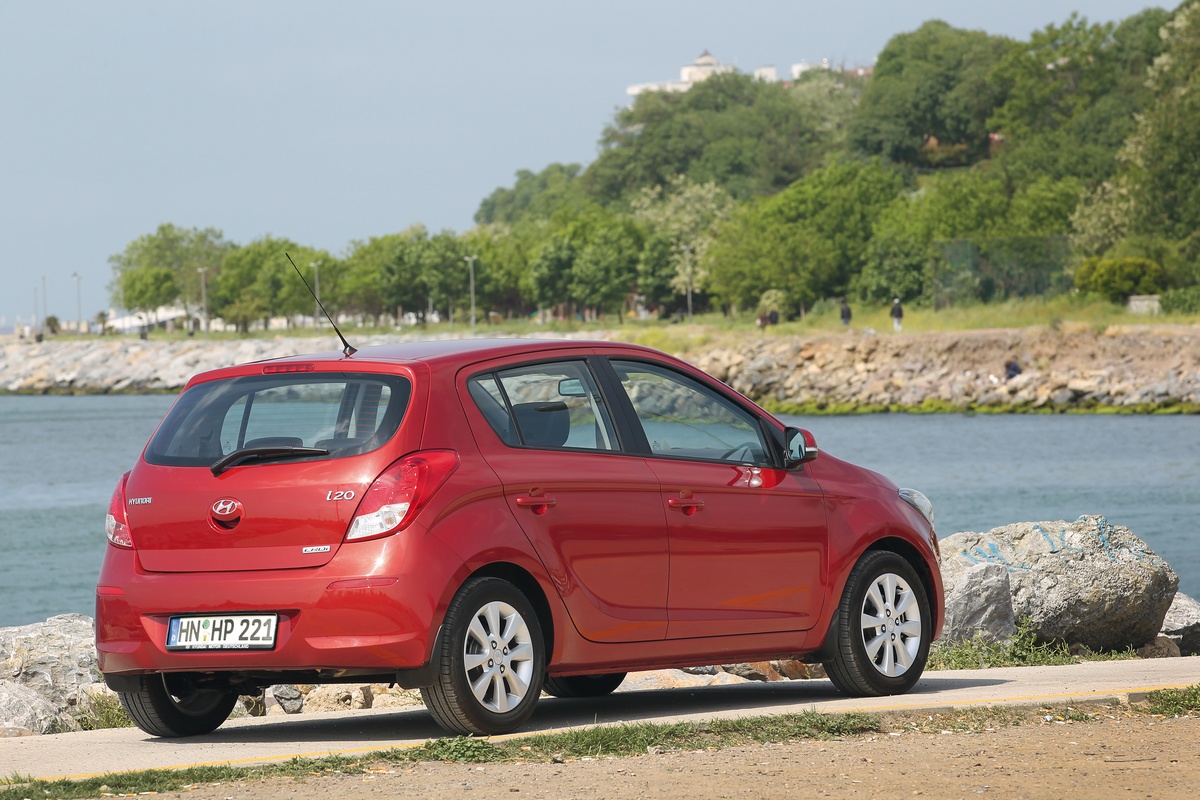

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
