Hyundai Genesis Coupe

Date of manufacture

2008 – 2012 (Coupé)

Platform

Manufacturing locations

Ulsan, South Korea

Designer

BK platform code

Car body style

Coupé

Date of manufacture

2008 – 2012

Internal designation

Engine size

2.0 TCI D-CVVT

3.8 V6 D-CVVT

Technical data

Coupé

	2.0 TCI D-CVVT	3.8 V6 D-CVVT	3.8 V6 D-CVVT
Date of sale	-	-	-
Engine type	Ignition supercharged	Petrol	Petrol
Number of cylinders/valves	4/16	6/24	6/24
Engine displacement [cm³]	1998	3778	3778
Maximum output / speed [kW/min-1]	156,7/6000	223/6300	223/6300
Maximum torque [Nm/min-1]	302/1900-3500	361/4700	361/4700
Bore and stroke [mm x mm]	86,0 x 86,0	96,0 x 87,0	96,0 x 87,0
Compression ratio	9,4:1	10,4:1	10,4:1
Oil volume [l]	5.4	6.0	6.0
Coolant volume [l]	-	-	-
Technical specifications	turbo-supercharged variable timing of intake and exhaust valves D‐CVVT	variable timing of intake and exhaust valves D‐CVVT	variable timing of intake and exhaust valves D‐CVVT

Drive axle	Rear	Rear	Rear
Gearbox	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	-	-	automatic gearbox H‐matic

Top speed [km/h]	223	240	240
Acceleration 0–100 km/h [s]	8.0	6.4	6.3
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	13.5	15.0	14.8
Out of town [l]	7.1	7.6	7.0
Combined [l]	9.5	10.3	9.9
CO2 emissions [g/km]	220	246	235

Emission standard	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1570-1620	1613-1662	1615-1664
Overall weight [kg]	1920	1930	1930
Maximum trailer weight unbraked/braked [kg]	-	-	-
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	-	-	-

Boot volume [l]	332	332	332
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	2	2	2
Number of seats	4	4	4
Fuel tank volume [l]	65	65	65
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	-	-	-
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	multilink, stabiliser bar	multilink, stabiliser bar	multilink, stabiliser bar
Tyre dimensions front	225/40 R19	225/40 R19	225/40 R19
Tyre dimensions rear	245/40 R19	245/40 R19	245/40 R19
Wheel size front	8.0 J x 19	8.0 J x 19	8.0 J x 19
Wheel size rear	8.5J x 19	8.5J x 19	8.5J x 19
Brake dimensions front	345	345	345
Brake dimensions rear	314	314	314
Steering	-	-	-
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	11.4/-	11.4/-	11.4/-

Overall length [mm]	4630	4630	4630
Overall width without/including mirrors [mm]	1865/-	1865/-	1865/-
Overall height [mm]	1385	1385	1385
Wheelbase [mm]	2820	2820	2820
Front wheel track [mm]	1599	1599	1599
Rear wheel track [mm]	1615	1615	1615
Forward overhang [mm]	-	-	-
Rear overhang [mm]	-	-	-
Clearance [mm]	129	129	129
Wading depth [mm]	-	-	-
Approach angle front [°]	-	-	-
Approach angle rear [°]	-	-	-
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	-	-	-
Headroom rear [mm]	-	-	-
Front elbow/shoulder width [mm]	-	-	-
Rear elbow/shoulder width [mm]	-	-	-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

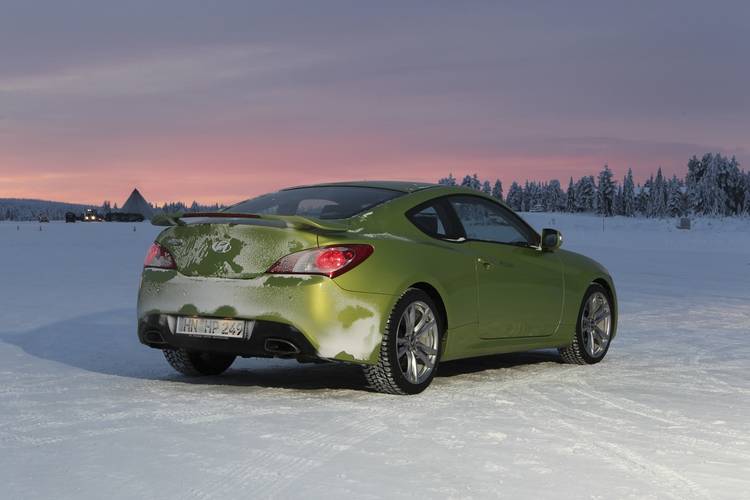

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
