Honda CR-V

Date of manufacture

8/2012 – 2014 (SUV)

Platform

Manufacturing locations

Swindon, United Kingdom

Designer

Manabu Konaka

Car body style

SUV

Date of manufacture

8/2012 – 2014

Internal designation

Engine size

Petrol

2.0 i-VTEC

Diesel

1.6 i-DTEC

2.2 i-DTEC

Euro NCAP

Technical data

SUV

	2.0 i-VTEC	2.0 i-VTEC	2.0 i-VTEC	1.6 i-DTEC	2.2 i-DTEC	2.2 i-DTEC
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1997	1997	1997	1597	2199	2199
Maximum output / speed [kW/min-1]	114/6500	114/6500	114/6500	88/4000	110/4000	110/4000
Maximum torque [Nm/min-1]	192/4300	192/4300	192/4300	300/2000	350/2000	350/2000
Bore and stroke [mm x mm]	81,0x96,9	81,0x96,9	81,0x96,9	76,0x88,0	85,0x96,9	85,0x96,9
Compression ratio	10,6:1	10,6:1	10,6:1	16,0:1	16,3:1	16,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable valve timing and lift i‐VTEC start&stop system	variable valve timing and lift i‐VTEC start&stop system	variable valve timing and lift i‐VTEC start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system

Drive axle	Front	4x4	4x4	Front	4x4	4x4
Gearbox	6 gear manual	6 gear manual	5 gear automatic	6 gear manual	6 gear manual	5 gear automatic
Drive specifications	-	all-wheel drive Real Time AWD	all-wheel drive Real Time AWD five-speed automatic gearbox	-	all-wheel drive Real Time AWD	all-wheel drive Real Time AWD five-speed automatic gearbox

Top speed [km/h]	190	190	182	182	190	190
Acceleration 0–100 km/h [s]	10.0	10.2	12.3	11.2	9.7	10.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.9	9.3	10.0	4.8	6.5	8.0
Out of town [l]	6.2	6.3	6.0	4.3	5.1	5.7
Combined [l]	7.2	7.4	7.5	4.5	5.6	6.6
CO2 emissions [g/km]	168	173	175	119	149	174

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1527	1588	1613	1611	1723	1782
Overall weight [kg]	1955	1955	2100	2100	2200	2250
Maximum trailer weight unbraked/braked [kg]	600/1700	600/1700	600/1700	600/1700	600/1700	600/1700
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

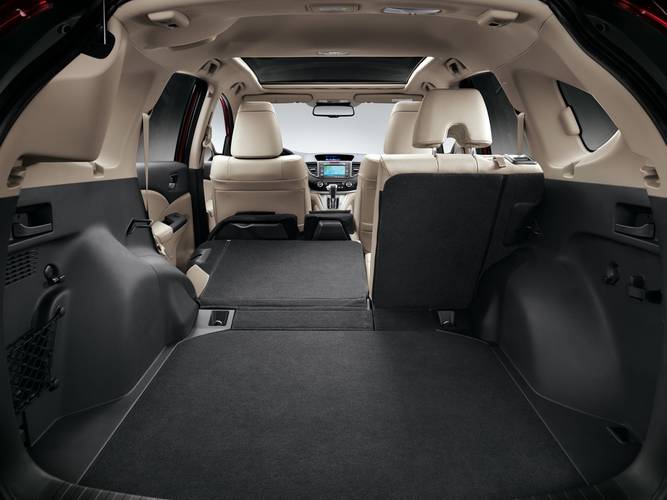

Boot volume [l]	589	589	589	589	589	589
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1669	-/1669	-/1669	-/1669	-/1669	-/1669
Boot length [mm]	950	950	950	950	950	950
Boot length with rear seats folded [mm]	1570	1570	1570	1570	1570	1570
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-/985	-/985	-/985	-/985	-/985	-/985
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	58	58	58	58	58	58
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/65 R17 96T	225/65 R17 96T	225/65 R17 96T	225/65 R17 96T	225/65 R17 96T	225/65 R17 96T
Tyre dimensions rear	225/65 R17 96T	225/65 R17 96T	225/65 R17 96T	225/65 R17 96T	225/65 R17 96T	225/65 R17 96T
Wheel size front	17x6.5J ET50	17x6.5J ET50	17x6.5J ET50	17x6.5J ET50	17x6.5J ET50	17x6.5J ET50
Wheel size rear	17x6.5J ET50	17x6.5J ET50	17x6.5J ET50	17x6.5J ET50	17x6.5J ET50	17x6.5J ET50
Brake dimensions front	293	293	293	293	293	293
Brake dimensions rear	302	302	302	302	302	302
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.0/11.8	11.0/11.8	11.0/11.8	11.0/11.8	11.0/11.8	11.0/11.8

Overall length [mm]	4570	4570	4570	4570	4570	4570
Overall width without/including mirrors [mm]	1820/-	1820/-	1820/-	1820/-	1820/-	1820/-
Overall height [mm]	1685	1685	1685	1685	1685	1685
Wheelbase [mm]	2630	2630	2630	2630	2630	2630
Front wheel track [mm]	1570	1570	1570	1570	1570	1570
Rear wheel track [mm]	1580	1580	1580	1580	1580	1580
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	165	165	165	165	165	165
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
