Ford Tourneo Courier

Date of manufacture

5/2014 – 2018 (MPV)

Platform

Ford B3 platform

Manufacturing locations

Kocaeli, Turkey

Designer

Car body style

MPV

Date of manufacture

5/2014 – 2018

Internal designation

Engine size

Petrol

Diesel

Euro NCAP

Technical data

MPV

	1.0 EcoBoost	1.0 EcoBoost	1.5 Duratorq TDCi	1.5 Duratorq TDCi	1.6 Duratorq TDCi	1.6 Duratorq TDCi
Date of sale	-	-	-	-	from to 2015	from to 2015
Engine type	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	3/12	3/12	4/8	4/8	4/8	4/8
Engine displacement [cm³]	999	999	1498	1498	1560	1560
Maximum output / speed [kW/min-1]	74/6000	74/6000	55/3750	55/3750	70/3800	70/3800
Maximum torque [Nm/min-1]	170/1400-4000	170/1400-4000	190/1700-2000	190/1700-2000	215/1750-2500	215/1750-2500
Bore and stroke [mm x mm]	71,9 x 82,0	71,9 x 82,0	73,5 x 88,3	73,5 x 88,3	75,0 x 88,3	75,0 x 88,3
Compression ratio	10,0:1	10,0:1	16,0:1	16,0:1	16,0:1	16,0:1
Oil volume [l]	4.1	4.1	3.8	3.8	3.8	3.8
Coolant volume [l]	5.5	5.5	5.8	5.8	5.8	5.8
Technical specifications	direct injection turbo-supercharged variable valve timing Ti‐VCT brake energy recuperation	direct injection turbo-supercharged variable valve timing Ti‐VCT start&stop system brake energy recuperation	direct injection Common Rail turbo-supercharged particulate filter brake energy recuperation	direct injection Common Rail turbo-supercharged particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbo-supercharged particulate filter brake energy recuperation	direct injection Common Rail turbo-supercharged particulate filter start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear manual	5 gear manual	5 gear manual	5 gear manual
Drive specifications	gearbox type iB5	gearbox type iB5	gearbox type iB5	gearbox type iB5	gearbox type iB5	gearbox type iB5

Top speed [km/h]	173	173	157	157	170	170
Acceleration 0–100 km/h [s]	12.3	12.3	16.0	16.0	14.0	14.0
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.7-6.6	6.1-6.0	4.7-5.0	4.4	4.7	4.4
Out of town [l]	4.6-4.5	4.6-4.5	3.6-3.7	3.6-3.5	3.6	3.5
Combined [l]	5.3-5.2	5.1-5.0	4.2-4.0	3.9-3.8	4.0	3.8
CO2 emissions [g/km]	121-120	115-116	109-104	102-99	106	100

Emission standard	EU5 - EU6	EU5 - EU6	EU5 - EU6	EU5 - EU6	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1185	1190	1205	1205	1205	1205
Overall weight [kg]	1765	1765	1780	1780	1780	1780
Maximum trailer weight unbraked/braked [kg]	635-640/910	635-640/910	500/500	500/500	500/500	500/500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	395	395	395	395	395	395
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	875/1656	875/1656	875/1656	875/1656	875/1656	875/1656
Boot length [mm]	837	837	837	837	837	837
Boot length with rear seats folded [mm]	1641	1641	1641	1641	1641	1641
Boot width between wheels/max [mm]	983/1345	983/1345	983/1345	983/1345	983/1345	983/1345
Boot height to headliner/ceiling [mm]	-/1200	-/1200	-/1200	-/1200	-/1200	-/1200
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	48	48	48	48	48	48
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	195/60R15	195/60R15	195/60R15	195/60R15	195/60R15	195/60R15
Tyre dimensions rear	195/60R15	195/60R15	195/60R15	195/60R15	195/60R15	195/60R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	278	278	278	278	278	278
Brake dimensions rear	-	-	-	-	-	-
Steering	Rack & pinion with electric power steering m (EPAS)	Rack & pinion with electric power steering m (EPAS)	Rack & pinion with electric power steering m (EPAS)	Rack & pinion with electric power steering m (EPAS)	Rack & pinion with electric power steering m (EPAS)	Rack & pinion with electric power steering m (EPAS)
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.5/10.9	10.5/10.9	10.5/10.9	10.5/10.9	10.5/10.9	10.5/10.9

Overall length [mm]	4157	4157	4157	4157	4157	4157
Overall width without/including mirrors [mm]	1976/2060	1976/2060	1976/2060	1976/2060	1976/2060	1976/2060
Overall height [mm]	1741	1741	1741	1741	1741	1741
Wheelbase [mm]	2489	2489	2489	2489	2489	2489
Front wheel track [mm]	-	-	-	-	-	-
Rear wheel track [mm]	-	-	-	-	-	-
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1152	1152	1152	1152	1152	1152
Headroom rear [mm]	1118	1118	1118	1118	1118	1118
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-/1091	-/1091	-/1091	-/1091	-/1091	-/1091
Legroom rear knees/total [mm]	-/928	-/928	-/928	-/928	-/928	-/928

	1.5 Duratorq TDCi	1.5 Duratorq TDCi
Date of sale	-	-
Engine type	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/8	4/8
Engine displacement [cm³]	1498	1498
Maximum output / speed [kW/min-1]	70/3800	70/3800
Maximum torque [Nm/min-1]	215	215
Bore and stroke [mm x mm]	73,5 x 88,3	73,5 x 88,3
Compression ratio	16,0:1	16,0:1
Oil volume [l]	3.8	3.8
Coolant volume [l]	5.8	5.8
Technical specifications	direct injection Common Rail turbo-supercharged particulate filter brake energy recuperation	direct injection Common Rail turbo-supercharged particulate filter start&stop system brake energy recuperation

Drive axle	Front	Front
Gearbox	5 gear manual	5 gear manual
Drive specifications	gearbox type iB5	gearbox type iB5

Top speed [km/h]	170	170
Acceleration 0–100 km/h [s]	14.0	14.0
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	4.7	4.4
Out of town [l]	3.6	3.5
Combined [l]	4.0	3.8
CO2 emissions [g/km]	104	99

Emission standard	EU6	EU6
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1205	1205
Overall weight [kg]	1780	1780
Maximum trailer weight unbraked/braked [kg]	500/500	500/500
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	-	-

Boot volume [l]	395	395
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	875/1656	875/1656
Boot length [mm]	837	837
Boot length with rear seats folded [mm]	1641	1641
Boot width between wheels/max [mm]	983/1345	983/1345
Boot height to headliner/ceiling [mm]	-/1200	-/1200
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	5	5
Fuel tank volume [l]	48	48
AdBlue tank volume [l]	-	-
Air resistance [Cd]	-	-
Front suspension	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser	MacPherson, coil springs, gas-liquid shock absorbers, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	195/60R15	195/60R15
Tyre dimensions rear	195/60R15	195/60R15
Wheel size front	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15
Brake dimensions front	278	278
Brake dimensions rear	-	-
Steering	Rack & pinion with electric power steering m (EPAS)	Rack & pinion with electric power steering m (EPAS)
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	10.5/10.9	10.5/10.9

Overall length [mm]	4157	4157
Overall width without/including mirrors [mm]	1976/2060	1976/2060
Overall height [mm]	1741	1741
Wheelbase [mm]	2489	2489
Front wheel track [mm]	-	-
Rear wheel track [mm]	-	-
Forward overhang [mm]	-	-
Rear overhang [mm]	-	-
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	1152	1152
Headroom rear [mm]	1118	1118
Front elbow/shoulder width [mm]	-	-
Rear elbow/shoulder width [mm]	-	-
Legroom front knees/total [mm]	-/1091	-/1091
Legroom rear knees/total [mm]	-/928	-/928

Gallery

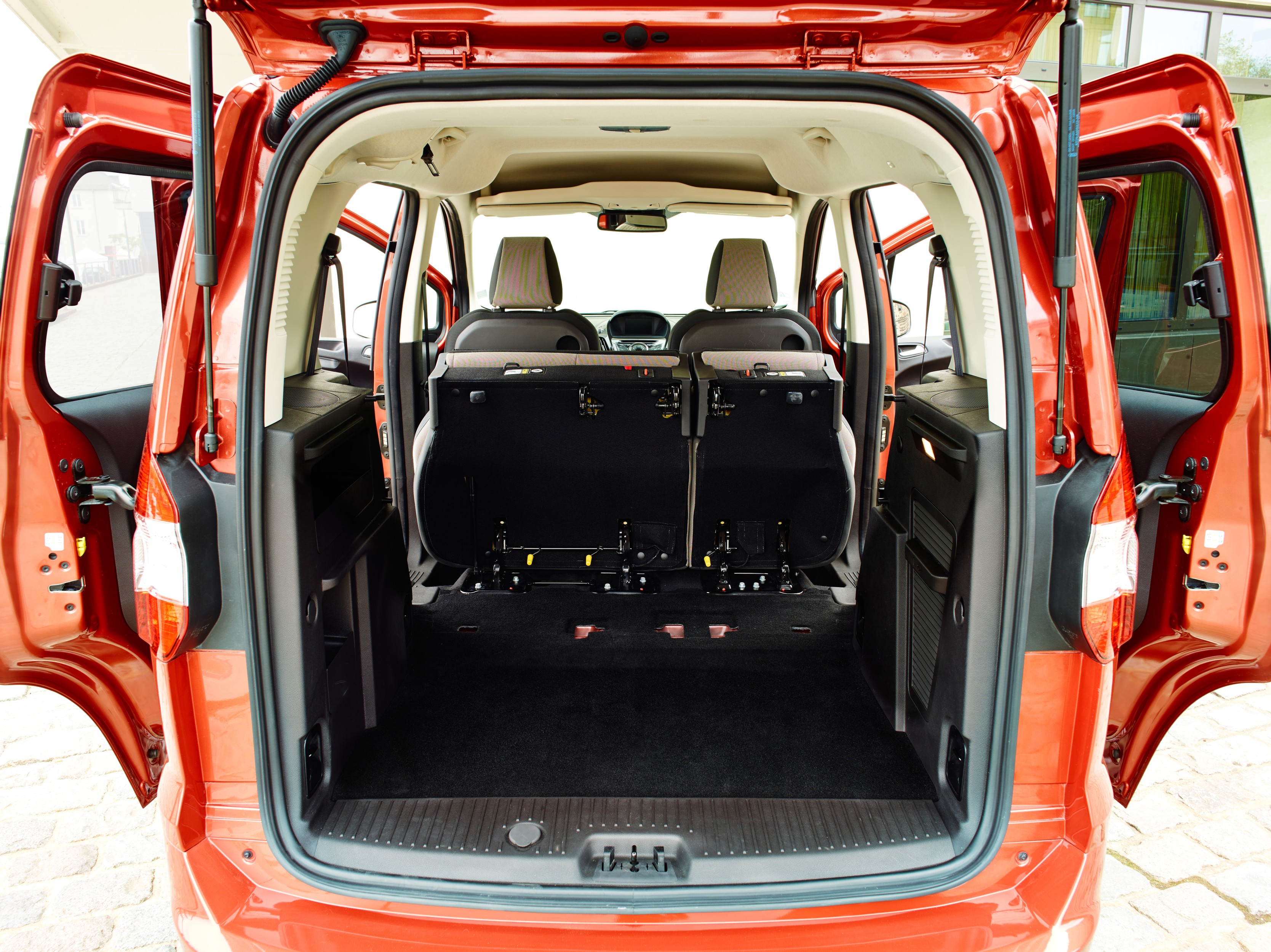

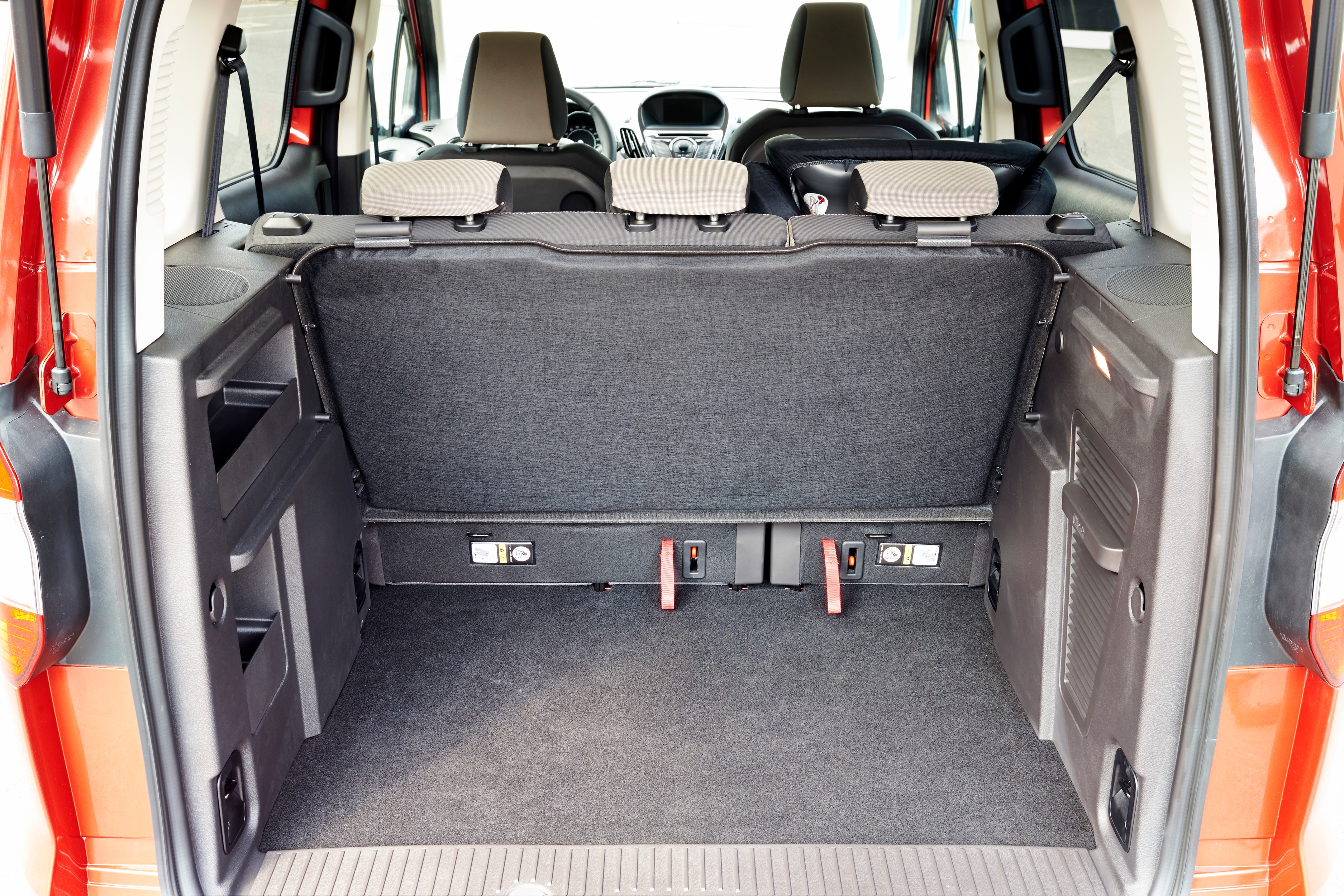

Ford Tourneo Courier 2014 rear folding seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
