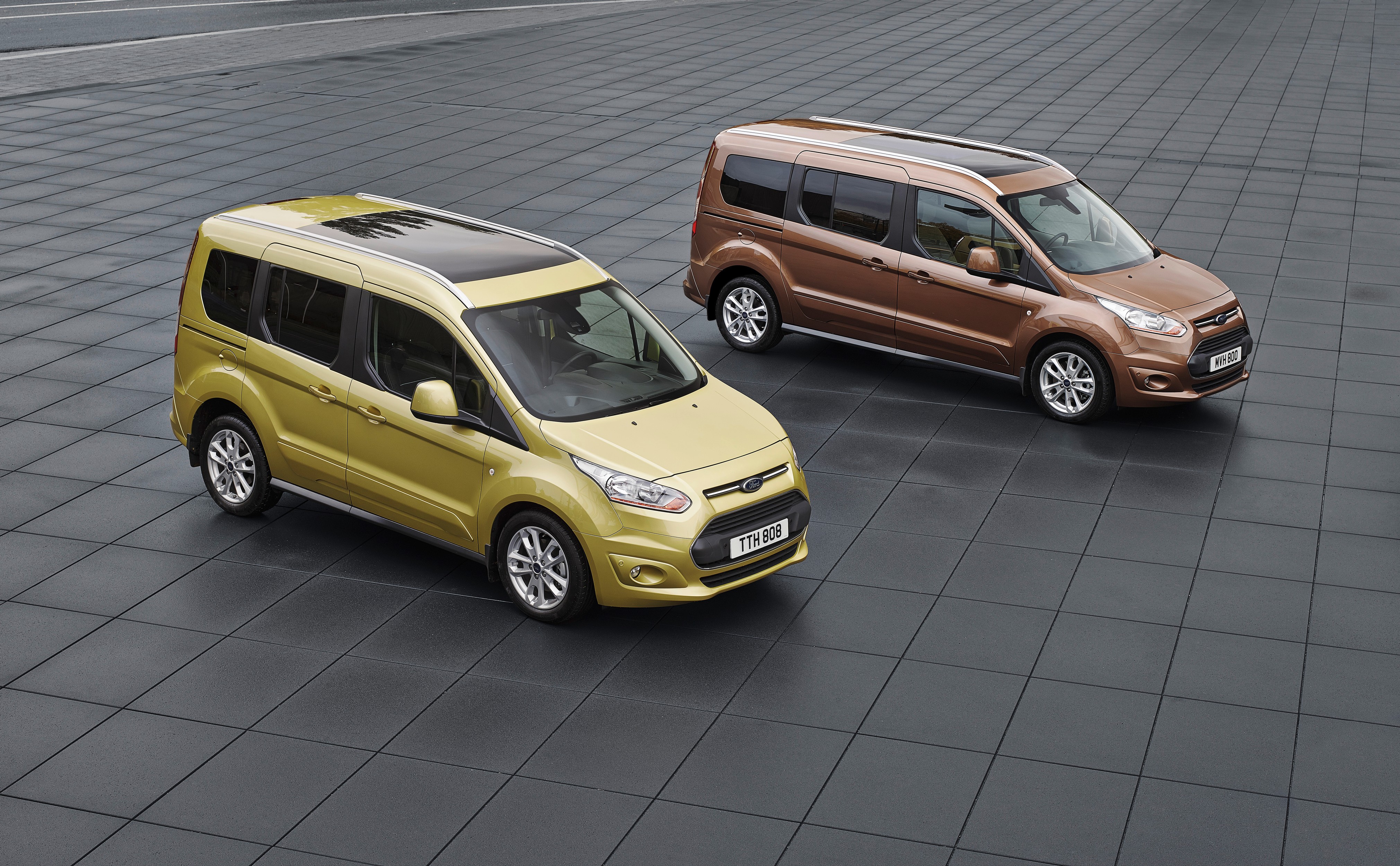

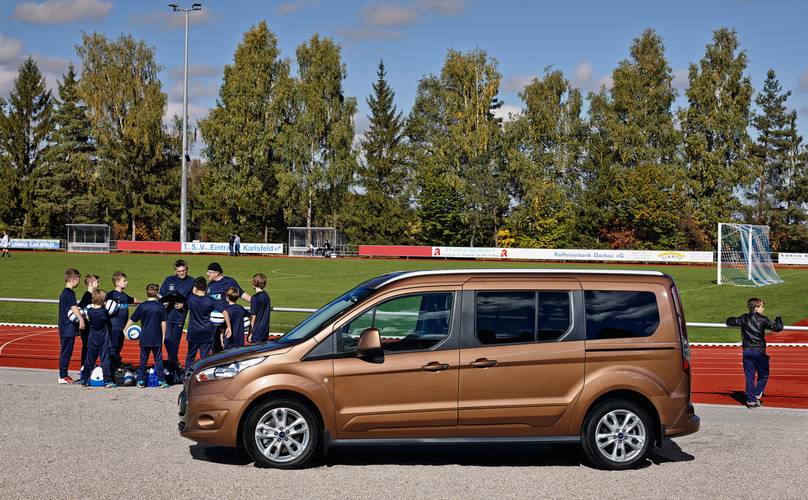

Ford Tourneo Connect
Date of manufacture
2013 – 2018 (MPV)
Platform
Ford Global C-car
Manufacturing locations
Valencia, Spain
Designer
Paul Wraith
Tags
Mid-size MPV
German cars
The Ford Tourneo Connect is an MPV body style, produced since 2013 in Spain on the Ford Global C-car platform. It offers petrol and diesel engines with the highest power of 110 kW by the 1.6 EcoBoost Grand power unit, which reaches a top speed of 173 km/h and the best acceleration 0-100 km/h in 17.8 seconds. The 1.5 Duratorq TDCi has the lowest combined fuel consumption of 4.4 l/100 km and CO2 emissions of 115 g/km. The trunk offers a volume of 1029 l. In terms of safety, it was tested in 2013 and achieved an overall rating of 5 out of 5 according to EURONCAP.
Car body style
MPV
Date of manufacture
2013 – 2018Internal designation
Engine size
PetrolDiesel
Technical data
MPV
| 1.0 EcoBoost | 1.6 EcoBoost | 1.6 EcoBoost Grand | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi Grand | 1.6 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2015 | from to 2015 | from to 2015 | from to 2015 | from to 2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 999 | 1597 | 1597 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 74/6000 | 110/5700 | 110/5700 | 55/3500 | 55/3500 | 55/3500 |
| Maximum torque [Nm/min-1] | 170/1400-4000 | 240/1600-4000 | 240/1600-4000 | 220/1500 | 220/1500 | 220/1500 |
| Bore and stroke [mm x mm] | 71,9 x 82,0 | 79,0 x 81,4 | 79,0 x 81,4 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 4.1 | 4.1 | 4.1 | 3.8 | 3.8 | 3.8 |
| Coolant volume [l] | 5.5 | 5.5 | 5.5 | 5.8 | 5.8 | 5.8 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 165 | 173 | 173 | 145 | 145 | 145 |
| Acceleration 0–100 km/h [s] | 14.0 | 10.9 | 11.1 | 17.8 | 18.3 | 17.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 | 10.9 | 10.9 | 5.6 | 5.6 | 4.9 |
| Out of town [l] | 5.1 | 6.3 | 6.3 | 4.6 | 4.6 | 4.4 |
| Combined [l] | 5.6 | 8.0 | 8.0 | 5.0 | 5.0 | 4.6 |
| CO2 emissions [g/km] | 129 | 184 | 184 | 130 | 130 | 120 |
| Emission standard | EU5 - EU6 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1420 | 1478 | 1523 | 1458 | 1512 | 1458 |
| Overall weight [kg] | 2010 | 2045 | 2320 | 2045 | 2300 | 2045 |
| Maximum trailer weight unbraked/braked [kg] | 735-745/1000-1200 | 750/1000 | 750/750 | 750/1000 | 750/800 | 750/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 1029 | 1029 | 1529 | 1029 | 1529 | 1029 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2410 | -/2410 | -/2761 | -/2410 | -/2761 | -/2410 |
| Boot length [mm] | 913 | 913 | 450 | 913 | 450 | 913 |
| Boot length with rear seats folded [mm] | 1800 | 1800 | 2179 | 1800 | 2179 | 1800 |
| Boot width between wheels/max [mm] | -/1192 | -/1192 | -/1149 | -/1192 | -/1149 | -/1192 |
| Boot height to headliner/ceiling [mm] | -/1245 | -/1245 | -/1234 | -/1245 | -/1234 | -/1245 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5-7 | 5 | 5-7 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 96H XL |
| Tyre dimensions rear | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 96H XL |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 | 300 | 320 | 300 | 320 | 300 |
| Brake dimensions rear | 280 | 280 | 280 | 280 | 280 | 280 |
| Steering | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/11.7 | 11.3/11.7 | 12.2/12.5 | 11.3/11.7 | 12.2/12.5 | 11.3/11.7 |
| Overall length [mm] | 4418 | 4418 | 4818 | 4418 | 4818 | 4418 |
| Overall width without/including mirrors [mm] | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 |
| Overall height [mm] | 1852 | 1852 | 1845 | 1852 | 1845 | 1852 |
| Wheelbase [mm] | 2662 | 2662 | 3062 | 2662 | 3062 | 2662 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 Duratorq TDCi Grand | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi Grand | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi Grand | 1.6 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from 2015 to | from 2015 to | from 2015 to | from 2015 to | from to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1560 | 1499 | 1499 | 1499 | 1499 | 1560 |
| Maximum output / speed [kW/min-1] | 55/3500 | 55/3750 | 55/3750 | 55/3750 | 55/3750 | 70/3600 |
| Maximum torque [Nm/min-1] | 220/1500 | 220/1750-2000 | 220/1750-2000 | 220/1750-2000 | 220/1750-2000 | 230/1500-2000 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 3.8 | - | - | - | - | 3.8 |
| Coolant volume [l] | 5.8 | - | - | - | - | 5.8 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
| - | - | - | - |
|
| Top speed [km/h] | 145 | 145 | 145 | 145 | 145 | 160 |
| Acceleration 0–100 km/h [s] | 18.3 | - | - | - | - | 14.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.9 | 5.4 | 5.4 | 4.7 | 4.7 | 5.6 |
| Out of town [l] | 4.5 | 4.4 | 4.4 | 4.3 | 4.3 | 4.6 |
| Combined [l] | 4.6 | 4.8 | 4.8 | 4.4 | 4.4 | 5.0 |
| CO2 emissions [g/km] | 121 | 124 | 124 | 115 | 115 | 130 |
| Emission standard | EU5 | EU6 | EU6 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1512 | - | - | - | - | 1458 |
| Overall weight [kg] | 2300 | - | - | - | - | 2045 |
| Maximum trailer weight unbraked/braked [kg] | 750/800 | - | - | - | - | 750/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 1529 | 1029 | 1529 | 1029 | 1529 | 1029 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2761 | -/2410 | -/2761 | -/2410 | -/2761 | -/2410 |
| Boot length [mm] | 450 | 913 | 450 | 913 | 450 | 913 |
| Boot length with rear seats folded [mm] | 2179 | 1800 | 2179 | 1800 | 2179 | 1800 |
| Boot width between wheels/max [mm] | -/1149 | -/1192 | -/1149 | -/1192 | -/1149 | -/1192 |
| Boot height to headliner/ceiling [mm] | -/1234 | -/1245 | -/1234 | -/1245 | -/1234 | -/1245 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5 | 5-7 | 5 | 5-7 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 205/60 R16 96H XL | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 96H XL |
| Tyre dimensions rear | 205/60 R16 96H XL | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 96H XL |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 320 | - | - | - | - | 300 |
| Brake dimensions rear | 280 | - | - | - | - | 280 |
| Steering | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2/12.5 | 11.3/11.7 | 12.2/12.5 | 11.3/11.7 | 12.2/12.5 | 11.3/11.7 |
| Overall length [mm] | 4818 | 4418 | 4818 | 4418 | 4818 | 4418 |
| Overall width without/including mirrors [mm] | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 |
| Overall height [mm] | 1845 | 1852 | 1845 | 1852 | 1845 | 1852 |
| Wheelbase [mm] | 3062 | 2662 | 3062 | 2662 | 3062 | 2662 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 Duratorq TDCi Grand | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi Grand | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi Grand | 1.5 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from to 2015 | from 2015 to | from 2015 to | from 2015 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1560 | 1560 | 1560 | 1499 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 70/3600 | 70/3600 | 70/3600 | 74/3750 | 74/3750 | 74/3750 |
| Maximum torque [Nm/min-1] | 230/1500-2000 | 230/1500-2000 | 230/1500-2000 | 250/2000-2500 | 250/2000-2500 | 250/2000-2500 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 3.8 | 3.8 | 3.8 | - | - | - |
| Coolant volume [l] | 5.8 | 5.8 | 5.8 | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
|
|
| - | - | - |
| Top speed [km/h] | 160 | 160 | 160 | 163 | 163 | 163 |
| Acceleration 0–100 km/h [s] | 15.1 | 14.7 | 15.1 | - | - | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 4.9 | 4.9 | 5.4 | 5.4 | 4.7 |
| Out of town [l] | 4.6 | 4.4 | 4.5 | 4.4 | 4.4 | 4.3 |
| Combined [l] | 5.0 | 4.6 | 4.6 | 4.8 | 4.8 | 4.4 |
| CO2 emissions [g/km] | 130 | 120 | 121 | 124 | 124 | 115 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1512 | 1458 | 1512 | 1447 | 1504 | 1457 |
| Overall weight [kg] | 2300 | 2045 | 2300 | 2040 | 2300 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | 750/1000 | 750/1200 | 750/1000 | 750/1200 | 750/1029 | 750/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 1529 | 1029 | 1529 | 1029 | 1529 | 1029 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2761 | -/2410 | -/2761 | -/2410 | -/2761 | -/2410 |
| Boot length [mm] | 450 | 913 | 450 | 913 | 450 | 913 |
| Boot length with rear seats folded [mm] | 2179 | 1800 | 2179 | 1800 | 2179 | 1800 |
| Boot width between wheels/max [mm] | -/1149 | -/1192 | -/1149 | -/1192 | -/1149 | -/1192 |
| Boot height to headliner/ceiling [mm] | -/1234 | -/1245 | -/1234 | -/1245 | -/1234 | -/1245 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5 | 5-7 | 5 | 5-7 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 320 | 300 | 320 | - | - | - |
| Brake dimensions rear | 280 | 280 | 280 | - | - | - |
| Steering | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2/12.5 | 11.3/11.7 | 12.2/12.5 | 11.3/11.7 | 12.2/12.5 | 11.3/11.7 |
| Overall length [mm] | 4818 | 4418 | 4818 | 4418 | 4818 | 4418 |
| Overall width without/including mirrors [mm] | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 |
| Overall height [mm] | 1845 | 1852 | 1845 | 1852 | 1845 | 1852 |
| Wheelbase [mm] | 3062 | 2662 | 3062 | 2662 | 3062 | 2662 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 Duratorq TDCi Grand | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi Grand | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi Grand | 1.5 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from to 2015 | from to 2015 | from 2015 to | from 2015 to | from 2015 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1499 | 1560 | 1560 | 1499 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 74/3750 | 85/3600 | 85/3600 | 88/3600 | 88/3600 | 88/3600 |
| Maximum torque [Nm/min-1] | 250/2000-2500 | 270/1500-2000 | 270/1500-2000 | 270/1750-2500 | 270/1750-2500 | 300/1750-2000 |
| Bore and stroke [mm x mm] | 73,5 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | 3.8 | 3.8 | - | - | - |
| Coolant volume [l] | - | 5.8 | 5.8 | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
| - | - |
|
| Top speed [km/h] | 163 | 165 | 165 | 171 | 171 | 168 |
| Acceleration 0–100 km/h [s] | - | 13.8 | 14.1 | - | - | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.7 | 5.6 | 5.6 | 4.9 | 4.9 | 5.4 |
| Out of town [l] | 4.3 | 4.6 | 4.6 | 4.4 | 4.4 | 4.7 |
| Combined [l] | 4.4 | 4.9 | 4.9 | 4.6 | 4.6 | 5.0 |
| CO2 emissions [g/km] | 115 | 130 | 130 | 119 | 119 | 129 |
| Emission standard | EU6 | EU5 | EU5 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1514 | 1467 | 1521 | 1446 | 1507 | 1477 |
| Overall weight [kg] | 2300 | 2055 | 2310 | 2040 | 2310 | 2065 |
| Maximum trailer weight unbraked/braked [kg] | 750/1029 | 750/1200 | 750/1000 | 750/1200 | 750/1081 | 750/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 1529 | 1029 | 1529 | 1029 | 1529 | 1029 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2761 | -/2410 | -/2761 | -/2410 | -/2761 | -/2410 |
| Boot length [mm] | 450 | 913 | 450 | 913 | 450 | 913 |
| Boot length with rear seats folded [mm] | 2179 | 1800 | 2179 | 1800 | 2179 | 1800 |
| Boot width between wheels/max [mm] | -/1149 | -/1192 | -/1149 | -/1192 | -/1149 | -/1192 |
| Boot height to headliner/ceiling [mm] | -/1234 | -/1245 | -/1234 | -/1245 | -/1234 | -/1245 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5 | 5-7 | 5 | 5-7 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers | MacPherson, coil springs, gas shock absorbers |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 96H XL | 205/60 R16 96H XL | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | 300 | 320 | - | - | - |
| Brake dimensions rear | - | 280 | 280 | - | - | - |
| Steering | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2/12.5 | 11.3/11.7 | 12.2/12.5 | 11.3/11.7 | 12.2/12.5 | 11.3/11.7 |
| Overall length [mm] | 4818 | 4418 | 4818 | 4418 | 4818 | 4418 |
| Overall width without/including mirrors [mm] | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 | 1835/2137 |
| Overall height [mm] | 1845 | 1852 | 1845 | 1852 | 1845 | 1852 |
| Wheelbase [mm] | 3062 | 2662 | 3062 | 2662 | 3062 | 2662 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 Duratorq TDCi Grand | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/8 | |||||
| Engine displacement [cm³] | 1499 | |||||
| Maximum output / speed [kW/min-1] | 88/3600 | |||||
| Maximum torque [Nm/min-1] | 300/1750-2000 | |||||
| Bore and stroke [mm x mm] | 73,5 x 88,3 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 168 | |||||
| Acceleration 0–100 km/h [s] | - | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 5.4 | |||||
| Out of town [l] | 4.7 | |||||
| Combined [l] | 5.0 | |||||
| CO2 emissions [g/km] | 129 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1530 | |||||
| Overall weight [kg] | 2320 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/959 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 1529 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2761 | |||||
| Boot length [mm] | 450 | |||||
| Boot length with rear seats folded [mm] | 2179 | |||||
| Boot width between wheels/max [mm] | -/1149 | |||||
| Boot height to headliner/ceiling [mm] | -/1234 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5-7 | |||||
| Fuel tank volume [l] | 60 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson, coil springs, gas shock absorbers | |||||
| Rear suspension | torsion bar | |||||
| Tyre dimensions front | 205/60 R16 | |||||
| Tyre dimensions rear | 205/60 R16 | |||||
| Wheel size front | 6.5J x 16 | |||||
| Wheel size rear | 6.5J x 16 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electric power steering EPAS | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 12.2/12.5 | |||||
| Overall length [mm] | 4818 | |||||
| Overall width without/including mirrors [mm] | 1835/2137 | |||||
| Overall height [mm] | 1845 | |||||
| Wheelbase [mm] | 3062 | |||||
| Front wheel track [mm] | - | |||||
| Rear wheel track [mm] | - | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
