Basic information Technical Specifications Gallery

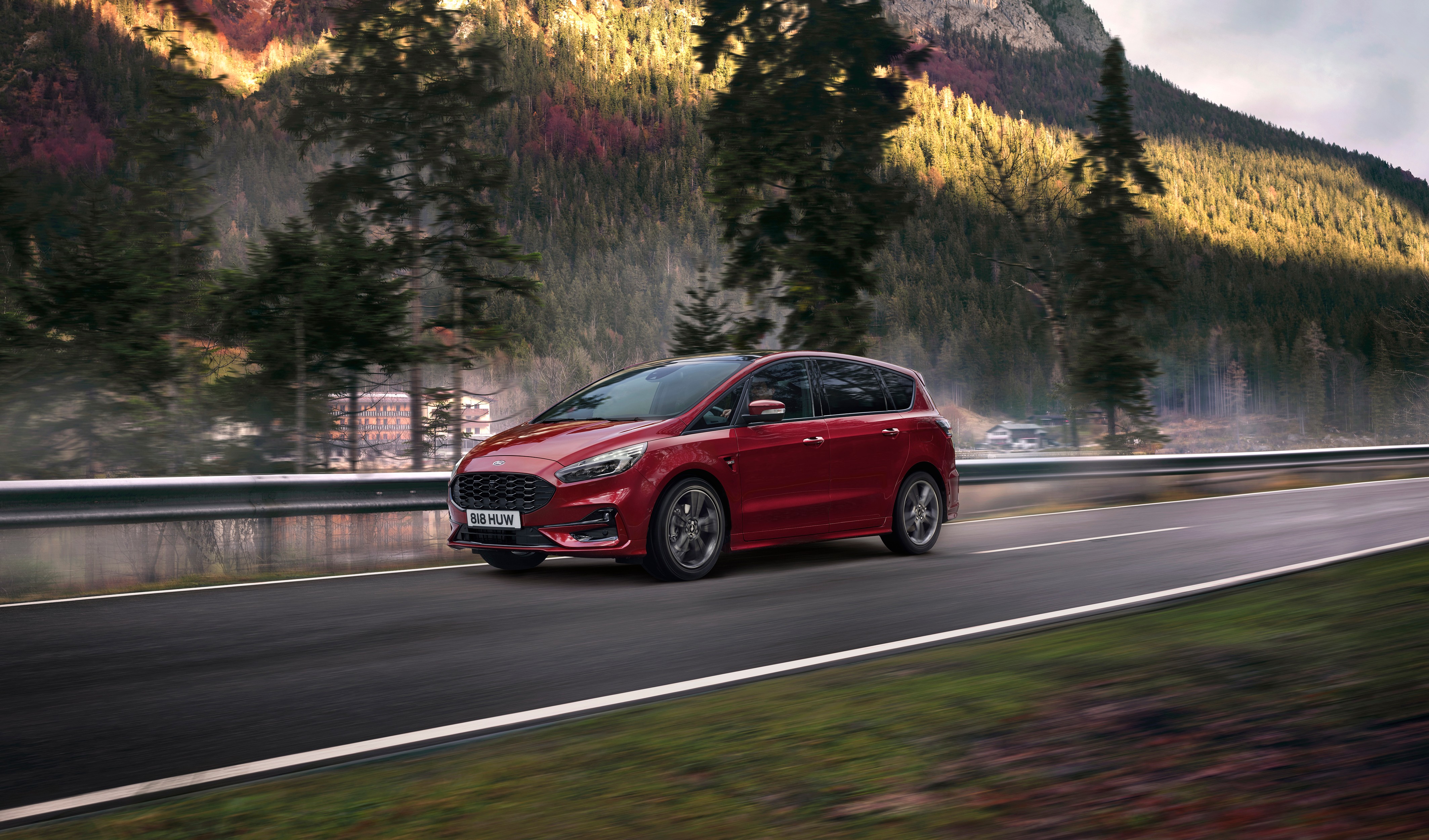

Ford S-Max

Date of manufacture

2019 – to this day (Large MPV)

Platform

Ford CD4 platform

Manufacturing locations

Valencia, Spain

Designer

Joel Piaskowski

Car body style

Large MPV

after upgrade (facelift)

Date of manufacture

2019 – to this day

Internal designation

Engine size

Petrol

Diesel

2.0 EcoBlue Bi-Turbo 240

Euro NCAP

Test year 2015

pre-facelift version (2015)

Technical data

Large MPV

	1.5 EcoBoost	2.0 EcoBlue 150	2.0 EcoBlue 150	2.0 EcoBlue 190	2.0 EcoBlue 190 AWD	2.0 EcoBlue Bi-Turbo 240
Date of sale	from to 2020	-	-	-	-	from to 2020
Engine type	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1498	1995	1995	1995	1995	1997
Maximum output / speed [kW/min-1]	121/5500	110/3500	110/3500	140/3500	140/3500	177/4000
Maximum torque [Nm/min-1]	242/1600-4000	370/2000-2500	370/2000-2500	400/2000-3000	400/2000-3000	500/2000
Bore and stroke [mm x mm]	79,02 x 76,40	85,0 x 88,0	85,0 x 88,0	85,0 x 88,0	85,0 x 88,0	85,0 x 88,0
Compression ratio	10,0:1	16,0:1	16,0:1	16,0:1	16,0:1	16,0:1
Oil volume [l]	4.1	5.5	5.5	5.5	5.5	5.5
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable valve timing Ti‐VCT Gasoline Particulate Filter start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Common Rail supercharging by twin turbochargers with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system

Drive axle	Front	Front	Front	Front	4x4	Front
Gearbox	6 gear manual	6 gear manual	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	-	-	eight-speed automatic gearbox	eight-speed automatic gearbox	automatically controlled all-wheel drive eight-speed automatic gearbox	eight-speed automatic gearbox

Top speed [km/h]	203	198	196	208	206	220
Acceleration 0–100 km/h [s]	9.9	10.6	10.8	9.7	9.9	8.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	10.2-9.5	6.3-6.2	6.5-6.4	6.3-6.2	7.3	7.1
Out of town [l]	6.3-6.1	4.5	4.9-4.8	4.8-4.6	5.4-5.3	5.2
Combined [l]	7.6-7.4	5.1	5.5-5.4	5.4-5.2	6.1	5.9
CO2 emissions [g/km]	175-170	137-134	145-141	141-137	156-149	154

Emission standard	EU6-TEMP	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1784	1901	1905	1905	1984	1951
Overall weight [kg]	2450	2555	2555	2555	2635	2600
Maximum trailer weight unbraked/braked [kg]	750/1800	750/2000	750/2000	750/2000	750/2000	750/2000
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	90	90	90	90	75
Maximum load on roof/carrier [kg]	40/-	75/-	75/-	75/-	75/-	40/-

Boot volume [l]	965	965	965	965	965	965
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/2020	-/2020	-/2020	-/2020	-/2020	-/2020
Boot volume, third row of seats [l]	-	-	-	-	-	-
Boot volume, third row seats folded [l]	-	-	-	-	-	-
Boot length [mm]	1187	1187	1187	1187	1187	1187
Boot length with rear seats folded [mm]	1988	1988	1988	1988	1988	1988
Boot width between wheels/max [mm]	-/1044	-/1044	-/1044	-/1044	-/1044	-/1044
Boot height to headliner/ceiling [mm]	-/999	-/999	-/999	-/999	-/999	-/999
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5-7	5-7	5-7	5-7	5-7	5-7
Fuel tank volume [l]	63	63	63	63	61	61
AdBlue tank volume [l]	-	12.4	12.4	12.4	12.4	12.4
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	multilink Integral Blade suspension	multilink Integral Blade suspension	multilink Integral Blade suspension	multilink Integral Blade suspension	multilink Integral Blade suspension	multilink Integral Blade suspension
Tyre dimensions front	235/55 R17	235/55 R17	235/55 R17	235/55 R17	235/55 R17	235/55 R17
Tyre dimensions rear	235/55 R17	235/55 R17	235/55 R17	235/55 R17	235/55 R17	235/55 R17
Wheel size front	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17
Wheel size rear	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17	7.5 J x 17
Brake dimensions front	316 x 32	316 x 32	316 x 32	316 x 32	316 x 32	316 x 32
Brake dimensions rear	316 x 11	316 x 11	316 x 11	316 x 11	316 x 11	316 x 11
Steering	Rack & pinion with electric power steering m (EPAS)	Rack & pinion with electric power steering m (EPAS)	Rack & pinion with electric power steering m (EPAS)	Rack & pinion with electric power steering m (EPAS)	Rack & pinion with electric power steering m (EPAS)	Rack & pinion with electric power steering m (EPAS)
Number of steering wheel turns	2.5-2.7	2.5-2.7	2.5-2.7	2.5-2.7	2.5-2.7	2.5-2.7
Turning diameter track/circumference [m]	11.6/12.0	11.6/12.0	11.6/12.0	11.6/12.0	11.6/12.0	11.6/12.0

Overall length [mm]	4796	4796	4796	4796	4796	4796
Overall width without/including mirrors [mm]	1916/2137	1916/2137	1916/2137	1916/2137	1916/2137	1916/2137
Overall height [mm]	1655	1655	1655	1655	1655	1655
Wheelbase [mm]	2850	2850	2850	2850	2850	2850
Front wheel track [mm]	1606	1606	1606	1606	1606	1606
Rear wheel track [mm]	1606	1606	1606	1606	1606	1606
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	128-148	128-148	128-148	128-148	128-148	128-148
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1022	1022	1022	1022	1022	1022
Headroom rear [mm]	971	971	971	971	971	971
Front elbow/shoulder width [mm]	1431/1531	1431/1531	1431/1531	1431/1531	1431/1531	1431/1531
Rear elbow/shoulder width [mm]	1470/1535	1470/1535	1470/1535	1470/1535	1470/1535	1470/1535
Legroom front knees/total [mm]	-/1081	-/1081	-/1081	-/1081	-/1081	-/1081
Legroom rear knees/total [mm]	-/991	-/991	-/991	-/991	-/991	-/991
Third row of seats, headroom [mm]	943	943	943	943	943	943
Third row elbow/shoulder width [mm]	1470/1535	1470/1535	1470/1535	1470/1535	1470/1535	1470/1535

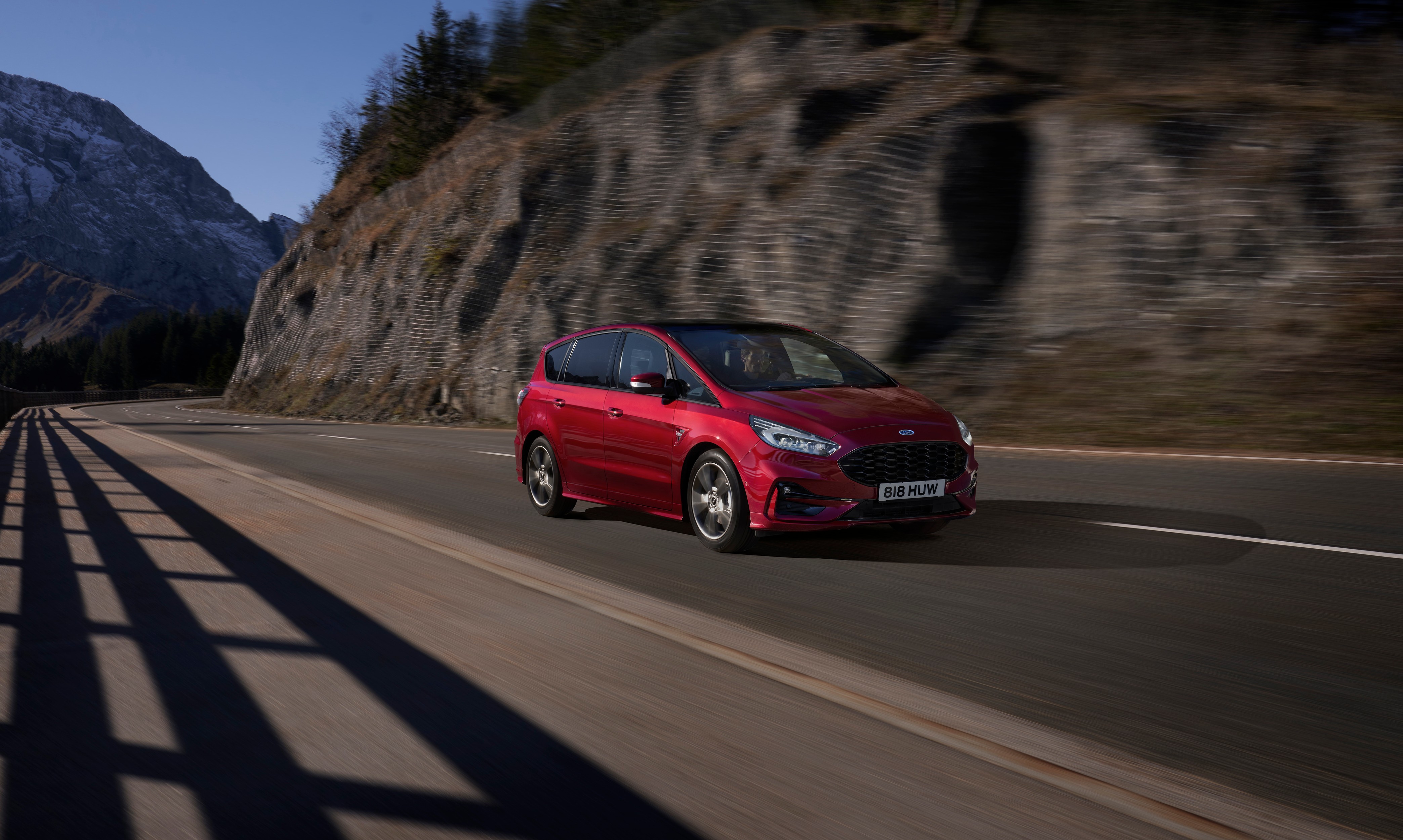

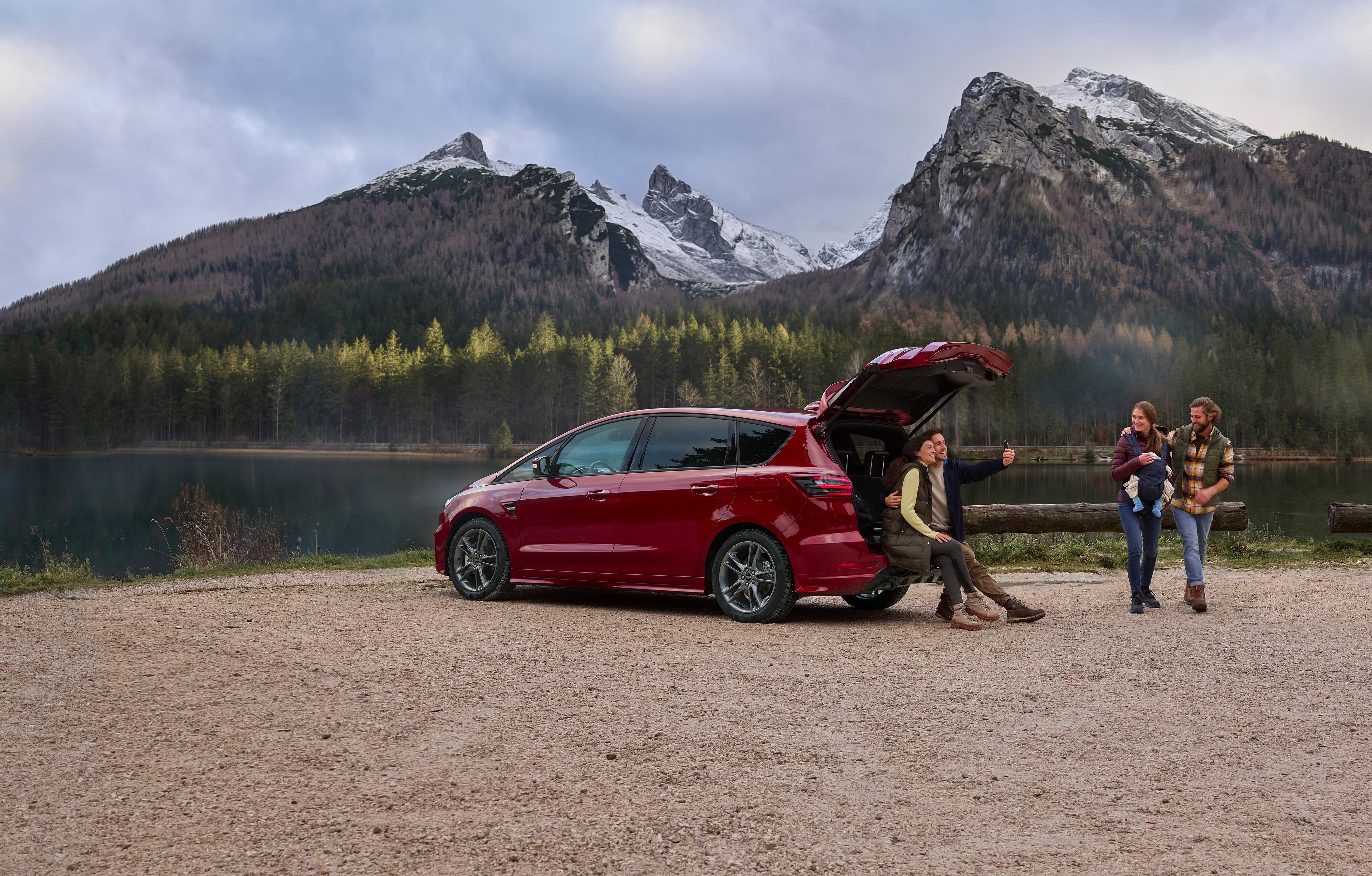

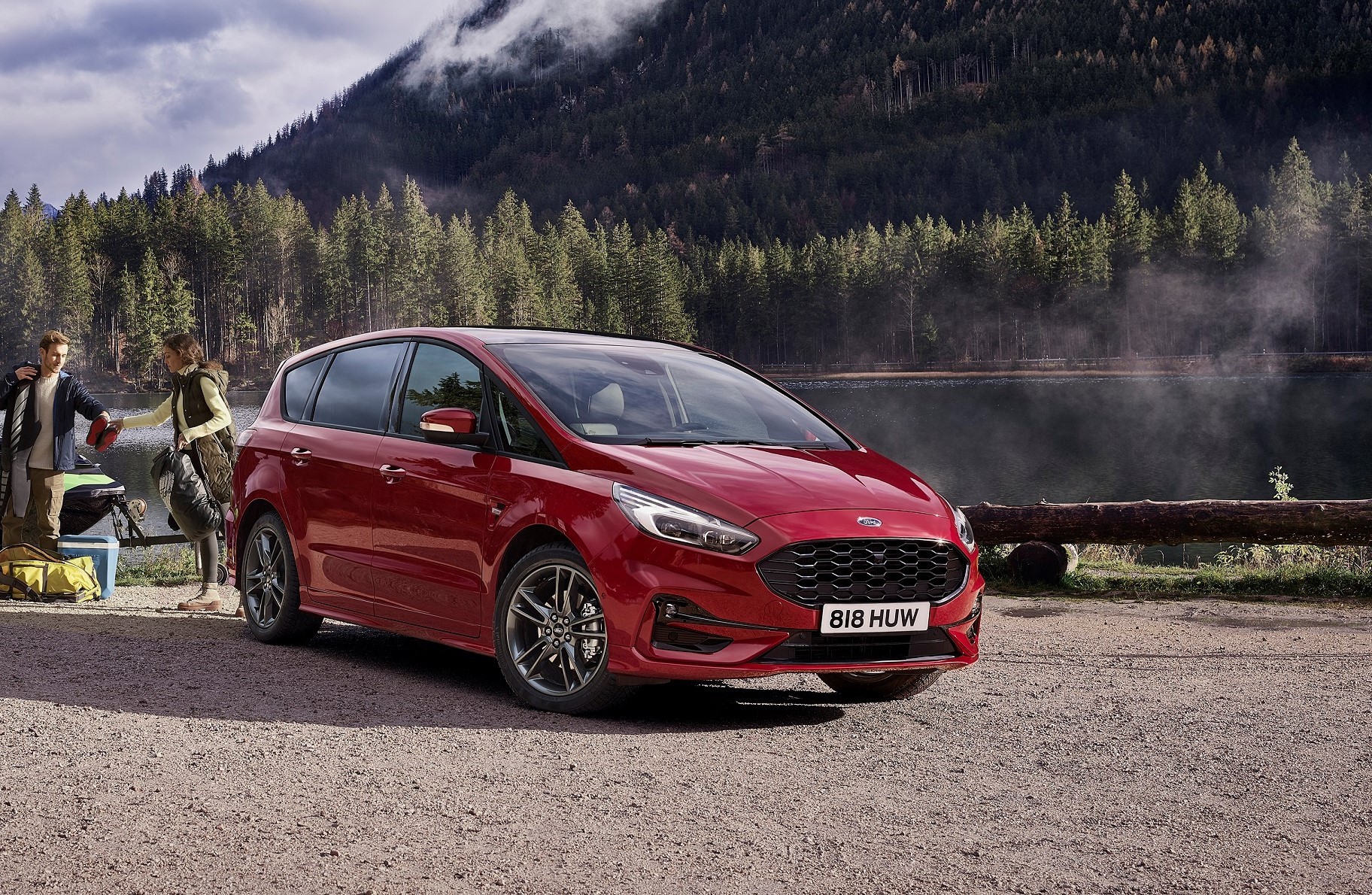

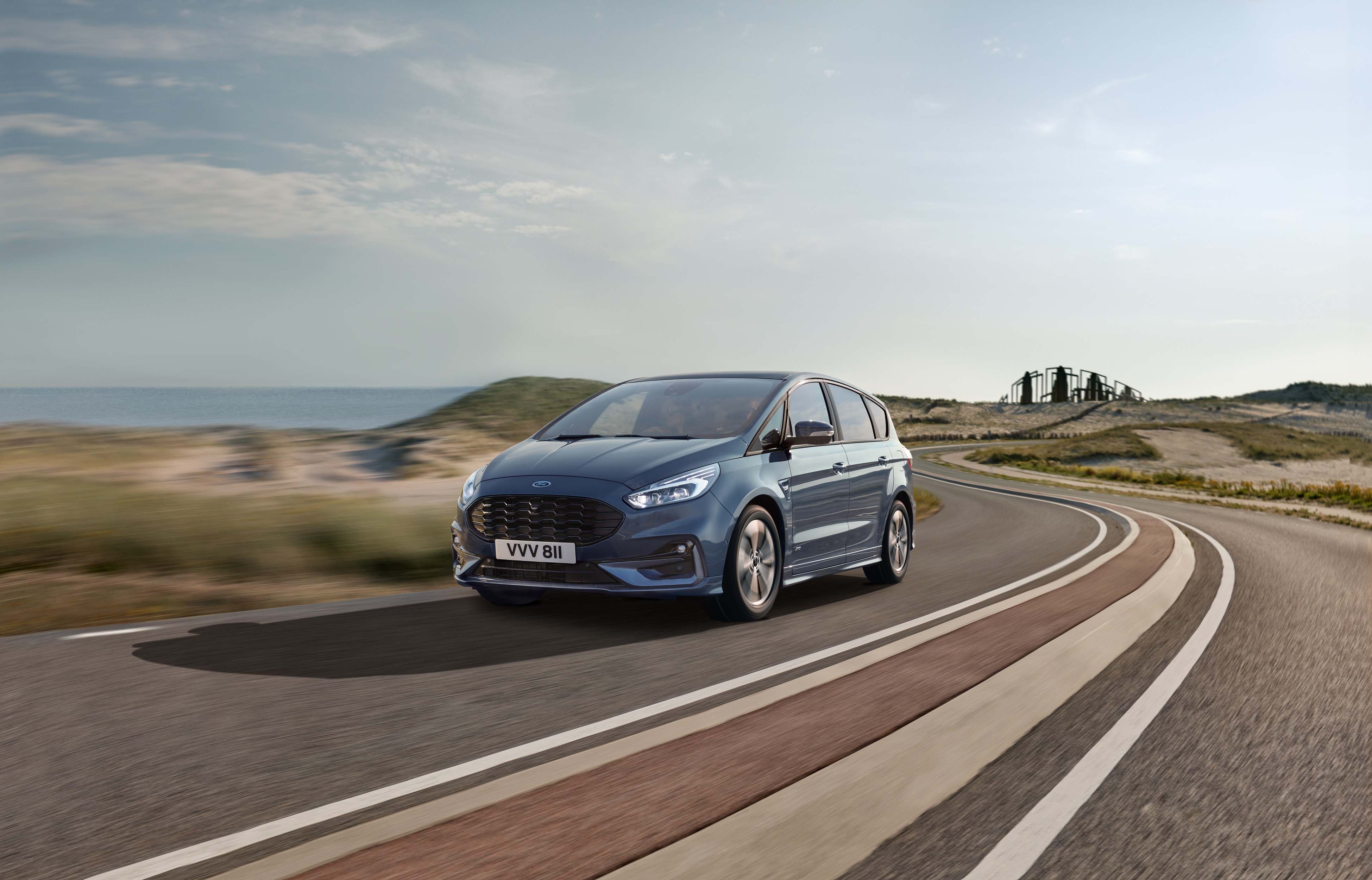

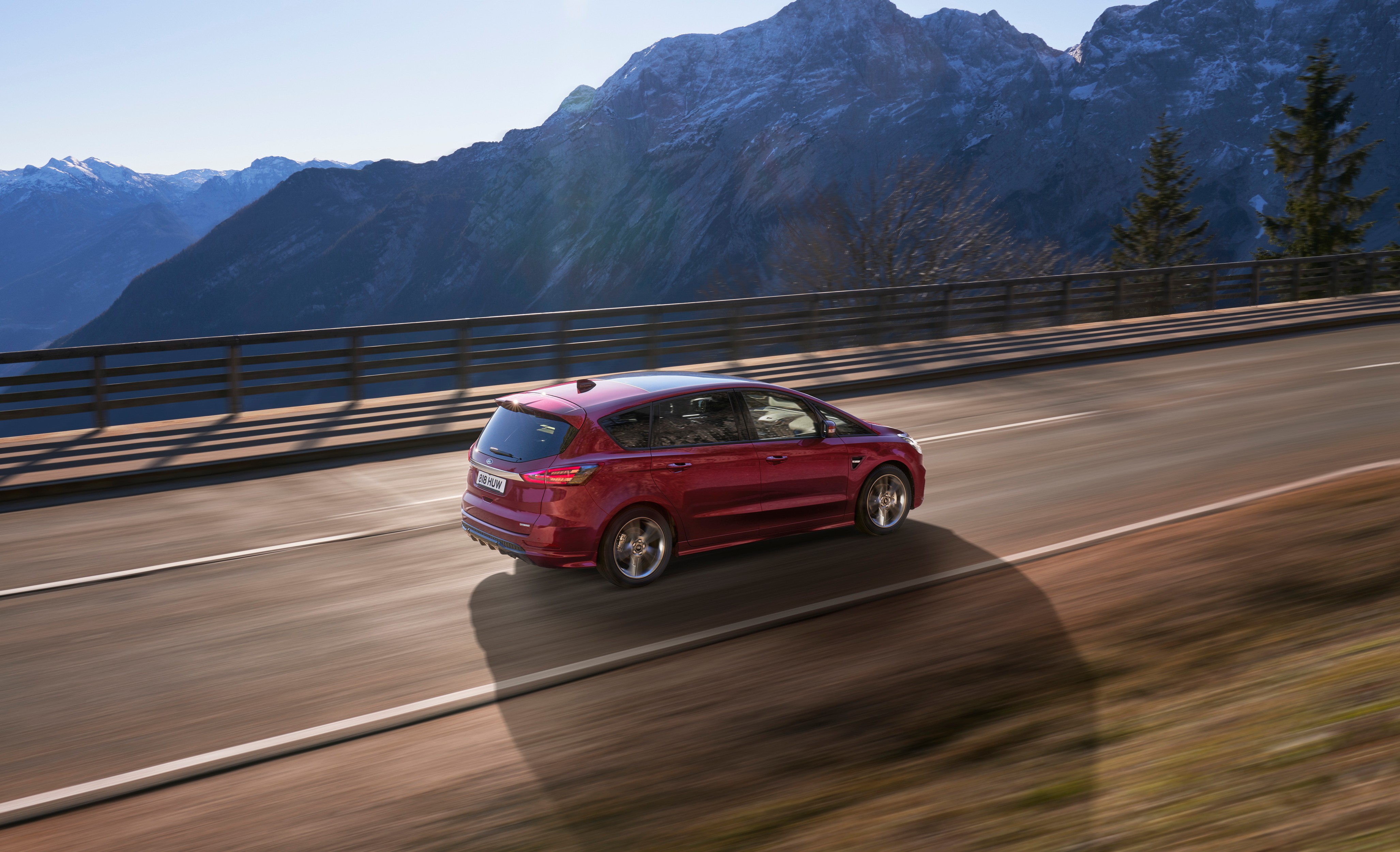

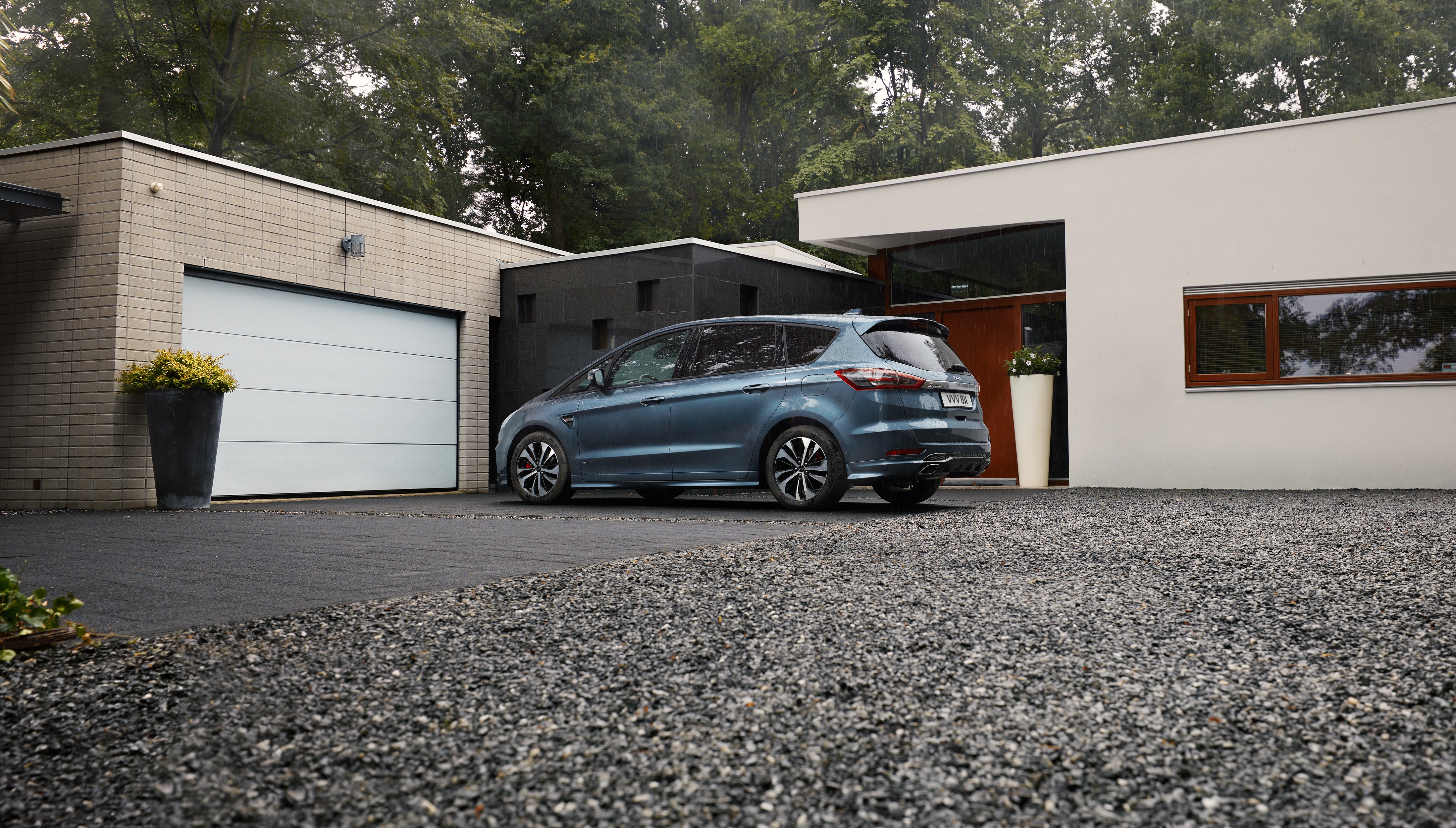

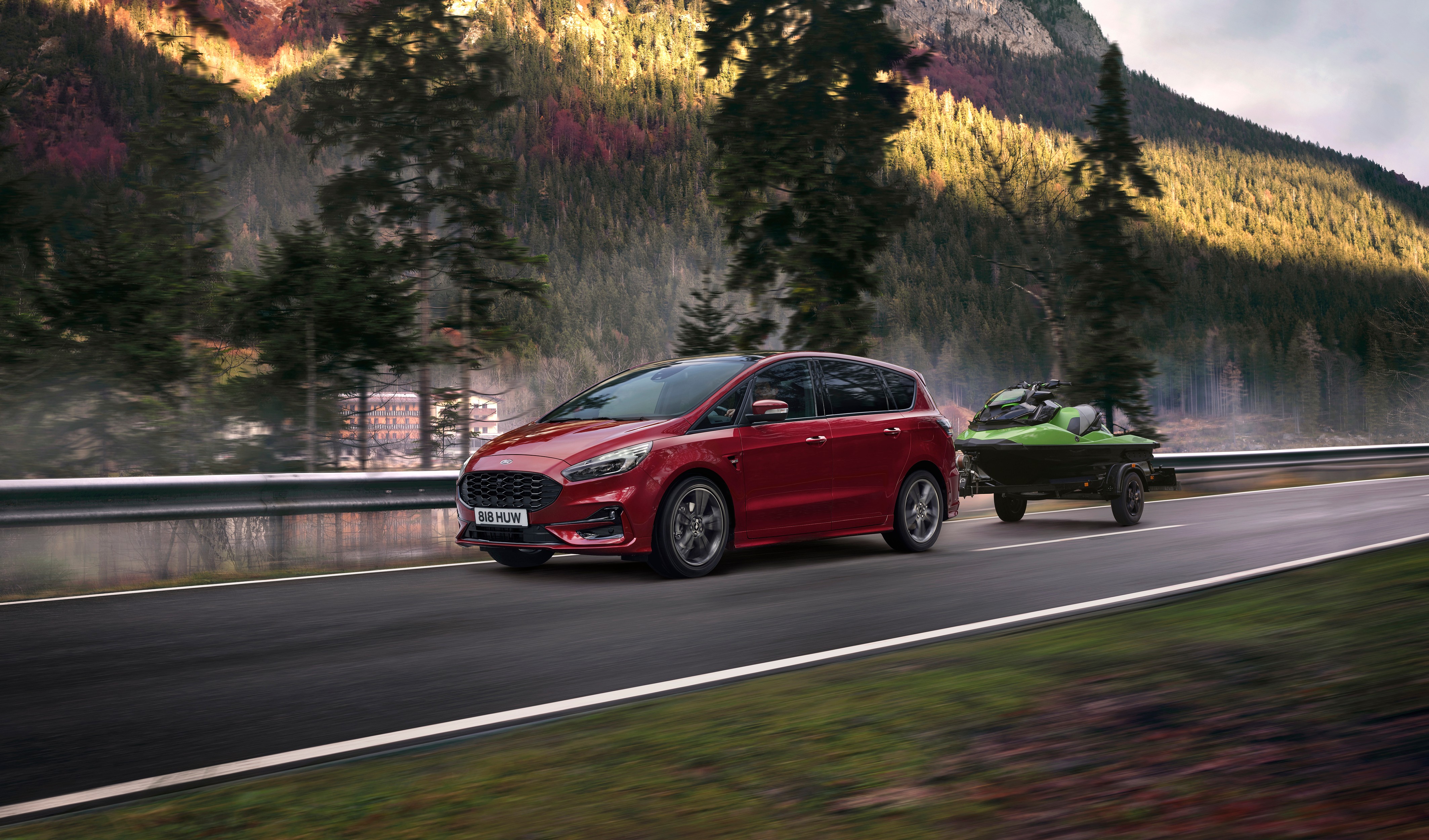

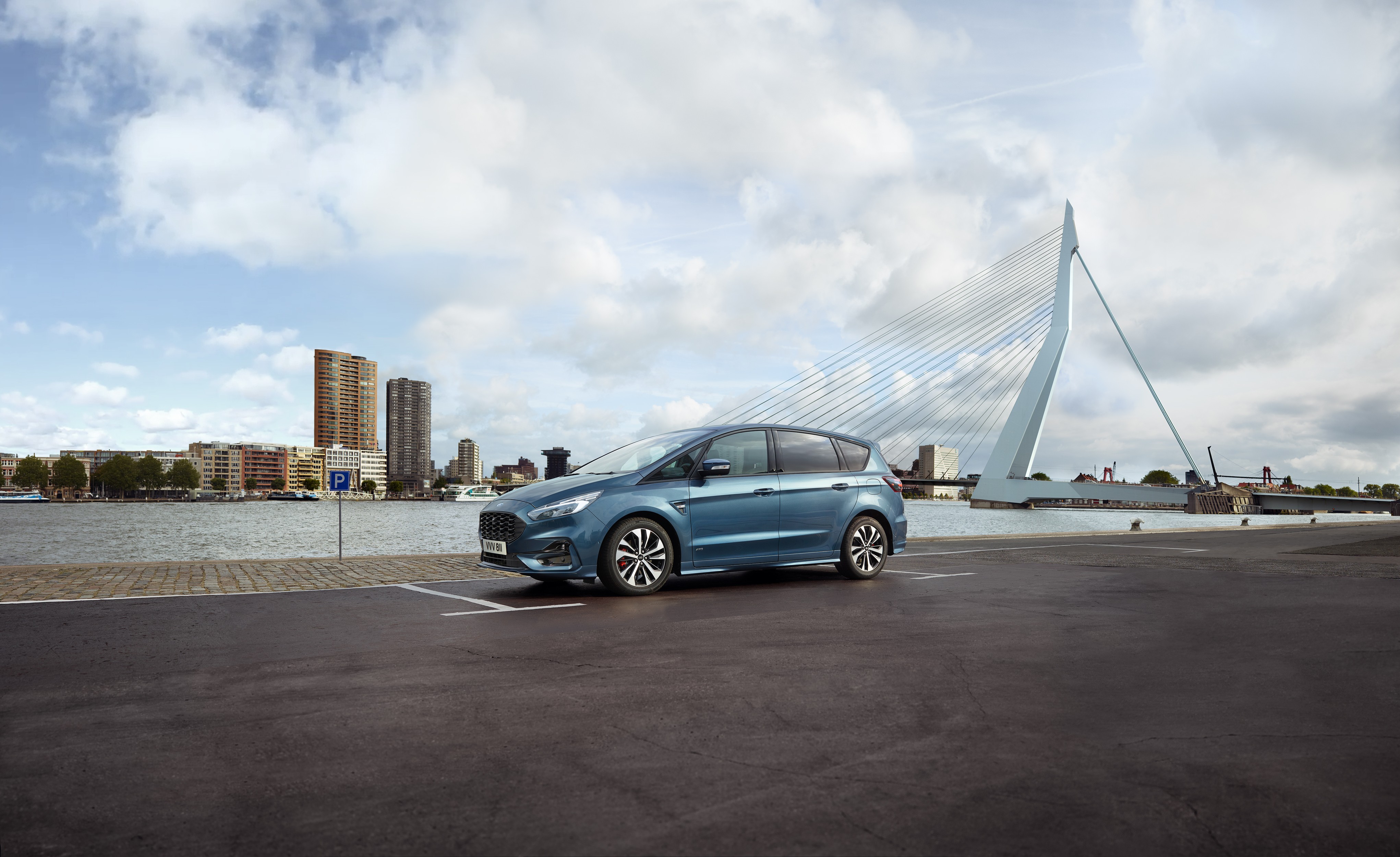

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
