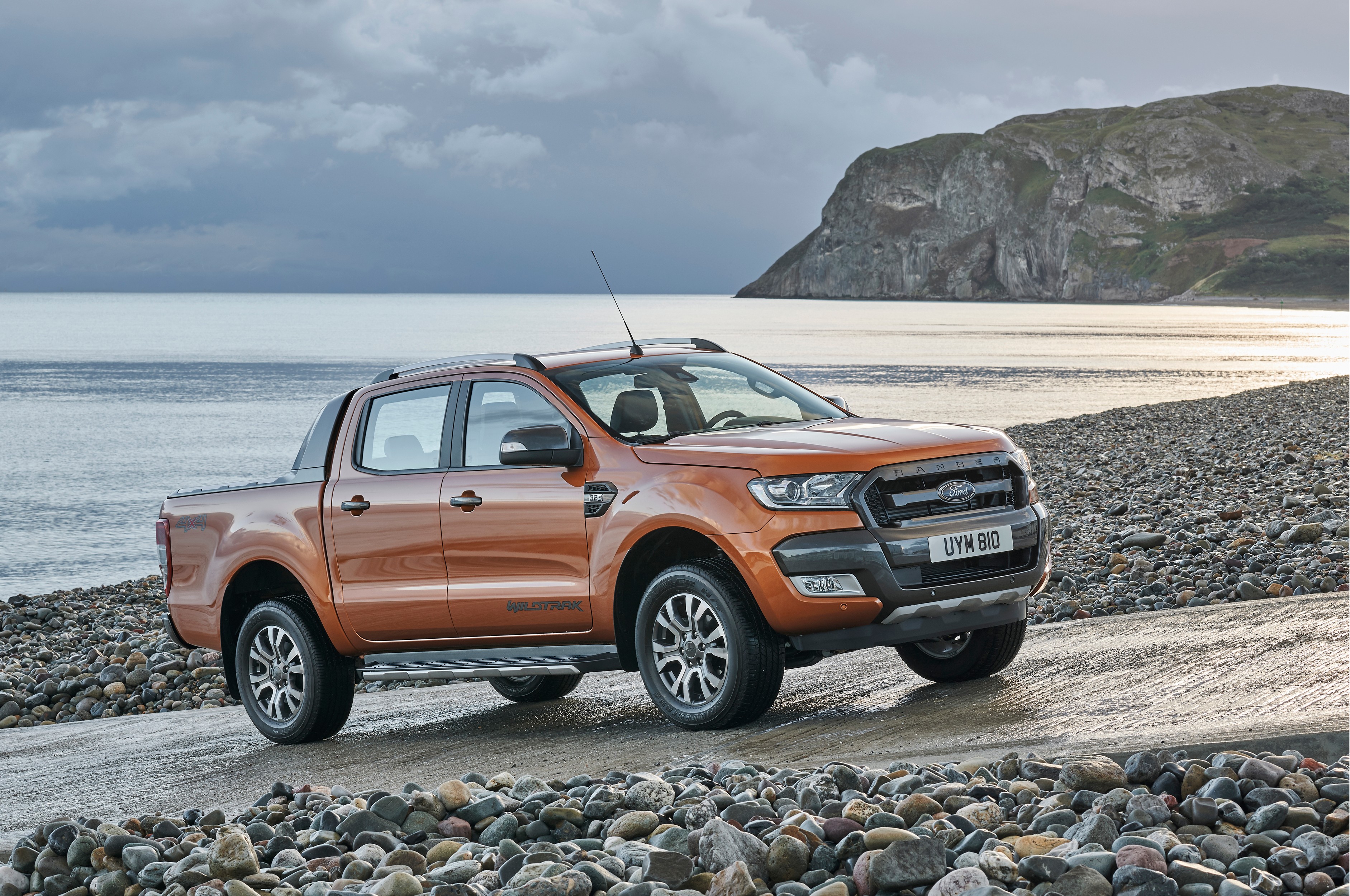

Ford Ranger
Date of manufacture
2015 – 2019 (Pick-up)
Platform
-
Manufacturing locations
Wayne, Michigan, USA
Rayong, Thailand
Designer
-
Tags
Pick-up
American cars
Ford Ranger is a popular pickup truck that has been manufactured since 2015. The vehicle is available in US or Thai-made versions and offers only diesel engines. The most powerful model, the 3.2 Dutatorq TDCi 200 Double Cab, produces 147 kW and reaches a top speed of 175 km/h. The fastest acceleration from 0-100 km/h (13.1 seconds) is achieved by the 2.2 Dutatorq TDCi 130 Single Cab, which also has the lowest fuel consumption of 6.7 l/100 km and emissions of 173 g/km. Ford Ranger received a 5 out of 5 rating in the EURONCAP safety tests in 2012.
Car body style
Pick-up
after upgrade (facelift)
Date of manufacture
2015 – 2019Internal designation
T6Engine size
Technical data
Pick-up
| 2.2 Dutatorq TDCi 130 Single Cab | 2.2 Dutatorq TDCi 130 Single Cab | 2.2 Dutatorq TDCi 160 Single Cab | 2.2 Dutatorq TDCi 130 Extrakabine | 2.2 Dutatorq TDCi 160 Extrakabine | 2.2 Dutatorq TDCi 160 Extrakabine | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2198 | 2198 | 2198 | 2198 | 2198 | 2198 |
| Maximum output / speed [kW/min-1] | 96 | 96 | 118 | 96 | 118 | 118 |
| Maximum torque [Nm/min-1] | 330/2500 | 330/2500 | 385/1500-2500 | 330/2500 | 385/1500-2500 | 385/1500-2500 |
| Bore and stroke [mm x mm] | - | - | - | - | - | - |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 165 | 175 | 175 | 175 | 175 | 175 |
| Acceleration 0–100 km/h [s] | 13.1 | 13.5 | 11.8 | - | 11.8 | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0 | 7.8 | 8.3 | 7.8 | 8.2 | 9.6 |
| Out of town [l] | 5.8 | 6.5 | 6.7 | 6.5 | 6.6 | 7.0 |
| Combined [l] | 6.7 | 7.0 | 7.3 | 7.0 | 7.1 | 8.0 |
| CO2 emissions [g/km] | 173 | 182 | 191 | 182 | 185 | 209 |
| Emission standard | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1980 | 2034 | 2035 | 2013-2080 | 1976-2167 | 2065-2186 |
| Overall weight [kg] | 2925 | 3200 | 3200 | 3200 | 3200 | 3200 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 750/2200 | 750/1600-2500 | 750/3500 | 750/1600-2500 | 750/3500 | 750/3500 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 2317 | 2317 | 2317 | 1847 | 1847 | 1847 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 |
| Boot height to headliner/ceiling [mm] | 511/- | 511/- | 511/- | 511/- | 511/- | 511/- |
| Loading edge height [mm] | 835 | 835 | 835 | 835 | 835 | 835 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 4 | 4 | 4 |
| Number of seats | 2 | 2 | 2 | 4 | 4 | 4 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- |
| Overall length [mm] | 5227 | 5227 | 5227 | 5362 | 5362 | 5362 |
| Overall width without/including mirrors [mm] | 1860/2163 | 1860/2163 | 1860/2163 | 1860/2163 | 1860/2163 | 1860/2163 |
| Overall height [mm] | 1800 | 1800 | 1800 | 1804 | 1804 | 1804 |
| Wheelbase [mm] | 3220 | 3220 | 3220 | 3220 | 3220 | 3220 |
| Front wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 229 | 229 | 229 | 229 | 229 | 229 |
| Wading depth [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Approach angle front [°] | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 |
| Approach angle rear [°] | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 |
| Transition angle [°] | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | 35 | 35 | 35 | 35 | 35 | 35 |
| Headroom front [mm] | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Headroom rear [mm] | - | - | - | 938 | 938 | 938 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | -/1058 | -/1058 | -/1058 | -/1058 | -/1058 | -/1058 |
| Legroom rear knees/total [mm] | - | - | - | -/796 | -/796 | -/796 |
| 3.2 Dutatorq TDCi 200 Extrakabine | 3.2 Dutatorq TDCi 200 Extrakabine | 2.2 Dutatorq TDCi 130 Doppelkabine | 2.2 Dutatorq TDCi 160 Doppelkabine | 2.2 Dutatorq TDCi 160 Doppelkabine | 3.2 Dutatorq TDCi 200 Doppelkabine | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/- | 5/- | 4/16 | 4/16 | 4/16 | 5/- |
| Engine displacement [cm³] | 3196 | 3196 | 2198 | 2198 | 2198 | 3196 |
| Maximum output / speed [kW/min-1] | 147 | 147 | 96 | 118 | 118 | 147 |
| Maximum torque [Nm/min-1] | 470/1500-2750 | 470/1500-2750 | 330/2500 | 385/1500-2500 | 385/1500-2500 | 470/1500-2750 |
| Bore and stroke [mm x mm] | - | - | - | - | - | - |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 175 | 175 | 165 | 175 | 175 | 175 |
| Acceleration 0–100 km/h [s] | 10.3 | - | - | 12.3 | 12.6 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.7 | 11.2 | 7.8 | 8.2 | 9.6 | 9.7 |
| Out of town [l] | 7.4 | 7.3 | 6.5 | 6.6 | 7.0 | 7.4 |
| Combined [l] | 8.3 | 8.7 | 7.0 | 7.1 | 8.0 | 8.3 |
| CO2 emissions [g/km] | 218 | 229 | 182 | 185 | 209 | 218 |
| Emission standard | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 | EU5 - EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2091-2250 | 2141-2267 | 2047-2131 | 1993-2215 | 2079-2234 | 2081-2342 |
| Overall weight [kg] | 3200 | 3200 | 3200 | 3200 | 3200 | 3200 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 750/3500 | 750/3500 | 750/1600-2500 | 750/3500 | 750/3500 | 750/3500 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1847 | 1847 | 1549 | 1549 | 1549 | 1549 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 | 1139/1560 |
| Boot height to headliner/ceiling [mm] | 511/- | 511/- | 511/- | 511/- | 511/- | 511/- |
| Loading edge height [mm] | 835 | 835 | 835 | 835 | 835 | 835 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4 | 4 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- | 12.4/- |
| Overall length [mm] | 5362 | 5362 | 5362 | 5362 | 5362 | 5362 |
| Overall width without/including mirrors [mm] | 1860/2163 | 1860/2163 | 1860/2163 | 1860/2163 | 1860/2163 | 1860/2163 |
| Overall height [mm] | 1804 | 1804 | 1815 | 1815 | 1815 | 1815 |
| Wheelbase [mm] | 3220 | 3220 | 3220 | 3220 | 3220 | 3220 |
| Front wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 229 | 229 | 229 | 229 | 229 | 229 |
| Wading depth [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Approach angle front [°] | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 |
| Approach angle rear [°] | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 |
| Transition angle [°] | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | 35 | 35 | 35 | 35 | 35 | 35 |
| Headroom front [mm] | 1024 | 1024 | 1022 | 1022 | 1022 | 1022 |
| Headroom rear [mm] | 938 | 938 | 975 | 975 | 975 | 975 |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | -/1058 | -/1058 | -/1058 | -/1058 | -/1058 | -/1058 |
| Legroom rear knees/total [mm] | -/796 | -/796 | -/902 | -/902 | -/902 | -/902 |
| 3.2 Dutatorq TDCi 200 Doppelkabine | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 5/- | |||||
| Engine displacement [cm³] | 3196 | |||||
| Maximum output / speed [kW/min-1] | 147 | |||||
| Maximum torque [Nm/min-1] | 470/1500-2750 | |||||
| Bore and stroke [mm x mm] | - | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 175 | |||||
| Acceleration 0–100 km/h [s] | 10.4 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 11.2 | |||||
| Out of town [l] | 7.3 | |||||
| Combined [l] | 8.7 | |||||
| CO2 emissions [g/km] | 229 | |||||
| Emission standard | EU5 - EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 2101-2358 | |||||
| Overall weight [kg] | 3200 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 750/3500 | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | - | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | 1549 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 1139/1560 | |||||
| Boot height to headliner/ceiling [mm] | 511/- | |||||
| Loading edge height [mm] | 835 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | - | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | - | |||||
| Rear suspension | - | |||||
| Tyre dimensions front | - | |||||
| Tyre dimensions rear | - | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 12.4/- | |||||
| Overall length [mm] | 5362 | |||||
| Overall width without/including mirrors [mm] | 1860/2163 | |||||
| Overall height [mm] | 1815 | |||||
| Wheelbase [mm] | 3220 | |||||
| Front wheel track [mm] | 1560 | |||||
| Rear wheel track [mm] | 1560 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 229 | |||||
| Wading depth [mm] | 800 | |||||
| Approach angle front [°] | 28.0 | |||||
| Approach angle rear [°] | 28.0 | |||||
| Transition angle [°] | 25.0 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | 35 | |||||
| Headroom front [mm] | 1022 | |||||
| Headroom rear [mm] | 975 | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | -/1058 | |||||
| Legroom rear knees/total [mm] | -/902 |

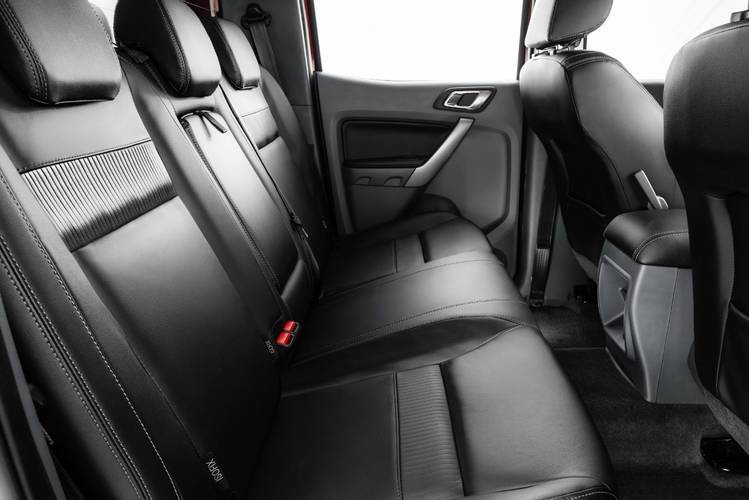

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
