Ford Puma
Date of manufacture
10/2019 – to this day (Small SUV)
Platform
Ford global B-car
Manufacturing locations
Craiova, Romania
Designer
Murat Güler
Tags
Small SUV
German cars
The only body style of the Ford Puma is a small SUV. The vehicle has been manufactured since 2019. The country of manufacture of the vehicle is Romania. The vehicle is built on the Ford global B-car platform. The engine range includes petrol and diesel engines. The most powerful unit is the 1.5 EcoBoost ST with 147 kW. The 1.5 EcoBoost ST has a maximum speed of 220 km/h. The 1.5 EcoBlue 120 has the lowest consumption of 4.5 l/100 km and emissions of 119 g/km. The boot capacity offers 456 l. During EURONCAP safety tests, the model received a rating of 5 out of 5. Tested according to the methodology of 2019.
Car body style
Small SUV
Date of manufacture
10/2019 – to this dayInternal designation
-
Technical data
Small SUV
| 1.0 EcoBoost 95 | 1.0 EcoBoost 125 | 1.0 EcoBoost 125 | 1.0 EcoBoost MHEV 125 | 1.0 EcoBoost MHEV 125 | 1.0 EcoBoost MHEV 155 | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2020 | from to 2020 | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 999 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 70/4000-6000 | 92/6000 | 92/6000 | 92/6000 | 92/6000 | 114/6000 |
| Maximum torque [Nm/min-1] | 170/1400-4000 | 170/1400 | 170/1400 | 210/1750 | 210/1750 | 240/2500 |
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 |
| Compression ratio | 11,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 175 | 191 | 187 | 191 | 190 | 205 |
| Acceleration 0–100 km/h [s] | 11.9 | 10.0 | 10.2 | 9.8 | 9.6 | 9.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 5.5-5.4 | 6.0-5.8 | - | - | - |
| Out of town [l] | - | 4.1-4.0 | 4.4-4.3 | - | - | - |
| Combined [l] | - | 4.6-4.5 | 5.0-4.9 | - | - | - |
| CO2 emissions [g/km] | - | 106-103 | 113-110 | - | - | - |
| Low speed [l] | 7.1-6.6 | - | - | 6.9-6.1 | 7.5-7.4 | 7.3-7.0 |
| Medium speed [l] | 5.8-5.2 | - | - | 5.3-4.9 | 5.5-5.2 | 5.4-4.9 |
| High speed [l] | 5.5-4.9 | - | - | 5.2-4.6 | 5.3-4.8 | 5.3-4.8 |
| Extra high speed [l] | 7.0-6.2 | - | - | 6.7-6.0 | 6.9-6.2 | 6.7-6.0 |
| Combined speed [l] | 6.3-5.7 | - | - | 6.0-5.4 | 6.2-5.7 | 6.1-5.5 |
| CO2 emissions [g/km] | 142-128 | - | - | 135-122 | 141-130 | 138-125 |
| Emission standard | Euro 6d-TEMP- Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP- Euro 6d | Euro 6d-TEMP- Euro 6d | Euro 6d-TEMP- Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | 48 | 48 | 48 |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 8 A⋅h | Lithium-Ionen-Akkumulator, 8 A⋅h | Lithium-Ionen-Akkumulator, 8 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1280 | 1280 | 1326 | 1280 | 1334 | 1280 |
| Overall weight [kg] | 1765 | 1760 | 1810 | 1760 | 1830 | 1760 |
| Maximum trailer weight unbraked/braked [kg] | 640/900 | 640/1100 | 660/900 | 640/1100 | 640/900 | 640/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 456 | 406 | 406 | 406 | 406 | 406 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1216 | -/1216 | -/1216 | -/1216 | -/1216 | -/1216 |
| Boot length [mm] | 725 | 725 | 725 | 725 | 725 | 725 |
| Boot length with rear seats folded [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | 1472 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | -/825 | -/825 | -/825 | -/825 | -/825 | -/825 |
| Loading edge height [mm] | 771 | 771 | 771 | 771 | 771 | 771 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/982 | -/982 | -/982 | -/982 | -/982 | -/982 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 42 | 42 | 42 | 42 | 42 | 42 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Tyre dimensions rear | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Wheel size front | 6.0 x 16 | 6.0 x 16 | 6.0 x 16 | 6.0 x 16 | 6.0 x 16 | 6.0 x 16 |
| Wheel size rear | 6.0 x 16 | 6.0 x 16 | 6.0 x 16 | 6.0 x 16 | 6.0 x 16 | 6.0 x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | 271 x 11 or 228 x 40 drum | 271 x 11 or 228 x 40 drum | 271 x 11 or 228 x 40 drum | 271 x 11 or 228 x 40 drum | 271 x 11 or 228 x 40 drum | 271 x 11 or 228 x 40 drum |
| Steering | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.5/- | 10.5/- | 10.5/- | 10.5/- | 10.5/- | 10.5/- |
| Overall length [mm] | 4186 | 4186 | 4186 | 4186 | 4186 | 4186 |
| Overall width without/including mirrors [mm] | 1805/1930 | 1805/1930 | 1805/1930 | 1805/1930 | 1805/1930 | 1805/1930 |
| Overall height [mm] | 1536 | 1536 | 1536 | 1536 | 1536 | 1536 |
| Wheelbase [mm] | 2588 | 2588 | 2588 | 2588 | 2588 | 2588 |
| Front wheel track [mm] | 1562 | 1562 | 1562 | 1562 | 1562 | 1562 |
| Rear wheel track [mm] | 1523 | 1523 | 1523 | 1523 | 1523 | 1523 |
| Forward overhang [mm] | 850 | 850 | 850 | 850 | 850 | 850 |
| Rear overhang [mm] | 748 | 748 | 748 | 748 | 748 | 748 |
| Clearance [mm] | 140-166 | 140-166 | 140-166 | 140-166 | 140-166 | 140-166 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Approach angle rear [°] | 26.6 | 26.6 | 26.6 | 26.6 | 26.6 | 26.6 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Front elbow/shoulder width [mm] | 1311/1348 | 1311/1348 | 1311/1348 | 1311/1348 | 1311/1348 | 1311/1348 |
| Rear elbow/shoulder width [mm] | 1278/1320 | 1278/1320 | 1278/1320 | 1278/1320 | 1278/1320 | 1278/1320 |
| Legroom front knees/total [mm] | -/1127 | -/1127 | -/1127 | -/1127 | -/1127 | -/1127 |
| Legroom rear knees/total [mm] | -/877 | -/877 | -/877 | -/877 | -/877 | -/877 |
| Rating | - | - | - |   | - | - |
| Clean Air Index | - | - | - | 4.8/10 | - | - |
| Energy Efficiency Index | - | - | - | 6.4/10 | - | - |
| GHG index | - | - | - | 5.1/10 | - | - |
| 1.0 EcoBoost MHEV 155 | 1.5 EcoBoost ST | 1.5 EcoBlue 120 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | from 2020 to | - | |||
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | |||
| Engine displacement [cm³] | 999 | 1497 | 1499 | |||
| Maximum output / speed [kW/min-1] | 114/6000 | 147/6000 | 88/4000 | |||
| Maximum torque [Nm/min-1] | 240/2500 | 320/2500-3500 | 285/1750-2500 | |||
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 84.0 x 90.0 | 75.0 x 84.8 | |||
| Compression ratio | 10,5:1 | 9.7:1 | 16.4:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear manual | |||
| Drive specifications |
| - | - | |||
| Top speed [km/h] | 200 | 220 | 185 | |||
| Acceleration 0–100 km/h [s] | 8.7 | 6.7 | 10.3 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | - | - | - | |||
| Out of town [l] | - | - | - | |||
| Combined [l] | - | - | - | |||
| CO2 emissions [g/km] | - | - | - | |||
| Low speed [l] | 7.9-7.5 | 8.7 | 5.7-5.2 | |||
| Medium speed [l] | 5.7-5.3 | 6.4 | 4.8-4.4 | |||
| High speed [l] | 5.4-4.8 | 5.9 | 4.4-3.9 | |||
| Extra high speed [l] | 7.1-6.4 | 7.2 | 5.5-4.9 | |||
| Combined speed [l] | 6.4-5.8 | 6.8 | 5.0-4.5 | |||
| CO2 emissions [g/km] | 145-132 | 155 | 132-119 | |||
| Emission standard | Euro 6d-TEMP- Euro 6d | Euro 6d | Euro 6d-TEMP- Euro 6d | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| System voltage [V] | 48 | - | - | |||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 8 A⋅h | - | - | |||
| Range with fully charged battery [km] | - | - | - | |||
| Charging time | - | - | - | |||
| Number of modules/cells | - | - | - | |||
| Battery weight [kg] | - | - | - | |||
| Charger | - | - | - | |||
| Standby weight [kg] | 1334 | 1358 | 1348 | |||
| Overall weight [kg] | 1830 | 1810 | 1840 | |||
| Maximum trailer weight unbraked/braked [kg] | 640/900 | 675/750 | 670/1100 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | |||
| Maximum load on roof/carrier [kg] | 50/- | 25/- | 50/- | |||
| Boot volume [l] | 406 | 456 | 456 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1216 | -/1216 | -/1216 | |||
| Boot length [mm] | 725 | 725 | 725 | |||
| Boot length with rear seats folded [mm] | 1472 | 1472 | 1472 | |||
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | |||
| Boot height to headliner/ceiling [mm] | -/825 | -/825 | -/825 | |||
| Loading edge height [mm] | 771 | 754 | 771 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | -/982 | -/982 | -/982 | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 42 | 45 | 40 | |||
| AdBlue tank volume [l] | - | - | 13.5 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 205/65 R16 | 225/40 R19 | 205/65 R16 | |||
| Tyre dimensions rear | 205/65 R16 | 225/40 R19 | 205/65 R16 | |||
| Wheel size front | 6.0 x 16 | 8.0J x 19 | 6.0 x 16 | |||
| Wheel size rear | 6.0 x 16 | 8.0J x 19 | 6.0 x 16 | |||
| Brake dimensions front | 278 x 25 | 325 x 27 | 278 x 25 | |||
| Brake dimensions rear | 271 x 11 or 228 x 40 drum | 271 x 11 | 271 x 11 or 228 x 40 drum | |||
| Steering | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | Rack & pinion with electric power steering EPAS | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.5/- | 11.2/- | 10.5/- | |||
| Overall length [mm] | 4186 | 4226 | 4186 | |||
| Overall width without/including mirrors [mm] | 1805/1930 | 1805/1930 | 1805/1930 | |||
| Overall height [mm] | 1536 | 1533 | 1536 | |||
| Wheelbase [mm] | 2588 | 2588 | 2588 | |||
| Front wheel track [mm] | 1562 | 1565 | 1562 | |||
| Rear wheel track [mm] | 1523 | 1518 | 1523 | |||
| Forward overhang [mm] | 850 | 875 | 850 | |||
| Rear overhang [mm] | 748 | 763 | 748 | |||
| Clearance [mm] | 140-166 | 131-152 | 140-166 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 17.5 | 13.8 | 17.5 | |||
| Approach angle rear [°] | 26.6 | 24.0 | 26.6 | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1000 | 1000 | 1000 | |||
| Headroom rear [mm] | 965 | 965 | 965 | |||
| Front elbow/shoulder width [mm] | 1311/1348 | 1311/1348 | 1311/1348 | |||
| Rear elbow/shoulder width [mm] | 1278/1320 | 1278/1320 | 1278/1320 | |||
| Legroom front knees/total [mm] | -/1127 | -/1127 | -/1127 | |||
| Legroom rear knees/total [mm] | -/877 | -/877 | -/877 |

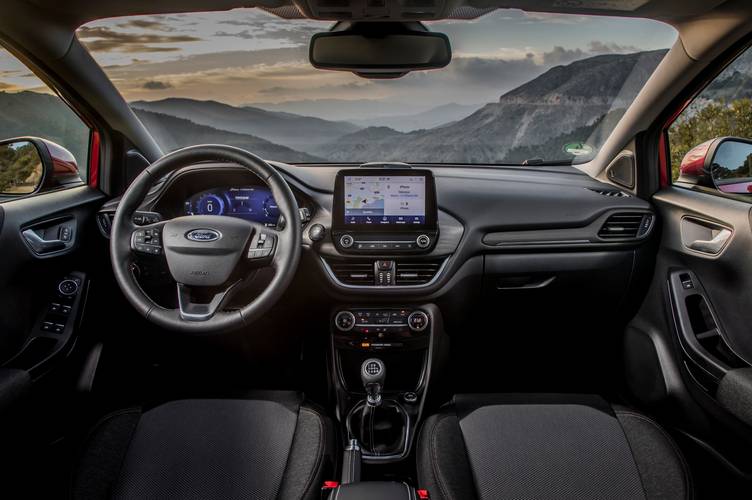

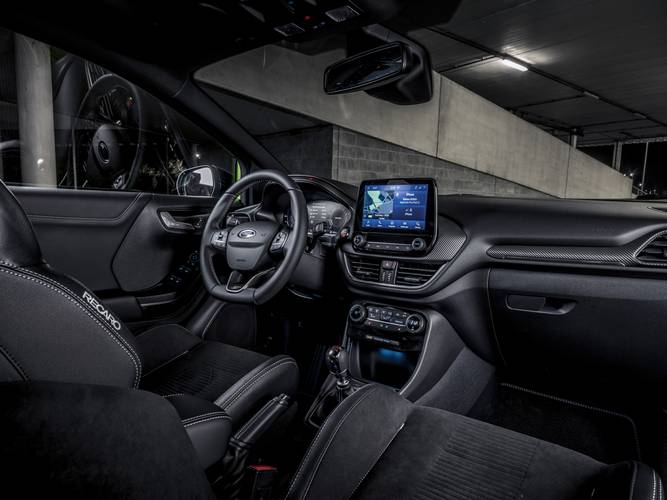

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
