Ford Mustang

Date of manufacture

8/2014 – 2017 (Coupé)

8/2014 – 2017 (Convertible)

Platform

Manufacturing locations

Flat Rock, USA

Designer

Kemal Curić

Car body style

Coupé

Date of manufacture

8/2014 – 2017

Internal designation

S550

Engine size

2.3 EcoBoost

5.0 Ti-VCT V8 GT

Convertible

Date of manufacture

8/2014 – 2017

Internal designation

S550

Engine size

2.3 EcoBoost

5.0 Ti-VCT V8 GT

Euro NCAP

Technical data

Coupé

	2.3 EcoBoost	2.3 EcoBoost	5.0 Ti-VCT V8 GT	5.0 Ti-VCT V8 GT
Date of sale	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Petrol	Petrol
Number of cylinders/valves	4/16	4/16	8/32	8/32
Engine displacement [cm³]	2261	2261	4951	4951
Maximum output / speed [kW/min-1]	233/5600	233/5600	310/6500	310/6500
Maximum torque [Nm/min-1]	432/3000	432/3000	530/4250	530/4250
Bore and stroke [mm x mm]	87,55 x 94,0	87,55 x 94,0	92,2 x 92,7	92,2 x 92,7
Compression ratio	9,5:1	9,5:1	11,0:1	11,0:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable valve timing Ti‐VCT	direct injection turbo-supercharged variable valve timing Ti‐VCT	variable valve timing Ti‐VCT	variable valve timing Ti‐VCT

Drive axle	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	-	automatic gearbox with steering wheel controls	-	automatic gearbox with steering wheel controls

Top speed [km/h]	233	233	250	250
Acceleration 0–100 km/h [s]	5.8	5.8	4.8	4.8
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	10.1	14.3	20.1	18.6
Out of town [l]	6.8	7.2	9.6	8.2
Combined [l]	8.0	9.8	13.5	12.0
CO2 emissions [g/km]	179	225	299	281

Emission standard	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1655	1653	1720	1732
Overall weight [kg]	2032	2032	2087	2087
Maximum trailer weight unbraked/braked [kg]	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-

Boot volume [l]	408	408	408	408
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	2	2	2	2
Number of seats	4	4	4	4
Fuel tank volume [l]	59	59	61	61
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink Integral Blade suspension	multilink Integral Blade suspension	multilink Integral Blade suspension	multilink Integral Blade suspension
Tyre dimensions front	255/40 R19	255/40 R19	255/40 R19	255/40 R19
Tyre dimensions rear	255/40 R19	255/40 R19	275/40 R19	275/40 R19
Wheel size front	9.0J x 19	9.0J x 19	9.0J x 19	9.0J x 19
Wheel size rear	9.0J x 19	9.0J x 19	9.5J x 19	9.5J x 19
Brake dimensions front	352 x 32	352 x 32	380 x 34	380 x 34
Brake dimensions rear	330 x 25	330 x 25	330 x 25	330 x 25
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	12.2/-	12.2/-	12.2/-	12.2/-

Overall length [mm]	4784	4784	4784	4784
Overall width without/including mirrors [mm]	1916/2081	1916/2081	1916/2081	1916/2081
Overall height [mm]	1381	1381	1381	1381
Wheelbase [mm]	2720	2720	2720	2720
Front wheel track [mm]	1582	1582	1582	1582
Rear wheel track [mm]	1655	1655	1655	1655
Forward overhang [mm]	-	-	-	-
Rear overhang [mm]	-	-	-	-
Clearance [mm]	-	-	-	-
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	955	955	955	955
Headroom rear [mm]	884	884	884	884
Front elbow/shoulder width [mm]	1395/1430	1395/1430	1395/1430	1395/1430
Rear elbow/shoulder width [mm]	1203/1327	1203/1327	1203/1327	1203/1327
Legroom front knees/total [mm]	-/1131	-/1131	-/1131	-/1131
Legroom rear knees/total [mm]	-/777	-/777	-/777	-/777

Convertible

	2.3 EcoBoost	2.3 EcoBoost	5.0 Ti-VCT V8 GT	5.0 Ti-VCT V8 GT
Date of sale	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Petrol	Petrol
Number of cylinders/valves	4/16	4/16	8/32	8/32
Engine displacement [cm³]	2261	2261	4951	4951
Maximum output / speed [kW/min-1]	231/5500	231/5500	308/6500	308/6500
Maximum torque [Nm/min-1]	434/3000	434/3000	524/4250	524/4250
Bore and stroke [mm x mm]	87,55 x 94,0	87,55 x 94,0	92,2 x 92,7	92,2 x 92,7
Compression ratio	9,5:1	9,5:1	11,0:1	11,0:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable valve timing Ti‐VCT	direct injection turbo-supercharged variable valve timing Ti‐VCT	variable valve timing Ti‐VCT	variable valve timing Ti‐VCT

Drive axle	Rear	Rear	Rear	Rear
Gearbox	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	-	automatic gearbox with steering wheel controls	-	automatic gearbox with steering wheel controls

Top speed [km/h]	233	233	250	250
Acceleration 0–100 km/h [s]	5.8	5.8	4.8	4.8
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	10.4	13.8	20.1	19.9
Out of town [l]	6.9	7.5	9.8	8.7
Combined [l]	8.2	9.8	13.6	12.8
CO2 emissions [g/km]	184	225	306	289

Emission standard	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1715	1718	1786	1792
Overall weight [kg]	2141	2141	2041	2041
Maximum trailer weight unbraked/braked [kg]	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-

Boot volume [l]	332	332	332	332
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	2	2	2	2
Number of seats	4	4	4	4
Fuel tank volume [l]	59	59	61	61
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink Integral Blade suspension	multilink Integral Blade suspension	multilink Integral Blade suspension	multilink Integral Blade suspension
Tyre dimensions front	255/40 R19	255/40 R19	255/40 R19	255/40 R19
Tyre dimensions rear	255/40 R19	255/40 R19	275/40 R19	275/40 R19
Wheel size front	9.0J x 19	9.0J x 19	9.0J x 19	9.0J x 19
Wheel size rear	9.0J x 19	9.0J x 19	9.5J x 19	9.5J x 19
Brake dimensions front	352 x 32	352 x 32	380 x 34	380 x 34
Brake dimensions rear	330 x 25	330 x 25	330 x 25	330 x 25
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	12.2/-	12.2/-	12.2/-	12.2/-

Overall length [mm]	4784	4784	4784	4784
Overall width without/including mirrors [mm]	1916/2081	1916/2081	1916/2081	1916/2081
Overall height [mm]	1394	1394	1394	1394
Wheelbase [mm]	2720	2720	2720	2720
Front wheel track [mm]	1582	1582	1582	1582
Rear wheel track [mm]	1655	1655	1655	1655
Forward overhang [mm]	-	-	-	-
Rear overhang [mm]	-	-	-	-
Clearance [mm]	-	-	-	-
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	956	956	956	956
Headroom rear [mm]	907	907	907	907
Front elbow/shoulder width [mm]	1395/1430	1395/1430	1395/1430	1395/1430
Rear elbow/shoulder width [mm]	1111/1135	1111/1135	1111/1135	1111/1135
Legroom front knees/total [mm]	-/1131	-/1131	-/1131	-/1131
Legroom rear knees/total [mm]	-/783	-/783	-/783	-/783

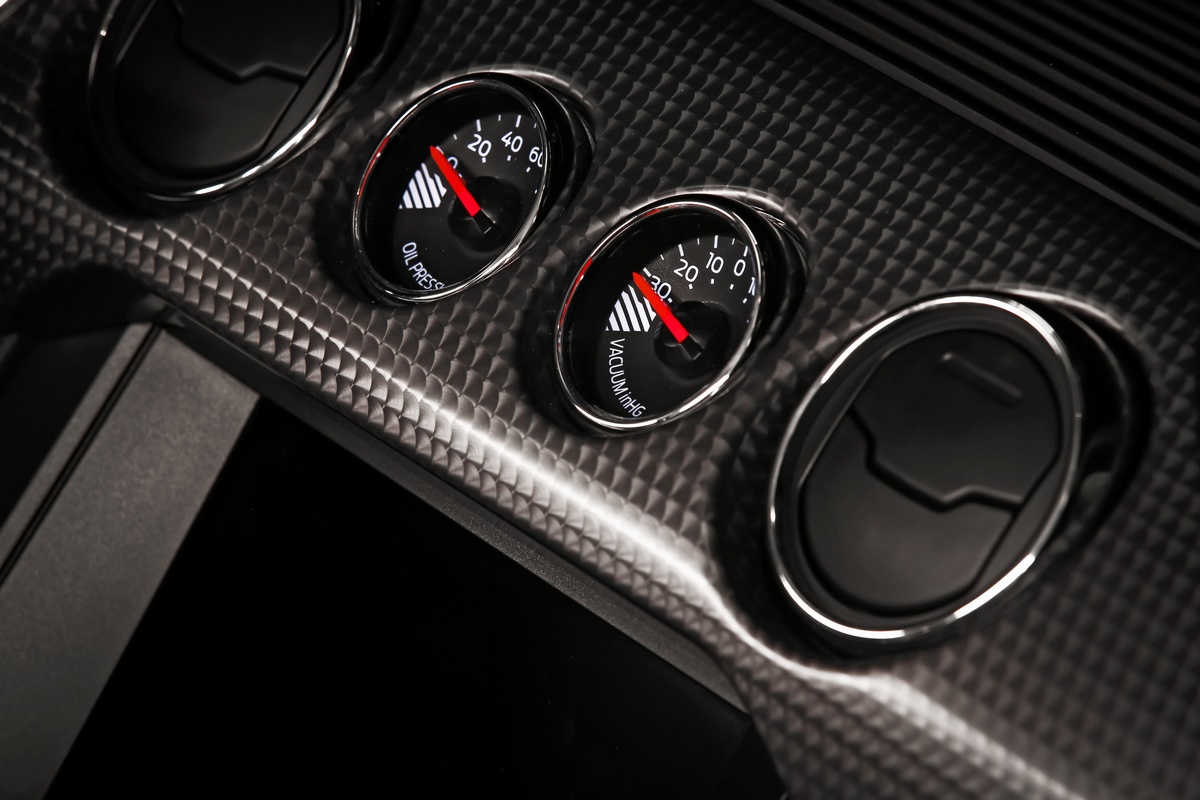

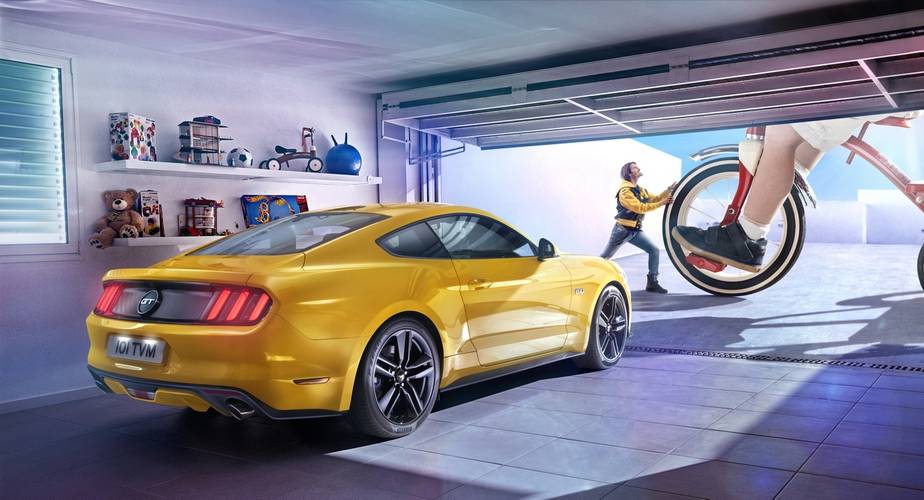

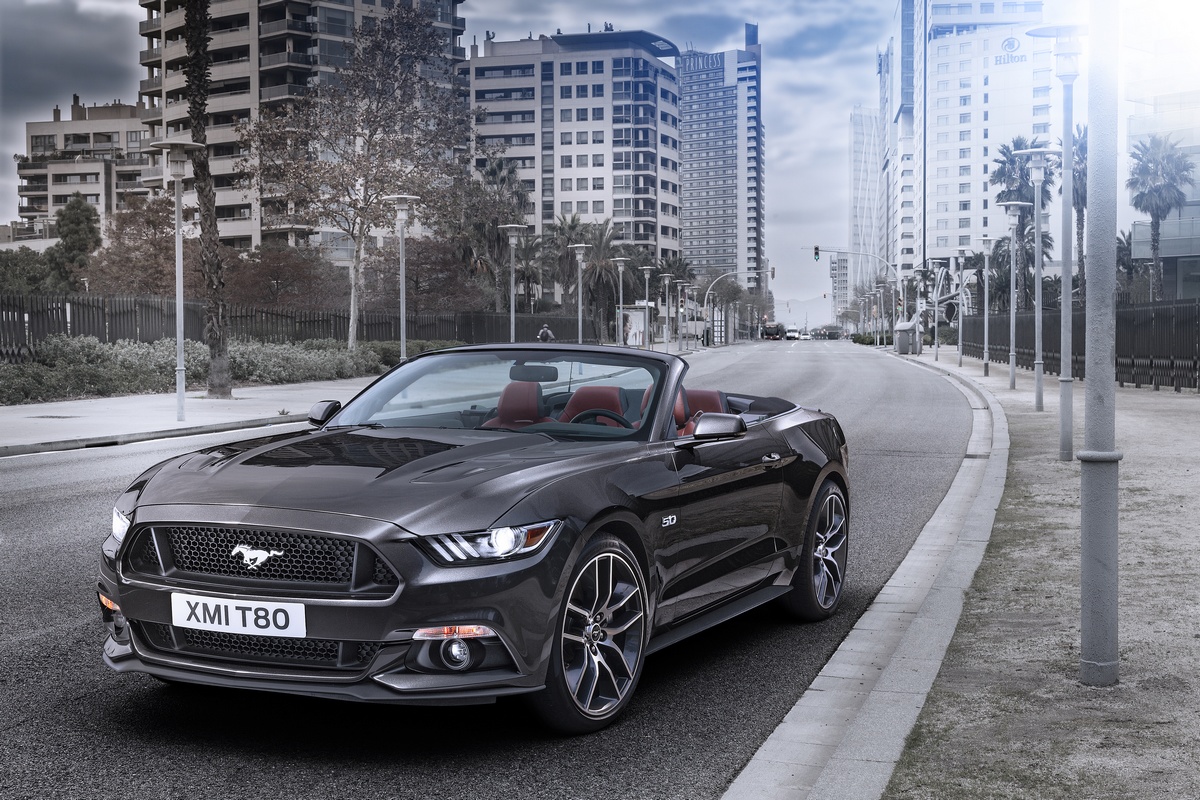

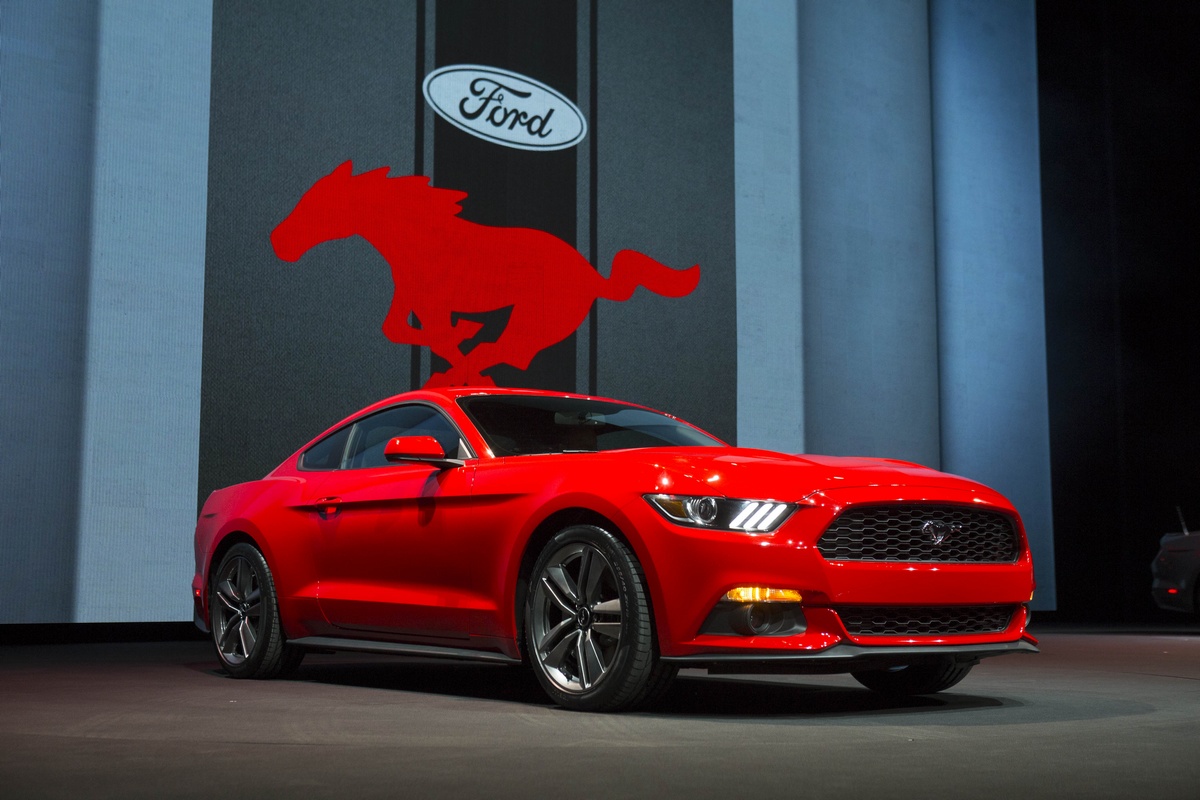

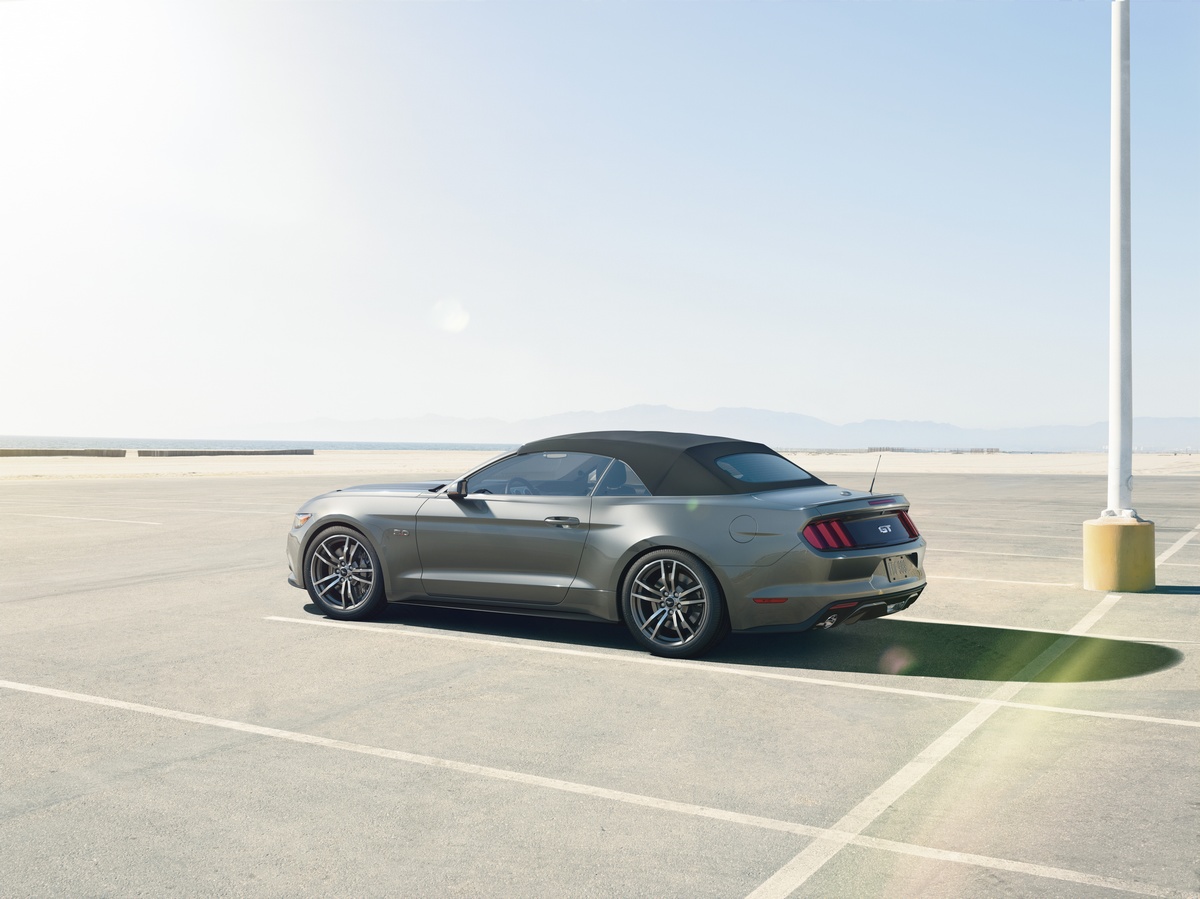

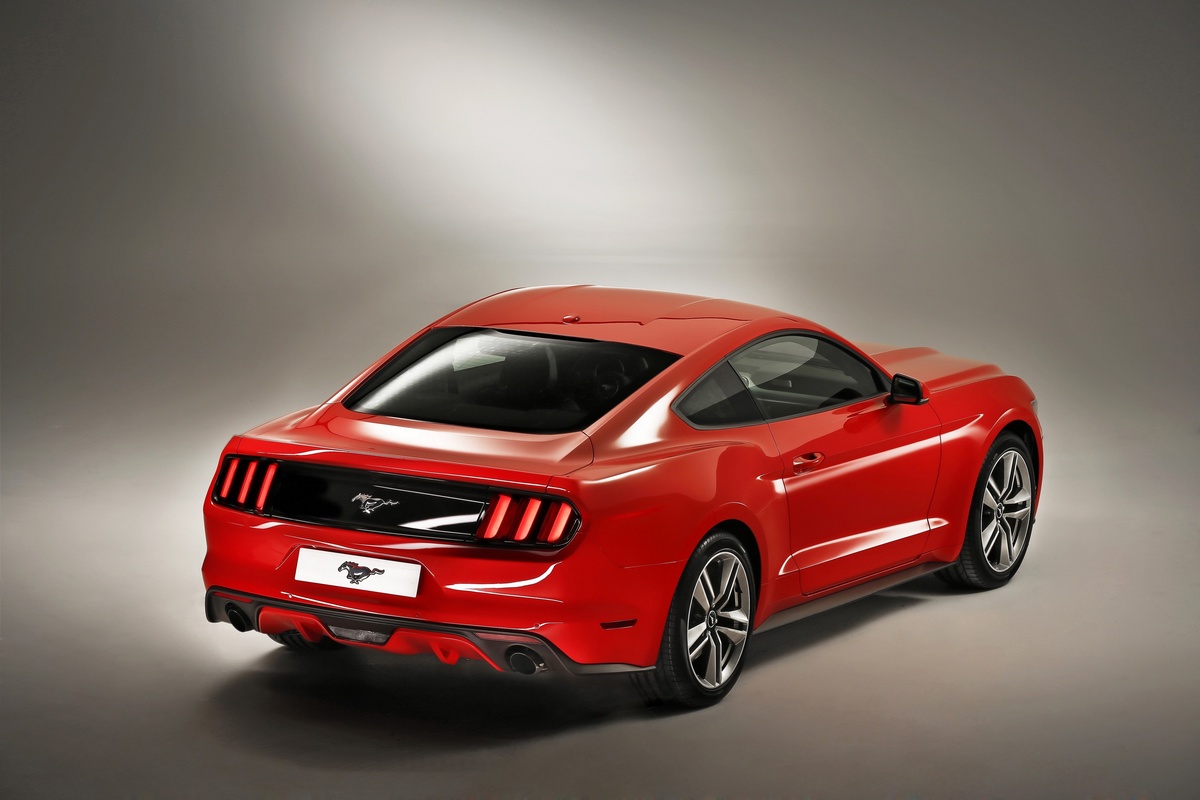

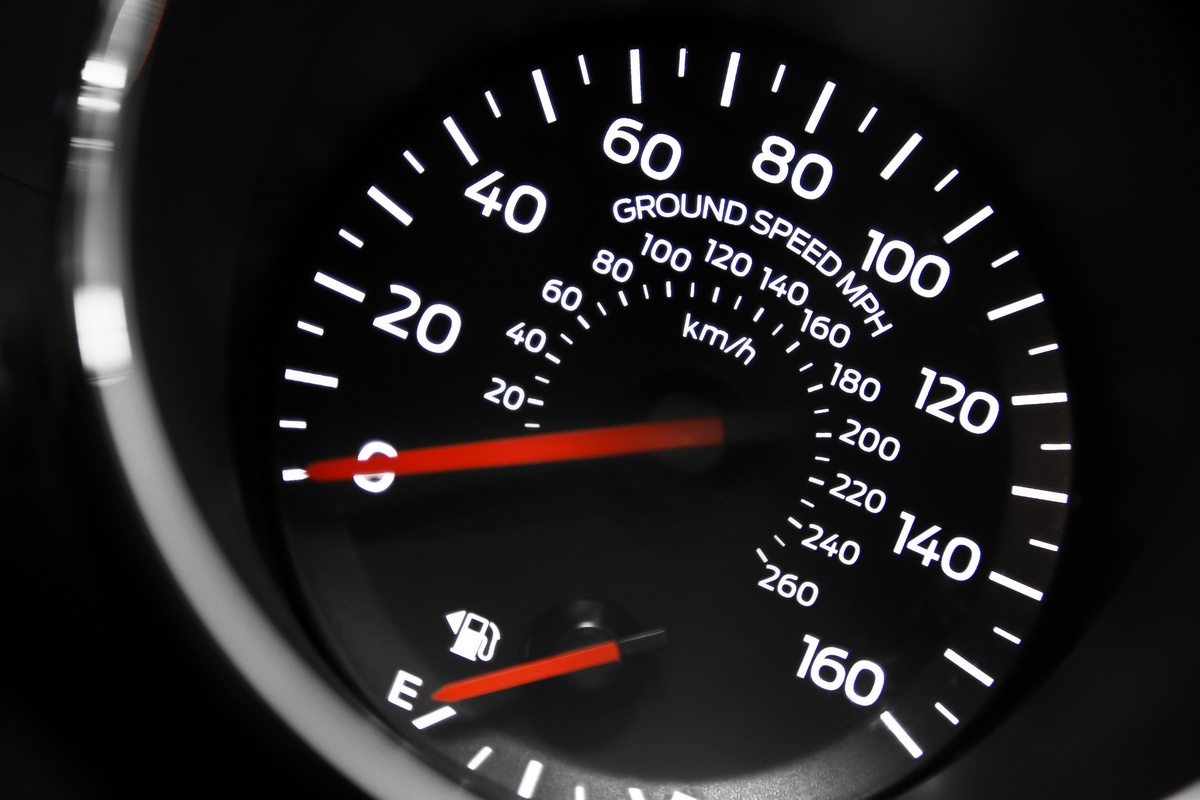

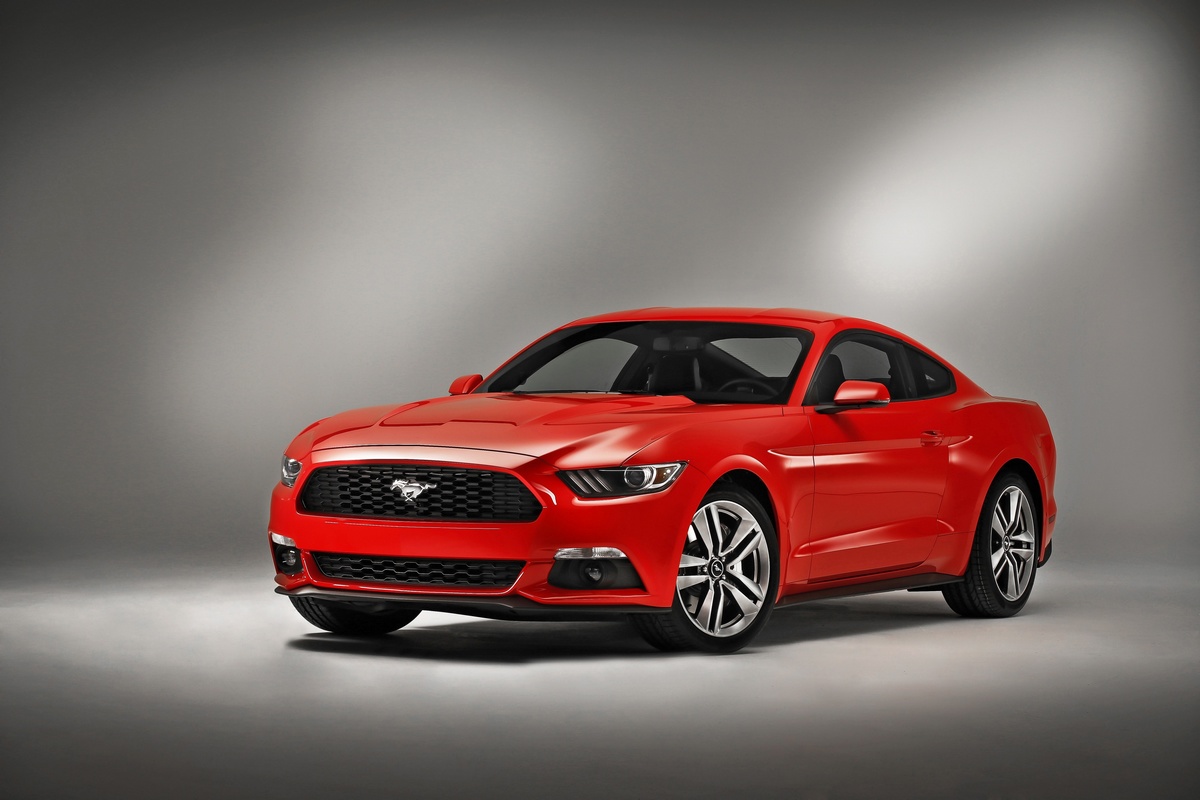

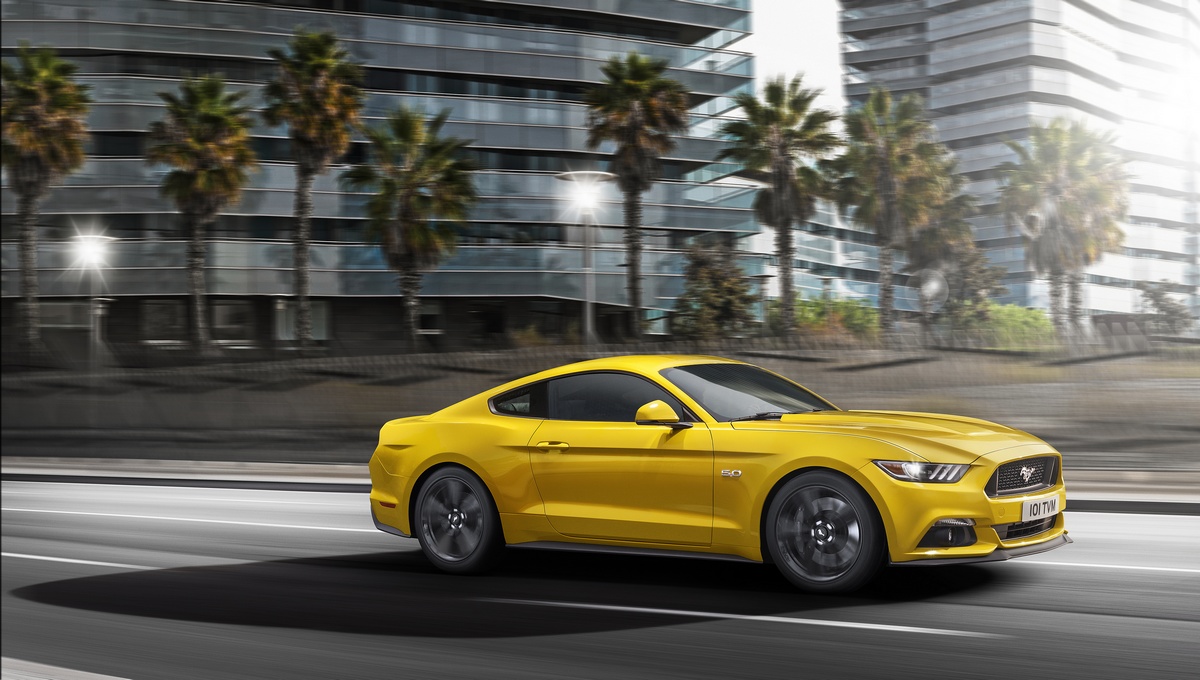

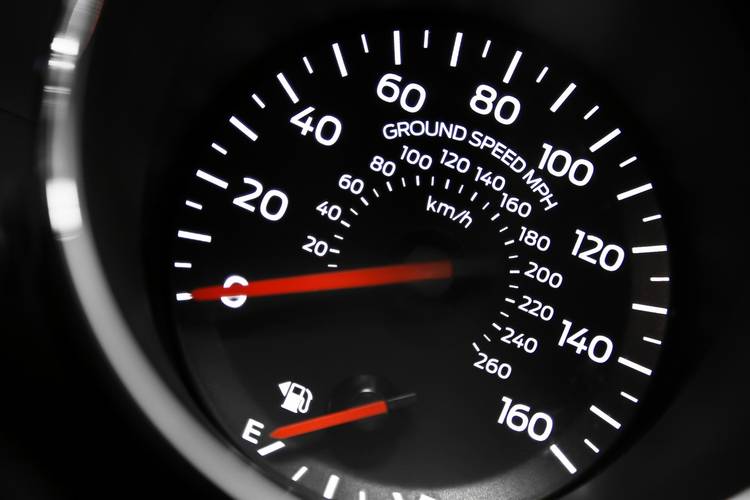

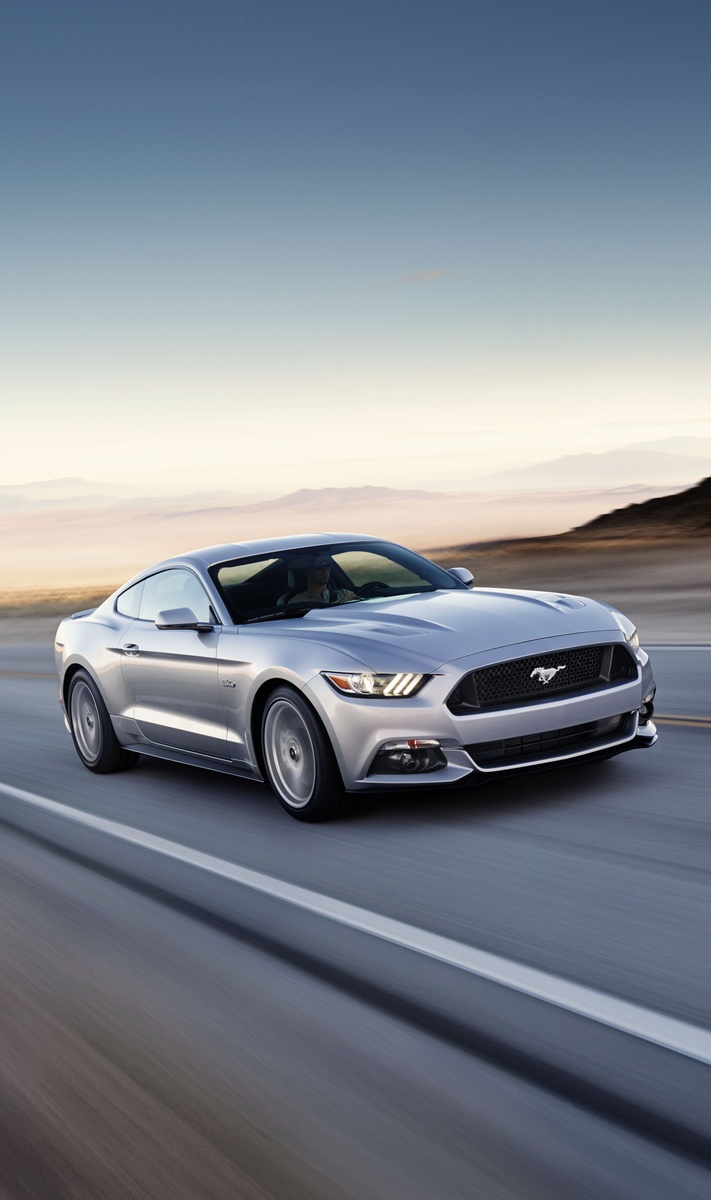

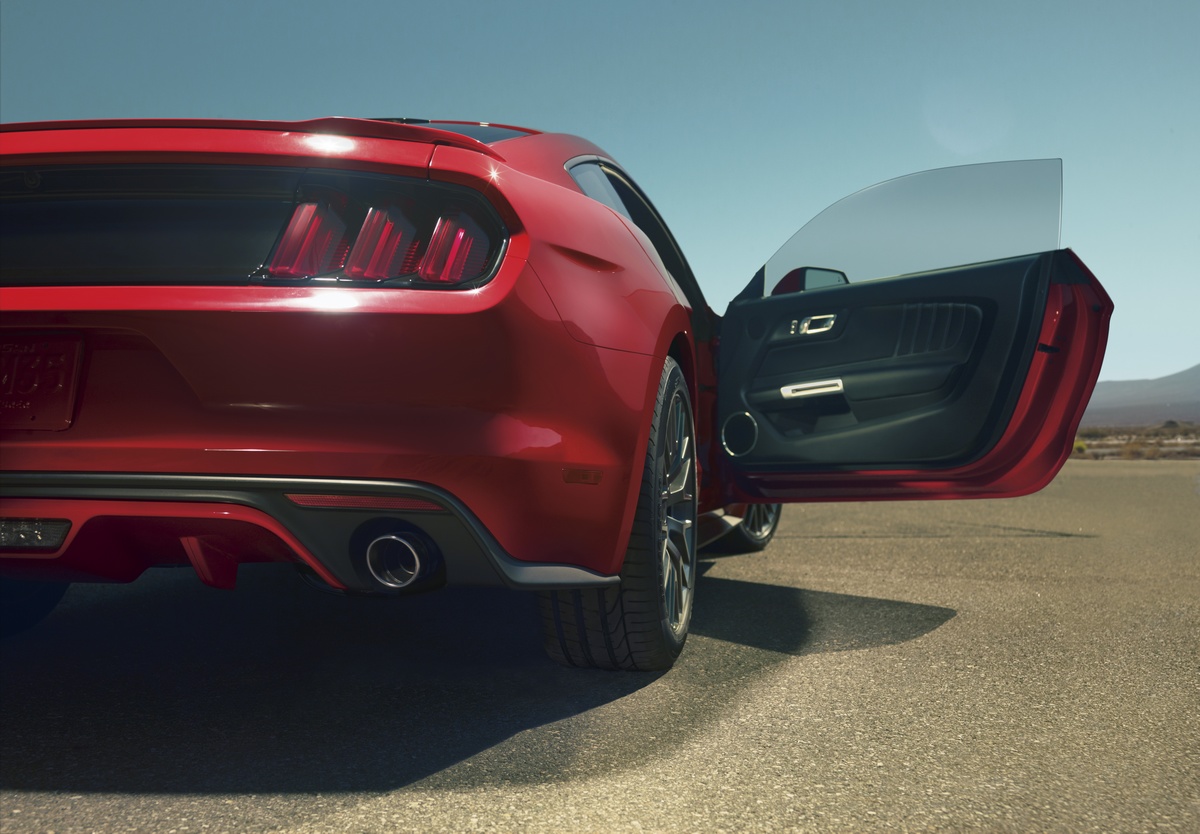

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
