Ford Mondeo

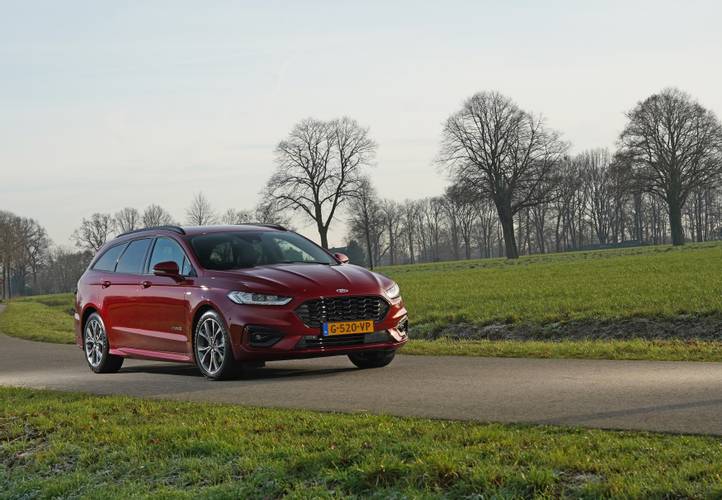

![Mondeo CD391 2019](/media/ford/43/en/thumbs-250/foed-mondeo-cd391-facelift-2019.jpg)
Date of manufacture
2019 – to this day (Sedan)
2019 – to this day (Liftback)
2019 – to this day (Estate)
Platform
Ford CD4 platform
Manufacturing locations
Valencia, Spain
Designer
Chris Hamilton
Kemal Curic
Dillon Blanski
Tags
D-segment
German cars
The Ford Mondeo is available in three body styles - sedan, liftback and estate. The car was launched in 2019 and is manufactured in Spain on the Ford CD4 platform. The engine range includes hybrids, plug-in hybrids, petrol and diesel engines with a max. output of 140 kW (2.0 EcoBlue 190 AWD). The highest speed is achieved by the 2.0 EcoBlue 190 - 223 km/h and the best acceleration 0-100 km/h in 8.9 seconds is also achieved by the same model. The most fuel-efficient unit is the 2.0 FHEV with a consumption of 4.1 l/100 km and emissions of 94 g/km CO2. The luggage compartment of the sedan is 383 l, for the estate and liftback it is 550 l. In 2019, the Ford Mondeo received a 5 out of 5 rating from EURONCAP for passenger safety.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
CD391Engine size
Liftback
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
CD391Engine size
PetrolPetrol + ElectricDiesel
Estate
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
CD391Engine size
Technical data
Sedan
2.0 FHEV | ||||||
---|---|---|---|---|---|---|
Date of sale | - | |||||
Engine type | Petrol supercharged + Electric | |||||
Number of cylinders/valves | 4/16 | |||||
Engine displacement [cm³] | 1999 | |||||
Maximum output / speed [kW/min-1] | 88 el. 138/6000 total | |||||
Maximum torque [Nm/min-1] | 173/4000 | |||||
Bore and stroke [mm x mm] | 87,5 x 83,1 | |||||
Compression ratio | 12,3:1 | |||||
Oil volume [l] | - | |||||
Coolant volume [l] | - | |||||
Technical specifications |
| |||||
Drive axle | Front | |||||
Gearbox | 1 gear automatic | |||||
Drive specifications |
| |||||
Top speed [km/h] | 187 | |||||
Acceleration 0–100 km/h [s] | 9.2 | |||||
Acceleration 0–80 km/h [s] | - | |||||
Acceleration 80–120 km/h [s] | - | |||||
City [l] | 5.1-4.6 | |||||
Out of town [l] | 4.5-4.4 | |||||
Combined [l] | 4.5-4.1 | |||||
CO2 emissions [g/km] | 103-94 | |||||
Emission standard | Euro 6d-TEMP - Euro 6d | |||||
Standard for fuel consumption measurement | - | |||||
Energy class | - | |||||
Stationary vehicle noise [dB] | - | |||||
Driving noise [dB] | - | |||||
System voltage [V] | 152-327 | |||||
Battery type and capacity | Lithium-Ionen-Akkumulator, 1.4 kWh | |||||
Range with fully charged battery [km] | 1.5 | |||||
Charging time | - | |||||
Number of modules/cells | - | |||||
Battery weight [kg] | - | |||||
Charger | - | |||||
Standby weight [kg] | 1696 | |||||
Overall weight [kg] | 2250 | |||||
Maximum trailer weight unbraked/braked [kg] | - | |||||
Maximum front/rear axle load [kg] | - | |||||
Maximum vertical load on the tow bar [kg] | - | |||||
Maximum load on roof/carrier [kg] | 75/- | |||||
Boot volume [l] | 383 | |||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
Boot length [mm] | - | |||||
Boot length with rear seats folded [mm] | - | |||||
Boot width between wheels/max [mm] | - | |||||
Boot height to headliner/ceiling [mm] | - | |||||
Loading edge height [mm] | - | |||||
Height of the open boot door [mm] | - | |||||
Boot opening height [mm] | - | |||||
Boot opening width min/max [mm] | - | |||||
Number of doors | 5 | |||||
Number of seats | 5 | |||||
Fuel tank volume [l] | 49 | |||||
AdBlue tank volume [l] | - | |||||
Air resistance [Cd] | - | |||||
Front suspension | MacPherson, torsion stabiliser | |||||
Rear suspension | multilink Integral Blade suspension | |||||
Tyre dimensions front | 215/60 R16 | |||||
Tyre dimensions rear | 215/60 R16 | |||||
Wheel size front | 6.5J x 16 | |||||
Wheel size rear | 6.5J x 16 | |||||
Brake dimensions front | 300 x 28 | |||||
Brake dimensions rear | 302 x 11 | |||||
Steering | Rack & pinion with electric power steering m (EPAS) | |||||
Number of steering wheel turns | - | |||||
Turning diameter track/circumference [m] | 11.6/- | |||||
Overall length [mm] | 4871 | |||||
Overall width without/including mirrors [mm] | 1852/2121 | |||||
Overall height [mm] | 1482 | |||||
Wheelbase [mm] | 2850 | |||||
Front wheel track [mm] | 1599 | |||||
Rear wheel track [mm] | 1595 | |||||
Forward overhang [mm] | - | |||||
Rear overhang [mm] | - | |||||
Clearance [mm] | 135 | |||||
Wading depth [mm] | - | |||||
Approach angle front [°] | - | |||||
Approach angle rear [°] | - | |||||
Transition angle [°] | - | |||||
Climbing rate [°] | - | |||||
Maximum side tilt [°] | - | |||||
Headroom front [mm] | 996 | |||||
Headroom rear [mm] | 992 | |||||
Front elbow/shoulder width [mm] | 1396/1469 | |||||
Rear elbow/shoulder width [mm] | 1381/1410 | |||||
Legroom front knees/total [mm] | -/1128 | |||||
Legroom rear knees/total [mm] | -/972 |
Liftback
1.5 Ecoboost 165 | 1.5 Ecoboost 165 | 2.0 FHEV | 2.0 EcoBlue 120 | 2.0 EcoBlue 150 | 2.0 EcoBlue 150 | |
---|---|---|---|---|---|---|
Date of sale | from to 2020 | from to 2020 | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1498 | 1498 | 1999 | 1995 | 1995 | 1995 |
Maximum output / speed [kW/min-1] | 121/5500 | 121/5500 | 88 el. 138/6000 total | 88/3500 | 110/3500 | 110/3500 |
Maximum torque [Nm/min-1] | 242/1600-4000 | 242/1600-4000 | 173/4000 | 340/1750-2250 | 370/2000-2500 | 370/2000-2500 |
Bore and stroke [mm x mm] | 79,0 x 76,4 | 79,0 x 76,4 | 87,5 x 83,1 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
Compression ratio | 10,0:1 | 10,0:1 | 12,3:1 | - | 15.8:1 | 15.8:1 |
Oil volume [l] | 4.1 | 4.1 | - | - | 7.25 | 7.25 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 6 gear manual | 6 gear automatic | 1 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic |
Drive specifications |
|
|
| - | - |
|
Top speed [km/h] | 214 | 209 | 187 | 197 | 215 | 211 |
Acceleration 0–100 km/h [s] | 9.2 | 9.1 | 9.4 | 11.4 | 9.7 | 10.3 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8.1 | 10.0 | 5.2-4.6 | 5.7-5.4 | 5.8-5.7 | 5.9-5.8 |
Out of town [l] | 5.5 | 5.9 | 4.6-4.5 | 3.9-3.7 | 3.9-3.7 | 4.1-3.9 |
Combined [l] | 6.4 | 7.4 | 4.7-4.3 | 4.6-4.4 | 4.6-4.4 | 4.8-4.6 |
CO2 emissions [g/km] | 147 | 168 | 108-99 | 119-114 | 121-116 | 126-122 |
Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | 152-327 | - | - | - |
Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 1.4 kWh | - | - | - |
Range with fully charged battery [km] | - | - | 1.5 | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1586 | 1612 | 1716 | 1707 | 1715 | 1735 |
Overall weight [kg] | 2160 | 2190 | 2250 | 2310 | 2310 | 2330 |
Maximum trailer weight unbraked/braked [kg] | 750/1250 | 750/1450 | - | 750/1500 | 750/1650 | 750/2000 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 550 | 550 | 383 | 550 | 550 | 550 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1446 | -/1446 | - | -/1446 | -/1446 | -/1446 |
Boot length [mm] | 1192 | 1192 | - | 1192 | 1192 | 1192 |
Boot length with rear seats folded [mm] | 1997 | 1997 | - | 1997 | 1997 | 1997 |
Boot width between wheels/max [mm] | -/1130 | -/1130 | - | -/1130 | -/1130 | -/1130 |
Boot height to headliner/ceiling [mm] | -/801 | -/801 | - | -/801 | -/801 | -/801 |
Loading edge height [mm] | 654 | 654 | - | 654 | 654 | 654 |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 62 | 62 | 49 | 60 | 60 | 60 |
AdBlue tank volume [l] | - | - | - | 11.2 | 11.2 | 11.2 |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
Steering | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
Overall length [mm] | 4871 | 4871 | 4867 | 4871 | 4871 | 4871 |
Overall width without/including mirrors [mm] | 1852/2121 | 1852/2121 | 1852/2121 | 1852/2121 | 1852/2121 | 1852/2121 |
Overall height [mm] | 1482 | 1482 | 1501 | 1482 | 1482 | 1482 |
Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
Front wheel track [mm] | 1599 | 1599 | 1599 | 1599 | 1599 | 1599 |
Rear wheel track [mm] | 1595 | 1595 | 1595 | 1595 | 1595 | 1595 |
Forward overhang [mm] | - | - | - | - | - | - |
Rear overhang [mm] | - | - | - | - | - | - |
Clearance [mm] | 101-128 | 101-128 | 101-128 | 101-128 | 101-128 | 101-128 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 987 | 987 | 988 | 987 | 987 | 987 |
Headroom rear [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
Front elbow/shoulder width [mm] | 1396/1469 | 1396/1469 | 1396/1469 | 1396/1469 | 1396/1469 | 1396/1469 |
Rear elbow/shoulder width [mm] | 1381/1410 | 1381/1410 | 1381/1410 | 1381/1410 | 1381/1410 | 1381/1410 |
Legroom front knees/total [mm] | -/1128 | -/1128 | -/1128 | -/1128 | -/1128 | -/1128 |
Legroom rear knees/total [mm] | -/972 | -/972 | -/972 | -/972 | -/972 | -/972 |
2.0 EcoBlue 190 | 2.0 EcoBlue 190 AWD | |||||
---|---|---|---|---|---|---|
Date of sale | - | - | ||||
Engine type | Diesel supercharged | Diesel supercharged | ||||
Number of cylinders/valves | 4/16 | 4/16 | ||||
Engine displacement [cm³] | 1995 | 1995 | ||||
Maximum output / speed [kW/min-1] | 140/3500 | 140/3500 | ||||
Maximum torque [Nm/min-1] | 400/2000-3000 | 400/2000-3000 | ||||
Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | ||||
Compression ratio | 16.0:1 | 16.0:1 | ||||
Oil volume [l] | - | - | ||||
Coolant volume [l] | - | - | ||||
Technical specifications |
|
| ||||
Drive axle | Front | 4x4 | ||||
Gearbox | 8 gear automatic | 8 gear automatic | ||||
Drive specifications |
|
| ||||
Top speed [km/h] | 223 | 221 | ||||
Acceleration 0–100 km/h [s] | 8.9 | 9.1 | ||||
Acceleration 0–80 km/h [s] | - | - | ||||
Acceleration 80–120 km/h [s] | - | - | ||||
City [l] | 6.3-5.8 | 6.8-6.4 | ||||
Out of town [l] | 4.4-4.1 | 4.8-4.3 | ||||
Combined [l] | 5.1-4.7 | 5.5-5.1 | ||||
CO2 emissions [g/km] | 134-124 | 146-134 | ||||
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | ||||
Standard for fuel consumption measurement | - | - | ||||
Energy class | - | - | ||||
Stationary vehicle noise [dB] | - | - | ||||
Driving noise [dB] | - | - | ||||
Standby weight [kg] | 1739 | 1812 | ||||
Overall weight [kg] | 2320 | 2330 | ||||
Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | ||||
Maximum front/rear axle load [kg] | - | - | ||||
Maximum vertical load on the tow bar [kg] | 90 | 90 | ||||
Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
Boot volume [l] | 550 | 550 | ||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1446 | -/1446 | ||||
Boot length [mm] | 1192 | 1192 | ||||
Boot length with rear seats folded [mm] | 1997 | 1997 | ||||
Boot width between wheels/max [mm] | -/1130 | -/1130 | ||||
Boot height to headliner/ceiling [mm] | -/801 | -/801 | ||||
Loading edge height [mm] | 654 | 654 | ||||
Height of the open boot door [mm] | - | - | ||||
Boot opening height [mm] | - | - | ||||
Boot opening width min/max [mm] | - | - | ||||
Number of doors | 5 | 5 | ||||
Number of seats | 5 | 5 | ||||
Fuel tank volume [l] | 60 | 61 | ||||
AdBlue tank volume [l] | 11.2 | 11.2 | ||||
Air resistance [Cd] | - | - | ||||
Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | ||||
Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | ||||
Tyre dimensions front | 215/55 R17 | 215/55 R17 | ||||
Tyre dimensions rear | 215/55 R17 | 215/55 R17 | ||||
Wheel size front | 7.0J x 17 | 7.0J x 17 | ||||
Wheel size rear | 7.0J x 17 | 7.0J x 17 | ||||
Brake dimensions front | 300 x 28 | 300 x 28 | ||||
Brake dimensions rear | 302 x 11 | 302 x 11 | ||||
Steering | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | ||||
Number of steering wheel turns | - | - | ||||
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | ||||
Overall length [mm] | 4871 | 4871 | ||||
Overall width without/including mirrors [mm] | 1852/2121 | 1852/2121 | ||||
Overall height [mm] | 1482 | 1482 | ||||
Wheelbase [mm] | 2850 | 2850 | ||||
Front wheel track [mm] | 1599 | 1599 | ||||
Rear wheel track [mm] | 1595 | 1595 | ||||
Forward overhang [mm] | - | - | ||||
Rear overhang [mm] | - | - | ||||
Clearance [mm] | 101-128 | 101-128 | ||||
Wading depth [mm] | - | - | ||||
Approach angle front [°] | - | - | ||||
Approach angle rear [°] | - | - | ||||
Transition angle [°] | - | - | ||||
Climbing rate [°] | - | - | ||||
Maximum side tilt [°] | - | - | ||||
Headroom front [mm] | 987 | 987 | ||||
Headroom rear [mm] | 960 | 960 | ||||
Front elbow/shoulder width [mm] | 1396/1469 | 1396/1469 | ||||
Rear elbow/shoulder width [mm] | 1381/1410 | 1381/1410 | ||||
Legroom front knees/total [mm] | -/1128 | -/1128 | ||||
Legroom rear knees/total [mm] | -/972 | -/972 |
Estate
1.5 Ecoboost 165 | 1.5 Ecoboost 165 | 2.0 FHEV | 2.0 EcoBlue 120 | 2.0 EcoBlue 150 | 2.0 EcoBlue 150 | |
---|---|---|---|---|---|---|
Date of sale | from to 2020 | from to 2020 | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1498 | 1498 | 1999 | 1995 | 1995 | 1995 |
Maximum output / speed [kW/min-1] | 121/5500 | 121/5500 | 88 el. 138/6000 total | 88/3500 | 110/3500 | 110/3500 |
Maximum torque [Nm/min-1] | 242/1600-4000 | 242/1600-4000 | 173/4000 | 340/1750-2250 | 370/2000-2500 | 370/2000-2500 |
Bore and stroke [mm x mm] | 79,0 x 76,4 | 79,0 x 76,4 | 87,5 x 83,1 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
Compression ratio | 10,0:1 | 10,0:1 | 12,3:1 | - | 15.8:1 | 15.8:1 |
Oil volume [l] | 4.1 | 4.1 | - | - | 7.25 | 7.25 |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 6 gear manual | 6 gear automatic | 1 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic |
Drive specifications | - |
|
| - | - |
|
Top speed [km/h] | 212 | 207 | 187 | 193 | 210 | 206 |
Acceleration 0–100 km/h [s] | 9.3 | 9.2 | 9.4 | 11.5 | 9.8 | 10.4 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8.2 | 10.1 | 5.2-4.6 | 5.7-5.5 | 5.9-5.7 | 6.0-5.9 |
Out of town [l] | 5.6 | 6.0 | 4.6-4.5 | 4.1-3.9 | 4.1-3.8 | 4.4-4.2 |
Combined [l] | 6.5 | 7.5 | 4.7-4.3 | 4.7-4.5 | 4.7-4.5 | 5.0-4.8 |
CO2 emissions [g/km] | 148 | 171 | 108-99 | 123-117 | 124-119 | 131-126 |
Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | 152-327 | - | - | - |
Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 1.4 kWh | - | - | - |
Range with fully charged battery [km] | - | - | 1.5 | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1607 | 1629 | 1716 | 1720 | 1728 | 1748 |
Overall weight [kg] | 2260 | 2290 | 2250 | 2330 | 2330 | 2330 |
Maximum trailer weight unbraked/braked [kg] | 750/1250 | 750/1450 | 750/750 | 750/1650 | 750/1650 | 750/2000 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 550 | 550 | 403 | 550 | 550 | 550 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1446 | -/1446 | -/1503 | -/1446 | -/1446 | -/1446 |
Boot length [mm] | 1117 | 1117 | 1117 | 1117 | 1117 | 1117 |
Boot length with rear seats folded [mm] | 1974 | 1974 | 1974 | 1974 | 1974 | 1974 |
Boot width between wheels/max [mm] | -/1051 | -/1051 | -/989 | -/1051 | -/1051 | -/1051 |
Boot height to headliner/ceiling [mm] | -/793 | -/793 | -/742 | -/793 | -/793 | -/793 |
Loading edge height [mm] | 611 | 611 | 697 | 611 | 611 | 611 |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 62 | 62 | 49 | 60 | 60 | 60 |
AdBlue tank volume [l] | - | - | - | 11.2 | 11.2 | 11.2 |
Air resistance [Cd] | - | - | - | - | - | - |
Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
Steering | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
Overall length [mm] | 4867 | 4867 | 4868 | 4867 | 4867 | 4867 |
Overall width without/including mirrors [mm] | 1852/2121 | 1852/2121 | 1852/2121 | 1852/2121 | 1852/2121 | 1852/2121 |
Overall height [mm] | 1501 | 1501 | 1501 | 1501 | 1501 | 1501 |
Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
Front wheel track [mm] | 1599 | 1599 | 1599 | 1599 | 1599 | 1599 |
Rear wheel track [mm] | 1595 | 1595 | 1595 | 1595 | 1595 | 1595 |
Forward overhang [mm] | - | - | - | - | - | - |
Rear overhang [mm] | - | - | - | - | - | - |
Clearance [mm] | 98-128 | 98-128 | 98-128 | 98-128 | 98-128 | 98-128 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
Headroom rear [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
Front elbow/shoulder width [mm] | 1396/1469 | 1396/1469 | 1396/1469 | 1396/1469 | 1396/1469 | 1396/1469 |
Rear elbow/shoulder width [mm] | 1381/1410 | 1381/1410 | 1381/1410 | 1381/1410 | 1381/1410 | 1381/1410 |
Legroom front knees/total [mm] | -/1128 | -/1128 | -/1128 | -/1128 | -/1128 | -/1128 |
Legroom rear knees/total [mm] | -/972 | -/972 | -/972 | -/972 | -/972 | -/972 |
2.0 EcoBlue 190 | 2.0 EcoBlue 190 AWD | |||||
---|---|---|---|---|---|---|
Date of sale | - | - | ||||
Engine type | Diesel supercharged | Diesel supercharged | ||||
Number of cylinders/valves | 4/16 | 4/16 | ||||
Engine displacement [cm³] | 1995 | 1995 | ||||
Maximum output / speed [kW/min-1] | 140/3500 | 140/3500 | ||||
Maximum torque [Nm/min-1] | 400/2000-3000 | 400/2000-3000 | ||||
Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | ||||
Compression ratio | 16.0:1 | 16.0:1 | ||||
Oil volume [l] | - | - | ||||
Coolant volume [l] | - | - | ||||
Technical specifications |
|
| ||||
Drive axle | Front | 4x4 | ||||
Gearbox | 8 gear automatic | 8 gear automatic | ||||
Drive specifications |
|
| ||||
Top speed [km/h] | 218 | 216 | ||||
Acceleration 0–100 km/h [s] | 9.0 | 9.2 | ||||
Acceleration 0–80 km/h [s] | - | - | ||||
Acceleration 80–120 km/h [s] | - | - | ||||
City [l] | 6.4-5.9 | 6.9-6.4 | ||||
Out of town [l] | 4.5-4.2 | 4.9-4.5 | ||||
Combined [l] | 5.2-4.8 | 5.6-5.2 | ||||
CO2 emissions [g/km] | 137-127 | 148-136 | ||||
Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | ||||
Standard for fuel consumption measurement | - | - | ||||
Energy class | - | - | ||||
Stationary vehicle noise [dB] | - | - | ||||
Driving noise [dB] | - | - | ||||
Standby weight [kg] | 1752 | 1826 | ||||
Overall weight [kg] | 2330 | 2365 | ||||
Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | ||||
Maximum front/rear axle load [kg] | - | - | ||||
Maximum vertical load on the tow bar [kg] | 90 | 90 | ||||
Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
Boot volume [l] | 550 | 550 | ||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1446 | -/1446 | ||||
Boot length [mm] | 1117 | 1117 | ||||
Boot length with rear seats folded [mm] | 1974 | 1974 | ||||
Boot width between wheels/max [mm] | -/1051 | -/1051 | ||||
Boot height to headliner/ceiling [mm] | -/793 | -/793 | ||||
Loading edge height [mm] | 611 | 611 | ||||
Height of the open boot door [mm] | - | - | ||||
Boot opening height [mm] | - | - | ||||
Boot opening width min/max [mm] | - | - | ||||
Number of doors | 5 | 5 | ||||
Number of seats | 5 | 5 | ||||
Fuel tank volume [l] | 60 | 61 | ||||
AdBlue tank volume [l] | 11.2 | 11.2 | ||||
Air resistance [Cd] | - | - | ||||
Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | ||||
Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | ||||
Tyre dimensions front | 217/55 R17 | 217/55 R17 | ||||
Tyre dimensions rear | 217/55 R17 | 217/55 R17 | ||||
Wheel size front | 7.0J x 17 | 7.0J x 17 | ||||
Wheel size rear | 7.0J x 17 | 7.0J x 17 | ||||
Brake dimensions front | 300 x 28 | 300 x 28 | ||||
Brake dimensions rear | 302 x 11 | 302 x 11 | ||||
Steering | Rack & pinion with electric power steering m (EPAS) | Rack & pinion with electric power steering m (EPAS) | ||||
Number of steering wheel turns | - | - | ||||
Turning diameter track/circumference [m] | 11.6/- | 11.6/- | ||||
Overall length [mm] | 4867 | 4867 | ||||
Overall width without/including mirrors [mm] | 1852/2121 | 1852/2121 | ||||
Overall height [mm] | 1501 | 1501 | ||||
Wheelbase [mm] | 2850 | 2850 | ||||
Front wheel track [mm] | 1599 | 1599 | ||||
Rear wheel track [mm] | 1595 | 1595 | ||||
Forward overhang [mm] | - | - | ||||
Rear overhang [mm] | - | - | ||||
Clearance [mm] | 98-128 | 98-128 | ||||
Wading depth [mm] | - | - | ||||
Approach angle front [°] | - | - | ||||
Approach angle rear [°] | - | - | ||||
Transition angle [°] | - | - | ||||
Climbing rate [°] | - | - | ||||
Maximum side tilt [°] | - | - | ||||
Headroom front [mm] | 988 | 988 | ||||
Headroom rear [mm] | 992 | 992 | ||||
Front elbow/shoulder width [mm] | 1396/1469 | 1396/1469 | ||||
Rear elbow/shoulder width [mm] | 1381/1410 | 1381/1410 | ||||
Legroom front knees/total [mm] | -/1128 | -/1128 | ||||
Legroom rear knees/total [mm] | -/972 | -/972 |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
