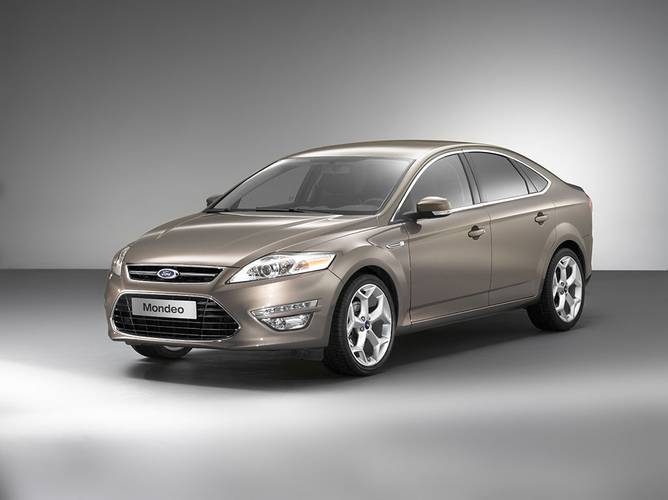

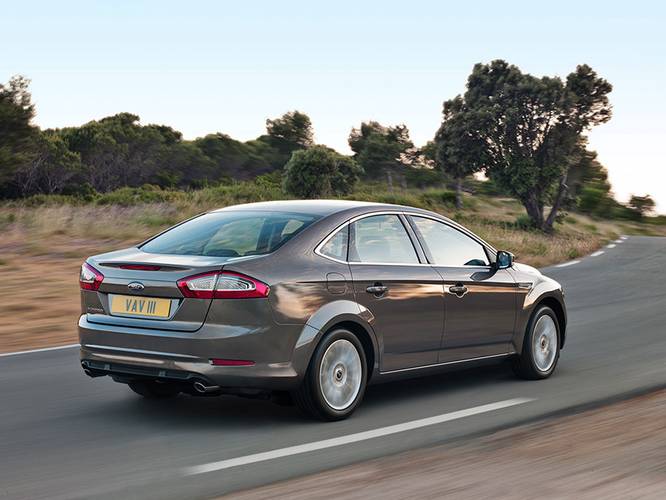

Ford Mondeo
Date of manufacture
9/2010 – 9/2014 (Sedan)
9/2010 – 9/2014 (Liftback)
9/2010 – 9/2014 (Estate)
Platform
Ford EUCD platform
Manufacturing locations
Genk, Belgium
Designer
-
Tags
D-segment
German cars
The new Ford Mondeo is available in three different body styles - sedan, liftback and estate. The car was launched in 2010 and is built on the EUCD platform from Ford. It offers a wide range of petrol and diesel engines, the most powerful being the 2.0 EcoBoost with 176.5 kW of power and a top speed of 250 km/h. The best acceleration 0-100 km/h is achieved by the 2.0 EcoBoost model (7.3 seconds). The most fuel-efficient engine is the 1.6 Duratorq TDCi ECOnectic with a consumption of 4.3 l/100 km and emissions of 114 g/km. The luggage compartment of the sedan body is 535 liters, for the liftback it is 528 liters and for the estate 537 liters. EURONCAP safety tests gave this car a rating of 5 out of 5.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
9/2010 – 9/2014Internal designation
CD345Liftback
after upgrade (facelift)
Date of manufacture
9/2010 – 9/2014Internal designation
CD345Estate
after upgrade (facelift)
Date of manufacture
9/2010 – 9/2014Internal designation
CD345
Technical data
Sedan
| 1.6 Duratec | 2.0 Duratec | 2.0 Duratec FFV | 1.6 EcoBoost | 2.0 EcoBoost | 2.0 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1596 | 1999 | 1999 | 1598 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 88/6300 | 107/6000 | 107/6000 | 118/6000 | 149/6000 | 149/6000 |
| Maximum torque [Nm/min-1] | 160/4100 | 190/4500 | 190/4500 | 240/1600-4000 | 300/1750-4500 | 300/1750-4500 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 87,5 x 83,1 | 87,5 x 83,1 | 79,0 x 81,4 | 87,5 x 83,1 | 87,5 x 83,1 |
| Compression ratio | 11,0:1 | 10,8:1 | 10,8:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
| - | - |
|
| Top speed [km/h] | 195 | 210 | 210 | 215 | 238 | 232 |
| Acceleration 0–100 km/h [s] | 12.3 | 9.9 | 9.9 | 9.3 | 7.6 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.1 | 11.2 | 11.3 (14.3 E85) | 8.9 | 10.4 | 10.7 |
| Out of town [l] | 5.3 | 6.0 | 6.0 (8.0 E85) | 5.3 | 6.0 | 6.0 |
| Combined [l] | 6.7 | 7.9 | 8.0 (10.3 E85) | 6.6 | 7.6 | 7.7 |
| CO2 emissions [g/km] | 160 | 184 | 184 (169 (E85)) | 155 | 176 | 179 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1435 | 1477 | 1477 | 1498 | 1537 | 1589 |
| Overall weight [kg] | 2050 | 2090 | 2090 | 2150 | 2200 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 680/900 | 700/1500 | 700/1500 | 745/1600 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 535 | 535 | 535 | 535 | 535 | 535 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Boot length with rear seats folded [mm] | 1886 | 1886 | 1886 | 1886 | 1886 | 1886 |
| Boot width between wheels/max [mm] | -/1135 | -/1135 | -/1135 | -/1135 | -/1135 | -/1135 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 |
| Overall length [mm] | 4850 | 4850 | 4850 | 4850 | 4850 | 4850 |
| Overall width without/including mirrors [mm] | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Rear overhang [mm] | 1073 | 1073 | 1073 | 1073 | 1073 | 1073 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 976 | 976 | 976 | 976 | 976 | 976 |
| Front elbow/shoulder width [mm] | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 |
| Rear elbow/shoulder width [mm] | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/980 | -/980 | -/980 | -/980 | -/980 | -/980 |
| 2.0 EcoBoost | 2.0 EcoBoost | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi ECOnectic | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1999 | 1560 | 1560 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 176,5/6000 | 176,5/6000 | 85/3600 | 85/3600 | 85/3750 | 103/3750 |
| Maximum torque [Nm/min-1] | 340/1900-3500 | 340/1900-3500 | 270/1750-2500 | 270/1750-2500 | 300/1500-2250 | 320/1750-2750 |
| Bore and stroke [mm x mm] | 87,5 x 83,1 | 87,5 x 83,1 | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 16,0:1 | 16,0:1 | 17,9:1 | 17,9:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - | - |
|
|
| Top speed [km/h] | 250 | 246 | 190 | 190 | 192 | 210 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.5 | 11.9 | 11.9 | 11.2 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.4 | 10.9 | 5.6 | 5.0 | 6.1-6.4 | 6.1-6.4 |
| Out of town [l] | 6.0 | 6.0 | 4.2 | 3.9 | 4.2-4.6 | 4.2-4.6 |
| Combined [l] | 7.6 | 7.7 | 4.7 | 4.3 | 4.9-5.3 | 4.9-5.3 |
| CO2 emissions [g/km] | 176 | 179 | 125 | 114 | 129-139 | 129-139 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1537 | 1589 | 1496 | 1496 | 1557 | 1557 |
| Overall weight [kg] | 2200 | 2200 | 2155 | 2155 | 2180 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 745/1600 | 745/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 535 | 535 | 535 | 535 | 535 | 535 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Boot length with rear seats folded [mm] | 1886 | 1886 | 1886 | 1886 | 1886 | 1886 |
| Boot width between wheels/max [mm] | -/1135 | -/1135 | -/1135 | -/1135 | -/1135 | -/1135 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 |
| Overall length [mm] | 4850 | 4850 | 4850 | 4850 | 4850 | 4850 |
| Overall width without/including mirrors [mm] | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Rear overhang [mm] | 1073 | 1073 | 1073 | 1073 | 1073 | 1073 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 976 | 976 | 976 | 976 | 976 | 976 |
| Front elbow/shoulder width [mm] | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 |
| Rear elbow/shoulder width [mm] | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/980 | -/980 | -/980 | -/980 | -/980 | -/980 |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.2 Duratorq TDCi | 2.2 Duratorq TDCi | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 2179 | 2179 | |
| Maximum output / speed [kW/min-1] | 103/3750 | 120/4000 | 120/4000 | 147/3500 | 147/3500 | |
| Maximum torque [Nm/min-1] | 320/1750-2750 | 340/2000-3250 | 340/2000-3250 | 420/1750-3000 | 420/1750-3000 | |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 96,0 | 85,0 x 96,0 | |
| Compression ratio | 17,9:1 | 17,9:1 | 17,9:1 | 15,8:1 | 15,8:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 205 | 220 | 215 | 230 | 220 | |
| Acceleration 0–100 km/h [s] | 10.2 | 8.9 | 9.5 | 8.1 | 8.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.2 | 6.1-6.4 | 7.2 | 7.8 | 9.0 | |
| Out of town [l] | 4.7 | 4.2-4.6 | 4.7 | 5.0 | 5.1 | |
| Combined [l] | 5.6 | 4.9-5.3 | 5.6 | 6.0 | 6.5 | |
| CO2 emissions [g/km] | 149 | 129-139 | 149 | 159 | 173 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1573 | 1557 | 1573 | 1599 | 1605 | |
| Overall weight [kg] | 2230 | 2180 | 2230 | 2210 | 2260 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/1800 | 750/2000 | 750/2000 | 750/2200 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 535 | 535 | 535 | 535 | 535 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | |
| Boot length with rear seats folded [mm] | 1886 | 1886 | 1886 | 1886 | 1886 | |
| Boot width between wheels/max [mm] | -/1135 | -/1135 | -/1135 | -/1135 | -/1135 | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | |
| Steering | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 | |
| Overall length [mm] | 4850 | 4850 | 4850 | 4850 | 4850 | |
| Overall width without/including mirrors [mm] | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | |
| Rear overhang [mm] | 1073 | 1073 | 1073 | 1073 | 1073 | |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | |
| Headroom rear [mm] | 976 | 976 | 976 | 976 | 976 | |
| Front elbow/shoulder width [mm] | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 | |
| Rear elbow/shoulder width [mm] | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 | |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | |
| Legroom rear knees/total [mm] | -/980 | -/980 | -/980 | -/980 | -/980 |
Liftback
| 1.6 Duratec | 2.0 Duratec | 2.0 Duratec FFV | 1.6 EcoBoost | 2.0 EcoBoost | 2.0 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1596 | 1999 | 1999 | 1598 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 88/6300 | 107/6000 | 107/6000 | 118/6000 | 149/6000 | 149/6000 |
| Maximum torque [Nm/min-1] | 160/4100 | 190/4500 | 190/4500 | 240/1600-4000 | 300/1750-4500 | 300/1750-4500 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 87,5 x 83,1 | 87,5 x 83,1 | 79,0 x 81,4 | 87,5 x 83,1 | 87,5 x 83,1 |
| Compression ratio | 11,0:1 | 10,8:1 | 10,8:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
| - | - |
|
| Top speed [km/h] | 195 | 210 | 210 | 215 | 238 | 232 |
| Acceleration 0–100 km/h [s] | 12.3 | 9.9 | 9.9 | 9.3 | 7.6 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.1 | 11.2 | 11.3 (14.3 E85) | 8.9 | 10.4 | 10.7 |
| Out of town [l] | 5.3 | 6.0 | 6.0 (8.0 E85) | 5.3 | 6.0 | 6.0 |
| Combined [l] | 6.7 | 7.9 | 8.0 (10.3 E85) | 6.6 | 7.6 | 7.7 |
| CO2 emissions [g/km] | 160 | 184 | 184 (169 E85) | 155 | 176 | 179 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1435 | 1477 | 1477 | 1498 | 1537 | 1589 |
| Overall weight [kg] | 2050 | 2090 | 2090 | 2150 | 2200 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 680/900 | 700/1500 | 700/1500 | 745/1600 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 528 | 528 | 528 | 528 | 528 | 528 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 |
| Boot length [mm] | 1171 | 1171 | 1171 | 1171 | 1171 | 1171 |
| Boot length with rear seats folded [mm] | 1886 | 1886 | 1886 | 1886 | 1886 | 1886 |
| Boot width between wheels/max [mm] | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 |
| Overall length [mm] | 4784 | 4784 | 4784 | 4784 | 4784 | 4784 |
| Overall width without/including mirrors [mm] | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Rear overhang [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Front elbow/shoulder width [mm] | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 |
| Rear elbow/shoulder width [mm] | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| 2.0 EcoBoost | 2.0 EcoBoost | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi ECOnectic | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1999 | 1560 | 1560 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 176,5/6000 | 176,5/6000 | 85/3600 | 85/3600 | 85/3750 | 103/3750 |
| Maximum torque [Nm/min-1] | 340/1900-3500 | 340/1900-3500 | 270/1750-2500 | 270/1750-2500 | 300/1500-2250 | 320/1750-2750 |
| Bore and stroke [mm x mm] | 87,5 x 83,1 | 87,5 x 83,1 | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 16,0:1 | 16,0:1 | 17,9:1 | 17,9:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - | - |
|
|
| Top speed [km/h] | 250 | 246 | 190 | 190 | 192 | 210 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.5 | 11.9 | 11.9 | 11.2 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.4 | 10.9 | 6.0 | 5.0 | 6.1-6.4 | 6.1-6.4 |
| Out of town [l] | 6.0 | 6.0 | 4.2 | 3.9 | 4.2-4.6 | 4.2-4.6 |
| Combined [l] | 7.6 | 7.7 | 4.9 | 4.3 | 4.9-5.3 | 4.9-5.3 |
| CO2 emissions [g/km] | 176 | 179 | 125 | 114 | 129-139 | 129-139 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1537 | 1589 | 1496 | 1496 | 1557 | 1557 |
| Overall weight [kg] | 2200 | 2200 | 2155 | 2155 | 2180 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 745/1600 | 745/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 528 | 528 | 528 | 528 | 528 | 528 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 |
| Boot length [mm] | 1171 | 1171 | 1171 | 1171 | 1171 | 1171 |
| Boot length with rear seats folded [mm] | 1886 | 1886 | 1886 | 1886 | 1886 | 1886 |
| Boot width between wheels/max [mm] | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 |
| Overall length [mm] | 4784 | 4784 | 4784 | 4784 | 4784 | 4784 |
| Overall width without/including mirrors [mm] | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Rear overhang [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | 110 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Front elbow/shoulder width [mm] | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 |
| Rear elbow/shoulder width [mm] | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.2 Duratorq TDCi | 2.2 Duratorq TDCi | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 2179 | 2179 | |
| Maximum output / speed [kW/min-1] | 103/3750 | 120/4000 | 120/4000 | 147/3500 | 147/3500 | |
| Maximum torque [Nm/min-1] | 320/1750-2750 | 340/2000-3250 | 340/2000-3250 | 420/1750-3000 | 420/1750-3000 | |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 96,0 | 85,0 x 96,0 | |
| Compression ratio | 17,9:1 | 17,9:1 | 17,9:1 | 15,8:1 | 15,8:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 205 | 220 | 215 | 230 | 220 | |
| Acceleration 0–100 km/h [s] | 10.2 | 8.9 | 9.5 | 8.1 | 8.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.2 | 6.1-6.4 | 7.2 | 7.8 | 9.0 | |
| Out of town [l] | 4.7 | 4.2-4.6 | 4.7 | 5.0 | 5.1 | |
| Combined [l] | 5.6 | 4.9-5.3 | 5.6 | 6.0 | 6.5 | |
| CO2 emissions [g/km] | 149 | 129-139 | 149 | 159 | 173 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1573 | 1557 | 1573 | 1599 | 1605 | |
| Overall weight [kg] | 2230 | 2180 | 2230 | 2210 | 2260 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/1800 | 750/2000 | 750/2000 | 750/2200 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 528 | 528 | 528 | 528 | 528 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1448 | -/1448 | -/1448 | -/1448 | -/1448 | |
| Boot length [mm] | 1171 | 1171 | 1171 | 1171 | 1171 | |
| Boot length with rear seats folded [mm] | 1886 | 1886 | 1886 | 1886 | 1886 | |
| Boot width between wheels/max [mm] | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | |
| Steering | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 | |
| Overall length [mm] | 4784 | 4784 | 4784 | 4784 | 4784 | |
| Overall width without/including mirrors [mm] | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | |
| Rear overhang [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | |
| Clearance [mm] | 110 | 110 | 110 | 110 | 110 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | |
| Front elbow/shoulder width [mm] | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 | |
| Rear elbow/shoulder width [mm] | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 | |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | |
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 | -/950 |
Estate
| 1.6 Duratec | 2.0 Duratec | 2.0 Duratec FFV | 1.6 EcoBoost | 2.0 EcoBoost | 2.0 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1596 | 1999 | 1999 | 1598 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 88/6300 | 107/6000 | 107/6000 | 118/6000 | 149/6000 | 149/6000 |
| Maximum torque [Nm/min-1] | 160/4100 | 190/4500 | 190/4500 | 240/1600-4000 | 300/1750-4500 | 300/1750-4500 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 87,5 x 83,1 | 87,5 x 83,1 | 79,0 x 81,4 | 87,5 x 83,1 | 87,5 x 83,1 |
| Compression ratio | 11,0:1 | 10,8:1 | 10,8:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
| - | - |
|
| Top speed [km/h] | 190 | 205 | 205 | 210 | 233 | 227 |
| Acceleration 0–100 km/h [s] | 12.6 | 10.3 | 10.3 | 9.6 | 7.9 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.1 | 11.2 | 11.3 (14.3 E85) | 8.9 | 10.4 | 10.7 |
| Out of town [l] | 5.3 | 6.0 | 6.0 (8.0 E85) | 5.3 | 6.0 | 6.0 |
| Combined [l] | 6.7 | 7.9 | 8.0 (10.3 E85) | 6.6 | 7.6 | 7.7 |
| CO2 emissions [g/km] | 160 | 184 | 184 (169 E85) | 155 | 176 | 179 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1455 | 1496 | 1496 | 1501 | 1554 | 1588 |
| Overall weight [kg] | 2050 | 2200 | 2200 | 2200 | 2300 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | 685/900 | 710/1500 | 710/1500 | 745/1600 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 537 | 537 | 537 | 537 | 537 | 537 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1728 | -/1728 | -/1728 | -/1728 | -/1728 | -/1728 |
| Boot length [mm] | 1183 | 1183 | 1183 | 1183 | 1183 | 1183 |
| Boot length with rear seats folded [mm] | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Boot width between wheels/max [mm] | -/1141 | -/1141 | -/1141 | -/1141 | -/1141 | -/1141 |
| Boot height to headliner/ceiling [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | -/849 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 |
| Overall length [mm] | 4837 | 4837 | 4837 | 4837 | 4837 | 4837 |
| Overall width without/including mirrors [mm] | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 |
| Overall height [mm] | 1512 | 1512 | 1512 | 1512 | 1512 | 1512 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Rear overhang [mm] | 1060 | 1060 | 1060 | 1060 | 1060 | 1060 |
| Clearance [mm] | 112 | 112 | 112 | 112 | 112 | 112 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
| Front elbow/shoulder width [mm] | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 |
| Rear elbow/shoulder width [mm] | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| 2.0 EcoBoost | 2.0 EcoBoost | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi ECOnectic | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1999 | 1999 | 1560 | 1560 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 176,5/6000 | 176,5/6000 | 85/3600 | 85/3600 | 85/3750 | 103/3750 |
| Maximum torque [Nm/min-1] | 340/1900-3500 | 340/1900-3500 | 270/1750-2500 | 270/1750-2500 | 300/1500-2250 | 320/1750-2750 |
| Bore and stroke [mm x mm] | 87,5 x 83,1 | 87,5 x 83,1 | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 16,0:1 | 16,0:1 | 17,9:1 | 17,9:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - | - |
|
|
| Top speed [km/h] | 245 | 241 | 185 | 185 | 187 | 205 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.8 | 12.1 | 12.1 | 11.4 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.4 | 10.9 | 5.6 | 5.0 | 6.1-6.4 | 6.1-6.4 |
| Out of town [l] | 6.0 | 6.0 | 4.2 | 3.9 | 4.2-4.6 | 4.2-4.6 |
| Combined [l] | 7.6 | 7.7 | 4.7 | 4.3 | 4.9-5.3 | 4.9-5.3 |
| CO2 emissions [g/km] | 176 | 179 | 125 | 114 | 129-139 | 129-139 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1554 | 1588 | 1505 | 1505 | 1575 | 1575 |
| Overall weight [kg] | 2300 | 2300 | 2265 | 2265 | 2290 | 2290 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 537 | 537 | 537 | 537 | 537 | 537 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1728 | -/1728 | -/1728 | -/1728 | -/1728 | -/1728 |
| Boot length [mm] | 1183 | 1183 | 1183 | 1183 | 1183 | 1183 |
| Boot length with rear seats folded [mm] | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Boot width between wheels/max [mm] | -/1141 | -/1141 | -/1141 | -/1141 | -/1141 | -/1141 |
| Boot height to headliner/ceiling [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | -/849 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 |
| Steering | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 |
| Overall length [mm] | 4837 | 4837 | 4837 | 4837 | 4837 | 4837 |
| Overall width without/including mirrors [mm] | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 |
| Overall height [mm] | 1512 | 1512 | 1512 | 1512 | 1512 | 1512 |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Rear overhang [mm] | 1060 | 1060 | 1060 | 1060 | 1060 | 1060 |
| Clearance [mm] | 112 | 112 | 112 | 112 | 112 | 112 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Headroom rear [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
| Front elbow/shoulder width [mm] | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 |
| Rear elbow/shoulder width [mm] | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 |
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.2 Duratorq TDCi | 2.2 Duratorq TDCi | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 2179 | 2179 | |
| Maximum output / speed [kW/min-1] | 103/3750 | 120/4000 | 120/4000 | 147/3500 | 147/3500 | |
| Maximum torque [Nm/min-1] | 320/1750-2750 | 340/2000-3250 | 340/2000-3250 | 420/1750-3000 | 420/1750-3000 | |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 96,0 | 85,0 x 96,0 | |
| Compression ratio | 17,9:1 | 17,9:1 | 17,9:1 | 15,8:1 | 15,8:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 200 | 215 | 210 | 225 | 215 | |
| Acceleration 0–100 km/h [s] | 10.4 | 9.1 | 9.8 | 8.3 | 8.6 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.2 | 6.1-6.4 | 7.2 | 7.8 | 9.0 | |
| Out of town [l] | 4.7 | 4.2-4.6 | 4.7 | 5.0 | 5.1 | |
| Combined [l] | 5.6 | 4.9-5.3 | 5.6 | 6.0 | 6.5 | |
| CO2 emissions [g/km] | 149 | 129-139 | 149 | 159 | 173 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1592 | 1575 | 1592 | 1615 | 1615 | |
| Overall weight [kg] | 2335 | 2290 | 2335 | 2320 | 2360 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/1800 | 750/2000 | 750/2000 | 750/2200 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 537 | 537 | 537 | 537 | 537 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1728 | -/1728 | -/1728 | -/1728 | -/1728 | |
| Boot length [mm] | 1183 | 1183 | 1183 | 1183 | 1183 | |
| Boot length with rear seats folded [mm] | 1920 | 1920 | 1920 | 1920 | 1920 | |
| Boot width between wheels/max [mm] | -/1141 | -/1141 | -/1141 | -/1141 | -/1141 | |
| Boot height to headliner/ceiling [mm] | -/849 | -/849 | -/849 | -/849 | -/849 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Brake dimensions front | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | 300 x 28 | |
| Brake dimensions rear | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | 302 x 11 | |
| Steering | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | Rack & pinion | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/11.6 | -/11.6 | -/11.6 | -/11.6 | -/11.6 | |
| Overall length [mm] | 4837 | 4837 | 4837 | 4837 | 4837 | |
| Overall width without/including mirrors [mm] | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | 1886/2092 | |
| Overall height [mm] | 1512 | 1512 | 1512 | 1512 | 1512 | |
| Wheelbase [mm] | 2850 | 2850 | 2850 | 2850 | 2850 | |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | |
| Rear overhang [mm] | 1060 | 1060 | 1060 | 1060 | 1060 | |
| Clearance [mm] | 112 | 112 | 112 | 112 | 112 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 996 | 996 | 996 | 996 | 996 | |
| Headroom rear [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | |
| Front elbow/shoulder width [mm] | -/1445 | -/1445 | -/1445 | -/1445 | -/1445 | |
| Rear elbow/shoulder width [mm] | -/1407 | -/1407 | -/1407 | -/1407 | -/1407 | |
| Legroom front knees/total [mm] | -/1126 | -/1126 | -/1126 | -/1126 | -/1126 | |
| Legroom rear knees/total [mm] | -/950 | -/950 | -/950 | -/950 | -/950 |

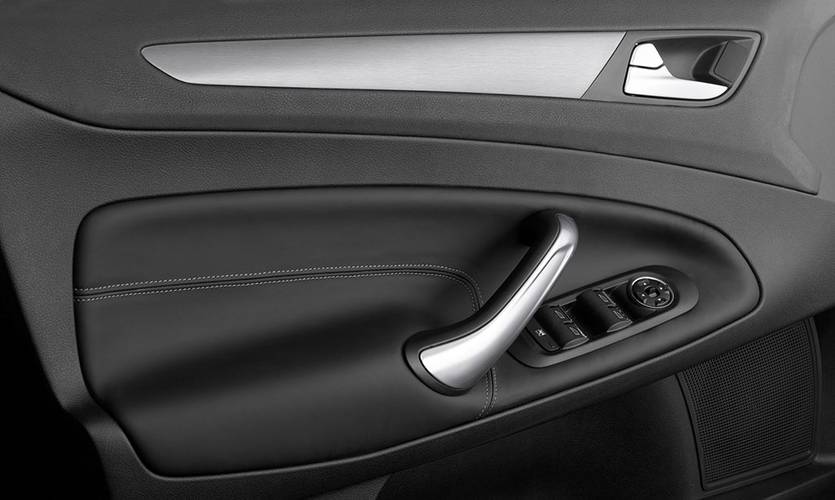

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
