Ford Kuga
Date of manufacture
2016 – 2019 (SUV)
Platform
Ford C1 platform
Manufacturing locations
Valencia, Spain
Designer
Martin Smith
Tags
Compact SUV
German cars
The Ford Kuga is an SUV that has been manufactured in Spain since 2016. Built on the Ford C1 platform, it offers petrol and diesel engines with the most powerful 1.5 EcoBoost AWD engine reaching 134 kW. The fastest version 2.0 TDCi AWD has a maximum speed of 202 km/h and the most economical 1.5 TDCi has a consumption of 4.4 l/100 km and emissions of 115 g/km. The luggage compartment has a capacity of 456 l and in 2012 it received 5 out of 5 stars according to EURONCAP for safety.
Car body style
SUV
after upgrade (facelift)
Date of manufacture
2016 – 2019Internal designation
C520
Technical data
SUV
| 1.5 EcoBoost | 1.5 EcoBoost | 1.5 EcoBoost AWD | 1.5 EcoBoost AWD | 1.5 TDCi | 2.0 TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2018 to | from to 2018 | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1499 | 1997 |
| Maximum output / speed [kW/min-1] | 88/5700 | 110/6000 | 129/6000 | 134/5700 | 88/3600 | 110/3500 |
| Maximum torque [Nm/min-1] | 240/1600-4000 | 240/1600-4000 | 240/1600-5000 | 240/1600-5000 | 270/1500-2500 | 350/2000-2500 |
| Bore and stroke [mm x mm] | 79,0 x 76,4 | 79,0 x 76,4 | 79,0 x 76,4 | 79,0 x 76,4 | 73,5 x 88,3 | 85,0 x 88,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 3.8 | 3.8 | 3.8 | 3.8 | 4.6 | 5.7 |
| Coolant volume [l] | 6.3 | 6.3 | 6.3 | 6.3 | 8.5 | 8.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
|
| - | - |
| Top speed [km/h] | 180 | 195 | 197 | 200 | 173 | 194 |
| Acceleration 0–100 km/h [s] | 12.5 | 9.7 | 11.4 | 10.1 | 12.7 | 10.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.1-7.9 | 9.1-7.9 | 12.1 | 9.4 | 6.1-4.8 | 6.0-5.8 |
| Out of town [l] | 6.2-5.4 | 6.2-5.4 | 7.4-7.3 | 6.3 | 5.5-4.2 | 5.6-5.2 |
| Combined [l] | 7.2-6.3 | 7.2-6.3 | 9.1-9.1 | 7.5 | 5.7-4.4 | 5.8-5.4 |
| CO2 emissions [g/km] | 164-145 | 164-145 | 209-205 | 173 | 149-115 | 152-141 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1579-1630 | 1579-1630 | 1739 | 1686 | 1591-1654 | 1722 |
| Overall weight [kg] | 2100 | 2100 | 2200 | 2200 | 2100 | 2250 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2000 | 750/1850 | 750/1850 | 750/1200 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 456 | 456 | 456 | 456 | 456 | 456 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1603 | -/1603 | -/1603 | -/1603 | -/1603 | -/1603 |
| Boot length [mm] | 871 | 871 | 871 | 871 | 871 | 871 |
| Boot length with rear seats folded [mm] | 1696 | 1696 | 1696 | 1696 | 1696 | 1696 |
| Boot width between wheels/max [mm] | -/1031 | -/1031 | -/1031 | -/1031 | -/1031 | -/1031 |
| Boot height to headliner/ceiling [mm] | -/1002 | -/1002 | -/1002 | -/1002 | -/1002 | -/1002 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar |
| Tyre dimensions front | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 |
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 |
| Steering | Electric power steering EPAS | Electric power steering EPAS | Electric power steering EPAS | Electric power steering EPAS | Electric power steering EPAS | Electric power steering EPAS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4524 | 4524 | 4524 | 4524 | 4524 | 4524 |
| Overall width without/including mirrors [mm] | 1838/2086 | 1838/2086 | 1838/2086 | 1838/2086 | 1838/2086 | 1838/2086 |
| Overall height [mm] | 1689 | 1689 | 1689 | 1689 | 1689 | 1689 |
| Wheelbase [mm] | 2690 | 2690 | 2690 | 2690 | 2690 | 2690 |
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Rear wheel track [mm] | 1583 | 1583 | 1583 | 1583 | 1583 | 1583 |
| Forward overhang [mm] | 924 | 924 | 924 | 924 | 924 | 924 |
| Rear overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Clearance [mm] | 197 | 197 | 197 | 197 | 197 | 197 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1013 | 1013 | 1013 | 1013 | 1013 | 1013 |
| Headroom rear [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Front elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 | -/1421 |
| Rear elbow/shoulder width [mm] | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 |
| Legroom front knees/total [mm] | -/1096 | -/1096 | -/1096 | -/1096 | -/1096 | -/1096 |
| Legroom rear knees/total [mm] | -/934 | -/934 | -/934 | -/934 | -/934 | -/934 |
| 2.0 TDCi AWD | 2.0 TDCi AWD | 2.0 TDCi AWD | 2.0 TDCi AWD | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | ||
| Maximum output / speed [kW/min-1] | 110/3500 | 110/3500 | 132/3500 | 132/3500 | ||
| Maximum torque [Nm/min-1] | 350/2000-2500 | 350/2000-2500 | 400/2000-2500 | 400/2000-2500 | ||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | ||
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | ||
| Oil volume [l] | 5.7 | 5.7 | 5.7 | 5.7 | ||
| Coolant volume [l] | 8.5 | 8.5 | 8.5 | 8.5 | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 192 | 190 | 202 | 200 | ||
| Acceleration 0–100 km/h [s] | 9.9 | 10.9 | 9.2 | 10.0 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 7.3-6.0 | 7.0-5.5 | 7.3-6.0 | 7.0-5.5 | ||
| Out of town [l] | 6.0-4.7 | 6.2-4.9 | 6.0-4.7 | 6.2-4.9 | ||
| Combined [l] | 6.5-5.2 | 6.5-5.2 | 6.5-5.2 | 6.5-5.2 | ||
| CO2 emissions [g/km] | 169-135 | 168-134 | 169-135 | 168-134 | ||
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1702-1790 | 1716-1815 | 1702-1790 | 1716-1815 | ||
| Overall weight [kg] | 2250 | 2230 | 2250 | 2230 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 456 | 456 | 456 | 456 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1603 | -/1603 | -/1603 | -/1603 | ||
| Boot length [mm] | 871 | 871 | 871 | 871 | ||
| Boot length with rear seats folded [mm] | 1696 | 1696 | 1696 | 1696 | ||
| Boot width between wheels/max [mm] | -/1031 | -/1031 | -/1031 | -/1031 | ||
| Boot height to headliner/ceiling [mm] | -/1002 | -/1002 | -/1002 | -/1002 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | ||
| Rear suspension | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | ||
| Tyre dimensions front | 235/55 R17 | 235/55 R17 | 235/50 R18 | 235/50 R18 | ||
| Tyre dimensions rear | 235/55 R17 | 235/55 R17 | 235/50 R18 | 235/50 R18 | ||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 18 | 7.5J x 18 | ||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 18 | 7.5J x 18 | ||
| Brake dimensions front | 300 x 25 | 300 x 25 | 320 x 25 | 320 x 25 | ||
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | ||
| Steering | Electric power steering EPAS | Electric power steering EPAS | Electric power steering EPAS | Electric power steering EPAS | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | ||
| Overall length [mm] | 4524 | 4524 | 4541 | 4541 | ||
| Overall width without/including mirrors [mm] | 1838/2086 | 1838/2086 | 1838/2086 | 1838/2086 | ||
| Overall height [mm] | 1689 | 1689 | 1689 | 1689 | ||
| Wheelbase [mm] | 2690 | 2690 | 2690 | 2690 | ||
| Front wheel track [mm] | 1573 | 1573 | 1573 | 1573 | ||
| Rear wheel track [mm] | 1583 | 1583 | 1583 | 1583 | ||
| Forward overhang [mm] | 924 | 924 | 924 | 924 | ||
| Rear overhang [mm] | 910 | 910 | 910 | 910 | ||
| Clearance [mm] | 197 | 197 | 197 | 197 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1013 | 1013 | 1013 | 1013 | ||
| Headroom rear [mm] | 990 | 990 | 990 | 990 | ||
| Front elbow/shoulder width [mm] | -/1421 | -/1421 | -/1421 | -/1421 | ||
| Rear elbow/shoulder width [mm] | -/1398 | -/1398 | -/1398 | -/1398 | ||
| Legroom front knees/total [mm] | -/1096 | -/1096 | -/1096 | -/1096 | ||
| Legroom rear knees/total [mm] | -/934 | -/934 | -/934 | -/934 |

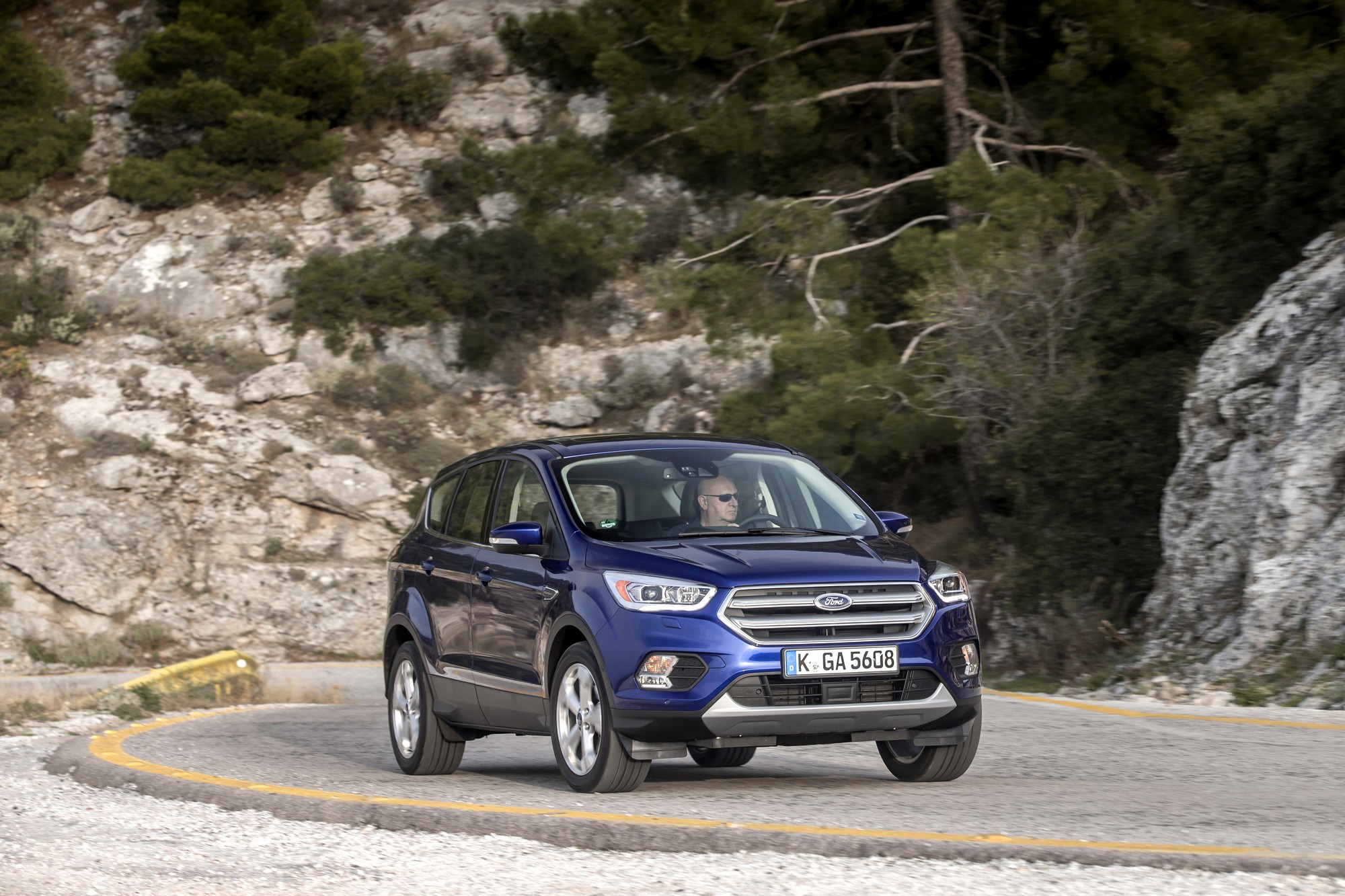

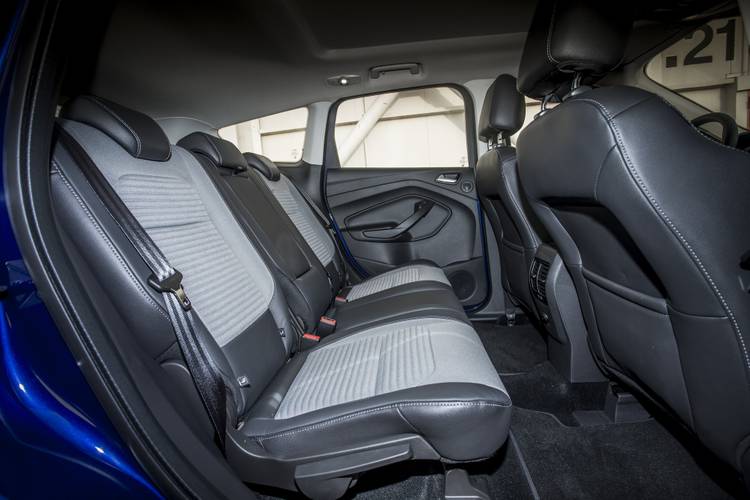

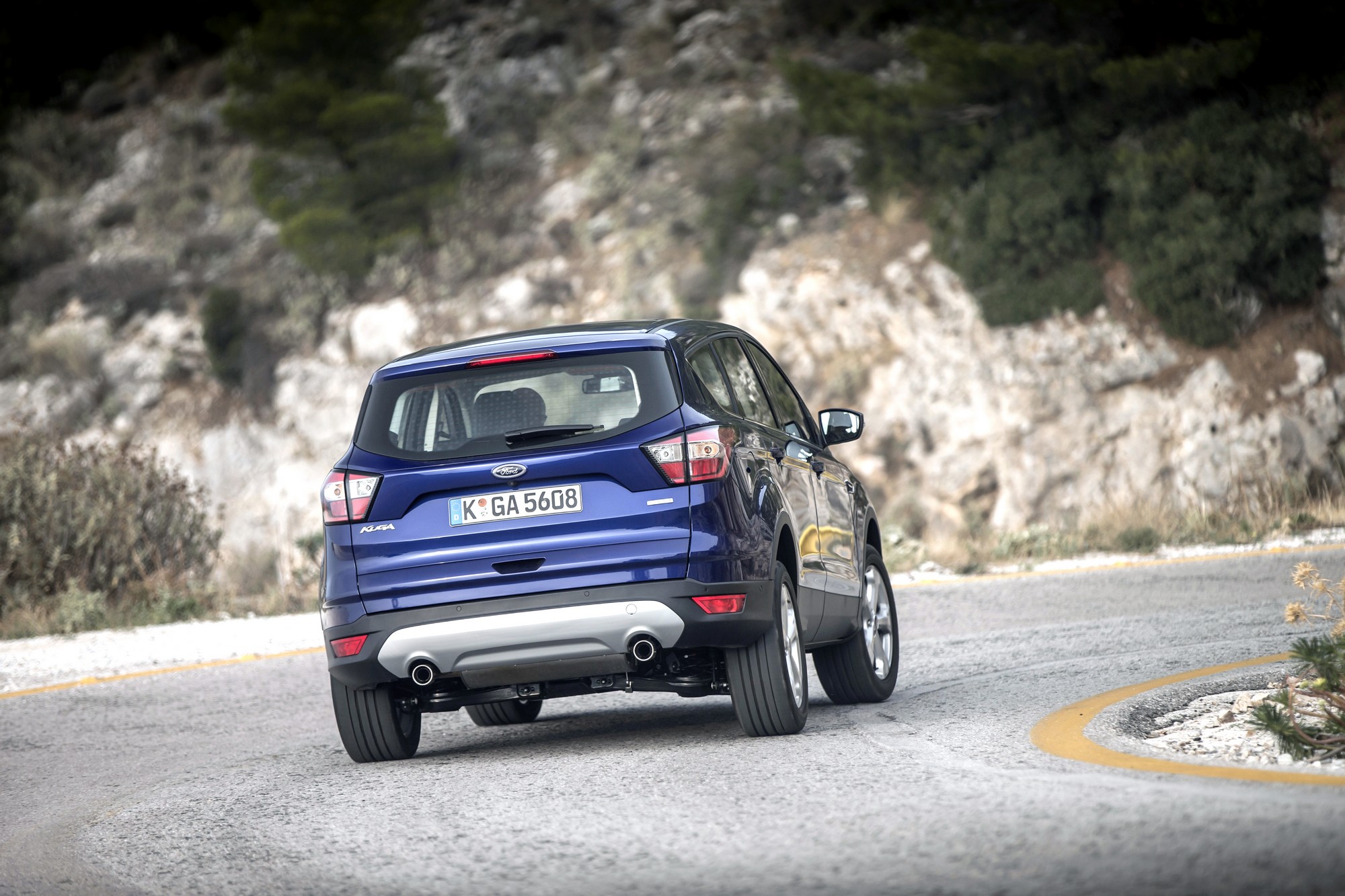

Gallery
