Ford Ka+

Date of manufacture

2018 – 2019 (Five-door hatchback)

Platform

Ford global B-car

Manufacturing locations

Sanand, India

Designer

Car body style

Five-door hatchback

after upgrade (facelift)

Date of manufacture

2018 – 2019

Internal designation

Engine size

Petrol

Diesel

Euro NCAP

Test year 2017

pre-facelift version (2017)

Technical data

Five-door hatchback

	1.2 Ti-VCT	1.2 Ti-VCT	1.2 Ti-VCT Active	1.5 TDCi	1.5 TDCi Active
Date of sale	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	3/12	3/12	3/12	4/16	4/16
Engine displacement [cm³]	1196	1196	1196	1499	1499
Maximum output / speed [kW/min-1]	52/5500-6500	63/5500-6500	63/5500-6500	70/4000	70/4000
Maximum torque [Nm/min-1]	115/4250	115/4250	115/4250	215/1750	215/1750
Bore and stroke [mm x mm]	-	-	-	75.0 x 84.8	75.0 x 84.8
Compression ratio	-	-	-	16.4:1	16.4:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves Ti‐VCT start&stop system	variable timing of intake and exhaust valves Ti‐VCT start&stop system	variable timing of intake and exhaust valves Ti‐VCT start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system	direct injection Common Rail turbo-supercharged particulate filter start&stop system

Drive axle	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear manual	5 gear manual	5 gear manual
Drive specifications	-	-	-	-	-

Top speed [km/h]	164	169	169	179	179
Acceleration 0–100 km/h [s]	14.6	13.5	13.5	11.4	11.4
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	6.3	6.1	6.8	4.1	4.3
Out of town [l]	4.4	4.4	5.0	3.5	4.0
Combined [l]	5.1	5.0	5.7	3.7	4.1
CO2 emissions [g/km]	117	114	129	99	108

Emission standard	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1063	1066	1078	1113	1121
Overall weight [kg]	1550	1550	1560	1570	1570
Maximum trailer weight unbraked/braked [kg]	-	500/500	500/500	500/500	500/500
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	50	50	50	50
Maximum load on roof/carrier [kg]	-	-	-	-	-

Boot volume [l]	270	270	270	270	270
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/849	-/849	-/849	-/849	-/849
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	5	5	5	5	5
Number of seats	5	5	5	5	5
Fuel tank volume [l]	42	42	42	42	42
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	195/55 R15	195/55 R15	195/55 R15	195/55 R15	195/55 R15
Tyre dimensions rear	195/55 R15	195/55 R15	195/55 R15	195/55 R15	195/55 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-
Steering	Electric power steering	Electric power steering	Electric power steering	Electric power steering	Electric power steering
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	10.1/-	10.1/-	10.0/-	10.1/-	10.0/-

Overall length [mm]	3941	3941	3955	3941	3955
Overall width without/including mirrors [mm]	1704/1910	1704/1910	1743/1910	1704/1910	1743/1910
Overall height [mm]	1524	1524	1551	1524	1551
Wheelbase [mm]	2489	2489	2489	2489	2489
Front wheel track [mm]	-	-	-	-	-
Rear wheel track [mm]	-	-	-	-	-
Forward overhang [mm]	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-
Clearance [mm]	123-154	123-154	153	123-154	153
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	1002	1002	1002	1002	1002
Headroom rear [mm]	964	964	964	964	964
Front elbow/shoulder width [mm]	-/1361	-/1361	-/1361	-/1361	-/1361
Rear elbow/shoulder width [mm]	-/1338	-/1338	-/1338	-/1338	-/1338
Legroom front knees/total [mm]	-/1118	-/1118	-/1118	-/1118	-/1118
Legroom rear knees/total [mm]	-/869	-/869	-/869	-/869	-/869

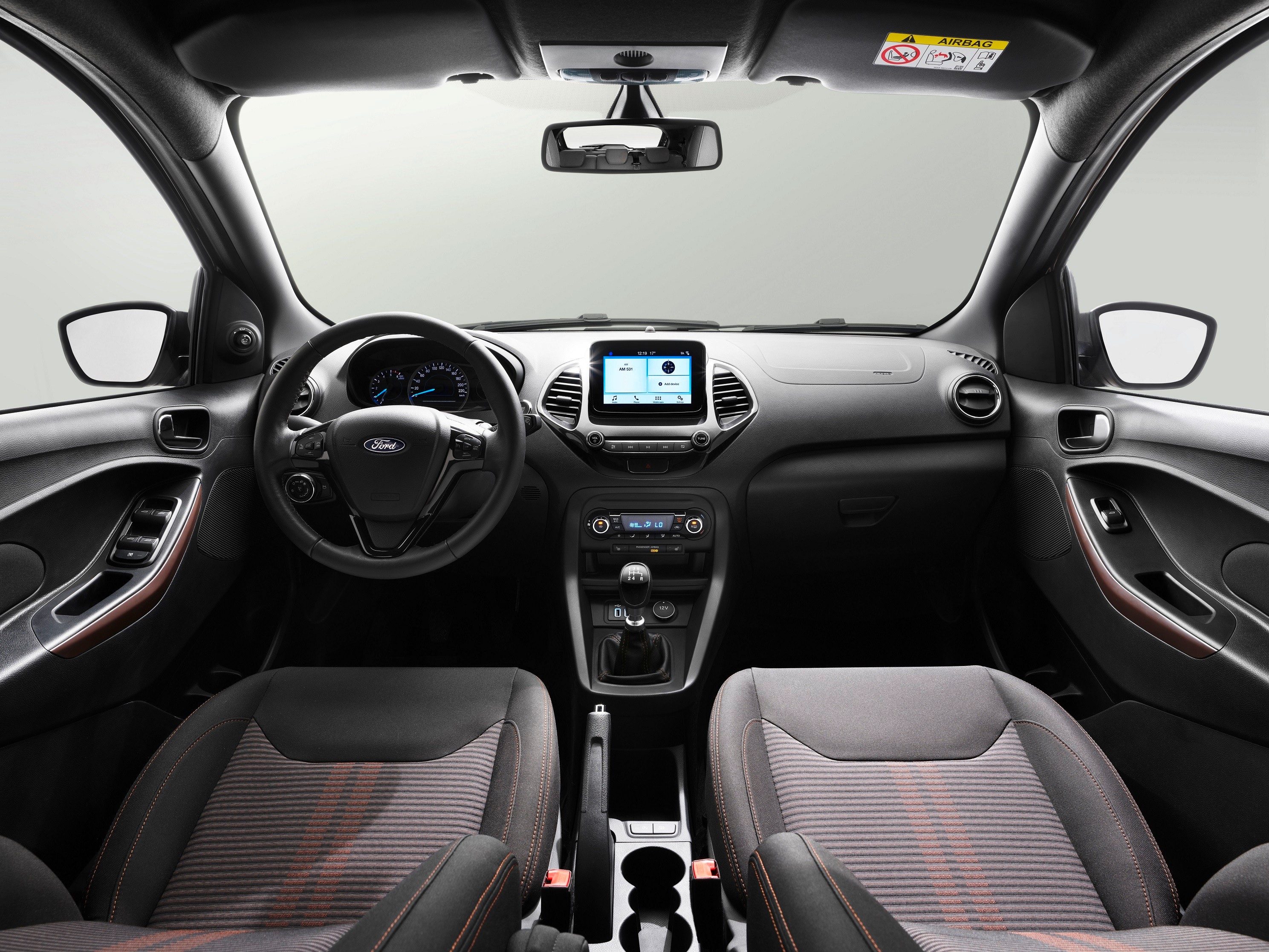

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
