Ford Galaxy

Galaxy CD390 2019

Date of manufacture

2019 – to this day (Large MPV)

Platform

Ford CD4 platform

Manufacturing locations

Valencia, Spain

Designer

Joel Piaskowski

Tags

Large MPV
German cars
The Ford Galaxy is a large MPV that has been manufactured in Spain since 2019. The vehicle is built on the Ford CD4 platform and offers a wide range of engine options, including petrol, diesel and hybrid variants. The most powerful model, the 2.0 EcoBlue 190 AWD, has a power output of 140 kW and a top speed of 204 km/h. The most fuel-efficient version, the 2.0 EcoBlue 150, has a combined fuel consumption of 5.2 l/100 km and CO2 emissions of 136 g/km. The luggage compartment has a capacity of 300 l. The vehicle successfully passed the EURONCAP 2015 safety tests with a rating of 5 out of 5.

Car body style

Large MPV

after upgrade (facelift)
Date of manufacture
2019 – to this day
Internal designation
CD390

Euro NCAP

Test year 2015
pre-facelift version (2015)
Rating
star iconstar iconstar iconstar iconstar icon
Adults
87 %
Adults
Children
87 %
Children
Pedestrians
79 %
Pedestrians
Assist systems
71 %
Assist systems

Technical data

Large MPV

2.5 Duratec Hybrid 2.0 EcoBlue 150 2.0 EcoBlue 150 2.0 EcoBlue 190 2.0 EcoBlue 190 AWD
Date of sale-----
Engine typePetrol + ElectricDiesel superchargedDiesel superchargedDiesel superchargedDiesel supercharged
Number of cylinders/valves4/164/164/164/164/16
Engine displacement [cm³]24881997199719971997
Maximum output / speed [kW/min-1]
140/5500
110/3500
110/3500
140/3500
140/3500
Maximum torque [Nm/min-1]
200/4500
370/2000-2500
370/2000-2500
400/2000-3000
400/2000-3000
Drive axleFrontFrontFrontFront4x4
Gearbox1 gear automatic6 gear manual8 gear automatic8 gear automatic8 gear automatic
Top speed [km/h]182194192204202
Acceleration 0–100 km/h [s]10.010.710.89.710.0
City [l]6.6-6.56.36.46.36.9
Out of town [l]5.54.54.94.85.2
Combined [l]5.9-5.85.25.55.4-5.35.9-5.8
CO2 emissions [g/km]135-134136144-143141-140154-153
Emission standardEuro 6dEuro 6dEuro 6dEuro 6dEuro 6d
System voltage [V]-----
Battery type and capacityLithium-Ionen-Akkumulator, 1.1 kWh----
Range with fully charged battery [km]-----
Charging time-----
Standby weight [kg]19281811192419351935
Overall weight [kg]23902510259526052605
Maximum trailer weight unbraked/braked [kg]750/-750/1600750/1800750/2000750/2000
Boot volume [l]300300300300300
Boot volume with rear seats folded to the edge of the seats/ceiling [l]-/2339-/2339-/2339-/2339-/2339
Boot volume, third row of seats [l]-----
Number of doors55555
Number of seats5-75-75-75-75-7
Fuel tank volume [l]6563636361
AdBlue tank volume [l]12.412.412.412.412.4
Overall length [mm]48484848484848484848
Overall width without/including mirrors [mm]1916/21371916/21371916/21371916/21371916/2137
Overall height [mm]17471747174717471747
Wheelbase [mm]28502850285028502850
Headroom front [mm]10681068106810681068
Headroom rear [mm]10261026102610261026
Front elbow/shoulder width [mm]1432/15311432/15311432/15311432/15311432/1531
Rear elbow/shoulder width [mm]1451/15351451/15351451/15351451/15351451/1535
Third row of seats, headroom [mm]985985985985985
Third row elbow/shoulder width [mm]1148/13591148/13591148/13591148/13591148/1359

Gallery

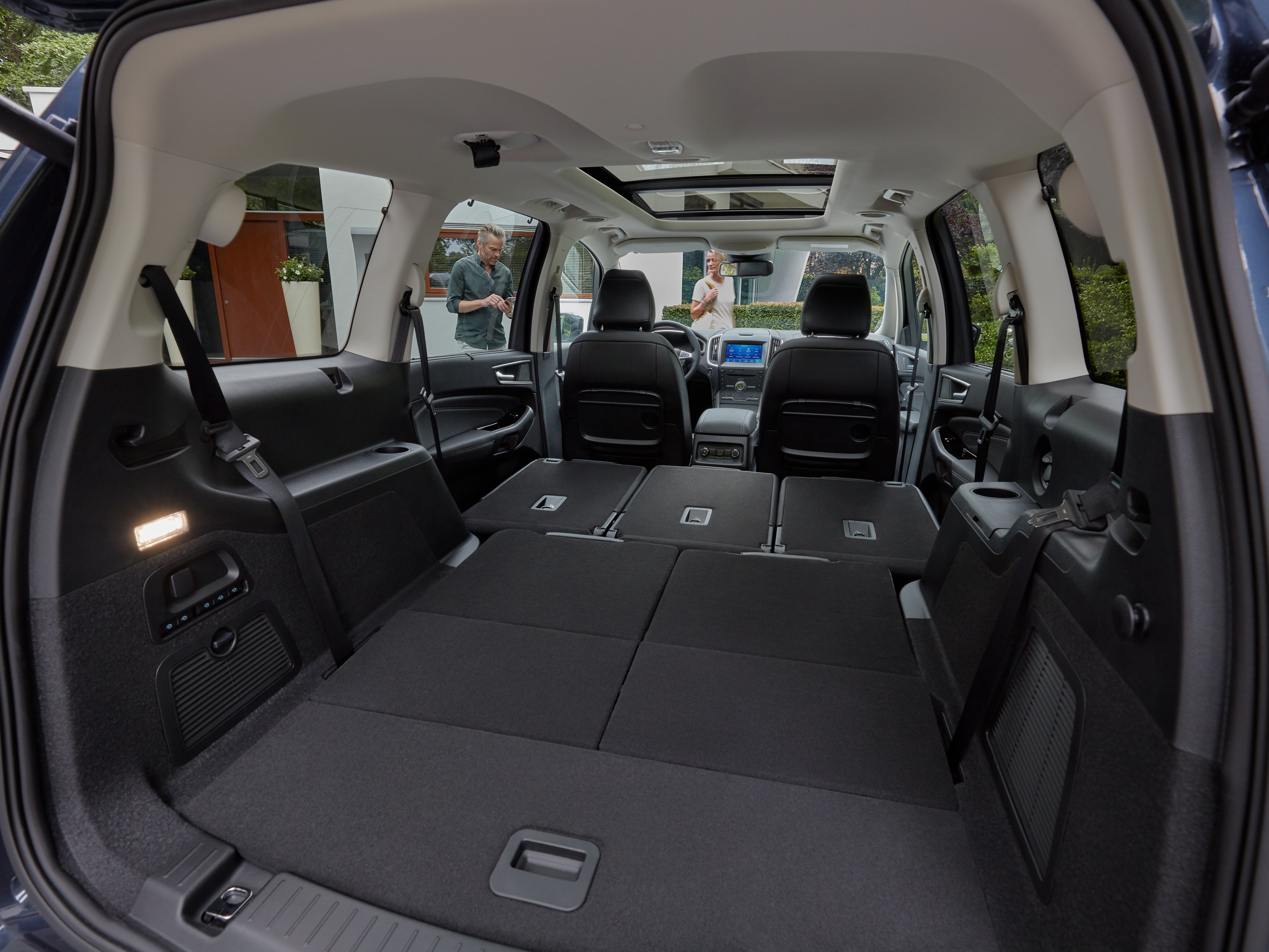

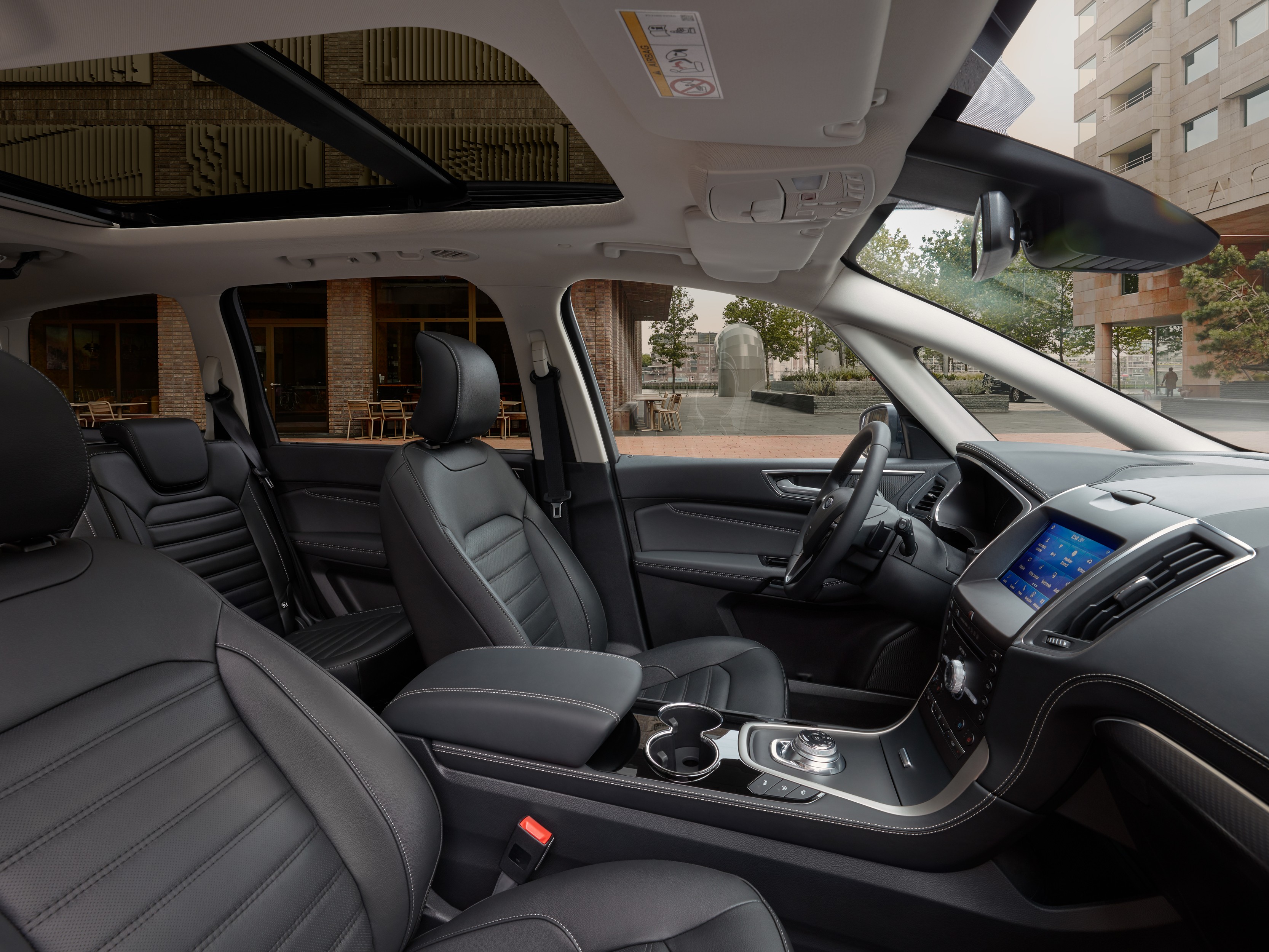

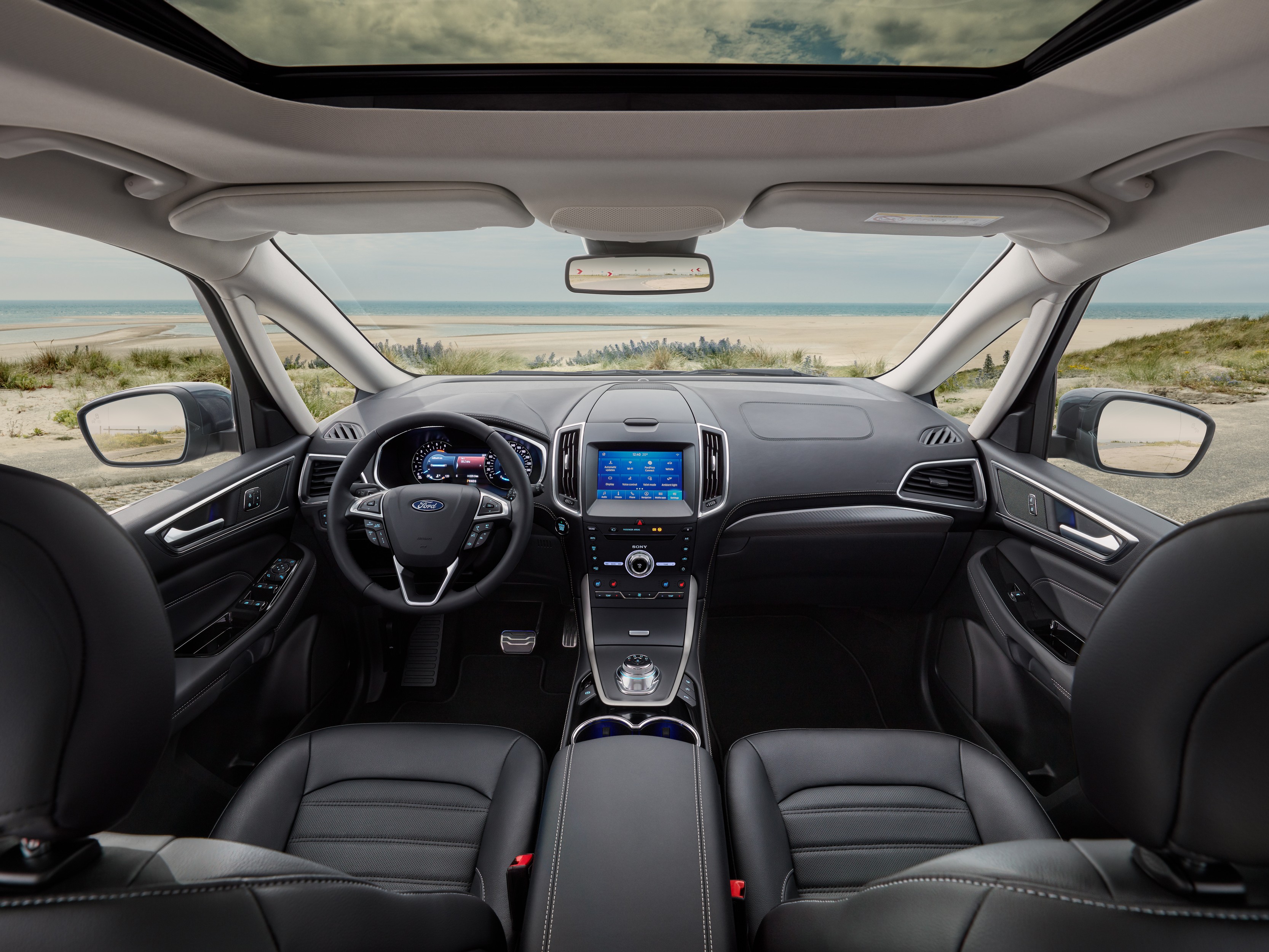

Ford Galaxy CD390 facelift 2019 interiorFord Galaxy CD390 facelift 2019 front seatsFord Galaxy CD390 facelift 2019 rear folding seats
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
