Ford Focus
Date of manufacture
2018 – to this day (Five-door hatchback)
2018 – to this day (Estate)
Platform
Ford C2
Manufacturing locations
Saarlouis, Germany
Designer
Amko Leenarts
Tags
C-segment
German cars
The new Ford Focus is available in two body styles - five-door hatchback and estate. The car was developed by German automaker Ford since 2018 and is based on the C2 platform. It offers a wide range of petrol and diesel engines, the most powerful of which is the 2.3 EcoBoost ST with 206 kW. The top speed of this model is 250 km/h. The most fuel-efficient version 1.5 EcoBlue 95 has a fuel consumption of 3.6 l/100 km and emissions of 96 g/km CO2. The hatchback's trunk has a capacity of 375 liters, while the estate can boast 608 liters of luggage space. EURONCAP safety tests conducted in 2019 rated this car 5 out of 5 stars.
Car body style

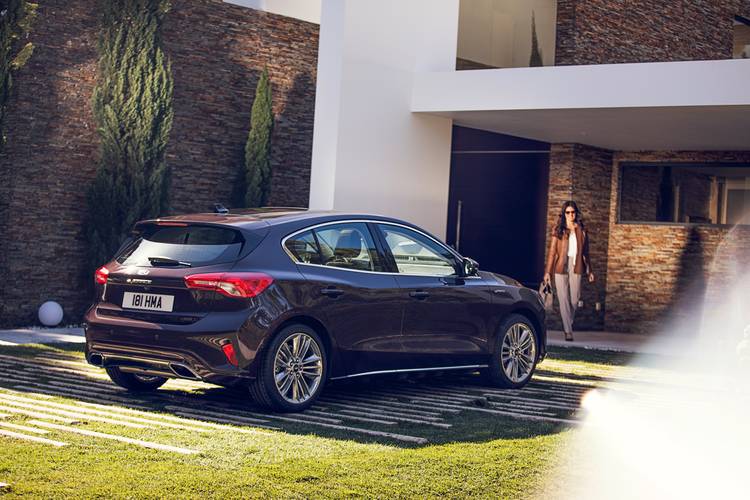

Five-door hatchback
Date of manufacture
2018 – to this dayInternal designation
C519Engine size
Petrol
Diesel

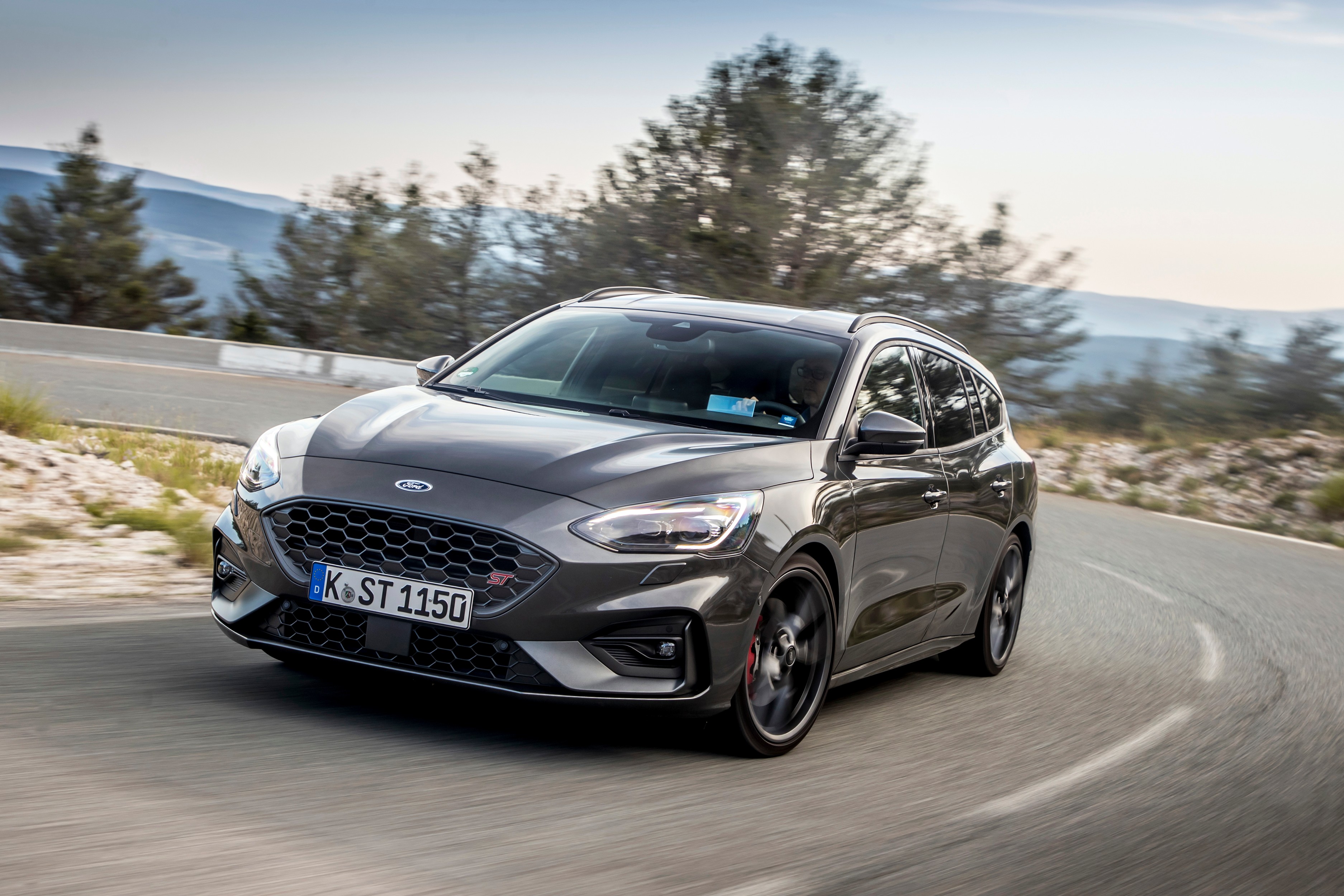

Estate
Date of manufacture
2018 – to this dayInternal designation
C519Engine size
Petrol
Diesel
Technical data
Five-door hatchback
| 1.0 EcoBoost 100 | 1.0 EcoBoost 100 | 1.0 EcoBoost 125 | 1.0 EcoBoost 125 Active | 1.0 EcoBoost 125 | 1.0 EcoBoost 125 Active | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 999 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 63/4000-6000 | 74/4500-6500 | 92/6000 | 92/6000 | 92/6000 | 92/6000 |
| Maximum torque [Nm/min-1] | 170/1500-4000 | 170/1500-4000 | 170/1400-4500 | 170/1400-4500 | 170/1400-4500 | 170/1400-4500 |
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 |
| Coolant volume [l] | 6.0 | 6.0 | 6.0 | 6.0 | 6.4 | 6.4 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 177 | 186 | 200 | 196 | 195 | 191 |
| Acceleration 0–100 km/h [s] | 13.5 | 12.1 | 10.0 | 10.3 | 11.1 | 11.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0 | 5.3-5.2 | 5.3-5.2 | 5.3-5.2 | 6.8-6.7 | 6.8-6.7 |
| Out of town [l] | 4.2 | 4.0-3.7 | 4.2-3.7 | 4.2-3.7 | 4.6-4.2 | 4.6-4.2 |
| Combined [l] | 4.8 | 4.5-4.3 | 4.6-4.2 | 4.6-4.2 | 5.4-5.1 | 5.4-5.1 |
| CO2 emissions [g/km] | 110 | 103-97 | 106-96 | 106-96 | 122-116 | 122-116 |
| Emission standard | Euro 6d-TEMP - EU6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - EU6d | Euro 6d-TEMP - EU6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1322 | 1280 | 1280 | 1280 | 1371 | 1371 |
| Overall weight [kg] | 1855 | 1855 | 1855 | 1855 | 1905 | 1905 |
| Maximum trailer weight unbraked/braked [kg] | 640-660/1100 | 640-660/1100 | 640-660/1100 | 640-660/1100 | 685/1300 | 685/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 375 | 375 | 375 | 375 | 375 | 375 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 |
| Boot length [mm] | 844 | 844 | 844 | 844 | 844 | 844 |
| Boot length with rear seats folded [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1624 |
| Boot width between wheels/max [mm] | 1016/- | 1016/- | 1016/- | 1016/- | 1016/- | 1016/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 680 | 680 | 680 | 680 | 680 | 680 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 613 | 613 | 613 | 613 | 613 | 613 |
| Boot opening width min/max [mm] | 998/1018 | 998/1018 | 998/1018 | 998/1018 | 998/1018 | 998/1018 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.273 | 0.273 | 0.273 | 0.273 | 0.273 | 0.273 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 |
| Brake dimensions rear | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4378 | 4378 | 4378 | 4397 | 4378 | 4397 |
| Overall width without/including mirrors [mm] | 1525/1979 | 1525/1979 | 1525/1979 | 1844/1979 | 1525/1979 | 1844/1979 |
| Overall height [mm] | 1452 | 1452 | 1452 | 1483 | 1452 | 1483 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Forward overhang [mm] | 909 | 909 | 909 | 918 | 909 | 918 |
| Rear overhang [mm] | 769 | 769 | 769 | 779 | 769 | 779 |
| Clearance [mm] | 112-135 | 112-135 | 112-135 | 163 | 112-135 | 163 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Front elbow/shoulder width [mm] | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 |
| Rear elbow/shoulder width [mm] | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 |
| Legroom front knees/total [mm] | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 |
| Legroom rear knees/total [mm] | -/918 | -/918 | -/918 | -/918 | -/918 | -/918 |
| 1.0 EcoBoost 125 | 1.0 EcoBoost 125 Active | 1.5 EcoBoost 150 | 1.5 EcoBoost 150 | 1.5 EcoBoost 150 Active | 1.0 EcoBoost 155 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 1497 | 1497 | 1497 | 999 |
| Maximum output / speed [kW/min-1] | 92/6000 | 92/6000 | 110/6000 | 110/6000 | 110/6000 | 114/6000 |
| Maximum torque [Nm/min-1] | 210/1750-4500 | 210/1750-4500 | 240/1600 | 240/1600 | 240/1600 | 190/1900-5500 |
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 71.9 x 82.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 71.9 x 82.0 |
| Compression ratio | 10,5:1 | 10,5:1 | 11.0:1 | 11.0:1 | 11.0:1 | 10,5:1 |
| Oil volume [l] | - | - | 5.25 | 5.25 | 5.25 | - |
| Coolant volume [l] | - | - | 6.1 | 6.5 | 6.5 | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications | - | - | - |
|
| - |
| Top speed [km/h] | 200 | 196 | 210 | 208 | 204 | 211 |
| Acceleration 0–100 km/h [s] | 10.0 | 10.3 | 8.8 | 8.9 | 9.7 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.9-4.8 | 4.9-4.8 | 7.0-6.9 | 7.1-7.0 | 7.1-7.0 | 5.1-4.7 |
| Out of town [l] | 3.8-3.5 | 3.8-3.5 | 4.7-4.5 | 4.9-4.5 | 4.9-4.5 | 3.9-3.5 |
| Combined [l] | 4.3-4.1 | 4.3-4.1 | 5.5-5.3 | 5.8-5.4 | 5.8-5.4 | 4.5-4.1 |
| CO2 emissions [g/km] | 99-94 | 99-94 | 125-121 | 134-125 | 134-125 | 103-93 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP - EU6d | Euro 6d-TEMP - EU6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | - | - | - | 48 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h | - | - | - | Lithium-Ionen-Akkumulator, - A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1344 | 1344 | 1369 | 1404 | 1404 | 1344 |
| Overall weight [kg] | 1890 | 1890 | 1890 | 1905 | 1905 | 1890 |
| Maximum trailer weight unbraked/braked [kg] | 670/1100 | 670/1100 | 680/1500 | 700/1500 | 700/1500 | 670/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | - | 75 | 75 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 375 | 375 | 375 | 375 | 375 | 375 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 |
| Boot length [mm] | 844 | 844 | 844 | 844 | 844 | 844 |
| Boot length with rear seats folded [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1624 |
| Boot width between wheels/max [mm] | 1016/- | 1016/- | 1016/- | 1016/- | 1016/- | 1016/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 680 | 680 | 680 | 680 | 680 | 680 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 613 | 613 | 613 | 613 | 613 | 613 |
| Boot opening width min/max [mm] | 998/1018 | 998/1018 | 998/1018 | 998/1018 | 998/1018 | 998/1018 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.273 | 0.273 | 0.273 | 0.273 | 0.273 | 0.273 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | multilink | multilink | twist beam axle with trailing arms |
| Tyre dimensions front | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Tyre dimensions rear | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 |
| Brake dimensions rear | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4378 | 4397 | 4378 | 4378 | 4397 | 4378 |
| Overall width without/including mirrors [mm] | 1525/1979 | 1844/1979 | 1525/1979 | 1525/1979 | 1844/1979 | 1525/1979 |
| Overall height [mm] | 1452 | 1483 | 1452 | 1452 | 1483 | 1452 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Forward overhang [mm] | 909 | 918 | 909 | 909 | 918 | 909 |
| Rear overhang [mm] | 769 | 779 | 769 | 769 | 779 | 769 |
| Clearance [mm] | 112-135 | 163 | 112-135 | 112-135 | 163 | 112-135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Front elbow/shoulder width [mm] | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 |
| Rear elbow/shoulder width [mm] | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 |
| Legroom front knees/total [mm] | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 |
| Legroom rear knees/total [mm] | -/918 | -/918 | -/918 | -/918 | -/918 | -/918 |
| 1.0 EcoBoost 155 Active | 1.5 EcoBoost 182 | 1.5 EcoBoost 182 | 1.5 EcoBoost 182 Active | 2.3 EcoBoost ST | 2.3 EcoBoost ST | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 1497 | 1497 | 1497 | 2261 | 2261 |
| Maximum output / speed [kW/min-1] | 114/6000 | 134/6000 | 134/6000 | 134/6000 | 206/5500 | 206/5500 |
| Maximum torque [Nm/min-1] | 190/1900-5500 | 240/1600 | 240/1600 | 240/1600 | 420/3000-4000 | 420/3000-4000 |
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 87.6 x 94.0 | 87.6 x 94.0 |
| Compression ratio | 10,5:1 | 11.0:1 | 11.0:1 | 11.0:1 | 10.0:1 | 10.0:1 |
| Oil volume [l] | - | 5.25 | 5.25 | 5.25 | - | - |
| Coolant volume [l] | - | 6.1 | 6.5 | 6.5 | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 207 | 222 | 220 | 216 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 9.5 | 8.3 | 8.4 | 8.7 | 5.7 | 6.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.1-4.7 | 7.1-6.9 | 7.1-7.0 | 7.1-7.0 | 11.5 | 11.5 |
| Out of town [l] | 3.9-3.5 | 4.7-4.5 | 4.9-4.5 | 4.9-4.5 | 6.2 | 5.8 |
| Combined [l] | 4.5-4.1 | 5.5-5.4 | 5.9-5.5 | 5.9-5.5 | 8.2 | 7.9 |
| CO2 emissions [g/km] | 103-93 | 126-122 | 134-125 | 134-125 | 188 | 181-180 |
| Emission standard | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - A⋅h | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1344 | 1369 | 1404 | 1404 | 1508 | 1534 |
| Overall weight [kg] | 1890 | 1890 | 1905 | 1905 | 2000 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | 670/1100 | 680/1700 | 700/1500 | 700/1500 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | - | 75 | 75 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 375 | 375 | 375 | 375 | 375 | 375 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 |
| Boot length [mm] | 844 | 844 | 844 | 844 | 844 | 844 |
| Boot length with rear seats folded [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1624 |
| Boot width between wheels/max [mm] | 1016/- | 1016/- | 1016/- | 1016/- | 1016/- | 1016/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 680 | 680 | 680 | 680 | 680 | 680 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 613 | 613 | 613 | 613 | 613 | 613 |
| Boot opening width min/max [mm] | 998/1018 | 998/1018 | 998/1018 | 998/1018 | 998/1018 | 998/1018 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.273 | 0.273 | 0.273 | 0.273 | 0.273 | 0.273 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 235/40 R18 | 235/40 R18 |
| Tyre dimensions rear | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 235/40 R18 | 235/40 R18 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 8.0J x 18 | 8.0J x 18 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 8.0J x 18 | 8.0J x 18 |
| Brake dimensions front | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 330 x 27 | 330 x 27 |
| Brake dimensions rear | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 302 11 | 302 11 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4397 | 4378 | 4378 | 4397 | 4388 | 4388 |
| Overall width without/including mirrors [mm] | 1844/1979 | 1525/1979 | 1525/1979 | 1844/1979 | 1825/1979 | 1825/1979 |
| Overall height [mm] | 1483 | 1452 | 1452 | 1483 | 1440 | 1440 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1567 | 1567 |
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1556 | 1556 |
| Forward overhang [mm] | 918 | 909 | 909 | 918 | 909 | 909 |
| Rear overhang [mm] | 779 | 769 | 769 | 779 | 780 | 780 |
| Clearance [mm] | 163 | 112-135 | 112-135 | 163 | 103-120 | 103-120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Front elbow/shoulder width [mm] | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 |
| Rear elbow/shoulder width [mm] | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 |
| Legroom front knees/total [mm] | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 |
| Legroom rear knees/total [mm] | -/918 | -/918 | -/918 | -/918 | -/918 | -/918 |
| 1.5 EcoBlue 95 | 1.5 EcoBlue 120 | 1.5 EcoBlue 120 Active | 1.5 EcoBlue 120 | 1.5 EcoBlue 120 Active | 2.0 EcoBlue 150 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1500 | 1500 | 1500 | 1500 | 1500 | 1996 |
| Maximum output / speed [kW/min-1] | 70/4000 | 88/3600 | 88/3600 | 88/3600 | 88/3600 | 110/3500 |
| Maximum torque [Nm/min-1] | 250/1500-2500 | 300/1750-2250 | 300/1750-2250 | 300/1750-2250 | 300/1750-2250 | 370/2000-2500 |
| Bore and stroke [mm x mm] | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 | 84.0 x 90.0 |
| Compression ratio | 16.4:1 | 16.4:1 | 16.4:1 | 16.4:1 | 16.4:1 | 15.8:1 |
| Oil volume [l] | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 7.25 |
| Coolant volume [l] | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 7.7 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications | - | - | - |
|
| - |
| Top speed [km/h] | 183 | 196 | 192 | 193 | 189 | 210 |
| Acceleration 0–100 km/h [s] | 11.4 | 10.0 | 10.8 | 10.2 | 10.7 | 8.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.5-4.2 | 4.6-4.2 | 4.6-4.2 | 4.8-4.6 | 4.8-4.6 | 5.3-5.0 |
| Out of town [l] | 3.4-3.2 | 3.5-3.2 | 3.5-3.2 | 3.9-3.6 | 3.9-3.6 | 3.9-3.5 |
| Combined [l] | 3.8-3.6 | 3.9-3.6 | 3.9-3.6 | 4.2-3.9 | 4.2-3.9 | 4.4-4.1 |
| CO2 emissions [g/km] | 99-95 | 101-95 | 101-95 | 111-103 | 111-103 | 116-109 |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1363 | 1363 | 1363 | 1394 | 1394 | 1493 |
| Overall weight [kg] | 1895 | 1895 | 1895 | 1910 | 1910 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | 680/1400 | 680/1400 | 695/1400 | 695/1400 | 745/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 80 | 80 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 375 | 375 | 375 | 375 | 375 | 375 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 |
| Boot length [mm] | 844 | 844 | 844 | 844 | 844 | 844 |
| Boot length with rear seats folded [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1624 |
| Boot width between wheels/max [mm] | 1016/- | 1016/- | 1016/- | 1016/- | 1016/- | 1016/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 680 | 680 | 680 | 680 | 680 | 680 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 613 | 613 | 613 | 613 | 613 | 613 |
| Boot opening width min/max [mm] | 998/1018 | 998/1018 | 998/1018 | 998/1018 | 998/1018 | 998/1018 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | 47 | 47 |
| AdBlue tank volume [l] | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| Air resistance [Cd] | 0.273 | 0.273 | 0.273 | 0.273 | 0.273 | 0.273 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 |
| Brake dimensions rear | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4378 | 4378 | 4397 | 4378 | 4397 | 4378 |
| Overall width without/including mirrors [mm] | 1525/1979 | 1525/1979 | 1844/1979 | 1525/1979 | 1844/1979 | 1525/1979 |
| Overall height [mm] | 1452 | 1452 | 1483 | 1452 | 1483 | 1452 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Forward overhang [mm] | 909 | 909 | 918 | 909 | 918 | 909 |
| Rear overhang [mm] | 769 | 769 | 779 | 769 | 779 | 769 |
| Clearance [mm] | 112-135 | 112-135 | 163 | 112-135 | 163 | 112-135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Front elbow/shoulder width [mm] | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 |
| Rear elbow/shoulder width [mm] | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 |
| Legroom front knees/total [mm] | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 |
| Legroom rear knees/total [mm] | -/918 | -/918 | -/918 | -/918 | -/918 | -/918 |
| 2.0 EcoBlue 150 Active | 2.0 EcoBlue 150 | 2.0 EcoBlue 150 Active | 2.0 EcoBlue ST | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1996 | 1996 | 1996 | 1996 | ||
| Maximum output / speed [kW/min-1] | 110/3500 | 110/3500 | 110/3500 | 140/3500 | ||
| Maximum torque [Nm/min-1] | 370/2000-2500 | 370/2000-2500 | 370/2000-2500 | 400/2000 | ||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | ||
| Compression ratio | 15.8:1 | 15.8:1 | 15.8:1 | 16.0:1 | ||
| Oil volume [l] | 7.25 | 7.25 | 7.25 | - | ||
| Coolant volume [l] | 7.7 | 8.3 | 8.3 | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | ||
| Drive specifications | - |
|
| - | ||
| Top speed [km/h] | 206 | 207 | 205 | 220 | ||
| Acceleration 0–100 km/h [s] | 9.1 | 9.3 | 9.3 | 7.6 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5.3-5.0 | 5.4-5.1 | 5.4-5.1 | 6.0-5.8 | ||
| Out of town [l] | 3.9-3.5 | 3.9-3.6 | 3.9-3.6 | 4.5-4.1 | ||
| Combined [l] | 4.4-4.1 | 4.5-4.2 | 4.5-4.2 | 5.0-4.9 | ||
| CO2 emissions [g/km] | 116-109 | 120-111 | 120-111 | 132-128 | ||
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1493 | 1518 | 1518 | 1548 | ||
| Overall weight [kg] | 2020 | 2045 | 2045 | 2040 | ||
| Maximum trailer weight unbraked/braked [kg] | 745/1800 | 750/1600 | 750/1600 | 750/1800 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 375 | 375 | 375 | 375 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1354 | -/1354 | -/1354 | -/1354 | ||
| Boot length [mm] | 844 | 844 | 844 | 844 | ||
| Boot length with rear seats folded [mm] | 1624 | 1624 | 1624 | 1624 | ||
| Boot width between wheels/max [mm] | 1016/- | 1016/- | 1016/- | 1016/- | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | 680 | 680 | 680 | 680 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | 613 | 613 | 613 | 613 | ||
| Boot opening width min/max [mm] | 998/1018 | 998/1018 | 998/1018 | 998/1018 | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | ||
| AdBlue tank volume [l] | 10.5 | 10.5 | 10.5 | 10.5 | ||
| Air resistance [Cd] | 0.273 | 0.273 | 0.273 | 0.273 | ||
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | ||
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/60 R15 | 235/40 R18 | ||
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/60 R15 | 235/40 R18 | ||
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 8.0J x 18 | ||
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 8.0J x 18 | ||
| Brake dimensions front | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 330 x 27 | ||
| Brake dimensions rear | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 302 11 | ||
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.3/- | ||
| Overall length [mm] | 4397 | 4378 | 4397 | 4388 | ||
| Overall width without/including mirrors [mm] | 1844/1979 | 1525/1979 | 1844/1979 | 1825/1979 | ||
| Overall height [mm] | 1483 | 1452 | 1483 | 1440 | ||
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | ||
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1567 | ||
| Rear wheel track [mm] | 1553 | 1553 | 1553 | 1556 | ||
| Forward overhang [mm] | 918 | 909 | 918 | 909 | ||
| Rear overhang [mm] | 779 | 769 | 779 | 780 | ||
| Clearance [mm] | 163 | 112-135 | 163 | 103-120 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 978 | 978 | 978 | 978 | ||
| Headroom rear [mm] | 965 | 965 | 965 | 965 | ||
| Front elbow/shoulder width [mm] | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | ||
| Rear elbow/shoulder width [mm] | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | ||
| Legroom front knees/total [mm] | -/1109 | -/1109 | -/1109 | -/1109 | ||
| Legroom rear knees/total [mm] | -/918 | -/918 | -/918 | -/918 |
Estate
| 1.0 EcoBoost 100 | 1.0 EcoBoost 100 | 1.0 EcoBoost 125 | 1.0 EcoBoost 125 Active | 1.0 EcoBoost 125 | 1.0 EcoBoost 125 Active | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 999 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 63/4000-6000 | 74/4500-6500 | 92/6000 | 92/6000 | 92/6000 | 92/6000 |
| Maximum torque [Nm/min-1] | 170/1500-4000 | 170/1400-4000 | 170/1400-4500 | 170/1400-4500 | 170/1400-4500 | 170/1400-4500 |
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 | 71.9 x 82.0 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 |
| Coolant volume [l] | 6.0 | 6.0 | 6.0 | 6.0 | 6.4 | 6.4 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 175 | 184 | 198 | 194 | 193 | 189 |
| Acceleration 0–100 km/h [s] | 13.9 | 12.5 | 10.3 | 10.6 | 11.4 | 12.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0 | 5.4-5.3 | 5.4-5.3 | 5.4-5.3 | 6.8-6.7 | 6.8-6.7 |
| Out of town [l] | 4.3 | 4.3-4.0 | 4.6-4.0 | 4.6-4.0 | 4.7-4.3 | 4.7-4.3 |
| Combined [l] | 4.9 | 4.7-4.5 | 4.9-4.4 | 4.9-4.4 | 5.5-5.1 | 5.5-5.1 |
| CO2 emissions [g/km] | 110 | 109-102 | 112-102 | 112-102 | 123-117 | 123-117 |
| Emission standard | Euro 6d-TEMP - EU6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - EU6d | Euro 6d-TEMP - EU6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1383 | 1383 | 1383 | 1383 | 1395 | 1395 |
| Overall weight [kg] | 1925 | 1925 | 1925 | 1925 | 1970 | 1970 |
| Maximum trailer weight unbraked/braked [kg] | 690/1000 | 690/1000 | 690/1000 | 690/1000 | 695/1300 | 695/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 608 | 608 | 608 | 608 | 608 | 608 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1653 | -/1653 | -/1653 | -/1653 | -/1653 | -/1653 |
| Boot length [mm] | 1047 | 1047 | 1047 | 1047 | 1047 | 1047 |
| Boot length with rear seats folded [mm] | 1835 | 1835 | 1835 | 1835 | 1835 | 1835 |
| Boot width between wheels/max [mm] | 1150/- | 1150/- | 1150/- | 1150/- | 1150/- | 1150/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 625 | 625 | 625 | 625 | 625 | 625 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.284 | 0.284 | 0.284 | 0.284 | 0.284 | 0.284 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 |
| Brake dimensions rear | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4668 | 4668 | 4668 | 4693 | 4668 | 4693 |
| Overall width without/including mirrors [mm] | 1825/1979 | 1825/1979 | 1825/1979 | 1844/1979 | 1825/1979 | 1844/1979 |
| Overall height [mm] | 1469 | 1469 | 1469 | 1504 | 1469 | 1504 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
| Forward overhang [mm] | 909 | 909 | 909 | 918 | 909 | 918 |
| Rear overhang [mm] | 1059 | 1059 | 1059 | 1075 | 1059 | 1075 |
| Clearance [mm] | 115-134 | 115-134 | 115-134 | 163 | 115-134 | 163 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 |
| Front elbow/shoulder width [mm] | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 |
| Rear elbow/shoulder width [mm] | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 |
| Legroom front knees/total [mm] | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 |
| Legroom rear knees/total [mm] | -/918 | -/918 | -/918 | -/918 | -/918 | -/918 |
| 1.0 EcoBoost 125 | 1.0 EcoBoost 125 Active | 1.5 EcoBoost 150 | 1.5 EcoBoost 150 | 1.5 EcoBoost 150 Active | 1.0 EcoBoost 155 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 1497 | 1497 | 1497 | 999 |
| Maximum output / speed [kW/min-1] | 92/6000 | 92/6000 | 110/6000 | 110/6000 | 110/6000 | 114/6000 |
| Maximum torque [Nm/min-1] | 210/1750-4500 | 210/1750-4500 | 240/1600 | 240/1600 | 240/1600 | 190/1900-5500 |
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 71.9 x 82.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 71.9 x 82.0 |
| Compression ratio | 10,5:1 | 10,5:1 | 11.0:1 | 11.0:1 | 11.0:1 | 10,5:1 |
| Oil volume [l] | - | - | 5.25 | 5.25 | 5.25 | - |
| Coolant volume [l] | - | - | 6.1 | 6.5 | 6.5 | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications | - | - | - |
|
| - |
| Top speed [km/h] | 198 | 194 | 208 | 206 | 202 | 209 |
| Acceleration 0–100 km/h [s] | 10.3 | 10.6 | 9.0 | 9.1 | 9.9 | 9.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.9-4.8 | 4.9-4.8 | 7.2-7.0 | 7.1-7.0 | 7.1-7.0 | 5.1-4.7 |
| Out of town [l] | 3.8-3.6 | 3.8-3.6 | 4.8-4.7 | 4.9-4.5 | 4.9-4.5 | 3.9-3.6 |
| Combined [l] | 4.4-4.1 | 4.4-4.1 | 5.7-5.5 | 5.9-5.5 | 5.9-5.5 | 4.5-4.1 |
| CO2 emissions [g/km] | 100-95 | 100-95 | 129-125 | 135-125 | 135-125 | 104-94 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP - EU6d | Euro 6d-TEMP - EU6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | - | - | - | 48 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - A⋅h | Lithium-Ionen-Akkumulator, - A⋅h | - | - | - | Lithium-Ionen-Akkumulator, - A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1388 | 1388 | 1408 | 1445 | 1445 | 1388 |
| Overall weight [kg] | 1940 | 1940 | 1950 | 1980 | 1980 | 1940 |
| Maximum trailer weight unbraked/braked [kg] | 690/1000 | 690/1000 | 700/1500 | 720/1500 | 720/1500 | 690/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 608 | 608 | 608 | 608 | 608 | 608 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1653 | -/1653 | -/1653 | -/1653 | -/1653 | -/1653 |
| Boot length [mm] | 1047 | 1047 | 1047 | 1047 | 1047 | 1047 |
| Boot length with rear seats folded [mm] | 1835 | 1835 | 1835 | 1835 | 1835 | 1835 |
| Boot width between wheels/max [mm] | 1150/- | 1150/- | 1150/- | 1150/- | 1150/- | 1150/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 625 | 625 | 625 | 625 | 625 | 625 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.284 | 0.284 | 0.284 | 0.284 | 0.284 | 0.284 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Tyre dimensions rear | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 |
| Brake dimensions rear | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4668 | 4693 | 4668 | 4668 | 4693 | 4668 |
| Overall width without/including mirrors [mm] | 1825/1979 | 1844/1979 | 1825/1979 | 1825/1979 | 1844/1979 | 1825/1979 |
| Overall height [mm] | 1469 | 1504 | 1469 | 1469 | 1504 | 1469 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
| Forward overhang [mm] | 909 | 918 | 909 | 909 | 918 | 909 |
| Rear overhang [mm] | 1059 | 1075 | 1059 | 1059 | 1075 | 1059 |
| Clearance [mm] | 115-134 | 163 | 115-134 | 115-134 | 163 | 115-134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 |
| Front elbow/shoulder width [mm] | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 |
| Rear elbow/shoulder width [mm] | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 |
| Legroom front knees/total [mm] | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 |
| Legroom rear knees/total [mm] | -/918 | -/918 | -/918 | -/918 | -/918 | -/918 |
| 1.0 EcoBoost 155 Active | 1.5 EcoBoost 182 | 1.5 EcoBoost 182 | 1.5 EcoBoost 182 Active | 2.3 EcoBoost ST | 2.3 EcoBoost ST | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 1497 | 1497 | 1497 | 2261 | 2261 |
| Maximum output / speed [kW/min-1] | 114/6000 | 134/6000 | 134/6000 | 134/6000 | 206/5500 | 206/5500 |
| Maximum torque [Nm/min-1] | 190/1900-5500 | 240/1600 | 240/1600 | 240/1600 | 420/3000-4000 | 420/3000-4000 |
| Bore and stroke [mm x mm] | 71.9 x 82.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 87.6 x 94.0 | 87.6 x 94.0 |
| Compression ratio | 10,5:1 | 11.0:1 | 11.0:1 | 11.0:1 | 10.0:1 | 10.0:1 |
| Oil volume [l] | - | 5.25 | 5.25 | 5.25 | - | - |
| Coolant volume [l] | - | 6.1 | 6.5 | 6.5 | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 205 | 222 | 218 | 214 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 9.7 | 8.3 | 8.6 | 8.9 | 5.8 | 6.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.1-4.7 | 7.2-7.1 | 7.1-7.0 | 7.1-7.0 | 11.6-11.5 | 11.5 |
| Out of town [l] | 3.9-3.6 | 4.8-4.7 | 4.9-4.5 | 4.9-4.5 | 6.2 | 5.8 |
| Combined [l] | 4.5-4.1 | 5.7-5.6 | 5.9-5.5 | 5.9-5.5 | 8.2 | 7.9 |
| CO2 emissions [g/km] | 104-94 | 129-127 | 135-125 | 135-125 | 188-187 | 181-180 |
| Emission standard | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - A⋅h | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1388 | 1408 | 1445 | 1445 | 1543 | 1569 |
| Overall weight [kg] | 1940 | 1950 | 1980 | 1980 | 2065 | 2080 |
| Maximum trailer weight unbraked/braked [kg] | 690/1000 | 700/1700 | 720/1500 | 720/1500 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 608 | 608 | 608 | 608 | 608 | 608 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1653 | -/1653 | -/1653 | -/1653 | -/1653 | -/1653 |
| Boot length [mm] | 1047 | 1047 | 1047 | 1047 | 1047 | 1047 |
| Boot length with rear seats folded [mm] | 1835 | 1835 | 1835 | 1835 | 1835 | 1835 |
| Boot width between wheels/max [mm] | 1150/- | 1150/- | 1150/- | 1150/- | 1150/- | 1150/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 625 | 625 | 625 | 625 | 625 | 625 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 52 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.284 | 0.284 | 0.284 | 0.284 | 0.284 | 0.284 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 235/40 R18 | 235/40 R18 |
| Tyre dimensions rear | 195/55 R16 | 195/55 R16 | 195/55 R16 | 195/55 R16 | 235/40 R18 | 235/40 R18 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 8.0J x 18 | 8.0J x 18 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 8.0J x 18 | 8.0J x 18 |
| Brake dimensions front | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 330 x 27 | 330 x 27 |
| Brake dimensions rear | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 302 x 11 | 302 x 11 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4693 | 4668 | 4668 | 4693 | 4668 | 4668 |
| Overall width without/including mirrors [mm] | 1844/1979 | 1825/1979 | 1825/1979 | 1844/1979 | 1825/1979 | 1825/1979 |
| Overall height [mm] | 1504 | 1469 | 1469 | 1504 | 1466 | 1466 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1567 | 1567 |
| Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1556 | 1556 |
| Forward overhang [mm] | 918 | 909 | 909 | 918 | 909 | 909 |
| Rear overhang [mm] | 1075 | 1059 | 1059 | 1075 | 1059 | 1059 |
| Clearance [mm] | 163 | 115-134 | 115-134 | 163 | 101-118 | 101-118 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 |
| Front elbow/shoulder width [mm] | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 |
| Rear elbow/shoulder width [mm] | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 |
| Legroom front knees/total [mm] | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 |
| Legroom rear knees/total [mm] | -/918 | -/918 | -/918 | -/918 | -/918 | -/918 |
| 1.5 EcoBlue 95 | 1.5 EcoBlue 120 | 1.5 EcoBlue 120 Active | 1.5 EcoBlue 120 | 1.5 EcoBlue 120 Active | 2.0 EcoBlue 150 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1500 | 1500 | 1500 | 1500 | 1500 | 1996 |
| Maximum output / speed [kW/min-1] | 70/4000 | 88/3600 | 88/3600 | 88/3600 | 88/3600 | 110/3500 |
| Maximum torque [Nm/min-1] | 250/1500-2500 | 300/1750-2250 | 300/1750-2250 | 300/1750-2250 | 300/1750-2250 | 370/2000-2500 |
| Bore and stroke [mm x mm] | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 | 75.0 x 84.8 | 84.0 x 90.0 |
| Compression ratio | 16.4:1 | 16.4:1 | 16.4:1 | 16.4:1 | 16.4:1 | 15.8:1 |
| Oil volume [l] | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 7.25 |
| Coolant volume [l] | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 7.7 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications | - | - | - |
|
| - |
| Top speed [km/h] | 181 | 194 | 190 | 191 | 187 | 208 |
| Acceleration 0–100 km/h [s] | 11.8 | 10.3 | 11.1 | 10.5 | 11.0 | 8.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.5-4.2 | 4.6-4.2 | 4.6-4.2 | 4.9-4.7 | 4.9-4.7 | 5.5-5.2 |
| Out of town [l] | 3.4-3.2 | 3.5-3.2 | 3.5-3.2 | 4.0-3.7 | 4.0-3.7 | 4.1-3.6 |
| Combined [l] | 3.8-3.6 | 3.9-3.6 | 3.9-3.6 | 4.3-4.0 | 4.3-4.0 | 4.6-4.2 |
| CO2 emissions [g/km] | 100-96 | 102-96 | 102-96 | 114-106 | 114-106 | 119-112 |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1395 | 1395 | 1454 | 1454 | 1533 |
| Overall weight [kg] | 1955 | 1955 | 1955 | 1955 | 1955 | 2080 |
| Maximum trailer weight unbraked/braked [kg] | 695/1200 | 695/1400 | 695/1400 | 725/1400 | 725/1400 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 608 | 608 | 608 | 608 | 608 | 608 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1653 | -/1653 | -/1653 | -/1653 | -/1653 | -/1653 |
| Boot length [mm] | 1047 | 1047 | 1047 | 1047 | 1047 | 1047 |
| Boot length with rear seats folded [mm] | 1835 | 1835 | 1835 | 1835 | 1835 | 1835 |
| Boot width between wheels/max [mm] | 1150/- | 1150/- | 1150/- | 1150/- | 1150/- | 1150/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 625 | 625 | 625 | 625 | 625 | 625 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot opening width min/max [mm] | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | 47 | 47 |
| AdBlue tank volume [l] | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| Air resistance [Cd] | 0.284 | 0.284 | 0.284 | 0.284 | 0.284 | 0.284 |
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 | 195/60 R15 |
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 |
| Brake dimensions front | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 |
| Brake dimensions rear | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 |
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4668 | 4668 | 4693 | 4668 | 4693 | 4668 |
| Overall width without/including mirrors [mm] | 1825/1979 | 1825/1979 | 1844/1979 | 1825/1979 | 1844/1979 | 1825/1979 |
| Overall height [mm] | 1469 | 1469 | 1504 | 1469 | 1504 | 1469 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
| Forward overhang [mm] | 909 | 909 | 918 | 909 | 918 | 909 |
| Rear overhang [mm] | 1059 | 1059 | 1075 | 1059 | 1075 | 1059 |
| Clearance [mm] | 115-134 | 115-134 | 163 | 115-134 | 163 | 115-134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Headroom rear [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 |
| Front elbow/shoulder width [mm] | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 |
| Rear elbow/shoulder width [mm] | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 |
| Legroom front knees/total [mm] | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 | -/1109 |
| Legroom rear knees/total [mm] | -/918 | -/918 | -/918 | -/918 | -/918 | -/918 |
| 2.0 EcoBlue 150 Active | 2.0 EcoBlue 150 | 2.0 EcoBlue 150 Active | 2.0 EcoBlue ST | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1996 | 1996 | 1996 | 1996 | ||
| Maximum output / speed [kW/min-1] | 110/3500 | 110/3500 | 110/3500 | 140/3500 | ||
| Maximum torque [Nm/min-1] | 370/2000-2500 | 370/2000-2500 | 370/2000-2500 | 400/2000 | ||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | ||
| Compression ratio | 15.8:1 | 15.8:1 | 15.8:1 | 16.0:1 | ||
| Oil volume [l] | 7.25 | 7.25 | 7.25 | - | ||
| Coolant volume [l] | 7.7 | 8.3 | 8.3 | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | ||
| Drive specifications | - |
|
| - | ||
| Top speed [km/h] | 204 | 205 | 203 | 220 | ||
| Acceleration 0–100 km/h [s] | 9.3 | 9.5 | 9.5 | 7.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5.5-5.2 | 5.4-5.1 | 5.4-5.1 | 6.2-6.0 | ||
| Out of town [l] | 4.1-3.6 | 3.9-3.6 | 3.9-3.6 | 4.4-4.0 | ||
| Combined [l] | 4.6-4.2 | 4.6-4.2 | 4.6-4.2 | 5.0-4.8 | ||
| CO2 emissions [g/km] | 119-112 | 121-112 | 121-112 | 132-127 | ||
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1533 | 1559 | 1559 | 1585 | ||
| Overall weight [kg] | 2080 | 2105 | 2105 | 2105 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1600 | 750/1600 | 750/1800 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 608 | 608 | 608 | 608 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1653 | -/1653 | -/1653 | -/1653 | ||
| Boot length [mm] | 1047 | 1047 | 1047 | 1047 | ||
| Boot length with rear seats folded [mm] | 1835 | 1835 | 1835 | 1835 | ||
| Boot width between wheels/max [mm] | 1150/- | 1150/- | 1150/- | 1150/- | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | 625 | 625 | 625 | 625 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | 702 | 702 | 702 | 702 | ||
| Boot opening width min/max [mm] | 1051/1078 | 1051/1078 | 1051/1078 | 1051/1078 | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | ||
| AdBlue tank volume [l] | 10.5 | 10.5 | 10.5 | 10.5 | ||
| Air resistance [Cd] | 0.284 | 0.284 | 0.284 | 0.284 | ||
| Front suspension | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | MacPherson, lower cross arms, torsion stabiliser | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 195/60 R15 | 195/60 R15 | 195/60 R15 | 235/40 R18 | ||
| Tyre dimensions rear | 195/60 R15 | 195/60 R15 | 195/60 R15 | 235/40 R18 | ||
| Wheel size front | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 8.0J x 18 | ||
| Wheel size rear | 6.0 x 15 | 6.0 x 15 | 6.0 x 15 | 8.0J x 18 | ||
| Brake dimensions front | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 282 x 27 or 308 x 27 | 330 x 27 | ||
| Brake dimensions rear | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 271 x 12 or 302 x 12 | 302 x 11 | ||
| Steering | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | Rack & pinion with electric power steering (EPAS) | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.3/- | ||
| Overall length [mm] | 4693 | 4668 | 4693 | 4668 | ||
| Overall width without/including mirrors [mm] | 1844/1979 | 1825/1979 | 1844/1979 | 1825/1979 | ||
| Overall height [mm] | 1504 | 1469 | 1504 | 1466 | ||
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | ||
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1567 | ||
| Rear wheel track [mm] | 1566 | 1566 | 1566 | 1556 | ||
| Forward overhang [mm] | 918 | 909 | 918 | 909 | ||
| Rear overhang [mm] | 1075 | 1059 | 1075 | 1059 | ||
| Clearance [mm] | 163 | 115-134 | 163 | 101-118 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 978 | 978 | 978 | 978 | ||
| Headroom rear [mm] | 1008 | 1008 | 1008 | 1008 | ||
| Front elbow/shoulder width [mm] | 1364/1421 | 1364/1421 | 1364/1421 | 1364/1421 | ||
| Rear elbow/shoulder width [mm] | 1325/1395 | 1325/1395 | 1325/1395 | 1325/1395 | ||
| Legroom front knees/total [mm] | -/1109 | -/1109 | -/1109 | -/1109 | ||
| Legroom rear knees/total [mm] | -/918 | -/918 | -/918 | -/918 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
