Ford Focus
Date of manufacture
2014 – 2018 (Five-door hatchback)
2014 – 2018 (Sedan)
2014 – 2018 (Estate)
Platform
Ford global C-car platform
Manufacturing locations
Saarlouis, Germany
Designer
Joel Piaskowski
Tags
C-segment
German cars

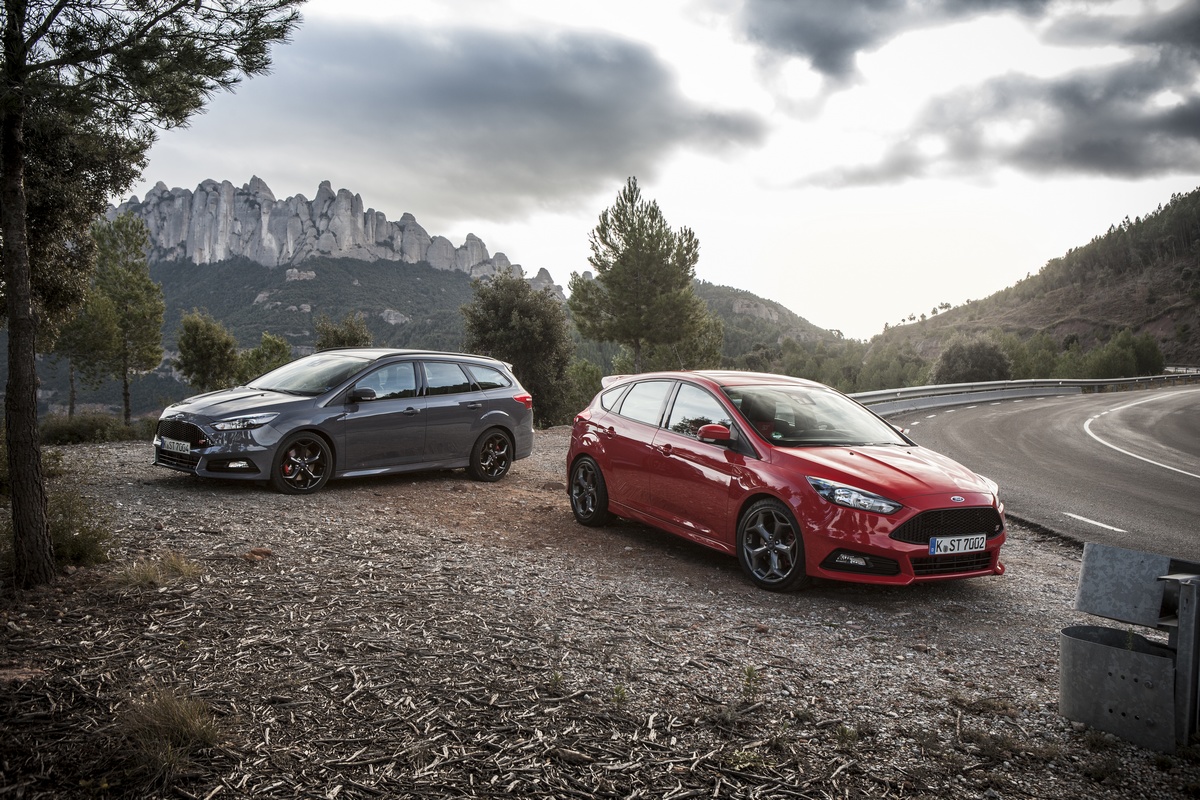

The Ford Focus is available as a five-door hatchback, sedan and estate since 2014. It is manufactured in Germany on the Ford Global C-car Platform. It offers petrol and diesel engines with the highest power of 257 kW in the 2.3 EcoBoost RS model, which reaches a top speed of 268 km/h and accelerates from 0-100 km/h in 4.7 seconds. The most fuel-efficient 1.5 Duratorq TDCi ECOnetic has a fuel consumption of 3.4 l/100 km and emissions of 88 g/km. The five-door hatchback offers 363 l of cargo space, the sedan 475 l and the estate 490 l. The Ford Focus received a 5 out of 5 rating in the EURONCAP 2012 safety tests.
Car body style
Five-door hatchback
after upgrade (facelift)
Date of manufacture
2014 – 2018Internal designation
C346Engine size
Petrol
Diesel
Sedan
after upgrade (facelift)
Date of manufacture
2014 – 2018Internal designation

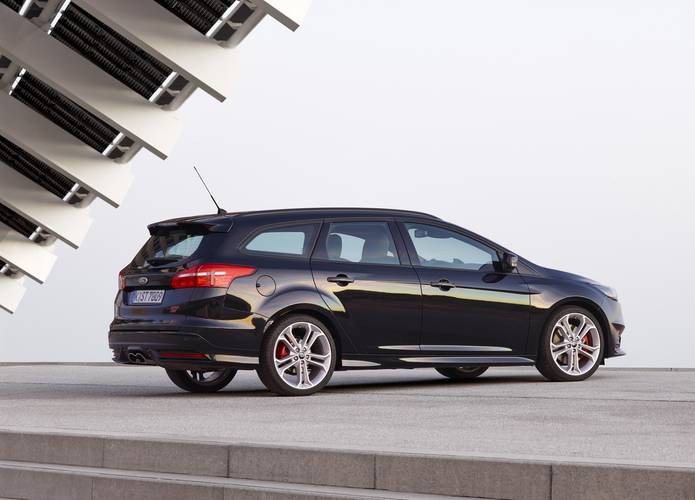

C346Estate
after upgrade (facelift)
Date of manufacture
2014 – 2018Internal designation
C346Engine size
Petrol
Diesel
Technical data
Five-door hatchback
| 1.6 Ti-VCT | 1.0 EcoBoost | 1.6 Ti-VCT | 1.6 Ti-VCT | 1.6 Ti-VCT | 1.0 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 4/16 | 4/16 | 4/16 | 3/12 |
| Engine displacement [cm³] | 1596 | 998 | 1596 | 1596 | 1596 | 998 |
| Maximum output / speed [kW/min-1] | 63/6000 | 74/6000 | 77/6000 | 86/6400 | 92/6000 | 92/6000 |
| Maximum torque [Nm/min-1] | 141/2500 | 170/1400-4000 | 150/4000-4500 | 140/4200 | 159/4000 | 170/1400-4500 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 71,9 x 82,0 | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 71,9 x 82,0 |
| Compression ratio | 11,0:1 | 10,0:1 | 11,0:1 | - | 11,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 170 | 185 | 180 | 187 | 193 | 193 |
| Acceleration 0–100 km/h [s] | 14.9 | 12.5 | 12.3 | 14.9 | 11.7 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3 | 5.7 | 8.3 | 8.3 [11.5 LPG] | 8.7 | 5.7 |
| Out of town [l] | 4.6 | 3.9 | 4.6 | 4.6 [5.5 LPG] | 4.9 | 4.1 |
| Combined [l] | 5.9 | 4.6 | 5.9 | 5.9 [7.7 LPG] | 6.3 | 4.7 |
| CO2 emissions [g/km] | 136 | 105 | 136 | 136 [123 LPG] | 146 | 108 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1264 | 1276 | 1264 | 1269 | 1310 | 1280 |
| Overall weight [kg] | 1825 | 1900 | 1825 | 1825 | 1825 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 630/700 | 635/1000 | 630/700 | 630/700 | 655/1000 | 640/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 363 | 363 | 363 | 363 | 363 | 363 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 |
| Boot length [mm] | 935 | 935 | 935 | 935 | 935 | 935 |
| Boot length with rear seats folded [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Boot width between wheels/max [mm] | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 |
| Boot height to headliner/ceiling [mm] | -/827 | -/827 | -/827 | -/827 | -/827 | -/827 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4358 | 4358 | 4358 | 4358 | 4358 | 4358 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 |
| Legroom rear knees/total [mm] | -/848 | -/848 | -/848 | -/848 | -/848 | -/848 |
| 1.0 EcoBoost | 1.5 EcoBoost | 1.5 EcoBoost | 1.5 EcoBoost | 1.5 EcoBoost | 2.0 EcoBoost ST | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 998 | 1499 | 1499 | 1499 | 1499 | 1999 |
| Maximum output / speed [kW/min-1] | 92/6000 | 110/6000 | 110/6000 | 134/6000 | 134/6000 | 184/5500 |
| Maximum torque [Nm/min-1] | 170/1400-4500 | 240/1600-4000 | 240/1600-4000 | 240/1600-5000 | 240/1600-5000 | 360/2000-4500 |
| Bore and stroke [mm x mm] | 71,9 x 82,0 | 79,0 x 76,4 | 79,0 x 76,4 | 79,0 x 76,4 | 79,0 x 76,4 | 87,5 x 83,1 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 192 | 210 | 208 | 222 | 220 | 248 |
| Acceleration 0–100 km/h [s] | 12.0 | 8.9 | 9.2 | 8.6 | 8.9 | 6.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4 | 7.0 | 8.5 | 7.0 | 8.5 | 8.8 |
| Out of town [l] | 4.4 | 4.6 | 4.7 | 4.6 | 4.7 | 5.7 |
| Combined [l] | 5.5 | 5.5 | 6.1 | 5.5 | 6.1 | 6.8 |
| CO2 emissions [g/km] | 108 | 127 | 140 | 127 | 140 | 159 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1327 | 1325 | 1364 | 1325 | 1364 | 1437 |
| Overall weight [kg] | 1900 | 1900 | 1900 | 1900 | 1900 | 2025 |
| Maximum trailer weight unbraked/braked [kg] | 650/1200 | 660/1500 | 680/1500 | 660/1500 | 680/1500 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 363 | 363 | 363 | 363 | 363 | 363 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 |
| Boot length [mm] | 935 | 935 | 935 | 935 | 935 | 935 |
| Boot length with rear seats folded [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Boot width between wheels/max [mm] | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 | -/1129 |
| Boot height to headliner/ceiling [mm] | -/827 | -/827 | -/827 | -/827 | -/827 | -/827 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 235/40 R18 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 235/40 R18 |
| Wheel size front | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 8.5J x 18 |
| Wheel size rear | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 8.5J x 18 |
| Brake dimensions front | 278 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 320 x 25 |
| Brake dimensions rear | - | 228 x 40 | 228 x 40 | 228 x 40 | 228 x 40 | 271 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | 12.0/12.4 |
| Overall length [mm] | 4358 | 4358 | 4358 | 4358 | 4358 | 4362 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1471 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1550 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 |
| Legroom rear knees/total [mm] | -/848 | -/848 | -/848 | -/848 | -/848 | -/848 |
| 2.3 EcoBoost RS | 1.5 Duratorq TDCi | 1.6 Duratorq TDCi | 1.5 Duratorq TDCi ECOnetic | 1.6 Duratorq TDCi | 1.5 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 2261 | 1499 | 1560 | 1499 | 1560 | 1499 |
| Maximum output / speed [kW/min-1] | 257/6000 | 70/3600 | 70/3800 | 77/3600 | 85/3600 | 88/3600 |
| Maximum torque [Nm/min-1] | 440/2000-4500 | 270/1500-2000 | 215/1750 | 270/1750 | 270/1750-2500 | 270/1500-2500 |
| Bore and stroke [mm x mm] | 87.6 x 94.0 | 73,5 x 88,3 | 75,0 x 88,3 | 73,5 x 88,3 | 75,0 x 88,3 | 73,5 x 88,3 |
| Compression ratio | 9.4:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | 5.4 | - | - | - | - | - |
| Coolant volume [l] | 6.9 | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 268 | 180 | 180 | 187 | 193 | 193 |
| Acceleration 0–100 km/h [s] | 4.7 | 12.0 | 12.5 | 11.9 | 10.8 | 10.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0 | 4.3 | 5.7 | 3.8 | 5.7 | 4.3 |
| Out of town [l] | 6.3 | 3.4 | 3.7 | 3.1 | 3.7 | 3.4 |
| Combined [l] | 7.7 | 3.8 | 4.5 | 3.4 | 4.5 | 3.8 |
| CO2 emissions [g/km] | 175 | 98 | 117 | 88 | 117 | 98 |
| Emission standard | EU6 | EU6 | EU5 | EU6 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1560 | 1338 | 1332 | 1350 | 1336 | 1343 |
| Overall weight [kg] | 2025 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | - | 665/1200 | 665/1200 | 400/400 | 665/1200 | 670/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 260 | 363 | 363 | 363 | 363 | 363 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1045 | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 |
| Boot length [mm] | - | 935 | 935 | 935 | 935 | 935 |
| Boot length with rear seats folded [mm] | - | 1569 | 1569 | 1569 | 1569 | 1569 |
| Boot width between wheels/max [mm] | - | -/1130 | -/1130 | -/1130 | -/1130 | -/1130 |
| Boot height to headliner/ceiling [mm] | - | -/827 | -/827 | -/827 | -/827 | -/827 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 235/35 R19 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 235/35 R19 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 8.0J x 19 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 8.0J x 19 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 350 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | 302 x 11 | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/12.2 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4390 | 4358 | 4358 | 4358 | 4358 | 4358 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1472 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2647 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1564 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1539 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 |
| Legroom rear knees/total [mm] | -/848 | -/848 | -/848 | -/848 | -/848 | -/848 |
| 1.5 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi ST | 2.0 Duratorq TDCi ST | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1499 | 1997 | 1997 | 1997 | 1997 | |
| Maximum output / speed [kW/min-1] | 88/3600 | 110/3750 | 110/3750 | 136/3500 | 136/3500 | |
| Maximum torque [Nm/min-1] | 300/1750 | 370/2000-3250 | 370/2000-3250 | 400/2000-2750 | 400/2000-2750 | |
| Bore and stroke [mm x mm] | 73,5 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,7:1 | 16,7:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 191 | 210 | 208 | 217 | 216 | |
| Acceleration 0–100 km/h [s] | 10.8 | 8.8 | 8.7 | 8.1 | 7.7 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 4.2 | 4.7 | 5.2 | 5.0 | 5.3 | |
| Out of town [l] | 3.6 | 3.7 | 4.0 | 3.8 | 4.2 | |
| Combined [l] | 3.8 | 4.0 | 4.4 | 4.2 | 4.6 | |
| CO2 emissions [g/km] | 99 | 105 | 115 | 110 | 119 | |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1364 | 1415 | 1455 | 1463 | 1503 | |
| Overall weight [kg] | 1900 | 2050 | 2050 | 2025 | 2025 | |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | 705/1500 | 725/1500 | - | - | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 363 | 363 | 363 | 363 | 363 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1262 | -/1262 | -/1262 | -/1262 | -/1262 | |
| Boot length [mm] | 935 | 935 | 935 | 935 | 935 | |
| Boot length with rear seats folded [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | |
| Boot width between wheels/max [mm] | -/1130 | -/1130 | -/1130 | -/1129 | -/1129 | |
| Boot height to headliner/ceiling [mm] | -/827 | -/827 | -/827 | -/827 | -/827 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 55 | 60 | 60 | 60 | 60 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 235/40 R18 | 235/40 R18 | |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 235/40 R18 | 235/40 R18 | |
| Wheel size front | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 8.5J x18 | 8.5J x18 | |
| Wheel size rear | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 8.5J x18 | 8.5J x18 | |
| Brake dimensions front | 278 x 25 | 300 x 25 | 300 x 25 | 320 x 25 | 320 x 25 | |
| Brake dimensions rear | - | 228 x 40 | 228 x 40 | 271 x 11 | 271 x 11 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | 12.0/12.4 | 12.0/12.4 | |
| Overall length [mm] | 4358 | 4358 | 4358 | 4362 | 4362 | |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | |
| Overall height [mm] | 1484 | 1484 | 1484 | 1471 | 1471 | |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1550 | 1550 | |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | |
| Legroom front knees/total [mm] | -/1094 | -/1094 | -/1094 | -/1094 | -/1094 | |
| Legroom rear knees/total [mm] | -/848 | -/848 | -/848 | -/848 | -/848 |
Sedan
| 1.6 Ti-VCT | 1.0 EcoBoost | 1.0 EcoBoost | 1.0 EcoBoost | 1.5 EcoBoost | 1.5 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1596 | 998 | 998 | 998 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 63/6000 | 74/6000 | 92/6000 | 92/6000 | 110/6000 | 110/6000 |
| Maximum torque [Nm/min-1] | 141/2500 | 170/1400 | 170/1400-4500 | 170/1400-4500 | 240/1600-4000 | 240/1600-4000 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 71,9 x 82,0 | 71,9 x 82,0 | 71,9 x 82,0 | 79,0 x 76,4 | 79,0 x 76,4 |
| Compression ratio | 11,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 172 | 187 | 195 | 194 | 212 | 210 |
| Acceleration 0–100 km/h [s] | 15.0 | 12.6 | 11.1 | 12.1 | 9.0 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 5.9 | 5.8 | 7.4 | 7.1 | 8.5 |
| Out of town [l] | 4.7 | 4.2 | 4.2 | 4.4 | 4.7 | 4.7 |
| Combined [l] | 6.0 | 4.8 | 4.8 | 5.5 | 5.6 | 6.1 |
| CO2 emissions [g/km] | 139 | 109 | 110 | 125 | 128 | 140 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1284 | 1303 | 1306 | 1334 | 1334 | 1358 |
| Overall weight [kg] | 1825 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 640/700 | 650/1000 | 650/1200 | 665/1200 | 665/1500 | 675/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1026 | -/1026 | -/1026 | - | -/1026 | -/1026 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | 278 x 25 | 278 x 25 | 278 x 25 | 300 x 25 | 300 x 25 |
| Brake dimensions rear | - | - | - | - | 228 x 40 | 228 x 40 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4534 | 4534 | 4534 | 4534 | 4534 | 4534 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | - | - | - | -/1094 | - | - |
| Legroom rear knees/total [mm] | - | - | - | -/848 | - | - |
| 1.5 EcoBoost | 1.5 EcoBoost | 1.5 Duratorq TDCi | 1.6 Duratorq TDCi | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1560 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 134/6000 | 134/6000 | 70/3600 | 85/3600 | 88/3600 | 88/3600 |
| Maximum torque [Nm/min-1] | 240/1600-5000 | 240/1600-5000 | 250/1750 | 270/1750-2500 | 270/1500-2500 | 300/1750 |
| Bore and stroke [mm x mm] | 79,0 x 76,4 | 79,0 x 76,4 | 73,5 x 88,3 | 75,0 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 |
| Compression ratio | 10,0:1 | 10,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 224 | 222 | 189 | 195 | 195 | 193 |
| Acceleration 0–100 km/h [s] | 8.7 | 9.0 | 12.1 | 10.9 | 10.6 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.1 | 8.5 | 4.3 | 5.7 | 4.3 | 4.2 |
| Out of town [l] | 4.7 | 4.7 | 3.4 | 3.7 | 3.4 | 3.6 |
| Combined [l] | 5.6 | 6.1 | 3.8 | 4.5 | 3.8 | 3.8 |
| CO2 emissions [g/km] | 128 | 140 | 98 | 117 | 98 | 99 |
| Emission standard | EU6 | EU6 | EU6 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1334 | 1358 | 1358 | 1343 | 1350 | 1358 |
| Overall weight [kg] | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 665/1500 | 675/1500 | 675/1200 | 670/1200 | 675/1200 | 675/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 475 | 475 | 475 | 475 | 475 | 475 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | -/1026 | -/1026 | -/1026 | -/1026 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4534 | 4534 | 4534 | 4534 | 4534 | 4534 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 962 | 962 | 962 | 962 | 962 | 962 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | -/1094 | -/1094 | - | - | - | - |
| Legroom rear knees/total [mm] | -/848 | -/848 | - | - | - | - |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1997 | 1997 | ||||
| Maximum output / speed [kW/min-1] | 110/3750 | 110/3750 | ||||
| Maximum torque [Nm/min-1] | 370/2000-3250 | 370/2000-3250 | ||||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | ||||
| Compression ratio | 16,0:1 | 16,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 212 | 210 | ||||
| Acceleration 0–100 km/h [s] | 8.9 | 8.8 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.7 | 5.2 | ||||
| Out of town [l] | 3.7 | 4.0 | ||||
| Combined [l] | 4.0 | 4.4 | ||||
| CO2 emissions [g/km] | 105 | 115 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1422 | 1462 | ||||
| Overall weight [kg] | 2050 | 2050 | ||||
| Maximum trailer weight unbraked/braked [kg] | 710/1500 | 730/1500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 475 | 475 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | -/1026 | -/1026 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 60 | 60 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | ||||
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | ||||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | ||||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | ||||
| Wheel size front | 7.0J x 16 | 7.0J x 16 | ||||
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | ||||
| Brake dimensions front | 300 x 25 | 300 x 25 | ||||
| Brake dimensions rear | 228 x 40 | 228 x 40 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | ||||
| Overall length [mm] | 4534 | 4534 | ||||
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | ||||
| Overall height [mm] | 1484 | 1484 | ||||
| Wheelbase [mm] | 2648 | 2648 | ||||
| Front wheel track [mm] | 1544 | 1544 | ||||
| Rear wheel track [mm] | 1534 | 1534 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 993 | 993 | ||||
| Headroom rear [mm] | 962 | 962 | ||||
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | ||||
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Estate
| 1.6 Ti-VCT | 1.0 EcoBoost | 1.6 Ti-VCT | 1.6 Ti-VCT | 1.6 Ti-VCT | 1.0 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 4/16 | 4/16 | 4/16 | 3/12 |
| Engine displacement [cm³] | 1596 | 998 | 1596 | 1596 | 1596 | 998 |
| Maximum output / speed [kW/min-1] | 63/6000 | 74/6000 | 77/6000 | 86/6400 | 92/6000 | 92/6000 |
| Maximum torque [Nm/min-1] | 141/2500 | 170/1400-4000 | 150/4000-4500 | 140/4200 | 159/4000 | 170/1400-4500 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 71,9 x 82,0 | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 71,9 x 82,0 |
| Compression ratio | 11,0:1 | 10,0:1 | 11,0:1 | - | 11,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 170 | 185 | 180 | 187 | 193 | 193 |
| Acceleration 0–100 km/h [s] | 15.1 | 12.7 | 12.5 | 15.1 | 11.9 | 11.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 5.9 | 8.4 | 8.4 [11.5 LPG] | 8.7 | 5.8 |
| Out of town [l] | 4.7 | 4.2 | 4.7 | 4.7 [5.5 LPG] | 4.9 | 4.2 |
| Combined [l] | 6.0 | 4.8 | 6.0 | 6.0 [7.7 LPG] | 6.3 | 4.8 |
| CO2 emissions [g/km] | 139 | 109 | 139 | 139 [123 LPG] | 146 | 110 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1300 | 1313 | 1300 | 1312 | 1334 | 1316 |
| Overall weight [kg] | 1825 | 1900 | 1825 | 1825 | 1825 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 650/700 | 655/1000 | 650/700 | 655/700 | 665/1000 | 655/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1516 | -/1516 | -/1516 | -/1516 | -/1516 | -/1516 |
| Boot length [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
| Boot length with rear seats folded [mm] | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 |
| Boot width between wheels/max [mm] | -/1149 | -/1149 | -/1149 | -/1149 | -/1149 | -/1149 |
| Boot height to headliner/ceiling [mm] | -/873 | -/873 | -/873 | -/873 | -/873 | -/873 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4560 | 4560 | 4560 | 4560 | 4560 | 4560 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1505 | 1505 | 1505 | 1505 | 1505 | 1505 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 EcoBoost | 1.5 EcoBoost | 1.5 EcoBoost | 1.5 EcoBoost | 1.5 EcoBoost | 2.0 EcoBoost ST | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 998 | 1499 | 1499 | 1499 | 1499 | 1999 |
| Maximum output / speed [kW/min-1] | 92/6000 | 110/6000 | 110/6000 | 134/6000 | 134/6000 | 184/5500 |
| Maximum torque [Nm/min-1] | 170/1400-4500 | 240/1600-4000 | 240/1600-4000 | 240/1600-5000 | 240/1600-5000 | 360/2000-4500 |
| Bore and stroke [mm x mm] | 71,9 x 82,0 | 79,0 x 76,4 | 79,0 x 76,4 | 79,0 x 76,4 | 79,0 x 76,4 | 87,5 x 83,1 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 192 | 210 | 208 | 222 | 220 | 248 |
| Acceleration 0–100 km/h [s] | 12.2 | 9.1 | 9.4 | 8.8 | 9.1 | 6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4 | 7.1 | 8.5 | 7.1 | 8.5 | 8.8 |
| Out of town [l] | 4.4 | 4.7 | 4.7 | 4.7 | 4.7 | 5.7 |
| Combined [l] | 5.5 | 5.6 | 6.1 | 5.6 | 6.1 | 6.8 |
| CO2 emissions [g/km] | 125 | 128 | 140 | 128 | 140 | 159 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1345 | 1350 | 1388 | 1350 | 1388 | 1461 |
| Overall weight [kg] | 1900 | 1900 | 1900 | 1900 | 1900 | 2025 |
| Maximum trailer weight unbraked/braked [kg] | 670/1200 | 675/1500 | 690/1500 | 675/1500 | 690/1500 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1516 | -/1516 | -/1516 | -/1516 | -/1516 | -/1516 |
| Boot length [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
| Boot length with rear seats folded [mm] | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 |
| Boot width between wheels/max [mm] | -/1149 | -/1149 | -/1149 | -/1149 | -/1149 | -/1149 |
| Boot height to headliner/ceiling [mm] | -/873 | -/873 | -/873 | -/873 | -/873 | -/873 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 235/40 R18 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 235/40 R18 |
| Wheel size front | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 8.5J x 18 |
| Wheel size rear | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 8.5J x 18 |
| Brake dimensions front | 278 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 320 x 25 |
| Brake dimensions rear | - | 228 x 40 | 228 x 40 | 228 x 40 | 228 x 40 | 271 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | 12.0/12.4 |
| Overall length [mm] | 4560 | 4560 | 4560 | 4560 | 4560 | 4563 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1505 | 1505 | 1505 | 1505 | 1505 | 1486 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1550 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 Duratorq TDCi | 1.6 Duratorq TDCi | 1.5 Duratorq TDCi ECOnetic | 1.6 Duratorq TDCi | 1.5 Duratorq TDCi | 1.5 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1499 | 1560 | 1499 | 1560 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 70/3600 | 70/3800 | 77/3600 | 85/3600 | 88/3600 | 88/3600 |
| Maximum torque [Nm/min-1] | 270/1500-2000 | 215/1750 | 270/1750 | 270/1750-2500 | 270/1500-2500 | 270/1500-2500 |
| Bore and stroke [mm x mm] | 73,5 x 88,3 | 75,0 x 88,3 | 73,5 x 88,3 | 75,0 x 88,3 | 73,5 x 88,3 | 73,5 x 88,3 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 180 | 180 | 187 | 193 | 193 | 191 |
| Acceleration 0–100 km/h [s] | 12.2 | 12.7 | 12.1 | 11.0 | 10.7 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.3 | 5.7 | 3.8 | 5.7 | 4.3 | 4.2 |
| Out of town [l] | 3.4 | 3.7 | 3.1 | 3.7 | 3.4 | 3.6 |
| Combined [l] | 3.8 | 4.5 | 3.4 | 4.5 | 3.8 | 3.8 |
| CO2 emissions [g/km] | 98 | 117 | 88 | 117 | 98 | 99 |
| Emission standard | EU6 | EU5 | EU6 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1362 | 1355 | 1374 | 1361 | 1368 | 1388 |
| Overall weight [kg] | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 680/1200 | 675/1200 | 400/400 | 680/1200 | 680/1200 | 690/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1516 | -/1516 | -/1516 | -/1516 | -/1516 | -/1516 |
| Boot length [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
| Boot length with rear seats folded [mm] | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 |
| Boot width between wheels/max [mm] | -/1149 | -/1149 | -/1149 | -/1149 | -/1149 | -/1149 |
| Boot height to headliner/ceiling [mm] | -/873 | -/873 | -/873 | -/873 | -/873 | -/873 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 | -/11.0 |
| Overall length [mm] | 4560 | 4560 | 4560 | 4560 | 4560 | 4560 |
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 |
| Overall height [mm] | 1505 | 1505 | 1505 | 1505 | 1505 | 1505 |
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | 2648 | 2648 |
| Front wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 | -/1411 |
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 | -/1336 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 Duratorq TDCi | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi ST | 2.0 Duratorq TDCi ST | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | ||
| Maximum output / speed [kW/min-1] | 110/3750 | 110/3750 | 136/3500 | 136/3500 | ||
| Maximum torque [Nm/min-1] | 370/2000-3250 | 370/2000-3250 | 400/2000-2750 | 400/2000-2750 | ||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | ||
| Compression ratio | 16,0:1 | 16,0:1 | 16,7:1 | 16,7:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 210 | 208 | 217 | 216 | ||
| Acceleration 0–100 km/h [s] | 9.0 | 8.9 | 8.3 | 7.8 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4.7 | 5.2 | 5.0 | 5.3 | ||
| Out of town [l] | 3.7 | 4.0 | 3.8 | 4.2 | ||
| Combined [l] | 4.0 | 4.4 | 4.2 | 4.6 | ||
| CO2 emissions [g/km] | 105 | 115 | 110 | 119 | ||
| Emission standard | EU6 | EU6 | EU6 | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1460 | 1471 | 1488 | 1499 | ||
| Overall weight [kg] | 2050 | 2050 | 2025 | 2025 | ||
| Maximum trailer weight unbraked/braked [kg] | 730/1800 | 735/1800 | - | - | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 490 | 490 | 490 | 490 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1516 | -/1516 | -/1516 | -/1516 | ||
| Boot length [mm] | 1023 | 1023 | 1023 | 1023 | ||
| Boot length with rear seats folded [mm] | 1670 | 1670 | 1670 | 1670 | ||
| Boot width between wheels/max [mm] | -/1149 | -/1149 | -/1149 | -/1149 | ||
| Boot height to headliner/ceiling [mm] | -/873 | -/873 | -/873 | -/873 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | ||
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | ||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 235/40 R18 | 235/40 R18 | ||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 235/40 R18 | 235/40 R18 | ||
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 8.5J x18 | 8.5J x18 | ||
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 8.5J x18 | 8.5J x18 | ||
| Brake dimensions front | 300 x 25 | 300 x 25 | 320 x 25 | 320 x 25 | ||
| Brake dimensions rear | 228 x 40 | 228 x 40 | 271 x 11 | 271 x 11 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | -/11.0 | -/11.0 | 12.0/12.4 | 12.0/12.4 | ||
| Overall length [mm] | 4560 | 4560 | 4563 | 4563 | ||
| Overall width without/including mirrors [mm] | 1823/2010 | 1823/2010 | 1823/2010 | 1823/2010 | ||
| Overall height [mm] | 1505 | 1505 | 1486 | 1486 | ||
| Wheelbase [mm] | 2648 | 2648 | 2648 | 2648 | ||
| Front wheel track [mm] | 1544 | 1544 | 1550 | 1550 | ||
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 993 | 993 | 993 | 993 | ||
| Headroom rear [mm] | 1000 | 1000 | 1000 | 1000 | ||
| Front elbow/shoulder width [mm] | -/1411 | -/1411 | -/1411 | -/1411 | ||
| Rear elbow/shoulder width [mm] | -/1336 | -/1336 | -/1336 | -/1336 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
