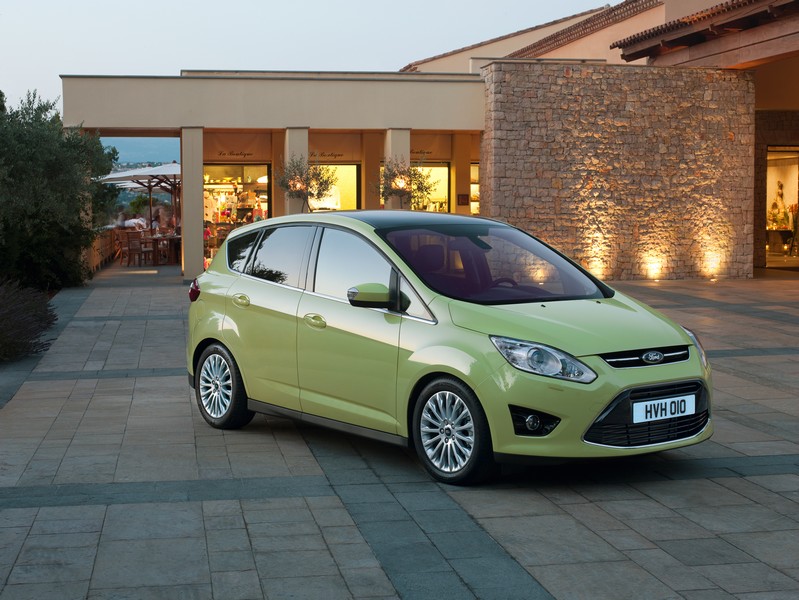

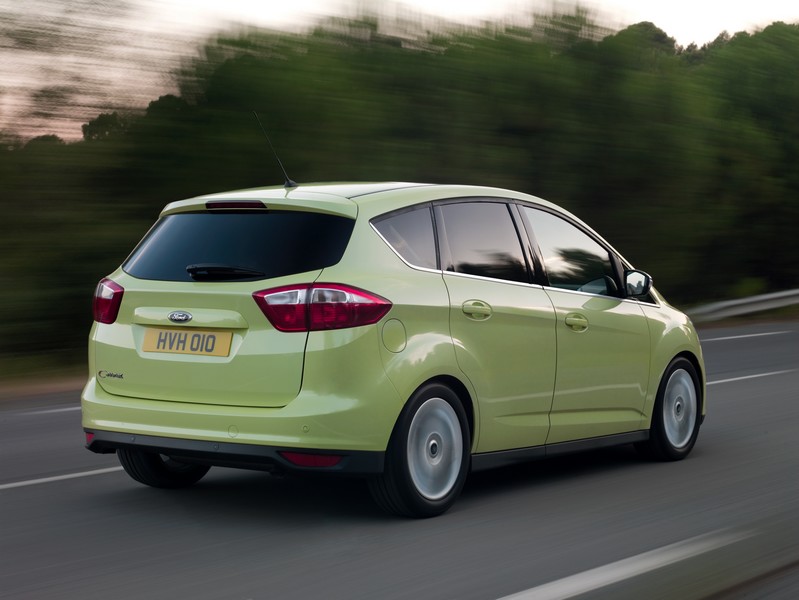

Ford C-Max
Date of manufacture
12/2010 – 8/2014 (MPV)
Platform
Ford Global C platform
Manufacturing locations
Valencia, Spain
Saarlouis, Germany
Designer
Martin Smith
Tags
Mid-size MPV
German cars
Ford C-Max is an MPV manufactured since 2010 in Spain and Germany. The vehicle is built on the Ford Global C platform and offers a wide range of petrol and diesel engines. The highest power is achieved by the 1.6 EcoBoost Grand with 132 kW, the fastest version is the 1.6 EcoBoost with 217 km/h and the best acceleration 0-100 km/h in 8.5 seconds. The most economical model is the 1.6 Duratorq TDCi with a combined consumption of 4.3 l/100 km and CO2 emissions of 112 g/km. The size of the luggage compartment is 471 l and the safety of the vehicle was tested by EURONCAP, where it achieved a rating of 5 out of 5.
Car body style
MPV
Date of manufacture
12/2010 – 8/2014Internal designation
C344Engine size
Petrol
Diesel
Technical data
MPV
| 1.0 EcoBoost | 1.0 EcoBoost Grand | 1.6 Ti-VCT | 1.6 Ti-VCT Grand | 1.6 Ti-VCT FFV | 1.6 Ti-VCT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 998 | 998 | 1596 | 1596 | 1596 | 1596 |
| Maximum output / speed [kW/min-1] | 74/6000 | 74/6000 | 77/6000 | 77/6000 | 88/- | 92/6000 |
| Maximum torque [Nm/min-1] | 170/1400-4000 | 170/1400-4000 | 150/4000-4500 | 150/4000-4500 | 150/- | 159/4000 |
| Bore and stroke [mm x mm] | 71,9 x 82,0 | 71,9 x 82,0 | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 |
| Compression ratio | 10,0:1 | 10,0:1 | 11,0:1 | 11,0:1 | - | 11,0:1 |
| Oil volume [l] | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 |
| Coolant volume [l] | 5.8 | 5.8 | 5.5 | 5.5 | 5.5 | 5.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 174 | 172 | 180 | 177 | 182 | 188 |
| Acceleration 0–100 km/h [s] | 12.6 | 13.6 | 12.6 | 13.5 | 11.7 | 11.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.3 | 6.4 | 8.7 | 8.9 | 8.7 [11.2 E85] | 8.7 |
| Out of town [l] | 4.5 | 4.6 | 5.3 | 5.7 | 5.3 [6.9 E85] | 5.3 |
| Combined [l] | 5.1 | 5.2 | 6.6 | 6.9 | 6.6 [8.5 E85] | 6.6 |
| CO2 emissions [g/km] | 117 | 118 | 154 | 159 | 154 [139 E85] | 154 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1391 | 1493 | 1374 | 1477 | 1374 | 1374 |
| Overall weight [kg] | 1900 | 2150 | 1860 | 2135 | 1860 | 1860 |
| Maximum trailer weight unbraked/braked [kg] | 695/1200 | 745/900 | 685/800 | 735/750 | 685/1000 | 685/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 471 | 507 | 471 | 507 | 471 | 471 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1723 | -/1810 | -/1723 | -/1810 | -/1723 | -/1723 |
| Boot length [mm] | 870 | 1140 | 870 | 1140 | 870 | 870 |
| Boot length with rear seats folded [mm] | 1706 | 1780 | 1706 | 1780 | 1706 | 1706 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | -/986 | -/1054 | -/986 | -/1054 | -/986 | -/986 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5-7 | 5 | 5-7 | 5 | 5 |
| Fuel tank volume [l] | 55 | 60 | 55 | 60 | - | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 |
| Steering | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 11.2/- | 10.7/- | 11.2/- | 10.7/- | 10.7/- |
| Overall length [mm] | 4380 | 4520 | 4380 | 4520 | 4380 | 4380 |
| Overall width without/including mirrors [mm] | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 |
| Overall height [mm] | 1626 | 1684 | 1626 | 1684 | 1626 | 1626 |
| Wheelbase [mm] | 2648 | 2788 | 2648 | 2788 | 2648 | 2648 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1041 | 1038 | 1041 | 1038 | 1041 | 1041 |
| Headroom rear [mm] | 981 | 988 | 981 | 988 | 981 | 981 |
| Front elbow/shoulder width [mm] | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 |
| Rear elbow/shoulder width [mm] | -/1402 | -/1427 | -/1402 | -/1427 | -/1402 | -/1402 |
| Legroom front knees/total [mm] | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 |
| Legroom rear knees/total [mm] | -/916 | -/864 | -/916 | -/864 | -/916 | -/916 |
| 1.6 Ti-VCT Grand | 1.0 EcoBoost | 1.0 EcoBoost Grand | 1.6 EcoBoost | 1.6 EcoBoost Grand | 1.6 EcoBoost | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1596 | 998 | 998 | 1596 | 1596 | 1596 |
| Maximum output / speed [kW/min-1] | 92/6000 | 92/6000 | 92/6000 | 110/5700 | 110/5700 | 110/5700 |
| Maximum torque [Nm/min-1] | 159/4000 | 170/1400-4500 | 170/1400-4500 | 240/1600-4000 | 240/1600-4000 | 240/1600-4000 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 71,9 x 82,0 | 71,9 x 82,0 | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 |
| Compression ratio | 11,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 4.1 | 4.1 | 4.1 | - | - | - |
| Coolant volume [l] | 5.5 | 5.8 | 5.8 | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
| - | - |
|
|
|
| Top speed [km/h] | 185 | 187 | 185 | 204 | 202 | 204 |
| Acceleration 0–100 km/h [s] | 12.3 | 11.4 | 12.2 | 9.4 | 9.9 | 9.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 6.3 | 6.4 | 8.8 | 9.2 | 8.0 |
| Out of town [l] | 5.5 | 4.5 | 4.6 | 5.3 | 5.5 | 5.3 |
| Combined [l] | 6.7 | 5.1 | 5.2 | 6.6 | 6.9 | 6.4 |
| CO2 emissions [g/km] | 154 | 117 | 118 | 154 | 159 | 149 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1477 | 1391 | 1493 | 1385 | 1496 | 1385 |
| Overall weight [kg] | 2135 | 1900 | 2150 | 1900 | 2200 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 735/750 | 695/1200 | 745/900 | 690/1500 | 745/1200 | 690/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 507 | 471 | 507 | 471 | 507 | 471 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1810 | -/1723 | -/1810 | -/1723 | -/1810 | -/1723 |
| Boot length [mm] | 1140 | 870 | 1140 | 870 | 1140 | 870 |
| Boot length with rear seats folded [mm] | 1780 | 1706 | 1780 | 1706 | 1780 | 1706 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | -/1054 | -/986 | -/1054 | -/986 | -/1054 | -/986 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5 | 5-7 | 5 | 5-7 | 5 |
| Fuel tank volume [l] | 60 | 55 | 60 | 55 | 60 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | 278 x 25 | - | - | 300 x 25 | 300 x 25 | 300 x 25 |
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 |
| Steering | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 10.7/- | 11.2/- | 10.7/- | 11.2/- | 10.7/- |
| Overall length [mm] | 4520 | 4380 | 4520 | 4380 | 4520 | 4380 |
| Overall width without/including mirrors [mm] | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 |
| Overall height [mm] | 1684 | 1626 | 1684 | 1626 | 1684 | 1626 |
| Wheelbase [mm] | 2788 | 2648 | 2788 | 2648 | 2788 | 2648 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1038 | 1041 | 1038 | 1041 | 1038 | 1041 |
| Headroom rear [mm] | 988 | 981 | 988 | 981 | 988 | 981 |
| Front elbow/shoulder width [mm] | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 |
| Rear elbow/shoulder width [mm] | -/1427 | -/1402 | -/1427 | -/1402 | -/1427 | -/1402 |
| Legroom front knees/total [mm] | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 |
| Legroom rear knees/total [mm] | -/864 | -/916 | -/864 | -/916 | -/864 | -/916 |
| 1.6 EcoBoost Grand | 1.6 EcoBoost | 1.6 EcoBoost Grand | 1.6 EcoBoost | 1.6 EcoBoost Grand | 1.6 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1596 | 1596 | 1596 | 1596 | 1596 | 1560 |
| Maximum output / speed [kW/min-1] | 110/5700 | 132/5700 | 132/5700 | 132/5700 | 132/5700 | 70/3600 |
| Maximum torque [Nm/min-1] | 240/1600-4000 | 240/1600-5000 | 240/1600-5000 | 240/1600-5000 | 240/1600-5000 | 230/1500-2000 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 79,0 x 81,4 | 75,0 x 88,3 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 202 | 217 | 215 | 217 | 215 | 170 |
| Acceleration 0–100 km/h [s] | 9.9 | 8.5 | 8.9 | 8.5 | 8.9 | 13.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9 | 8.8 | 9.2 | 8.0 | 7.9 | 5.4 |
| Out of town [l] | 5.6 | 5.3 | 5.5 | 5.3 | 5.6 | 4.1 |
| Combined [l] | 6.4 | 6.6 | 6.9 | 6.4 | 6.4 | 4.6 |
| CO2 emissions [g/km] | 149 | 154 | 159 | 149 | 149 | 119 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1496 | 1385 | 1496 | 1385 | 1496 | 1390 |
| Overall weight [kg] | 2200 | 1900 | 2200 | 1900 | 2200 | 1915 |
| Maximum trailer weight unbraked/braked [kg] | 745/1200 | 690/1500 | 745/1200 | 690/1500 | 745/1200 | 695/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 507 | 471 | 507 | 471 | 507 | 471 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1810 | -/1723 | -/1810 | -/1723 | -/1810 | -/1723 |
| Boot length [mm] | 1140 | 870 | 1140 | 870 | 1140 | 870 |
| Boot length with rear seats folded [mm] | 1780 | 1706 | 1780 | 1706 | 1780 | 1706 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | -/1054 | -/986 | -/1054 | -/986 | -/1054 | -/986 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5 | 5-7 | 5 | 5-7 | 5 |
| Fuel tank volume [l] | 60 | 55 | 60 | 55 | 60 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 205/55 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 6.5J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 6.5J x 16 |
| Brake dimensions front | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 278 x 25 |
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 |
| Steering | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 10.7/- | 11.2/- | 10.7/- | 11.2/- | 10.7/- |
| Overall length [mm] | 4520 | 4380 | 4520 | 4380 | 4520 | 4380 |
| Overall width without/including mirrors [mm] | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 |
| Overall height [mm] | 1684 | 1626 | 1684 | 1626 | 1684 | 1626 |
| Wheelbase [mm] | 2788 | 2648 | 2788 | 2648 | 2788 | 2648 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1038 | 1041 | 1038 | 1041 | 1038 | 1041 |
| Headroom rear [mm] | 988 | 981 | 988 | 981 | 988 | 981 |
| Front elbow/shoulder width [mm] | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 |
| Rear elbow/shoulder width [mm] | -/1427 | -/1402 | -/1427 | -/1402 | -/1427 | -/1402 |
| Legroom front knees/total [mm] | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 |
| Legroom rear knees/total [mm] | -/864 | -/916 | -/864 | -/916 | -/864 | -/916 |
| 1.6 Duratorq TDCi Grand | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi Grand | 1.6 Duratorq TDCi | 1.6 Duratorq TDCi Grand | 1.6 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 70/3600 | 70/3600 | 70/3600 | 85/3600 | 85/3600 | 85/3600 |
| Maximum torque [Nm/min-1] | 230/1500-2000 | 230/1500-2000 | 230/1500-2000 | 270/1750-2500 | 270/1750-2500 | 270/1750-2500 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 166 | 170 | 166 | 184 | 180 | 184 |
| Acceleration 0–100 km/h [s] | 14.3 | 13.3 | 14.3 | 11.3 | 12.3 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.8 | 5.0 | 5.3 | 5.4 | 5.5 | 5.0 |
| Out of town [l] | 4.4 | 3.9 | 4.2 | 4.1 | 4.3 | 3.9 |
| Combined [l] | 4.9 | 4.3 | 4.6 | 4.6 | 4.7 | 4.3 |
| CO2 emissions [g/km] | 124 | 112 | 120 | 119 | 124 | 112 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1504 | 1390 | 1504 | 1390 | 1504 | 1390 |
| Overall weight [kg] | 2200 | 1915 | 2200 | 1915 | 2200 | 1915 |
| Maximum trailer weight unbraked/braked [kg] | 750/1200 | 695/1200 | 750/1200 | 695/1200 | 750/1200 | 695/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 507 | 471 | 507 | 471 | 507 | 471 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1810 | -/1723 | -/1810 | -/1723 | -/1810 | -/1723 |
| Boot length [mm] | 1140 | 870 | 1140 | 870 | 1140 | 870 |
| Boot length with rear seats folded [mm] | 1780 | 1706 | 1780 | 1706 | 1780 | 1706 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | -/1054 | -/986 | -/1054 | -/986 | -/1054 | -/986 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5 | 5-7 | 5 | 5-7 | 5 |
| Fuel tank volume [l] | 60 | 53 | 60 | 53 | 60 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 | 278 x 25 |
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 |
| Steering | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 10.7/- | 11.2/- | 10.7/- | 11.2/- | 10.7/- |
| Overall length [mm] | 4520 | 4380 | 4520 | 4380 | 4520 | 4380 |
| Overall width without/including mirrors [mm] | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 |
| Overall height [mm] | 1684 | 1626 | 1684 | 1626 | 1684 | 1626 |
| Wheelbase [mm] | 2788 | 2648 | 2788 | 2648 | 2788 | 2648 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1038 | 1041 | 1038 | 1041 | 1038 | 1041 |
| Headroom rear [mm] | 988 | 981 | 988 | 981 | 988 | 981 |
| Front elbow/shoulder width [mm] | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 |
| Rear elbow/shoulder width [mm] | -/1427 | -/1402 | -/1427 | -/1402 | -/1427 | -/1402 |
| Legroom front knees/total [mm] | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 |
| Legroom rear knees/total [mm] | -/864 | -/916 | -/864 | -/916 | -/864 | -/916 |
| 1.6 Duratorq TDCi Grand | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi Grand | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi Grand | 2.0 Duratorq TDCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1560 | 1997 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 85/3600 | 85/3750 | 85/3750 | 103/3750 | 103/3750 | 103/3750 |
| Maximum torque [Nm/min-1] | 270/1750-2500 | 300/1500-2250 | 300/1500-2250 | 320/1750-2750 | 320/1750-2750 | 320/1750-2750 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 180 | 185 | 182 | 201 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 12.3 | 11.8 | 12.3 | 9.6 | 10.3 | 10.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.3 | 7.1 | 7.4 | 6.4 | 6.6 | 7.1 |
| Out of town [l] | 4.2 | 4.8 | 5.0 | 4.4 | 4.5 | 4.8 |
| Combined [l] | 4.6 | 5.6 | 5.8 | 5.1 | 5.3 | 5.6 |
| CO2 emissions [g/km] | 120 | 149 | 154 | 134 | 139 | 149 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1504 | 1550 | 1634 | 1488 | 1575 | 1550 |
| Overall weight [kg] | 2200 | 2050 | 2300 | 2050 | 2300 | 2050 |
| Maximum trailer weight unbraked/braked [kg] | 750/1200 | 775/1500 | 815/1500 | 740/1500 | 785/1500 | 775/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 507 | 471 | 507 | 471 | 507 | 471 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1810 | -/1723 | -/1810 | -/1723 | -/1810 | -/1723 |
| Boot length [mm] | 1140 | 870 | 1140 | 870 | 1140 | 870 |
| Boot length with rear seats folded [mm] | 1780 | 1706 | 1780 | 1706 | 1780 | 1706 |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 |
| Boot height to headliner/ceiling [mm] | -/1054 | -/986 | -/1054 | -/986 | -/1054 | -/986 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5 | 5-7 | 5 | 5-7 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | 278 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 |
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 |
| Steering | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 10.7/- | 11.2/- | 10.7/- | 11.2/- | 10.7/- |
| Overall length [mm] | 4520 | 4380 | 4520 | 4380 | 4520 | 4380 |
| Overall width without/including mirrors [mm] | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 |
| Overall height [mm] | 1684 | 1626 | 1684 | 1626 | 1684 | 1626 |
| Wheelbase [mm] | 2788 | 2648 | 2788 | 2648 | 2788 | 2648 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1038 | 1041 | 1038 | 1041 | 1038 | 1041 |
| Headroom rear [mm] | 988 | 981 | 988 | 981 | 988 | 981 |
| Front elbow/shoulder width [mm] | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 |
| Rear elbow/shoulder width [mm] | -/1427 | -/1402 | -/1427 | -/1402 | -/1427 | -/1402 |
| Legroom front knees/total [mm] | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 |
| Legroom rear knees/total [mm] | -/864 | -/916 | -/864 | -/916 | -/864 | -/916 |
| 2.0 Duratorq TDCi Grand | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi Grand | 2.0 Duratorq TDCi | 2.0 Duratorq TDCi Grand | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1997 | |
| Maximum output / speed [kW/min-1] | 103/3750 | 120/3750 | 120/3750 | 120/3750 | 120/3750 | |
| Maximum torque [Nm/min-1] | 320/1750-2750 | 340/2000-3250 | 340/2000-3250 | 340/2000-3250 | 340/2000-3250 | |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 198 | 210 | 205 | 207 | 204 | |
| Acceleration 0–100 km/h [s] | 10.5 | 8.6 | 9.2 | 9.3 | 9.8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.4 | 6.4 | 6.6 | 7.1 | 7.4 | |
| Out of town [l] | 5.0 | 4.4 | 4.5 | 4.8 | 5.0 | |
| Combined [l] | 5.8 | 5.1 | 5.3 | 5.6 | 5.8 | |
| CO2 emissions [g/km] | 154 | 134 | 139 | 149 | 154 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1634 | 1488 | 1575 | 1550 | 1634 | |
| Overall weight [kg] | 2300 | 2050 | 2300 | 2050 | 2300 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 740/1500 | 785/1500 | 775/1500 | 750/1500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 507 | 471 | 507 | 471 | 507 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1810 | -/1723 | -/1810 | -/1723 | -/1810 | |
| Boot length [mm] | 1140 | 870 | 1140 | 870 | 1140 | |
| Boot length with rear seats folded [mm] | 1780 | 1706 | 1780 | 1706 | 1780 | |
| Boot width between wheels/max [mm] | -/1030 | -/1030 | -/1030 | -/1030 | -/1030 | |
| Boot height to headliner/ceiling [mm] | -/1054 | -/986 | -/1054 | -/986 | -/1054 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5-7 | 5 | 5-7 | 5 | 5-7 | |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | MacPherson, torsion stabiliser | |
| Rear suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | multilink Control Blade suspension | |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | |
| Brake dimensions front | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | 300 x 25 | |
| Brake dimensions rear | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | 280 x 11 | |
| Steering | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | Rack & pinion with electric power steering m řízení (EPAS) | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.2/- | 10.7/- | 11.2/- | 10.7/- | 11.2/- | |
| Overall length [mm] | 4520 | 4380 | 4520 | 4380 | 4520 | |
| Overall width without/including mirrors [mm] | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | 1828/2067 | |
| Overall height [mm] | 1684 | 1626 | 1684 | 1626 | 1684 | |
| Wheelbase [mm] | 2788 | 2648 | 2788 | 2648 | 2788 | |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1038 | 1041 | 1038 | 1041 | 1038 | |
| Headroom rear [mm] | 988 | 981 | 988 | 981 | 988 | |
| Front elbow/shoulder width [mm] | -/1422 | -/1422 | -/1422 | -/1422 | -/1422 | |
| Rear elbow/shoulder width [mm] | -/1427 | -/1402 | -/1427 | -/1402 | -/1427 | |
| Legroom front knees/total [mm] | -/1083 | -/1083 | -/1083 | -/1083 | -/1083 | |
| Legroom rear knees/total [mm] | -/864 | -/916 | -/864 | -/916 | -/864 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
