Ford B-Max

Date of manufacture

6/2012 – 2017 (MPV)

Platform

Ford B3 platform

Manufacturing locations

Craiova, Romania

Designer

Car body style

MPV

Date of manufacture

6/2012 – 2017

Internal designation

B232

Engine size

Petrol

Diesel

Euro NCAP

Technical data

MPV

	1.4 Duratec	1.0 EcoBoost	1.0 EcoBoost	1.6 Duratec Ti-VCT	1.0 EcoBoost	1.0 EcoBoost
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Petrol	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	3/12	3/12	4/16	3/12	3/12
Engine displacement [cm³]	1388	999	999	1596	999	999
Maximum output / speed [kW/min-1]	66/5750	74/6000	74/6000	77/6300	88/6000	92/6000
Maximum torque [Nm/min-1]	125/4000	170/1400-4000	170/1400-4000	150/4200	170/1400-4500	170/1400-4500
Bore and stroke [mm x mm]	76,0 x 76,5	71,9 x 82,0	71,9 x 82,0	79,0 x 81,4	71,9 x 82,0	71,9 x 82,0
Compression ratio	11,0:1	10,0:1	10,0:1	11,0:1	10,0:1	10,0:1
Oil volume [l]	4.1	4.1	4.1	4.1	4.1	4.1
Coolant volume [l]	5.5	6.3	6.3	5.5	6.3	6.3
Technical specifications	brake energy recuperation	direct injection turbo-supercharged variable valve timing Ti‐VCT brake energy recuperation	direct injection turbo-supercharged variable valve timing Ti‐VCT start&stop system brake energy recuperation	variable valve timing Ti‐VCT brake energy recuperation	direct injection turbo-supercharged variable valve timing Ti‐VCT start&stop system brake energy recuperation	direct injection turbo-supercharged variable valve timing Ti‐VCT start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear manual	6 gear automatic	5 gear manual	5 gear manual
Drive specifications	gearbox type iB5	gearbox type iB5	gearbox type iB5	dual-clutch automatic gearbox Powershift DPS6	gearbox type iB5	gearbox type iB5

Top speed [km/h]	171	175	175	182	189	189
Acceleration 0–100 km/h [s]	13.8	13.2	13.2	12.1	11.2	11.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.9	6.6	6.0	8.6	6.0	6.0
Out of town [l]	4.9	4.3	4.2	5.1	4.2	4.2
Combined [l]	6.0	5.1	4.9	6.4	4.9	4.9
CO2 emissions [g/km]	139	119	114	149	114	114

Emission standard	EU5 - EU6	EU5	EU6	EU5 - EU6	EU5	EU5 - EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1275	1274	1279	1308	1279	1279
Overall weight [kg]	1720	1760	1750	1760	1760	1750
Maximum trailer weight unbraked/braked [kg]	635/675	635/750	635/750	480/480	635/750	635/750
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	304	304	304	304	304	304
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1372	-/1372	-/1372	-/1372	-/1372	-/1372
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	48	48	48	48	48	48
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	-	-	-	-	-	-
Rear suspension	-	-	-	-	-	-
Tyre dimensions front	195/60 R15	195/60 R15	195/60 R15	195/60 R15	195/60 R15	195/60 R15
Tyre dimensions rear	195/60 R15	195/60 R15	195/60 R15	195/60 R15	195/60 R15	195/60 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	-/10.4	-/10.4	-/10.4	-/10.4	-/10.4	-/10.4

Overall length [mm]	4077	4077	4077	4077	4077	4077
Overall width without/including mirrors [mm]	1751/1857	1751/1857	1751/1857	1751/1857	1751/1857	1751/1857
Overall height [mm]	1604	1604	1604	1604	1604	1604
Wheelbase [mm]	2489	2489	2489	2489	2489	2489
Front wheel track [mm]	-	-	-	-	-	-
Rear wheel track [mm]	-	-	-	-	-	-
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1017	1017	1017	1017	1017	1017
Headroom rear [mm]	988	988	988	988	988	988
Front elbow/shoulder width [mm]	-/1365	-/1365	-/1365	-/1365	-/1365	-/1365
Rear elbow/shoulder width [mm]	-/1356	-/1356	-/1356	-/1356	-/1356	-/1356
Legroom front knees/total [mm]	-/1103	-/1103	-/1103	-/1103	-/1103	-/1103
Legroom rear knees/total [mm]	-/939	-/939	-/939	-/939	-/939	-/939

	1.0 EcoBoost	1.5 Duratorq TDCi	1.5 Duratorq TDCi	1.6 Duratorq TDCi	1.5 Duratorq TDCi
Date of sale	-	-	-	-	-
Engine type	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	3/12	4/8	4/8	4/8	4/8
Engine displacement [cm³]	999	1498	1498	1560	1498
Maximum output / speed [kW/min-1]	103/6000	55/3750	55/3750	70/3800	70/3750
Maximum torque [Nm/min-1]	180/1400-4000	185/1700	185/1700	215/1750	215/1700-2250
Bore and stroke [mm x mm]	71,9 x 82,0	73,5 x 88,3	73,5 x 88,3	75,0 x 88,3	73,5 x 88,3
Compression ratio	10,0:1	16,0:1	16,0:1	16,0:1	16,0:1
Oil volume [l]	4.1	3.8	3.8	-	3.8
Coolant volume [l]	6.3	5.8	5.8	-	5.8
Technical specifications	direct injection turbo-supercharged variable valve timing Ti‐VCT start&stop system brake energy recuperation	direct injection Common Rail supercharging by a pair of differently sized turbochargers with variable blade geometry particulate filter brake energy recuperation	direct injection Common Rail supercharging by a pair of differently sized turbochargers with variable blade geometry particulate filter start&stop system brake energy recuperation	direct injection Common Rail turbo-supercharged particulate filter brake energy recuperation	direct injection Common Rail supercharging by a pair of differently sized turbochargers with variable blade geometry particulate filter start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear manual	5 gear manual	5 gear manual
Drive specifications	gearbox type iB5	gearbox type iB5	gearbox type iB5	gearbox type iB5	gearbox type iB5

Top speed [km/h]	196	158	158	174	174
Acceleration 0–100 km/h [s]	10.3	16.5	15.1	13.9	13.0
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	6.2	4.8	4.0	4.7	4.0
Out of town [l]	4.4	3.8	3.6	3.6	3.6
Combined [l]	5.0	4.1	3.8	4.0	4.8
CO2 emissions [g/km]	116	109	98	104	98

Emission standard	EU5 - EU6	EU5	EU6	EU5	EU6
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1279	1307	1316	1310	1316
Overall weight [kg]	1750	1780	1775	1780	1775
Maximum trailer weight unbraked/braked [kg]	635/750	575/575	575/575	575/575	575/575
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-

Boot volume [l]	304	304	304	304	304
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1372	-/1372	-/1372	-/1372	-/1372
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	5	5	5	5	5
Number of seats	5	5	5	5	5
Fuel tank volume [l]	48	48	48	48	48
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-
Front suspension	-	-	-	-	-
Rear suspension	-	-	-	-	-
Tyre dimensions front	195/60 R15	195/60 R15	195/60 R15	195/60 R15	195/60 R15
Tyre dimensions rear	195/60 R15	195/60 R15	195/60 R15	195/60 R15	195/60 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-
Steering	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	-/10.4	-/10.4	-/10.4	-/10.4	-/10.4

Overall length [mm]	4077	4077	4077	4077	4077
Overall width without/including mirrors [mm]	1751/1857	1751/1857	1751/1857	1751/1857	1751/1857
Overall height [mm]	1604	1604	1604	1604	1604
Wheelbase [mm]	2489	2489	2489	2489	2489
Front wheel track [mm]	-	-	-	-	-
Rear wheel track [mm]	-	-	-	-	-
Forward overhang [mm]	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-
Clearance [mm]	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	1017	1017	1017	1017	1017
Headroom rear [mm]	988	988	988	988	988
Front elbow/shoulder width [mm]	-/1365	-/1365	-/1365	-/1365	-/1365
Rear elbow/shoulder width [mm]	-/1356	-/1356	-/1356	-/1356	-/1356
Legroom front knees/total [mm]	-/1103	-/1103	-/1103	-/1103	-/1103
Legroom rear knees/total [mm]	-/939	-/939	-/939	-/939	-/939

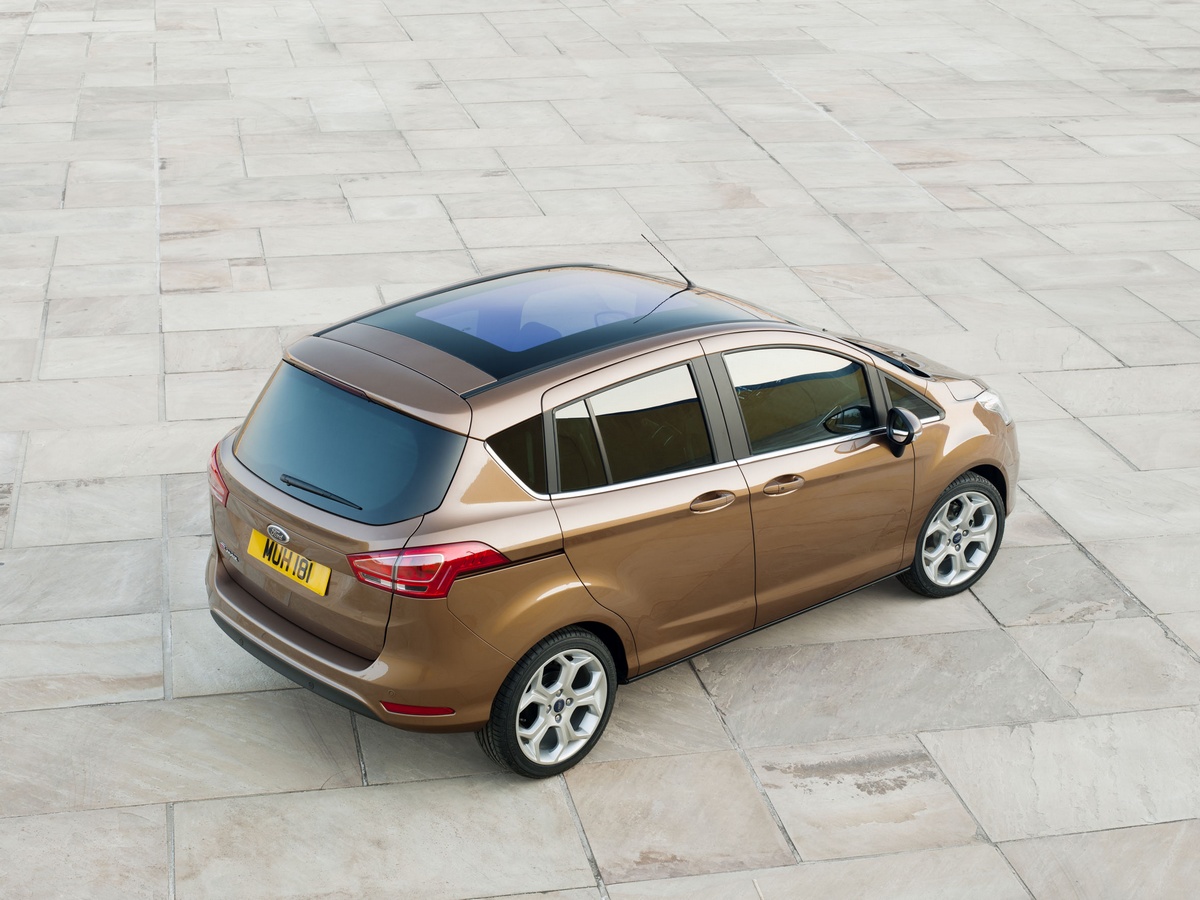

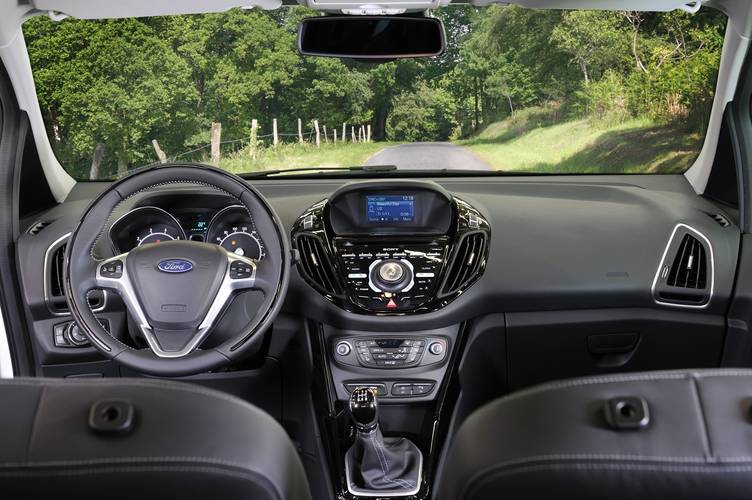

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
