	1.0 FireFly Turbo	1.0 FireFly Turbo Cross	1.3 MultiJet	1.6 MultiJet	1.3 MultiJet Cross	1.6 MultiJet Cross
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	3/12	3/12	4/16	4/16	4/16	4/16
Engine displacement [cm³]	999	999	1248	1598	1248	1598
Maximum output / speed [kW/min-1]	74/5000	74/5000	70/3750	96/3750	70/3750	96/3750
Maximum torque [Nm/min-1]	190/1500	190/1500	200/1500	320/1500	200/1500	320/1500
Bore and stroke [mm x mm]	70.0 x 86,5	70.0 x 86,5	69,6 x 82,0	79,5 x 80,5	69,6 x 82,0	79,5 x 80,5
Compression ratio	10.5:1	10.5:1	16,8:1	15.7:1	16,8:1	15.7:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection FGT turbo-supercharged Gasoline Particulate Filter cGPF start&stop system	direct injection FGT turbo-supercharged Gasoline Particulate Filter cGPF start&stop system	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	5 gear manual	6 gear manual	5 gear manual	6 gear manual
Drive specifications	-	-	-	-	-	-

Top speed [km/h]	192	183	181	208	173	200
Acceleration 0–100 km/h [s]	11.8	12.2	13.3	9.8	13.8	10.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	-	6.6	-	-	-	-
Out of town [l]	-	4.7	-	-	-	-
Combined [l]	-	5.4	-	-	-	-
CO2 emissions [g/km]	-	124	-	-	-	-

Low speed [l]	7.3-7.2	7.3-7.2	-	-	-	-
Medium speed [l]	5.7-5.4	5.7-5.4	-	-	-	-
High speed [l]	5.0-4.7	5.0-4.7	-	-	-	-
Extra high speed [l]	6.1-5.6	6.1-5.6	-	-	-	-
Combined speed [l]	5.8-5.5	5.8-5.5	4.5-4.3	4.7-4.5	4.5-4.3	4.7-4.5
CO2 emissions [g/km]	132-125	132-125	119-114	123-119	119-114	123-119

Emission standard	Euro 6d	Euro 6d	Euro 6d	Euro 6d	Euro 6d	Euro 6d
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1315	1315	1370	1415	1370	1415
Overall weight [kg]	1740	1740	1795	1840	1795	1840
Maximum trailer weight unbraked/braked [kg]	500/1500	500/1500	500/1500	500/1500	500/1500	500/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	60	60	60	60	60	60
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	440	440	440	440	440	440
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	12.5	12.5	12.5	12.5
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	205/55 R16	215/55 R17	205/55 R16	205/55 R16	215/55 R17	215/55 R17
Tyre dimensions rear	205/55 R16	215/55 R17	205/55 R16	205/55 R16	215/55 R17	215/55 R17
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	281 x 26	281 x 26	281 x 26	281 x 26	281 x 26	281 x 26
Brake dimensions rear	228 drum	228 drum	228 drum	264 x 10	228 drum	264 x 10
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4368	4368	4368	4368	4368	4368
Overall width without/including mirrors [mm]	1792/2002	1802/-	1792/2002	1792/2002	1802/-	1802/-
Overall height [mm]	1495	1556	1495	1495	1556	1556
Wheelbase [mm]	2638	2638	2638	2638	2638	2638
Front wheel track [mm]	1542	1542	1542	1542	1542	1542
Rear wheel track [mm]	1543	1543	1543	1543	1543	1543
Forward overhang [mm]	893	893	893	893	893	893
Rear overhang [mm]	837	837	837	837	837	837
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

Sedan

	1.0 FireFly Turbo	1.3 MultiJet	1.6 MultiJet
Date of sale	-	-	-
Engine type	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	3/12	4/16	4/16
Engine displacement [cm³]	999	1248	1598
Maximum output / speed [kW/min-1]	74/5000	70/3750	96/3750
Maximum torque [Nm/min-1]	190/1500	200/1500	320/1500
Bore and stroke [mm x mm]	70.0 x 86,5	69,6 x 82,0	79,5 x 80,5
Compression ratio	10.5:1	16,8:1	15.7:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection FGT turbo-supercharged Gasoline Particulate Filter cGPF start&stop system	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system

Drive axle	Front	Front	Front
Gearbox	6 gear manual	5 gear manual	6 gear manual
Drive specifications	-	-	-

Top speed [km/h]	195	184	212
Acceleration 0–100 km/h [s]	11.5	12.8	9.6
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	-	-	-
Out of town [l]	-	-	-
Combined [l]	-	-	-
CO2 emissions [g/km]	-	-	-

Low speed [l]	7.2-7.1	-	-
Medium speed [l]	5.4-5.2	-	-
High speed [l]	4.7-4.6	-	-
Extra high speed [l]	5.7-5.4	-	-
Combined speed [l]	5.5-5.3	4.3-4.2	4.5-4.4
CO2 emissions [g/km]	125-121	113-110	118-115

Emission standard	Euro 6d	Euro 6d	Euro 6d
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1265	1315	1375
Overall weight [kg]	-	-	-
Maximum trailer weight unbraked/braked [kg]	500/1200	500/1200	500/1200
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	-	-	-

Boot volume [l]	520	520	520
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	4	4	4
Number of seats	5	5	5
Fuel tank volume [l]	50	50	50
AdBlue tank volume [l]	-	12.5	12.5
Air resistance [Cd]	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	205/55 R16	205/55 R16	205/55 R16
Tyre dimensions rear	205/55 R16	205/55 R16	205/55 R16
Wheel size front	-	-	-
Wheel size rear	-	-	-
Brake dimensions front	281 x 26	281 x 26	281 x 26
Brake dimensions rear	-	-	-
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-

Overall length [mm]	4532	4532	4532
Overall width without/including mirrors [mm]	1792/2002	1792/2002	1792/2002
Overall height [mm]	1497	1497	1497
Wheelbase [mm]	2638	2638	2638
Front wheel track [mm]	1542	1542	1542
Rear wheel track [mm]	1543	1543	1543
Forward overhang [mm]	893	893	893
Rear overhang [mm]	1003	1003	1003
Clearance [mm]	-	-	-
Wading depth [mm]	-	-	-
Approach angle front [°]	-	-	-
Approach angle rear [°]	-	-	-
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	-	-	-
Headroom rear [mm]	-	-	-
Front elbow/shoulder width [mm]	-	-	-
Rear elbow/shoulder width [mm]	-	-	-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

Estate

	1.0 FireFly Turbo	1.3 MultiJet	1.6 MultiJet
Date of sale	-	-	-
Engine type	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	3/12	4/16	4/16
Engine displacement [cm³]	999	1248	1598
Maximum output / speed [kW/min-1]	74/5000	70/3750	96/3750
Maximum torque [Nm/min-1]	190/1500	200/1500	320/1500
Bore and stroke [mm x mm]	70.0 x 86,5	69,6 x 82,0	79,5 x 80,5
Compression ratio	10.5:1	16,8:1	15.7:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection FGT turbo-supercharged Gasoline Particulate Filter cGPF start&stop system	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system	direct injection Multijet II with Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system

Drive axle	Front	Front	Front
Gearbox	6 gear manual	5 gear manual	6 gear manual
Drive specifications	-	-	-

Top speed [km/h]	191	180	207
Acceleration 0–100 km/h [s]	12.0	13.5	10.1
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	-	-	-
Out of town [l]	-	-	-
Combined [l]	-	-	-
CO2 emissions [g/km]	-	-	-

Low speed [l]	7.4-7.3	-	-
Medium speed [l]	5.8-5.5	-	-
High speed [l]	5.0-4.7	-	-
Extra high speed [l]	6.1-5.7	-	-
Combined speed [l]	5.9-5.6	4.5-4.3	4.7-4.5
CO2 emissions [g/km]	133-126	119-114	123-119

Emission standard	Euro 6d	Euro 6d	Euro 6d
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1345	1385	1470
Overall weight [kg]	1820	1860	1945
Maximum trailer weight unbraked/braked [kg]	500-550/1500	500-550/1500	500-550/1500
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	60	60	60
Maximum load on roof/carrier [kg]	-	-	-

Boot volume [l]	550	550	550
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1450	-/1450	-/1450
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	5	5	5
Number of seats	5	5	5
Fuel tank volume [l]	50	50	50
AdBlue tank volume [l]	-	12.5	12.5
Air resistance [Cd]	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	205/55 R16	205/55 R16	205/55 R16
Tyre dimensions rear	205/55 R16	205/55 R16	205/55 R16
Wheel size front	-	-	-
Wheel size rear	-	-	-
Brake dimensions front	281 x 26	281 x 26	281 x 26
Brake dimensions rear	251 x 10	264 x 10	264 x 10
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-

Overall length [mm]	4571	4571	4571
Overall width without/including mirrors [mm]	1792/2002	1792/2002	1792/2002
Overall height [mm]	1514	1514	1514
Wheelbase [mm]	2638	2638	2638
Front wheel track [mm]	1542	1542	1542
Rear wheel track [mm]	1543	1543	1543
Forward overhang [mm]	893	893	893
Rear overhang [mm]	1040	1040	1040
Clearance [mm]	-	-	-
Wading depth [mm]	-	-	-
Approach angle front [°]	-	-	-
Approach angle rear [°]	-	-	-
Transition angle [°]	-	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	-	-	-
Headroom rear [mm]	-	-	-
Front elbow/shoulder width [mm]	-	-	-
Rear elbow/shoulder width [mm]	-	-	-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

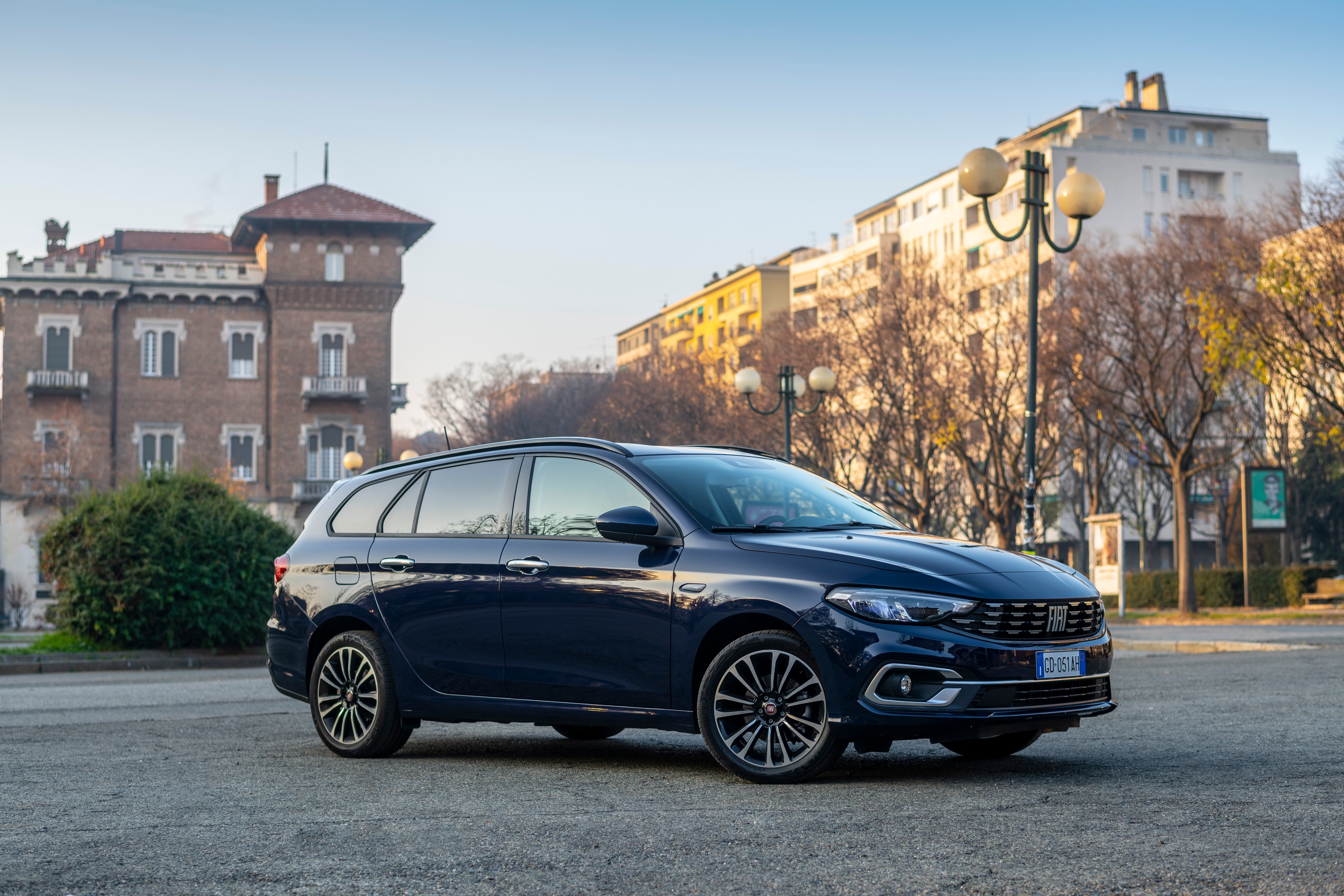

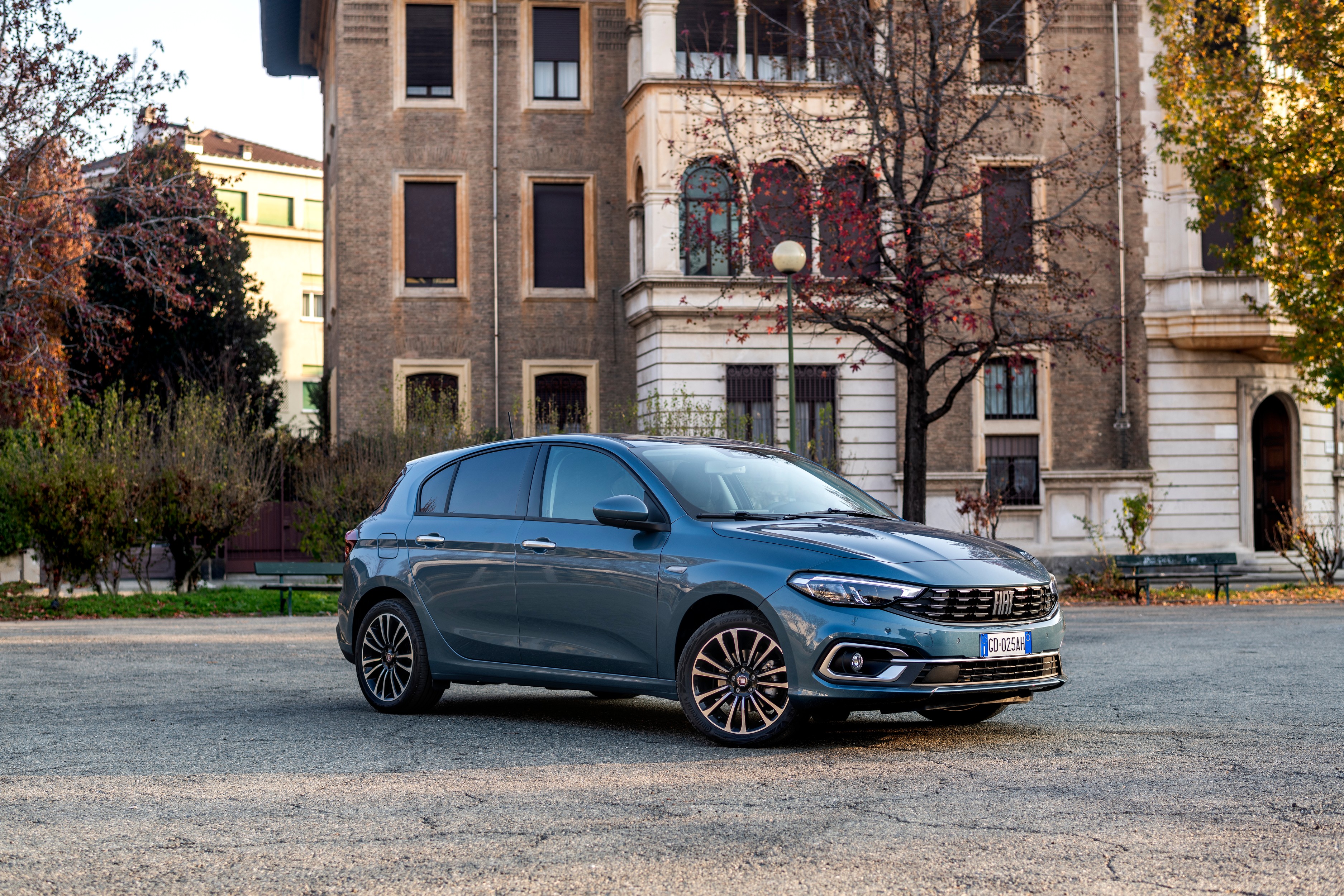

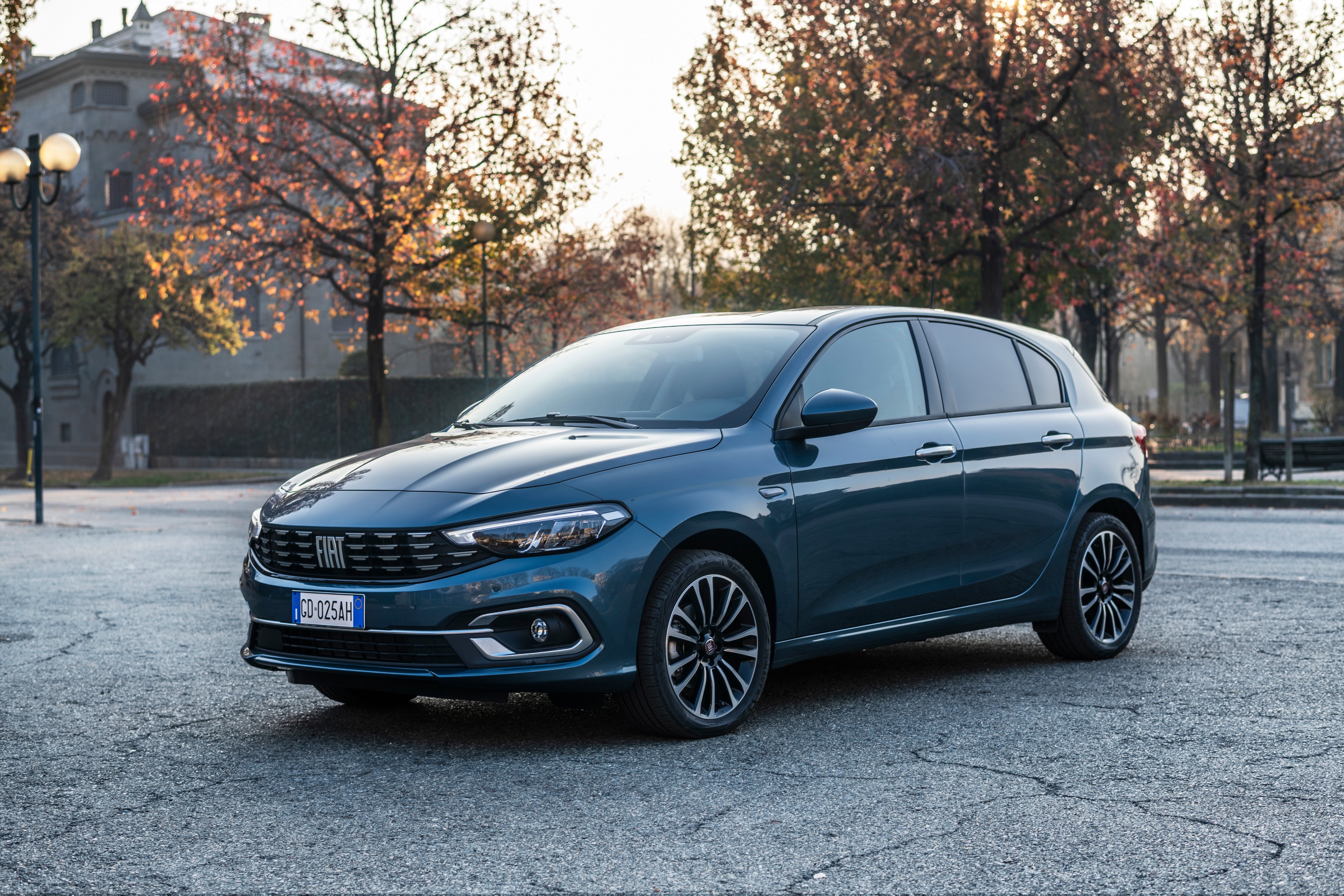

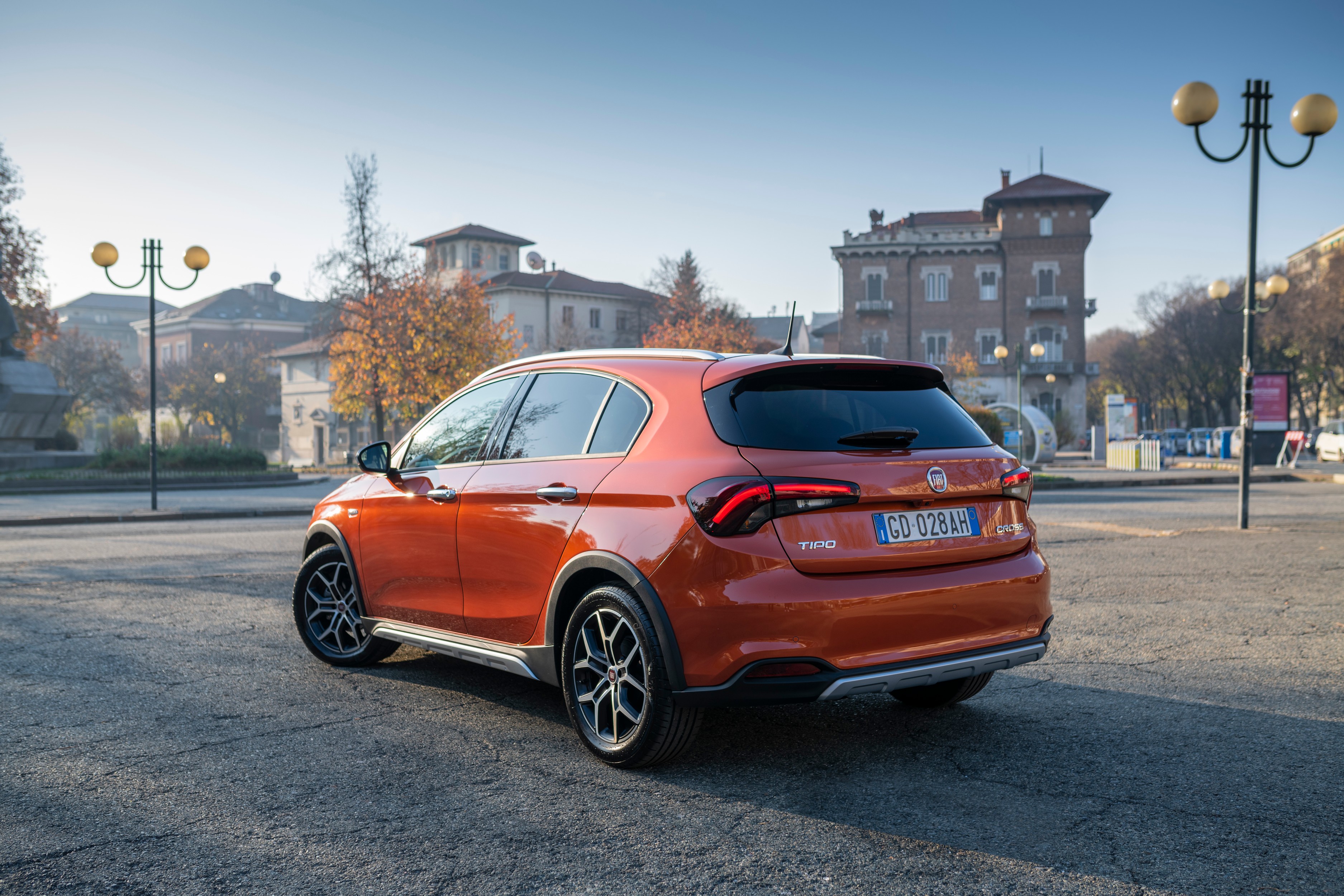

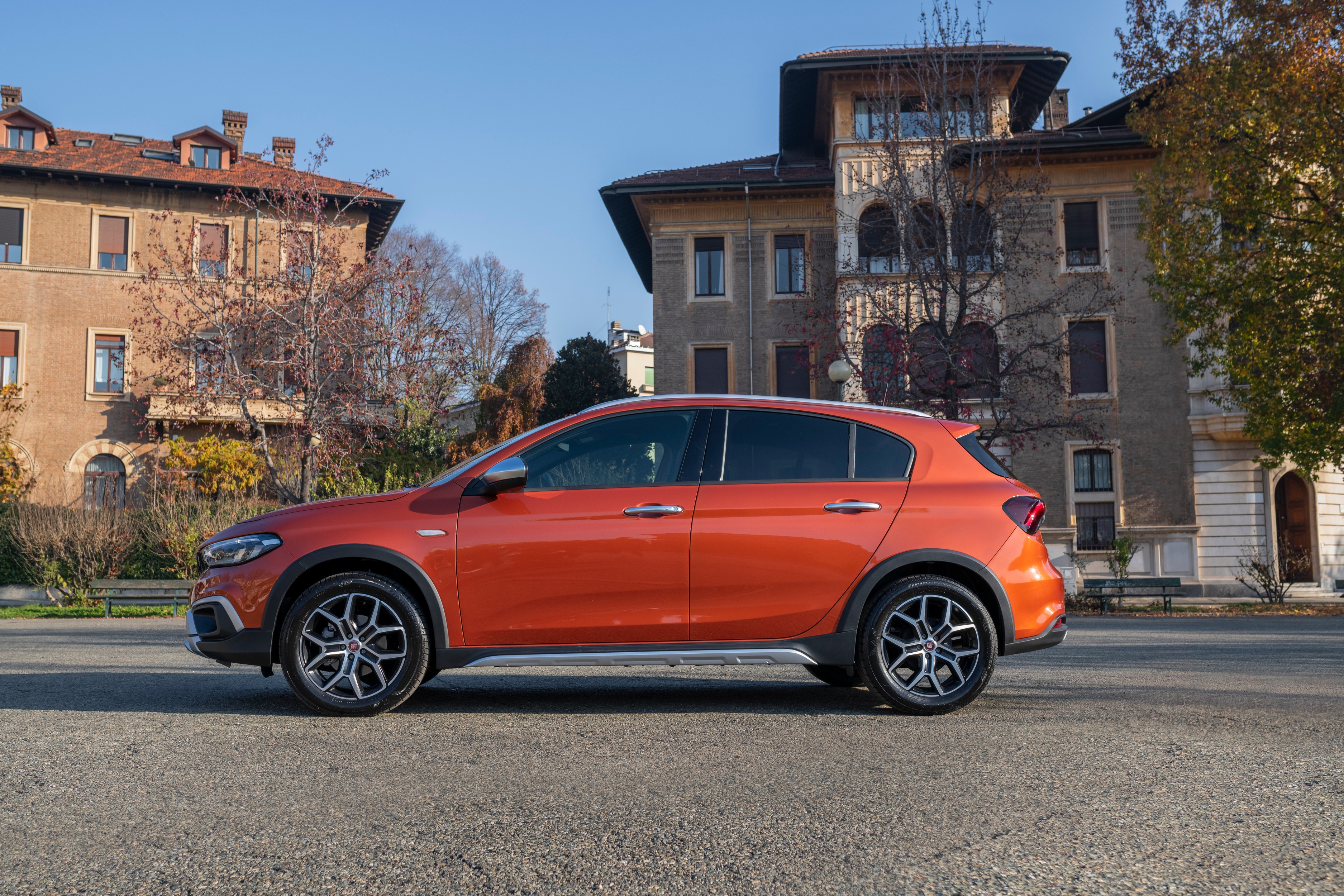

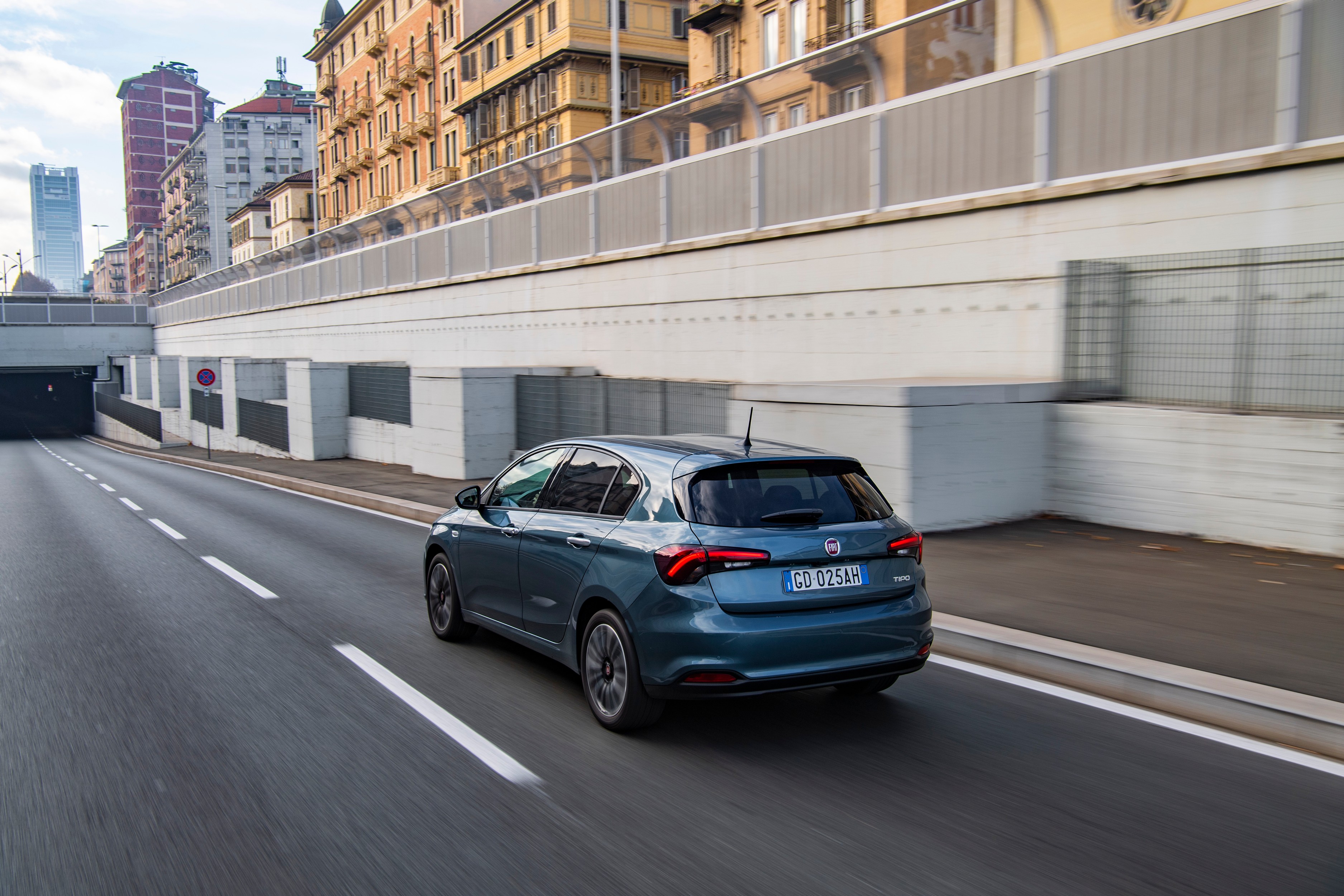

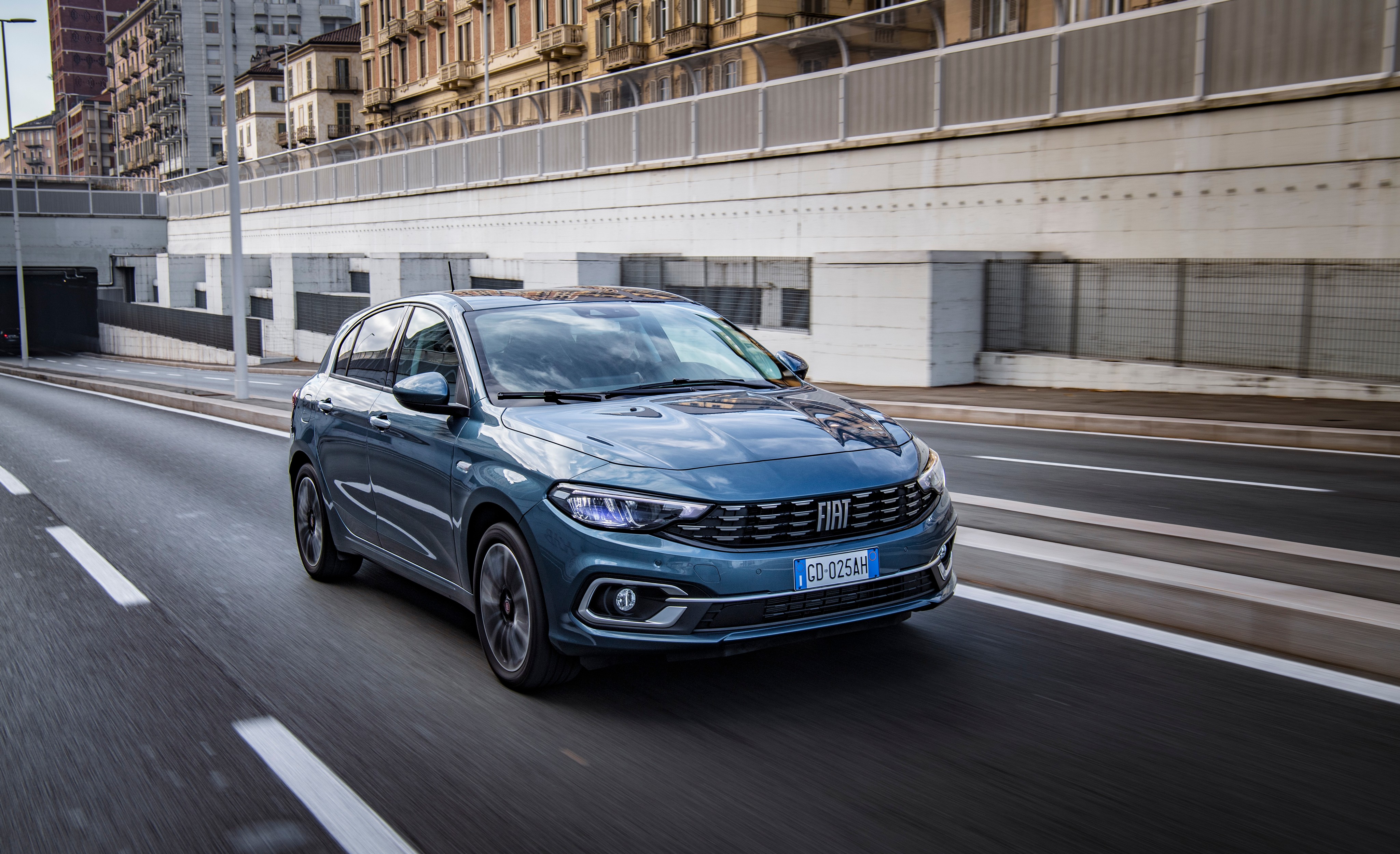

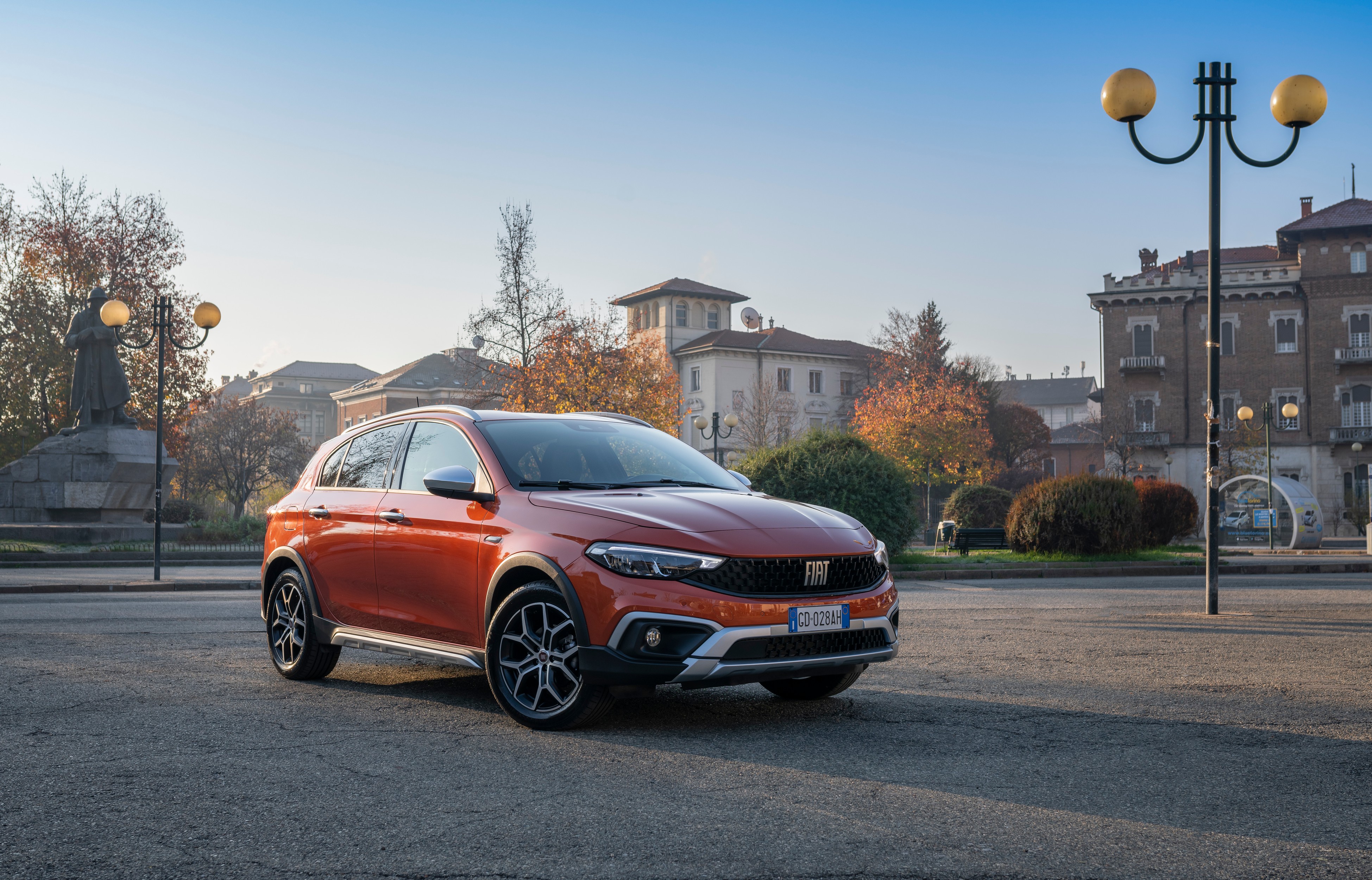

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.

Fiat Tipo

Date of manufacture

Platform

Manufacturing locations

Designer

Tags

Car body style

Five-door hatchback

Sedan

Estate

Euro NCAP

Technical data

Five-door hatchback

Sedan

Estate

Gallery
