Basic information Technical Specifications Gallery

Fiat Sedici

Date of manufacture

6/2006 – 2009 (SUV)

Platform

Manufacturing locations

Esztergom, Hungary

Designer

Giorgietto Giugiaro

Car body style

SUV

Date of manufacture

6/2006 – 2009

Internal designation

Engine size

Petrol

1.6 16V

Diesel

1.9 Multijet 8v

Technical data

SUV

	1.6 16V	1.6 16V	1.9 Multijet 8v	1.9 Multijet 8v
Date of sale	-	-	-	-
Engine type	Petrol	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/8	4/8
Engine displacement [cm³]	1586	1586	1910	1910
Maximum output / speed [kW/min-1]	79/5600	79/5600	88/4000	88/4000
Maximum torque [Nm/min-1]	145/4000	145/4000	280/2050	280/2050
Bore and stroke [mm x mm]	78,0 x 83,0	78,0 x 83,0	82,0 x 90,4	82,0 x 90,4
Compression ratio	10,5:1	10,5:1	18,0:1	18,0:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection	direct injection	direct injection Common Rail turbo-supercharged particulate filter	direct injection Common Rail turbo-supercharged particulate filter

Drive axle	Front	4x4	Front	4x4
Gearbox	5 gear manual	5 gear manual	6 gear manual	6 gear manual
Drive specifications	-	all-wheel drive with electronically controlled self-locking differential	-	all-wheel drive with electronically controlled self-locking differential

Top speed [km/h]	180	170	190	180
Acceleration 0–100 km/h [s]	10.7	10.8	10.5	11.2
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	8.4	8.9	7.8	8.1
Out of town [l]	5.8	6.1	5.5	5.7
Combined [l]	6.8	7.1	6.3	6.6
CO2 emissions [g/km]	165	173	166	174

Emission standard	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1185	1245	1320	1350
Overall weight [kg]	-	-	-	-
Maximum trailer weight unbraked/braked [kg]	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-

Boot volume [l]	270	270	270	270
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/670	-/670	-/670	-/670
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	50	50	50	50
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar	torsion bar	torsion bar
Tyre dimensions front	205/60 R16	205/60 R16	205/60 R16	205/60 R16
Tyre dimensions rear	205/60 R16	205/60 R16	205/60 R16	205/60 R16
Wheel size front	-	-	-	-
Wheel size rear	-	-	-	-
Brake dimensions front	280	280	280	280
Brake dimensions rear	220	220	220	220
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	-/11.0	-/11.0	-/11.0	-/11.0

Overall length [mm]	4155	4155	4115	4115
Overall width without/including mirrors [mm]	1755/-	1755/-	1755/-	1755/-
Overall height [mm]	1620	1620	1620	1620
Wheelbase [mm]	2500	2500	2500	2500
Front wheel track [mm]	-	-	-	-
Rear wheel track [mm]	-	-	-	-
Forward overhang [mm]	-	-	-	-
Rear overhang [mm]	-	-	-	-
Clearance [mm]	190	190	190	190
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	-	-	-	-
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

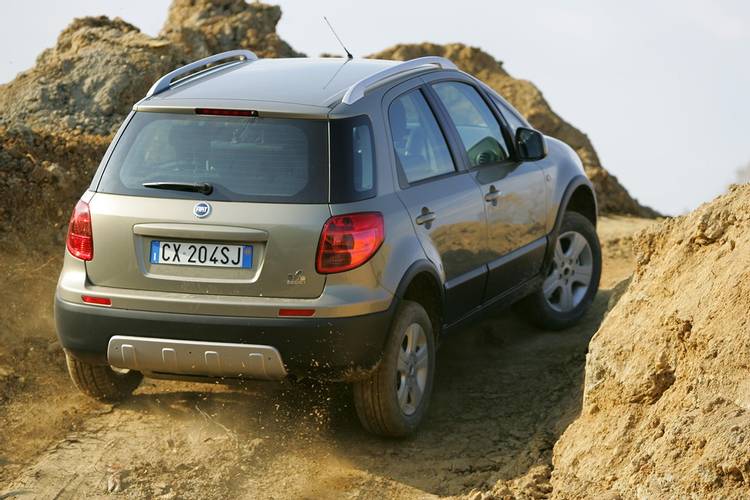

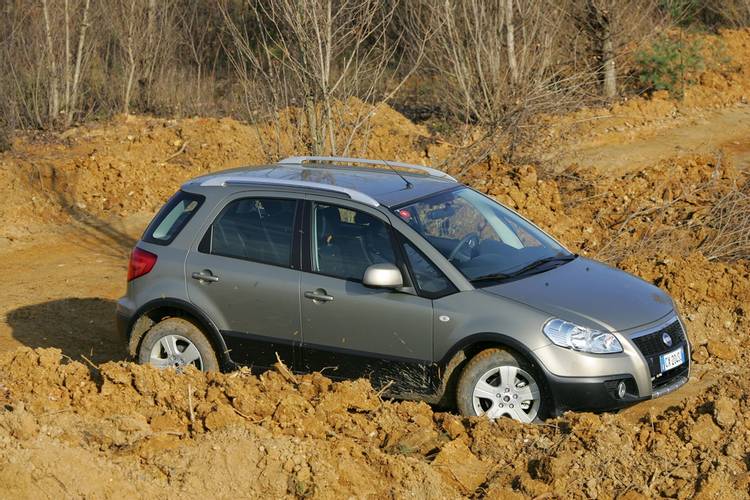

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
