Fiat Qubo

Date of manufacture

2/2008 – 2016 (MPV)

Platform

GM Fiat Small platform

Manufacturing locations

Bursa, Turkey

Designer

Car body style

MPV

Date of manufacture

2/2008 – 2016

Internal designation

225

Engine size

Petrol

1.4 8v

1.4 Natural Power

Diesel

1.3 Multijet

Technical data

MPV

	1.4 8v	1.4 8v	1.4 Natural Power	1.3 Multijet	1.3 Multijet	1.3 Multijet
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/8	4/8	4/8	4/16	4/16	4/16
Engine displacement [cm³]	1360	1368	1368	1248	1248	1248
Maximum output / speed [kW/min-1]	54/5200	57/6000	57/6000 [51/6000 CNG]	55/4000	55/4000	55/4000
Maximum torque [Nm/min-1]	118/2600	115/3200	115/3250 [104/3250 CNG]	190/1750	190/1750	190/1750
Bore and stroke [mm x mm]	75,0 x 77,0	72.0 x 84.0	72,0 x 84,0	69,6 x 82,0	69,6 x 82,0	69,6 x 82,0
Compression ratio	10,5:1	10,5:1	11,1:1	17,6:1	17,6:1	17,6:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	-	-	combustion of petrol or CNG	direct injection Multijet with Common Rail turbo-supercharged particulate filter (EU5)	direct injection Multijet with Common Rail turbo-supercharged particulate filter (pro EU5 standard) start&stop system	direct injection Multijet with Common Rail turbo-supercharged particulate filter (EU5) start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear manual	5 gear manual	5 gear manual	5 gear robotic manual
Drive specifications	-	-	-	-	-	robotic gearbox Dualogic

Top speed [km/h]	155	155	155 [149 CNG]	155	155	155
Acceleration 0–100 km/h [s]	15.2	14.7	15.9 [17.7 CNG]	15.2	15.2	15.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.2	8.9	8.9 [5.6 kg]	5.7	4.9	4.8
Out of town [l]	5.6	5.8	5.5 [3.5 kg]	3.8	3.6	3.7
Combined [l]	6.6	6.9	6.8 [4.3 kg]	4.5	4.1	4.1
CO2 emissions [g/km]	152	161	157 [119 CNG]	119	107	107

Emission standard	EU4 - EU5	EU6	EU5 - EU6	EU4 - EU5+	EU5+	EU4 - EU5+
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1240	1180	1290	1200	1200	1200
Overall weight [kg]	1680	1690	1750	1710	1710	1710
Maximum trailer weight unbraked/braked [kg]	400/600	400/600	-	400/1000	400/600	400/600
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	330	330	250	330	330	330
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/2500	-/2500	-/2400	-/2500	-/2500	-/2500
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	45	45	45 [13.2 kg]	45	45	45
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar	torsion bar	torsion bar	torsion bar	torsion bar
Tyre dimensions front	185/65 R15	185/65 R15	185/65 R15	185/65 R15	185/65 R15	185/65 R15
Tyre dimensions rear	185/65 R15	185/65 R15	185/65 R15	185/65 R15	185/65 R15	185/65 R15
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	257	257	257	257	257	257
Brake dimensions rear	-	-	-	-	-	-
Steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering	Rack & pinion with hydraulic power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.55/-	10.55/-	10.55/-	10.55/-	10.55/-	10.55/-

Overall length [mm]	3959	3959	3959	3959	3959	3959
Overall width without/including mirrors [mm]	1716/-	1716/-	1716/-	1716/-	1716/-	1716/-
Overall height [mm]	1735	1735	1735	1735	1735	1735
Wheelbase [mm]	2513	2513	2513	2513	2513	2513
Front wheel track [mm]	1462	1462	1462	1462	1462	1462
Rear wheel track [mm]	1464	1464	1464	1464	1464	1464
Forward overhang [mm]	760	760	760	760	760	760
Rear overhang [mm]	591	591	591	591	591	591
Clearance [mm]	130	130	130	130	130	130
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.3 Multijet
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1248
Maximum output / speed [kW/min-1]	70/4000
Maximum torque [Nm/min-1]	200/1500
Bore and stroke [mm x mm]	69,6 x 82,0
Compression ratio	16,8:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Multijet with Common Rail turbocharger with variable blade geometry particulate filter start&stop system

Drive axle	Front
Gearbox	5 gear manual
Drive specifications	-

Top speed [km/h]	170
Acceleration 0–100 km/h [s]	12.2
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	4.9
Out of town [l]	3.6
Combined [l]	4.1
CO2 emissions [g/km]	107

Emission standard	EU5+
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1200
Overall weight [kg]	1710
Maximum trailer weight unbraked/braked [kg]	400/1000
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	100/-

Boot volume [l]	330
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/2500
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	45
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson
Rear suspension	torsion bar
Tyre dimensions front	185/65 R15
Tyre dimensions rear	185/65 R15
Wheel size front	-
Wheel size rear	-
Brake dimensions front	284
Brake dimensions rear	-
Steering	Rack & pinion with hydraulic power steering
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.55/-

Overall length [mm]	3959
Overall width without/including mirrors [mm]	1716/-
Overall height [mm]	1735
Wheelbase [mm]	2513
Front wheel track [mm]	1462
Rear wheel track [mm]	1464
Forward overhang [mm]	760
Rear overhang [mm]	591
Clearance [mm]	130
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

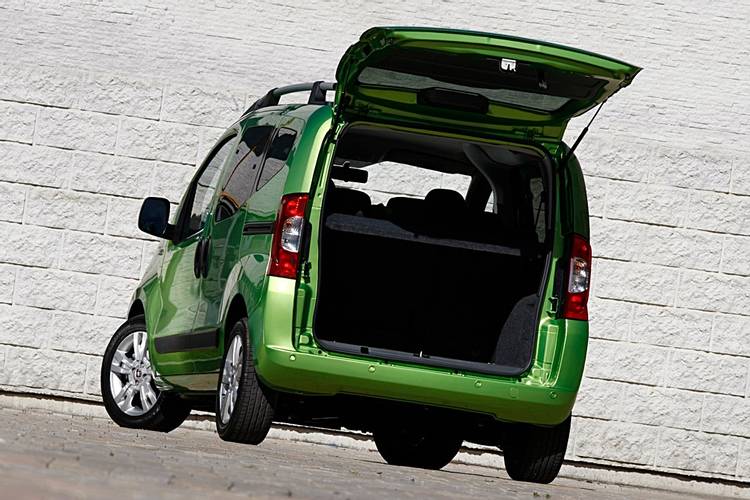

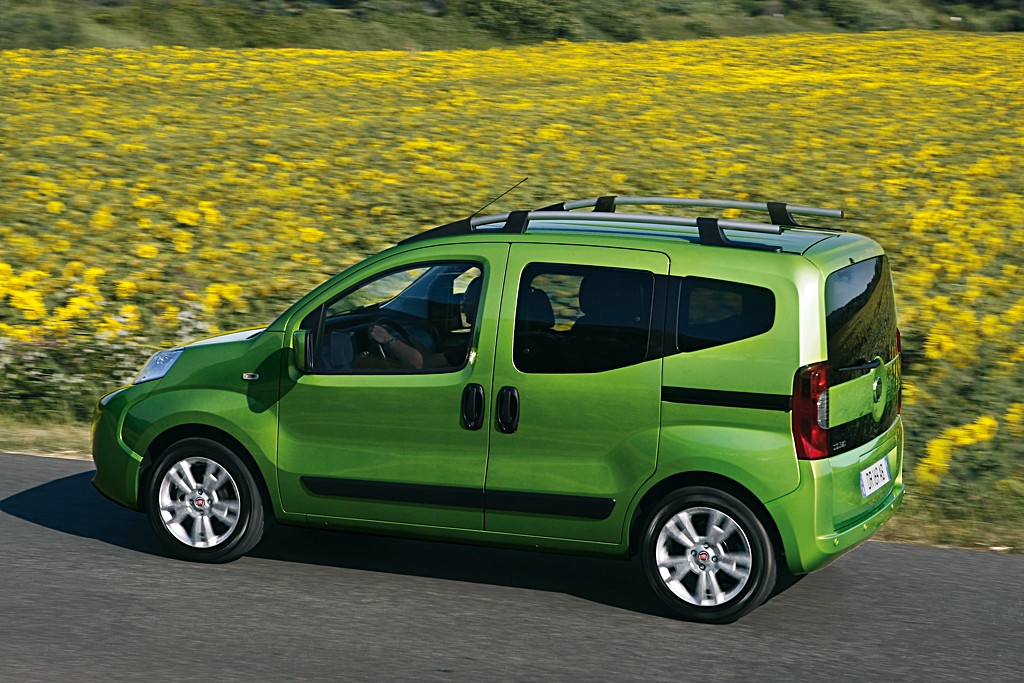

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
