	1.2	1.2 Climbing	1.2 Climbing	1.3 Multijet 16v	1.3 Multijet 16v Climbing	1.3 Multijet 16v Cross
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/8	4/8	4/8	4/16	4/16	4/16
Engine displacement [cm³]	1242	1242	1242	1248	1248	1248
Maximum output / speed [kW/min-1]	44/5000	44/5000	50/5500	51/4000	51/4000	51/4000
Maximum torque [Nm/min-1]	102/2500	102/2500	102/3000	145/1500	145/1500	145/1500
Bore and stroke [mm x mm]	70,8 x 78,86	70,8 x 78,86	70,8 x 78,86	69,6 x 82,0	69,6 x 82,0	69,6 x 82,0
Compression ratio	9,8:1	9,8:1	11,1:1	18,0:1	18,0:1	18,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	-	-	-	direct injection Multijet with Common Rail turbo-supercharged	direct injection Multijet with Common Rail turbo-supercharged	direct injection Multijet with Common Rail turbo-supercharged

Drive axle	4x4	4x4	4x4	4x4	4x4	4x4
Gearbox	5 gear manual	5 gear manual	5 gear manual	5 gear manual	5 gear manual	5 gear manual
Drive specifications	permanent all-wheel drive pomocí viskózní spojky a dvou diferenciálů	permanent all-wheel drive pomocí viskózní spojky a dvou diferenciálů	permanent all-wheel drive pomocí viskózní spojky a dvou diferenciálů	permanent all-wheel drive pomocí viskózní spojky a dvou diferenciálů	permanent all-wheel drive pomocí viskózní spojky a dvou diferenciálů	permanent all-wheel drive pomocí viskózní spojky a dvou diferenciálů

Top speed [km/h]	145	145	148	150	150	150
Acceleration 0–100 km/h [s]	20.0	20.0	15.3	18.0	18.0	18.0
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.9	7.9	7.3	7.0	7.0	7.0
Out of town [l]	5.8	5.8	5.3	4.4	4.4	4.4
Combined [l]	6.6	6.6	6.0	5.3	5.3	5.3
CO2 emissions [g/km]	156	156	139	141	141	141

Emission standard	EU4	EU4	EU5	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1040	1055	-	1135	1150	1165
Overall weight [kg]	-	-	-	-	-	-
Maximum trailer weight unbraked/braked [kg]	400/800	400/800	400/800	400/800	400/800	400/800
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	200	200	206	200	200	200
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/855	-/855	-/775	-/855	-/855	-/855
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	4-5	4-5	4-5	4-5	4-5	4-5
Fuel tank volume [l]	30	30	30	30	30	30
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	165/70 R14 81T	185/65 R14 86T	185/65 R14 86T	165/70 R14 81T	185/65 R14 86T	175/65 R15 84T
Tyre dimensions rear	165/70 R14 81T	185/65 R14 86T	185/65 R14 86T	165/70 R14 81T	185/65 R14 86T	175/65 R15 84T
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	240	240	240	257	257	257
Brake dimensions rear	240	240	240	240	240	240
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	9.6	9.6	9.6	9.6	9.6	9.6

Overall length [mm]	3538	3574	3574	3538	3574	3581
Overall width without/including mirrors [mm]	1589/-	1605/-	1605/-	1589/-	1605/-	1611/-
Overall height [mm]	1630	1632	1632	1630	1632	1643
Wheelbase [mm]	2305	2305	2305	2305	2305	2305
Front wheel track [mm]	1366	1366	1366	1366	1366	1366
Rear wheel track [mm]	1358	1358	1358	1358	1358	1358
Forward overhang [mm]	-	721	721	-	721	-
Rear overhang [mm]	-	548	548	-	548	-
Clearance [mm]	160	165	165	160	165	170
Wading depth [mm]	300	300	300	300	300	300
Approach angle front [°]	26	24	24	26	24	25
Approach angle rear [°]	44	42	42	44	42	45
Transition angle [°]	23	24	24	23	24	22
Climbing rate [°]	60	60	60	65	60	65
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.3 Multijet 16v Climbing
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1248
Maximum output / speed [kW/min-1]	55/4000
Maximum torque [Nm/min-1]	145/1400
Bore and stroke [mm x mm]	69,6 x 82,0
Compression ratio	16,8:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Multijet with Common Rail turbo-supercharged

Drive axle	4x4
Gearbox	5 gear manual
Drive specifications	permanent all-wheel drive pomocí viskózní spojky a dvou diferenciálů

Top speed [km/h]	152
Acceleration 0–100 km/h [s]	16.1
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	6.4
Out of town [l]	4.0
Combined [l]	4.9
CO2 emissions [g/km]	128

Emission standard	EU5
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	-
Overall weight [kg]	-
Maximum trailer weight unbraked/braked [kg]	400/800
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	-

Boot volume [l]	206
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/775
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	4-5
Fuel tank volume [l]	30
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson, torsion stabiliser
Rear suspension	twist beam axle with trailing arms
Tyre dimensions front	185/65 R14 86T
Tyre dimensions rear	185/65 R14 86T
Wheel size front	-
Wheel size rear	-
Brake dimensions front	257
Brake dimensions rear	240
Steering	Rack & pinion with electric power steering m
Number of steering wheel turns	-
Turning diameter track/circumference [m]	9.6

Overall length [mm]	3574
Overall width without/including mirrors [mm]	1605/-
Overall height [mm]	1632
Wheelbase [mm]	2305
Front wheel track [mm]	1366
Rear wheel track [mm]	1358
Forward overhang [mm]	721
Rear overhang [mm]	548
Clearance [mm]	165
Wading depth [mm]	300
Approach angle front [°]	24
Approach angle rear [°]	42
Transition angle [°]	24
Climbing rate [°]	60
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.

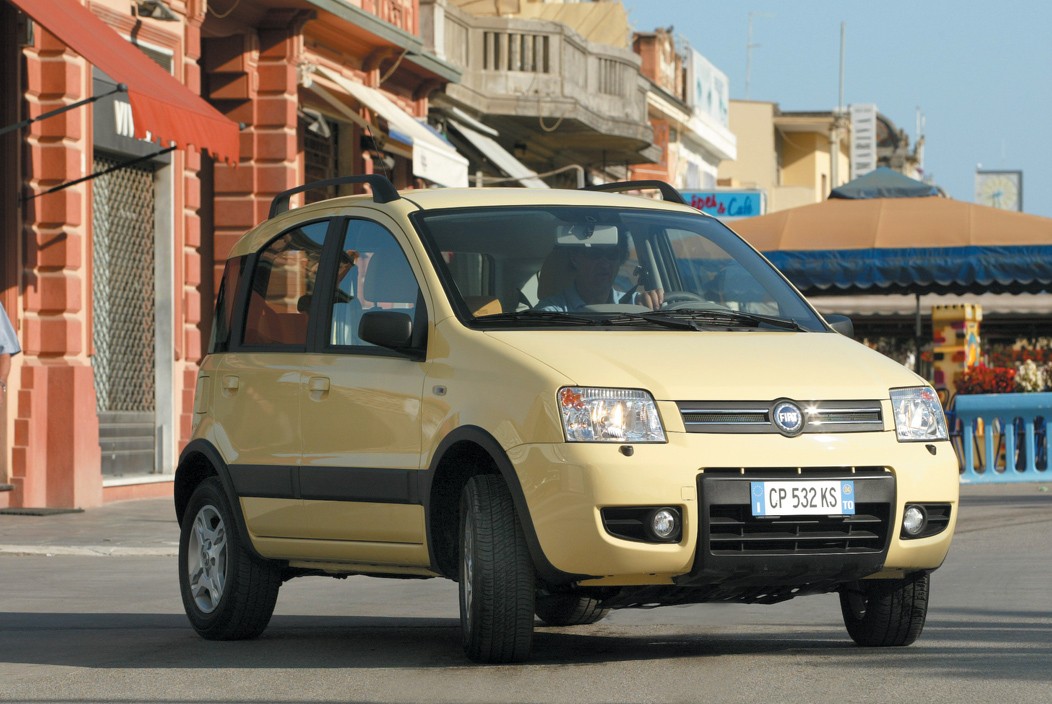

Fiat Panda 4x4
