Fiat Panda
Date of manufacture
2/2012 – 2020 (Five-door hatchback)
2014 – 2020 (SUV)
Platform
Fiat Mini platform
Manufacturing locations
Pomigliano d'Arco, Italy
Designer
Centro Stile Fiat
Tags
A-segment
Italian cars
Car body style
Five-door hatchback
Date of manufacture
2/2012 – 2020Internal designation
319Engine size
SUV (Cross)
Date of manufacture
2014 – 2020Internal designation
319Engine size
Technical data
Five-door hatchback
| 1.2 | 1.2 LPG | 0.9 TwinAir Turbo | 0.9 TwinAir Turbo Natural Power | 0.9 TwinAir Turbo 4x4 | 1.0 GSE Hybrid | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol + Electric |
| Number of cylinders/valves | 4/8 | 4/8 | 2/8 | 2/8 | 2/8 | 3/6 |
| Engine displacement [cm³] | 1242 | 1242 | 875 | 875 | 875 | 999 |
| Maximum output / speed [kW/min-1] | 51/5500 | 51/5500 | 63/5500 | 63/5500 | 63/5500 | 51/6000 36 el. |
| Maximum torque [Nm/min-1] | 102/3000 | 102/3000 | 145/1900 | 145/1900 | 145/1900 | 92/3500 50 el. |
| Bore and stroke [mm x mm] | 70,8 x 78,9 | 70,8 x 78,9 | 80,5 x 86,0 | 80,5 x 86,0 | 80,5 x 86,0 | 70,0 x 86.5 |
| Compression ratio | 11,1:1 | 11,1:1 | 10,0:1 | 10,0:1 | 10,0:1 | 12,0.1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 164 | 164 | 177 | 170 [162-168 CNG] | 163-166 | 164 |
| Acceleration 0–100 km/h [s] | 14.2 | 14.8 | 11.5 | 12.0-12.7 [12.8-14.1 CNG] | 12.1-12.8 | 13.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2-6.7 | 7.4-6.7 [9.3-7.1 LPG] | 4.8 | 6.8-5.8 [4.3-4.0 kg] | 6.0-5.9 | 4.9 |
| Out of town [l] | 5.2-4.3 | 4.8-4.3 [6.3-6.1 LPG] | 3.7 | 4.8-3.9 [3.2-2.6 kg] | 5.7-4.3 | 3.6 |
| Combined [l] | 5.9-5.2 | 5.7-5.2 [7.3-6.6 LPG] | 4.1 | 5.5-4.6 [3.6-3.1 kg] | 5.8-4.9 | 4.1 |
| CO2 emissions [g/km] | 135-120 | 131-120 [118-107 LPG] | 95 | 125-107 [97-86 CNG] | 132-114 | 93 |
| Emission standard | EU5 - EU6 - Euro 6D-Temp | EU5 - EU6 - Euro 6D-Temp | EU5/EU6 | EU5 - EU6 - Euro 6D-Temp | EU5 - EU6 - Euro 6D-Temp | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | 12 |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 11 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1015-1055 | 1075 | 1050 | 1155 | 1125-1155 | 1055 |
| Overall weight [kg] | 1440 [1420 four seats] | 1475 [1455 four seats] | 1475 [1455 four seats] | 1550 [1540 four seats] | 1550 [1530 four seats] | 1440 [1420 four seats] |
| Maximum trailer weight unbraked/braked [kg] | 400/800 | - | 400/800 | - | 400/800 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | - |
| Maximum load on roof/carrier [kg] | 55/- | 55/- | 55/- | 55/- | 55/- | 55/- |
| Boot volume [l] | 225 | 200 | 225 | 200 | 225 | 225 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/870 | -/845 | -/870 | -/845 | -/870 | -/870 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4-5 | 4 | 4-5 | 4-5 | 4-5 | 4-5 |
| Fuel tank volume [l] | 37 | 37 [30.5 LPG] | 37 | 37 [12 kg] | 35 | 38 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 175/65 R14 82T | 175/65 R14 82T | 175/65 R14 82T | 175/65 R15 84T | 175/65 R14 82T | 175/65 R14 82T |
| Tyre dimensions rear | 175/65 R14 82T | 175/65 R14 82T | 175/65 R14 82T | 175/65 R15 84T | 175/65 R14 82T | 175/65 R14 82T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 257 x 12 | 257 x 12 | 257 x 22 | 257 x 22 | 257 x 22 | 257 x 22 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.3/- | 9.3/- | 9.3/- | 9.7/- | 9.7/- | 9.7/- |
| Overall length [mm] | 3653 | 3653 | 3653 | 3653 | 3653 | 3653 |
| Overall width without/including mirrors [mm] | 1643/1882 | 1643/1882 | 1643/1882 | 1643/1882 | 1643/1882 | 1643/1882 |
| Overall height [mm] | 1551 | 1551 | 1551 | 1605 | 1551 | 1551 |
| Wheelbase [mm] | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Front wheel track [mm] | 1409 | 1409 | 1409 | 1414 | 1409 | 1409 |
| Rear wheel track [mm] | 1407 | 1407 | 1407 | 1408 | 1407 | 1407 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.3 MultiJet | 1.3 MultiJet 4x4 | 1.3 MultiJet | 1.3 MultiJet 4x4 | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2015 to | from 2015 to | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1248 | 1248 | 1248 | 1248 | ||
| Maximum output / speed [kW/min-1] | 55/4000 | 55/4000 | 70/3750 | 70/3750 | ||
| Maximum torque [Nm/min-1] | 190/1500 | 190/1500 | 200/1500 | 200/1500 | ||
| Bore and stroke [mm x mm] | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | ||
| Compression ratio | 16,8:1 | 16,8:1 | 16,8:1 | 16,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | 4x4 | Front | 4x4 | ||
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | ||
| Drive specifications | - |
| - |
| ||
| Top speed [km/h] | 168 | 159 | 182 | 167 | ||
| Acceleration 0–100 km/h [s] | 12.8 | 14.5 | 11.0 | 12.5 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4.7 | 5.0 | 4.3 | 4.7 | ||
| Out of town [l] | 3.5 | 4.6 | 3.2 | 4.3 | ||
| Combined [l] | 3.9 | 4.7 | 3.6 | 4.4 | ||
| CO2 emissions [g/km] | 104 | 125 | 94 | 117 | ||
| Emission standard | EU5+ | EU5+ | EU6 | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1035 | 1115 | 1120 | 1200 | ||
| Overall weight [kg] | 1535 [1515 four seats] | 1615 [1595 four seats] | 1535 [1515 four seats] | 1615 [1595 four seats] | ||
| Maximum trailer weight unbraked/braked [kg] | 400/900 | 400/900 | 400/900 | 400/900 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | ||
| Maximum load on roof/carrier [kg] | 55/- | 55/- | 55/- | 55/- | ||
| Boot volume [l] | 225 | 225 | 225 | 225 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/870 | -/870 | -/870 | -/870 | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 4-5 | 4-5 | 4-5 | 4-5 | ||
| Fuel tank volume [l] | 37 | 35 | 37 | 35 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 175/65 R14 82T | 175/65 R15 84T | 175/65 R14 82T | 175/65 R14 82T | ||
| Tyre dimensions rear | 175/65 R14 82T | 175/65 R15 84T | 175/65 R14 82T | 175/65 R14 82T | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | 257 x 22 | 257 x 22 | 257 x 22 | 257 x 22 | ||
| Brake dimensions rear | - | 240 x 11 | - | - | ||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 9.7/- | 9.7/- | 9.3/- | 9.7/- | ||
| Overall length [mm] | 3653 | 3686 | 3653 | 3653 | ||
| Overall width without/including mirrors [mm] | 1643/1882 | 1643/1882 | 1643/1882 | 1643/1882 | ||
| Overall height [mm] | 1551 | 1605 | 1551 | 1551 | ||
| Wheelbase [mm] | 2300 | 2300 | 2300 | 2300 | ||
| Front wheel track [mm] | 1409 | 1411 | 1409 | 1409 | ||
| Rear wheel track [mm] | 1407 | 1408 | 1407 | 1407 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | 21 | - | - | ||
| Approach angle rear [°] | - | 32 | - | - | ||
| Transition angle [°] | - | 20 | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |

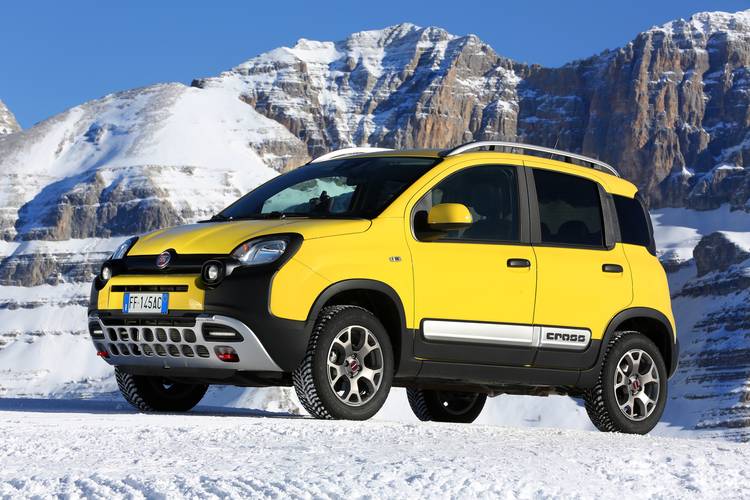

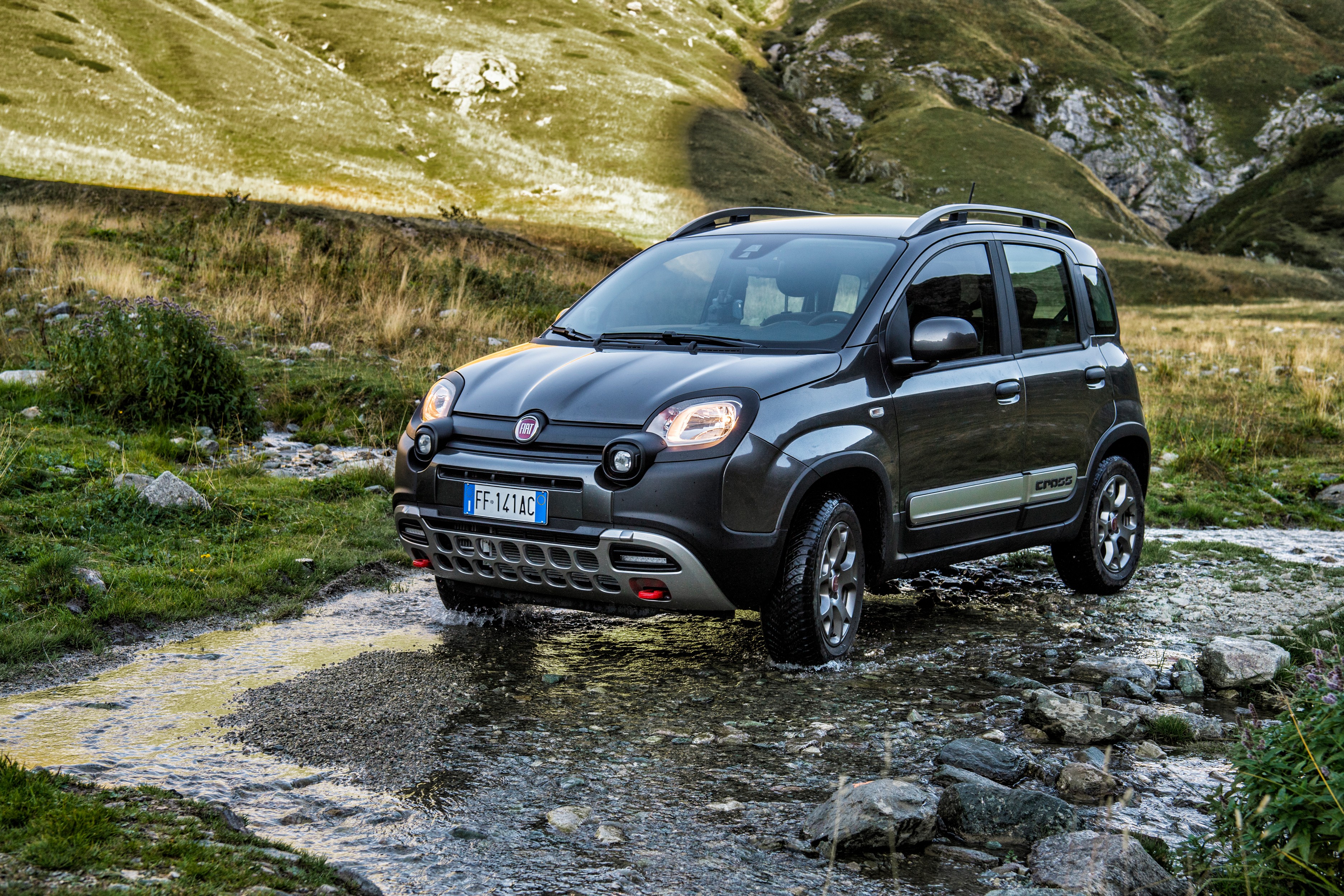

SUV (Cross)
| 0.9 TwinAir Turbo | 1.3 MultiJet | 1.3 MultiJet 4x4 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2015 to | |||
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 2/8 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 875 | 1248 | 1248 | |||
| Maximum output / speed [kW/min-1] | 66/5500 | 59/4000 | 70/3750 | |||
| Maximum torque [Nm/min-1] | 145/1900 | 190/1500 | 200/1500 | |||
| Bore and stroke [mm x mm] | 80,5 x 86,0 | 69,6 x 82,0 | 69,6 x 82,0 | |||
| Compression ratio | 10,0:1 | 16,8:1 | 16,8:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 6 gear manual | 5 gear manual | 5 gear manual | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 164-167 | 160 | 168 | |||
| Acceleration 0–100 km/h [s] | 12.0-12.7 | 14.3 | 12.7 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6.0-5.9 | 5.0 | 4.8 | |||
| Out of town [l] | 5.7-4.3 | 4.6 | 4.4 | |||
| Combined [l] | 5.8-4.9 | 4.7 | 4.5 | |||
| CO2 emissions [g/km] | 132-114 | 125 | 119 | |||
| Emission standard | EU5 - EU6 - Euro 6D-Temp | EU5+ | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1165 | 1155 | 1240 | |||
| Overall weight [kg] | 1585 [1530 four seats] | 1625 [1595 four seats] | 1625 [1595 four seats] | |||
| Maximum trailer weight unbraked/braked [kg] | 400/800 | 400/900 | 400/900 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | |||
| Maximum load on roof/carrier [kg] | 55/- | 55/- | 55/- | |||
| Boot volume [l] | 225 | 225 | 225 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/870 | -/870 | -/870 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 4-5 | 4-5 | 4-5 | |||
| Fuel tank volume [l] | 35 | 35 | 35 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | |||
| Tyre dimensions rear | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | 257 x 22 | 257 x 22 | 257 x 22 | |||
| Brake dimensions rear | 240 x 11 | 240 x 11 | 240 x 11 | |||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 9.7/- | 9.7/- | 9.7/- | |||
| Overall length [mm] | 3705 | 3705 | 3653 | |||
| Overall width without/including mirrors [mm] | 1662/1882 | 1662/1882 | 1662/1882 | |||
| Overall height [mm] | 1657 | 1657 | 1657 | |||
| Wheelbase [mm] | 2300 | 2300 | 2300 | |||
| Front wheel track [mm] | 1403 | 1403 | 1403 | |||
| Rear wheel track [mm] | 1406 | 1406 | 1406 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | 161 | 158 | 161 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 24 | 24 | 24 | |||
| Approach angle rear [°] | 34 | 34 | 34 | |||
| Transition angle [°] | 21 | 21 | 21 | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
