Fiat Panda

Date of manufacture

9/2003 – 10/2012 (Five-door hatchback)

Platform

Fiat Mini platform

Manufacturing locations

Tychy, Poland

Designer

Car body style

Five-door hatchback

Date of manufacture

9/2003 – 10/2012

Internal designation

169

Engine size

Petrol

Diesel

Euro NCAP

Technical data

Five-door hatchback

	1.1	1.2	1.2	1.2 Natural Power	1.2	1.4 Natural Power
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	4/8	4/8	4/8	4/8	4/8	4/8
Engine displacement [cm³]	1108	1242	1242	1242	1242	1368
Maximum output / speed [kW/min-1]	40/5000	44/5000	44/5000	44/5000 [38/5000 CNG]	50/5500	57/6000 [51/6000 CNG]
Maximum torque [Nm/min-1]	88/2750	102/2500	102/2500	102/3000 [88/3000 CNG]	102/3000	104/3000
Bore and stroke [mm x mm]	70,0 72,0	70,8 x 78,86	70,8 x 78,86	70,8 x 78,86	70,8 x 78,86	72,0 x 84,0
Compression ratio	9,6:1	9,8:1	9,8:1	9,8:1	11,1:1	11,1:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	-	-	-	combustion of petrol or CNG	-	combustion of petrol or CNG

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear robotic manual	5 gear manual	5 gear manual	5 gear manual
Drive specifications	-	-	robotic gearbox Dualogic	-	-	-

Top speed [km/h]	150	155	155	148 [140 CNG]	162	163 [157 CNG]
Acceleration 0–100 km/h [s]	15.0	14.0	14.0	17.0 [19.0 CNG]	13.4	12.8 [14.9 CNG]
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.2	7.1	6.8	7.9 [8.1 CNG]	6.4	7.7 [7.6 CNG]
Out of town [l]	4.8	4.8	4.6	5.2 [5.4 CNG]	4.0	5.0 [5.0 CNG]
Combined [l]	5.7	5.6	5.4	6.2 [6.4 CNG]	4.9	6.0 [6.0 CNG]
CO2 emissions [g/km]	135	133	127	146 [114 CNG]	113	139 [107 CNG]

Emission standard	EU4	EU4	EU4	EU4	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	915	935	940	1125	-	-
Overall weight [kg]	-	-	-	-	-	-
Maximum trailer weight unbraked/braked [kg]	350/800	400/800	400/800	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	206	206	206	190	206	190
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/860	-/860	-/860	-/840	-/775	-/840
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	4-5	4-5	4-5	4-5	4-5	4-5
Fuel tank volume [l]	35	35	35	35 [17.9 m³]	35	30 [72 kg]
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	155/80 R13 79T	155/80 R13 79T	155/80 R13 79T	165/70 R14	155/80 R13 79T	-
Tyre dimensions rear	155/80 R13 79T	155/80 R13 79T	155/80 R13 79T	165/70 R14	155/80 R13 79T	-
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	240	240	240	240	240	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	9.5/-	9.5/-	9.5/-	9.6/-	9.5/-	9.6/-

Overall length [mm]	3538	3538	3538	3538	3538	3538
Overall width without/including mirrors [mm]	1589/-	1589/-	1589/-	1589/-	1589/-	1589/-
Overall height [mm]	1578	1578	1578	1630	1578	1630
Wheelbase [mm]	2299	2299	2299	2305	2299	2305
Front wheel track [mm]	1366	1366	1366	1366	1366	1366
Rear wheel track [mm]	1357	1357	1357	1358	1357	1358
Forward overhang [mm]	713	713	713	713	713	713
Rear overhang [mm]	525	525	525	525	525	525
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	100 HP	1.3 Multijet 16v
Date of sale	-	-
Engine type	Petrol	Diesel supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1368	1248
Maximum output / speed [kW/min-1]	73/6000	51/4000
Maximum torque [Nm/min-1]	131/4250	145/1500
Bore and stroke [mm x mm]	72,0 x 84,0	69,6 x 82,0
Compression ratio	11,0:1	18,0:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	-	direct injection Multijet with Common Rail turbo-supercharged

Drive axle	Front	Front
Gearbox	6 gear manual	5 gear manual
Drive specifications	-	-

Top speed [km/h]	185	160
Acceleration 0–100 km/h [s]	9.5	13.0
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	8.7	5.4
Out of town [l]	5.3	3.7
Combined [l]	6.5	4.3
CO2 emissions [g/km]	154	114

Emission standard	EU4	EU4
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1050	1010
Overall weight [kg]	-	-
Maximum trailer weight unbraked/braked [kg]	-	400/900
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	-	-

Boot volume [l]	206	206
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/860	-/860
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	4	4-5
Fuel tank volume [l]	35	35
AdBlue tank volume [l]	-	-
Air resistance [Cd]	-	-
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	195/45 R15	155/80 R13 79T
Tyre dimensions rear	195/45 R15	155/80 R13 79T
Wheel size front	-	-
Wheel size rear	-	-
Brake dimensions front	257	240
Brake dimensions rear	240	-
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	10.4/-	9.5/-

Overall length [mm]	3578	3538
Overall width without/including mirrors [mm]	1606/-	1589/-
Overall height [mm]	1560	1578
Wheelbase [mm]	2299	2299
Front wheel track [mm]	1378	1366
Rear wheel track [mm]	1368	1357
Forward overhang [mm]	713	713
Rear overhang [mm]	525	525
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	-	-
Headroom rear [mm]	-	-
Front elbow/shoulder width [mm]	-	-
Rear elbow/shoulder width [mm]	-	-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

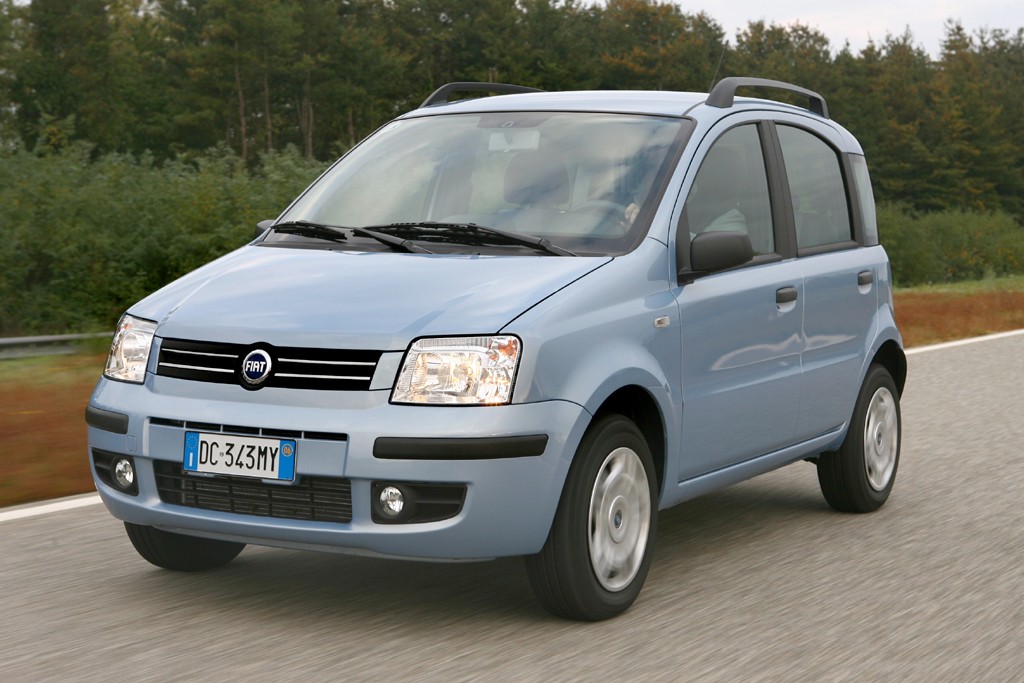

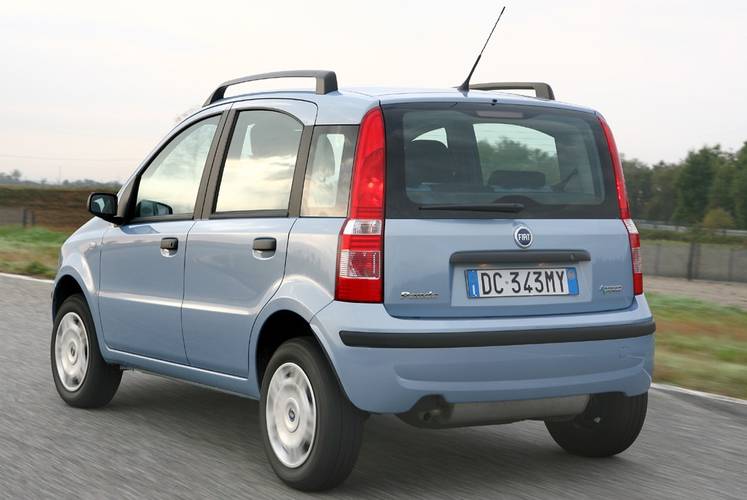

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
