Fiat Dobló
Date of manufacture
2014 – to this day (MPV)
Platform
GM Fiat Small Wide platform
Manufacturing locations
Bursa, Turkey
Designer
-
Tags
Mid-size MPV
Italian cars
The Fiat Dobló is an MPV body style, produced since 2014 in Turkey. It is built on the GM Fiat Small Wide platform and offers petrol and diesel engines with a maximum power of 99 kW in the higher 2.0 MultiJet model. The top speed of this car is 179 km/h, while the most economical 1.4 T-Jet CNG consumes only 4.9 kg/100 km with 217 g/km of CO2 emissions. The luggage compartment has a volume of 790 l and the car received a rating of 3 out of 5 after the EURONCAP 2017 safety tests.
Car body style
MPV

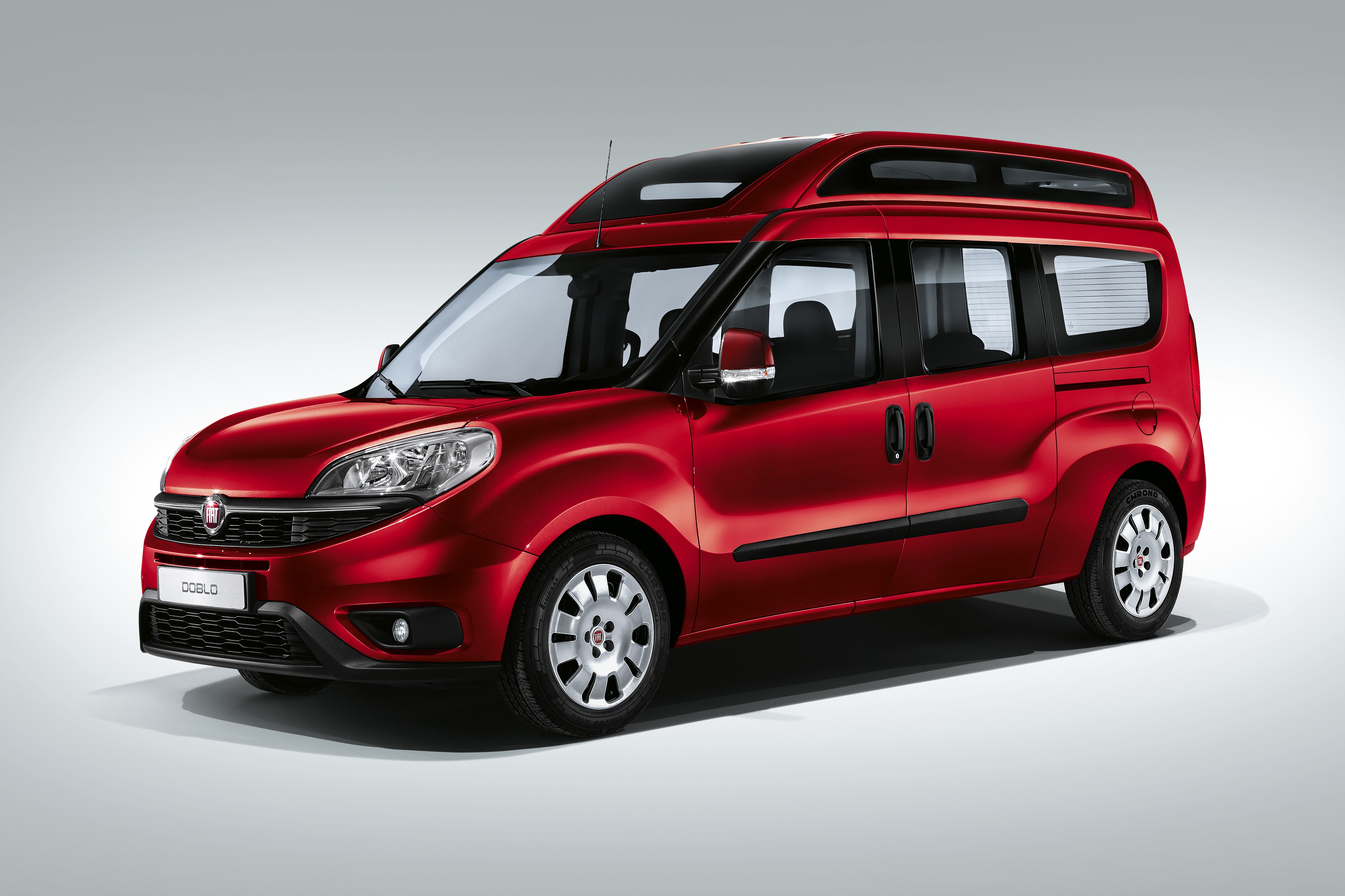

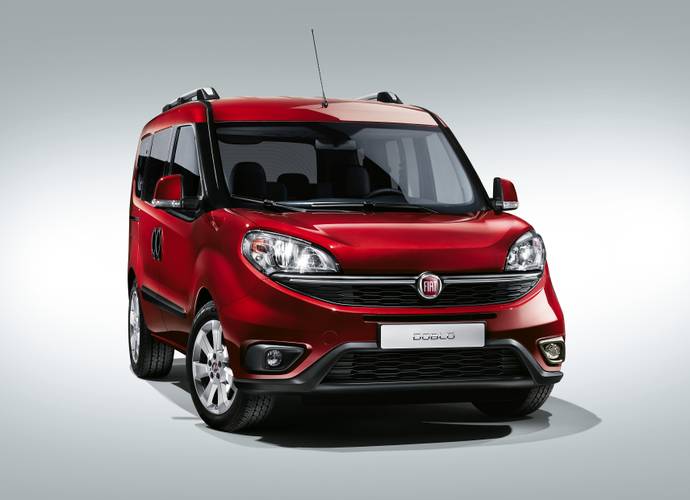

after upgrade (facelift)
Date of manufacture
2014 – to this dayInternal designation
152
Technical data
MPV
| 1.4 | 1.4 | higher | higher | 1.4 T-Jet | 1.4 T-Jet CNG | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 1368 | 1368 | 1368 | 1368 | 1368 |
| Maximum output / speed [kW/min-1] | 70/6000 | 70/6000 | 70/6000 | 70/6000 | 88/5000 | 88/5000 |
| Maximum torque [Nm/min-1] | 127/4500 | 127/4500 | 127/4500 | 127/4500 | 206/2000 | 206/2000 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 9,8:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
| - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 161 | 161 | 156 | 156 | 172 | 172 |
| Acceleration 0–100 km/h [s] | 15.4 | 15.4 | 15.9 | 15.9 | 12.3 | 12.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0 | 9.3 | 10.3 | 9.5 | 10.9-9.5 | 12.2-9.7 [7.2-6.5 kg] |
| Out of town [l] | 5.9 | 5.9 | 6.1 | 6.1 | 7.6-5.9 | 7.6-6.1 [5.3-4.0 kg] |
| Combined [l] | 7.4 | 7.2 | 7.6 | 7.4 | 8.8-7.2 | 9.3-7.4 [6.0-4.9 kg] |
| CO2 emissions [g/km] | 172 | 165 | 177 | 171 | 202-169 | 212-173 [164-134 CNG] |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | - |
| CO2 emissions [g/km] | - | - | - | - | 240-217 | 240-217 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 - EU6 D-Temp | EU6 - EU6 D-Temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1370 | 1370 | 1430 | 1430 | 1415-1490 | 1540-1615 |
| Overall weight [kg] | - | - | - | - | 2030 [2190 seven seats] | 2150 [2315 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 500/1000 | 500/1000 | 500/1000 | 500/1000 | 500/1000 | 500/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 790 | 790 | 790 | 790 | 790 | 790 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/3200 | -/3200 | -/3200 | -/3200 | -/3200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 22 [16.2 kg] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T |
| Tyre dimensions rear | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 305 | 305 | 305 | 305 | 305 | 305 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4406 | 4406 | 4406 | 4406 | 4406 | 4406 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 1845 | 1845 | 2115 | 2115 | 1845 | 1849 |
| Wheelbase [mm] | 2755 | 2755 | 2755 | 2755 | 2755 | 2755 |
| Front wheel track [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Rear wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Forward overhang [mm] | 911 | 911 | 911 | 911 | 911 | 911 |
| Rear overhang [mm] | 740 | 740 | 740 | 740 | 740 | 740 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 MultiJet | higher | 1.6 MultiJet | higher | 1.6 MultiJet | higher | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 66/4000 | 66/4000 | 66/4000 | 66/4000 | 66/4000 | 66/4000 |
| Maximum torque [Nm/min-1] | 290/1500 | 290/1500 | 290/1500 | 290/1500 | 290/1500 | 290/1500 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 5 gear robotic manual | 5 gear robotic manual |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 158 | 153 | 158 | 153 | 158 | 153 |
| Acceleration 0–100 km/h [s] | 14.9 | 15.4 | 14.9 | 15.4 | 15.4 | 15.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8 | 7.1 | 6.8 | 7.1 | 5.6 | 5.9 |
| Out of town [l] | 4.7 | 5.3 | 4.7 | 5.3 | 4.7 | 5.3 |
| Combined [l] | 5.5 | 6.0 | 5.5 | 6.0 | 5.0 | 5.5 |
| CO2 emissions [g/km] | 145 | 158 | 145 | 158 | 132 | 145 |
| Emission standard | EU5+ | EU5+ | EU5+ | EU5+ | EU5+ | EU5+ |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1430 | 1500 | 1430 | 1500 | 1430 | 1500 |
| Overall weight [kg] | - | - | - | - | - | - |
| Maximum trailer weight unbraked/braked [kg] | 500/1300 | 500/1300 | 500/1000 | 500/1000 | 500/1300 | 500/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 790 | 790 | 790 | 790 | 790 | 790 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/3200 | -/3200 | -/3200 | -/3200 | -/3200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 7 | 7 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T |
| Tyre dimensions rear | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 284 | 284 | 305 | 305 | 284 | 284 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4406 | 4406 | 4406 | 4406 | 4406 | 4406 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 1845 | 2115 | 1845 | 2115 | 1845 | 2115 |
| Wheelbase [mm] | 2755 | 2755 | 2755 | 2755 | 2755 | 2755 |
| Front wheel track [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Rear wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Forward overhang [mm] | 911 | 911 | 911 | 911 | 911 | 911 |
| Rear overhang [mm] | 740 | 740 | 740 | 740 | 740 | 740 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 MultiJet | higher | 1.6 MultiJet | higher | long | 1.6 MultiJet | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 66/4000 | 66/4000 | 70/2500 | 70/2500 | 70/2500 | 77/4000 |
| Maximum torque [Nm/min-1] | 290/1500 | 290/1500 | 300/1750 | 300/1750 | 300/1750 | 290/1500 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear robotic manual | 5 gear robotic manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
| - | - | - | - |
| Top speed [km/h] | 158 | 153 | 164 [160 seven seats] | 159 | 164 | 164 |
| Acceleration 0–100 km/h [s] | 15.4 | 15.9 | 13.9 | 14.4 | 13.9 | 13.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 5.9 | 7.2 | 7.2 | 7.2 | 6.8 |
| Out of town [l] | 4.7 | 5.3 | 5.2 | 5.2 | 5.2 | 4.7 |
| Combined [l] | 5.0 | 5.5 | 6.0 | 6.0 | 6.0 | 5.5 |
| CO2 emissions [g/km] | 132 | 145 | 157 | 157 | 157 | 145 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | - |
| CO2 emissions [g/km] | - | - | 178-167 | 178-167 | 178-167 | - |
| Emission standard | EU5+ | EU5+ | EU6d-Temp | EU6d-Temp | EU6d-Temp | EU5+ |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1430 | 1500 | 1580 [1640 seven seats] | 1620 | 1625 | 1430 |
| Overall weight [kg] | - | - | 2080 [2310 seven seats] | 2120 | 2105 | - |
| Maximum trailer weight unbraked/braked [kg] | 500/1000 | 500/1000 | 500/1300 | 500/1300 | 500/1300 | 500/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 790 | 790 | 790 | 790 | 1050 | 790 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/3200 | -/3200 | -/3200 | -/4000 | -/3200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 7 | 7 | 5-7 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T |
| Tyre dimensions rear | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 305 | 305 | 284 [305 seven seats] | 284 | 284 | 284 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 12.5/- | 11.2/- |
| Overall length [mm] | 4406 | 4406 | 4406 | 4406 | 4756 | 4406 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 1845 | 2115 | 1845 | 2115 | 1845 | 1845 |
| Wheelbase [mm] | 2755 | 2755 | 2755 | 2755 | 3105 | 2755 |
| Front wheel track [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Rear wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Forward overhang [mm] | 911 | 911 | 911 | 911 | 911 | 911 |
| Rear overhang [mm] | 740 | 740 | 740 | 740 | 740 | 740 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 MultiJet | higher | higher | 1.6 MultiJet | 1.6 MultiJet | higher | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 77/4000 | 77/4000 | 77/4000 | 77/4000 | 77/4000 | 77/4000 |
| Maximum torque [Nm/min-1] | 290/1500 | 290/1500 | 290/1500 | 290/1500 | 290/1500 | 290/1500 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 164 | 159 | 159 | 164 | 164 | 159 |
| Acceleration 0–100 km/h [s] | 13.4 | 13.9 | 13.9 | 13.4 | 13.4 | 13.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1 | 7.1 | 6.4 | 6.8 | 6.1 | 7.1 |
| Out of town [l] | 4.7 | 5.4 | 5.3 | 4.7 | 4.7 | 5.4 |
| Combined [l] | 5.2 | 6.0 | 5.7 | 5.5 | 5.2 | 6.0 |
| CO2 emissions [g/km] | 138 | 158 | 150 | 145 | 138 | 158 |
| Emission standard | EU5+ | EU5+ | EU5+ | EU5+ | EU5+ | EU5+ |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1430 | 1500 | 1500 | 1430 | 1430 | 1500 |
| Overall weight [kg] | - | - | - | - | - | - |
| Maximum trailer weight unbraked/braked [kg] | 500/1300 | 500/1300 | 500/1300 | 500/1000 | 500/1000 | 500/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 790 | 790 | 790 | 790 | 790 | 790 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/3200 | -/3200 | -/3200 | -/3200 | -/3200 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 7 | 7 | 7 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T |
| Tyre dimensions rear | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 284 | 284 | 284 | 305 | 305 | 305 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4406 | 4406 | 4406 | 4406 | 4406 | 4406 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 1845 | 1845 | 1845 | 1845 | 1845 | 1845 |
| Wheelbase [mm] | 2755 | 2755 | 2755 | 2755 | 2755 | 2755 |
| Front wheel track [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Rear wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Forward overhang [mm] | 911 | 911 | 911 | 911 | 911 | 911 |
| Rear overhang [mm] | 740 | 740 | 740 | 740 | 740 | 740 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| higher | long | long | 1.6 MultiJet | higher | long | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 77/4000 | 77/4000 | 77/4000 | 88/3750 | 88/3750 | 88/3750 |
| Maximum torque [Nm/min-1] | 290/1500 | 290/1500 | 290/1500 | 320/1750 | 320/1750 | 320/1750 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 159 | 164 | 164 | 176 [172 seven seats] | 171 | 176 |
| Acceleration 0–100 km/h [s] | 13.9 | 13.4 | 13.4 | 12.1 | 12.6 | 12.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 | 6.8 | 6.1 | 7.2 | 7.2 | 7.2 |
| Out of town [l] | 5.3 | 4.7 | 4.7 | 5.2 | 5.2 | 5.2 |
| Combined [l] | 5.7 | 5.5 | 5.2 | 6.0 | 6.0 | 6.0 |
| CO2 emissions [g/km] | 150 | 145 | 138 | 157 | 157 | 157 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | - | - |
| CO2 emissions [g/km] | - | - | - | 178-167 | 178-167 | 178-167 |
| Emission standard | EU5+ | EU5+ | EU5+ | EU6d-Temp | EU6d-Temp | EU6d-Temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1500 | 1525 | 1525 | 1580 [1640 seven seats] | 1620 | 1625 |
| Overall weight [kg] | - | - | - | 2080 [2310 seven seats] | 2120 | 2105 |
| Maximum trailer weight unbraked/braked [kg] | 500/1000 | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 790 | 1050 | 1050 | 790 | 790 | 1050 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/4000 | -/4000 | -/3200 | -/3200 | -/4000 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 7 | 5 | 5 | 5-7 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T |
| Tyre dimensions rear | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T | 195/60 R16 C 99T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 305 | 305 | 305 | 305 | 305 | 305 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 12.5/- | 12.5/- | 11.2/- | 11.2/- | 12.5/- |
| Overall length [mm] | 4406 | 4756 | 4756 | 4406 | 4406 | 4756 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 1845 | 1880 | 1880 | 1845 | 2115 | 1845 |
| Wheelbase [mm] | 2755 | 3105 | 3105 | 2755 | 2755 | 3105 |
| Front wheel track [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Rear wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Forward overhang [mm] | 911 | 911 | 911 | 911 | 911 | 911 |
| Rear overhang [mm] | 740 | 740 | 740 | 740 | 740 | 740 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 MultiJet | higher | |||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1956 | 1956 | ||||
| Maximum output / speed [kW/min-1] | 99/3500 | 99/3500 | ||||
| Maximum torque [Nm/min-1] | 320/1500 | 320/1500 | ||||
| Bore and stroke [mm x mm] | 83,0 x 90,5 | 83,0 x 90,5 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 179 | 174 | ||||
| Acceleration 0–100 km/h [s] | 11.3 | 11.8 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.3 | 7.4 | ||||
| Out of town [l] | 5.1 | 5.5 | ||||
| Combined [l] | 5.9 | 6.2 | ||||
| CO2 emissions [g/km] | 156 | 163 | ||||
| Emission standard | EU5+ | EU5+ | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1480 | 1540 | ||||
| Overall weight [kg] | - | - | ||||
| Maximum trailer weight unbraked/braked [kg] | 500/1500 | 500/1500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 790 | 790 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/3200 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5-7 | 5-7 | ||||
| Fuel tank volume [l] | 60 | 60 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 195/60 R16 C 99T | 195/60 R16 C 99T | ||||
| Tyre dimensions rear | 195/60 R16 C 99T | 195/60 R16 C 99T | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | 305 | 305 | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | ||||
| Overall length [mm] | 4406 | 4406 | ||||
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | ||||
| Overall height [mm] | 1845 | 1845 | ||||
| Wheelbase [mm] | 2755 | 2755 | ||||
| Front wheel track [mm] | 1510 | 1510 | ||||
| Rear wheel track [mm] | 1530 | 1530 | ||||
| Forward overhang [mm] | 911 | 911 | ||||
| Rear overhang [mm] | 740 | 740 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

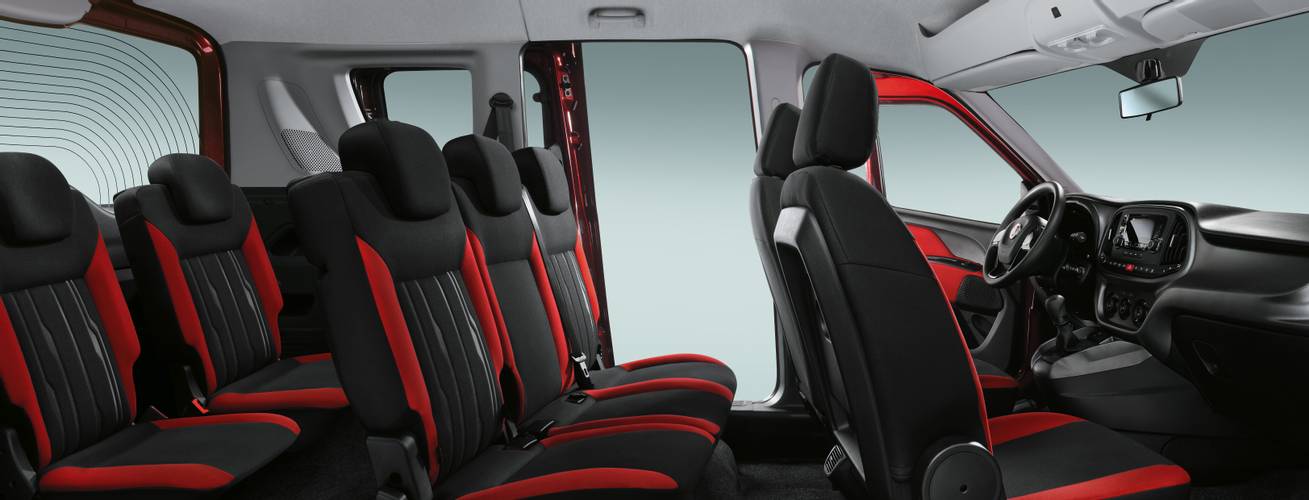

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
