Basic information Technical Specifications Gallery

Fiat Croma

Date of manufacture

2005 – 2010 (Five-door hatchback)

Platform

GM Epsilon platform

Manufacturing locations

Cassino, Italy

Designer

Giorgetto Giugiaro

Car body style

Five-door hatchback

after upgrade (facelift)

Date of manufacture

2005 – 2010

Internal designation

194

Engine size

Petrol

Diesel

Euro NCAP

Technical data

Five-door hatchback

	1.8 MPI 16V	2.2 MPI	2.2 MPI	1.9 Multijet	1.9 Multijet 16V	1.9 Multijet 16V
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/8	4/16	4/16
Engine displacement [cm³]	1796	2198	2198	1910	1910	1910
Maximum output / speed [kW/min-1]	103/6300	108/5800	108/5800	88/4000	110/4000	110/4000
Maximum torque [Nm/min-1]	175/3800	203/4000	203/4000	280/2000	320/2000	320/2000
Bore and stroke [mm x mm]	80,5 x 88,2	86,0 x 94,6	86 x 94,6	82 x 90,4	82, x 90,4	82, x 90,4
Compression ratio	10,5:1	10,0	10,0:1	18,0:1	17,5:1	17,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	-	-	-	direct injection Multijet with Common Rail turbo-supercharged particulate filter	direct injection Multijet with Common Rail turbo-supercharged particulate filter	direct injection Multijet with Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear automatic	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	-	-	automatic gearbox	-	-	automatic gearbox

Top speed [km/h]	206	210	205	195	210	205
Acceleration 0–100 km/h [s]	10.2	10.1	10.7	11.0	9.6	9.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	9.8	11.4	12.5	7.9	8.1	9.3
Out of town [l]	6.0	6.7	7.6	5.0	4.9	5.8
Combined [l]	7.4	8.4	9.4	6.1	6.1	7.1
CO2 emissions [g/km]	175	199	222	160	160	187

Emission standard	EU4	EU4	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1430	-	1650	1520	1530	1540
Overall weight [kg]	-	-	-	-	-	-
Maximum trailer weight unbraked/braked [kg]	700/1500	700/1500	700/1500	700/1500	700/1500	700/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	500	500	500	500	500	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1610	-/1610	-/1610	-/1610	-/1610	-/1610
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	62	62	62	62	62	62
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser	MacPherson, torsion stabiliser
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	205/55 R16 91V	215/55 R16 93W	215/55 R16 93W	205/55 R16 91V	215/55 R16 93W	215/55 R16 93W
Tyre dimensions rear	205/55 R16 91V	215/55 R16 93W	215/55 R16 93W	205/55 R16 91V	215/55 R16 93W	215/55 R16 93W
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	285	285	285	285	305	305
Brake dimensions rear	278	278	278	278	292	292
Steering	rack & pinion with electro-hydraulic power steering	rack & pinion with electro-hydraulic power steering	rack & pinion with electro-hydraulic power steering	rack & pinion with electro-hydraulic power steering	rack & pinion with electro-hydraulic power steering	rack & pinion with electro-hydraulic power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9	10.9	10.9	10.9	10.9	10.9

Overall length [mm]	4783	4783	4783	4783	4783	4783
Overall width without/including mirrors [mm]	1775/-	1775/-	1775/-	1775/-	1775/-	1775/-
Overall height [mm]	1603	1603	1603	1603	1603	1603
Wheelbase [mm]	2700	2700	2700	2700	2700	2700
Front wheel track [mm]	1513	1513	1513	1513	1513	1513
Rear wheel track [mm]	1496	1496	1496	1496	1496	1496
Forward overhang [mm]	1046	1046	1046	1046	1046	1046
Rear overhang [mm]	1037	1037	1037	1037	1037	1037
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.4 Multijet
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	5/20
Engine displacement [cm³]	2387
Maximum output / speed [kW/min-1]	147/4000
Maximum torque [Nm/min-1]	400/2000
Bore and stroke [mm x mm]	82 x 90,4
Compression ratio	17,0:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Multijet with Common Rail turbo-supercharged particulate filter

Drive axle	Front
Gearbox	6 gear automatic
Drive specifications	automatic gearbox

Top speed [km/h]	216
Acceleration 0–100 km/h [s]	8.5
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	10.3
Out of town [l]	5.4
Combined [l]	7.2
CO2 emissions [g/km]	191

Emission standard	EU4
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1650
Overall weight [kg]	-
Maximum trailer weight unbraked/braked [kg]	700/1500
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	-

Boot volume [l]	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1610
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	62
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson, torsion stabiliser
Rear suspension	multilink
Tyre dimensions front	215/55 R16 93W
Tyre dimensions rear	215/55 R16 93W
Wheel size front	-
Wheel size rear	-
Brake dimensions front	305
Brake dimensions rear	292
Steering	rack & pinion with electro-hydraulic power steering
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.9

Overall length [mm]	4783
Overall width without/including mirrors [mm]	1775/-
Overall height [mm]	1603
Wheelbase [mm]	2700
Front wheel track [mm]	1513
Rear wheel track [mm]	1496
Forward overhang [mm]	1046
Rear overhang [mm]	1037
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

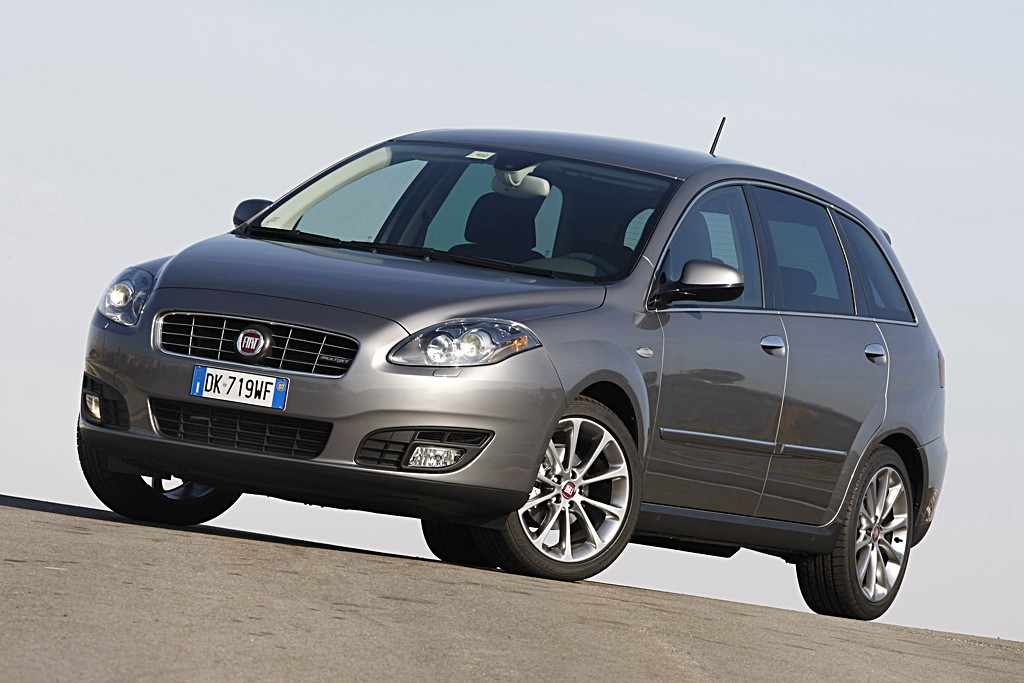

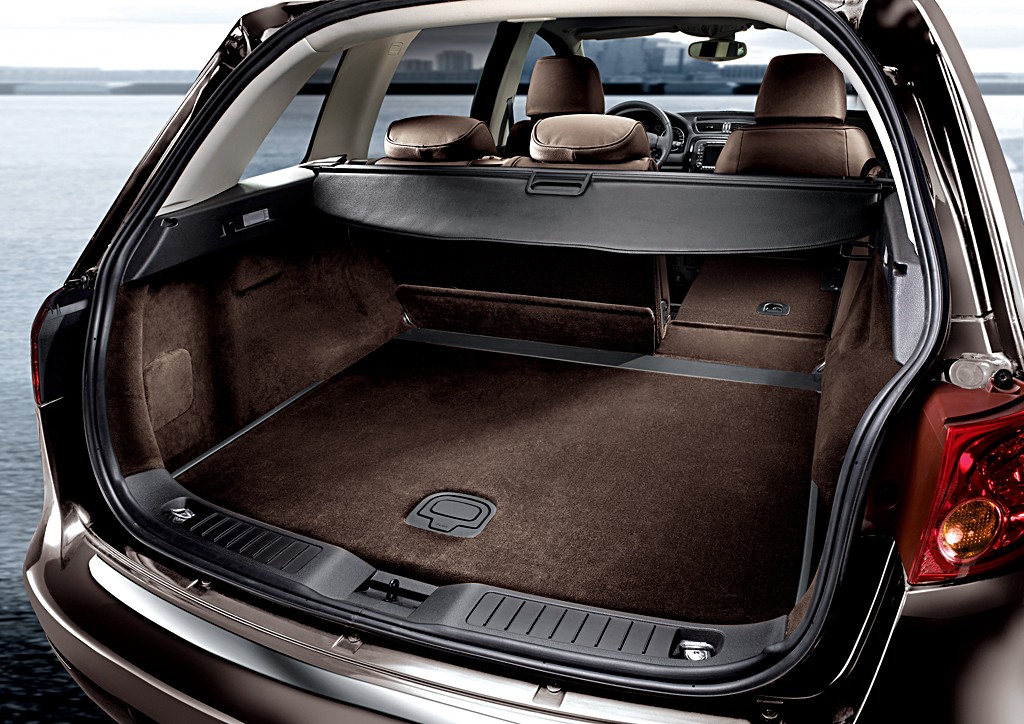

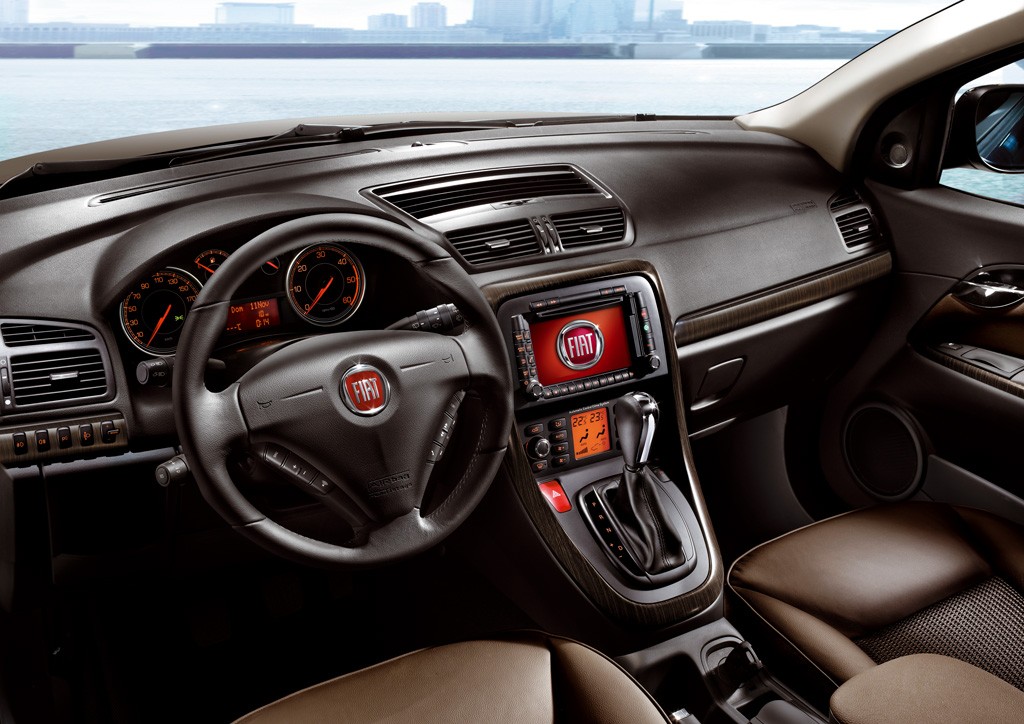

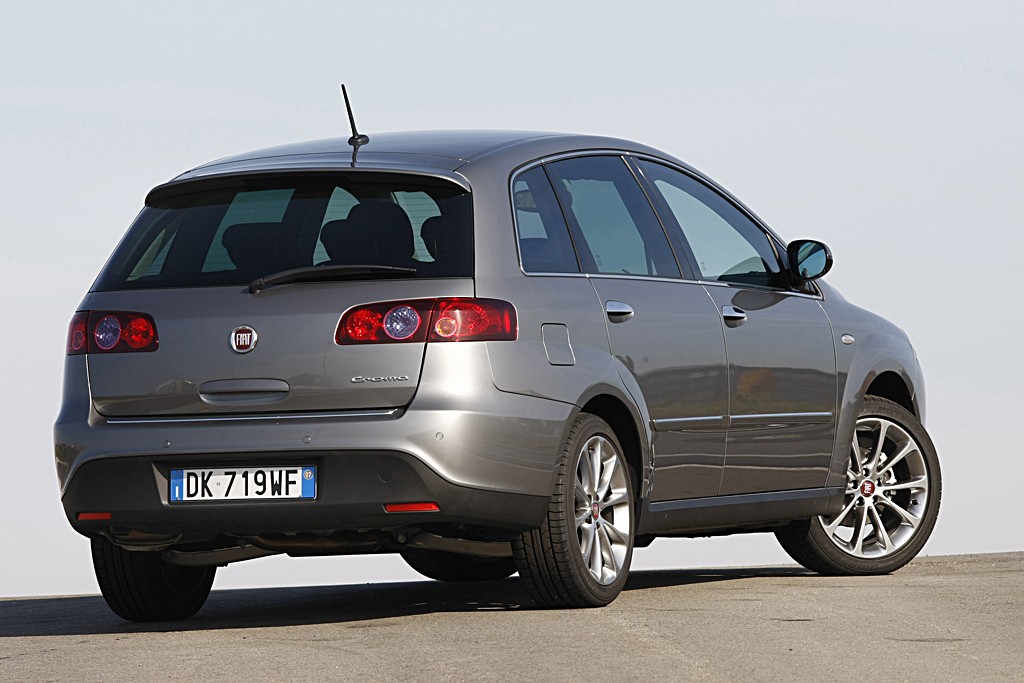

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
