Fiat 500e
Date of manufacture
2020 – to this day (Three-door hatchback)
2020 – to this day (Convertible)
Platform
-
Manufacturing locations
Turin, Italy
Designer
-
Tags
A-segment
Electric car
Italian cars
The Fiat 500e is manufactured as a three-door hatchback and convertible. The vehicle has been produced since 2020. Italy is the country of manufacture of the car. The engine range consists exclusively of electric motors. The most powerful model is the 42 kWh 3+1 with 87 kW of power. The maximum speed of the 42 kWh 3+1 version is 150 km/h. The 42 kWh version has the lowest combined consumption of 14 kWh/100 km. The three-door hatchback version offers a luggage compartment size of 185 l. The convertible version offers a trunk size of 185 l.
Car body style
Three-door hatchback
Date of manufacture
2020 – to this dayInternal designation
332Engine size
Technical data
Three-door hatchback
| 23.8 kWh | 42 kWh | 42 kWh 3+1 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Electric | Electric | Electric | |||
| Number of cylinders/valves | - | - | - | |||
| Engine displacement [cm³] | - | - | - | |||
| Maximum output / speed [kW/min-1] | 70 | 87 | 87 | |||
| Maximum torque [Nm/min-1] | 220 | 220 | 220 | |||
| Bore and stroke [mm x mm] | - | - | - | |||
| Compression ratio | - | - | - | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 1 gear automatic | 1 gear automatic | 1 gear automatic | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 135 | 150 | 150 | |||
| Acceleration 0–100 km/h [s] | 9.5 | 9 | 9 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | - | - | - | |||
| Out of town [l] | - | - | - | |||
| Combined [l] | - | - | - | |||
| CO2 emissions [g/km] | - | - | - | |||
| Low speed [l] | - | - | - | |||
| Medium speed [l] | - | - | - | |||
| High speed [l] | - | - | - | |||
| Extra high speed [l] | - | - | - | |||
| Combined speed [l] | 14.9 kWh | 14.9-14.0 kWh | 14.6-14.3 kWh | |||
| CO2 emissions [g/km] | - | - | - | |||
| Emission standard | - | - | - | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| System voltage [V] | 400 | 400 | 400 | |||
| Battery type and capacity | Lithium-ion, 23.8 kWh (21.3 net) | Lithium-ion, 42 kWh (37.3 net) | Lithium-ion, 42 kWh (37.3 net) | |||
| Range with fully charged battery [km] | 180 | 320-298 | 305-313 | |||
| Charging time | - |
|
| |||
| Number of modules/cells | 1/108 | 2/96 | 2/96 | |||
| Battery weight [kg] | 182 | 294 | 294 | |||
| Charger | - | - | - | |||
| Standby weight [kg] | 1255 | 1365-1405 | 1395 | |||
| Overall weight [kg] | 1655 | 1765-1805 | 1795 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 185 | 185 | 185 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/550 | -/550 | -/550 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 3 | 3 | 3+1 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | - | - | - | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | |||
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | 257 x 22 | 281x 26 | 281x 26 | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Electric power steering | Electric power steering | Electric power steering | |||
| Number of steering wheel turns | 2.98 | 2.98 | 2.98 | |||
| Turning diameter track/circumference [m] | 9.7/- | 9.7/- | 9.7/- | |||
| Overall length [mm] | 3632 | 3632 | 3632 | |||
| Overall width without/including mirrors [mm] | 1683/1900 | 1683/1900 | 1683/1900 | |||
| Overall height [mm] | 1527 | 1527 | 1527 | |||
| Wheelbase [mm] | 2322 | 2322 | 2322 | |||
| Front wheel track [mm] | - | - | - | |||
| Rear wheel track [mm] | - | - | - | |||
| Forward overhang [mm] | 732 | 732 | 732 | |||
| Rear overhang [mm] | 577 | 577 | 577 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - | |||
| Rating | - |   | - | |||
| Clean Air Index | - | 10.0/10 | - | |||
| Energy Efficiency Index | - | 10.0/10 | - | |||
| GHG index | - | 10.0/10 | - |
Convertible
| 23.8 kWh | 42 kWh | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Electric | Electric | ||||
| Number of cylinders/valves | - | - | ||||
| Engine displacement [cm³] | - | - | ||||
| Maximum output / speed [kW/min-1] | 70 | 87 | ||||
| Maximum torque [Nm/min-1] | 220 | 220 | ||||
| Bore and stroke [mm x mm] | - | - | ||||
| Compression ratio | - | - | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 1 gear automatic | 1 gear automatic | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 135 | 150 | ||||
| Acceleration 0–100 km/h [s] | 9.5 | 9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | - | - | ||||
| Out of town [l] | - | - | ||||
| Combined [l] | - | - | ||||
| CO2 emissions [g/km] | - | - | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 14.9 kWh | 14.9-14.0 kWh | ||||
| CO2 emissions [g/km] | - | - | ||||
| Emission standard | - | - | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| System voltage [V] | 400 | 400 | ||||
| Battery type and capacity | Lithium-ion, 23.8 kWh (21.3 net) | Lithium-ion, 42 kWh (37.3 net) | ||||
| Range with fully charged battery [km] | 180 | 320-298 | ||||
| Charging time | - |
| ||||
| Number of modules/cells | 1/108 | 2/96 | ||||
| Battery weight [kg] | 182 | 294 | ||||
| Charger | - | - | ||||
| Standby weight [kg] | 1255 | 1365-1405 | ||||
| Overall weight [kg] | 1655 | 1765-1805 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 185 | 185 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/550 | -/550 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | - | - | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | ||||
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | 257 x 22 | 281x 26 | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Electric power steering | Electric power steering | ||||
| Number of steering wheel turns | 2.98 | 2.98 | ||||
| Turning diameter track/circumference [m] | 9.7/- | 9.7/- | ||||
| Overall length [mm] | 3632 | 3632 | ||||
| Overall width without/including mirrors [mm] | 1683/1900 | 1683/1900 | ||||
| Overall height [mm] | 1527 | 1527 | ||||
| Wheelbase [mm] | 2322 | 2322 | ||||
| Front wheel track [mm] | - | - | ||||
| Rear wheel track [mm] | - | - | ||||
| Forward overhang [mm] | 732 | 732 | ||||
| Rear overhang [mm] | 577 | 577 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - | ||||
| Rating | - | | ||||
| Clean Air Index | - | 10.0/10 | ||||
| Energy Efficiency Index | - | 10.0/10 | ||||
| GHG index | - | 10.0/10 |

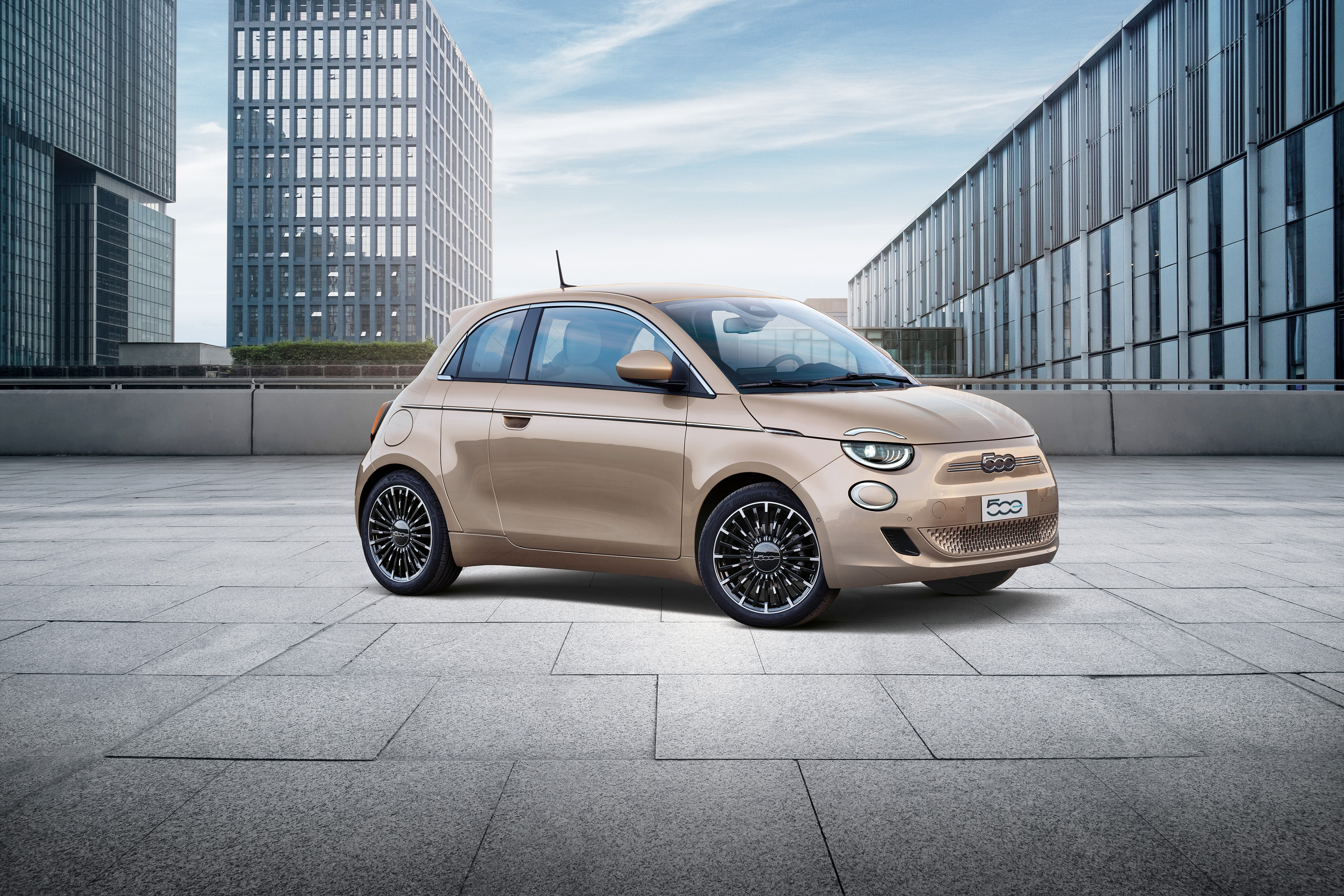

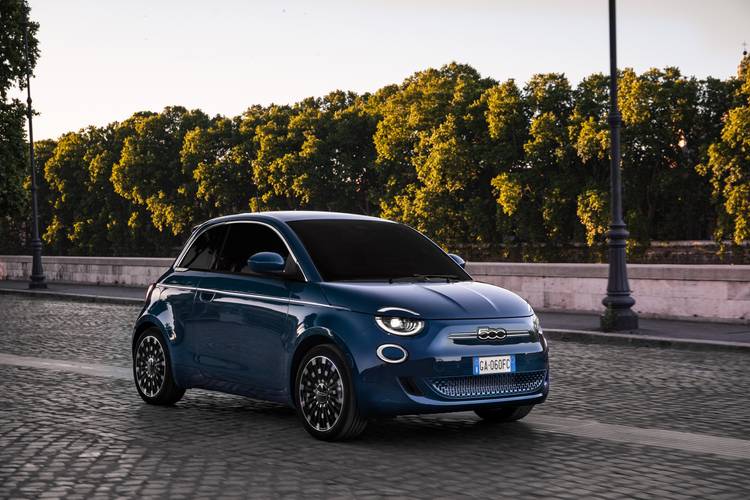

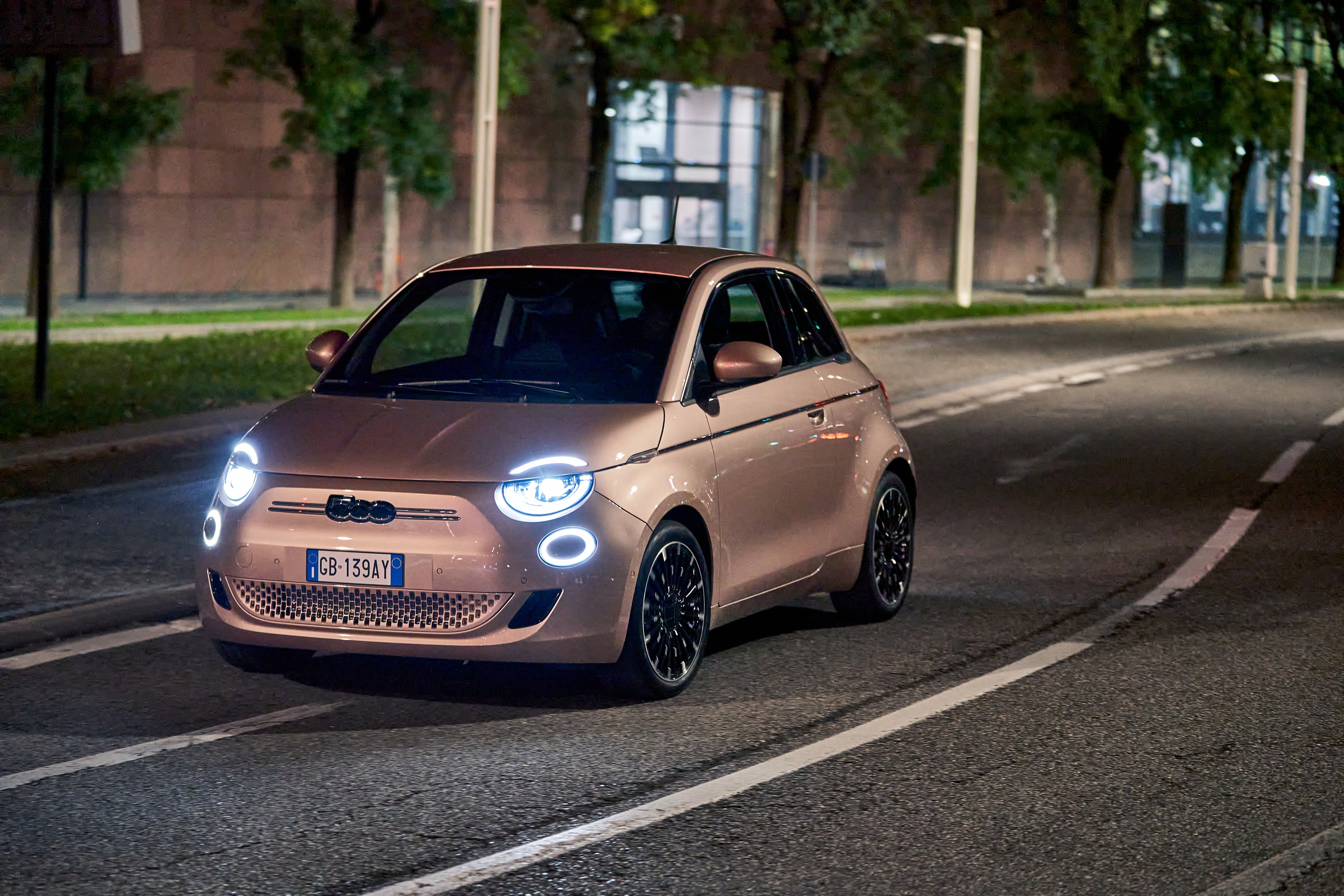

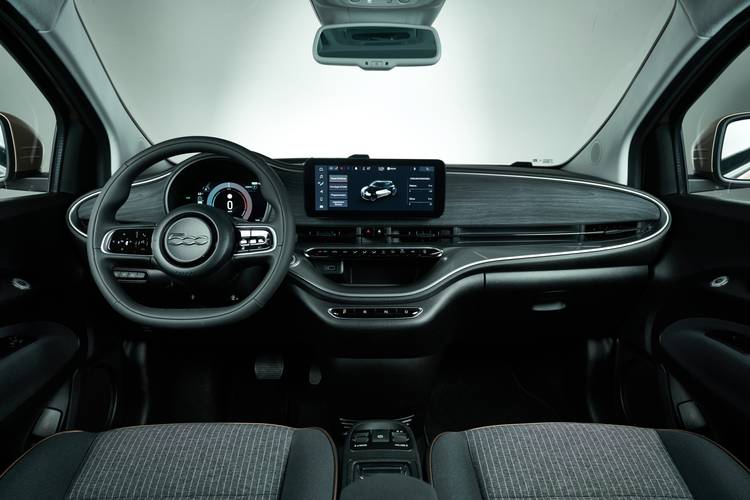

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
