Fiat 500
Date of manufacture
2015 – to this day (Three-door hatchback)
2015 – to this day (Convertible)
Platform
Fiat Mini platform
Manufacturing locations
Tychy, Poland
Designer
Roberto Giolito
Tags
A-segment
Italian cars
Since 2015, the Fiat 500 has been available as a three-door hatchback and cabriolet. The car is based on the Fiat Mini platform and is manufactured in Poland. The engine range includes petrol, diesel and hybrid units with a maximum power of 77 kW from the 0.9 TwinAir Turbo, which is also the fastest version of the car with a top speed of 188 km/h. The most economical variant is the 1.3 Multijet with a combined consumption of 3.4 l/100 km and CO2 emissions of 89 g/km. In the case of the three-door hatchback, the trunk has a capacity of 185 l, and for the cabriolet, 185 l of luggage space. EURONCAP safety tests rated the model 3 out of 5 according to the 2017 methodology.
Car body style
Three-door hatchback
after upgrade (facelift)
Date of manufacture
2015 – to this dayInternal designation
312Engine size
PetrolPetrol + Electric
Diesel

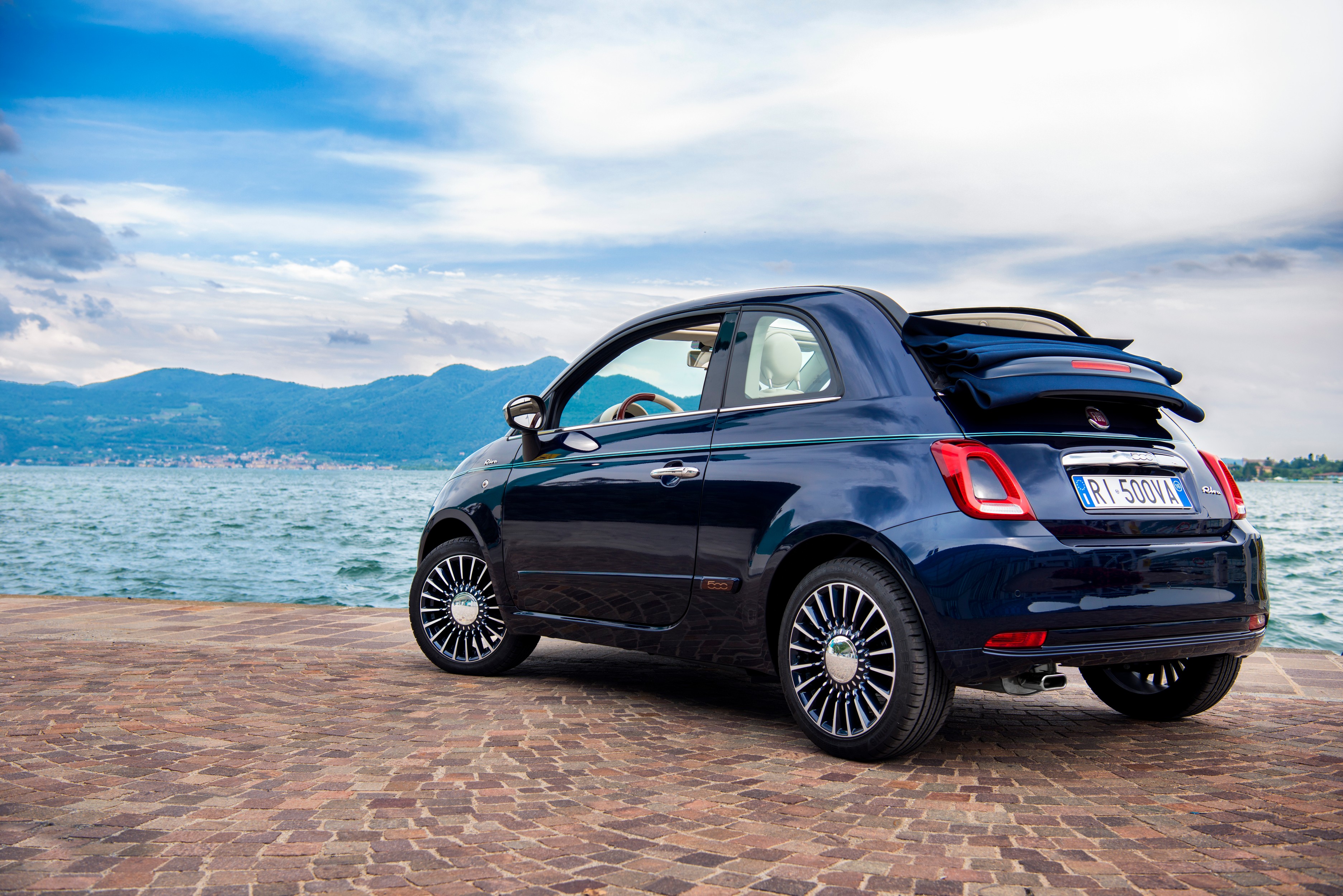

Convertible
after upgrade (facelift)
Date of manufacture
2015 – to this dayInternal designation
312Engine size
PetrolPetrol + Electric
Technical data
Three-door hatchback
| 1.2 | 1.2 | 1.2 | 1.2 | 1.2 LPG | 0.9 TwinAir Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 2/8 |
| Engine displacement [cm³] | 1242 | 1242 | 1242 | 1242 | 1242 | 875 |
| Maximum output / speed [kW/min-1] | 51/5500 | 51/5500 | 51/5500 | 51/5500 | 51/5500 | 63/5500 |
| Maximum torque [Nm/min-1] | 102/3000 | 102/3000 | 102/3000 | 102/3000 | 102/3000 | 145/1900 |
| Bore and stroke [mm x mm] | 70,8 x 78,9 | 70,8 x 78,9 | 70,8 x 78,9 | 70,8 x 78,9 | 70,8 x 78,9 | 80,5 x 86,0 |
| Compression ratio | 11,1:1 | 11,1:1 | 11,1:1 | 11,1:1 | 11,1:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 160 | 160 | 160 | 160 | 160 | 173 |
| Acceleration 0–100 km/h [s] | 12.9 | 12.9 | 12.9 | 12.9 | 13.3 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.2 | 6.0 | 6.7-5.5 | 5.9-5.4 | 7.4-6.3 [9.2-8.1 LPG] | 6.4-4.6 |
| Out of town [l] | 4.2 | 4.1 | 4.9-4.3 | 5.0-4.0 | 4.8-4.3 [5.9-5.5 LPG] | 4.3-3.4 |
| Combined [l] | 4.9 | 4.8 | 5.5-4.7 | 5.4-4.5 | 5.7-5.0 [7.3-6.5 LPG] | 5.1-3.8 |
| CO2 emissions [g/km] | 115 | 111 | 129-110 | 125-105 | 131-117 [118-104 LPG] | 116-90 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | 6.3-5.5 | - | - |
| CO2 emissions [g/km] | - | - | - | 141-129 | - | - |
| Emission standard | EU6 | EU6 | EU6 - Euro 6d-Temp | EU6 - Euro 6d-Temp | EU6b - Euro 6d-Temp | EU6 - Euro 6d-Temp |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 940 | 975 | 940-1035 | 975-1050 | 940-1035 | 1005 |
| Overall weight [kg] | 1345 | 1350 | 1345-1360 | 1350-1360 | 1345-1360 | 1370 |
| Maximum trailer weight unbraked/braked [kg] | 400/800 | 400/800 | 400/800 | 400/800 | - | 400/800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 185 | 185 | 185 | 185 | 165 | 185 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/550 | -/550 | -/550 | -/550 | -/530 | -/550 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 35 | 35 | 35 | 35 | 35 [30.5 LPG] | 35 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 185/55 R15 |
| Tyre dimensions rear | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 185/55 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 257 | 257 | 257 | 257 | 257 | 257 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.3/- | 9.3/- | 9.3/- | 9.3/- | 9.3/- | 9.3/- |
| Overall length [mm] | 3571 | 3571 | 3571 | 3571 | 3571 | 3571 |
| Overall width without/including mirrors [mm] | 1627/1893 | 1627/1893 | 1627/1893 | 1627/1893 | 1627/1893 | 1627/1893 |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Front wheel track [mm] | 1413 | 1413 | 1413 | 1413 | 1413 | 1413 |
| Rear wheel track [mm] | 1407 | 1407 | 1407 | 1407 | 1407 | 1407 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 0.9 TwinAir Turbo | 0.9 TwinAir Turbo | 1.0 GSE Hybrid | 1.3 Multijet | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2020 to | - | ||
| Engine type | Ignition supercharged | Ignition supercharged | Petrol + Electric | Diesel supercharged | ||
| Number of cylinders/valves | 2/8 | 2/8 | 3/6 | 4/16 | ||
| Engine displacement [cm³] | 875 | 875 | 999 | 1248 | ||
| Maximum output / speed [kW/min-1] | 63/5500 | 77/5500 | 51/6000 3.6 el. | 70/4000 | ||
| Maximum torque [Nm/min-1] | 145/2000 | 145/2000 | 92/3500 50 el. | 200/1500 | ||
| Bore and stroke [mm x mm] | 80,5 x 86,0 | 80,5 x 86,0 | 70,0 x 86.5 | 69,6 x 82,0 | ||
| Compression ratio | 10,0:1 | 10,0:1 | 12,0.1 | 16,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 5 gear robotic manual | 6 gear manual | 6 gear manual | 5 gear manual | ||
| Drive specifications |
| - | - | - | ||
| Top speed [km/h] | 173 | 188 | 167 | 180 | ||
| Acceleration 0–100 km/h [s] | 11.0 | 10.0 | 13.8 | 10.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4.3 | 5.5 | 4.9 | 4.1 | ||
| Out of town [l] | 3.5 | 3.5 | 3.6 | 3.0 | ||
| Combined [l] | 3.8 | 4.2 | 4.1 | 3.4 | ||
| CO2 emissions [g/km] | 88 | 99 | 93 | 89 | ||
| Low speed [l] | - | - | - | - | ||
| Medium speed [l] | - | - | - | - | ||
| High speed [l] | - | - | - | - | ||
| Extra high speed [l] | - | - | - | - | ||
| Combined speed [l] | - | - | 5.7-5.3 | - | ||
| CO2 emissions [g/km] | - | - | 127-119 | - | ||
| Emission standard | EU6 | EU6 | EU6d | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| System voltage [V] | - | - | 12 | - | ||
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 11 A⋅h | - | ||
| Range with fully charged battery [km] | - | - | - | - | ||
| Charging time | - | - | - | - | ||
| Number of modules/cells | - | - | - | - | ||
| Battery weight [kg] | - | - | - | - | ||
| Charger | - | - | - | - | ||
| Standby weight [kg] | 1015 | 1015 | 1055 | 1055 | ||
| Overall weight [kg] | 1380 | 1380 | 1360 | 1420 | ||
| Maximum trailer weight unbraked/braked [kg] | 400/800 | 400/800 | - | 400/800 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 185 | 185 | 185 | 185 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/550 | -/550 | -/550 | -/550 | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 3 | 3 | 3 | 3 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 35 | 35 | 35 | 35 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | ||
| Tyre dimensions front | 185/55 R15 | 185/55 R15 | 185/55 R15 | 185/55 R15 | ||
| Tyre dimensions rear | 185/55 R15 | 185/55 R15 | 185/55 R15 | 185/55 R15 | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | 257 | 257 | 257 | 257 | ||
| Brake dimensions rear | - | 240 | - | - | ||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 9.3/- | 9.3/- | 9.3/- | 10.8/- | ||
| Overall length [mm] | 3571 | 3571 | 3571 | 3571 | ||
| Overall width without/including mirrors [mm] | 1627/1893 | 1627/1893 | 1627/1893 | 1627/1893 | ||
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | ||
| Wheelbase [mm] | 2300 | 2300 | 2300 | 2300 | ||
| Front wheel track [mm] | 1413 | 1413 | 1413 | 1413 | ||
| Rear wheel track [mm] | 1407 | 1407 | 1407 | 1407 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Convertible
| 1.2 | 1.2 | 1.2 | 1.2 | 0.9 TwinAir Turbo | 0.9 TwinAir Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 2/8 | 2/8 |
| Engine displacement [cm³] | 1242 | 1242 | 1242 | 1242 | 875 | 875 |
| Maximum output / speed [kW/min-1] | 51/5500 | 51/5500 | 51/5500 | 51/5500 | 63/5500 | 63/5500 |
| Maximum torque [Nm/min-1] | 102/3000 | 102/3000 | 102/3000 | 102/3000 | 145/1900 | 145/2000 |
| Bore and stroke [mm x mm] | 70,8 x 78,9 | 70,8 x 78,9 | 70,8 x 78,9 | 70,8 x 78,9 | 80,5 x 86,0 | 80,5 x 86,0 |
| Compression ratio | 11,1:1 | 11,1:1 | 11,1:1 | 11,1:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 160 | 160 | 160 | 160 | 173 | 173 |
| Acceleration 0–100 km/h [s] | 12.9 | 12.9 | 12.9 | 12.9 | 11.0 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.2 | 6.0 | 6.7-5.5 | 5.9-5.4 | 6.4-4.6 | 4.3 |
| Out of town [l] | 4.2 | 4.1 | 4.9-4.3 | 5.0-4.0 | 4.3-3.4 | 3.5 |
| Combined [l] | 4.9 | 4.8 | 5.5-4.7 | 5.4-4.5 | 5.1-3.8 | 3.8 |
| CO2 emissions [g/km] | 115 | 111 | 129-110 | 125-105 | 116-90 | 88 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | 6.3-5.5 | - | - |
| CO2 emissions [g/km] | - | - | - | 141-129 | - | - |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 940 | 975 | 940-1055 | 975-1075 | 1005 | 1015 |
| Overall weight [kg] | 1305 | 1340 | 1305 | 1340-1385 | 1370 | 1380 |
| Maximum trailer weight unbraked/braked [kg] | 400/800 | 400/800 | 400/800 | 400/800 | 400/800 | 400/800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 185 | 185 | 185 | 185 | 185 | 185 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/550 | -/550 | -/550 | -/550 | -/550 | -/550 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 35 | 35 | 35 | 35 | 35 | 35 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 185/55 R15 | 185/55 R15 |
| Tyre dimensions rear | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 185/55 R15 | 185/55 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 257 | 257 | 257 | 257 | 257 | 257 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.3/- | 9.3/- | 9.3/- | 9.3/- | 9.3/- | 9.3/- |
| Overall length [mm] | 3571 | 3571 | 3571 | 3571 | 3571 | 3571 |
| Overall width without/including mirrors [mm] | 1627/1893 | 1627/1893 | 1627/1893 | 1627/1893 | 1627/1893 | 1627/1893 |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Front wheel track [mm] | 1413 | 1413 | 1413 | 1413 | 1413 | 1413 |
| Rear wheel track [mm] | 1407 | 1407 | 1407 | 1407 | 1407 | 1407 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 0.9 TwinAir Turbo | 1.0 GSE Hybrid | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | from 2020 to | ||||
| Engine type | Ignition supercharged | Petrol + Electric | ||||
| Number of cylinders/valves | 2/8 | 3/6 | ||||
| Engine displacement [cm³] | 875 | 999 | ||||
| Maximum output / speed [kW/min-1] | 77/5500 | 51/6000 3.6 el. | ||||
| Maximum torque [Nm/min-1] | 145/2000 | 92/3500 50 el. | ||||
| Bore and stroke [mm x mm] | 80,5 x 86,0 | 70,0 x 86.5 | ||||
| Compression ratio | 10,0:1 | 12,0.1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 188 | 167 | ||||
| Acceleration 0–100 km/h [s] | 10.0 | 13.8 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.5 | 4.9 | ||||
| Out of town [l] | 3.5 | 3.6 | ||||
| Combined [l] | 4.2 | 4.1 | ||||
| CO2 emissions [g/km] | 99 | 93 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | - | 5.7-5.3 | ||||
| CO2 emissions [g/km] | - | 127-119 | ||||
| Emission standard | EU6 | EU6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| System voltage [V] | - | 12 | ||||
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 11 A⋅h | ||||
| Range with fully charged battery [km] | - | - | ||||
| Charging time | - | - | ||||
| Number of modules/cells | - | - | ||||
| Battery weight [kg] | - | - | ||||
| Charger | - | - | ||||
| Standby weight [kg] | 1015 | 1055 | ||||
| Overall weight [kg] | 1380 | 1360 | ||||
| Maximum trailer weight unbraked/braked [kg] | 400/800 | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 185 | 185 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/550 | -/550 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 35 | 35 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | torsion bar | torsion bar | ||||
| Tyre dimensions front | 185/55 R15 | 185/55 R15 | ||||
| Tyre dimensions rear | 185/55 R15 | 185/55 R15 | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | 257 | 257 | ||||
| Brake dimensions rear | 240 | - | ||||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 9.3/- | 9.3/- | ||||
| Overall length [mm] | 3571 | 3571 | ||||
| Overall width without/including mirrors [mm] | 1627/1893 | 1627/1893 | ||||
| Overall height [mm] | 1488 | 1488 | ||||
| Wheelbase [mm] | 2300 | 2300 | ||||
| Front wheel track [mm] | 1413 | 1413 | ||||
| Rear wheel track [mm] | 1407 | 1407 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
