Fiat 124 Spider

Date of manufacture

2015 – 2020 (Roadster)

Platform

Mazda NE/NF

Manufacturing locations

Hiroshima, Japan

Designer

Felix Kilbertus

Car body style

Roadster

Date of manufacture

2015 – 2020

Internal designation

348

Engine size

1.4 T MultiAir

Technical data

Roadster

	1.4 T MultiAir	1.4 T MultiAir
Date of sale	-	from 2017 to
Engine type	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1368	1368
Maximum output / speed [kW/min-1]	103/5000	103/5000
Maximum torque [Nm/min-1]	240/2250	240/2250
Bore and stroke [mm x mm]	72,0 x 84,0	72,0 x 84,0
Compression ratio	9,8:1	9,8:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	turbo-supercharged electro-hydraulic control of intake valves MultiAir start&stop system	turbo-supercharged electro-hydraulic control of intake valves MultiAir start&stop system

Drive axle	Rear	Rear
Gearbox	6 gear manual	6 gear automatic
Drive specifications	-	six-speed automatic gearbox

Top speed [km/h]	215	214
Acceleration 0–100 km/h [s]	7.5	7.6
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	8.5	9.1
Out of town [l]	5.1	5.2
Combined [l]	6.4	6.6
CO2 emissions [g/km]	148	153

Emission standard	EU6	EU6
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1125	1145
Overall weight [kg]	-	-
Maximum trailer weight unbraked/braked [kg]	-	-
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	-	-

Boot volume [l]	140	140
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	2	2
Number of seats	2	2
Fuel tank volume [l]	45	45
AdBlue tank volume [l]	-	-
Air resistance [Cd]	-	-
Front suspension	double wishbone	double wishbone
Rear suspension	multilink	multilink
Tyre dimensions front	195/50 R16	205/45 R17
Tyre dimensions rear	195/50 R16	205/45 R17
Wheel size front	-	-
Wheel size rear	-	-
Brake dimensions front	280	280
Brake dimensions rear	280	280
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	-/9.4	-/9.4

Overall length [mm]	4054	4054
Overall width without/including mirrors [mm]	1740/-	1740/-
Overall height [mm]	1233	1233
Wheelbase [mm]	2310	2310
Front wheel track [mm]	1496	1496
Rear wheel track [mm]	1503	1503
Forward overhang [mm]	834	834
Rear overhang [mm]	910	910
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	950	950
Headroom rear [mm]	-	-
Front elbow/shoulder width [mm]	1320/1325	1320/1325
Rear elbow/shoulder width [mm]	-	-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

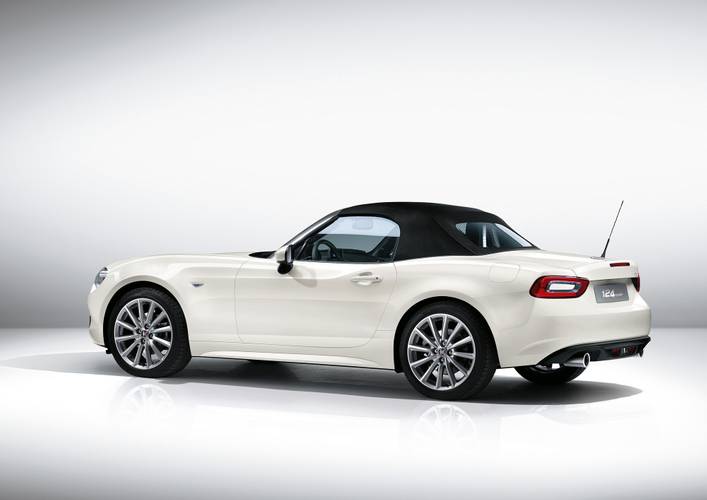

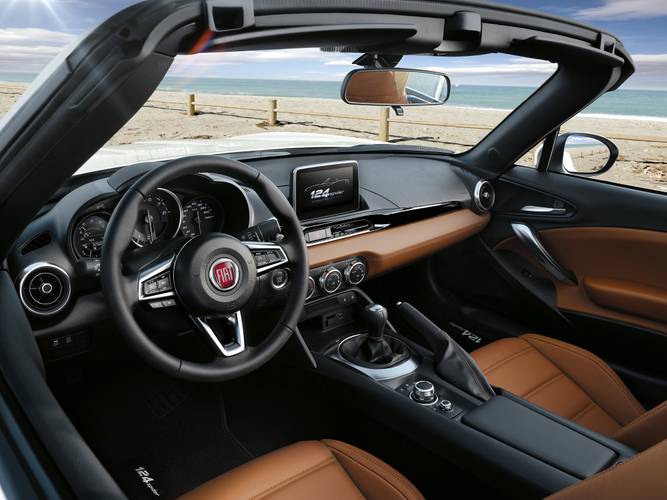

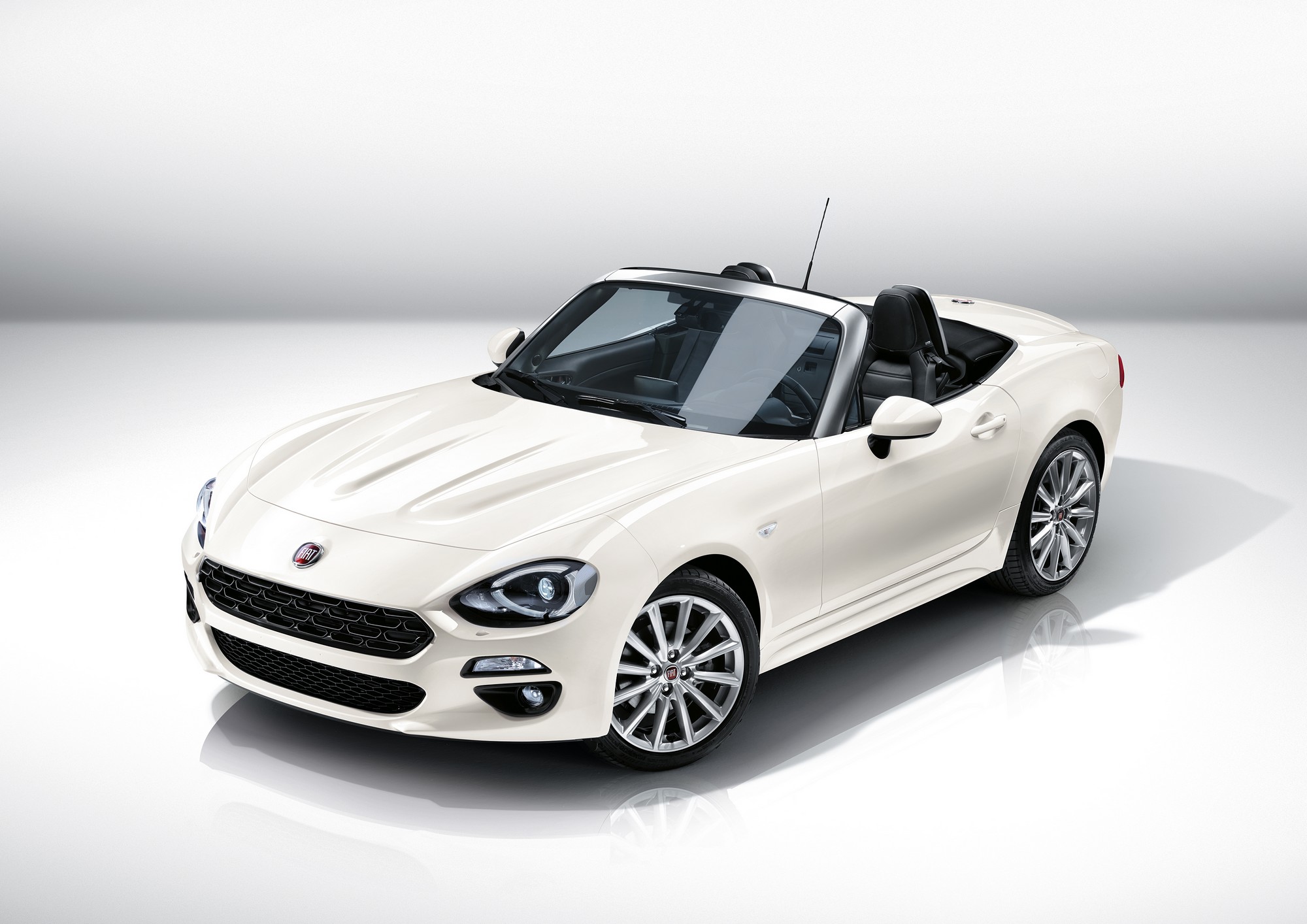

Gallery
