Ferrari GTC4Lusso

Date of manufacture

2016 – 2020 (Coupé)

Platform

Manufacturing locations

Maranello, Italy

Designer

Ferrari Styling Centre

Car body style

Coupé

Date of manufacture

2016 – 2020

Internal designation

F151M

Engine size

GTC4Lusso T

GTC4Lusso

Technical data

Coupé

	GTC4Lusso T	GTC4Lusso
Date of sale	from 2017 to	-
Engine type	Ignition supercharged	Petrol
Number of cylinders/valves	8/32	12/48
Engine displacement [cm³]	3855	6262
Maximum output / speed [kW/min-1]	449/7500	507/8000
Maximum torque [Nm/min-1]	760/3000-5250	697/5750
Bore and stroke [mm x mm]	86.5 x 82.0	94.0 x 75.2
Compression ratio	9.4:1	13.5:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	direct injection supercharging by twin turbochargers with compressed air intercooler variable timing of intake and exhaust valves start&stop system HELE	start&stop system HELE

Drive axle	Rear	4x4
Gearbox	7 gear automatic	7 gear automatic
Drive specifications	seven-speed dual-clutch automatic gearbox F1	seven-speed dual-clutch automatic gearbox F1

Top speed [km/h]	> 320	335
Acceleration 0–100 km/h [s]	3.5	3.4
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	-	-
Out of town [l]	-	-
Combined [l]	11.6	15.3
CO2 emissions [g/km]	265	350

Low speed [l]	21.0	28.5
Medium speed [l]	12.7	15.8
High speed [l]	11.1	13.6
Extra high speed [l]	11.6	13.9
Combined speed [l]	12.9	16.1
CO2 emissions [g/km]	294	366

Emission standard	-	-
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1740 net weight	1790 net weight
Overall weight [kg]	-	-
Maximum trailer weight unbraked/braked [kg]	-	-
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	-	-

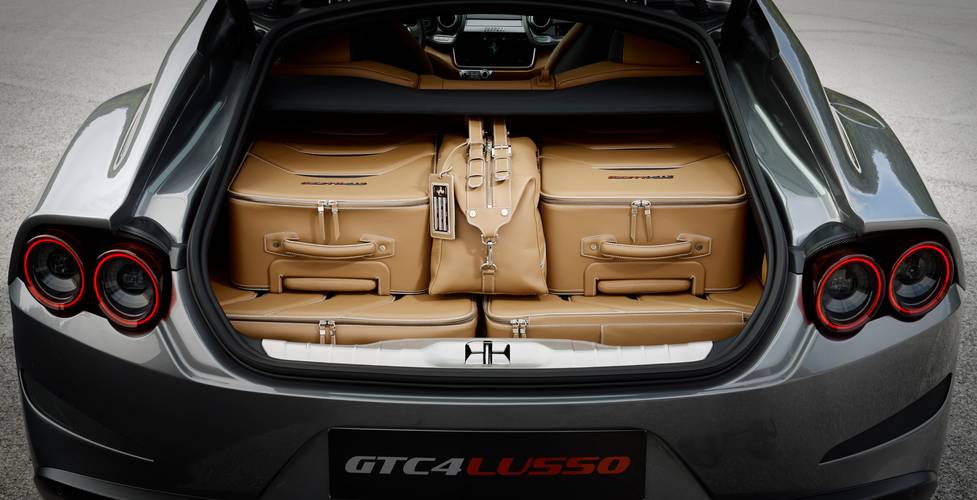

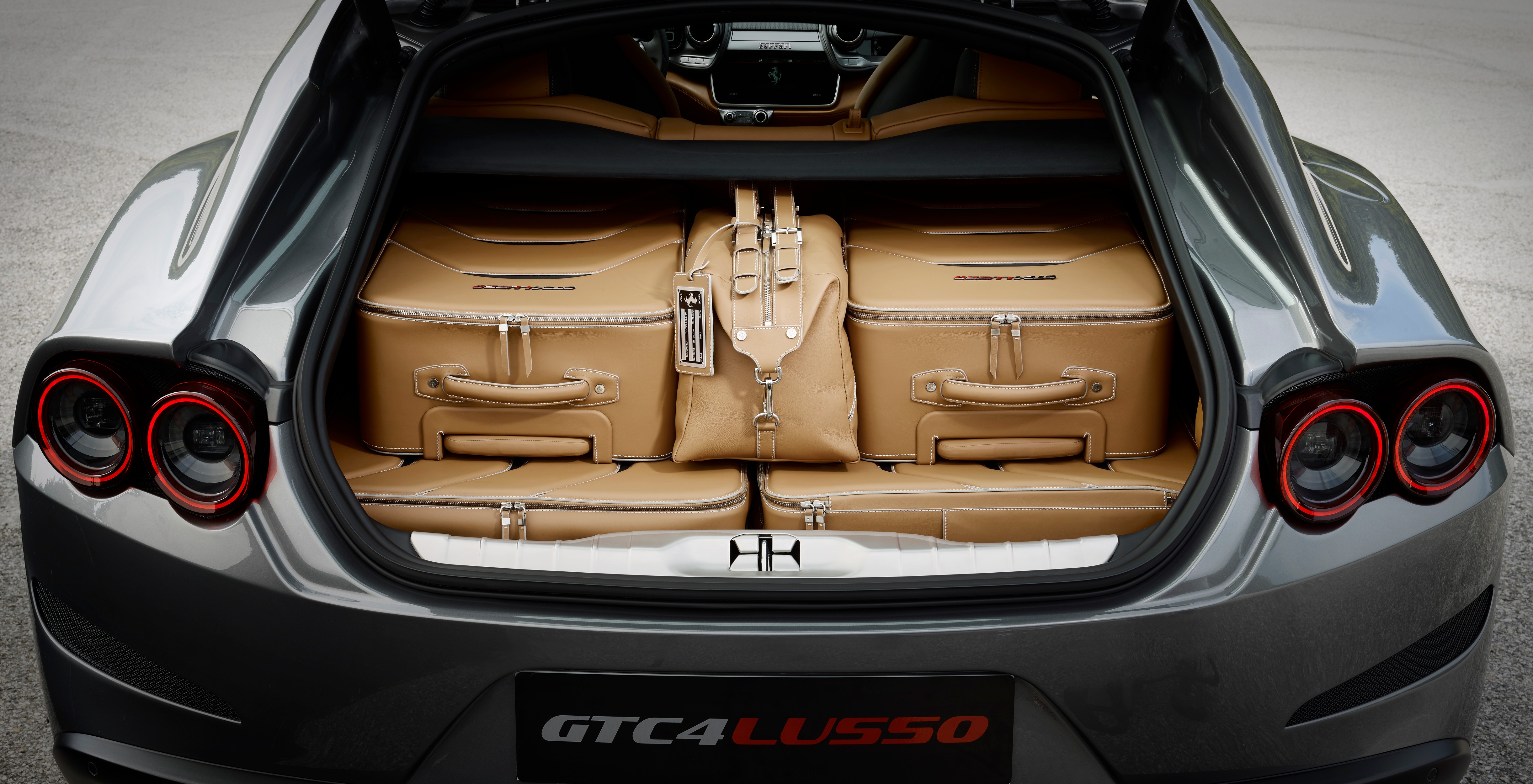

Boot volume [l]	450	450
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/800	-/800
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	2	2
Number of seats	4	4
Fuel tank volume [l]	91	91
AdBlue tank volume [l]	-	-
Air resistance [Cd]	-	-
Front suspension	-	-
Rear suspension	-	-
Tyre dimensions front	245/35 ZR20	245/35 ZR20
Tyre dimensions rear	295/35 ZR20	295/35 ZR20
Wheel size front	8.5J x 20	8.5J x 20
Wheel size rear	10.5J x 20	10.5J x 20
Brake dimensions front	398 x 38	398 x 38
Brake dimensions rear	360 x 32	360 x 32
Steering	-	-
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	-	-

Overall length [mm]	4922	4922
Overall width without/including mirrors [mm]	1980/-	1980/-
Overall height [mm]	1383	1383
Wheelbase [mm]	2990	2990
Front wheel track [mm]	1674	1674
Rear wheel track [mm]	1668	1668
Forward overhang [mm]	-	-
Rear overhang [mm]	-	-
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	-	-
Headroom rear [mm]	-	-
Front elbow/shoulder width [mm]	-	-
Rear elbow/shoulder width [mm]	-	-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

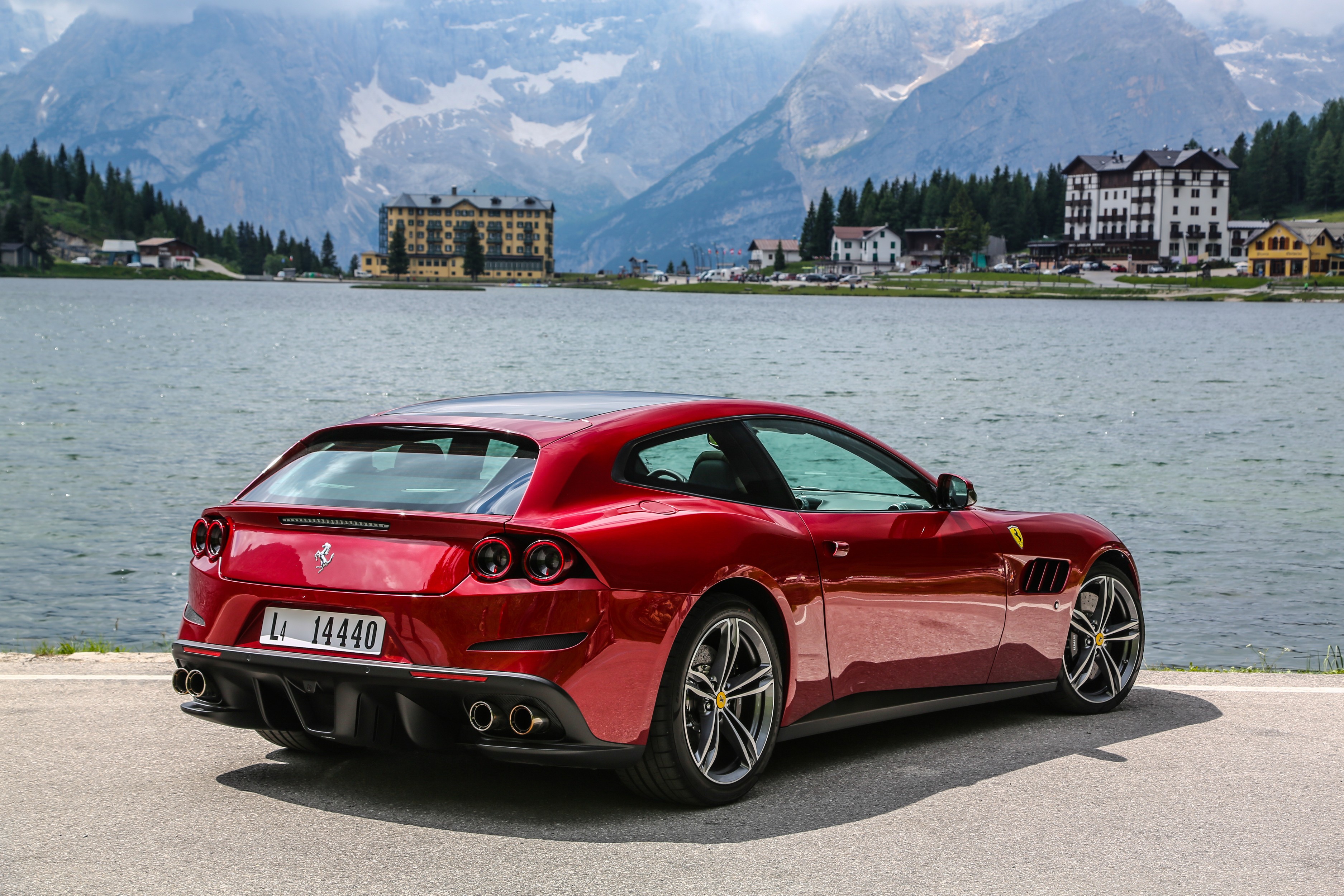

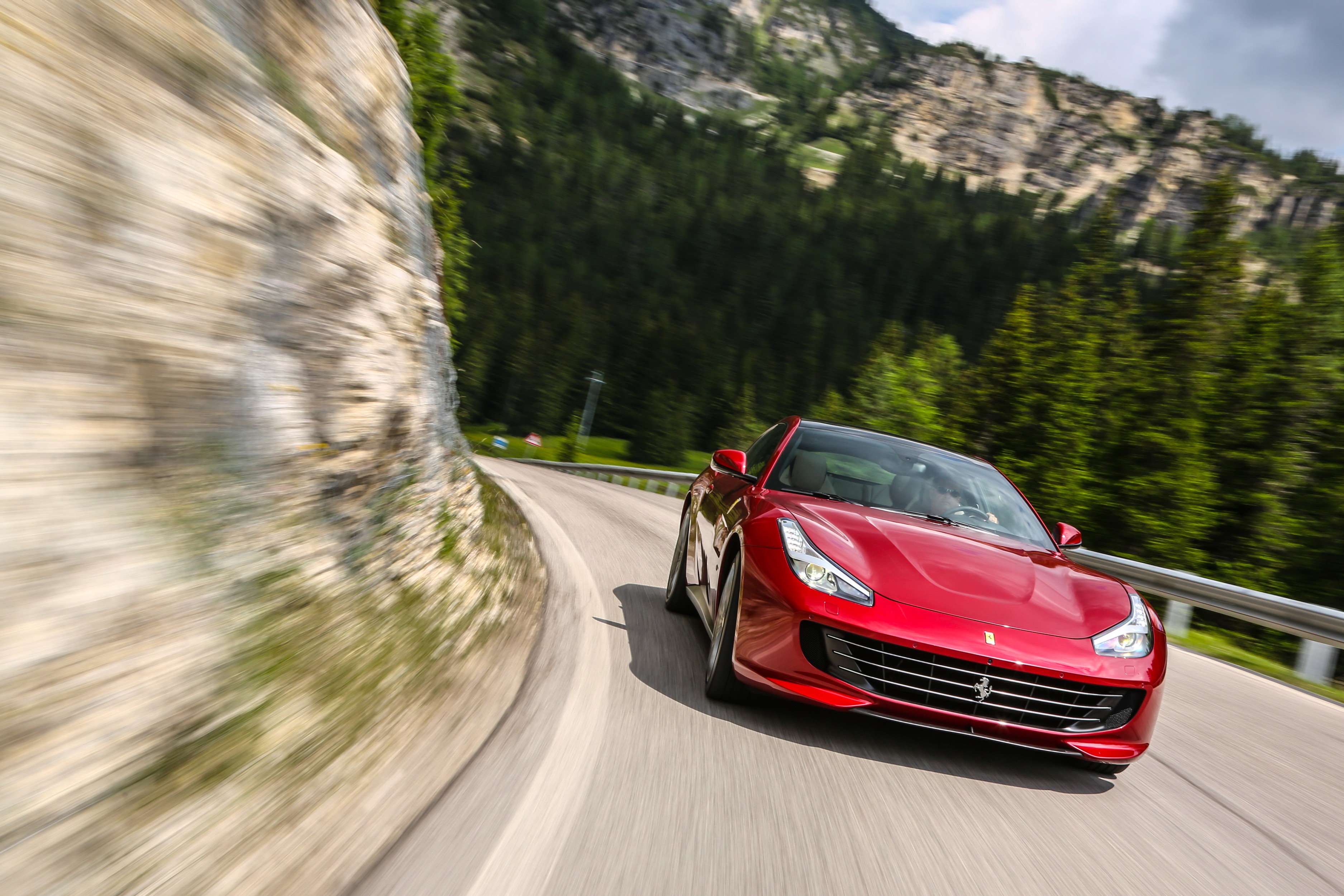

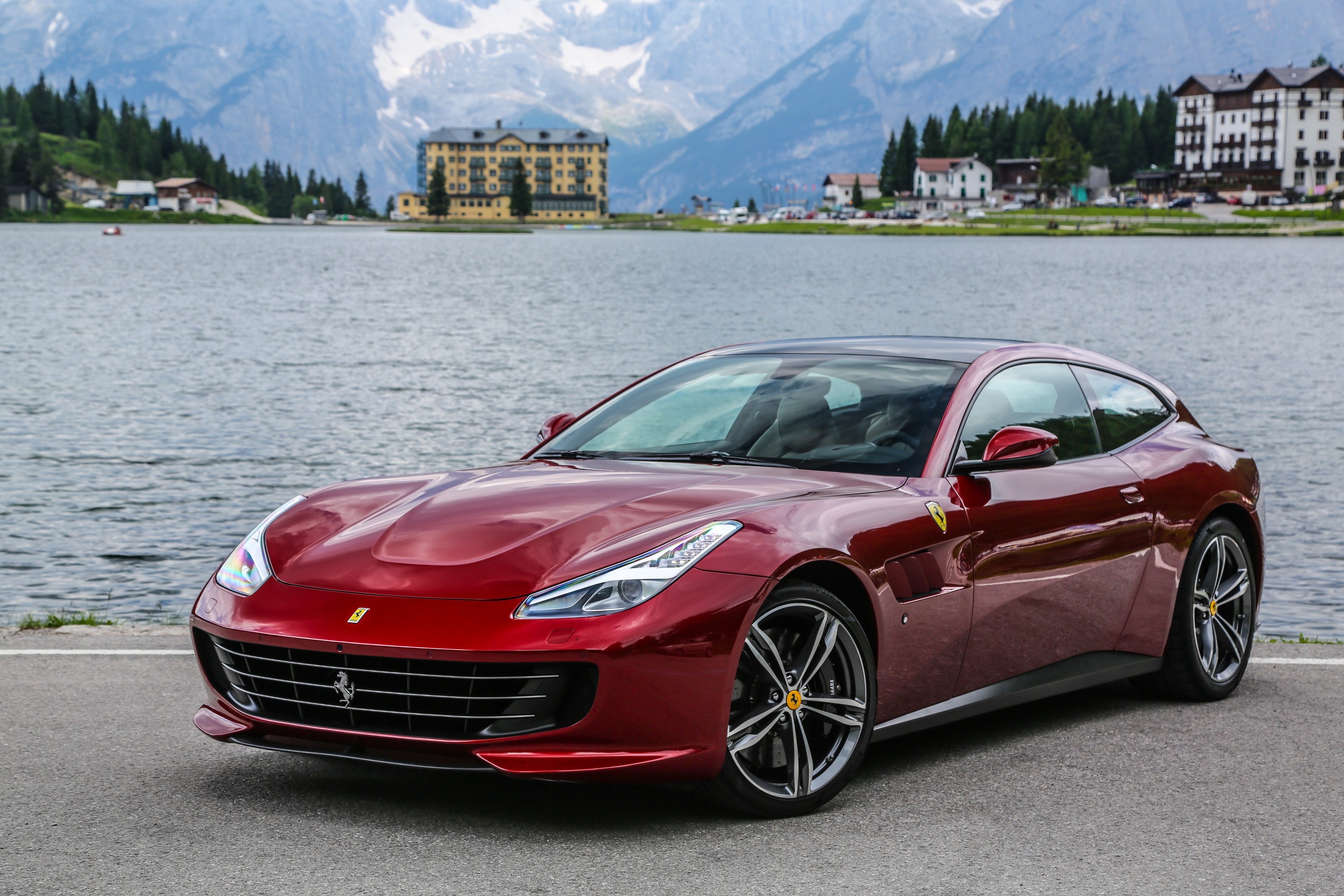

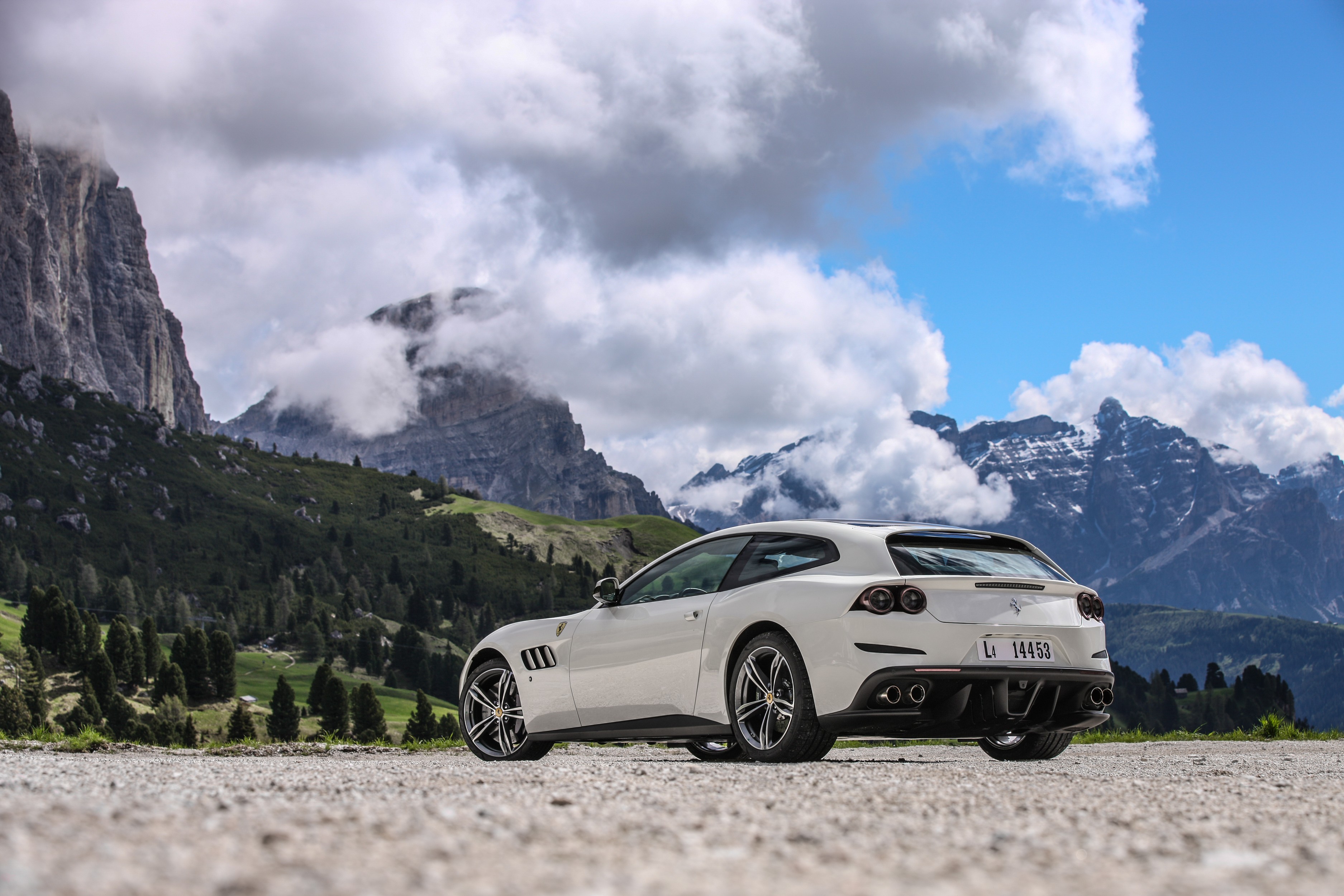

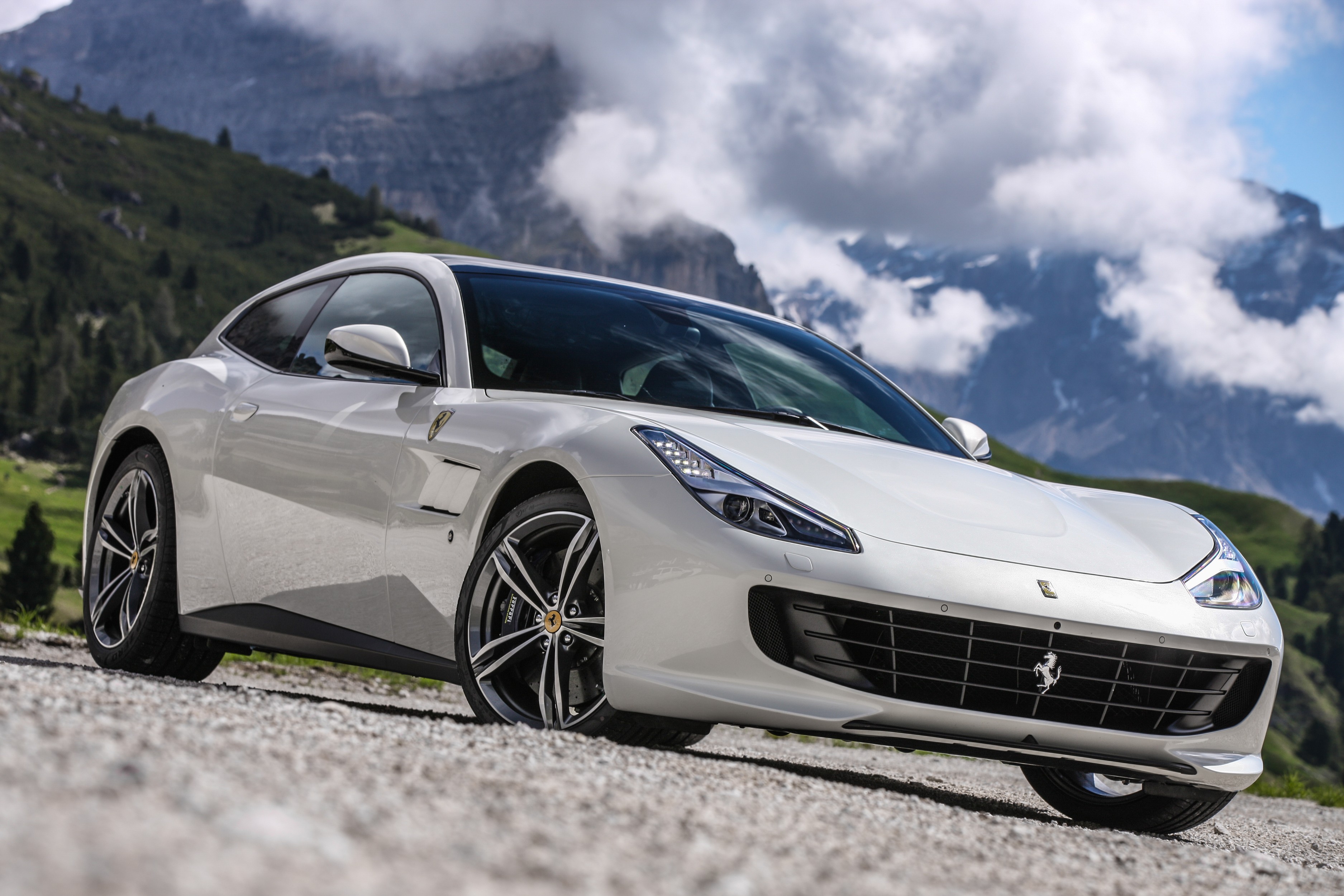

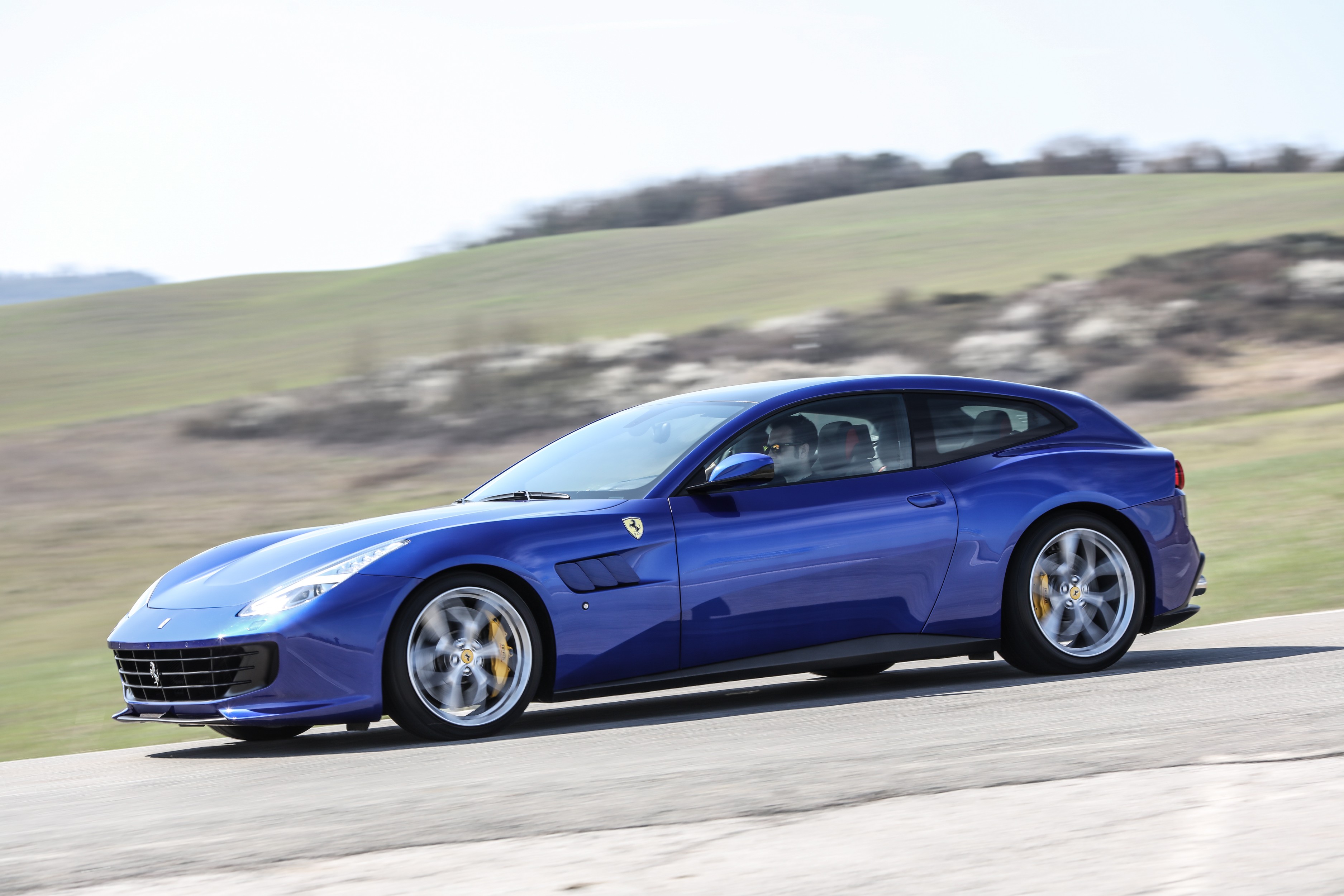

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
