DS DS3
Date of manufacture
2016 – 2019 (Three-door hatchback)
2016 – 2016 (Convertible)
Platform
PSA PF1
Manufacturing locations
Poissy, France
Designer
Mark Lloyd
Tags
B-segment
French cars

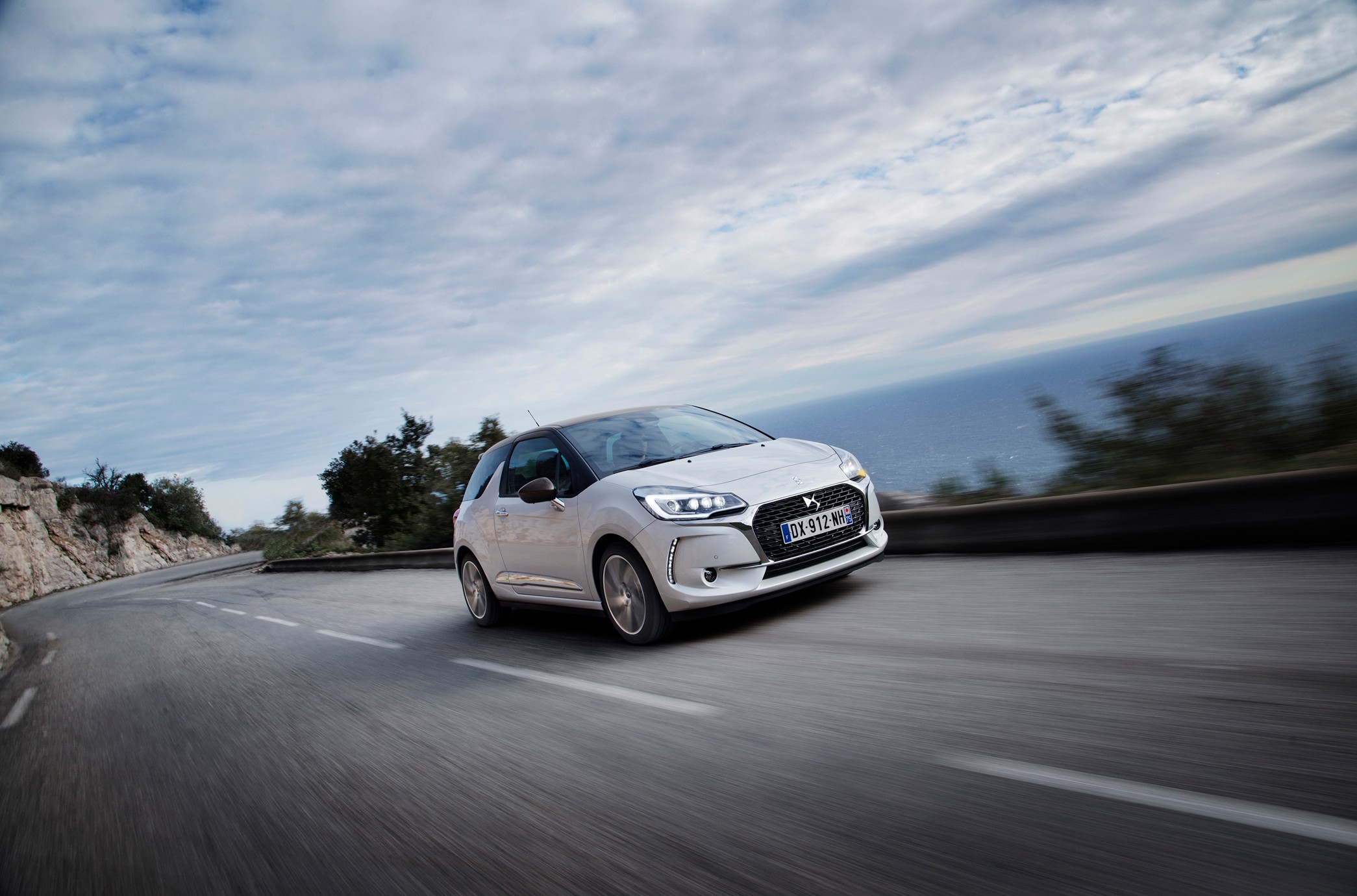

The DS DS3 is a luxury car manufactured by the French brand since 2016. The model offers two body variants: a three-door hatchback and a cabriolet. The car is built on the PSA PF1 platform and has a wide range of petrol and diesel engines. The most powerful version, the 1.6 THP 208 Performance, has a top speed of 230 km/h, while the most economical 1.6 BlueHDi 100 has a combined fuel consumption of 3.4 l/100 km and CO2 emissions of 87 g/km. The size of the trunk varies depending on the type of body; for the hatchback it is 285 l, for the cabriolet 245 l. The car was tested by EURONCAP in 2017 and received a rating of 3 out of 5.
Car body style
Three-door hatchback
Date of manufacture
2016 – 2019Internal designation
-Convertible
Date of manufacture
2016 – 2016Internal designation
Technical data
Three-door hatchback
| 1.2 PureTech 82 | 1.2 PureTech 110 | 1.2 PureTech 110 | 1.2 PureTech 110 | 1.2 PureTech 130 | 1.6 THP 165 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from 2018 to | from to 2018 | from to 2018 |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1199 | 1199 | 1199 | 1199 | 1199 | 1598 |
| Maximum output / speed [kW/min-1] | 60/5750 | 81/5500 | 81/5500 | 81/5500 | 96/5500 | 121,4/6000 |
| Maximum torque [Nm/min-1] | 118/2750 | 205/1500 | 205/1500 | 205/1500 | 230/1750 | 240/1400 |
| Bore and stroke [mm x mm] | 75 x 90,5 | 75 x 90,5 | 75 x 90,5 | 75 x 90,5 | 75 x 90,5 | 77 x 85,8 |
| Compression ratio | - | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | - |
| Oil volume [l] | - | - | - | - | 4.4 | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
|
| - | - |
| Top speed [km/h] | 174 | 190 | 188 | 194 | 204 | 218 |
| Acceleration 0–100 km/h [s] | 14,25 | 10,6 | 10,6 | 10,8 | 8,9 | 8,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,6 | 5,3 | 5,6 | 6.3 | 5,3 | 7,1 |
| Out of town [l] | 4,1 | 3,8 | 3,9 | 4.6 | 3,8 | 4,6 |
| Combined [l] | 4,6 | 4,3 | 4,6 | 5.2 | 4,3 | 5,6 |
| CO2 emissions [g/km] | 107 | 100 | 105 | 119 | 100 | 129 |
| Emission standard | EURO 6 | EURO 6 | EURO 6 | EURO 6d-TEMP | EURO 6 | EURO 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1049-1147 | 1145-1221 | 1165-1254 | 1165-1254 | 1165-1241 | 1215-1248 |
| Overall weight [kg] | 1511 | 1578 | 1615 | 1640 | 1600 | 1605 |
| Maximum trailer weight unbraked/braked [kg] | 520/1100 | 570/1150 | 570/1150 | 570/1150 | 570/1150 | 570/1150 |
| Maximum front/rear axle load [kg] | 900/790 | 900/790 | 900/790 | - | 900/790 | 920/790 |
| Maximum vertical load on the tow bar [kg] | 46 | 46 | 46 | 46 | 46 | 46 |
| Maximum load on roof/carrier [kg] | 70/- | 70/- | 70/- | 70/- | 70/- | 70/- |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 655 | 655 | 655 | 655 | 655 | 655 |
| Boot length with rear seats folded [mm] | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers |
| Tyre dimensions front | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T |
| Tyre dimensions rear | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10,2/- | 10,2/- | 10,2/- | 10,2/- | 10,2/- | 10,2/- |
| Overall length [mm] | 3954 | 3954 | 3954 | 3954 | 3954 | 3954 |
| Overall width without/including mirrors [mm] | 1715/2004 | 1715/2004 | 1715/2004 | 1715/2004 | 1715/2004 | 1715/2004 |
| Overall height [mm] | 1458 | 1458 | 1458 | 1458 | 1458 | 1458 |
| Wheelbase [mm] | 2452 | 2452 | 2452 | 2452 | 2452 | 2452 |
| Front wheel track [mm] | 1465-1468 | 1465-1468 | 1465-1468 | 1465-1468 | 1465-1468 | 1465-1468 |
| Rear wheel track [mm] | 1467-1471 | 1467-1471 | 1467-1471 | 1467-1471 | 1467-1471 | 1467-1471 |
| Forward overhang [mm] | 830 | 830 | 830 | 830 | 830 | 830 |
| Rear overhang [mm] | 660 | 660 | 660 | 660 | 660 | 660 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

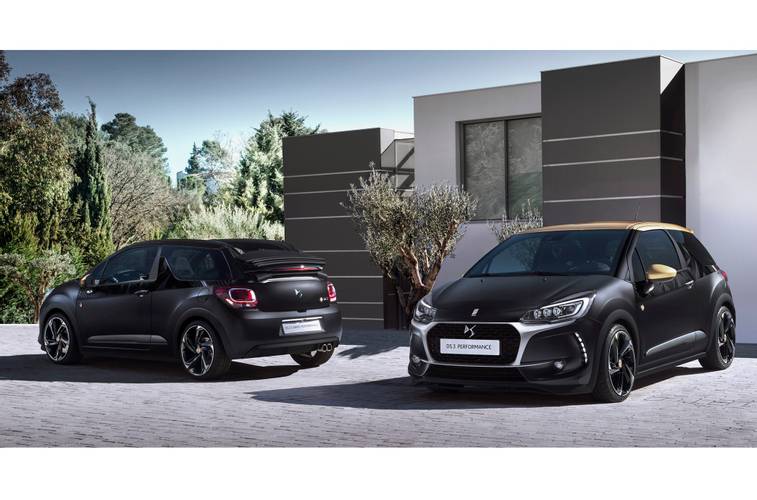

| 1.6 THP 208 Performance | 1.6 BlueHDi 100 | 1.6 BlueHDi 120 | ||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | |||
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | |||
| Engine displacement [cm³] | 1598 | 1560 | 1560 | |||
| Maximum output / speed [kW/min-1] | 153/6000 | 73/3750 | 88/3500 | |||
| Maximum torque [Nm/min-1] | 300/3000 | 254/1750 | 300/1750 | |||
| Bore and stroke [mm x mm] | 77 x 85,8 | 75 x 88,3 | 75 x 88,3 | |||
| Compression ratio | 10.2:1 | - | - | |||
| Oil volume [l] | 4.8 | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 5 gear manual | 6 gear manual | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 230 | 189 | 190 | |||
| Acceleration 0–100 km/h [s] | 6.5 | 10,8 | 9,4 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6.9 | 3,8 | 4,4 | |||
| Out of town [l] | 4.6 | 3,2 | 3,2 | |||
| Combined [l] | 5.4 | 3,4 | 3,6 | |||
| CO2 emissions [g/km] | 125 | 87 | 94 | |||
| Emission standard | EURO 6 | EURO 6 | EURO 6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1175 | 1160-1262 | 1225-1301 | |||
| Overall weight [kg] | 1607 | 1633 | 1653 | |||
| Maximum trailer weight unbraked/braked [kg] | - | 450/775 | 450/775 | |||
| Maximum front/rear axle load [kg] | - | 900/790 | 920/790 | |||
| Maximum vertical load on the tow bar [kg] | 46 | 46 | 46 | |||
| Maximum load on roof/carrier [kg] | 70/- | 70/- | 70/- | |||
| Boot volume [l] | 285 | 285 | 285 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | 655 | 655 | 655 | |||
| Boot length with rear seats folded [mm] | 1190 | 1190 | 1190 | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 3 | 3 | 3 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 50 | 45 | 45 | |||
| AdBlue tank volume [l] | - | 17 | 17 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | |||
| Tyre dimensions front | 205/40 R18 | 195/55 R16 81T | 195/55 R16 81T | |||
| Tyre dimensions rear | 205/40 R18 | 195/55 R16 81T | 195/55 R16 81T | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | 3.1 | - | - | |||
| Turning diameter track/circumference [m] | 10,4/- | 10,2/- | 10,2/- | |||
| Overall length [mm] | 3968 | 3954 | 3954 | |||
| Overall width without/including mirrors [mm] | 1717/2004 | 1715/2004 | 1715/2004 | |||
| Overall height [mm] | 1443 | 1458 | 1458 | |||
| Wheelbase [mm] | 2464 | 2452 | 2452 | |||
| Front wheel track [mm] | 1465-1468 | 1465-1468 | 1465-1468 | |||
| Rear wheel track [mm] | 1467-1471 | 1467-1471 | 1467-1471 | |||
| Forward overhang [mm] | 842 | 830 | 830 | |||
| Rear overhang [mm] | 662 | 660 | 660 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Convertible
| 1.2 PureTech 82 | 1.2 PureTech 110 | 1.2 PureTech 110 | 1.2 PureTech 110 | 1.2 PureTech 130 | 1.6 THP 165 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from 2018 to | from to 2018 | from to 2018 |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1199 | 1199 | 1199 | 1199 | 1199 | 1598 |
| Maximum output / speed [kW/min-1] | 60/5750 | 81/5500 | 81/5500 | 81/5500 | 96/5500 | 121,4/6000 |
| Maximum torque [Nm/min-1] | 118/2750 | 205/1500 | 205/1500 | 205/1500 | 230/1750 | 240/1400 |
| Bore and stroke [mm x mm] | 75 x 90,5 | 75 x 90,5 | 75 x 90,5 | 75 x 90,5 | 75 x 90,5 | 77 x 85,8 |
| Compression ratio | - | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.2:1 |
| Oil volume [l] | - | - | - | - | 4.4 | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
|
| - | - |
| Top speed [km/h] | 172 | 190 | 188 | 191 | 202 | 217 |
| Acceleration 0–100 km/h [s] | 12,5 | 10,7 | 10,7 | 9.4 | 9,0 | 8,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,8 | 5,3 | 6 | 6.3 | 5,4 | 7,1 |
| Out of town [l] | 4,3 | 3,8 | 4,2 | 4.6 | 4,0 | 4,6 |
| Combined [l] | 4,9 | 4,3 | 4,9 | 5.2 | 4,5 | 5,6 |
| CO2 emissions [g/km] | 112 | 100 | 112 | 119 | 105 | 129 |
| Emission standard | EURO 6 | EURO 6 | EURO 6 | EURO 6d-TEMP | EURO 6 | EURO 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1110-1182 | 1165-1235 | 1225-1268 | 1280-1336 | 1195-1273 | 1240-1272 |
| Overall weight [kg] | 1536 | 1598 | 1635 | 1655 | 1620 | 1630 |
| Maximum trailer weight unbraked/braked [kg] | 520/1110 | 520/1100 | 570/1150 | 570/1150 | 570/1150 | 570/1150 |
| Maximum front/rear axle load [kg] | 900/790 | 900/790 | 1.000/900 | - | 900/790 | 900/790 |
| Maximum vertical load on the tow bar [kg] | 46 | 46 | 46 | 46 | 46 | 46 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 245 | 245 | 245 | 245 | 245 | 245 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 648 | 648 | 648 | 648 | 648 | 648 |
| Boot length with rear seats folded [mm] | 1156 | 1156 | 1156 | 1156 | 1156 | 1156 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers |
| Tyre dimensions front | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T |
| Tyre dimensions rear | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T | 195/55 R16 81T |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10,2/- | 10,2/- | 10,2/- | 10,2/- | 10,2/- | 10,2/- |
| Overall length [mm] | 3954 | 3954 | 3954 | 3954 | 3954 | 3954 |
| Overall width without/including mirrors [mm] | 1715/2004 | 1715/2004 | 1715/2004 | 1715/2004 | 1715/2004 | 1715/2004 |
| Overall height [mm] | 1458 | 1458 | 1458 | 1458 | 1458 | 1458 |
| Wheelbase [mm] | 2452 | 2452 | 2452 | 2452 | 2452 | 2452 |
| Front wheel track [mm] | 1465-1468 | 1465-1468 | 1465-1468 | 1465-1468 | 1465-1468 | 1465-1468 |
| Rear wheel track [mm] | 1467-1471 | 1467-1471 | 1467-1471 | 1467-1471 | 1467-1471 | 1467-1471 |
| Forward overhang [mm] | 830 | 830 | 830 | 830 | 830 | 830 |
| Rear overhang [mm] | 660 | 660 | 660 | 660 | 660 | 660 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 THP 208 Performance | 1.6 BlueHDi 100 | 1.6 BlueHDi 120 | ||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | |||
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | |||
| Engine displacement [cm³] | 1598 | 1560 | 1560 | |||
| Maximum output / speed [kW/min-1] | 153/6000 | 73/3750 | 88/3500 | |||
| Maximum torque [Nm/min-1] | 300/3000 | 254/1750 | 300/1750 | |||
| Bore and stroke [mm x mm] | 77 x 85,8 | 75 x 88,3 | 75 x 88,3 | |||
| Compression ratio | 10.2:1 | - | - | |||
| Oil volume [l] | 4.8 | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 5 gear manual | 6 gear manual | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 230 | 189 | 190 | |||
| Acceleration 0–100 km/h [s] | 6.5 | 10,8 | 9,4 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6.9 | 4,0 | 4,4 | |||
| Out of town [l] | 4.6 | 3,3 | 3,2 | |||
| Combined [l] | 5.4 | 3,5 | 3,6 | |||
| CO2 emissions [g/km] | 125 | 92 | 94 | |||
| Emission standard | EURO 6 | EURO 6 | EURO 6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1166 | 1223-1295 | 1275-1292 | |||
| Overall weight [kg] | 1629 | 1652 | 1665 | |||
| Maximum trailer weight unbraked/braked [kg] | - | 450/775 | 450/775 | |||
| Maximum front/rear axle load [kg] | - | 900/790 | 900/790 | |||
| Maximum vertical load on the tow bar [kg] | 46 | 46 | 46 | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 245 | 245 | 245 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | 648 | 648 | 648 | |||
| Boot length with rear seats folded [mm] | 1156 | 1156 | 1156 | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 3 | 3 | 3 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 50 | 45 | 45 | |||
| AdBlue tank volume [l] | - | 17 | 17 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | |||
| Tyre dimensions front | 205/40 R18 | 195/55 R16 81T | 195/55 R16 81T | |||
| Tyre dimensions rear | 205/40 R18 | 195/55 R16 81T | 195/55 R16 81T | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | 3.1 | - | - | |||
| Turning diameter track/circumference [m] | 10,4/- | 10,2/- | 10,2/- | |||
| Overall length [mm] | 3968 | 3954 | 3954 | |||
| Overall width without/including mirrors [mm] | 1717/2004 | 1715/2004 | 1715/2004 | |||
| Overall height [mm] | 1443 | 1458 | 1458 | |||
| Wheelbase [mm] | 2464 | 2452 | 2452 | |||
| Front wheel track [mm] | 1465-1468 | 1465-1468 | 1465-1468 | |||
| Rear wheel track [mm] | 1467-1471 | 1467-1471 | 1467-1471 | |||
| Forward overhang [mm] | 842 | 830 | 830 | |||
| Rear overhang [mm] | 662 | 660 | 660 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
