Dacia Logan
Date of manufacture
2016 – 2020 (Sedan)
2016 – 2020 (Estate)
Platform
Dacia M0
Manufacturing locations
Mioveni, Romania
Designer
David Durand
Tags
C-segment
The Dacia Logan is available in two body styles - sedan and combi. The car was developed and has been manufactured in Romania since 2016 on the Dacia M0 platform. It offers a wide range of power units, from petrol to diesel engines. The most powerful version, Blue dCi 95, has a maximum power of 70 kW and a top speed of 179 km/h. The most economical version is the 1.5 dCi 90 with a combined fuel consumption of 3.5 l/100 km and CO2 emissions of 90 g/km. The combi body style offers a luggage compartment size of 573 l, while the sedan body style has a capacity of 510 l for its passengers. In terms of safety, this car has been rated 3 out of 5 by EURONCAP.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2016 – 2020Internal designation
-Engine size

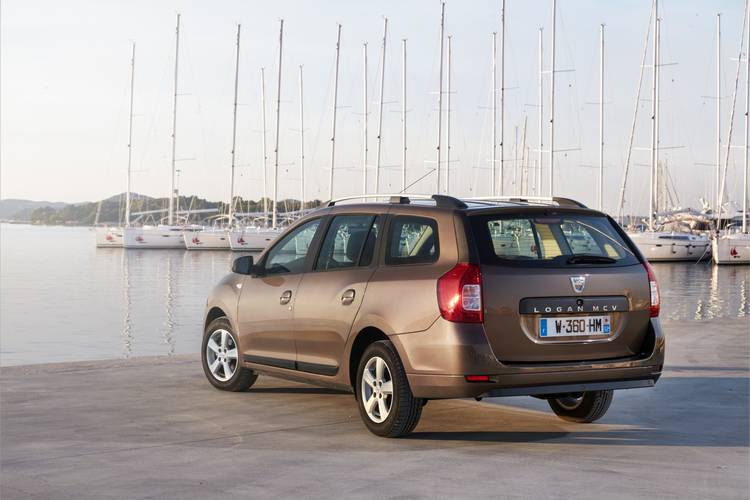

Estate (MCV)
after upgrade (facelift)
Date of manufacture
2016 – 2020Internal designation
-Engine size
Technical data
Sedan
| SCe 75 | 0.9 TCe 90 | 0.9 TCe 90 | 0.9 TCe 90 LPG | 1.5 dCi 90 | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/8 | |
| Engine displacement [cm³] | 998 | 898 | 898 | 898 | 1461 | |
| Maximum output / speed [kW/min-1] | 54/6300 | 66/5000 | 66/5000 | 66/5000 | 66/4000 | |
| Maximum torque [Nm/min-1] | 95/3500 | 140/2250 | 140/2250 | 140/2250 | 220/1750 | |
| Bore and stroke [mm x mm] | 71,0 x 84,1 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 | 76,0 x 80,5 | |
| Compression ratio | 11,0:1 | 9.5:1 | 9.5:1 | 9.5:1 | 15.5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear manual | |
| Drive specifications | - | - |
| - | - | |
| Top speed [km/h] | 158 | 175 | 175 | 175 | 173 | |
| Acceleration 0–100 km/h [s] | 15,1 | 11,1 | 11,0 | 11,3 | 11,8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.9-6.4 | 5,8-6.9 | 5,7 | 5,8 [7,6 LPG] | 3,7 | |
| Out of town [l] | 4.7-5.0 | 4,3-4.8 | 4,5 | 4,3 [5,4 LPG] | 3,4 | |
| Combined [l] | 5.2-5.5 | 4,9-5.5 | 4,9 | 4,9 [6,2 LPG] | 3,5 | |
| CO2 emissions [g/km] | 117-125 | 109-127 | 110 | 109 [98 LPG] | 90 | |
| Emission standard | Euro6 - Euro6 c | Euro6 - Euro 6c | Euro6 | Euro6 | Euro6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1045-1055 | 1073 | 1088 | 1140 | 1134 | |
| Overall weight [kg] | 1491-1555 | 1520-1545 | 1515 | 1560-1620 | 1590 | |
| Maximum trailer weight unbraked/braked [kg] | 520/790-1110 | 535-540/790-1100 | 540/1090 | 570-580/1090-1110 | 565/1100 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | |
| Boot volume [l] | 510 | 510 | 510 | 510 | 510 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/- | -/- | -/- | -/- | -/- | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | 1013/- | 1013/- | 1013/- | 1013/- | 1013/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 754 | 754 | 754 | 754 | 754 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | 406 | 406 | 406 | 406 | 406 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |
| Brake dimensions front | 258 | 258 | 258 | 258 | 258 | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | |
| Turning diameter track/circumference [m] | 10.68/- | 10.68/- | 10.68/- | 10.68/- | 10.68/- | |
| Overall length [mm] | 4347 | 4347 | 4347 | 4347 | 4347 | |
| Overall width without/including mirrors [mm] | 1733/1994 | 1733/1994 | 1733/1994 | 1733/1994 | 1733/1994 | |
| Overall height [mm] | 1517 | 1517 | 1517 | 1517 | 1517 | |
| Wheelbase [mm] | 2634 | 2634 | 2634 | 2634 | 2634 | |
| Front wheel track [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | |
| Rear wheel track [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | |
| Forward overhang [mm] | 813 | 813 | 813 | 813 | 813 | |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | |
| Clearance [mm] | 155 | 155 | 155 | 155 | 155 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 900 | 900 | 900 | 900 | 900 | |
| Headroom rear [mm] | 868 | 868 | 868 | 868 | 868 | |
| Front elbow/shoulder width [mm] | 1417/1387 | 1417/1387 | 1417/1387 | 1417/1387 | 1417/1387 | |
| Rear elbow/shoulder width [mm] | 1434/1389 | 1434/1389 | 1434/1389 | 1434/1389 | 1434/1389 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | 177/- | 177/- | 177/- | 177/- | 177/- |
Estate (MCV)
| SCe 75 | 0.9 TCe 90 | 0.9 TCe 90 | 0.9 TCe 90 LPG | Blue dCi 75 | 1.5 dCi 90 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2019 | from to 2019 | from 2019 to | from to 2019 |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/8 | 4/8 |
| Engine displacement [cm³] | 998 | 898 | 898 | 898 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 54/6300 | 66/5000 | 66/5000 | 66/5000 | 55/3750 | 66/4000 |
| Maximum torque [Nm/min-1] | 95/3500 | 140/2250 | 140/2250 | 140/2250 | 200/1500 | 220/1750 |
| Bore and stroke [mm x mm] | 71,0 x 84,1 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 11.0:1 | 9.5:1 | 9.5:1 | 9.5:1 | 15,5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 158 | 175 | 175 | 175 | 166 | 173 |
| Acceleration 0–100 km/h [s] | 15.5 | 11,1 | 11,0 | 11,3 | 14.6 | 11,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.5 | 5,8 | 5,7 | 5,8 [7,6 LPG] | 4.1 | 3,7 |
| Out of town [l] | 4.9 | 4,3 | 4,5 | 4,3 [5,4 LPG] | 3.4 | 3,4 |
| Combined [l] | 5.4 | 4,9 | 4,9 | 4,9 [6,2 LPG] | 3.7 | 3,5 |
| CO2 emissions [g/km] | 124 | 109 | 110 | 109 [98 LPG] | 97 | 90 |
| Emission standard | Euro6c | Euro6 | Euro6 | Euro6 | Euro 6d-Temp | Euro6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1107 | 1146 | 1150 | 1165 | 1257 | 1165 |
| Overall weight [kg] | 1505-1555 | 1620 | 1590 | 1620 | 1695 | 1670 |
| Maximum trailer weight unbraked/braked [kg] | 520-550/810-1090 | 570/1110 | 575/1110 | 580/1110 | 625/810 | 580/1165 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 573 | 573 | 573 | 573 | 573 | 573 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1518 | -/1518 | -/1518 | -/1518 | -/1518 | -/1518 |
| Boot length [mm] | 1054 | 1054 | 1054 | 1054 | 1054 | 1054 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 997/- | 997/- | 997/- | 997/- | 997/- | 997/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 589 | 589 | 589 | 589 | 589 | 589 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 784 | 784 | 784 | 784 | 784 | 784 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | 14.4 | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | 258 | 258 | 258 | 258 | 258 | 258 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 |
| Turning diameter track/circumference [m] | 10,68/- | 10,68/- | 10,68/- | 10,68/- | 10,68/- | 10,68/- |
| Overall length [mm] | 4492 | 4492 | 4492 | 4492 | 4492 | 4492 |
| Overall width without/including mirrors [mm] | 1733/1994 | 1733/1994 | 1733/1994 | 1733/1994 | 1733/1994 | 1733/1994 |
| Overall height [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Wheelbase [mm] | 2634 | 2634 | 2634 | 2634 | 2634 | 2634 |
| Front wheel track [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Rear wheel track [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | 1476 |
| Forward overhang [mm] | 813 | 813 | 813 | 813 | 813 | 813 |
| Rear overhang [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Headroom rear [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Front elbow/shoulder width [mm] | 1387/1415 | 1387/1415 | 1387/1415 | 1387/1415 | 1387/1415 | 1387/1415 |
| Rear elbow/shoulder width [mm] | 1389/1432 | 1389/1432 | 1389/1432 | 1389/1432 | 1389/1432 | 1389/1432 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 177/- | 177/- | 177/- | 177/- | 177/- | 177/- |
| Blue dCi 95 | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2019 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/8 | |||||
| Engine displacement [cm³] | 1461 | |||||
| Maximum output / speed [kW/min-1] | 70/3750 | |||||
| Maximum torque [Nm/min-1] | 240/1750-2500 | |||||
| Bore and stroke [mm x mm] | 76,0 x 80,5 | |||||
| Compression ratio | 15,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 5 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 179 | |||||
| Acceleration 0–100 km/h [s] | 12,4 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 4.1 | |||||
| Out of town [l] | 3.4 | |||||
| Combined [l] | 3.7 | |||||
| CO2 emissions [g/km] | 97 | |||||
| Emission standard | Euro 6d-Temp | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1266 | |||||
| Overall weight [kg] | 1704 | |||||
| Maximum trailer weight unbraked/braked [kg] | 625/810 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 573 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1518 | |||||
| Boot length [mm] | 1054 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 997/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 589 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 784 | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 50 | |||||
| AdBlue tank volume [l] | 14.4 | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson, lower triangular arms | |||||
| Rear suspension | torsion bar | |||||
| Tyre dimensions front | 185/65 R15 | |||||
| Tyre dimensions rear | 185/65 R15 | |||||
| Wheel size front | 6.0J x 15 | |||||
| Wheel size rear | 6.0J x 15 | |||||
| Brake dimensions front | 258 | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | 3,2 | |||||
| Turning diameter track/circumference [m] | 10,68/- | |||||
| Overall length [mm] | 4492 | |||||
| Overall width without/including mirrors [mm] | 1733/1994 | |||||
| Overall height [mm] | 1550 | |||||
| Wheelbase [mm] | 2634 | |||||
| Front wheel track [mm] | 1493 | |||||
| Rear wheel track [mm] | 1476 | |||||
| Forward overhang [mm] | 813 | |||||
| Rear overhang [mm] | 1046 | |||||
| Clearance [mm] | 142 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 900 | |||||
| Headroom rear [mm] | 886 | |||||
| Front elbow/shoulder width [mm] | 1387/1415 | |||||
| Rear elbow/shoulder width [mm] | 1389/1432 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | 177/- |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
