Dacia Logan
Date of manufacture
10/2012 – 2016 (Sedan)
2/2013 – 2016 (Estate)
Platform
Dacia M0 platform
Manufacturing locations
Mioveni, Romania
Designer
David Durand
Tags
C-segment
The Dacia Logan is available in sedan and estate body styles. The car has been manufactured since 2012. Romania is the country of production. The car is built on the Dacia M0 platform. The list of powertrains has petrol and diesel engines. The most powerful (66 kW) power unit is the 1.5 dCi 90. The maximum speed of the 0.9 TCe 90 LPG is 175 km/h. The best acceleration 0-100 km/h in 11.0 seconds is of the 0.9 TCe 90. The lowest combined consumption of 3.5 l/100 km is of the 1.5 dCi 90. The CO2 emissions are 90 g/km. The estate version offers a luggage capacity of 573 l. The sedan version has a boot capacity of 510 l. The model was tested in the safety area in 2014 and achieved an overall rating of 3 out of 5, according to EURONCAP.

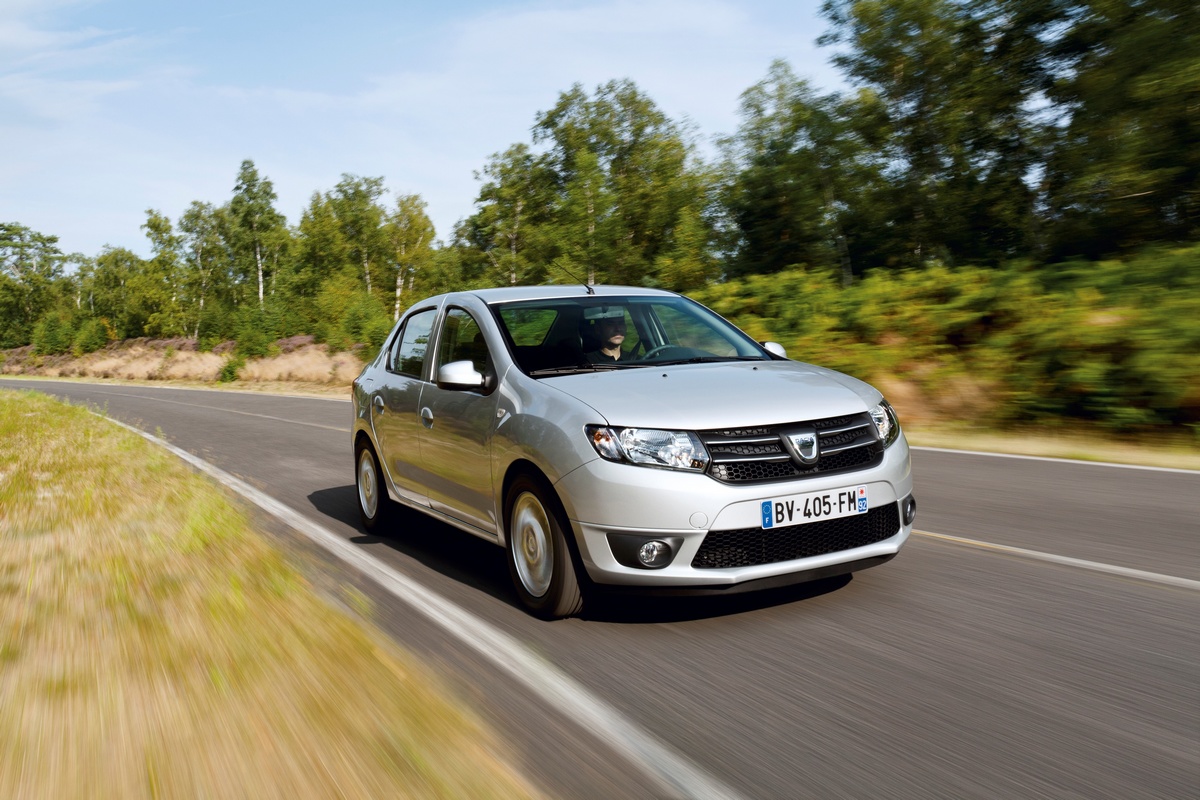

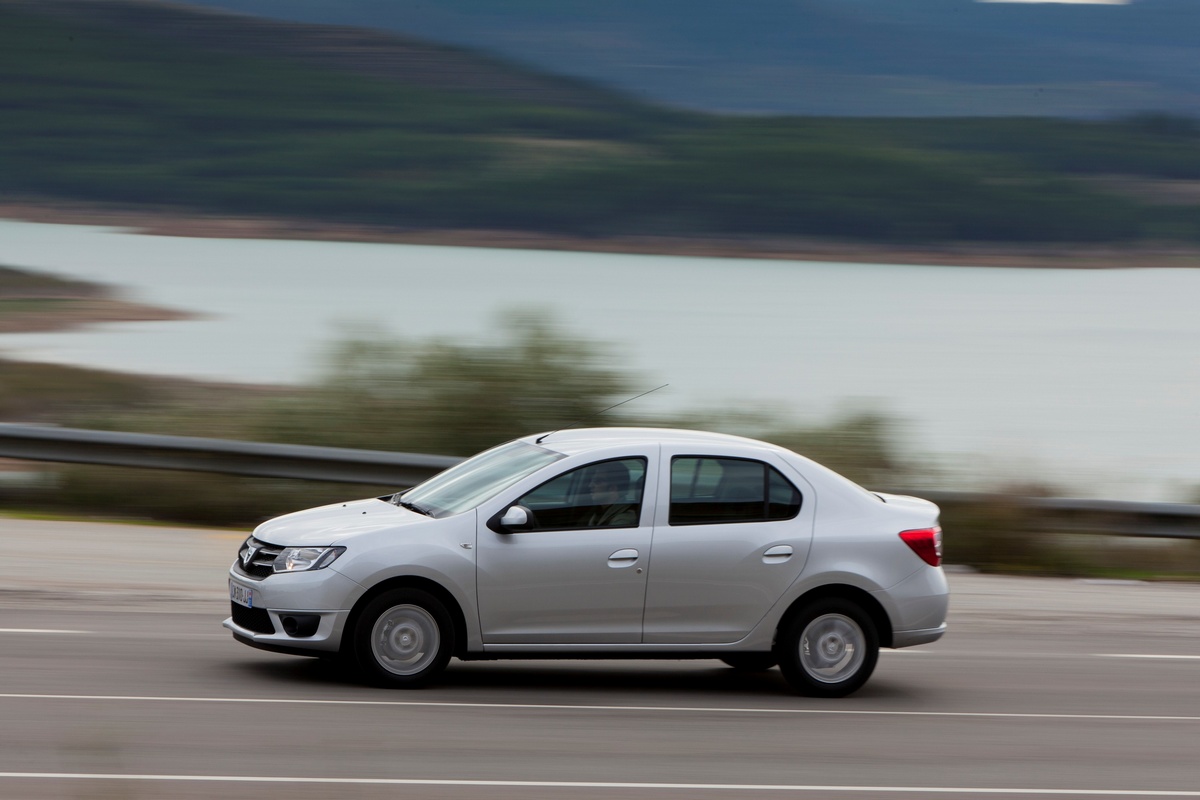

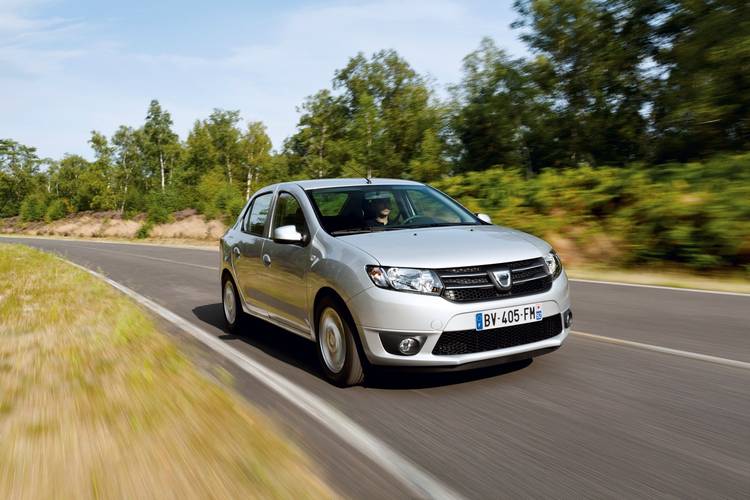

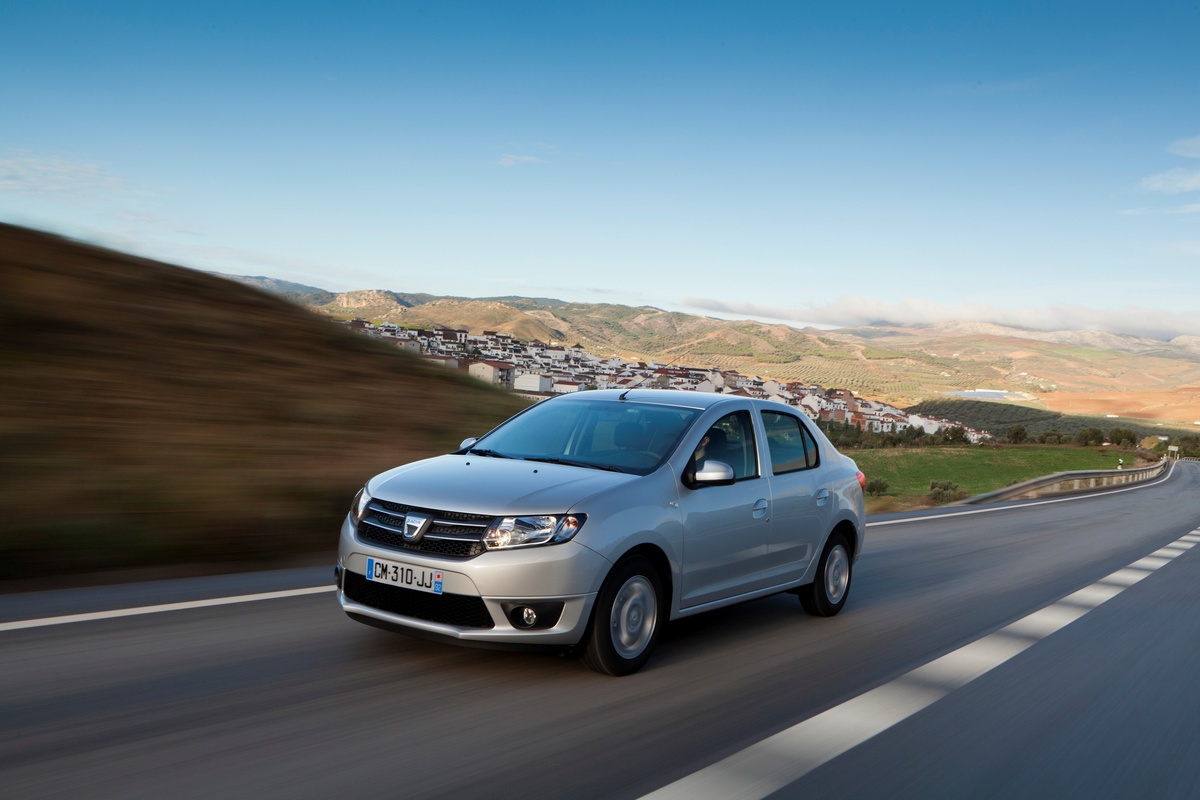

Car body style

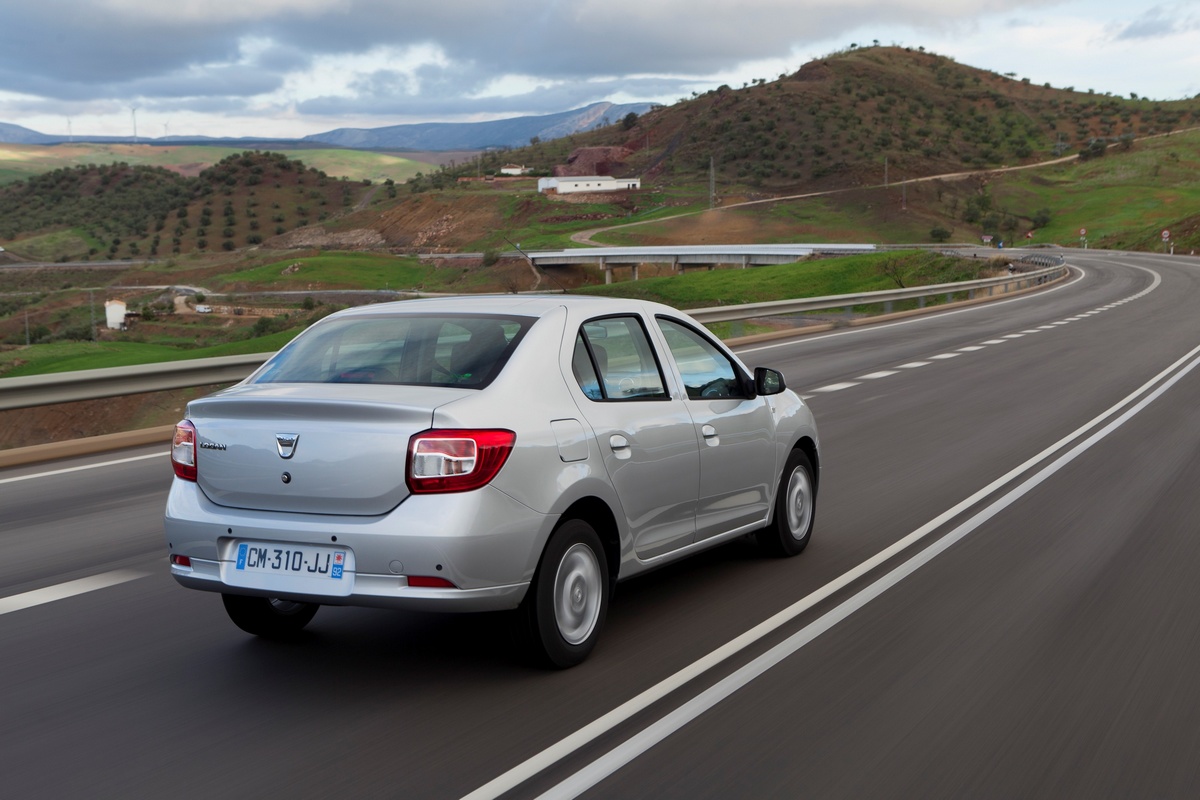

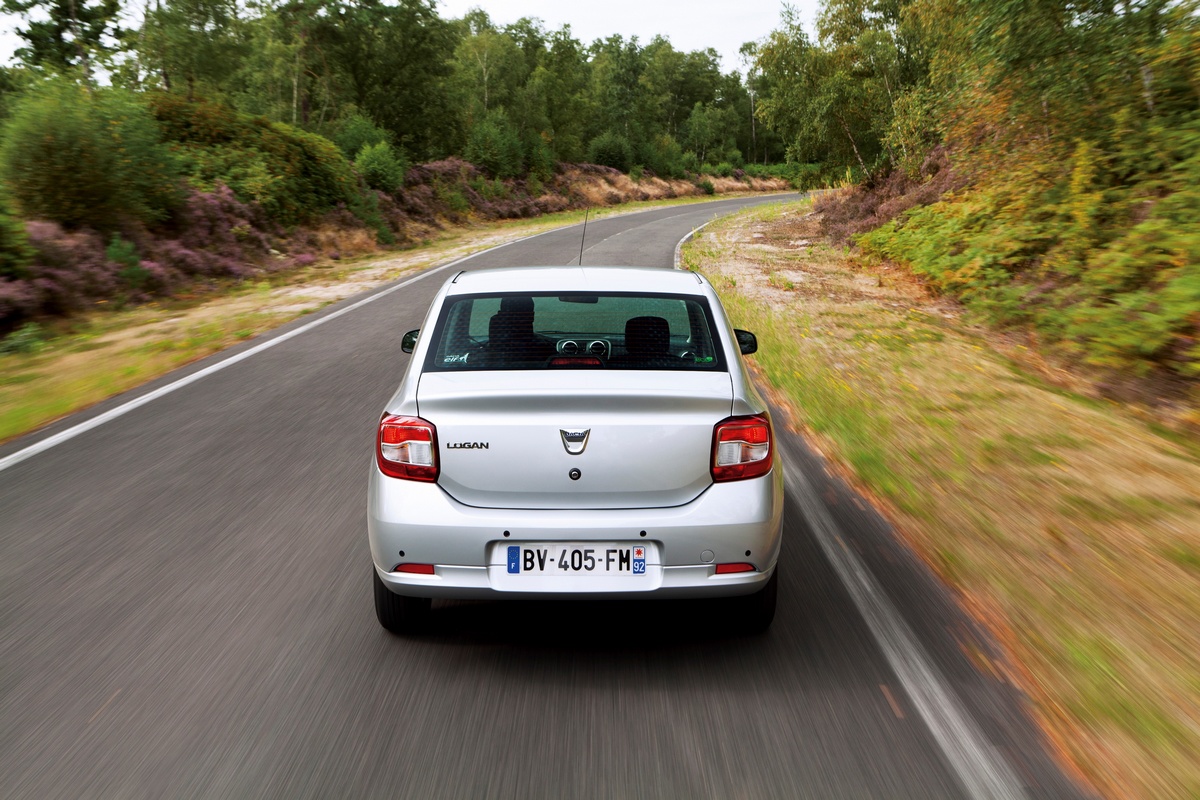

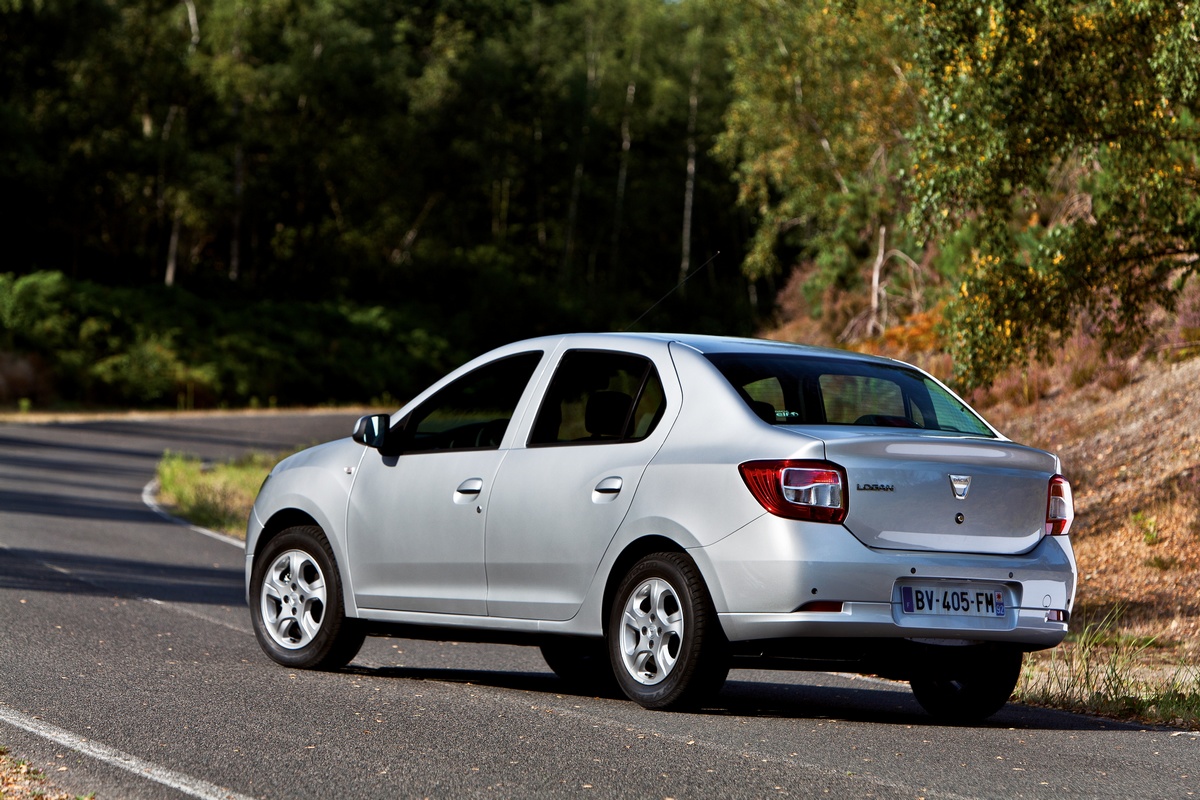

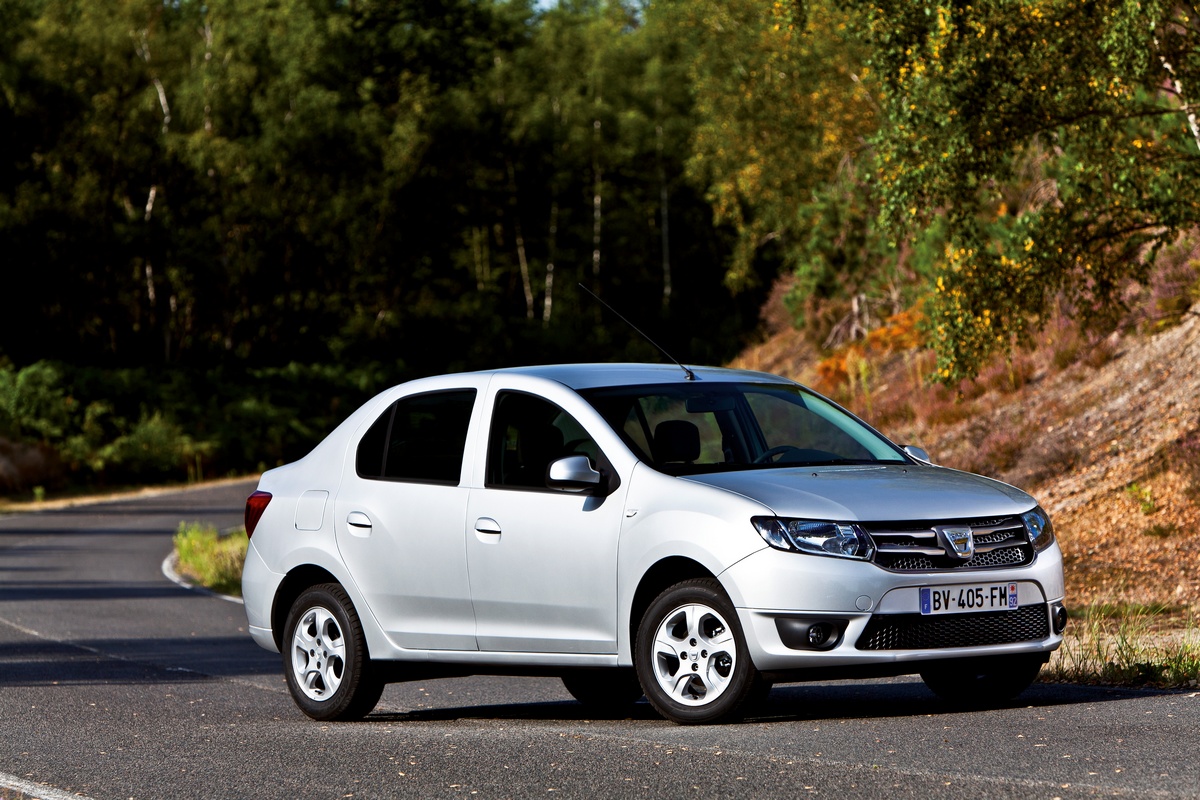

Sedan
Date of manufacture
10/2012 – 2016Internal designation

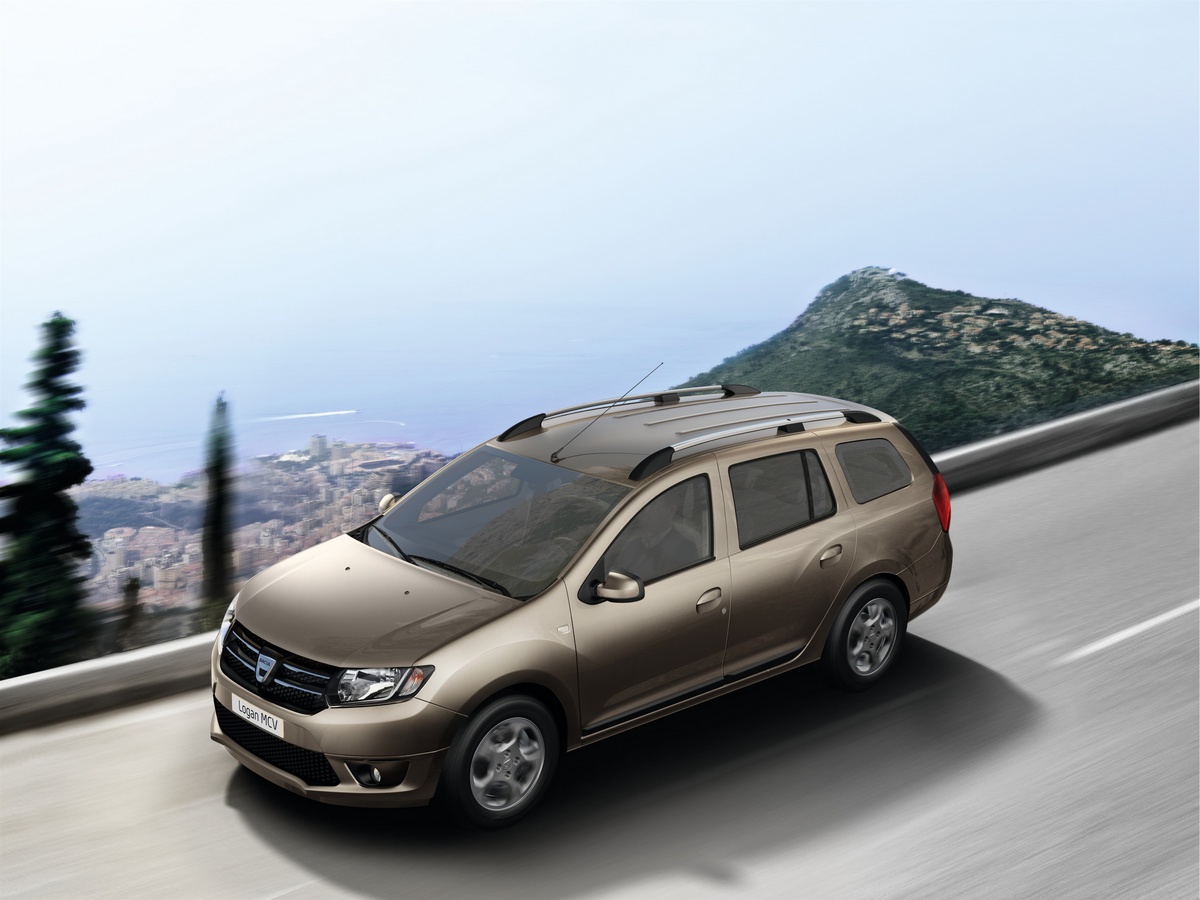

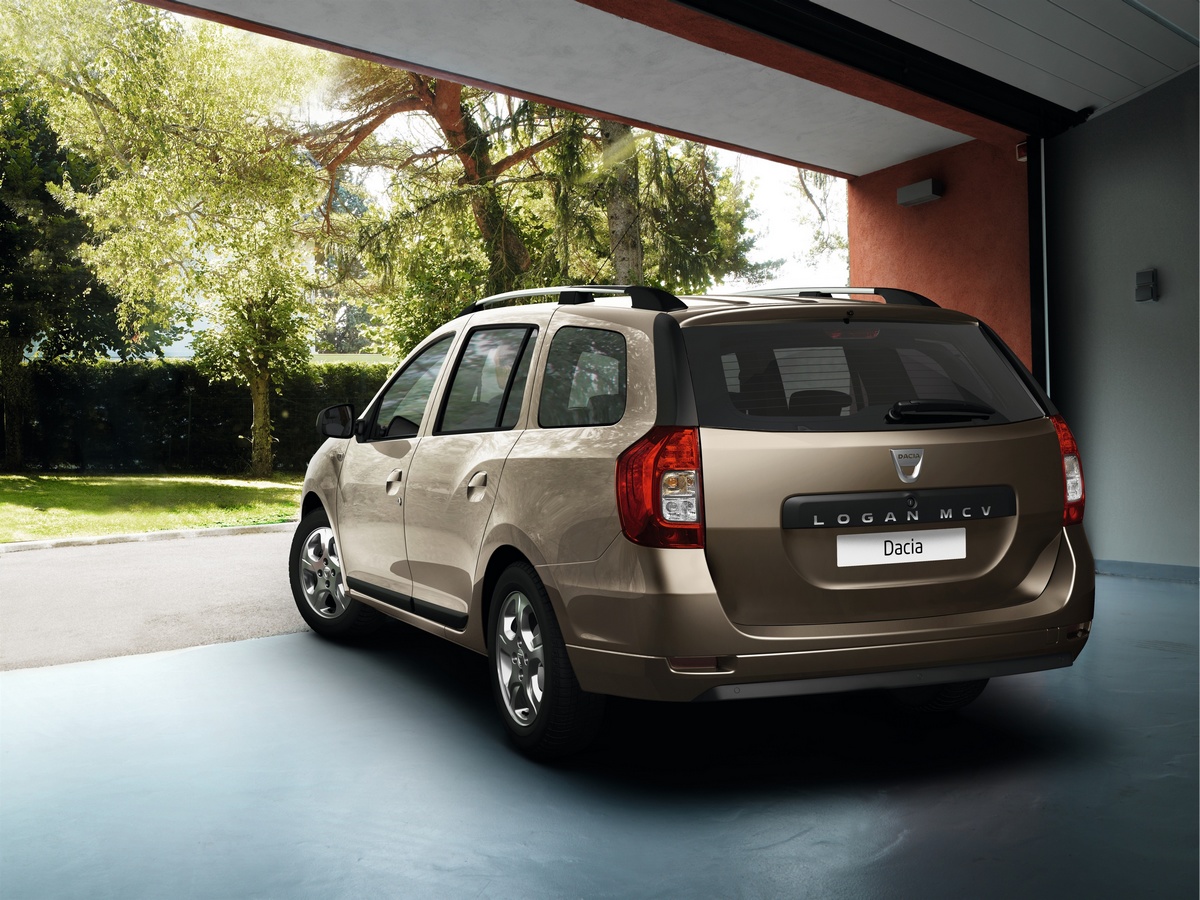

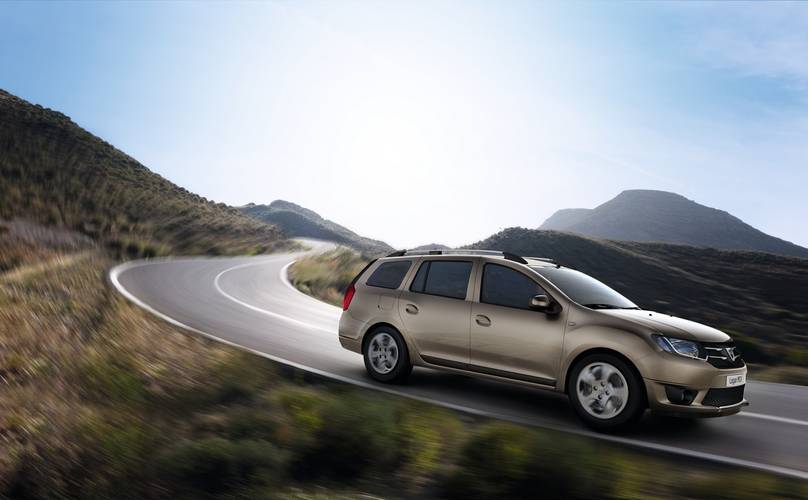

Estate (MCV)
Date of manufacture
2/2013 – 2016Internal designation
Technical data
Sedan
| 1.2 16V LPG | 1.2 16V 73 | 1.2 16V | 0.9 TCe | 0.9 TCe 90 | 0.9 TCe 90 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from 2015 to | from to 2015 | from to 2015 | from 2015 to | from 2015 to |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1149 | 1149 | 1149 | 898 | 898 | 898 |
| Maximum output / speed [kW/min-1] | 53/5500 | 54/5500 | 55/5500 | 66/5250 | 66/5000 | 66/5000 |
| Maximum torque [Nm/min-1] | 105/4250 | 107/4250 | 107/4250 | 135/2500 | 140/2250 | 140/2250 |
| Bore and stroke [mm x mm] | 69,0 x 76,8 | 69,0 x 76,8 | 69,0 x 76,8 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 |
| Compression ratio | 9,8:1 | 9.8:1 | 9,8:1 | 9,5:1 | 9.5:1 | 9.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
| - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 154 | 162 | 156 | 175 | 175 | 175 |
| Acceleration 0–100 km/h [s] | 15.1 | 14,5 | 14.5 | 11.1 | 11,1 | 11,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 [9.8 LPG] | 7,4 | 7.6 | 6.4 | 5,8 | 5,7 |
| Out of town [l] | 4.9 [6.2 LPG] | 4,9 | 4.9 | 4.3 | 4,3 | 4,5 |
| Combined [l] | 5.9 [7.5 LPG] | 5,8 | 5.8 | 5.0 | 4,9 | 4,9 |
| CO2 emissions [g/km] | 136 [120 LPG] | 130 | 135 | 116 | 109 | 110 |
| Emission standard | EU5B | Euro6 | EU5B | EU5B | Euro6 | Euro6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1106 | 1049 | 1049 | 1073 | 1073 | 1088 |
| Overall weight [kg] | 1562 | 1505 | 1505 | 1520 | 1520 | 1515 |
| Maximum trailer weight unbraked/braked [kg] | 550/790 | 520/1100 | 520/790 | 535/790 | 535/1100 | 540/1090 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |

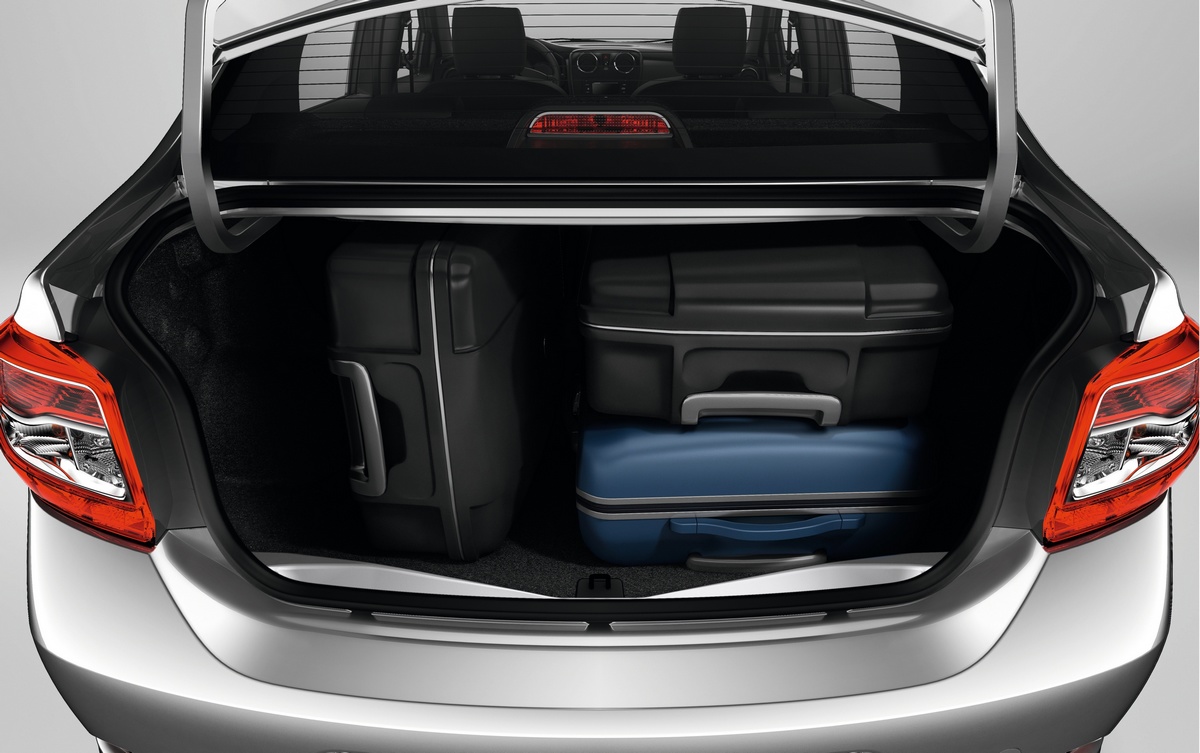

| Boot volume [l] | 510 | 510 | 510 | 510 | 510 | 510 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | -/- | - | - | -/- | -/- |
| Boot length [mm] | 1076 | - | 1076 | 1076 | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1013/- | 1013/- | 1013/- | 1013/- | 1013/- | 1013/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 754 | 754 | 754 | 754 | 754 | 754 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 406 | 406 | 406 | 406 | 406 | 406 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 [32 LPG] | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | 258 | 258 | 258 | 258 | 258 | 258 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | 3,2 | - | - | 3,2 | 3,2 |
| Turning diameter track/circumference [m] | 10.68/- | 10.68/- | 10.68/- | 10.68/- | 10.68/- | 10.68/- |
| Overall length [mm] | 4347 | 4347 | 4347 | 4347 | 4347 | 4347 |
| Overall width without/including mirrors [mm] | 1733/1994 | 1733/1994 | 1733/1994 | 1733/1994 | 1733/1994 | 1733/1994 |
| Overall height [mm] | 1517 | 1517 | 1517 | 1517 | 1517 | 1517 |
| Wheelbase [mm] | 2634 | 2634 | 2634 | 2634 | 2634 | 2634 |
| Front wheel track [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Rear wheel track [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | 1476 |
| Forward overhang [mm] | 813 | 813 | 813 | 813 | 813 | 813 |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Clearance [mm] | 155 | 155 | 155 | 155 | 155 | 155 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 900 | 900 | 900 | 900 | 900 | 900 |

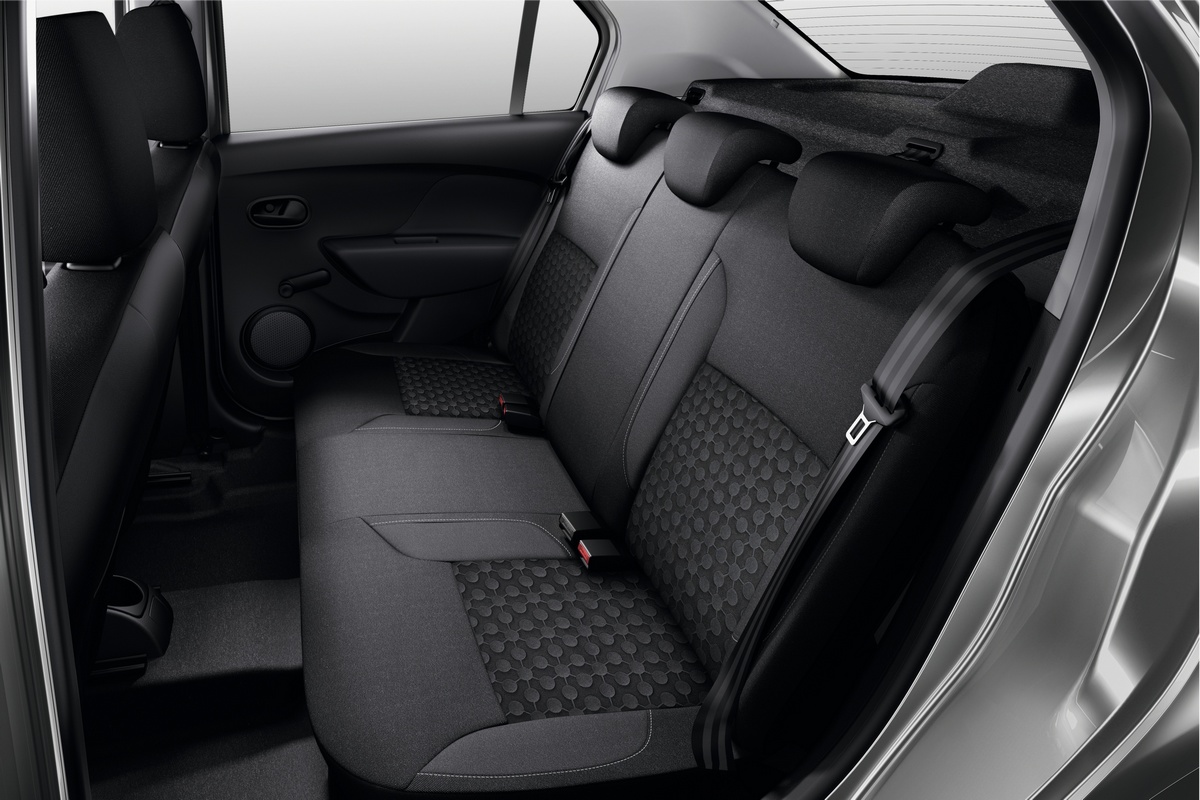

| Headroom rear [mm] | 868 | 868 | 868 | 868 | 868 | 868 |
| Front elbow/shoulder width [mm] | 1417/1387 | 1417/1387 | 1417/1387 | 1417/1387 | 1417/1387 | 1417/1387 |
| Rear elbow/shoulder width [mm] | 1434/1389 | 1434/1389 | 1434/1389 | 1434/1389 | 1434/1389 | 1434/1389 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 177/- | 177/- | 177/- | 177/- | 177/- | 177/- |
| 0.9 TCe 90 LPG | 1.5 dCi | 1.5 dCi 75 | 1.5 dCi | 1.5 dCi 90 | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from to 2015 | from 2015 to | from to 2015 | from 2015 to | |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 3/12 | 4/8 | 4/8 | 4/8 | 4/8 | |
| Engine displacement [cm³] | 898 | 1461 | 1461 | 1461 | 1461 | |
| Maximum output / speed [kW/min-1] | 66/5000 | 55/4000 | 55/4000 | 66/4000 | 66/4000 | |
| Maximum torque [Nm/min-1] | 140/2250 | 200/1750 | 200/1750 | 220/1750 | 220/1750 | |
| Bore and stroke [mm x mm] | 72,2 x 73,1 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | |
| Compression ratio | 9.5:1 | 15,5:1 | 15.5:1 | 15,5:1 | 15.5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | |
| Drive specifications | - | - | - | - | - | |
| Top speed [km/h] | 175 | 164 | 164 | 173 | 173 | |
| Acceleration 0–100 km/h [s] | 11,3 | 14.6 | 14,6 | 12.1 | 11,8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5,8 [7,6 LPG] | 4.3 | 3,7 | 4.3 | 3,7 | |
| Out of town [l] | 4,3 [5,4 LPG] | 3.5 | 3,4 | 3.5 | 3,4 | |
| Combined [l] | 4,9 [6,2 LPG] | 3.8 | 3,5 | 3.8 | 3,5 | |
| CO2 emissions [g/km] | 109 [98 LPG] | 99 | 90 | 99 | 90 | |
| Emission standard | Euro6 | EU5B | Euro6 | EU5B | Euro6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1140 | 1134 | 1134 | 1134 | 1134 | |
| Overall weight [kg] | 1560 | 1590 | 1590 | 1590 | 1590 | |
| Maximum trailer weight unbraked/braked [kg] | 570/1090 | 565/790 | 565/1100 | 565/790 | 565/1100 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | |
| Boot volume [l] | 510 | 510 | 510 | 510 | 510 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/- | - | -/- | - | -/- | |
| Boot length [mm] | - | 1076 | - | 1076 | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | 1013/- | 1013/- | 1013/- | 1013/- | 1013/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 754 | 754 | 754 | 754 | 754 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | 406 | 406 | 406 | 406 | 406 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |
| Brake dimensions front | 258 | 258 | 258 | 258 | 258 | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | 3,2 | - | 3,2 | - | 3,2 | |
| Turning diameter track/circumference [m] | 10.68/- | 10.68/- | 10.68/- | 10.68/- | 10.68/- | |
| Overall length [mm] | 4347 | 4347 | 4347 | 4347 | 4347 | |
| Overall width without/including mirrors [mm] | 1733/1994 | 1733/1994 | 1733/1994 | 1733/1994 | 1733/1994 | |
| Overall height [mm] | 1517 | 1517 | 1517 | 1517 | 1517 | |
| Wheelbase [mm] | 2634 | 2634 | 2634 | 2634 | 2634 | |
| Front wheel track [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | |
| Rear wheel track [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | |
| Forward overhang [mm] | 813 | 813 | 813 | 813 | 813 | |
| Rear overhang [mm] | 900 | 900 | 900 | 900 | 900 | |
| Clearance [mm] | 155 | 155 | 155 | 155 | 155 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 900 | 900 | 900 | 900 | 900 | |
| Headroom rear [mm] | 868 | 868 | 868 | 868 | 868 | |
| Front elbow/shoulder width [mm] | 1417/1387 | 1417/1387 | 1417/1387 | 1417/1387 | 1417/1387 | |
| Rear elbow/shoulder width [mm] | 1434/1389 | 1434/1389 | 1434/1389 | 1434/1389 | 1434/1389 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | 177/- | 177/- | 177/- | 177/- | 177/- |

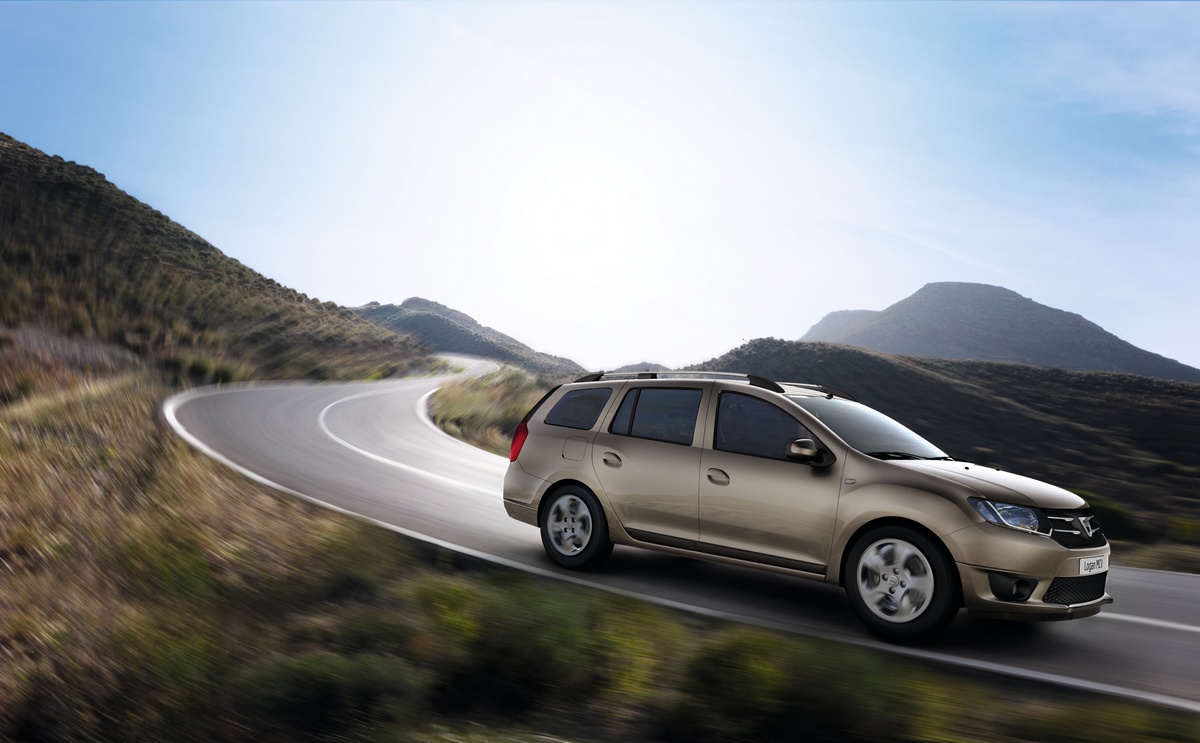

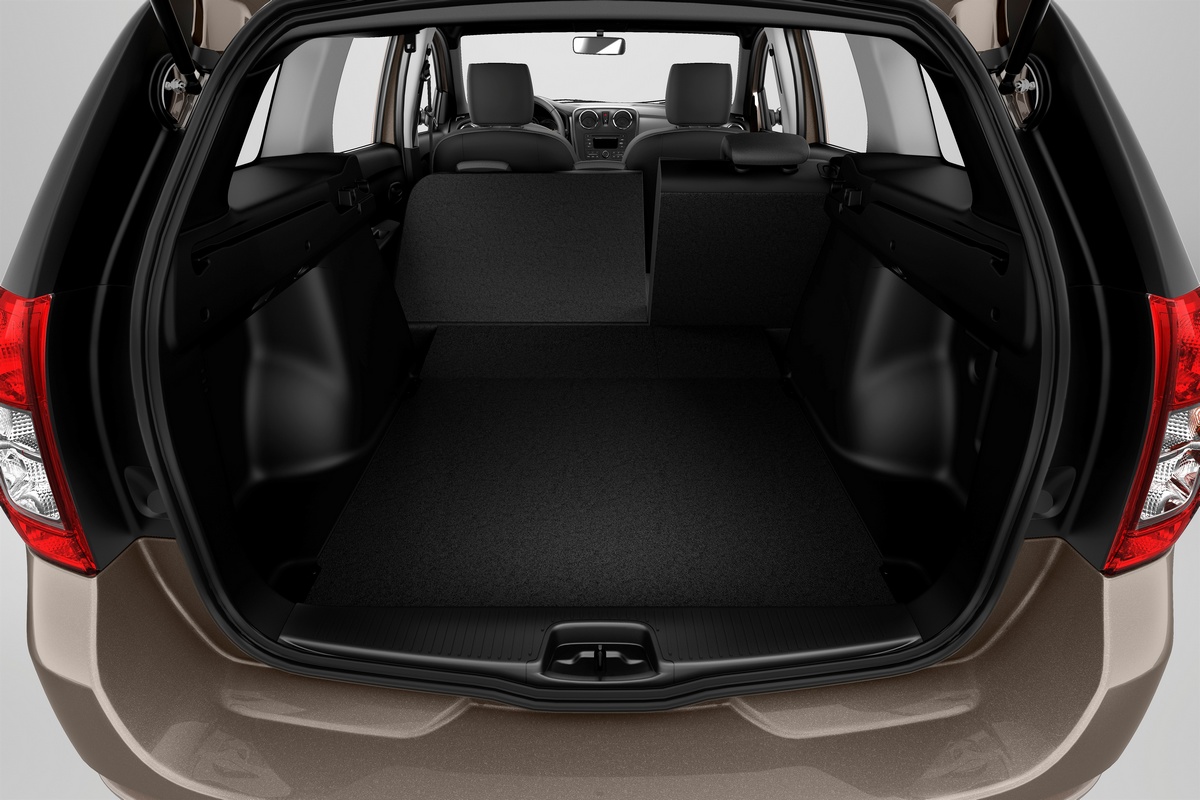

Estate (MCV)
| 1.2 16V LPG | 1.2 16V 73 | 1.2 16V | 0.9 TCe | 0.9 TCe 90 | 0.9 TCe 90 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from 2015 to | from to 2015 | from to 2015 | from 2015 to | from 2015 to |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1149 | 1149 | 1149 | 898 | 898 | 898 |
| Maximum output / speed [kW/min-1] | 53/5500 | 54/5500 | 55/5500 | 66/5250 | 66/5000 | 66/5000 |
| Maximum torque [Nm/min-1] | 105/4250 | 107/4250 | 107/4250 | 135/2500 | 140/2250 | 140/2250 |
| Bore and stroke [mm x mm] | 69,0 x 76,8 | 69,0 x 76,8 | 69,0 x 76,8 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 |
| Compression ratio | 9,8:1 | 9.8:1 | 9,8:1 | 9,5:1 | 9.5:1 | 9.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
| - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 154 | 162 | 156 | 175 | 175 | 175 |
| Acceleration 0–100 km/h [s] | 15.1 | 14,5 | 14.5 | 11.1 | 11,1 | 11,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 [9.8 LPG] | 7,4 | 7.6 | 6.4 | 5,8 | 5,7 |
| Out of town [l] | 4.9 [6.2 LPG] | 4,9 | 4.9 | 4.3 | 4,3 | 4,5 |
| Combined [l] | 5.9 [7.5 LPG] | 5,8 | 5.8 | 5.0 | 4,9 | 4,9 |
| CO2 emissions [g/km] | 136 [120 LPG] | 130 | 135 | 116 | 109 | 110 |
| Emission standard | EU5B | Euro6 | EU5B | EU5B | Euro6 | Euro6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1152 | 1091 | 1091 | 1113 | 1113 | 1148 |
| Overall weight [kg] | 1605 | 1570 | 1570 | 1620 | 1620 | 1585 |
| Maximum trailer weight unbraked/braked [kg] | 575/810 | 545/1150 | 545/810 | 555/810 | 555/1150 | 570/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 573 | 573 | 573 | 573 | 573 | 573 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1518 | -/1518 | -/1518 | -/1518 | -/1518 | -/1518 |
| Boot length [mm] | 1054 | 1054 | 1054 | 1054 | 1054 | 1054 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/997 | 997/- | -/997 | -/997 | 997/- | 997/- |
| Boot height to headliner/ceiling [mm] | -/481 | - | -/481 | -/481 | - | - |
| Loading edge height [mm] | - | 589 | - | - | 589 | 589 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | 784 | - | - | 784 | 784 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 [32 LPG] | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | 258 | 258 | 258 | 258 | 258 | 258 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | 3,2 | - | - | 3,2 | 3,2 |
| Turning diameter track/circumference [m] | 10.68/- | 10,68/- | 10.68/- | 10.68/- | 10,68/- | 10,68/- |
| Overall length [mm] | 4492 | 4492 | 4492 | 4492 | 4492 | 4492 |
| Overall width without/including mirrors [mm] | 1733/- | 1733/1994 | 1733/- | 1733/- | 1733/1994 | 1733/1994 |
| Overall height [mm] | 1519 | 1550 | 1519 | 1519 | 1550 | 1550 |
| Wheelbase [mm] | 2634 | 2634 | 2634 | 2634 | 2634 | 2634 |
| Front wheel track [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Rear wheel track [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | 1476 |
| Forward overhang [mm] | 813 | 813 | 813 | 813 | 813 | 813 |
| Rear overhang [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Clearance [mm] | 153 | 142 | 153 | 153 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Headroom rear [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Front elbow/shoulder width [mm] | 1415/1387 | 1387/1415 | 1415/1387 | 1415/1387 | 1387/1415 | 1387/1415 |
| Rear elbow/shoulder width [mm] | 1432/1389 | 1389/1432 | 1432/1389 | 1432/1389 | 1389/1432 | 1389/1432 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | 177/- | - | - | 177/- | 177/- |
| 0.9 TCe 90 LPG | 1.5 dCi | 1.5 dCi 75 | 1.5 dCi | 1.5 dCi 90 | 1.5 dCi 90 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from to 2015 | from 2015 to | from to 2015 | from 2015 to | from 2015 to |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 898 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 66/5000 | 55/4000 | 55/4000 | 66/4000 | 66/4000 | 66/4000 |
| Maximum torque [Nm/min-1] | 140/2250 | 200/1750 | 200/1750 | 220/1750 | 220/1750 | 220/1750 |
| Bore and stroke [mm x mm] | 72,2 x 73,1 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 9.5:1 | 15,5:1 | 15.5:1 | 15,5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear robotic manual |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 175 | 164 | 164 | 173 | 173 | 172 |
| Acceleration 0–100 km/h [s] | 11,3 | 14.6 | 14,6 | 12.1 | 11,8 | 12,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,8 [7,6 LPG] | 4.3 | 3,7 | 4.3 | 3,7 | 3.8 |
| Out of town [l] | 4,3 [5,4 LPG] | 3.5 | 3,4 | 3.5 | 3,4 | 3,5 |
| Combined [l] | 4,9 [6,2 LPG] | 3.8 | 3,5 | 3.8 | 3,5 | 3,6 |
| CO2 emissions [g/km] | 109 [98 LPG] | 99 | 90 | 99 | 90 | 92 |
| Emission standard | Euro6 | EU5B | Euro6 | EU5B | Euro6 | Euro6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 |
| Overall weight [kg] | 1605 | 1670 | 1670 | 1670 | 1670 | 1670 |
| Maximum trailer weight unbraked/braked [kg] | 580/1100 | 580/810 | 580/1150 | 580/810 | 580/1150 | 580/1150 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 573 | 573 | 573 | 573 | 573 | 573 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1518 | -/1518 | -/1518 | -/1518 | -/1518 | -/1518 |
| Boot length [mm] | 1054 | 1054 | 1054 | 1054 | 1054 | 1054 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 997/- | -/997 | 997/- | -/997 | 997/- | 997/- |
| Boot height to headliner/ceiling [mm] | - | -/481 | - | -/481 | - | - |
| Loading edge height [mm] | 589 | - | 589 | - | 589 | 589 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 784 | - | 784 | - | 784 | 784 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms | MacPherson, lower triangular arms |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | 258 | 258 | 258 | 258 | 258 | 258 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 3,2 | - | 3,2 | - | 3,2 | 3,2 |
| Turning diameter track/circumference [m] | 10,68/- | 10.68/- | 10,68/- | 10.68/- | 10,68/- | 10,68/- |
| Overall length [mm] | 4492 | 4492 | 4492 | 4492 | 4492 | 4492 |
| Overall width without/including mirrors [mm] | 1733/1994 | 1733/- | 1733/1994 | 1733/- | 1733/1994 | 1733/1994 |
| Overall height [mm] | 1550 | 1519 | 1550 | 1519 | 1550 | 1550 |
| Wheelbase [mm] | 2634 | 2634 | 2634 | 2634 | 2634 | 2634 |
| Front wheel track [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Rear wheel track [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | 1476 |
| Forward overhang [mm] | 813 | 813 | 813 | 813 | 813 | 813 |
| Rear overhang [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Clearance [mm] | 142 | 153 | 142 | 153 | 142 | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Headroom rear [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Front elbow/shoulder width [mm] | 1387/1415 | 1415/1387 | 1387/1415 | 1415/1387 | 1387/1415 | 1387/1415 |
| Rear elbow/shoulder width [mm] | 1389/1432 | 1432/1389 | 1389/1432 | 1432/1389 | 1389/1432 | 1389/1432 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 177/- | - | 177/- | - | 177/- | 177/- |

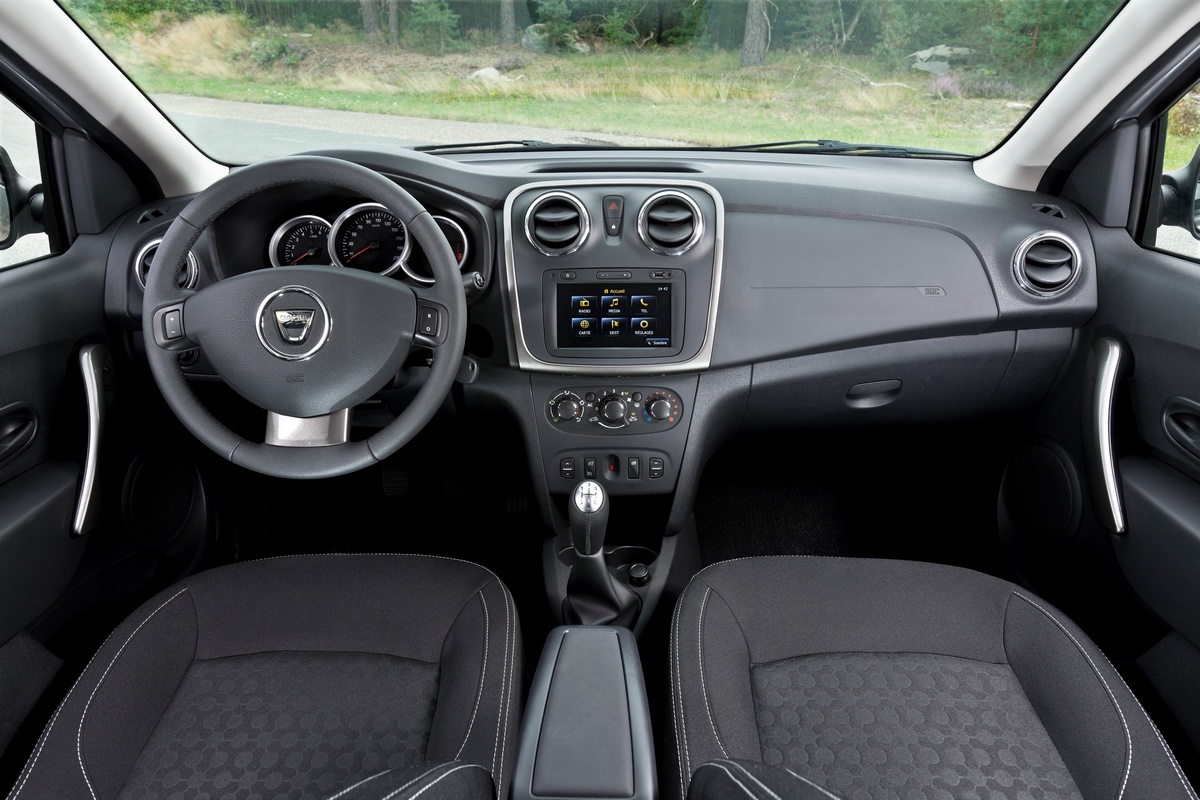

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
