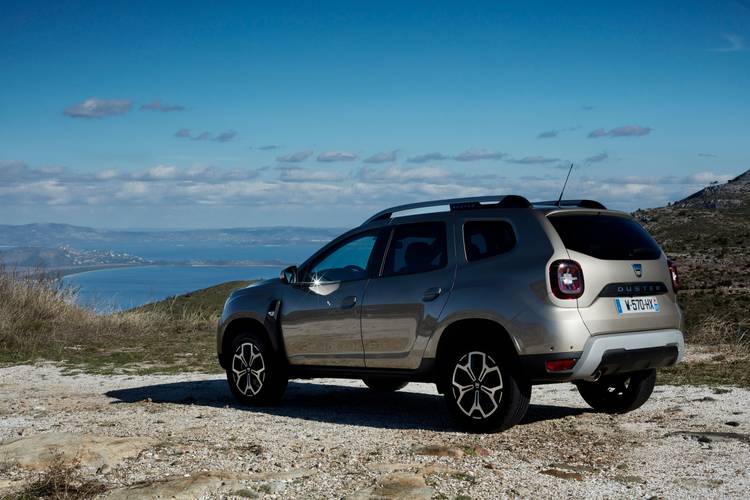

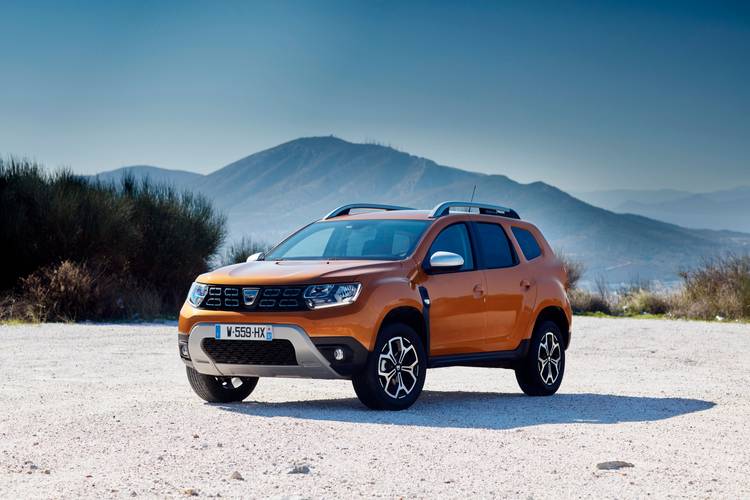

Dacia Duster
Date of manufacture
2017 – 2021 (Small SUV)
Platform
-
Manufacturing locations
Mioveni, Romania
Designer
Renault Technocentre
Renault Technologie Roumanie
Tags
Small SUV
The Dacia Duster is a small SUV that has been manufactured in Romania since 2017. It offers a wide range of petrol and diesel engines. The most powerful TCe 150 4WD variant has a maximum power of 110 kW and a top speed of 202 km/h. The most economical 1.5 dCi 90 engine has a fuel consumption of 4.4 l/100 km and emissions of 115 g/km. The car's boot has a capacity of 445 l. In 2017, the Dacia Duster underwent EURONCAP safety testing and received an overall rating of 3 out of 5.
Car body style
Small SUV
Date of manufacture
2017 – 2021Internal designation
HM
Technical data
Small SUV
| TCe 90 | TCe 100 LPG | 1.6 SCe 114 | 1.6 SCe 114 | 1.6 SCe 114 4WD | 1.2 TCe 125 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2019 to | from 2019 to | from to 2019 | from to 2019 | from to 2019 | from to 2019 |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1598 | 1598 | 1598 | 1197 |
| Maximum output / speed [kW/min-1] | 67/4400-4900 | 74/4600-5000 | 84/5500 | 84/5500 [80/5500 LPG] | 84/5500 | 92/5250 |
| Maximum torque [Nm/min-1] | 160/2200-3750 | 170/2000-3500 | 156/4000 | 145/4000 | 156/4000 | 205/2000 |
| Bore and stroke [mm x mm] | 72,2 x 81,3 | 72,2 x 81,3 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 72,0 x 93,2 |
| Compression ratio | 9.5:1 | 9.5:1 | - | - | - | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 166 | 172 [168 LPG] | 172 | 172 [169 LPG] | 170 | 177 |
| Acceleration 0–100 km/h [s] | 13,1 | 14.4 [13,8 LPG] | 11,9 | 12,2 [12,6 LPG] | 12,9 | 10,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,3–6,5 | 6,4-6,7 [8,1-8,3 LPG] | 8.0 | 8.4 [10.9 LPG] | 8.0 | 7,3 |
| Out of town [l] | 4,7 | 4,8-5,0 [6,1 LPG] | 5,8 | 6.0 [7.6 LPG] | 6,4 | 5,5 |
| Combined [l] | 5,3 | 5,5 [6,8-6,9 LPG] | 6,6 | 6.9 [8.8 LPG] | 7.0 | 6,1 |
| CO2 emissions [g/km] | 121–122 | 125-126 [111-112 LPG] | 149 | 156 [141 LPG] | 158 | 138 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,1-6,3 | 6.3-6.6 [8.5-8.1 LPG] | - | - | - | - |
| CO2 emissions [g/km] | 138-143 | 142-147 [126-131 LPG] | - | - | - | - |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6c | Euro 6c | Euro 6c | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1266-1349 | 1333-1386 | 1254 | 1315 | 1351 | 1275 |
| Overall weight [kg] | 1728 | 1762 | 1712 | 1734 | 1809 | 1782 |
| Maximum trailer weight unbraked/braked [kg] | 630/1500 | 665/1500 | 625/1400 | 650/1400 | 675/1500 | 635/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 445 | 445 | 445 | 445 | 411 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1478 | -/1478 | -/1478 | -/1478 | -/1444 | -/1478 |
| Boot length [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Boot length with rear seats folded [mm] | 1792 | 1792 | 1792 | 1792 | 1792 | 1792 |
| Boot width between wheels/max [mm] | 977/980 | 977/980 | 977/980 | 977/980 | 977/980 | 977/980 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 2020 | 2020 | 2020 | 2020 | 2002 | 2020 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 [34 LPG] | 50 | 50 [32 LPG] | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 |
| Front suspension | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | MacPherson | twist beam axle with trailing arms |
| Tyre dimensions front | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Tyre dimensions rear | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 280 | 280 | 269 | 269 | 269 | 280 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 3,088 | 3,088 | 3,088 | 3,088 | 3,088 | 3,088 |
| Turning diameter track/circumference [m] | 10.14/- | 10.14/- | 10.14/- | 10.14/- | 10.15/- | 10.14/- |
| Overall length [mm] | 4341 | 4341 | 4341 | 4341 | 4341 | 4341 |
| Overall width without/including mirrors [mm] | 1804/2052 | 1804/2052 | 1804/2052 | 1804/2052 | 1804/2052 | 1804/2052 |
| Overall height [mm] | 1693 | 1693 | 1693 | 1693 | 1682 | 1693 |
| Wheelbase [mm] | 2674 | 2674 | 2674 | 2674 | 2676 | 2674 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
| Rear wheel track [mm] | 1570 | 1570 | 1570 | 1570 | 1580 | 1570 |
| Forward overhang [mm] | 842 | 842 | 842 | 842 | 841 | 842 |
| Rear overhang [mm] | 826 | 826 | 826 | 826 | 824 | 826 |
| Clearance [mm] | 210 | 210 | 210 | 210 | 210 | 210 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 30 | 30 | 30 | 30 | 30 | 30 |
| Approach angle rear [°] | 34 | 34 | 34 | 34 | 33 | 34 |
| Transition angle [°] | 21 | 21 | 21 | 21 | 21 | 21 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Headroom rear [mm] | 892 | 892 | 892 | 892 | 892 | 892 |
| Front elbow/shoulder width [mm] | 1403/1383 | 1403/1383 | 1403/1383 | 1403/1383 | 1403/1383 | 1403/1383 |
| Rear elbow/shoulder width [mm] | 1416/1379 | 1416/1379 | 1416/1379 | 1416/1379 | 1416/1379 | 1416/1379 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 170/- | 170/- | 170/- | 170/- | 170/- | 170/- |
| 1.2 TCe 125 4WD | TCe 130 | TCe 130 4WD | TCe 150 | TCe 150 4WD | 1.5 dCi 90 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2019 | from 2019 to | from 2019 to | from 2019 to | from 2019 to | from to 2019 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1197 | 1333 | 1333 | 1333 | 1333 | 1461 |
| Maximum output / speed [kW/min-1] | 92/5250 | 96/4500 | 96/4500 | 110/5250-6000 | 110/5250-6000 | 66/4000 |
| Maximum torque [Nm/min-1] | 205/2000 | 240/1600 | 240/1600 | 250/1700-3250 | 250/1700-3250 | 200/1750 |
| Bore and stroke [mm x mm] | 72,0 x 93,2 | 72,2 x 81,2 | 72,2 x 81,2 | 72,2 x 81,2 | 72,2 x 81,2 | 76,0 x 80,5 |
| Compression ratio | 9,5:1 | 10,5:1 | 10,5:1 | 10.5:1 | 10.5:1 | 15,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | 4x4 | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 179 | 193 | 188 | 202 | 198 | 158 |
| Acceleration 0–100 km/h [s] | 11.0 | 10,6 | 11.1 | 9,7 | 10,5 | 13,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,1 | 7.4 | 7.4 | 7.2 | 7.5 | 4,5 |
| Out of town [l] | 6.0 | 5.4 | 5.6 | 4.9 | 5.4 | 4,4 |
| Combined [l] | 6,4 | 6.1 | 6.4 | 5.8 | 6.1 | 4,4 |
| CO2 emissions [g/km] | 145 | 140 | 145 | 132 | 140 | 115 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 6,5-6,2 | 7,0-6,8 | 6,3-6,5 | 6,9-7,1 | - |
| CO2 emissions [g/km] | - | 146-141 | 160-155 | 142-147 | 155-160 | - |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1392 | 1309 | 1406 | 1332-1382 | 1402-1464 | 1280 |
| Overall weight [kg] | 1867 | 1762 | 1845 | 1767 | 1842 | 1801 |
| Maximum trailer weight unbraked/braked [kg] | 695/1500 | 650/1500 | 700/1500 | 665/1500 | 705/1500 | 640/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 411 | 445 | 411 | 411 | 411 | 445 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1444 | -/1478 | -/1444 | -/1444 | -/1444 | -/1478 |
| Boot length [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Boot length with rear seats folded [mm] | 1792 | 1792 | 1792 | 1792 | 1792 | 1792 |
| Boot width between wheels/max [mm] | 977/980 | 977/980 | 977/980 | 977/980 | 977/980 | 977/980 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 2002 | 2020 | 2002 | 2020 | 2002 | 2020 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 |
| Front suspension | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser |
| Rear suspension | MacPherson | twist beam axle with trailing arms | MacPherson | twist beam axle with trailing arms | MacPherson | twist beam axle with trailing arms |
| Tyre dimensions front | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Tyre dimensions rear | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 3,088 | 3,088 | 3,088 | 3,088 | 3,088 | 3,088 |
| Turning diameter track/circumference [m] | 10.15/- | 10.14/- | 10.15/- | 10.14/- | 10.15/- | 10.14/- |
| Overall length [mm] | 4341 | 4341 | 4341 | 4341 | 4341 | 4341 |
| Overall width without/including mirrors [mm] | 1804/2052 | 1804/2052 | 1804/2052 | 1804/2052 | 1804/2052 | 1804/2052 |
| Overall height [mm] | 1682 | 1693 | 1682 | 1693 | 1693 | 1693 |
| Wheelbase [mm] | 2676 | 2674 | 2676 | 2674 | 2676 | 2674 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
| Rear wheel track [mm] | 1580 | 1570 | 1580 | 1570 | 1580 | 1570 |
| Forward overhang [mm] | 841 | 842 | 841 | 842 | 841 | 842 |
| Rear overhang [mm] | 824 | 826 | 824 | 826 | 824 | 826 |
| Clearance [mm] | 210 | 210 | 210 | 210 | 210 | 210 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 30 | 30 | 30 | 30 | 30 | 30 |
| Approach angle rear [°] | 33 | 34 | 33 | 34 | 33 | 34 |
| Transition angle [°] | 21 | 21 | 21 | 21 | 21 | 21 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Headroom rear [mm] | 892 | 892 | 892 | 892 | 892 | 892 |
| Front elbow/shoulder width [mm] | 1403/1383 | 1403/1383 | 1403/1383 | 1403/1383 | 1403/1383 | 1403/1383 |
| Rear elbow/shoulder width [mm] | 1416/1379 | 1416/1379 | 1416/1379 | 1416/1379 | 1416/1379 | 1416/1379 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 170/- | 170/- | 170/- | 170/- | 170/- | 170/- |
| Blue dCi 95 | 1.5 dCi 109 | 1.5 dCi 109 4WD | 1.5 dCi 109 | Blue dCi 115 | Blue dCi 115 4WD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2019 to | from to 2019 | from to 2019 | from to 2019 | from 2019 to | from 2019 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1461 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 70/3750 | 80/4000 | 80/4000 | 80/4000 | 85/3750 | 84/3750 |
| Maximum torque [Nm/min-1] | 240/1750 | 260/1750 | 250/1750 | 250/1750 | 260/1750 | 260/1750 |
| Bore and stroke [mm x mm] | 76 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76 x 80,5 | 76 x 80,5 |
| Compression ratio | 15,5:1 | 15,7:1 | 15,7:1 | 15,7:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 174 | 171 | 169 | 171 | 183 | 175 |
| Acceleration 0–100 km/h [s] | 12,4 | 11,8 | 12.4 | 11,9 | 10,2 | 10,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.7 | 4,5 | 4.8 | 4,5 | 6.7 | 5.1 |
| Out of town [l] | 3.9 | 4,4 | 4.7 | 4,3 | 3.9 | 4.2 |
| Combined [l] | 4.2 | 4,4 | 4.7 | 4,4 | 4.2 | 4.5 |
| CO2 emissions [g/km] | 112 | 115 | 123 | 115 | 110 | 119 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 4,8-5,1 | - | - | - | 4,8-5,1 | 5,4-5,6 |
| CO2 emissions [g/km] | 126-132 | - | - | - | 126-132 | 142-147 |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1396-1470 | 1280 | 1395 | 1379 | 1396-1470 | 1490-1567 |
| Overall weight [kg] | 1847 | 1819 | 1899 | 1854 | 1847 | 1945 |
| Maximum trailer weight unbraked/braked [kg] | 695/1500 | 640/1500 | 695/1500 | 685/1500 | 710/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 445 | 445 | 411 | 445 | 445 | 411 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1478 | -/1478 | -/1444 | -/1478 | -/1478 | -/1444 |
| Boot length [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Boot length with rear seats folded [mm] | 1792 | 1792 | 1792 | 1792 | 1792 | 1792 |
| Boot width between wheels/max [mm] | 977/980 | 977/980 | 977/980 | 977/980 | 977/980 | 977/980 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 2020 | 2020 | 2002 | 2020 | 2020 | 2002 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | 18 | - | - | - | 18 | 18 |
| Air resistance [Cd] | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 | 0.42 |
| Front suspension | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser | MacPherson, triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | MacPherson | twist beam axle with trailing arms | twist beam axle with trailing arms | MacPherson |
| Tyre dimensions front | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Tyre dimensions rear | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/65 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | 3,088 | 3,088 | 3,088 | 3,088 | 3,088 | 3,088 |
| Turning diameter track/circumference [m] | 10.14/- | 10.14/- | 10.15/- | 10.14/- | 10.14/- | 10.15/- |
| Overall length [mm] | 4341 | 4341 | 4341 | 4341 | 4341 | 4341 |
| Overall width without/including mirrors [mm] | 1804/2052 | 1804/2052 | 1804/2052 | 1804/2052 | 1804/2052 | 1804/2052 |
| Overall height [mm] | 1693 | 1693 | 1693 | 1693 | 1693 | 1693 |
| Wheelbase [mm] | 2674 | 2674 | 2676 | 2674 | 2674 | 2676 |
| Front wheel track [mm] | 1563 | 1563 | 1563 | 1563 | 1563 | 1563 |
| Rear wheel track [mm] | 1570 | 1570 | 1580 | 1570 | 1570 | 1580 |
| Forward overhang [mm] | 842 | 842 | 841 | 842 | 842 | 841 |
| Rear overhang [mm] | 826 | 826 | 824 | 826 | 826 | 824 |
| Clearance [mm] | 210 | 210 | 210 | 210 | 210 | 210 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 30 | 30 | 30 | 30 | 30 | 30 |
| Approach angle rear [°] | 34 | 34 | 33 | 34 | 34 | 33 |
| Transition angle [°] | 21 | 21 | 21 | 21 | 21 | 21 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 900 | 900 | 900 | 900 | 900 | 900 |
| Headroom rear [mm] | 892 | 892 | 892 | 892 | 892 | 892 |
| Front elbow/shoulder width [mm] | 1403/1383 | 1403/1383 | 1403/1383 | 1403/1383 | 1403/1383 | 1403/1383 |
| Rear elbow/shoulder width [mm] | 1416/1379 | 1416/1379 | 1416/1379 | 1416/1379 | 1416/1379 | 1416/1379 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 170/- | 170/- | 170/- | 170/- | 170/- | 170/- |
| Rating | - | - | - | - |    | - |
| Clean Air Index | - | - | - | - | 5.1/10 | - |
| Energy Efficiency Index | - | - | - | - | 5.1/10 | - |
| GHG index | - | - | - | - | 2.8/10 | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
