	1.6 VTi 16V	1.6 THP 16V	1.6 HDI 16V	1.6 HDI 16V	2.0 HDI 16V	2.0 HDI 16V
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1560	1560	1997	1997
Maximum output / speed [kW/min-1]	88/6000	110/5800	80/4000	80/4000	100/4000	100/4000
Maximum torque [Nm/min-1]	160/4250	240/1400	240/1750	240/1750	320	270
Bore and stroke [mm x mm]	77,0 x 85,8	77,0 x 85,8	75,0 x 88,3	75,0 x 88,3	85,0 x 88,0	85,0 x 88,0
Compression ratio	-	-	-	-	-	-
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable valve timing variable lift of intake valves	direct injection turbo-supercharged Twin‐scroll variable timing of intake valves	direct injection Common Rail turbo-supercharged s variabilní geometrii lopatek particulate filter	direct injection Common Rail turbo-supercharged s variabilní geometrii lopatek particulate filter	direct injection Common Rail turbo-supercharged s variabilní geometrii lopatek particulate filter	direct injection Common Rail turbo-supercharged s variabilní geometrii lopatek particulate filter

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	6 gear robotic manual	5 gear manual	6 gear robotic manual	6 gear manual	6 gear robotic manual
Drive specifications	-	robotic gearbox BMP (automatic or manual mode)	-	robotic gearbox BMP (automatic or manual mode)	-	robotic gearbox BMP (automatic or manual mode)

Top speed [km/h]	186	204	180	180	195	195
Acceleration 0–100 km/h [s]	12.4	10.2	12.7	13.4	11.7	12.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	10.0	9.9	6.7	6.2	8.0	7.5
Out of town [l]	5.9	5.8	4.5	4.4	5.0	4.8
Combined [l]	7.4	7.3	5.3	5.1	6.1	5.8
CO2 emissions [g/km]	174	173	140	135	160	153

Emission standard	EU4	EU4	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1486	1530	1530	1539	1613	1620
Overall weight [kg]	2200	2220	2250	2250	2308	2320
Maximum trailer weight unbraked/braked [kg]	750/1500	750/1500	750/1180	750/1180	750/1400	750/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-/80	-/80	-/80	-/80	-/80	-/80

Boot volume [l]	576-672	576-672	576-672	576-672	576-672	576-672
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1951	-/1951	-/1951	-/1951	-/1951	-/1951
Boot volume, third row of seats [l]	-	-	-	-	-	-
Boot volume, third row seats folded [l]	-	-	-	-	-	-
Boot length [mm]	1030	1030	1030	1030	1030	1030
Boot length with rear seats folded [mm]	1800	1800	1800	1800	1800	1800
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	7	7	7	7	7	7
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.3	0.3	0.3	0.3	0.3	0.3
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	215/55 R16	215/55 R16	215/55 R16	215/55 R16	215/55 R16	215/55 R16
Tyre dimensions rear	215/55 R16	215/55 R16	215/55 R16	215/55 R16	215/55 R16	215/55 R16
Wheel size front	6.5 J x 16	6.5 J x 16	6.5 J x 16	6.5 J x 16	6.5 J x 16	6.5 J x 16
Wheel size rear	6.5 J x 16	6.5 J x 16	6.5 J x 16	6.5 J x 16	6.5 J x 16	6.5 J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.9	11.9	11.9	11.9	11.9	11.9

Overall length [mm]	4590	4590	4590	4590	4590	4590
Overall width without/including mirrors [mm]	1830/2100	1830/2100	1830/2100	1830/2100	1830/2100	1830/2100
Overall height [mm]	1660	1660	1660	1660	1660	1660
Wheelbase [mm]	2728	2728	2728	2728	2728	2728
Front wheel track [mm]	1505	1505	1505	1505	1505	1505
Rear wheel track [mm]	1539	1539	1539	1539	1539	1539
Forward overhang [mm]	995	995	995	995	995	995
Rear overhang [mm]	867	867	867	867	867	867
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	966	966	966	966	966	966
Headroom rear [mm]	973	973	973	973	973	973
Front elbow/shoulder width [mm]	1508/-	1508/-	1508/-	1508/-	1508/-	1508/-
Rear elbow/shoulder width [mm]	1493/-	1493/-	1493/-	1493/-	1493/-	1493/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-
Third row of seats, headroom [mm]	863	863	863	863	863	863
Third row elbow/shoulder width [mm]	1346	1346	1346	1346	1346	1346

	2.0 HDI 16V
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1997
Maximum output / speed [kW/min-1]	100/4000
Maximum torque [Nm/min-1]	320/2000
Bore and stroke [mm x mm]	85,0 x 88,0
Compression ratio	-
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Common Rail turbo-supercharged s variabilní geometrii lopatek particulate filter

Drive axle	Front
Gearbox	6 gear automatic
Drive specifications	automatic gearbox

Top speed [km/h]	190
Acceleration 0–100 km/h [s]	12.1
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	9.9
Out of town [l]	5.9
Combined [l]	7.4
CO2 emissions [g/km]	195

Emission standard	EU4
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1650
Overall weight [kg]	2350
Maximum trailer weight unbraked/braked [kg]	750/1500
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	-/80

Boot volume [l]	576-672
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1951
Boot volume, third row of seats [l]	-
Boot volume, third row seats folded [l]	-
Boot length [mm]	1030
Boot length with rear seats folded [mm]	1800
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	7
Fuel tank volume [l]	60
AdBlue tank volume [l]	-
Air resistance [Cd]	0.3
Front suspension	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	twist beam axle with trailing arms
Tyre dimensions front	215/50 R17
Tyre dimensions rear	215/50 R17
Wheel size front	6.5 J x 17
Wheel size rear	6.5 J x 17
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	11.9

Overall length [mm]	4590
Overall width without/including mirrors [mm]	1830/2100
Overall height [mm]	1680
Wheelbase [mm]	2728
Front wheel track [mm]	1505
Rear wheel track [mm]	1539
Forward overhang [mm]	995
Rear overhang [mm]	867
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	966
Headroom rear [mm]	973
Front elbow/shoulder width [mm]	1508/-
Rear elbow/shoulder width [mm]	1493/-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-
Third row of seats, headroom [mm]	863
Third row elbow/shoulder width [mm]	1346

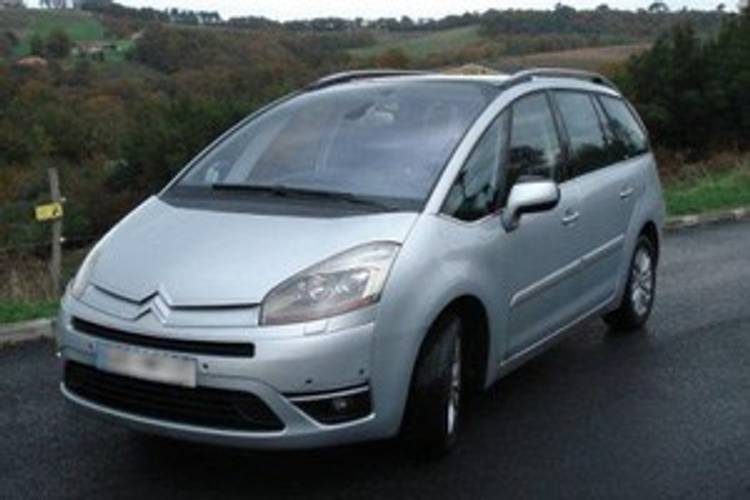

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
