Basic information Technical Specifications Gallery

Citroën C4 sedan

Date of manufacture

7/2006 – 2009 (Sedan)

Platform

PSA PF2

Manufacturing locations

Mulhouse, France

Designer

Donato Coco

Car body style

Sedan

Date of manufacture

7/2006 – 2009

Internal designation

Engine size

Petrol

1.6i 16V

Diesel

1.6 HDI 16V

Technical data

Sedan

	1.6i 16V	1.6 HDI 16V
Date of sale	-	-
Engine type	Petrol	Diesel supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1587	1560
Maximum output / speed [kW/min-1]	80/5800	80/4000
Maximum torque [Nm/min-1]	147/5800	240/1750
Bore and stroke [mm x mm]	78,5 x 82,0	75,0 x 88,3
Compression ratio	-	-
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	-	direct injection turbocharger with variable blade geometry particulate filter

Drive axle	Front	Front
Gearbox	5 gear manual	5 gear manual
Drive specifications	-	-

Top speed [km/h]	185	190
Acceleration 0–100 km/h [s]	11.8	11.8
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	10.1	6.5
Out of town [l]	6.0	4.5
Combined [l]	7.6	5.2
CO2 emissions [g/km]	179	136

Emission standard	EU4	EU4
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1317	1356
Overall weight [kg]	1765	1820
Maximum trailer weight unbraked/braked [kg]	695/1150	715/1150
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	-	-

Boot volume [l]	513	513
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-
Boot length [mm]	1215	1215
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	4	4
Number of seats	5	5
Fuel tank volume [l]	60	60
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.308	0.308
Front suspension	MacPherson, lower triangular arms	MacPherson, lower triangular arms
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15
Wheel size front	6.5 J x 15	6.5 J x 15
Wheel size rear	6.5 J x 15	6.5 J x 15
Brake dimensions front	-	-
Brake dimensions rear	-	-
Steering	-	-
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	11.3	11.3

Overall length [mm]	4771	4771
Overall width without/including mirrors [mm]	1773/-	1773/-
Overall height [mm]	1512	1512
Wheelbase [mm]	2712	2712
Front wheel track [mm]	1500	1500
Rear wheel track [mm]	1493	1493
Forward overhang [mm]	935	935
Rear overhang [mm]	1124	1124
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	900	900
Headroom rear [mm]	857	857
Front elbow/shoulder width [mm]	1429/-	1429/-
Rear elbow/shoulder width [mm]	1420/-	1420/-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

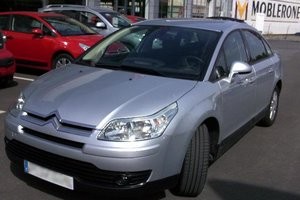

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
