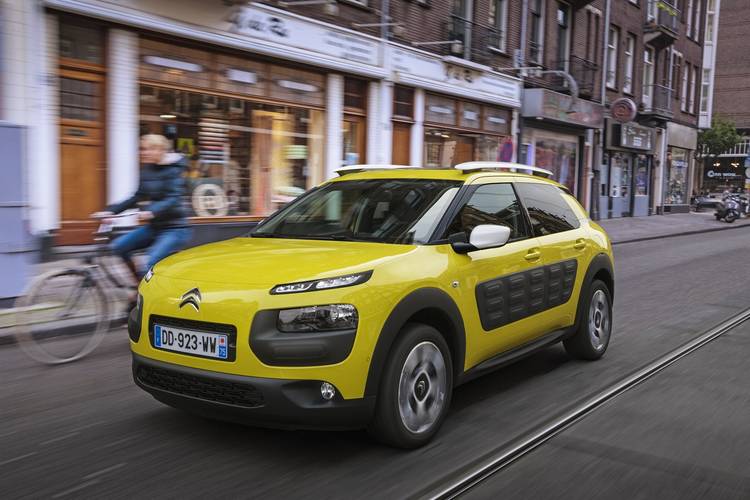

Citroën C4 Cactus
Date of manufacture
4/2014 – 2018 (SUV)
Platform
PF1 platform
Manufacturing locations
Madrid, Spain
Designer
Mark Loyd
Tags
Small SUV
French cars
The Citroën C4 Cactus is a modern SUV that has been manufactured since 2014. It is produced in Spain and is based on the PF1 platform. It offers petrol and diesel engines, the most powerful of which has 81 kW and a maximum speed of 188 km/h. The most economical version with the 1.6 BlueHDi 100 engine has a fuel consumption of 3.4 l/100 km and CO2 emissions of 87 g/km. The car's trunk offers a capacity of 348 l. In 2014, the Citroën C4 Cactus successfully passed the EURONCAP safety tests and received a rating of 4 out of 5.
Car body style
SUV
Date of manufacture
4/2014 – 2018Internal designation
Technical data
SUV
| 1.2 PureTech 82 | 1.2 PureTech 82 | 1.2 PureTech 110 | 1.2 PureTech 110 | 1.6 e-HDI 912 | 1.6 BlueHDi 100 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2015 to | from to 2015 | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1199 | 1199 | 1199 | 1199 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 60/5750 | 60/5750 | 81/5500 | 81/5500 | 68/4000 | 73/3750 |
| Maximum torque [Nm/min-1] | 118/2750 | 118/2750 | 205/1500 | 205/1500 | 230/1750 | 254/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 11,0:1 | 11,0:1 | 10,5:1 | 10,5:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear robotic manual | 6 gear robotic manual | 5 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 171 | 173 | 188 | 188 | 182 | 184 |
| Acceleration 0–100 km/h [s] | 12.9 | 15.0 | 9.3 | 9.7 | 11.4 | 10.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 5.0 | 5.8 | 6.5 | 3.8 | 3.8 |
| Out of town [l] | 4.0 | 3.9 | 4.0 | 4.3 | 3.4 | 3.2 |
| Combined [l] | 4.6 | 4.3 | 4.7 | 5.1 | 3.5 | 3.4 |
| CO2 emissions [g/km] | 107 | 98 | 107 | 118 | 92 | 87 |
| Emission standard | EU5 | EU6 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1070 | 1080 | 1115 | 1125 | 1175 | 1165 |
| Overall weight [kg] | 1500 | 1510 | 1555 | 1590 | 1605 | 1610 |
| Maximum trailer weight unbraked/braked [kg] | 520/720 | 525/725 | 545/825 | 400/400 | 565/825 | 570/825 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | -/80 | -/80 | -/80 | -/80 | -/80 | -/80 |
| Boot volume [l] | 348 | 348 | 348 | 348 | 348 | 348 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 | -/1170 |
| Boot length [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Boot length with rear seats folded [mm] | 1446 | 1446 | 1446 | 1446 | 1446 | 1446 |
| Boot width between wheels/max [mm] | -/1041 | -/1041 | -/1041 | -/1041 | -/1041 | -/1041 |
| Boot height to headliner/ceiling [mm] | -/560 | -/560 | -/560 | -/560 | -/560 | -/560 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers |
| Tyre dimensions front | 205/55 R16V | 205/55 R16V | 205/55 R16V | 205/55 R16V | 205/55 R16V | 205/55 R16V |
| Tyre dimensions rear | 205/55 R16V | 205/55 R16V | 205/55 R16V | 205/55 R16V | 205/55 R16V | 205/55 R16V |
| Wheel size front | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 |
| Wheel size rear | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 | 6.5 x 16 |
| Brake dimensions front | 266 x 13 | 266 x 13 | 266 x 22 | 266 x 22 | 266 x 22 | 266 x 22 |
| Brake dimensions rear | - | - | 249 x 9 | 249 x 9 | - | 249 x 9 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/11.2 | 10.9/11.2 | 10.9/11.2 | 10.9/11.2 | 10.9/11.2 | 10.9/11.2 |
| Overall length [mm] | 4157 | 4157 | 4157 | 4157 | 4157 | 4157 |
| Overall width without/including mirrors [mm] | 1729/- | 1729/- | 1729/- | 1729/- | 1729/- | 1729/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2595 | 2595 | 2595 | 2595 | 2595 | 2595 |
| Front wheel track [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1477 |
| Rear wheel track [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1477 |
| Forward overhang [mm] | 827 | 827 | 827 | 827 | 827 | 827 |
| Rear overhang [mm] | 735 | 735 | 735 | 735 | 735 | 735 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 903 | 903 | 903 | 903 | 903 | 903 |
| Headroom rear [mm] | 854 | 854 | 854 | 854 | 854 | 854 |
| Front elbow/shoulder width [mm] | 1420/- | 1420/- | 1420/- | 1420/- | 1420/- | 1420/- |
| Rear elbow/shoulder width [mm] | 1392/- | 1392/- | 1392/- | 1392/- | 1392/- | 1392/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 BlueHDi 100 | 1.6 BlueHDi 100 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | from 2015 to | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/8 | 4/8 | ||||
| Engine displacement [cm³] | 1560 | 1560 | ||||
| Maximum output / speed [kW/min-1] | 73/3750 | 73/3750 | ||||
| Maximum torque [Nm/min-1] | 254/1750 | 254/1750 | ||||
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | ||||
| Compression ratio | 16,0:1 | 16,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear manual | 6 gear robotic manual | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 184 | 184 | ||||
| Acceleration 0–100 km/h [s] | 10.6 | 11,2 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.2 | 3.9 | ||||
| Out of town [l] | 3.3 | 3.2 | ||||
| Combined [l] | 3.6 | 3.4 | ||||
| CO2 emissions [g/km] | 75 | 89 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1165 | 1180 | ||||
| Overall weight [kg] | 1610 | 1630 | ||||
| Maximum trailer weight unbraked/braked [kg] | 570/825 | 580/825 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | -/80 | -/80 | ||||
| Boot volume [l] | 348 | 348 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1170 | -/1170 | ||||
| Boot length [mm] | 800 | 800 | ||||
| Boot length with rear seats folded [mm] | 1446 | 1446 | ||||
| Boot width between wheels/max [mm] | -/1041 | -/1041 | ||||
| Boot height to headliner/ceiling [mm] | -/560 | -/560 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 50 | 50 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.32 | 0.32 | ||||
| Front suspension | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | ||||
| Rear suspension | twist beam axle with trailing arms, hydraulic shock absorbers | twist beam axle with trailing arms, hydraulic shock absorbers | ||||
| Tyre dimensions front | 205/55 R16V | 205/55 R16V | ||||
| Tyre dimensions rear | 205/55 R16V | 205/55 R16V | ||||
| Wheel size front | 6.5 x 16 | 6.5 x 16 | ||||
| Wheel size rear | 6.5 x 16 | 6.5 x 16 | ||||
| Brake dimensions front | 266 x 22 | 266 x 22 | ||||
| Brake dimensions rear | 249 x 9 | 249 x 9 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.9/11.2 | 10.9/11.2 | ||||
| Overall length [mm] | 4157 | 4157 | ||||
| Overall width without/including mirrors [mm] | 1729/- | 1729/- | ||||
| Overall height [mm] | 1480 | 1480 | ||||
| Wheelbase [mm] | 2595 | 2595 | ||||
| Front wheel track [mm] | 1477 | 1477 | ||||
| Rear wheel track [mm] | 1477 | 1477 | ||||
| Forward overhang [mm] | 827 | 827 | ||||
| Rear overhang [mm] | 735 | 735 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 903 | 903 | ||||
| Headroom rear [mm] | 854 | 854 | ||||
| Front elbow/shoulder width [mm] | 1420/- | 1420/- | ||||
| Rear elbow/shoulder width [mm] | 1392/- | 1392/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
