Citroën C4

Date of manufacture

2020 – to this day (Five-door hatchback)

Platform

PSA EMP1

Manufacturing locations

Madrid, Spain

Designer

Car body style

Five-door hatchback

Date of manufacture

2020 – to this day

Internal designation

Engine size

Petrol

Electric

Diesel

Euro NCAP

Technical data

Five-door hatchback

	1.2 PureTech 100	1.2 PureTech 130	1.2 PureTech 130	1.2 PureTech 155	ë-C4 136	1.5 BlueHDi 110
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Electric	Diesel supercharged
Number of cylinders/valves	3/12	3/12	3/12	3/12	-	4/16
Engine displacement [cm³]	1199	1199	1199	1199	-	1499
Maximum output / speed [kW/min-1]	75/5500	96/5500	96/5500	114/5500	100/3700-10000	81/3500
Maximum torque [Nm/min-1]	205/1750	230/1750	230/1750	240/1750	260/300-3700	250/1750
Bore and stroke [mm x mm]	75,0 x 90,5	75,0 x 90,5	75,0 x 90,5	75,0 x 90,5	-	75 x 84,8
Compression ratio	10.5:1	10.5:1	10.5:1	10.5:1	-	16.5:1
Oil volume [l]	-	4.4	4.4	4.4	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system	-	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	8 gear automatic	8 gear automatic	1 gear automatic	6 gear manual
Drive specifications	-	-	eight-speed automatic gearbox EAT8	eight-speed automatic gearbox EAT8	constant ratio gearbox	-

Top speed [km/h]	-	208	210	-	150	-
Acceleration 0–100 km/h [s]	-	9.9	10.2	-	9.4	-
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	-	5.7	5.6	-	-	-
Out of town [l]	-	4.2	4.4	-	-	-
Combined [l]	-	4.8	4.8	-	-	-
CO2 emissions [g/km]	-	108	110	-	-	-

Low speed [l]	-	6.5-6.3	7.6-7.2	-	-	-
Medium speed [l]	-	5.5-5.3	6.0-5.8	-	-	-
High speed [l]	-	4.7-4.6	5.0-4.9	-	-	-
Extra high speed [l]	-	5.8-5.6	6.0-5.9	-	-	-
Combined speed [l]	-	5.4-5.3	5.9-5.7	-	16.6 kWh	-
CO2 emissions [g/km]	-	123-120	134-130	-	-	-

Emission standard	Euro 6d	Euro 6d	Euro 6d	Euro 6d	-	Euro 6d
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

System voltage [V]	-	-	-	-	400	-
Battery type and capacity	-	-	-	-	Lithium-Ionen-Akkumulator, 50 kWh	-
Range with fully charged battery [km]	-	-	-	-	350	-
Charging time	-	-	-	-	to 100%, 5 hodiny, charger 11kW AC to 80%, 30 minutes, charger 100 kW DC to 100%, 24 hodiny, charger 230V 8A to 100%, 15 hodiny, charger 230V 14A to 100%, hodiny, charger	-
Number of modules/cells	-	-	-	-	-	-
Battery weight [kg]	-	-	-	-	-	-
Charger	-	-	-	-	-	-

Standby weight [kg]	-	1322-1415	1353-1446	-	1616-1694	-
Overall weight [kg]	-	1735	1755	-	2000	-
Maximum trailer weight unbraked/braked [kg]	640/100	660/1200	670/1200	680/1200	-	660/1200
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	55	55-61	55-61	55	-	55
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1250	-/1250	-/1250	-/1250	-/1250	-/1250
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	-	50
AdBlue tank volume [l]	-	-	-	-	-	17
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	195/60 R18 96H	195/60 R18 96H	195/60 R18 96H	195/60 R18 96H	195/60 R18 96H	195/60 R18 96H
Tyre dimensions rear	195/60 R18 96H	195/60 R18 96H	195/60 R18 96H	195/60 R18 96H	195/60 R18 96H	195/60 R18 96H
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-	10,9/-

Overall length [mm]	4360	4360	4360	4360	4360	4360
Overall width without/including mirrors [mm]	1800/2032	1800/2032	1800/2032	1800/2032	1800/2032	1800/2032
Overall height [mm]	1525	1525	1525	1525	1525	1525
Wheelbase [mm]	2670	2670	2670	2670	2670	2670
Front wheel track [mm]	1545-1560	1545-1560	1545-1560	1545-1560	1545-1560	1545-1560
Rear wheel track [mm]	1545-1560	1545-1560	1545-1560	1545-1560	1545-1560	1545-1560
Forward overhang [mm]	880	880	880	880	880	880
Rear overhang [mm]	810	810	810	810	810	810
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.5 BlueHDi 130
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1499
Maximum output / speed [kW/min-1]	96/3750
Maximum torque [Nm/min-1]	300/1750
Bore and stroke [mm x mm]	75 x 84,8
Compression ratio	16.5:1
Oil volume [l]	4.1
Coolant volume [l]	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system

Drive axle	Front
Gearbox	8 gear automatic
Drive specifications	eight-speed automatic gearbox EAT8

Top speed [km/h]	206
Acceleration 0–100 km/h [s]	10.6
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	4.2
Out of town [l]	3.5
Combined [l]	3.8
CO2 emissions [g/km]	102

Low speed [l]	5.5-5.2
Medium speed [l]	4.5-4.0
High speed [l]	4.0-3.9
Extra high speed [l]	5.0-4.9
Combined speed [l]	4.7-4.5
CO2 emissions [g/km]	122-118

Emission standard	Euro 6d
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1399-1492
Overall weight [kg]	1795
Maximum trailer weight unbraked/braked [kg]	690/1200
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	55-61
Maximum load on roof/carrier [kg]	-

Boot volume [l]	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1250
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	50
AdBlue tank volume [l]	17
Air resistance [Cd]	-
Front suspension	MacPherson
Rear suspension	twist beam axle with trailing arms
Tyre dimensions front	195/60 R18 96H
Tyre dimensions rear	195/60 R18 96H
Wheel size front	-
Wheel size rear	-
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10,9/-

Overall length [mm]	4360
Overall width without/including mirrors [mm]	1800/2032
Overall height [mm]	1525
Wheelbase [mm]	2670
Front wheel track [mm]	1545-1560
Rear wheel track [mm]	1545-1560
Forward overhang [mm]	880
Rear overhang [mm]	810
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

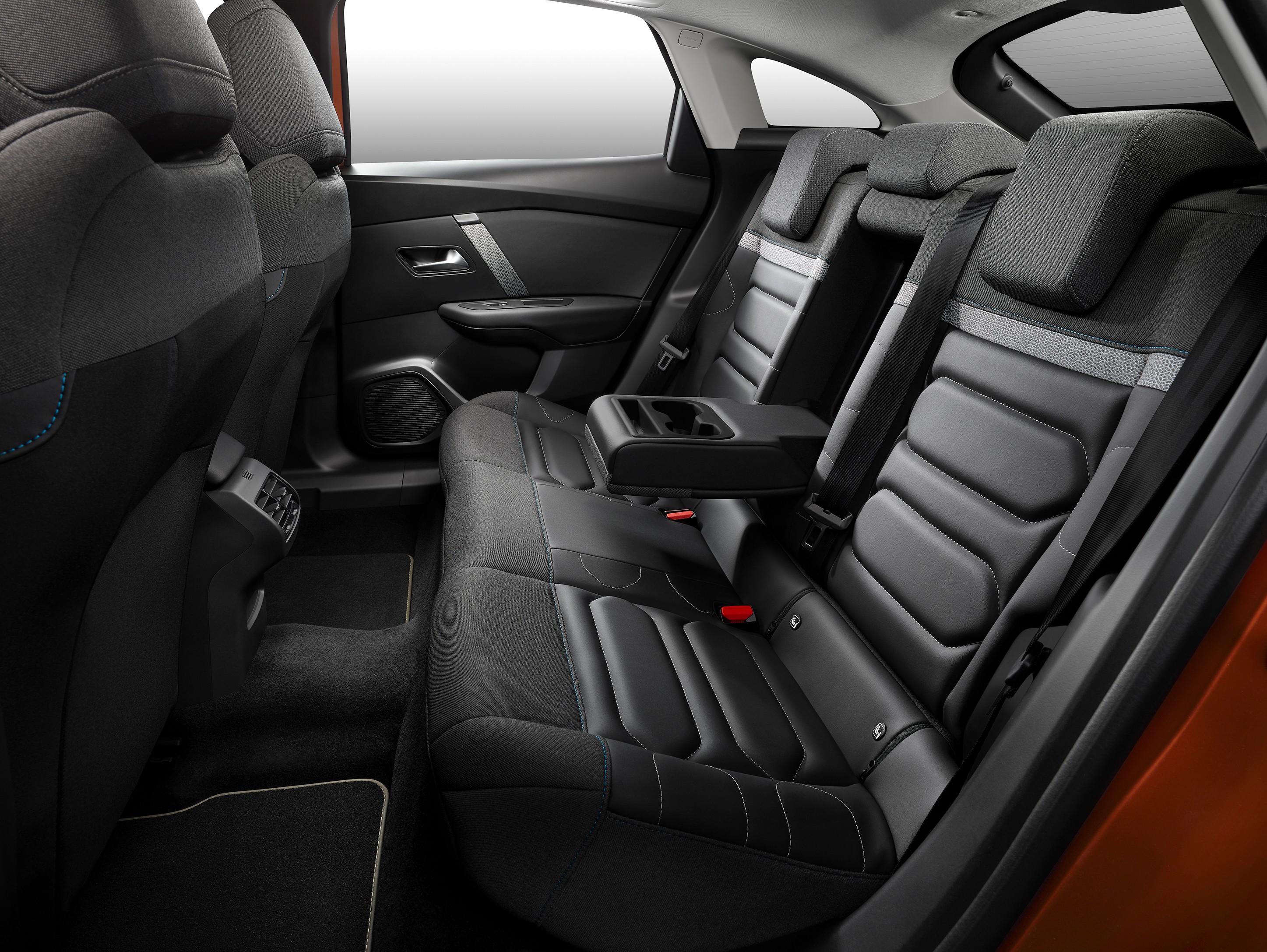

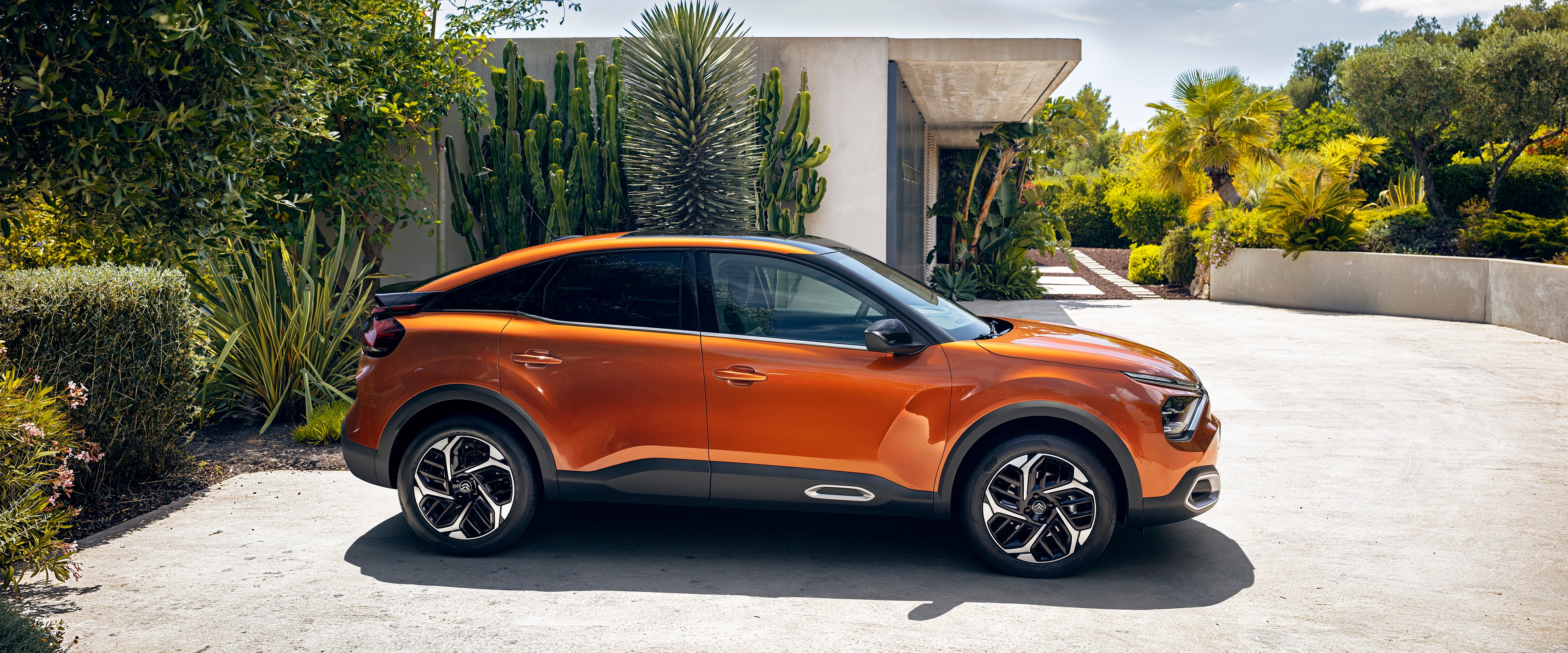

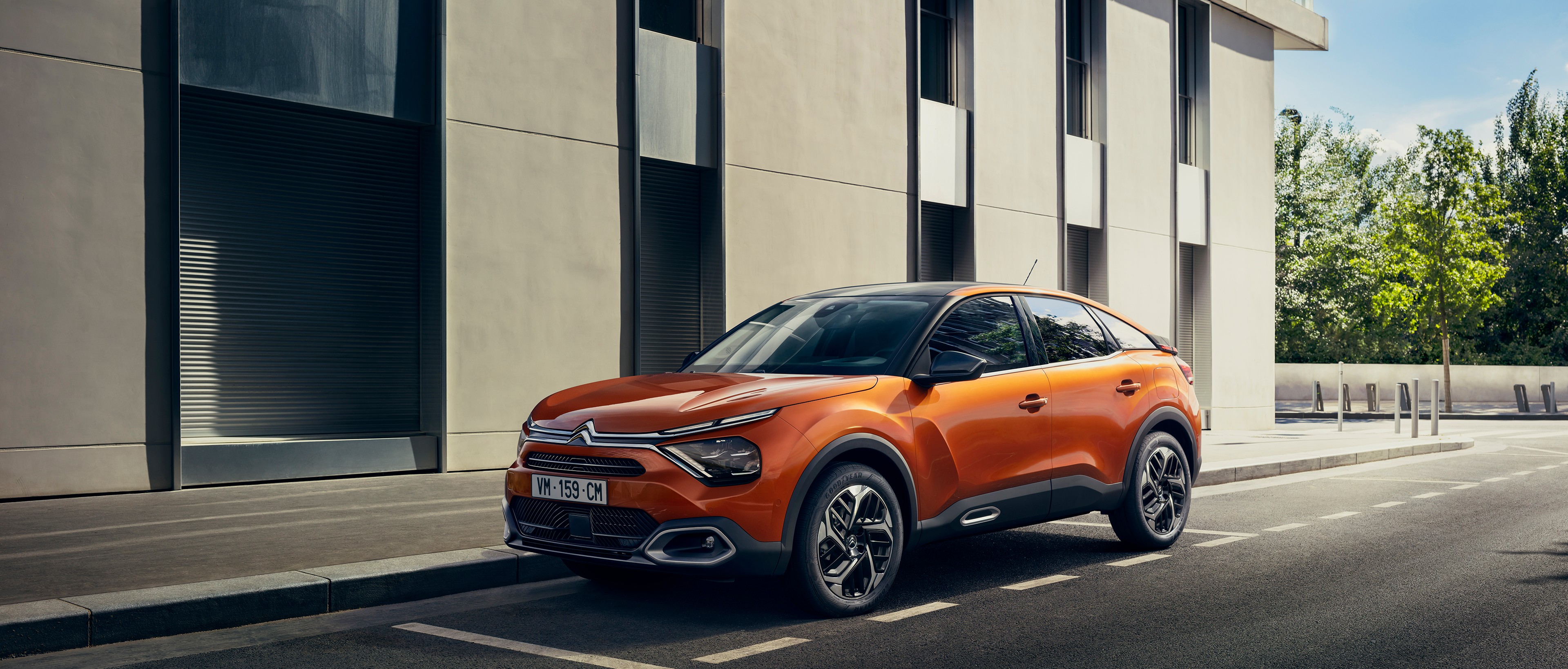

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
