Citroën C3 Aircross
Date of manufacture
10/2017 – 2021 (Small SUV)
Platform
PSA PF1
Manufacturing locations
Zaragoza, Spain
Designer
-
Tags
Small SUV
French cars
The Citroën C3 Aircross is a small SUV that was launched in 2017. The car is manufactured in Spain and is built on the PSA PF1 platform. It offers gasoline and diesel engines with a maximum power of 96 kW (model 1.2 PureTech 130). The top speed reaches 200 km/h and the lowest combined consumption is 3.6 l/100 km for the 1.5 BlueHDi 110 with CO2 emissions of 94 g/km. The luggage compartment volume is 410 l. The Citroën C3 Aircross was successfully tested in the safety area in 2017 and achieved an overall rating of 5 out of 5 according to EURONCAP.
Car body style
Small SUV
Date of manufacture
10/2017 – 2021Internal designation
-
Technical data
Small SUV
| 1.2 PureTech 82 | 1.2 PureTech 82 | 1.2 PureTech 110 | 1.2 PureTech 110 | 1.2 PureTech 110 | 1.2 PureTech 110 | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2018 to | - | from 2018 to | - | from 2018 to |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1199 | 1199 | 1199 | 1199 | 1199 | 1199 |
| Maximum output / speed [kW/min-1] | 60/5750 | 60/5750 | 81/5500 | 81/5500 | 81/5500 | 81/5500 |
| Maximum torque [Nm/min-1] | 118/2750 | 118/2750 | 205/1500 | 205/1500 | 205/1500 | 205/1500 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 |
| Compression ratio | - | - | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 165 | 165 | 185 | 185 | 183 | 183 |
| Acceleration 0–100 km/h [s] | 14,0 | 14,0 | 10,2 | 10,3-11.5 | 10,6 | 10,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9 | 6.3 | 5.9-5.7 | 5.9-5.4 | 9.0-8.9 | 6.6 |
| Out of town [l] | 4.6 | 4.5 | 4.6-4.5 | 4.4-4.2 | 5.2-5.1 | 5.2 |
| Combined [l] | 5.1 | 5.0 | 5.0-4.9 | 4.8 | 6.6-6.5 | 5.7 |
| CO2 emissions [g/km] | 116 | 118 | 115-112 | 110-109 | 149-146 | 131 |
| Emission standard | EU6 | EU6d-TEMP | EU6 | EU6d-TEMP - EU6d | EU6 | EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1088 | 1163-1350 | 1159 | 1234-1410 | 1203 | 1278-1441 |
| Overall weight [kg] | 1720 | 1720 | 1780 | 1780 | 1805 | 1815 |
| Maximum trailer weight unbraked/braked [kg] | 560/650 | 560/650 | 600/840 | 600/840 | 600/840 | 600/840 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | 65 | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | 40/- | - | - |
| Boot volume [l] | 410 | 410 | 410 | 410 | 410 | 410 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1289 | -/1289 | -/1289 | -/1289 | -/1289 | -/1289 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 |
| Tyre dimensions rear | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10,8/- | 10,8/- | 10,8/- | 10,8/- | 10,8/- | 10,8/- |
| Overall length [mm] | 4154 | 4154 | 4154 | 4154 | 4154 | 4154 |
| Overall width without/including mirrors [mm] | 1756/1976 | 1756/1976 | 1756/1976 | 1756/1976 | 1756/1976 | 1756/1976 |
| Overall height [mm] | 1597 | 1597 | 1597 | 1597 | 1597 | 1597 |
| Wheelbase [mm] | 2604 | 2604 | 2604 | 2604 | 2604 | 2604 |
| Front wheel track [mm] | 1513 | 1513 | 1513 | 1513 | 1513 | 1513 |
| Rear wheel track [mm] | 1491 | 1491 | 1491 | 1491 | 1491 | 1491 |
| Forward overhang [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Rear overhang [mm] | 708 | 708 | 708 | 708 | 708 | 708 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.2 PureTech 130 | 1.2 PureTech 130 | 1.6 BlueHDi 100 | 1.5 BlueHDi 100 | 1.5 BlueHDi 110 | 1.6 BlueHDi 120 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | - | from 2018 to 2020 | from 2020 to | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/8 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1199 | 1199 | 1560 | 1499 | 1499 | 1560 |
| Maximum output / speed [kW/min-1] | 96/5500 | 96/5500 | 73/3750 | 75/3500 | 81/3750 | 88/3500 |
| Maximum torque [Nm/min-1] | 230/1750 | 230/1750 | 254/1750 | 250/1750 | 250/1750 | 300/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 10,5:1 | 10,5:1 | - | 16.5:1 | 16.5:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - | - | - | - |
| Top speed [km/h] | 200 | 195 | 175 | 178 | 184 | 183 |
| Acceleration 0–100 km/h [s] | 9.3 | 10.3 | 11,5 | 12.8 | 12.1 | 9,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.4 | 5.9 | 4.6-4.5 | 4.7 | 4.2 | 4.7-4.6 |
| Out of town [l] | 4.4 | 4.5 | 3.7-3.5 | 3.5 | 3.2 | 3.8-3.7 |
| Combined [l] | 4.8 | 5.0 | 4.0-3.9 | 4.0 | 3.6 | 4.1-4.0 |
| CO2 emissions [g/km] | 110 | 114 | 104-101 | 105 | 94 | 107-105 |
| Emission standard | EU6d-TEMP | EU6d | EU6 | EU6d-TEMP | EU6d | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1248-1425 | 1280-1459 | 1203 | 1278-1456 | 1280-1458 | 1233 |
| Overall weight [kg] | 1795 | 1835 | 1825 | 1815 | 1835 | 1855 |
| Maximum trailer weight unbraked/braked [kg] | 620/840 | 600/840 | 620/840 | 620/840 | 620/840 | 640/870 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | 65 | - | - | 65 | - |
| Maximum load on roof/carrier [kg] | - | 40/- | - | - | 40/- | - |
| Boot volume [l] | 410 | 410 | 410 | 410 | 410 | 410 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1289 | -/1289 | -/1289 | -/1289 | -/1289 | -/1289 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | 17 | 17 | 17 | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson | MacPherson | MacPherson, lower triangular arms, coil springs, hydraulic shock absorbers, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/65 R15 | 195/65 R15 | 195/60 R16 |
| Tyre dimensions rear | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/65 R15 | 195/65 R15 | 195/60 R16 |
| Wheel size front | - | - | 6 J x 15 | - | - | 6 J x 15 |
| Wheel size rear | - | - | 6 J x 15 | - | - | 6 J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10,8/- | 10,8/- | 10,8/- | 10,8/- | 10,8/- | 10,8/- |
| Overall length [mm] | 4154 | 4154 | 4154 | 4154 | 4154 | 4154 |
| Overall width without/including mirrors [mm] | 1756/1976 | 1756/1976 | 1756/1976 | 1756/1976 | 1756/1976 | 1756/1976 |
| Overall height [mm] | 1597 | 1597 | 1597 | 1597 | 1597 | 1597 |
| Wheelbase [mm] | 2604 | 2604 | 2604 | 2604 | 2604 | 2604 |
| Front wheel track [mm] | 1513 | 1513 | 1513 | 1513 | 1513 | 1513 |
| Rear wheel track [mm] | 1491 | 1491 | 1491 | 1491 | 1491 | 1491 |
| Forward overhang [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Rear overhang [mm] | 708 | 708 | 708 | 708 | 708 | 708 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 BlueHDi 120 | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1499 | |||||
| Maximum output / speed [kW/min-1] | 88/3750 | |||||
| Maximum torque [Nm/min-1] | 300/1750 | |||||
| Bore and stroke [mm x mm] | 75 x 84,8 | |||||
| Compression ratio | 16.5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 183 | |||||
| Acceleration 0–100 km/h [s] | 10.8 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 4.4 | |||||
| Out of town [l] | 3.8-3.7 | |||||
| Combined [l] | 4.0-3.9 | |||||
| CO2 emissions [g/km] | 106-104 | |||||
| Emission standard | EU6d-TEMP - EU6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1305-1487 | |||||
| Overall weight [kg] | 1855-1860 | |||||
| Maximum trailer weight unbraked/braked [kg] | 640/870 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 55 | |||||
| Maximum load on roof/carrier [kg] | 40/- | |||||
| Boot volume [l] | 410 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1289 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 7 | |||||
| Fuel tank volume [l] | 45 | |||||
| AdBlue tank volume [l] | 17 | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 205/60 R16 | |||||
| Tyre dimensions rear | 205/60 R16 | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10,8/- | |||||
| Overall length [mm] | 4154 | |||||
| Overall width without/including mirrors [mm] | 1756/1976 | |||||
| Overall height [mm] | 1597 | |||||
| Wheelbase [mm] | 2604 | |||||
| Front wheel track [mm] | 1513 | |||||
| Rear wheel track [mm] | 1491 | |||||
| Forward overhang [mm] | 842 | |||||
| Rear overhang [mm] | 708 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

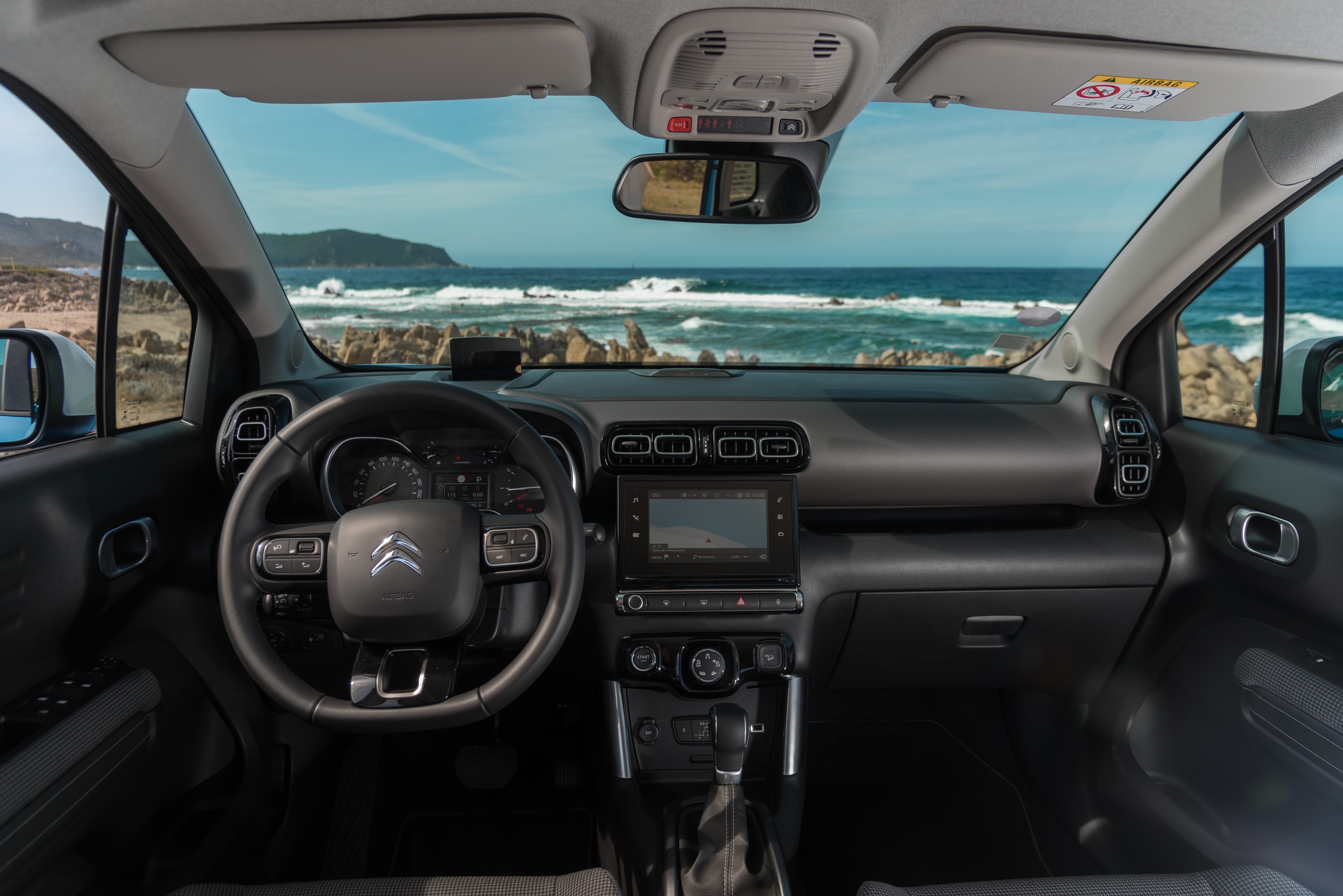

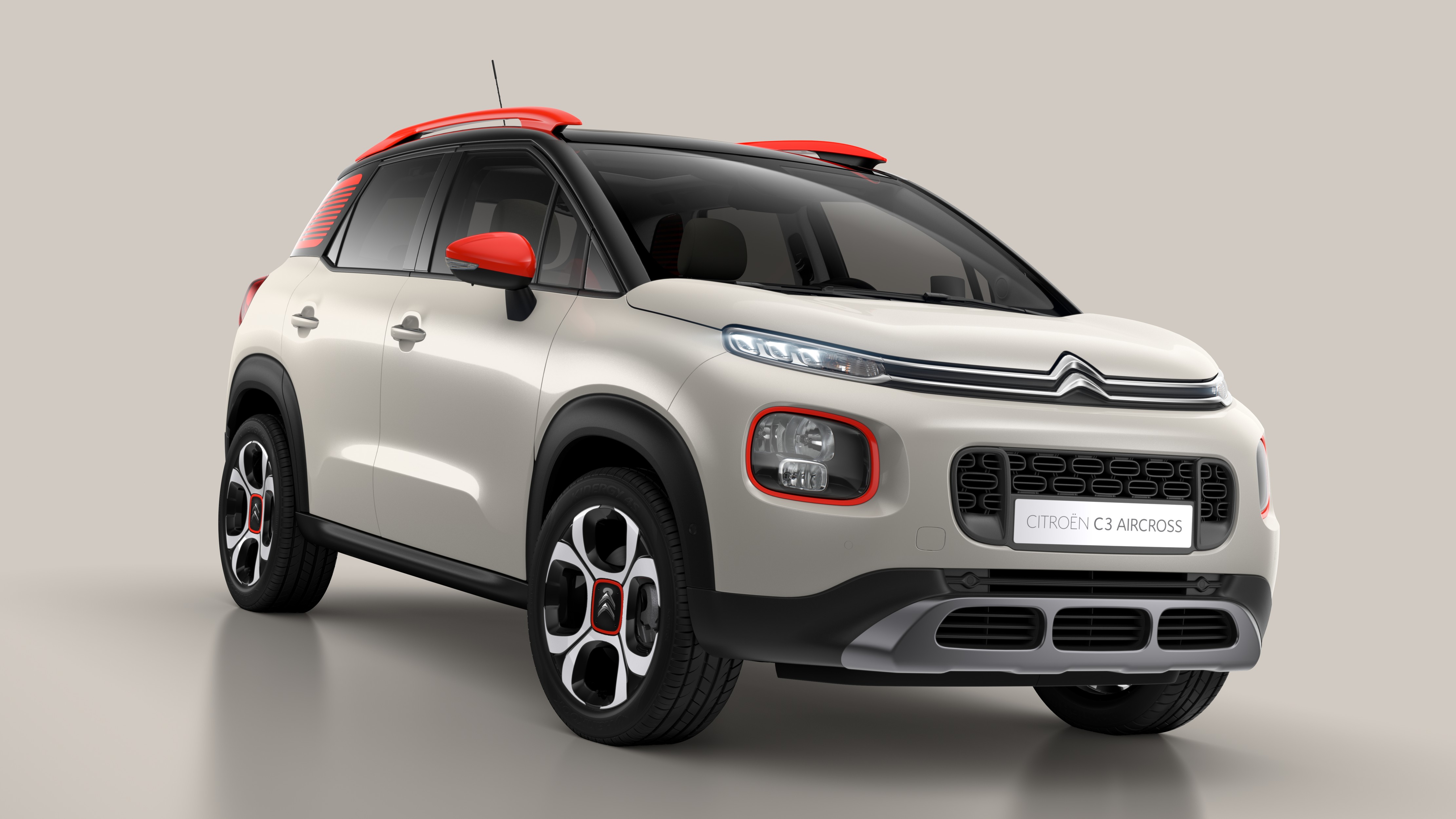

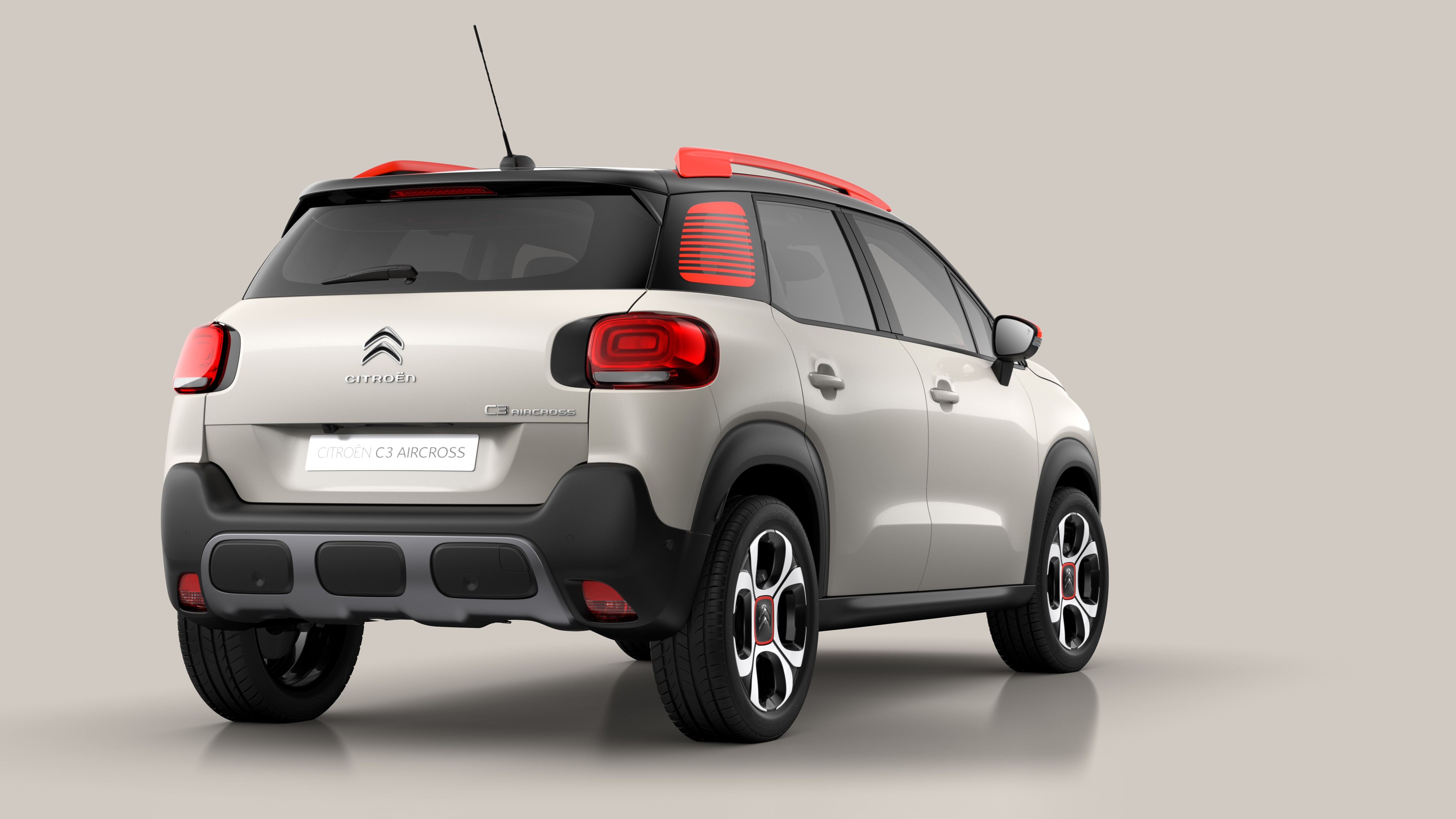

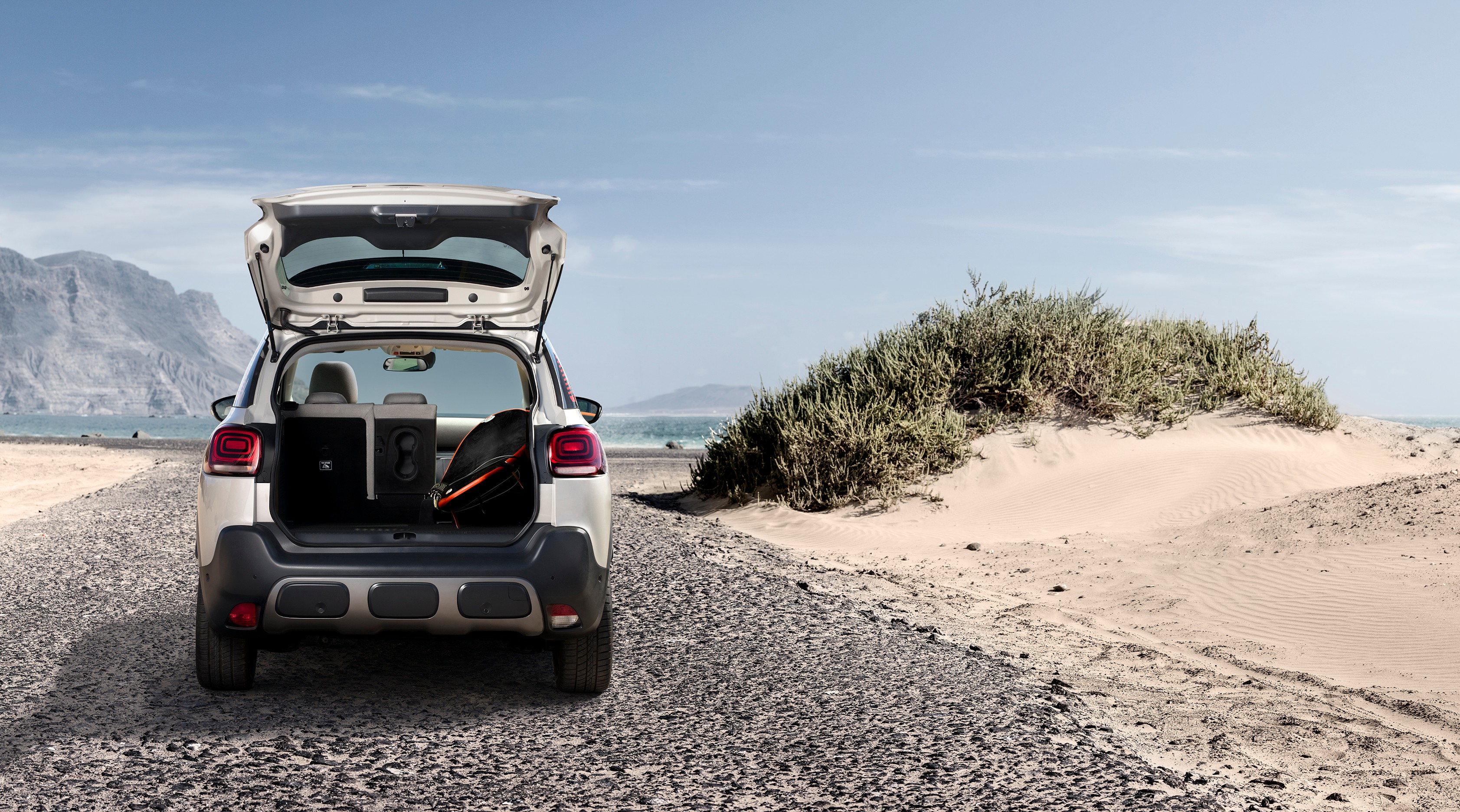

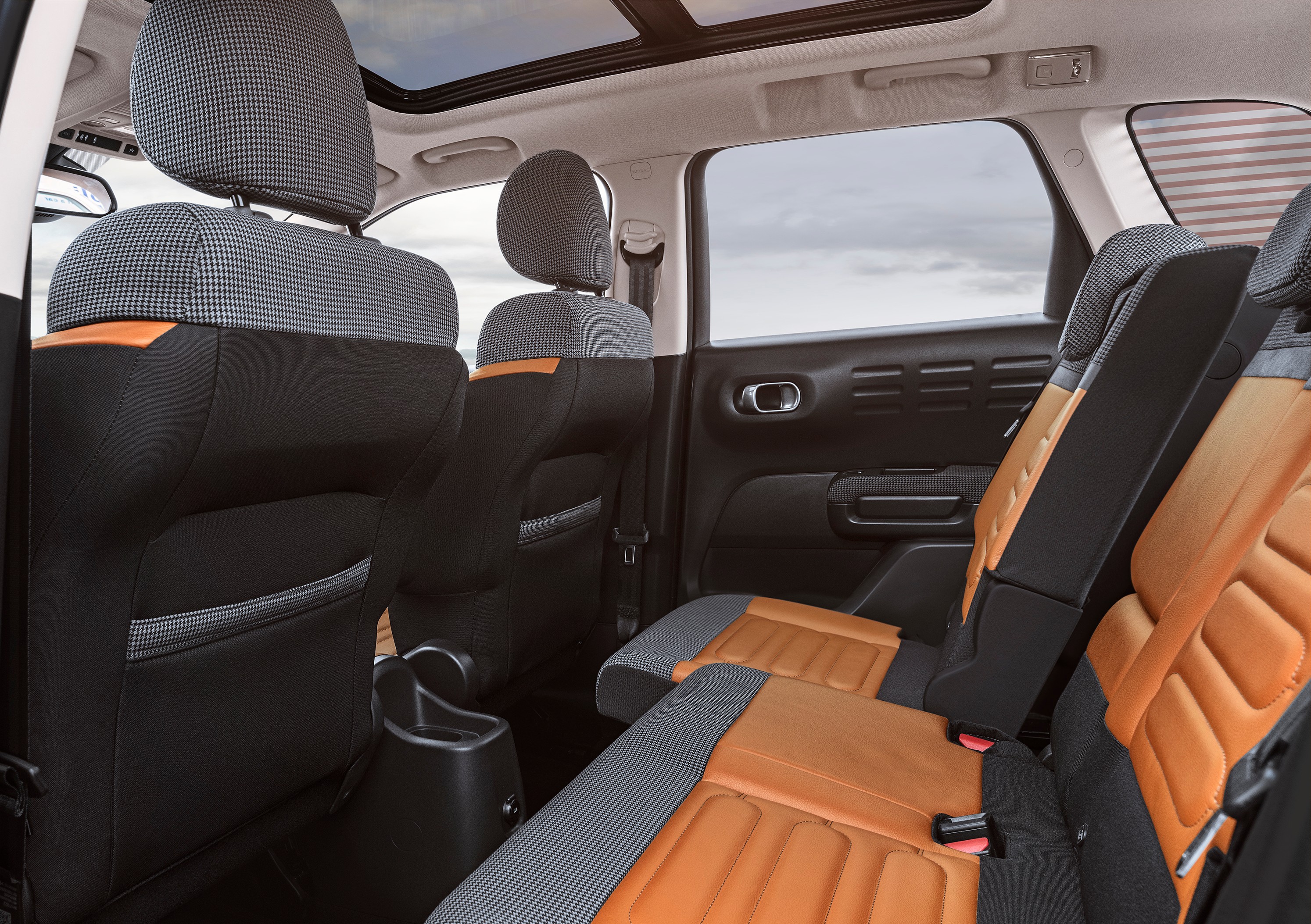

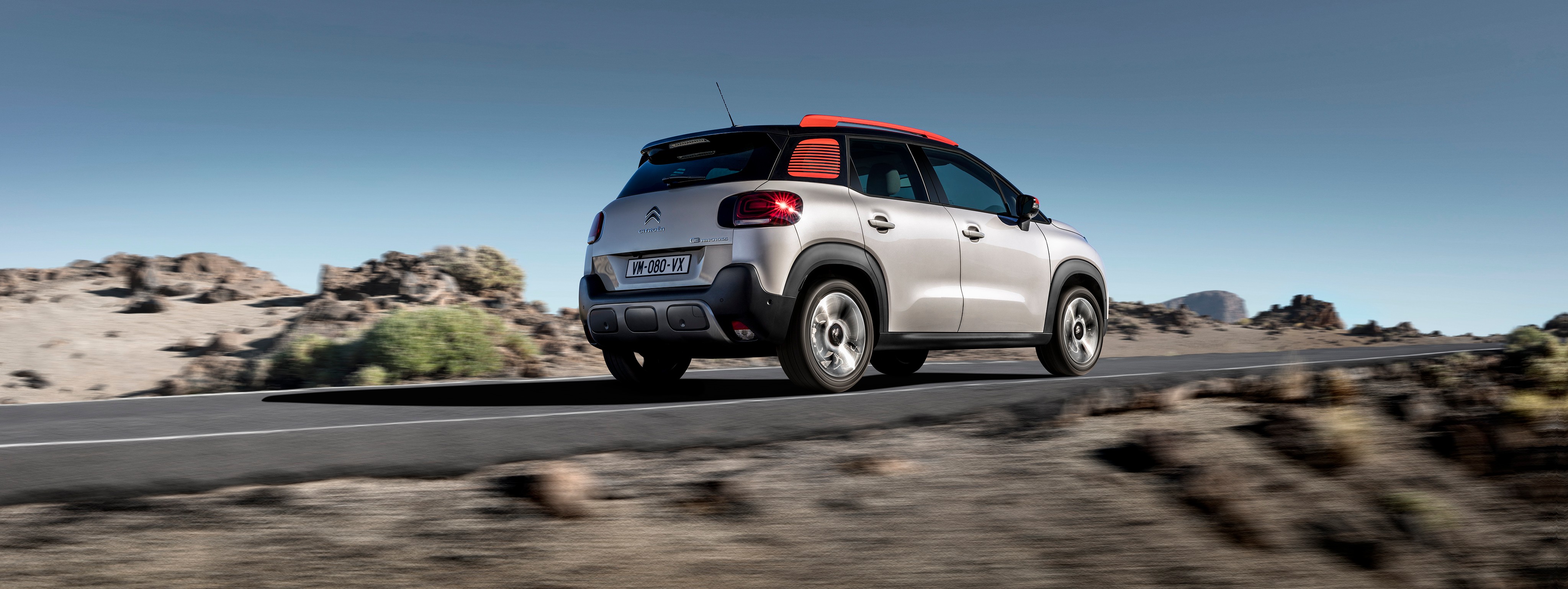

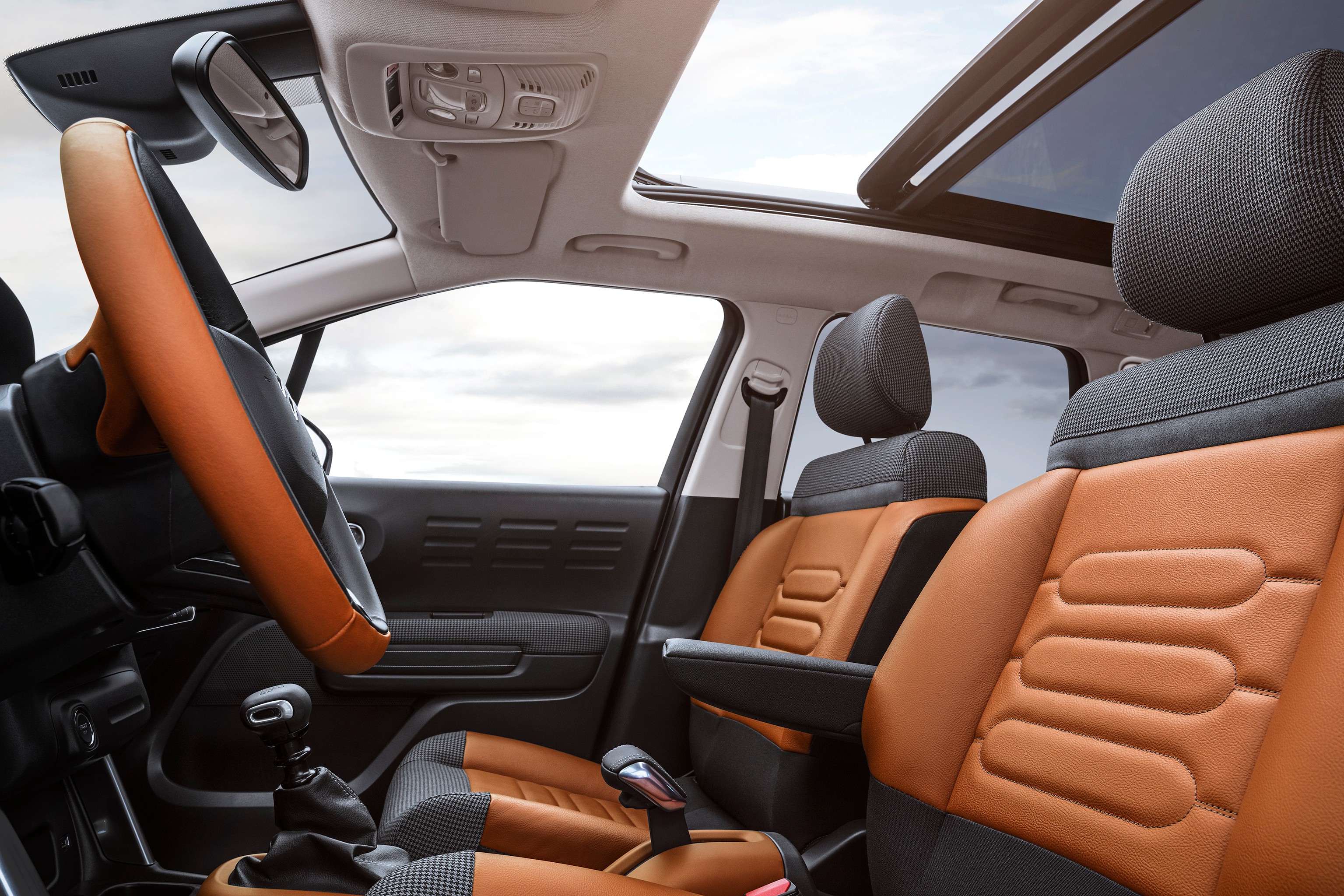

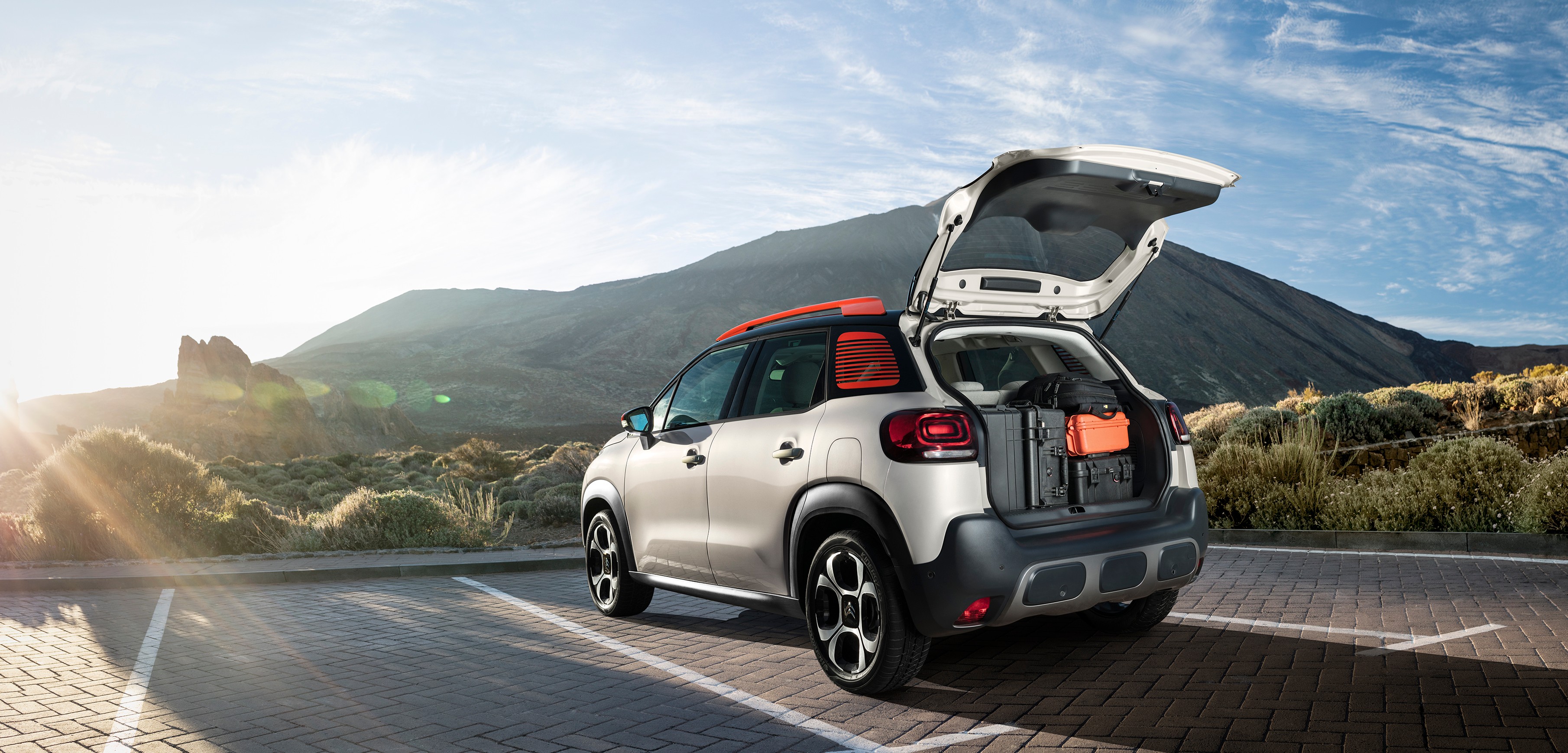

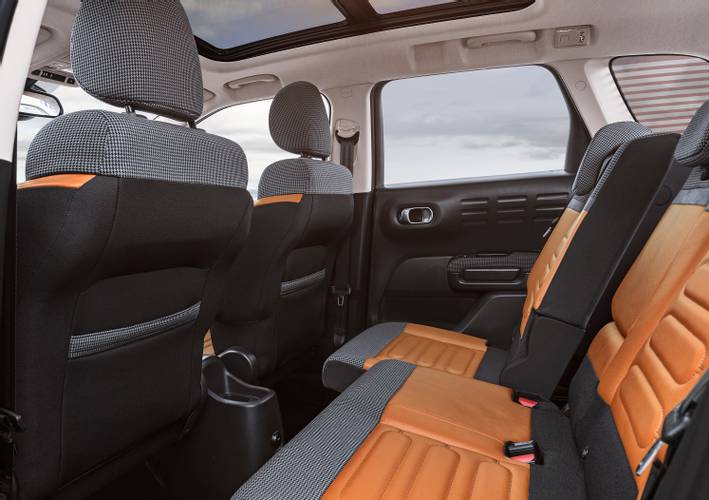

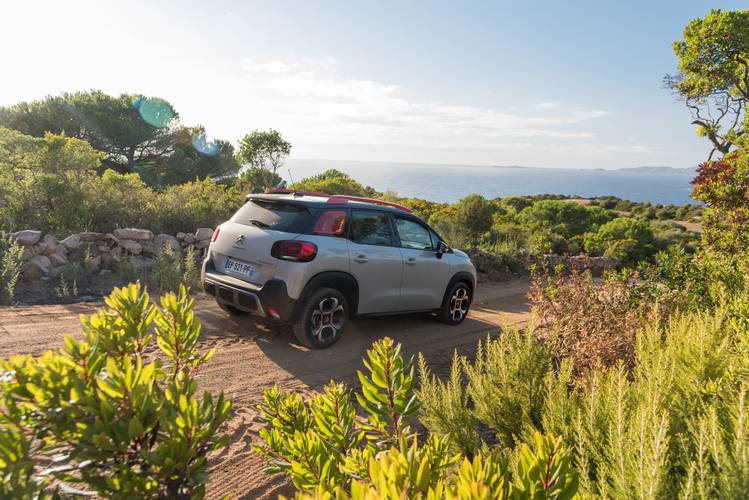

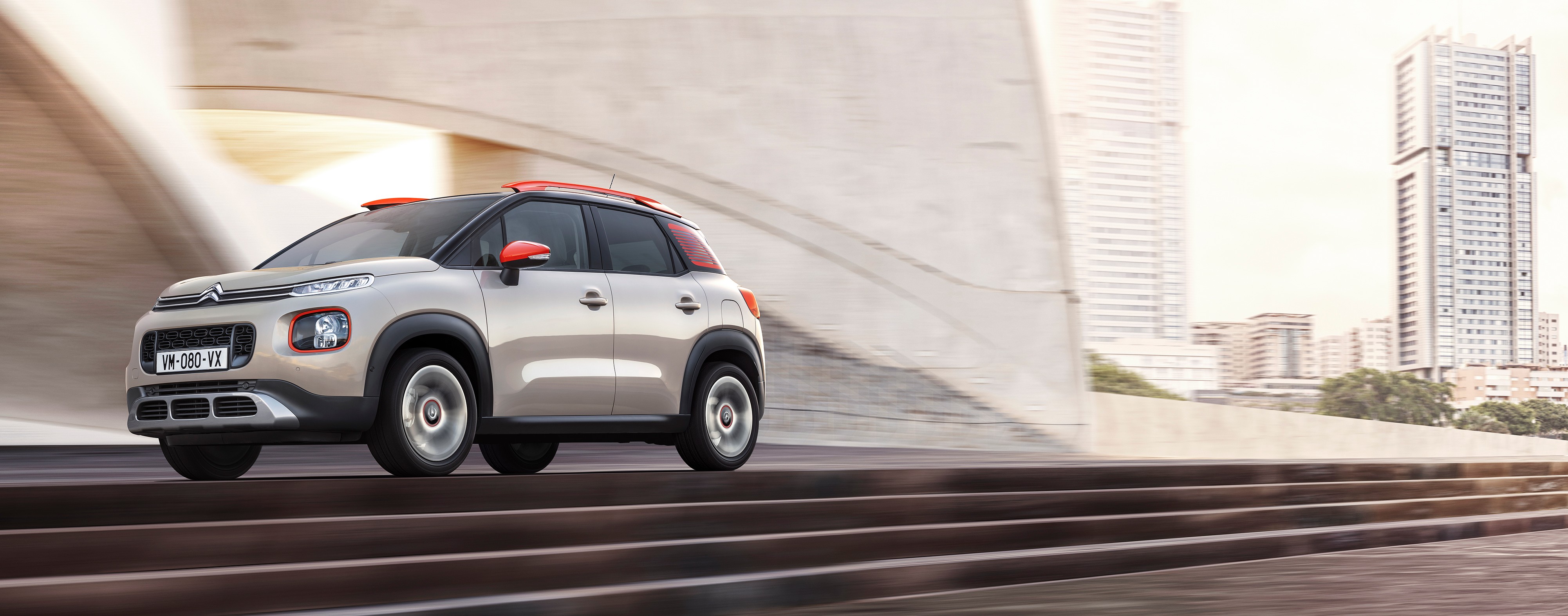

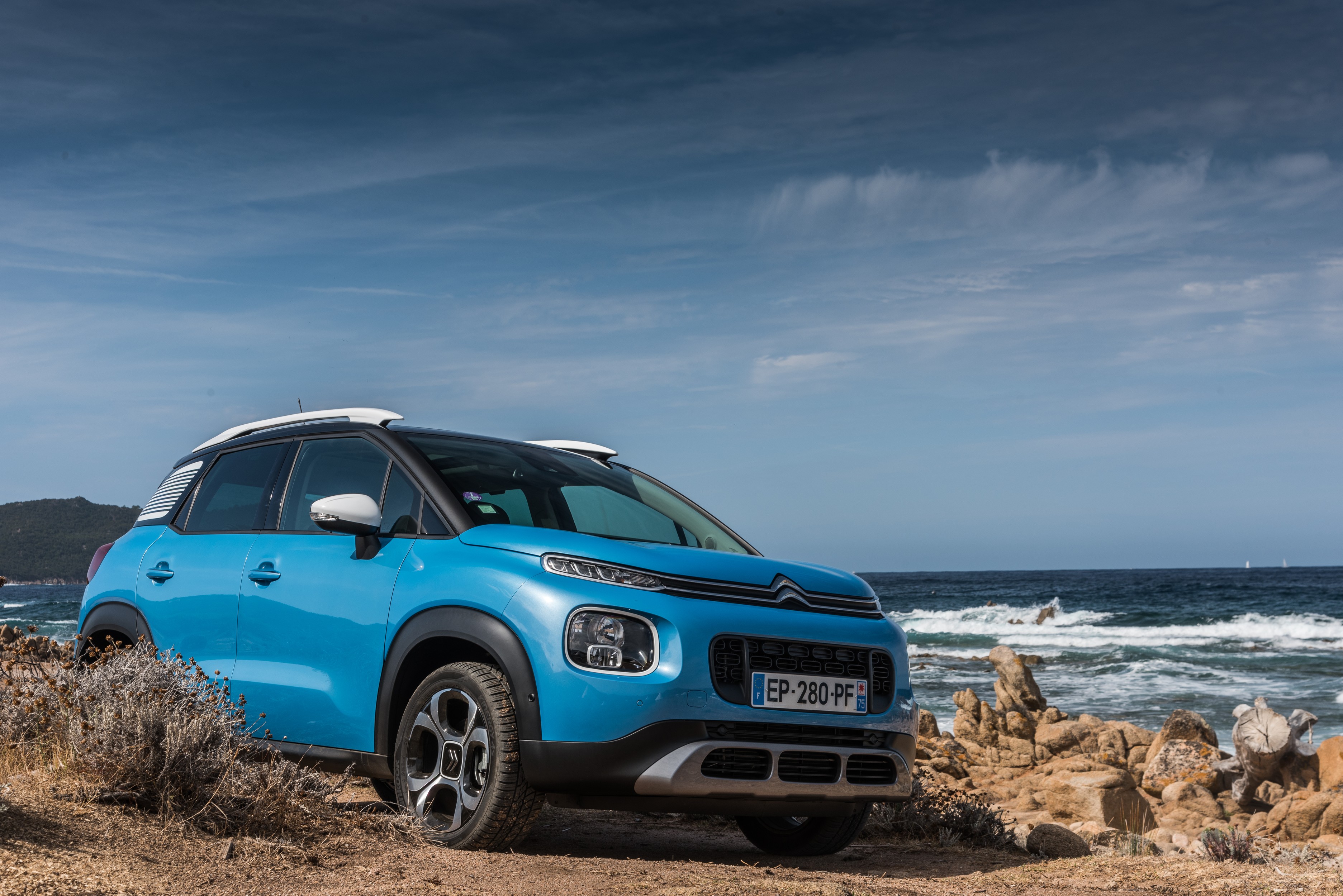

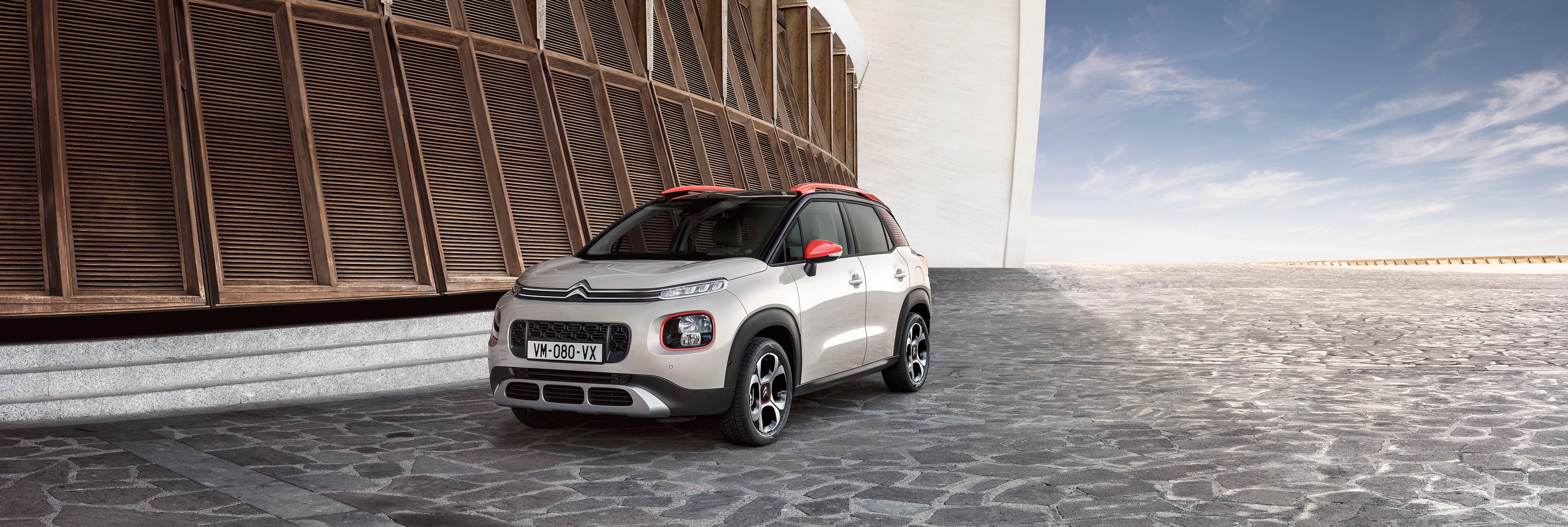

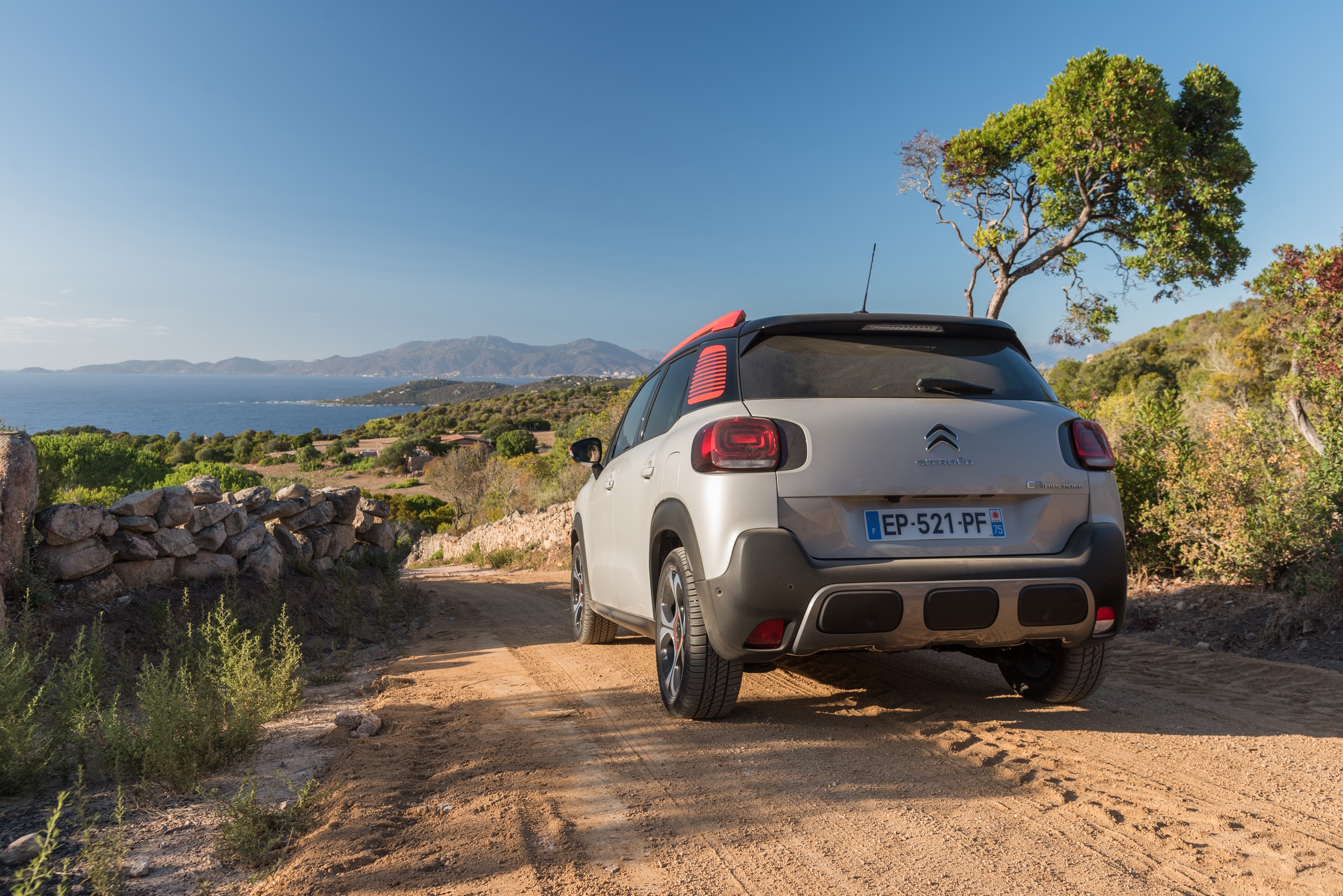

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
