Citroën Berlingo
Date of manufacture
2018 – to this day (Medium MPV)
Platform
PSA EMP2
Manufacturing locations
Vigo, Spain
Designer
-
Tags
Mid-size MPV
French cars
The Citroën Berlingo is a mid-size MPV body style that was launched in 2018. The vehicle is built on the PSA EMP2 platform and is manufactured in Spain. It offers petrol and diesel engines with a maximum power of 96 kW (BlueHDi 130 XL). The highest speed is achieved by the PureTech 130 XL, which has 200 km/h. The most economical version, the BlueHDi 100 M, has a consumption of 5.4 l/100 km and CO2 emissions of 143 g/km. The luggage compartment offers a capacity of 597 to 775 liters. In terms of safety, the Citroën Berlingo received a rating of 4 out of 5 according to EURONCAP in 2018.
Car body style
Medium MPV
Date of manufacture
2018 – to this dayInternal designation
K9Engine size
Technical data
Medium MPV
| PureTech 110 M | PureTech 110 M | PureTech 110 XL | PureTech 110 XL | PureTech 130 M | PureTech 130 M | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1199 | 1199 | 1199 | 1199 | 1199 | 1199 |
| Maximum output / speed [kW/min-1] | 81/5500 | 81/5500 | 81/5500 | 81/5500 | 96/5500 | 96/5500 |
| Maximum torque [Nm/min-1] | 205/1750 | 205/1750 | 205/1750 | 205/1750 | 230/1750 | 230/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | 4.4 | 4.4 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 174 | 174 | 174 | 174 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 11.5 | 11.8 | 11.8 | 12.1 | 12.3 | 12.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,3 | 6.3 | 6.3 | 6.4 | 6.0 | 6.2 |
| Out of town [l] | 4.8 | 4.8 | 4.8 | 4.9 | 4.7 | 4.9 |
| Combined [l] | 5.3 | 5.4 | 5.3 | 5.5 | 5.2 | 5.3 |
| CO2 emissions [g/km] | 122 | 123 | 122 | 125 | 119 | 122 |
| Low speed [l] | 7.8-7.7 | 7.8-7.7 | 7.8 | 7.8 | 8.6-8.3 | 8.6-8.3 |
| Medium speed [l] | 6.6-6.5 | 6.6-6.5 | 6.7-6.5 | 6.7-6.5 | 7.0-6.7 | 7.0-6.7 |
| High speed [l] | 6.0-5.9 | 6.0-5.9 | 6.0-5.9 | 6.0-5.9 | 6.1-5.9 | 6.1-5.9 |
| Extra high speed [l] | 7.6-7.4 | 7.6-7.4 | 7.6-7.5 | 7.6-7.5 | 7.8-7.5 | 7.8-7.5 |
| Combined speed [l] | 6.9-6.8 | 6.9-6.8 | 7.0-6.8 | 7.0-6.8 | 7.2-7.0 | 7.2-7.0 |
| CO2 emissions [g/km] | 157-154 | 157-154 | 158-155 | 158-155 | 163-158 | 163-158 |
| Emission standard | EURO 6d-TEMP - Euro 6.d | EURO 6d-TEMP - Euro 6.d | EURO 6d-TEMP - Euro 6.d | EURO 6d-TEMP - Euro 6.d | EURO 6d-TEMP - Euro 6.d | EURO 6d-TEMP - Euro 6.d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1366 | 1460 | 1430 | 1495 | 1410 | 1410 |
| Overall weight [kg] | 2040 | 2235 | 2070 | 2233 | 2240 | 2240 |
| Maximum trailer weight unbraked/braked [kg] | 710/1150 | 750/1000 | 750/1100 | 750/900 | 750/1050 | 750/1050 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 74/- | 70/- | 74/- | 50/- | 70/- | 70/- |
| Boot volume [l] | 597-775 | 65 | 850-1050 | 322 | 597-775 | 65 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3000 | -/3000 | -/350 | -/350 | -/3000 | -/3000 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 7 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10,8/- | 10,8/- | 11.5/- | 11.5/- | 10,8/- | 10,8/- |
| Overall length [mm] | 4403 | 4403 | 4753 | 4753 | 4403 | 4403 |
| Overall width without/including mirrors [mm] | 1848/2107 | 1848/2107 | 1848/2107 | 1848/2107 | 1848/2107 | 1848/2107 |
| Overall height [mm] | 1844 | 1844 | 1844 | 1844 | 1844 | 1844 |
| Wheelbase [mm] | 2785 | 2785 | 2975 | 2975 | 2785 | 2785 |
| Front wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Rear wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Forward overhang [mm] | 892 | 892 | 892 | 892 | 892 | 892 |
| Rear overhang [mm] | 726 | 726 | 886 | 886 | 726 | 726 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| PureTech 130 XL | PureTech 130 XL | BlueHDi 100 M | BlueHDi 100 M | BlueHDi 100 XL | BlueHDi 100 XL | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1199 | 1199 | 1499 | 1499 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 96/5500 | 96/5500 | 75/3500 | 75/3500 | 75/3500 | 75/3500 |
| Maximum torque [Nm/min-1] | 230/1750 | 230/1750 | 250/1750 | 250/1750 | 250/1750 | 250/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 75 x 84,8 | 75 x 84,8 | 75 x 84,8 | 75 x 84,8 |
| Compression ratio | 10.5:1 | 10.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 4.4 | 4.4 | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
|
| - | - | - | - |
| Top speed [km/h] | 200 | 200 | 175 | 175 | 175 | 175 |
| Acceleration 0–100 km/h [s] | 12.3 | 12.3 | 14.1 | 14.5 | 14.2 | 14.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.2 | 6.2 | 4,3 | 4.6 | 4.6 | 4.6 |
| Out of town [l] | 4.8 | 4.9 | 3.8 | 4.0 | 4.0 | 4.0 |
| Combined [l] | 5.3 | 5.3 | 4.0 | 4,2 | 4.2 | 4.2 |
| CO2 emissions [g/km] | 121 | 122 | 106 | 111 | 110 | 111 |
| Low speed [l] | 8.6-8.4 | 8.6-8.4 | 6.0-5.7 | 6.0-5.7 | 6.0-5.8 | 6.0-5.8 |
| Medium speed [l] | 7.0-6.8 | 7.0-6.8 | 5.3-5.0 | 5.3-5.0 | 5.3-5.1 | 5.3-5.1 |
| High speed [l] | 6.2-6.0 | 6.2-6.0 | 4.9-4.7 | 4.9-4.7 | 4.9-4.8 | 4.9-4.8 |
| Extra high speed [l] | 7.8-7.6 | 7.8-7.6 | 6.4-6.2 | 6.4-6.2 | 6.4-6.3 | 6.4-6.3 |
| Combined speed [l] | 7.3-7.1 | 7.3-7.1 | 5.7-5.4 | 5.7-5.4 | 5.7-5.5 | 5.7-5.5 |
| CO2 emissions [g/km] | 164-159 | 164-159 | 149-143 | 149-143 | 149-144 | 149-144 |
| Emission standard | EURO 6d-TEMP - Euro 6.d | EURO 6d-TEMP - Euro 6.d | EURO 6d-TEMP | EURO 6d-TEMP | EURO 6d-TEMP | EURO 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1557 | 1600 | 1405 | 1490 | 1487 | 1539 |
| Overall weight [kg] | 2100 | 2270 | 2080 | 2255 | 2100 | 2285 |
| Maximum trailer weight unbraked/braked [kg] | 750/1150 | 750/100 | 740/1300 | 750/1150 | 750/1250 | 750/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 74/- | 50/- | 74/- | 60/- | 74/- | 50/- |
| Boot volume [l] | 850-1050 | 322 | 597-775 | 65 | 850-1050 | 322 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/350 | -/350 | -/3000 | -/3000 | -/350 | -/350 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 7 |
| Fuel tank volume [l] | 60 | 60 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | 17 | 17 | 17 | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 10,8/- | 10,8/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4753 | 4753 | 4403 | 4403 | 4753 | 4753 |
| Overall width without/including mirrors [mm] | 1848/2107 | 1848/2107 | 1848/2107 | 1848/2107 | 1848/2107 | 1848/2107 |
| Overall height [mm] | 1844 | 1844 | 1844 | 1844 | 1844 | 1844 |
| Wheelbase [mm] | 2975 | 2975 | 2785 | 2785 | 2975 | 2975 |
| Front wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Rear wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Forward overhang [mm] | 892 | 892 | 892 | 892 | 892 | 892 |
| Rear overhang [mm] | 886 | 886 | 726 | 726 | 886 | 886 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| BlueHDi 130 M | BlueHDi 130 M | BlueHDi 130 XL | BlueHDi 130 XL | BlueHDi 130 M | BlueHDi 130 M | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 96/3750 | 96/3750 | 96/3750 | 96/3750 | 96/3750 | 96/3750 |
| Maximum torque [Nm/min-1] | 300/1750 | 300/1750 | 300/1750 | 300/1750 | 300/1750 | 300/1750 |
| Bore and stroke [mm x mm] | 75 x 84,8 | 75 x 84,8 | 75 x 84,8 | 75 x 84,8 | 75 x 84,8 | 75 x 84,8 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 186 | 186 | 186 | 186 | 186 | 186 |
| Acceleration 0–100 km/h [s] | 10,3 | 10,5 | 10,5 | 10,7 | 11.0 | 11.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.7 | 4,8 | 4.8 | 4.8 | 4.6 | 4.7 |
| Out of town [l] | 4,0 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 |
| Combined [l] | 4.3 | 4,4 | 4.4 | 4.4 | 4.2 | 4.3 |
| CO2 emissions [g/km] | 112 | 115 | 115 | 115 | 112 | 114 |
| Low speed [l] | 6.2-5.9 | 6.2-5.9 | 6.2-6.0 | 6.2-6.0 | 6.6-6.4 | 6.6-6.4 |
| Medium speed [l] | 5.3-5.1 | 5.3-5.1 | 5.3-5.1 | 5.3-5.1 | 5.6-5.3 | 5.6-5.3 |
| High speed [l] | 5.0-4.8 | 5.0-4.8 | 5.0-4.8 | 5.0-4.8 | 5.0-4.8 | 5.0-4.8 |
| Extra high speed [l] | 6.4-6.2 | 6.4-6.2 | 6.4-6.3 | 6.4-6.3 | 6.4-6.2 | 6.4-6.2 |
| Combined speed [l] | 5.7-5.5 | 5.7-5.5 | 5.7-5.6 | 5.7-5.6 | 5.8-5.6 | 5.8-5.6 |
| CO2 emissions [g/km] | 150-144 | 150-144 | 149-146 | 149-146 | 153-147 | 153-147 |
| Emission standard | EURO 6d-TEMP | EURO 6d-TEMP | EURO 6d-TEMP | EURO 6d-TEMP | EURO 6d-TEMP | EURO 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1430 | 1510 | 1506 | 1510 | 1356 | 1524 |
| Overall weight [kg] | 2120 | 2280 | 2140 | 2310 | 2040 | 2270 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1350 | 750/1450 | 750/1250 | 710/1150 | 750/1150 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 74/- | 60/- | 74/- | 50/- | 52/- | 50/- |
| Boot volume [l] | 597-775 | 65 | 850-1050 | 322 | 597-775 | 65 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3000 | -/3000 | -/350 | -/350 | -/3000 | -/3000 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 7 | 5 | 7 | 5 | 7 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | 17 | 17 | 17 | 17 | 17 | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10,8/- | 10,8/- | 11.5/- | 11.5/- | 10,8/- | 10,8/- |
| Overall length [mm] | 4403 | 4403 | 4753 | 4753 | 4403 | 4403 |
| Overall width without/including mirrors [mm] | 1848/2107 | 1848/2107 | 1848/2107 | 1848/2107 | 1848/2107 | 1848/2107 |
| Overall height [mm] | 1844 | 1844 | 1844 | 1844 | 1844 | 1844 |
| Wheelbase [mm] | 2785 | 2785 | 2975 | 2975 | 2785 | 2785 |
| Front wheel track [mm] | 1553 | 1553 | 1553 | 1553 | 1553 | 1553 |
| Rear wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Forward overhang [mm] | 892 | 892 | 892 | 892 | 892 | 892 |
| Rear overhang [mm] | 726 | 726 | 886 | 886 | 726 | 726 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| BlueHDi 130 XL | BlueHDi 130 XL | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1499 | 1499 | ||||
| Maximum output / speed [kW/min-1] | 96/3750 | 96/3750 | ||||
| Maximum torque [Nm/min-1] | 300/1750 | 300/1750 | ||||
| Bore and stroke [mm x mm] | 75 x 84,8 | 75 x 84,8 | ||||
| Compression ratio | 16.5:1 | 16.5:1 | ||||
| Oil volume [l] | 4.1 | 4.1 | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 184 | 184 | ||||
| Acceleration 0–100 km/h [s] | 11.2 | 11.5 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.7 | 4.7 | ||||
| Out of town [l] | 4.1 | 4.2 | ||||
| Combined [l] | 4.1 | 4.1 | ||||
| CO2 emissions [g/km] | 114 | 114 | ||||
| Low speed [l] | 6.5 | 6.5 | ||||
| Medium speed [l] | 5.5-5.4 | 5.5-5.4 | ||||
| High speed [l] | 5.0-4.9 | 5.0-4.9 | ||||
| Extra high speed [l] | 6.3-6.2 | 6.3-6.2 | ||||
| Combined speed [l] | 5.8-5.7 | 5.8-5.7 | ||||
| CO2 emissions [g/km] | 152-149 | 152-149 | ||||
| Emission standard | EURO 6d-TEMP | EURO 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1520 | 1540 | ||||
| Overall weight [kg] | 2150 | 2320 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1250 | 750/1100 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | ||||
| Maximum load on roof/carrier [kg] | 74/- | 50/- | ||||
| Boot volume [l] | 850-1050 | 322 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/350 | -/350 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 7 | ||||
| Fuel tank volume [l] | 50 | 50 | ||||
| AdBlue tank volume [l] | 17 | 17 | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | ||||
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | ||||
| Overall length [mm] | 4753 | 4753 | ||||
| Overall width without/including mirrors [mm] | 1848/2107 | 1848/2107 | ||||
| Overall height [mm] | 1844 | 1844 | ||||
| Wheelbase [mm] | 2975 | 2975 | ||||
| Front wheel track [mm] | 1553 | 1553 | ||||
| Rear wheel track [mm] | 1567 | 1567 | ||||
| Forward overhang [mm] | 892 | 892 | ||||
| Rear overhang [mm] | 886 | 886 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

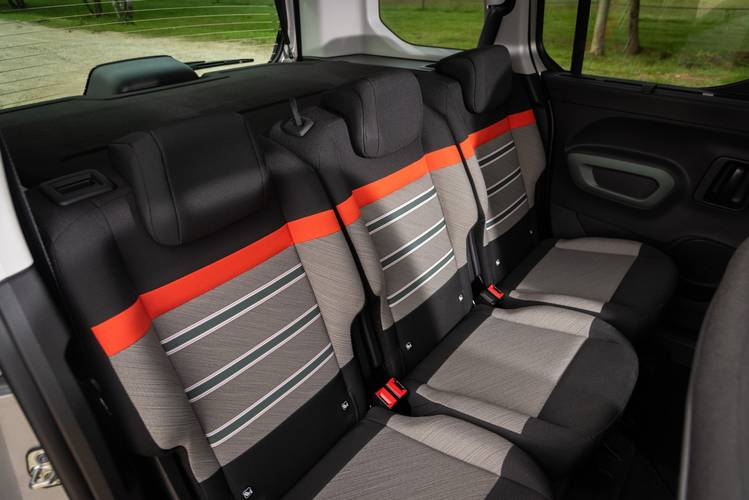

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
