Chevrolet Trax
Date of manufacture
4/2013 – 2016 (SUV)
Platform
Gamma II platform
Manufacturing locations
Incheon, South Korea
Designer
Chevrolet Global Design
Tags
Small SUV
Korean cars

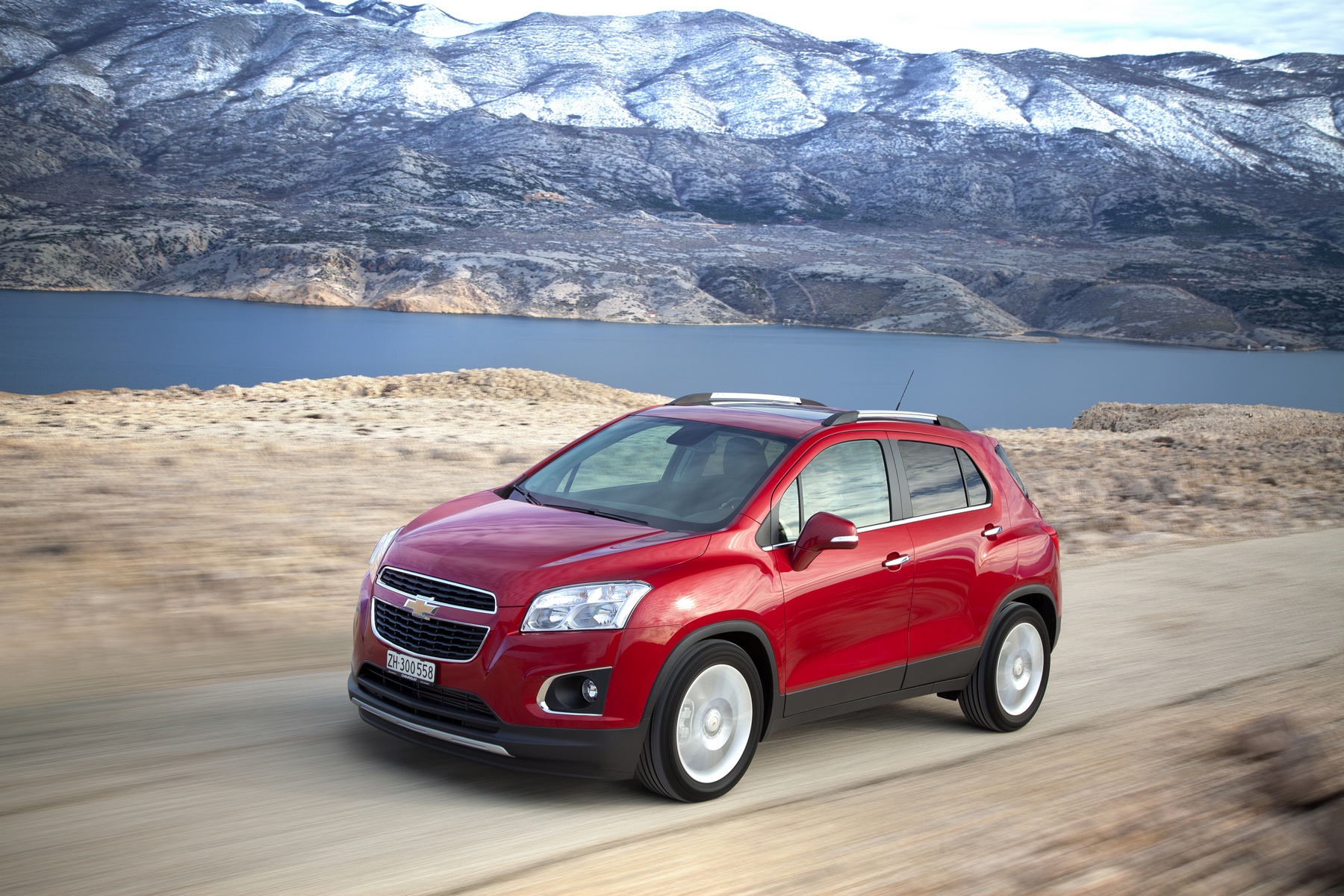

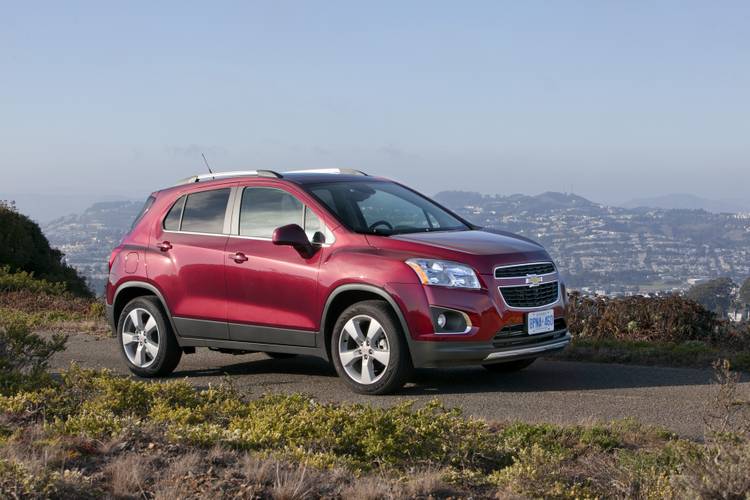

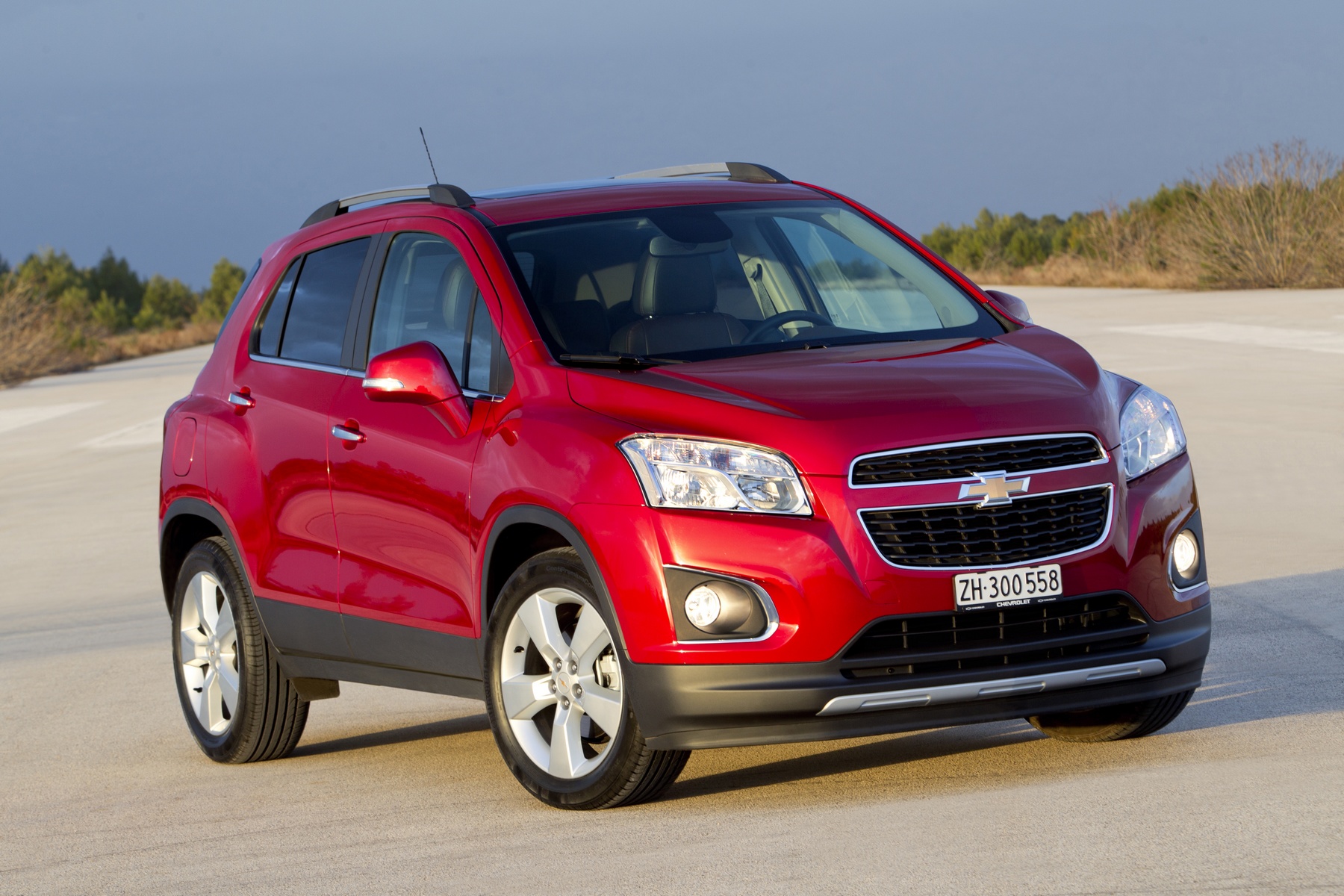

The Chevrolet Trax is an SUV that has been manufactured since 2013 and is built on the Gamma II platform. It offers both petrol and diesel engines. The highest power is achieved by the 1.4 Turbo (103 kW), which has a top speed of 196 km/h. The most economical model is the 1.7D with a combined consumption of 4.5 l/100 km and CO2 emissions of 120 g/km. The luggage compartment is 356 l. In the EURONCAP safety tests, the Chevrolet Trax received a rating of 5 out of 5 according to the 2013 methodology and was manufactured in South Korea.
Car body style
Technical data
SUV
1.6 | 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.7D | 1.7D | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1598 | 1364 | 1364 | 1364 | 1686 | 1686 |
Maximum output / speed [kW/min-1] | 85/6200 | 103/4900-6000 | 103/4900-6000 | 103/4900-6000 | 96/4000 | 96/4000 |
Maximum torque [Nm/min-1] | 155/4000 | 200/1850-4900 | 200/1850-4900 | 200/1850-4900 | 300/2000-2500 | 300/2000-2500 |
Bore and stroke [mm x mm] | 79,0 x 81,5 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 79,0x86,0 | 79,0x86,0 |
Compression ratio | 11,0:1 | 9,5:1 | 9,5:1 | 10,5:1 | 16,5:1 | 16,5:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | 4x4 | Front | Front |
Gearbox | 5 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
Drive specifications | - | - |
|
| - |
|
Top speed [km/h] | 173 | 196 | 191 | 194 | 189 | 186 |
Acceleration 0–100 km/h [s] | 12.3 | 9.5 | 10.0 | 9.8 | 10.0 | 10.8 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 8.2 | 7.5 | 8.6 | 7.8 | 5.4 | 6.4 |
Out of town [l] | 5.5 | 5.2 | 5.8 | 5.6 | 4.0 | 4.6 |
Combined [l] | 6.5 | 6.0 | 6.8 | 6.4 | 4.5 | 5.3 |
CO2 emissions [g/km] | 153 | 139 | 158 | 149 | 120 | 139 |
Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 1365 | 1394 | 1409 | 1454 | 1458 | 1470 |
Overall weight [kg] | 1787 | 1828 | 1841 | 1876 | 1880 | 1892 |
Maximum trailer weight unbraked/braked [kg] | 500/1200 | 500/1200 | 500/1200 | 500/1200 | 500/1200 | 500/1200 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
Boot volume [l] | 356 | 356 | 356 | 356 | 356 | 356 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1370 | -/1370 | -/1370 | -/1370 | -/1370 | -/1370 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 53 | 53 | 53 | 53 | 52 | 52 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.356 | 0.35 | 0.35 | 0.35 | 0.36 | 0.36 |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
Tyre dimensions front | 205/70 R16 | 205/70 R16 | 205/70 R16 | 205/70 R16 | 205/70 R16 | 205/70 R16 |
Tyre dimensions rear | 205/70 R16 | 205/70 R16 | 205/70 R16 | 205/70 R16 | 205/70 R16 | 205/70 R16 |
Wheel size front | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
Wheel size rear | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 | 6.5Jx16 |
Brake dimensions front | 300 | 300 | 300 | 300 | 300 | 300 |
Brake dimensions rear | 268 | 268 | 268 | 268 | 268 | 268 |
Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 |
Overall length [mm] | 4248 | 4248 | 4248 | 4248 | 4248 | 4248 |
Overall width without/including mirrors [mm] | 1766/2035 | 1766/2035 | 1766/2035 | 1766/2035 | 1766/2035 | 1766/2035 |
Overall height [mm] | 1674 | 1674 | 1674 | 1674 | 1674 | 1674 |
Wheelbase [mm] | 2555 | 2555 | 2555 | 2555 | 2555 | 2555 |
Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
Rear wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
Forward overhang [mm] | - | - | - | - | - | - |
Rear overhang [mm] | - | - | - | - | - | - |
Clearance [mm] | 158 | 168 | 168 | 168 | 158 | 168 |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
Front elbow/shoulder width [mm] | -/1374 | -/1374 | -/1374 | -/1374 | -/1374 | -/1374 |
Rear elbow/shoulder width [mm] | -/1340 | -/1340 | -/1340 | -/1340 | -/1340 | -/1340 |
Legroom front knees/total [mm] | -/1037 | -/1037 | -/1037 | -/1037 | -/1037 | -/1037 |
Legroom rear knees/total [mm] | -/908 | -/908 | -/908 | -/908 | -/908 | -/908 |
1.7D | ||||||
---|---|---|---|---|---|---|
Date of sale | - | |||||
Engine type | Diesel supercharged | |||||
Number of cylinders/valves | 4/16 | |||||
Engine displacement [cm³] | 1686 | |||||
Maximum output / speed [kW/min-1] | 96/4000 | |||||
Maximum torque [Nm/min-1] | 300/2000-2500 | |||||
Bore and stroke [mm x mm] | 79,0x86,0 | |||||
Compression ratio | 16,5:1 | |||||
Oil volume [l] | - | |||||
Coolant volume [l] | - | |||||
Technical specifications |
| |||||
Drive axle | 4x4 | |||||
Gearbox | 6 gear manual | |||||
Drive specifications |
| |||||
Top speed [km/h] | 187 | |||||
Acceleration 0–100 km/h [s] | 10.0 | |||||
Acceleration 0–80 km/h [s] | - | |||||
Acceleration 80–120 km/h [s] | - | |||||
City [l] | 5.6 | |||||
Out of town [l] | 4.5 | |||||
Combined [l] | 4.9 | |||||
CO2 emissions [g/km] | 129 | |||||
Emission standard | EU5 | |||||
Standard for fuel consumption measurement | - | |||||
Energy class | - | |||||
Stationary vehicle noise [dB] | - | |||||
Driving noise [dB] | - | |||||
Standby weight [kg] | 1504 | |||||
Overall weight [kg] | 1926 | |||||
Maximum trailer weight unbraked/braked [kg] | 500/1200 | |||||
Maximum front/rear axle load [kg] | - | |||||
Maximum vertical load on the tow bar [kg] | - | |||||
Maximum load on roof/carrier [kg] | - | |||||
Boot volume [l] | 356 | |||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1370 | |||||
Boot length [mm] | - | |||||
Boot length with rear seats folded [mm] | - | |||||
Boot width between wheels/max [mm] | - | |||||
Boot height to headliner/ceiling [mm] | - | |||||
Loading edge height [mm] | - | |||||
Height of the open boot door [mm] | - | |||||
Boot opening height [mm] | - | |||||
Boot opening width min/max [mm] | - | |||||
Number of doors | 5 | |||||
Number of seats | 5 | |||||
Fuel tank volume [l] | 52 | |||||
AdBlue tank volume [l] | - | |||||
Air resistance [Cd] | 0.36 | |||||
Front suspension | MacPherson | |||||
Rear suspension | twist beam axle with trailing arms | |||||
Tyre dimensions front | 205/70 R16 | |||||
Tyre dimensions rear | 205/70 R16 | |||||
Wheel size front | 6.5Jx16 | |||||
Wheel size rear | 6.5Jx16 | |||||
Brake dimensions front | 300 | |||||
Brake dimensions rear | 268 | |||||
Steering | Electric power steering | |||||
Number of steering wheel turns | - | |||||
Turning diameter track/circumference [m] | 10.9 | |||||
Overall length [mm] | 4248 | |||||
Overall width without/including mirrors [mm] | 1766/2035 | |||||
Overall height [mm] | 1674 | |||||
Wheelbase [mm] | 2555 | |||||
Front wheel track [mm] | 1540 | |||||
Rear wheel track [mm] | 1540 | |||||
Forward overhang [mm] | - | |||||
Rear overhang [mm] | - | |||||
Clearance [mm] | 168 | |||||
Wading depth [mm] | - | |||||
Approach angle front [°] | - | |||||
Approach angle rear [°] | - | |||||
Transition angle [°] | - | |||||
Climbing rate [°] | - | |||||
Maximum side tilt [°] | - | |||||
Headroom front [mm] | 1005 | |||||
Headroom rear [mm] | 985 | |||||
Front elbow/shoulder width [mm] | -/1374 | |||||
Rear elbow/shoulder width [mm] | -/1340 | |||||
Legroom front knees/total [mm] | -/1037 | |||||
Legroom rear knees/total [mm] | -/908 |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
