Basic information Technical Specifications Gallery

Chevrolet Epica

Date of manufacture

2006 – 2011 (Sedan)

Platform

Manufacturing locations

Incheon, South Korea

Designer

Car body style

Sedan

Date of manufacture

2006 – 2011

Internal designation

V250

Engine size

Petrol

2.0 24V

2.5 24V

Diesel

2.0 VCDI

Technical data

Sedan

	2.0 24V	2.0 24V	2.5 24V	2.0 VCDI	2.0 VCDI
Date of sale	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24	6/24	4/16	4/16
Engine displacement [cm³]	1993	1993	2492	1991	1991
Maximum output / speed [kW/min-1]	105/6400	105/6400	115/5800	110/4000	110/4000
Maximum torque [Nm/min-1]	195/4600	195/4600	237/4000	320/2000	320/2000
Bore and stroke [mm x mm]	75,0 x 75,2	75,0 x 75,2	77,0 x 89,2	83,0 x 92,0	83,0 x 92,0
Compression ratio	10,2:1	10,2:1	9,8:1	17,5:1	17,5:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	-	-	-	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry

Drive axle	Front	Front	Front	Front	Front
Gearbox	5 gear manual	6 gear automatic	6 gear automatic	5 gear manual	6 gear automatic
Drive specifications	-	automatic gearbox	automatic gearbox	-	automatic gearbox

Top speed [km/h]	207	195	209	200	205
Acceleration 0–100 km/h [s]	9.9	11.8	10.2	9.7	10.6
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	11.5	12.6	13.6	7.5-7.8	9.7-10.2
Out of town [l]	6.4	6.8	6.7	5.0-5.3	6.0-6.1
Combined [l]	8.2	8.9	9.3	6.0-6.1	7.6-7.4
CO2 emissions [g/km]	197	213	221	159-160	197

Emission standard	EU4	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1535-1590	1575-1630	1575	1635-1690	1645-1700
Overall weight [kg]	1945	1985	1985	2045	2055
Maximum trailer weight unbraked/braked [kg]	700/1700	700/1700	700/1700	700/1700	700/1200
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-

Boot volume [l]	480	480	480	480	480
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	4	4	4	4	4
Number of seats	5	5	5	5	5
Fuel tank volume [l]	65	65	63	65	65
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	0.318	0.318	0.318	0.318	0.318
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	205/60 R16	205/60 R16	215/50 R17	205/60 R16	205/60 R16
Tyre dimensions rear	205/60 R16	205/60 R16	215/50 R17	205/60 R16	205/60 R16
Wheel size front	6.0J x 16	6.0J x 16	7.0J x 17	6.0J x 16	6.0J x 16
Wheel size rear	6.0J x 16	6.0J x 16	7.0J x 17	6.0J x 16	6.0J x 16
Brake dimensions front	278	278	278	278	278
Brake dimensions rear	276	276	276	276	276
Steering	Hydraulic power steering	Hydraulic power steering	Hydraulic power steering	Hydraulic power steering	Hydraulic power steering
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	10.8/-	10.8/-	10.8/-	10.8/-	10.8/-

Overall length [mm]	4805	4805	4805	4805	4805
Overall width without/including mirrors [mm]	1810/-	1810/-	1810/-	1810/-	1810/-
Overall height [mm]	1450	1450	1450	1450	1450
Wheelbase [mm]	2700	2700	2700	2700	2700
Front wheel track [mm]	1550	1550	1550	1550	1550
Rear wheel track [mm]	1545	1545	1545	1545	1545
Forward overhang [mm]	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-
Clearance [mm]	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	998	998	998	998	998
Headroom rear [mm]	962	962	962	962	962
Front elbow/shoulder width [mm]	-/1443	-/1443	-/1443	-/1443	-/1443
Rear elbow/shoulder width [mm]	-/1430	-/1430	-/1430	-/1430	-/1430
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

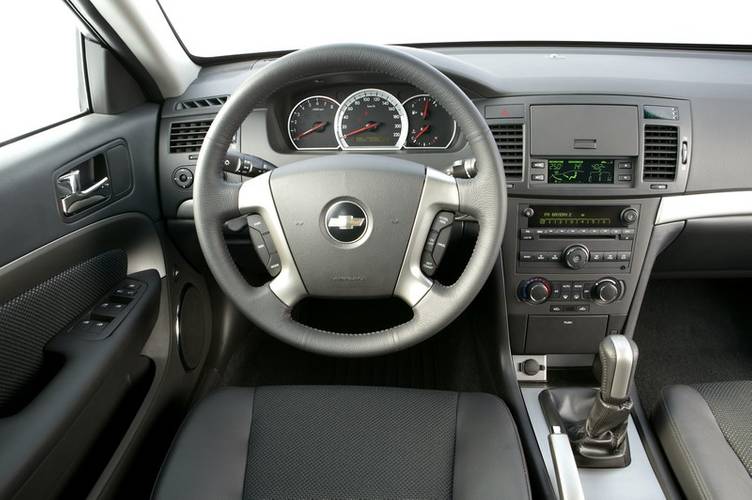

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
