BMW Z4
Date of manufacture
5/2009 – 2013 (Roadster)
Platform
-
Manufacturing locations
Regensburg, Germany
Designer
Juliane Blasi
Tags
S-segment
German cars
The BMW Z4 can be purchased in a roadster body style. The car has been manufactured since 2009. The country of production is Germany. The engine range consists exclusively of petrol engines. The sDrive35is has a maximum power of 250 kW. The sDrive35is has a top speed of 250 km/h. The sDrive20i has the lowest fuel consumption of 6.8 l/100 km and emissions of 159 g/km. The luggage compartment size is 180-310 l.
Technical data
Roadster
| sDrive20i | sDrive20i | sDrive23i | sDrive23i | sDrive28i | sDrive28i | |
|---|---|---|---|---|---|---|
| Date of sale | from 2011 to | from 2011 to | from to 2011 | from to 2011 | from 2011 to | from 2011 to |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 2497 | 2497 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 135/5000 | 135/5000 | 150/6400 | 150/6400 | 180/5000-6500 | 180/5000-6500 |
| Maximum torque [Nm/min-1] | 270/1250-4500 | 270/1250-4500 | 250/2750 | 250/2750 | 350/1250-4800 | 350/1250-4800 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 90,1 | 82,0 x 78,8 | 82,0 x 78,8 | 84,0 x 90,1 | 84,0 x 90,1 |
| Compression ratio | 10,0:1 | 10,0:1 | 11,0:1 | 11,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 5.75 | 5.75 | 6.5 | 6.5 | 5.75 | 5.75 |
| Coolant volume [l] | 8.2 | 8.5 | 8.2 | 8.5 | 8.2 | 8.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 235 | 232 | 242 | 239 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.9 | 6.9 | 6.6 | 7.3 | 5.7 | 5.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.9 | 9.4 | 12.4 | 11.8 | 9.1 | 9.4 |
| Out of town [l] | 5.6 | 5.3 | 6.2 | 6.1 | 5.5 | 5.3 |
| Combined [l] | 6.8 | 6.8 | 8.5 | 8.2 | 6.8 | 6.8 |
| CO2 emissions [g/km] | 159 | 159 | 199 | 192 | 159 | 159 |
| Emission standard | EU5/EU6 | EU5/EU6 | EU5 | EU5 | EU5/EU6 | EU5/EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1470 | 1495 | 1480 | 1505 | 1475 | 1495 |
| Overall weight [kg] | 1725 | 1750 | 1735 | 1760 | 1730 | 1750 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 800/970 | 800/970 | 800/970 | 800/970 | 800/970 | 800/970 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 180-310 | 180-310 | 180-310 | 180-310 | 180-310 | 180-310 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 2 | 2 | 2 | 2 | 2 | 2 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | Double wishbone front axle with coil spring and telescopic shock absorber | Double wishbone front axle with coil spring and telescopic shock absorber | Double wishbone front axle with coil spring and telescopic shock absorber | Double wishbone front axle with coil spring and telescopic shock absorber | Double wishbone front axle with coil spring and telescopic shock absorber | Double wishbone front axle with coil spring and telescopic shock absorber |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W |
| Tyre dimensions rear | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Wheel size rear | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 |
| Brake dimensions front | 300 x 24 | 300 x 24 | 300 x 24 | 300 x 24 | 330 x 24 | 330 x 24 |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 | 300 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.7 | -/10.7 | -/10.7 | -/10.7 | -/10.7 | -/10.7 |
| Overall length [mm] | 4239 | 4239 | 4239 | 4239 | 4239 | 4239 |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- |
| Overall height [mm] | 1291 | 1291 | 1291 | 1291 | 1291 | 1291 |
| Wheelbase [mm] | 2496 | 2496 | 2496 | 2496 | 2496 | 2496 |
| Front wheel track [mm] | 1511 | 1511 | 1511 | 1511 | 1511 | 1511 |
| Rear wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Forward overhang [mm] | 850 | 850 | 850 | 850 | 850 | 850 |
| Rear overhang [mm] | 893 | 893 | 893 | 893 | 893 | 893 |
| Clearance [mm] | 130 | 130 | 130 | 130 | 130 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 992 | 992 | 992 | 992 | 992 | 992 |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | 1354/1439 | 1354/1439 | 1354/1439 | 1354/1439 | 1354/1439 | 1354/1439 |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| sDrive30i | sDrive30i | sDrive35i | sDrive35i | sDrive35is | ||
|---|---|---|---|---|---|---|
| Date of sale | from to 2011 | from to 2011 | - | - | from 2010 to | |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2996 | 2996 | 2979 | 2979 | 2979 | |
| Maximum output / speed [kW/min-1] | 190/6600 | 190/6600 | 225/5800 | 225/5800 | 250/5900 | |
| Maximum torque [Nm/min-1] | 310/2600-3000 | 310/2600-3000 | 400/1300-5000 | 400/1300-5000 | 450/1500-4500 | |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 84,0 x 89,6 | 84,0 x 89,6 | 84,0 x 89,6 | |
| Compression ratio | 10,7:1 | 10,7:1 | 10,2:1 | 10,2:1 | 10,2:1 | |
| Oil volume [l] | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | |
| Coolant volume [l] | 8.2 | 8.5 | 8.2 | 8.5 | 8.5 | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | Rear | Rear | Rear | Rear | |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | |
| Drive specifications | - |
| - |
|
| |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | |
| Acceleration 0–100 km/h [s] | 5.8 | 6.1 | 5.2 | 5.1 | 4.8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 12.4 | 11.9 | 13.4-13.5 | 12.6-12.9 | 12.6-12.9 | |
| Out of town [l] | 6.2 | 6.1 | 7.0-7.1 | 6.8-6.9 | 6.8-6.9 | |
| Combined [l] | 8.5 | 8.3 | 9.4 | 9.0-9.1 | 9.0-9.1 | |
| CO2 emissions [g/km] | 199 | 195 | 219 | 210-211 | 210-211 | |
| Emission standard | EU5 | EU5 | EU5/EU6 | EU5/EU6 | EU5/EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1490 | 1505 | 1580 | 1600 | 1600 | |
| Overall weight [kg] | 1745 | 1760 | 1835 | 1855 | 1855 | |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | |
| Maximum front/rear axle load [kg] | 800/970 | 800/970 | 870/1000 | 870/1000 | 870/1000 | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 180-310 | 180-310 | 180-310 | 180-310 | 180-310 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 2 | 2 | 2 | 2 | 2 | |
| Number of seats | 2 | 2 | 2 | 2 | 2 | |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.34 | 0.34 | 0.35 | 0.35 | 0.35 | |
| Front suspension | Double wishbone front axle with coil spring and telescopic shock absorber | Double wishbone front axle with coil spring and telescopic shock absorber | Double wishbone front axle with coil spring and telescopic shock absorber | Double wishbone front axle with coil spring and telescopic shock absorber | Double wishbone front axle with coil spring and telescopic shock absorber | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 225/40 R18 88W | |
| Tyre dimensions rear | 225/45 R17 91W | 225/45 R17 91W | 255/40 R17 94W | 255/40 R17 94W | 255/35 R18 90W | |
| Wheel size front | 8J x 17 | 8J x 17 | 8J x 17 | 8J x 17 | 8J x18 | |
| Wheel size rear | 8J x 17 | 8J x 17 | 8.5J x 17 | 8.5J x 17 | 8.5J x 18 | |
| Brake dimensions front | 330 x 24 | 330 x 24 | 348 x 30 | 348 x 30 | 348 x 30 | |
| Brake dimensions rear | 300 x 20 | 300 x 20 | 324 x 20 | 324 x 20 | 324 x 20 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/10.7 | -/10.7 | -/10.7 | -/10.7 | -/10.7 | |
| Overall length [mm] | 4239 | 4239 | 4239 | 4239 | 4244 | |
| Overall width without/including mirrors [mm] | 1790/- | 1790/- | 1790/- | 1790/- | 1790/- | |
| Overall height [mm] | 1291 | 1291 | 1291 | 1291 | 1284 | |
| Wheelbase [mm] | 2496 | 2496 | 2496 | 2496 | 2496 | |
| Front wheel track [mm] | 1511 | 1511 | 1511 | 1511 | 1511 | |
| Rear wheel track [mm] | 1559 | 1559 | 1537 | 1537 | 1537 | |
| Forward overhang [mm] | 850 | 850 | 850 | 850 | 850 | |
| Rear overhang [mm] | 893 | 893 | 898 | 898 | 898 | |
| Clearance [mm] | 130 | 130 | 130 | 130 | 124 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 992 | 992 | 992 | 992 | 992 | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | 1354/1439 | 1354/1439 | 1354/1439 | 1354/1439 | 1354/1439 | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

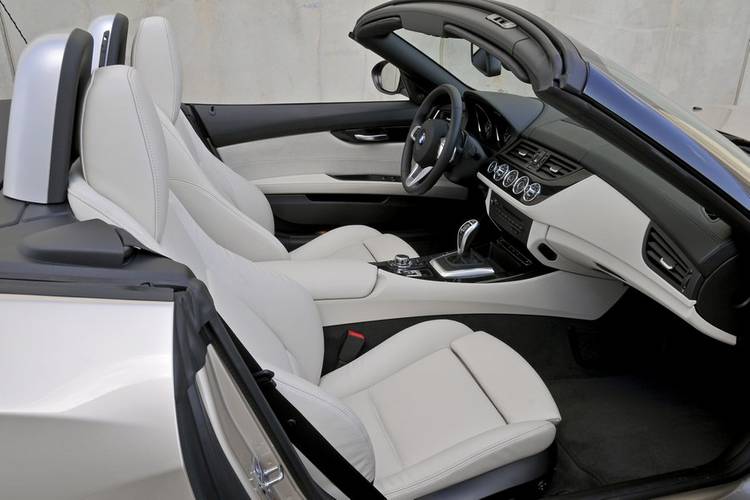

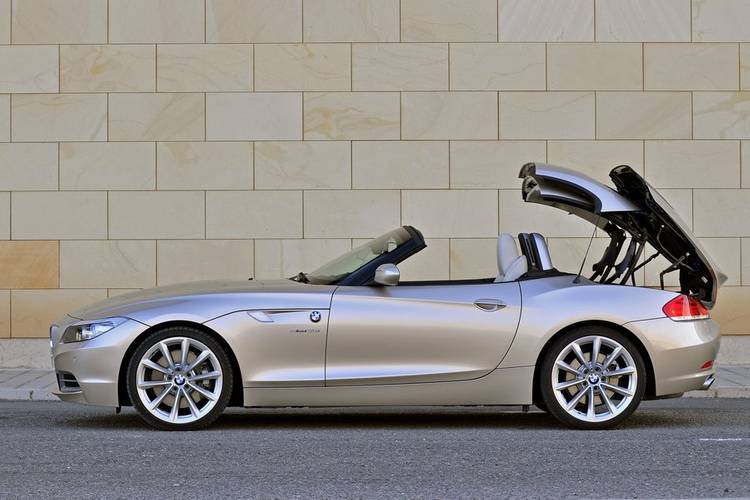

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
