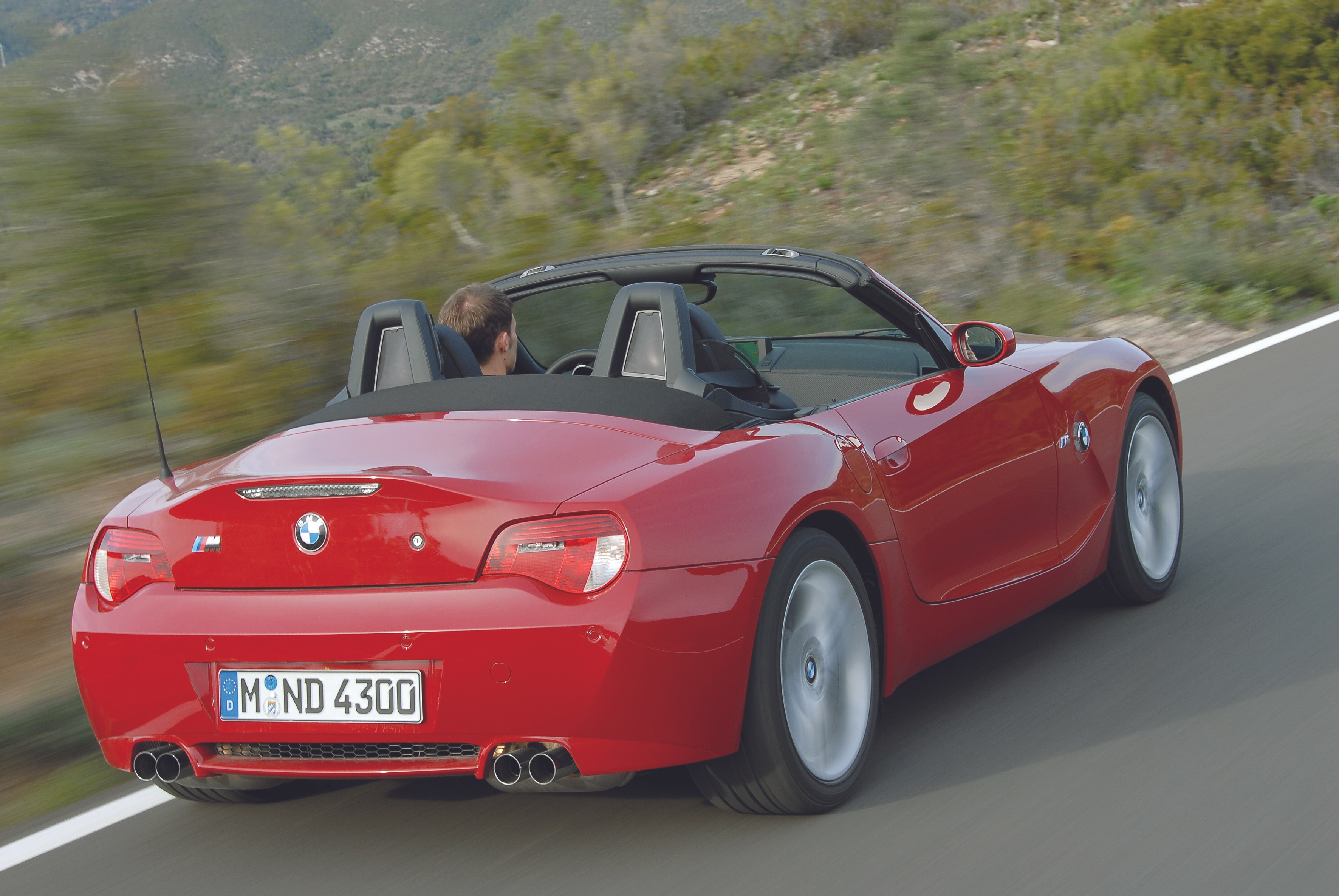

BMW Z4
Date of manufacture
2006 – 2008 (Coupé)
2006 – 8/2008 (Roadster)
Platform
-
Manufacturing locations
Greer, South Carolina, USA
Designer
Anders Warming
Tags
S-segment
German cars
The BMW Z4 is a two-seater sports car with coupe and roadster body styles. It has been produced since 2006 in the United States and only offers petrol engines. The most powerful version of the Z4 M has a power output of 252 kW, making it the fastest car in the range with a top speed of 250 km/h. The most fuel-efficient engine, the 2.0i, consumes 7.5 l/100 km and emits 181 g CO2/km. The roadster body style has a luggage compartment capacity of 260 l and the coupe 340 l. The BMW Z4 has undergone EURONCAP safety tests and has been rated 4 out of 5.
Car body style
Technical data

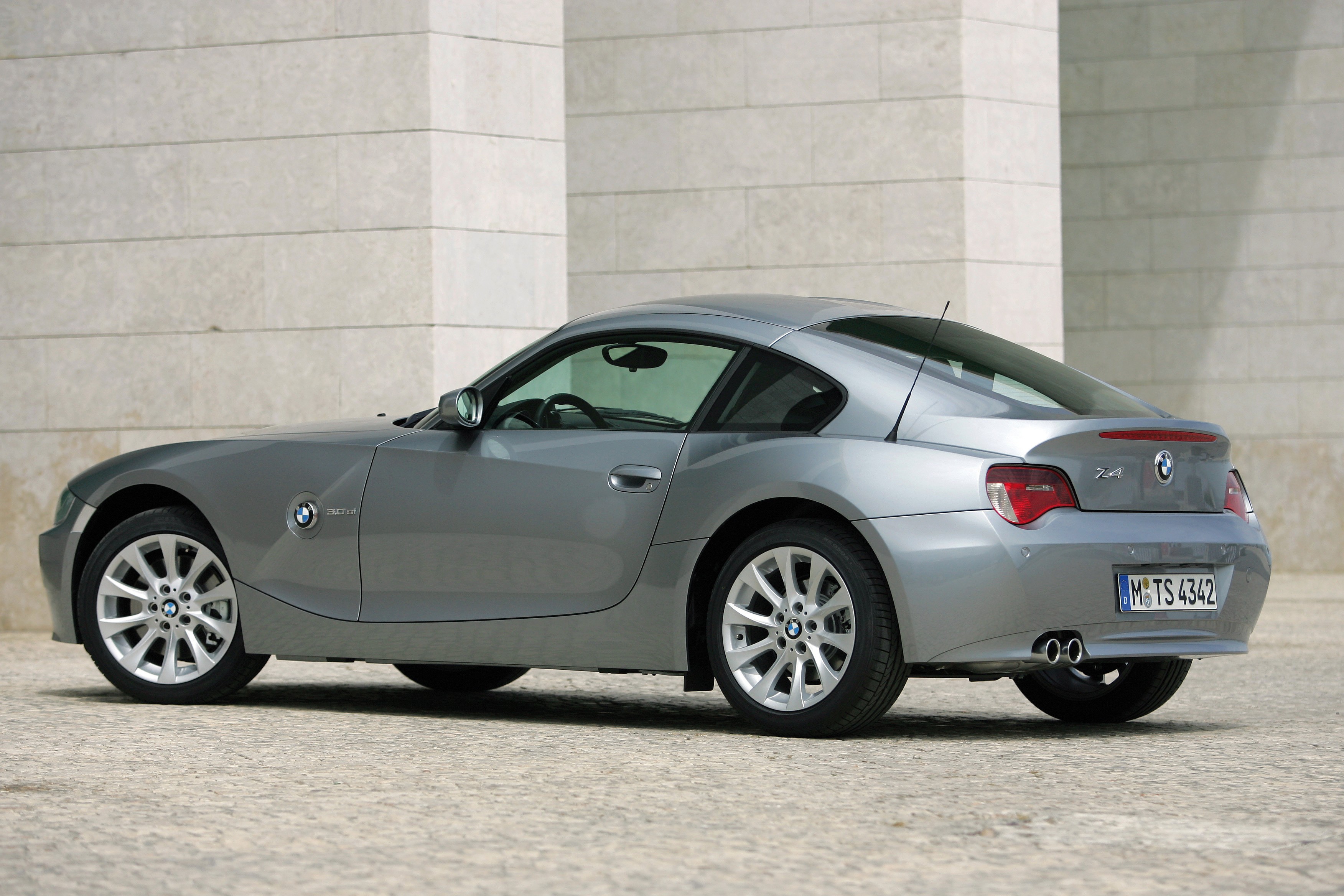

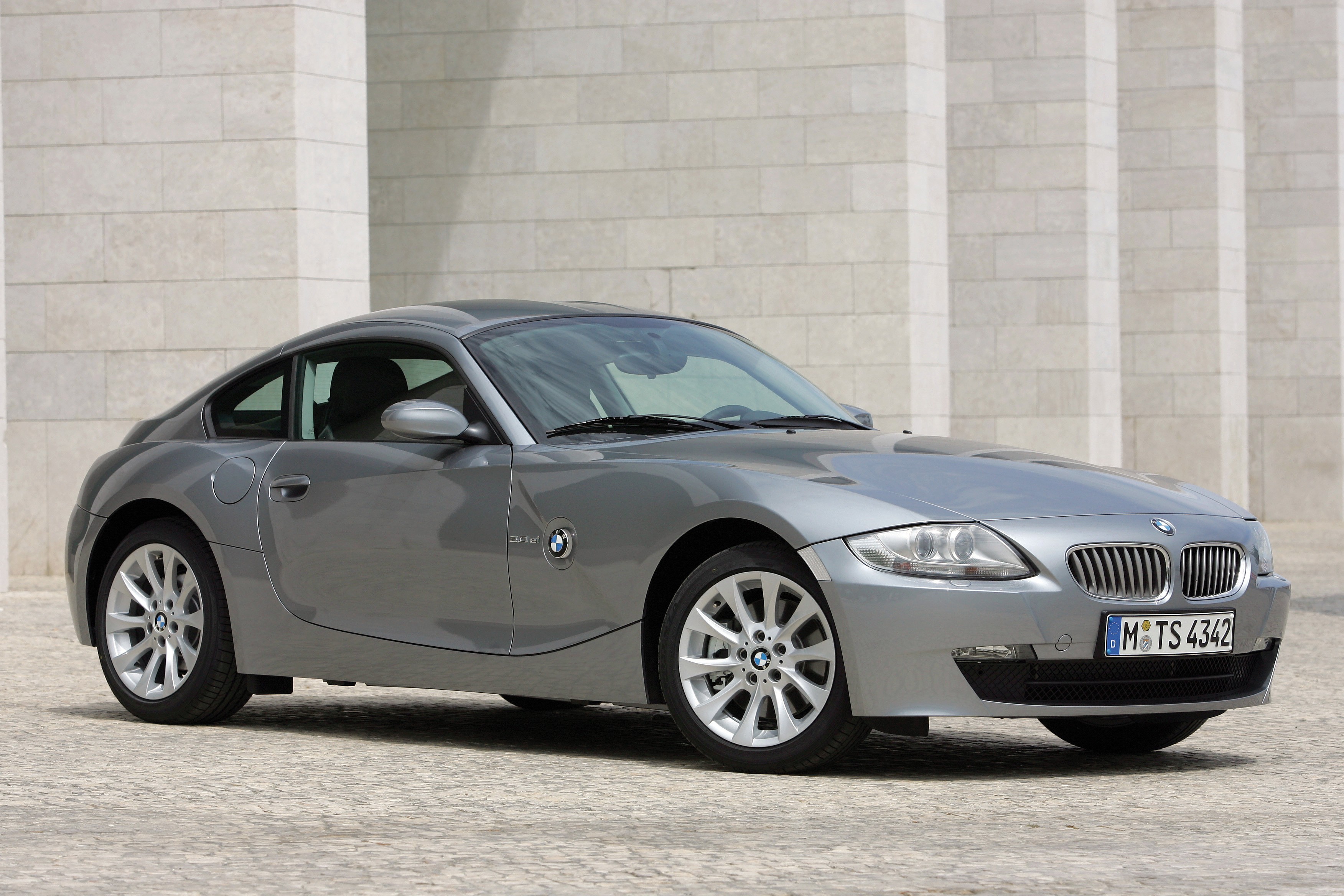

Coupé
| 3.0si | 3.0si | Z4 M | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Petrol | Petrol | Petrol | |||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 2996 | 2996 | 3246 | |||
| Maximum output / speed [kW/min-1] | 195/6600 | 195/6600 | 252/7900 | |||
| Maximum torque [Nm/min-1] | 315/2750 | 315/2750 | 365/4900 | |||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 87,0 x 91,0 | |||
| Compression ratio | 10,7:1 | 10,7:1 | 11,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Rear | Rear | Rear | |||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | |||
| Drive specifications | - |
| - | |||
| Top speed [km/h] | 250 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 5.7 | 6.0 | 5.0 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 13.0 | 12.8 | 18.2 | |||
| Out of town [l] | 6.5 | 6.8 | 8.6 | |||
| Combined [l] | 8.9 | 9.0 | 12.1 | |||
| CO2 emissions [g/km] | 213 | 216 | 292 | |||
| Emission standard | EU4 | EU4 | EU4 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1395 | 1425 | 1495 | |||
| Overall weight [kg] | 1650 | 1680 | 1730 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 340 | 340 | 300 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 2 | 2 | 2 | |||
| Number of seats | 2 | 2 | 2 | |||
| Fuel tank volume [l] | 55 | 55 | 55 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | - | - | - | |||
| Rear suspension | - | - | - | |||
| Tyre dimensions front | 225/45 R17 W | 225/45 R17 W | 225/45 R18 | |||
| Tyre dimensions rear | 225/45 R17 W | 225/45 R17 W | 255/40 R18 | |||
| Wheel size front | 8J x 17 | 8J x 17 | 8j x 18 | |||
| Wheel size rear | 8J x 17 | 8J x 17 | 9J x 18 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | - | - | - | |||
| Overall length [mm] | 4091 | 4091 | 4113 | |||
| Overall width without/including mirrors [mm] | 1781/- | 1781/- | 1781/- | |||
| Overall height [mm] | 1268 | 1268 | 1287 | |||
| Wheelbase [mm] | 2495 | 2495 | 2497 | |||
| Front wheel track [mm] | 1473 | 1473 | 1486 | |||
| Rear wheel track [mm] | 1523 | 1523 | 1516 | |||
| Forward overhang [mm] | 823 | 823 | - | |||
| Rear overhang [mm] | 773 | 773 | - | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 948 | 948 | 948 | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | 1396/- | 1396/- | 1396/- | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

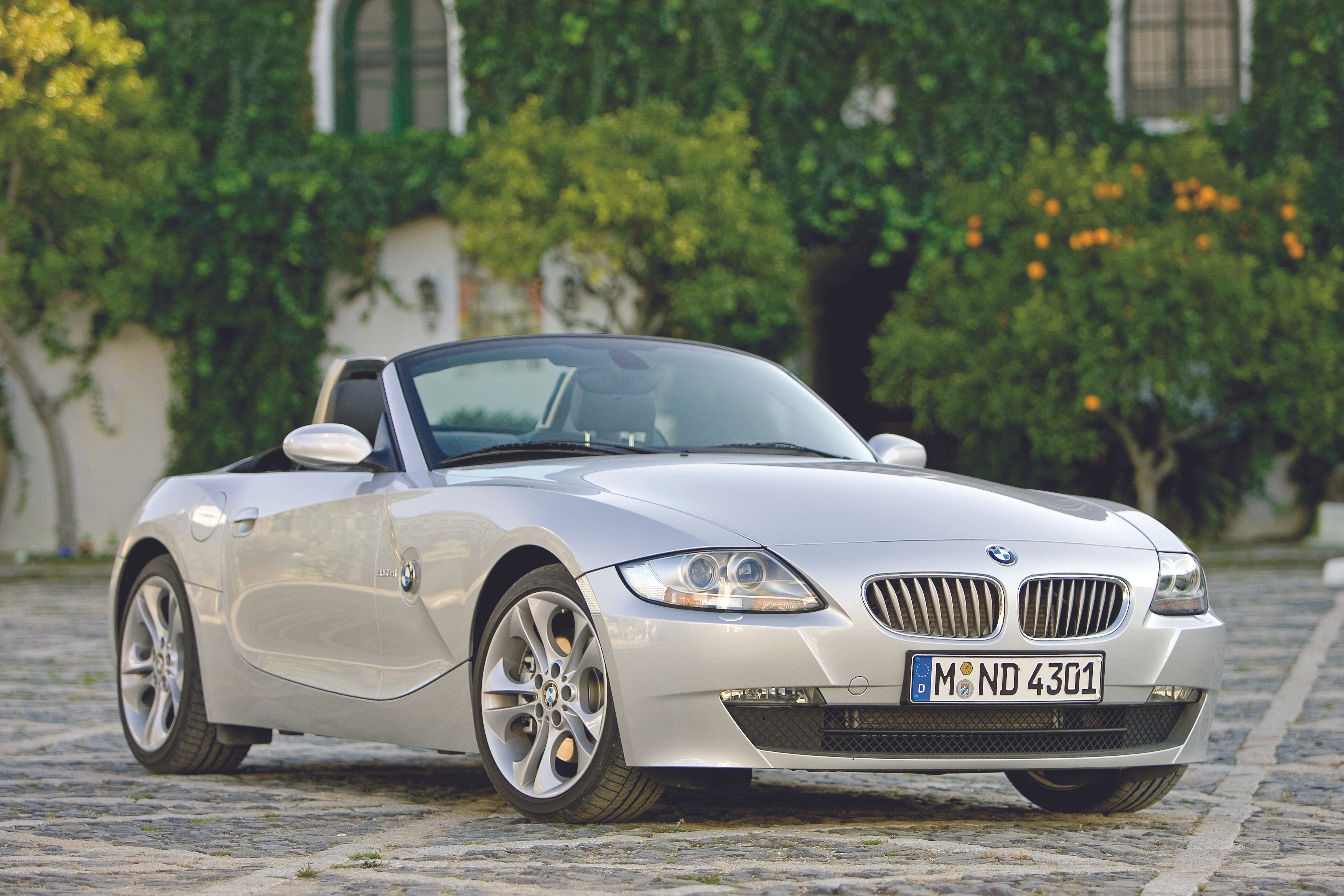

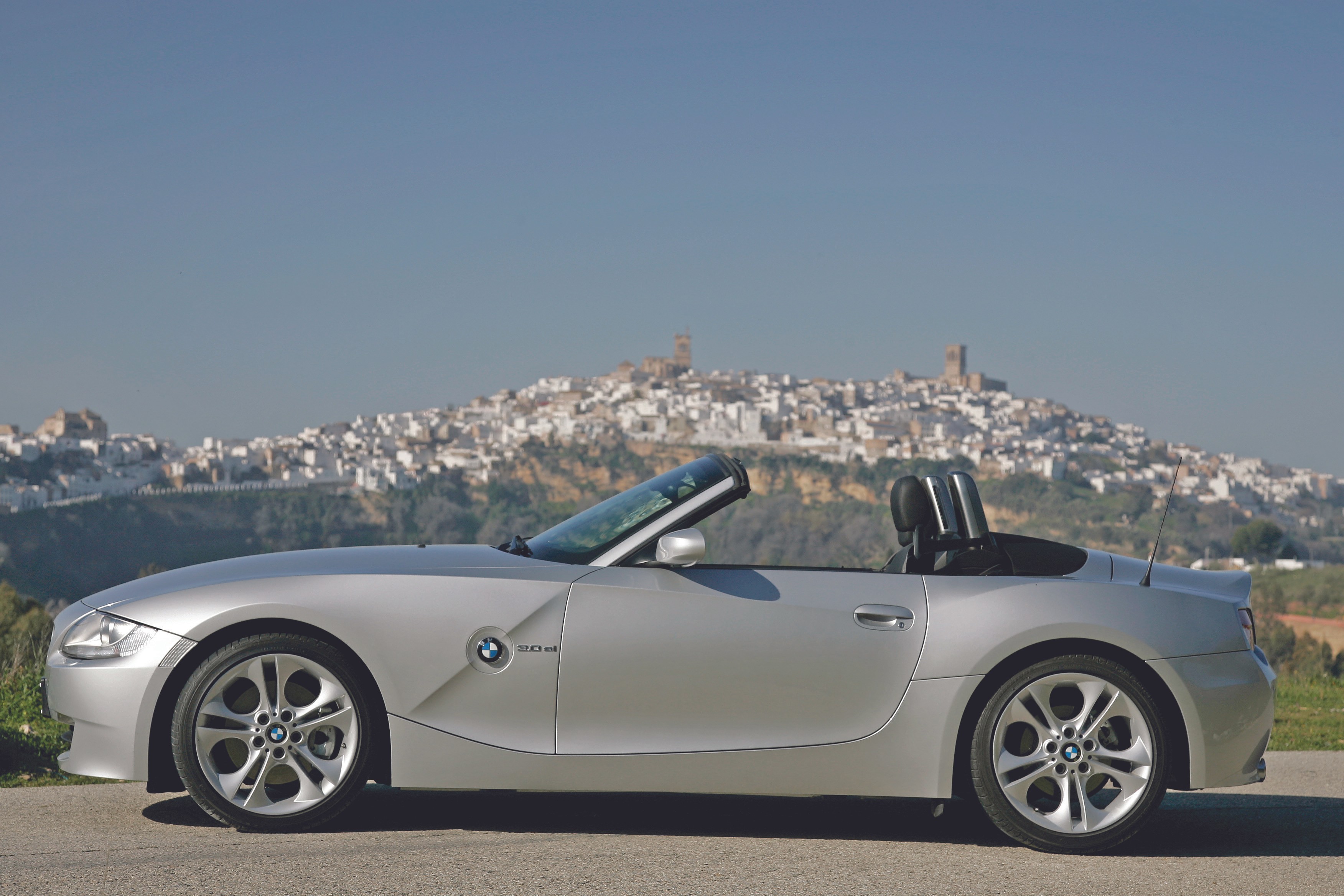

Roadster
| 2.0i | 2.5i | 2.5i | 2.5si | 2.5si | 3.0si | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1995 | 2497 | 2497 | 2497 | 2497 | 2996 |
| Maximum output / speed [kW/min-1] | 110/6200 | 130/5800 | 130/5800 | 160/6500 | 160/6500 | 195/6600 |
| Maximum torque [Nm/min-1] | 200/3600 | 230/3500-5000 | 230/3500-5000 | 250/2750-4250 | 250/2750-4250 | 315/2750 |
| Bore and stroke [mm x mm] | 94,0 x 90,0 | 82,0 x 78,8 | 82,0 x 78,8 | 82,0 x 78,8 | 82,0 x 78,8 | 85,0 x 88,0 |
| Compression ratio | 10,5:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 10,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 220 | 229 | 225 | 240 | 238 | 250 |
| Acceleration 0–100 km/h [s] | 8.2 | 7.1 | 7.7 | 6.5 | 6.9 | 5.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.8 | 11.8 | 12.0 | 12.0 | 12.8 | 12.6 |
| Out of town [l] | 5.6 | 6.1 | 6.3 | 6.3 | 6.8 | 6.3 |
| Combined [l] | 7.5 | 8.2 | 8.4 | 8.4 | 9.0 | 8.6 |
| CO2 emissions [g/km] | 181 | 197 | 202 | 202 | 216 | 207 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1295 | 1345 | 1375 | 1360 | 1395 | 1385 |
| Overall weight [kg] | 1520 | 1570 | 1600 | 1585 | 1620 | 1610 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 260 | 260 | 260 | 260 | 260 | 260 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 2 | 2 | 2 | 2 | 2 | 2 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | - | - | - | - | - | - |
| Rear suspension | - | - | - | - | - | - |
| Tyre dimensions front | 225/50 R16 V | 225/50 R16 V | 225/50 R16 V | 225/50 R16 V | 225/50 R16 V | 225/45 R17 W |
| Tyre dimensions rear | 225/50 R16 V | 225/50 R16 V | 225/50 R16 V | 225/50 R16 V | 225/50 R16 V | 225/45 R17 W |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 8J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 8J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4091 | 4091 | 4091 | 4091 | 4091 | 4091 |
| Overall width without/including mirrors [mm] | 1781/- | 1781/- | 1781/- | 1781/- | 1781/- | 1781/- |
| Overall height [mm] | 1299 | 1299 | 1299 | 1299 | 1299 | 1299 |
| Wheelbase [mm] | 2495 | 2495 | 2495 | 2495 | 2495 | 2495 |
| Front wheel track [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Rear wheel track [mm] | 1523 | 1523 | 1523 | 1523 | 1523 | 1523 |
| Forward overhang [mm] | 823 | 823 | 823 | 823 | 823 | 823 |
| Rear overhang [mm] | 773 | 773 | 773 | 773 | 773 | 773 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 948 | 948 | 948 | 948 | 948 | 948 |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | 1396/- | 1396/- | 1396/- | 1396/- | 1396/- | 1396/- |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 3.0si | Z4 M | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Petrol | Petrol | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 2996 | 3246 | ||||
| Maximum output / speed [kW/min-1] | 195/6600 | 252/7900 | ||||
| Maximum torque [Nm/min-1] | 315/2750 | 365/4900 | ||||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 87,0 x 91,0 | ||||
| Compression ratio | 10,7:1 | 11,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Rear | Rear | ||||
| Gearbox | 6 gear automatic | 6 gear manual | ||||
| Drive specifications |
| - | ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 6.0 | 5.0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 12.8 | 18.2 | ||||
| Out of town [l] | 6.8 | 8.6 | ||||
| Combined [l] | 9.0 | 12.1 | ||||
| CO2 emissions [g/km] | 217 | 292 | ||||
| Emission standard | EU4 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1415 | 1485 | ||||
| Overall weight [kg] | 1640 | 1705 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 260 | 260 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 2 | 2 | ||||
| Number of seats | 2 | 2 | ||||
| Fuel tank volume [l] | 55 | 55 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | - | - | ||||
| Rear suspension | - | - | ||||
| Tyre dimensions front | 225/45 R17 W | 225/45 R18 | ||||
| Tyre dimensions rear | 225/45 R17 W | 255/40 R18 | ||||
| Wheel size front | 8J x 17 | 8J x 18 | ||||
| Wheel size rear | 8J x 17 | 9J x 18 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | - | - | ||||
| Overall length [mm] | 4091 | 4113 | ||||
| Overall width without/including mirrors [mm] | 1781/- | 1781/- | ||||
| Overall height [mm] | 1299 | 1302 | ||||
| Wheelbase [mm] | 2495 | 2497 | ||||
| Front wheel track [mm] | 1473 | 1486 | ||||
| Rear wheel track [mm] | 1523 | 1516 | ||||
| Forward overhang [mm] | 823 | - | ||||
| Rear overhang [mm] | 773 | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 948 | 948 | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | 1396/- | 1396/- | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
