	X6 xDrive40i	X6 M50i	X6 M F96	X6 M F96 Competition	X6 xDrive40i	X6 xDrive30d
Date of sale	from to 2019	-	from 10/2019 to	from 10/2019 to	from 2020 to	from to 8/2020
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Petrol supercharged + Electric	Diesel supercharged
Number of cylinders/valves	6/24	8/32	8 /32	8 /32	6/24	6 /24
Engine displacement [cm³]	2998	4395	4395	4395	2998	2993
Maximum output / speed [kW/min-1]	250/5500-6500	390/5500-6000	441/6000	460/6000	245/5500-6250 8 el.	195/4000
Maximum torque [Nm/min-1]	450/1500-5200	750/1800-4600	750/1800-5600	750/1800-5800	450/1600-4800	620/2000-2500
Bore and stroke [mm x mm]	82.0 x 94.6	89.0 x 88.3	89.0 x 88.3	89.0 x 88.3	82.0 x 94.6	84.0 x 90.0
Compression ratio	11.0:1	10.5 :1	10.0:1	10.0:1	11.0:1	16.5:1
Oil volume [l]	6.5	10.5	10.0	10.0	-	6.5
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection High Precision Injection supercharging by twin turbochargers Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic Gasoline Particulate Filter start&stop system brake energy recuperation	Mild Hybrid direct injection High Precision Injection turbo-supercharged Twin‐scroll variable timing of intake and exhaust valves Double‐VANOS variable valve lift Valvetronic Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection Common Rail supercharging by a pair of differently sized turbochargers with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	4x4	4x4	4x4	4x4	4x4	4x4
Gearbox	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic

Top speed [km/h]	250	250	250 [290 subject to a surcharge]	250 [290 subject to a surcharge]	248	230
Acceleration 0–100 km/h [s]	5.5	4.3	3.9	3.8	5.7	6.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	10.1-9.6	14.2-13.7	17.5-16.8	17.5 -16.8	9.9-9.6	7.4-6.7
Out of town [l]	7.8-7.0	8.5-8.5	10.0-9.5	10.0-9.5	7.2-6.6	6.1-5.7
Combined [l]	8.6-8.0	10.7-10.4	12.7-12.5	12.7 -12.5	8.2-7.7	6.6-6.1
CO2 emissions [g/km]	197-181	243-237	289-284	289 -284	188-175	172-159

Emission standard	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

System voltage [V]	-	-	-	-	48	-
Battery type and capacity	-	-	-	-	Lithium-Ionen-Akkumulator, 11 A⋅h	-
Range with fully charged battery [km]	-	-	-	-	-	-
Charging time	-	-	-	-	-	-
Number of modules/cells	-	-	-	-	-	-
Battery weight [kg]	-	-	-	-	-	-
Charger	-	-	-	-	-	-

Standby weight [kg]	2130	2310	2370	2370	2170	2185
Overall weight [kg]	2800	2975	3000	3000	2840	2660
Maximum trailer weight unbraked/braked [kg]	750/3500	750/3500	750/3000	750/3000	750/3500	750/3500
Maximum front/rear axle load [kg]	1280/ 1580	1430/1620	1410/1630	1410/1630	-	1320/1615
Maximum vertical load on the tow bar [kg]	140	140	140	140	140	140
Maximum load on roof/carrier [kg]	100 /-	100 /-	100 /-	100 /-	100 /-	100 /-

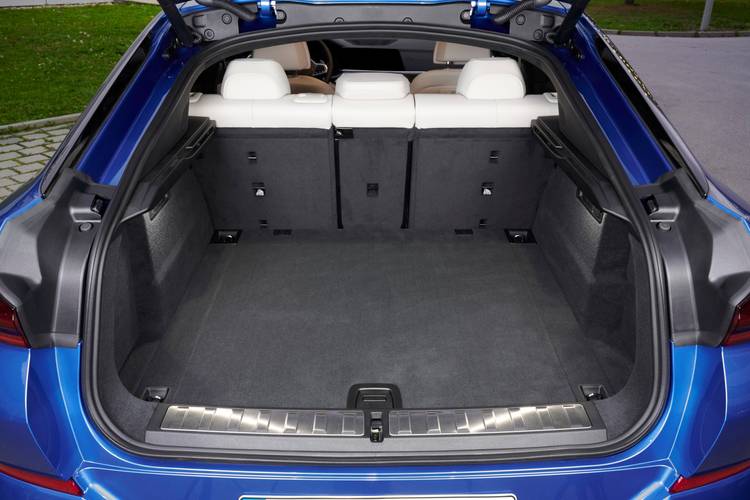

Boot volume [l]	580	580	580	580	580	580
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1530	-/1530	-/1530	-/1530	-/1530	-/1530
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	83	83	83	83	83	80
AdBlue tank volume [l]	-	-	-	-	-	22
Air resistance [Cd]	0.32	0.34	0.37	0.37	-	0.32
Front suspension	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone
Rear suspension	five-link	five-link	five-link	five-link	five-link	five-link
Tyre dimensions front	265/50 R19 110W XL	275/40 R21 107Y XL	295/35 ZR21 107Y XL	295/35 ZR21 107Y XL	265/50 R19 110W XL	265/50 R19 110W XL
Tyre dimensions rear	265/50 R19 110W XL	315/35 R21 111Y XL	315/35 ZR21 111Y XL	315/30 ZR22 107Y XL	265/50 R19 110W XL	265/50 R19 110W XL
Wheel size front	9,0J x 19	9.5J x 21	10.5J x 21	10.5J x 21	9,0J x 19	9,0J x 19
Wheel size rear	9,0J x 19	10,5J x 21	11.5J x 21	11.5J x 22	9,0J x 19	9,0J x 19
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Electro-mechanical power steering Servotronic	Electro-mechanical power steering Servotronic	Electro-mechanical power steering Servotronic	Electro-mechanical power steering Servotronic	Electro-mechanical power steering Servotronic	Electro-mechanical power steering Servotronic
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	12.6/-	12.6/-	12.8/-	12.8/-	12.6/-	12.6/-

Overall length [mm]	4935	4935	4941	4941	4935	4935
Overall width without/including mirrors [mm]	2004/2212	2004/2212	2019/-	2019/-	2004/2212	2004/2212
Overall height [mm]	1696	1696	1692	1693	1696	1696
Wheelbase [mm]	2975	2975	2972	2972	2975	2975
Front wheel track [mm]	1678	1684	1699	1699	1678	1678
Rear wheel track [mm]	1688	1689	1688	1688	1688	1688
Forward overhang [mm]	878	878	-	-	878	878
Rear overhang [mm]	1082	1082	-	-	1082	1082
Clearance [mm]	216	216	213	213	216	216
Wading depth [mm]	500	500	-	-	500	500
Approach angle front [°]	25.1	25.1	-	-	25.1	25.1
Approach angle rear [°]	21.7	21.7	-	-	21.7	21.7
Transition angle [°]	17.9	17.9	-	-	17.9	17.9
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1025	1025	1025	1025	1025	1025
Headroom rear [mm]	953	953	953	953	953	953
Front elbow/shoulder width [mm]	1560/-	1560/-	1560/-	1560/-	1560/-	1560/-
Rear elbow/shoulder width [mm]	1542/-	1542/-	1542/-	1542/-	1542/-	1542/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	X6 M50d	X6 xDrive30d	X6 xDrive40d
Date of sale	-	from 8/2020 to	from 2/2020 to
Engine type	Diesel supercharged	Diesel supercharged + Electric	Diesel supercharged + Electric
Number of cylinders/valves	6/24	6/24	6 /24
Engine displacement [cm³]	2993	2993	2993
Maximum output / speed [kW/min-1]	294/4400	210/4000 8 el.	250/4400 8 el.
Maximum torque [Nm/min-1]	760/2000-3000	650/1500-2500	700/1750-2250
Bore and stroke [mm x mm]	84.0 x 90.0	84.0 x 90.0	84.0 x 90.0
Compression ratio	16.0:1	16.5:1	16.5:1
Oil volume [l]	6.5	7.0	6.5
Coolant volume [l]	-	-	-
Technical specifications	direct injection Common Rail supercharging by four turbochargers (two small and two large) particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	Mild Hybrid direct injection Common Rail supercharging by a pair of differently sized turbochargers with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	Mild Hybrid direct injection Common Rail supercharging by a pair of differently sized turbochargers with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	4x4	4x4	4x4
Gearbox	8 gear automatic	8 gear automatic	8 gear automatic
Drive specifications	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic	automatically controlled all-wheel drive xDrive eight-speed automatic gearbox Steptronic

Top speed [km/h]	250	235	245
Acceleration 0–100 km/h [s]	5.2	6.1	5.5
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	8.1-8.0	7.2-6.7	7.6-7.1
Out of town [l]	6.8-6.3	5.6-5.1	5.5-5.0
Combined [l]	7.2-6.9	6.2-5.7	6.2-5.8
CO2 emissions [g/km]	190-181	162-149	164-153

Emission standard	Euro 6d-TEMP	Euro 6d	Euro 6d
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

System voltage [V]	-	48	48
Battery type and capacity	-	Lithium-Ionen-Akkumulator, 11 A⋅h	Lithium-Ionen-Akkumulator, 11 A⋅h
Range with fully charged battery [km]	-	-	-
Charging time	-	-	-
Number of modules/cells	-	-	-
Battery weight [kg]	-	-	-
Charger	-	-	-

Standby weight [kg]	2335	2260	2290
Overall weight [kg]	3010	2940	2950
Maximum trailer weight unbraked/braked [kg]	750/3500	750/3500	750/3500
Maximum front/rear axle load [kg]	1395/1670	1360/ 1635	1375/ 1635
Maximum vertical load on the tow bar [kg]	140	140	140
Maximum load on roof/carrier [kg]	100 /-	100 /-	100 /-

Boot volume [l]	580	580	580
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1530	-/1530	-/1530
Boot length [mm]	-	-	-
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	5	5	5
Number of seats	5	5	5
Fuel tank volume [l]	80	80	80
AdBlue tank volume [l]	22	22	22
Air resistance [Cd]	0.36	0.32	0.32
Front suspension	double wishbone	double wishbone	double wishbone
Rear suspension	five-link	five-link	five-link
Tyre dimensions front	275/40 R21 107Y XL	265/50 R19 110W XL	265/50 R19 110W XL
Tyre dimensions rear	315/35 R21 111Y XL	265/50 R19 110W XL	265/50 R19 110W XL
Wheel size front	9.5J x 21	9,0J x 19	9J x 19
Wheel size rear	10,5J x 21	9,0J x 19	9J x 19
Brake dimensions front	-	-	-
Brake dimensions rear	-	-	-
Steering	Electro-mechanical power steering Servotronic	Electro-mechanical power steering Servotronic	Electro-mechanical power steering Servotronic
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	12,6/-	12.6/-	12.6/-

Overall length [mm]	4935	4935	4935
Overall width without/including mirrors [mm]	2004/2212	2004/2212	2004/2212
Overall height [mm]	1696	1696	1696
Wheelbase [mm]	2975	2975	2975
Front wheel track [mm]	1684	1678	1678
Rear wheel track [mm]	1689	1688	1688
Forward overhang [mm]	878	878	878
Rear overhang [mm]	1082	1082	1082
Clearance [mm]	216	216	216
Wading depth [mm]	500	500	500
Approach angle front [°]	25.1	25.1	25.1
Approach angle rear [°]	21.7	21.7	21.7
Transition angle [°]	17.9	17.9	17.9
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	1025	1025	1025
Headroom rear [mm]	953	953	953
Front elbow/shoulder width [mm]	1560/-	1560/-	1560/-
Rear elbow/shoulder width [mm]	1542/-	1542/-	1542/-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
