BMW X5
Date of manufacture
2010 – 6/2013 (SUV)
Platform
-
Manufacturing locations
Greer, South Carolina, USA
Toluca, Mexico
Kaliningrad, Russia
Designer
Pierre Leclercq
Tags
Large SUV
German cars
The BMW X5 SUV has been available since 2010 and is manufactured in the United States, Mexico and Russia. It offers a wide range of engines, including gasoline and diesel units. The most powerful model is the X5 M with a maximum output of 408 kW. The top speed is 250 km/h and the xDrive30d version has the lowest combined fuel consumption of 7.4 l/100 km and CO2 emissions of 195 g/km. The trunk volume is 620 liters.
Technical data
SUV
xDrive35i | xDrive50i | X5 M | xDrive30d | xDrive40d | M50d | |
---|---|---|---|---|---|---|
Date of sale | - | - | - | - | - | - |
Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
Number of cylinders/valves | 6/24 | 8/32 | 8/32 | 6/24 | 6/24 | 6/24 |
Engine displacement [cm³] | 2979 | 4395 | 4395 | 2993 | 2993 | 2993 |
Maximum output / speed [kW/min-1] | 225/5800 | 300/5500-6400 | 408/6000 | 180/4000 | 225/4400 | 280/4000-4400 |
Maximum torque [Nm/min-1] | 400/1200-5000 | 600/1750-4500 | 680/1500-5650 | 540/1750-3000 | 600/1500-2500 | 740/2000-3000 |
Bore and stroke [mm x mm] | 84,0 x 89,6 | 89,0 x 88,3 | 89,0 x 88,3 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
Compression ratio | 10,2:1 | 10,0:1 | 9,3:1 | 16,5:1 | 16,5:1 | 16,0:1 |
Oil volume [l] | 6.5 | 8.5 | 8.5 | 6.7 | 6.7 | 6.5 |
Coolant volume [l] | 10.9 | 17.2 | 17.0 | 10.4 | 10.4 | 13,0 |
Technical specifications |
|
|
|
|
|
|
Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
Gearbox | 8 gear automatic | 8 gear automatic | 6 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
Drive specifications |
|
|
|
|
|
|
Top speed [km/h] | 235 | 250 | 250 | 222 | 236 | 250 |
Acceleration 0–100 km/h [s] | 6.8 | 5.5 | 4.7 | 7.6 | 6.6 | 5.4 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 13.2 | 17.5 | 19.3 | 8.7 | 8.8 | 8.8 |
Out of town [l] | 8.3 | 9.6 | 10.8 | 6.7 | 6.8 | 6.8 |
Combined [l] | 10.1 | 12.5 | 13.9 | 7.4 | 7.5 | 7.5 |
CO2 emissions [g/km] | 236 | 292 | 325 | 195 | 198 | 199 |
Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
Standby weight [kg] | 2145 | 2265 | 2380 | 2150 | 2185 | 2225 |
Overall weight [kg] | 2750 | 2870 | 2905 | 2755 | 2790 | 2830 |
Maximum trailer weight unbraked/braked [kg] | 750/2700-3500 | 750/2700-3500 | 750/2700-3000 | 750/2700-3500 | 750/2700-3500 | 750/2700-3500 |
Maximum front/rear axle load [kg] | 1265 / 1550 | 1365 / 1570 | 1400 / 1560 | 1275 / 1545 | 1300 / 1555 | 1340 / 1555 |
Maximum vertical load on the tow bar [kg] | 140 | 140 | 120 | 140 | 140 | 140 |
Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |

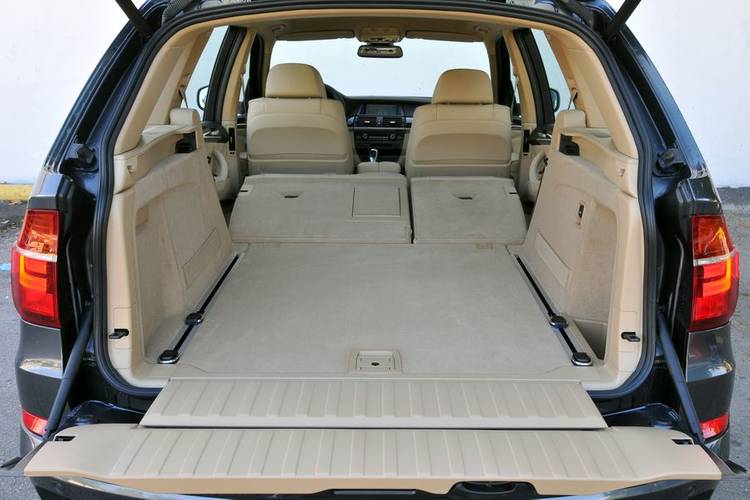

Boot volume [l] | 620 | 620 | 620 | 620 | 620 | 620 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1750 | -/1750 | -/1750 | -/1750 | -/1750 | -/1750 |
Boot length [mm] | - | - | - | - | - | - |
Boot length with rear seats folded [mm] | - | - | - | - | - | - |
Boot width between wheels/max [mm] | - | - | - | - | - | - |
Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
Fuel tank volume [l] | 85 | 85 | 85 | 85 | 85 | 85 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.33 | 0.35 | 0.38 | 0.34 | 0.34 | 0.38 |
Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
Tyre dimensions front | 255/55 R18 109H | 255/50 R19 107W | 275/40 R20 106Y | 255/55 R18 109H | 255/55 R18 109V | 255/50 R19 107V |
Tyre dimensions rear | 255/55 R18 109H | 255/50 R19 107W | 315/35 R20 110Y | 255/55 R18 109H | 255/55 R18 109V | 285/45 R19 111V |
Wheel size front | 8.5J x 18 | 9J x 19 | 10J x 20 | 8.5J x 18 | 8.5J x 18 | 9J x 19 |
Wheel size rear | 8.5J x 18 | 9J x 19 | 11J x 20 | 8.5J x 18 | 8.5J x 18 | 10J x 19 |
Brake dimensions front | 348 x 30 | 385 x 36 | 395 x 36 | 332 x 30 | 348 x 30 | 385 x 36 |
Brake dimensions rear | 320 x 20 | 345 x 24 | 385 x 24 | 320 x 20 | 320 x 20 | 345 x 24 |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | -/12.8 | -/12.8 | -/12.8 | -/12.8 | -/12.8 | -/12.8 |
Overall length [mm] | 4857 | 4857 | 4851 | 4857 | 4857 | 4857 |
Overall width without/including mirrors [mm] | 1933/2197 | 1933/2197 | 1994/- | 1933/2197 | 1933/2197 | 2010/2197 |
Overall height [mm] | 1776 | 1776 | 1764 | 1776 | 1776 | 1766 |
Wheelbase [mm] | 2933 | 2933 | 2933 | 2933 | 2933 | 2933 |
Front wheel track [mm] | 1644 | 1640 | 1660 | 1644 | 1644 | 1662 |
Rear wheel track [mm] | 1650 | 1646 | 1672 | 1650 | 1650 | 1702 |
Forward overhang [mm] | 864 | 864 | 856 | 864 | 864 | 864 |
Rear overhang [mm] | 1060 | 1060 | 1062 | 1060 | 1060 | 1060 |
Clearance [mm] | 222 | 222 | 207 | 222 | 222 | 222 |
Wading depth [mm] | 500 | 500 | - | 500 | 500 | 500 |
Approach angle front [°] | 25.5 | 25.5 | 22 | 25.5 | 25.5 | 25.5 |
Approach angle rear [°] | 22.7 | 22.7 | 21.5 | 22.7 | 22.7 | 22.7 |
Transition angle [°] | 19.8 | 19.8 | 18.6 | 19.8 | 19.8 | 19.8 |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
Headroom rear [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
Front elbow/shoulder width [mm] | 1551/- | 1551/- | 1523/- | 1551/- | 1551/- | 1551/- |
Rear elbow/shoulder width [mm] | 1524/- | 1524/- | 1474/- | 1524/- | 1524/- | 1524/- |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
