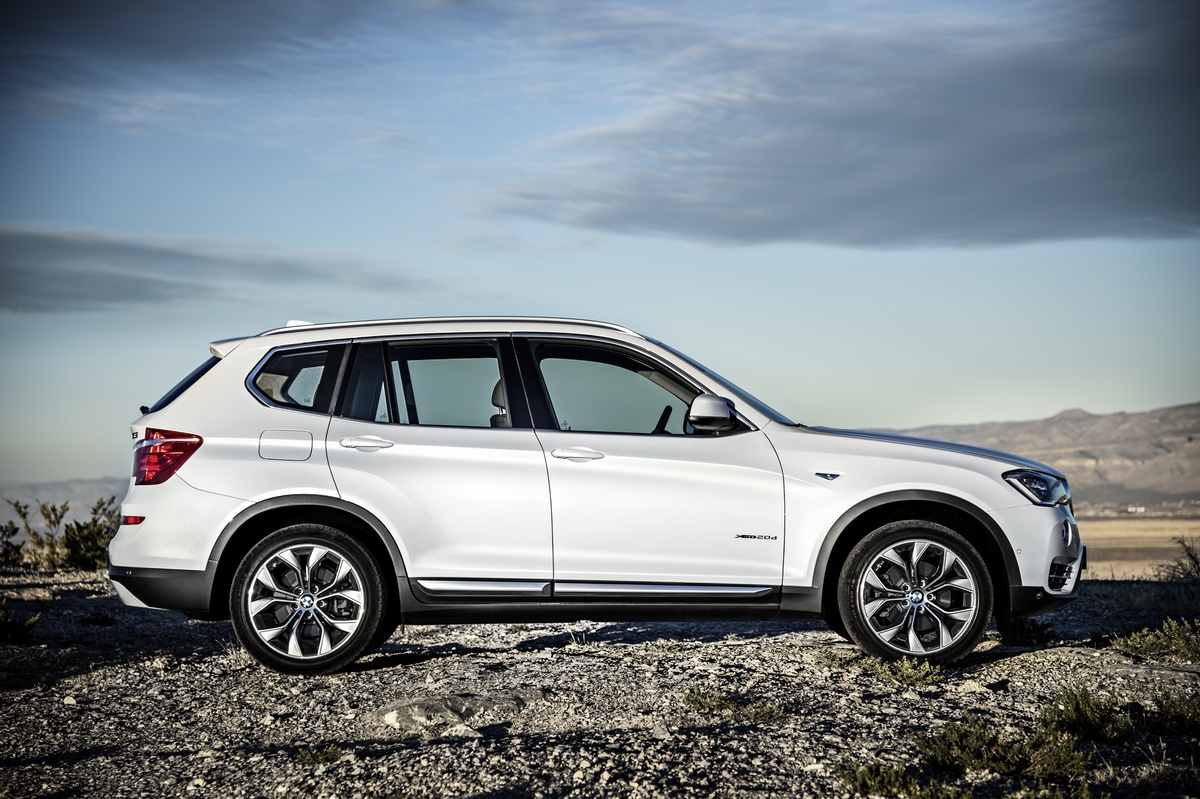

BMW X3
Date of manufacture
2014 – 2017 (SUV)
Platform
-
Manufacturing locations
Greer, South Carolina, USA
Kaliningrad, Russia
Designer
Erik Goplen
Tags
Compact SUV
German cars
The BMW X3 is a highly successful SUV that has been produced since 2014. The vehicle is manufactured in the United States and Russia and offers a wide range of engines - petrol and diesel. The most powerful model is the xDrive35d with a maximum output of 230 kW, while the fastest version reaches speeds of up to 245 km/h. The most comfortable variant, the sDrive18d, has the lowest consumption of 4.7 l/100 km and CO2 emissions of 124 g/km. The car's trunk has a capacity of 550 liters. The vehicle's safety was awarded a EURONCAP rating of 5 out of 5 in 2011.
Car body style
Technical data
SUV
| sDrive20i | xDrive20i | xDrive20i | xDrive28i | xDrive35i | sDrive18d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 2979 | 1995 |
| Maximum output / speed [kW/min-1] | 135/5000-6250 | 135/5000-6250 | 135/5000-6250 | 180/5000-6500 | 225/5800 | 110/4000 |
| Maximum torque [Nm/min-1] | 270/1250-4500 | 270/1250-4500 | 270/1250-4500 | 350/1250-4800 | 400/1200-5000 | 360/1500-2500 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 90,1 | 84,0 x 89,6 | 84,0 x 90,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,2:1 | 16,5:1 |
| Oil volume [l] | 5.75 | 5.75 | 5.75 | 5.75 | 6.5 | - |
| Coolant volume [l] | 7.5 | 7.5 | 7.5 | 7.5 | 9.6 | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | 4x4 | 4x4 | Rear |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 210 | 210 | 210 | 230 | 245 | 195 |
| Acceleration 0–100 km/h [s] | 8.2 | 8.4 | 8.2 | 6.5 | 5.6 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 9.9 | - | - | - | 10.3 |
| City [l] | 8.4-9.0 | 9.4-9.9 | 8.7-9.2 | 9.1-9.3 | 10.7 | 5.4-5.8 |
| Out of town [l] | 5.7-6.1 | 6.3-6.6 | 5.9-6.3 | 6.2-6.3 | 6.9 | 4.3-4.7 |
| Combined [l] | 6.7-7.1 | 7.4-7.9 | 6.9-7.3 | 7.3-7.4 | 8.3 | 4.7-5.1 |
| CO2 emissions [g/km] | 156-166 | 173-183 | 161-171 | 169-172 | 193 | 124-134 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1755 | 1795 | 1810 | 1845 | 1890 | 1735 |
| Overall weight [kg] | 2270 | 2310 | 2325 | 2360 | 2405 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2400 | 750/2400 | 750/2400 | 750/2000 |
| Maximum front/rear axle load [kg] | 1020/1320 | 1070/1320 | 1070/1320 | 1070/1330 | 1120/1330 | 1020/1330 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67 | 67 | 67 | 67 | 67 | 67 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.34 | 0.35 | 0.33 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/60 R17 99V | 225/60 R17 99V | 225/60 R17 99V | 225/60 R17 99V | 245/50 R18 100W | 225/60 R17 99V |
| Tyre dimensions rear | 225/60 R17 99V | 225/60 R17 99V | 225/60 R17 99V | 225/60 R17 99V | 245/50 R18 100W | 225/60 R17 99V |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.9 | -/11.9 | -/11.9 | -/11.9 | -/11.9 | -/11.9 |
| Overall length [mm] | 4657 | 4657 | 4657 | 4657 | 4657 | 4657 |
| Overall width without/including mirrors [mm] | 1881/2089 | 1881/2089 | 1881/2089 | 1881/2089 | 1881/2089 | 1881/2089 |
| Overall height [mm] | 1661 | 1661 | 1661 | 1661 | 1661 | 1661 |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | 2810 |
| Front wheel track [mm] | 1616 | 1616 | 1616 | 1616 | 1594 | 1616 |
| Rear wheel track [mm] | 1632 | 1632 | 1632 | 1632 | 1610 | 1632 |
| Forward overhang [mm] | 858 | 858 | 858 | 858 | 858 | 858 |
| Rear overhang [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Clearance [mm] | 204 | 204 | 204 | 204 | 204 | 204 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1033 | 1033 | 1033 | 1033 | 1033 | 1033 |
| Headroom rear [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Front elbow/shoulder width [mm] | 1483/- | 1483/- | 1483/- | 1483/- | 1483/- | 1483/- |
| Rear elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| sDrive18d | xDrive20d | xDrive20d | xDrive30d | xDrive35d | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 2993 | 2993 | |
| Maximum output / speed [kW/min-1] | 110/4000 | 140/4000 | 140/4000 | 190/4000 | 230/4400 | |
| Maximum torque [Nm/min-1] | 360/1500-2500 | 400/1750-2250 | 400/1750-2250 | 560/1500-3000 | 630/1500-2500 | |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | |
| Oil volume [l] | - | - | - | 6.5 | 6.5 | |
| Coolant volume [l] | - | - | - | 10.0 | 10.0 | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 195 | 210 | 210 | 232 | 245 | |
| Acceleration 0–100 km/h [s] | 9.8 | 8.1 | 8.1 | 5.9 | 5.3 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | 8.8 | - | - | - | |
| City [l] | 5.4-5.9 | 5.9-6.3 | 5.4-5.8 | 6.5-6.6 | 6.7 | |
| Out of town [l] | 4.4-4.8 | 4.7-5.1 | 4.8-5.1 | 5.6-5.7 | 5.5 | |
| Combined [l] | 4.8-5.2 | 5.2-5.6 | 5.0-5.4 | 5.9-6.1 | 6.0 | |
| CO2 emissions [g/km] | 126-136 | 136-146 | 131-141 | 156-159 | 157 | |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1755 | 1805 | 1820 | 1895 | 1935 | |
| Overall weight [kg] | 2320 | 2350 | 2365 | 2410 | 2440 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2400 | 750/2400 | 750/2400 | |
| Maximum front/rear axle load [kg] | 1020/1330 | 1050/1330 | 1060/1330 | 1130/1330 | 1150/1330 | |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 67 | 67 | 67 | 67 | 67 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.34 | 0.34 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 225/60 R17 99V | 225/60 R17 99V | 225/60 R17 99V | 225/60 R17 99V | 245/50 R18 100W | |
| Tyre dimensions rear | 225/60 R17 99V | 225/60 R17 99V | 225/60 R17 99V | 225/60 R17 99V | 245/50 R18 100W | |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 | |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8J x 18 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/11.9 | -/11.9 | -/11.9 | -/11.9 | -/11.9 | |
| Overall length [mm] | 4657 | 4657 | 4657 | 4657 | 4657 | |
| Overall width without/including mirrors [mm] | 1881/2089 | 1881/2089 | 1881/2089 | 1881/2089 | 1881/2089 | |
| Overall height [mm] | 1661 | 1661 | 1661 | 1661 | 1661 | |
| Wheelbase [mm] | 2810 | 2810 | 2810 | 2810 | 2810 | |
| Front wheel track [mm] | 1616 | 1616 | 1616 | 1616 | 1616 | |
| Rear wheel track [mm] | 1632 | 1632 | 1632 | 1632 | 1632 | |
| Forward overhang [mm] | 858 | 858 | 858 | 858 | 858 | |
| Rear overhang [mm] | 989 | 989 | 989 | 989 | 989 | |
| Clearance [mm] | 204 | 204 | 204 | 204 | 204 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1033 | 1033 | 1033 | 1033 | 1033 | |
| Headroom rear [mm] | 994 | 994 | 994 | 994 | 994 | |
| Front elbow/shoulder width [mm] | 1483/- | 1483/- | 1483/- | 1483/- | 1483/- | |
| Rear elbow/shoulder width [mm] | 1458/- | 1458/- | 1458/- | 1458/- | 1458/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
